Customization: Available
Measuring Method: Automatic
Application: Industry
Send Inquiry

Product Description

Overview

Model NO.
RM305
Weight
About 670g
Infrared Resolution
384×288
Detector Type
12μm Uncooled Infrared Detector
Spectral Band
7.5-14μm
Frame Rate
30Hz
Display
3.5-Inch Touch Screen
Battery
Rechargeable Detachable Li-Ion

Product Description

RM305 is a professional handheld thermal camera, featuring high resolution and manual focus for temperature measurement. It is equipped with a self-developed 384×288 infrared detector, providing a high sensitivity of 35mK. It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.

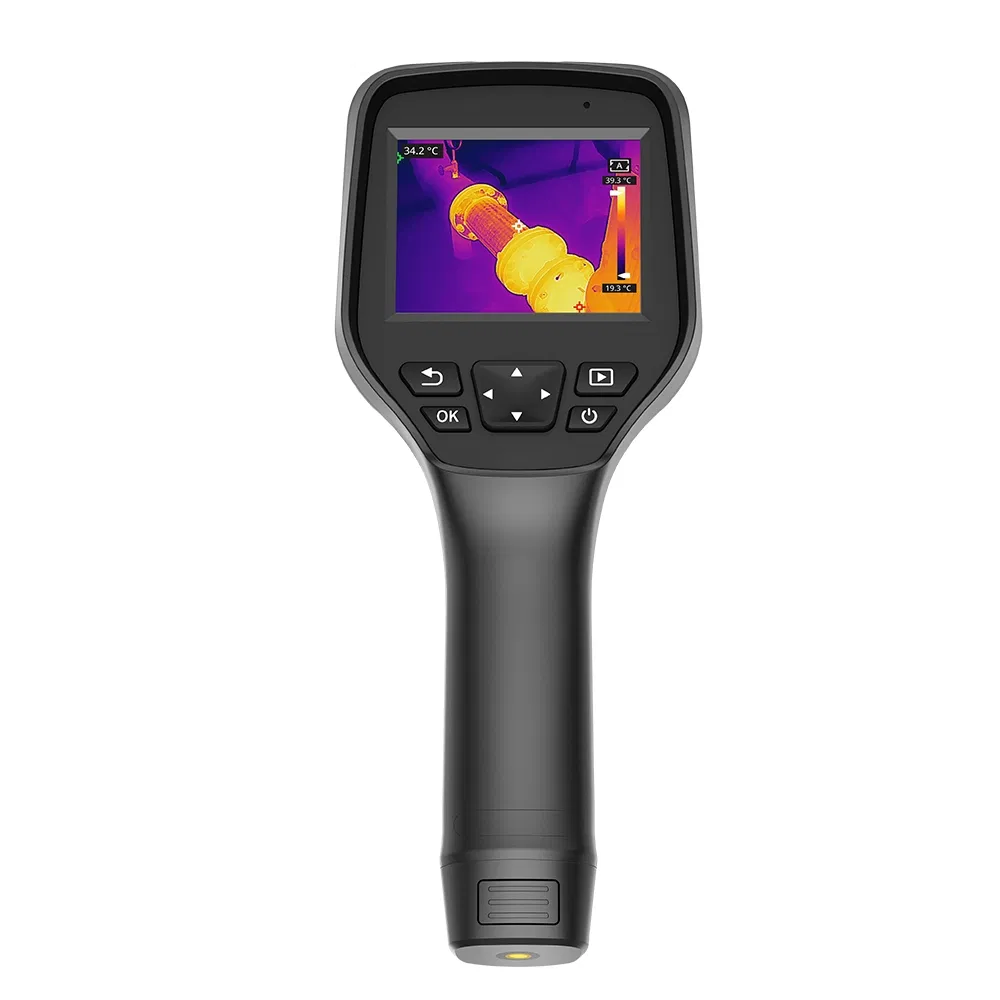

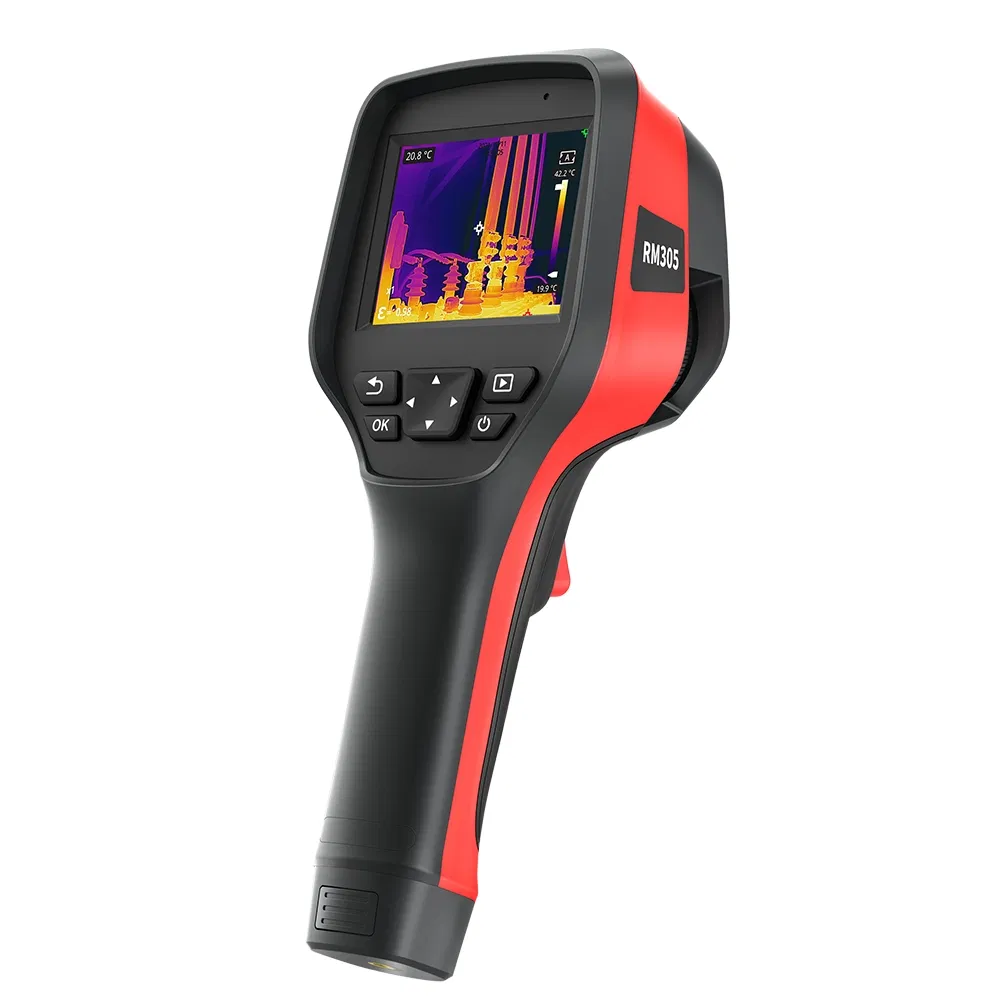

RM305 Handheld Thermal Camera

Product Highlights

  • Clear Thermal Images: 12μm high-performance 384×288 uncooled infrared detector with NETD as low as 35mK.
  • Professional Analysis: USB plug-and-play, real-time full-frame transmission, and automatic tracking of temperature extremes.
  • Multi-dimensional Design: Supports multiple image modes + 10 palette settings for various industrial requirements.
  • Rugged Durability: IP54 rating and 2m drop protection for harsh environments.
  • High-end Interface: 3.5-inch touch screen with 640×480 resolution and built-in laser pointer.

Technical Specifications

Thermal Imaging Parameters
Detector Type12μm uncooled infrared detector
Resolution384×288
NETD<35mK (25°C, F1.0)
Lens Focal Length6.2mm
FOV43.7°×31.9°
Measurement Range-20~+150°C, 100~550°C
Image & Display
Display3.5-inch touch screen, 640×480
Visible Light Camera5 Megapixels
Image ModeInfrared, Visible, PIP, Dual-spectrum fusion
Power & Storage
StorageStandard 32GB MicroSD (up to 512GB)
Battery LifeAbout 6h (total with 2 batteries)
ChargingUSB Type-C or desktop charger

Applications

The RM305 is widely used for Product R&D, Equipment Maintenance, Electric Routine Inspection, and Electrical Maintenance.

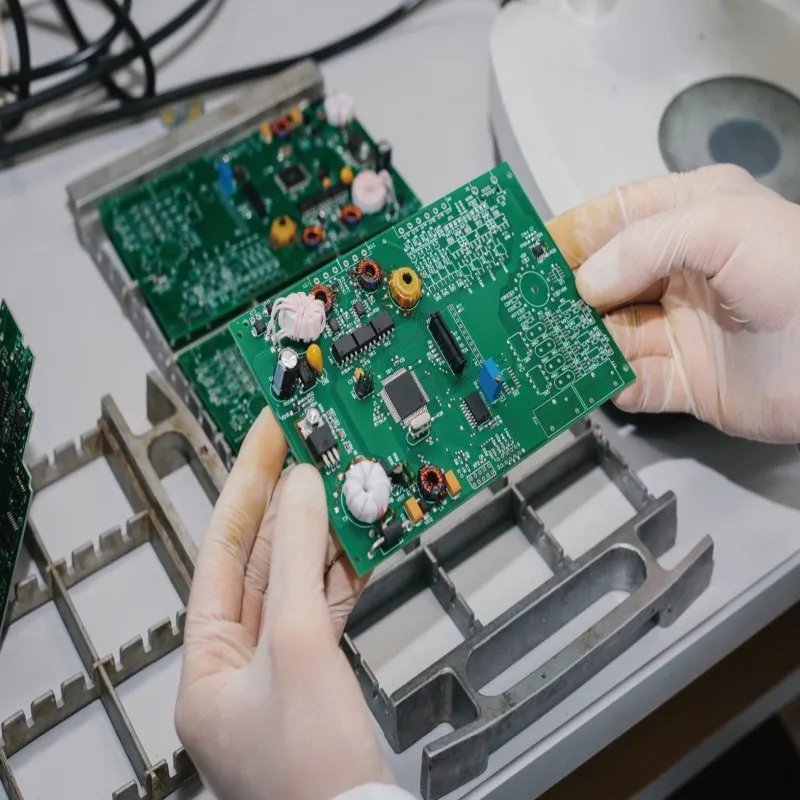

Product R&D Application

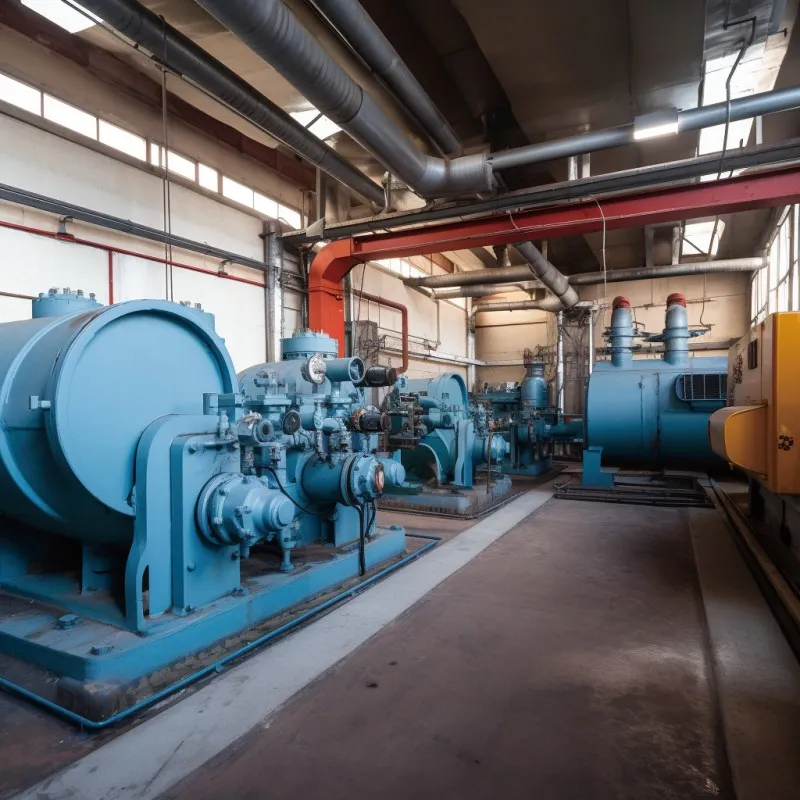

Equipment Maintenance Application

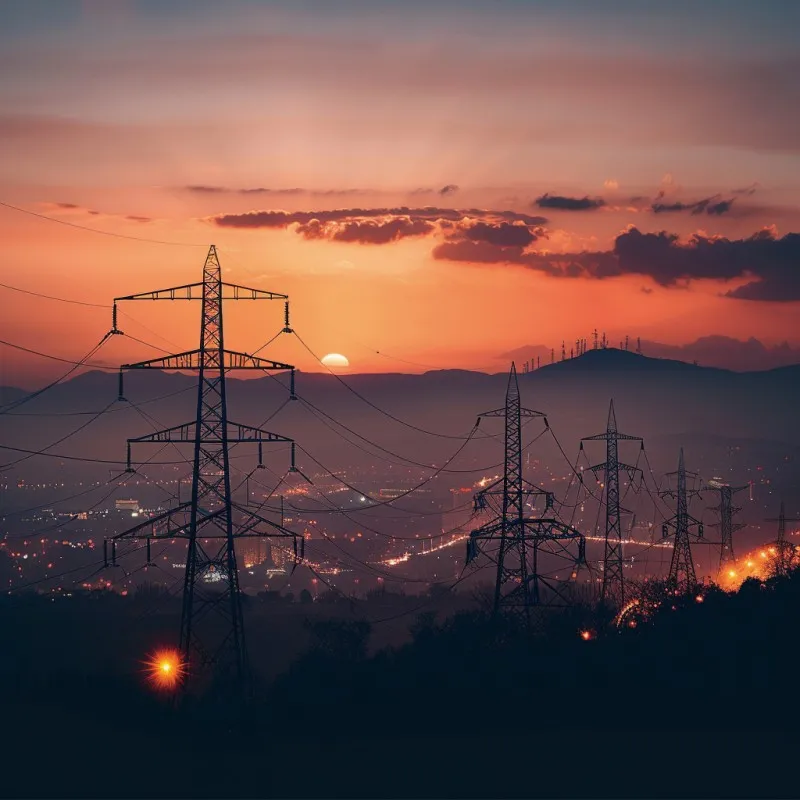

Electric Routine Inspection

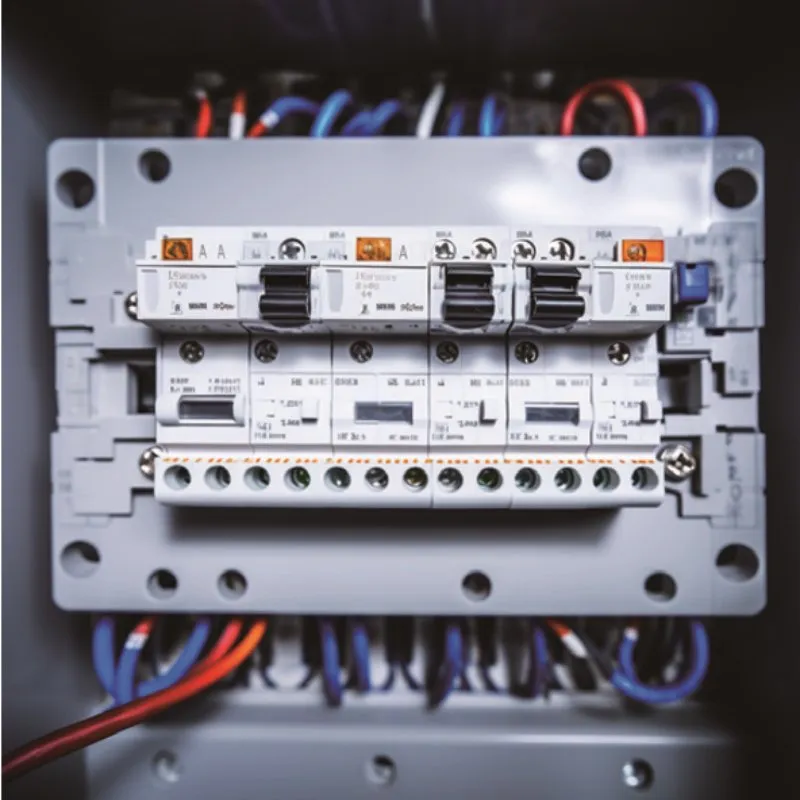

Electrical Maintenance

Frequently Asked Questions

Q1: How is the product quality guaranteed?
We utilize professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certified reliability test platform.
Q2: What is the typical delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please verify the specific shipping time with our team based on requirements.
Q3: What are the supported payment terms?
We support various payment methods including L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Q4: What is the product warranty policy?
Thermal Cameras come with a 2-year warranty, while our core detectors are covered by an extensive 10-year warranty.
Q5: Do you provide after-sales technical support?
Yes, we provide lifetime technical support. Our engineers typically respond to technical inquiries within 24 hours.
Q6: Does the device support real-time video transmission?
Yes, the device supports UVC video transmission and is compatible with PC and mobile analysis software via Wi-Fi and USB.
