Product Description

Basic Specifications

Model NO.

customized

Grain Varieties

Soybeans, Wheat, etc.

Automatic Sampling

Yes

Automatic Conveying

Yes

Rapid Analysis

Yes

Visual Recognition

Yes

Component Determination

Yes

Intelligent Grading

Yes

Data Traceability

Yes

Automatic Sample Retention

Yes

System Integration

Yes

Remote Monitoring

Yes

Transport Package

Wooden Crate

Production Capacity

10000 Pieces/Year

Introduction

Intelligent Sampling and Inspection System is a fully automated, robot-integrated platform designed to streamline the entire grain quality inspection process. It employs a modular architecture with robotics at its core, integrated with advanced control, imaging, and information technologies to enable intelligent, end-to-end inspection operations.

Key Features

Full-Process Automation

The system automates the entire inspection workflow—from intelligent sampling and sample sorting to inspection and data collection—completely eliminating manual intervention and ensuring objective, unbiased results.

Modular & Scalable Architecture

Built around an intelligent inspection unit and centralized control platform, the system supports seamless upgrades and integration of specialized detection instruments for various grain types.

Multi-Grain Versatility

Capable of inspecting all physical quality indicators for rice, corn, soybeans, and wheat, providing a unified solution across different grain varieties.

High-Speed Throughput

Achieves efficient inspection cycles with approximately 13 minutes per sample for rice and 8 minutes for wheat, corn, and soybeans during continuous operation.

Data Integration & Traceability

Automatically collects and uploads inspection data, ensuring real-time traceability, digital record-keeping, and full integration with grain procurement systems.

Integrity Assurance in Procurement

By removing human factors from the inspection process, the system effectively prevents subjective evaluation and relationship-based grading, ensuring fair and impartial grain acceptance.

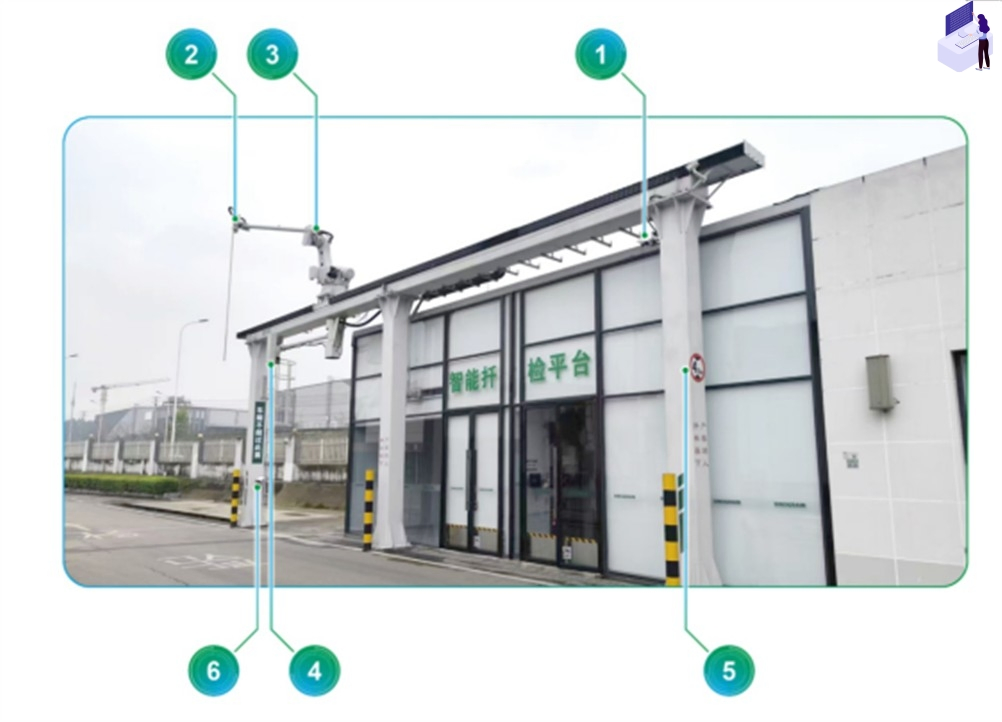

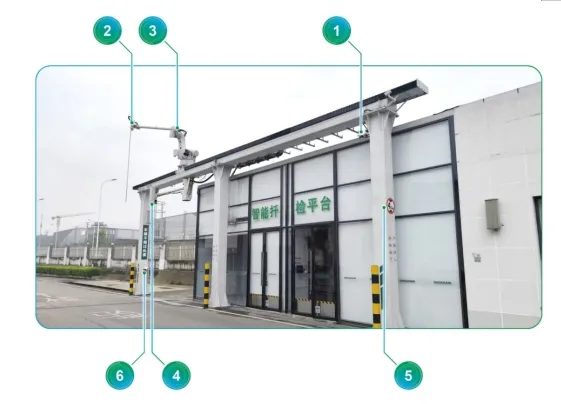

Intelligent Sampling Module

License plate recognition + real-time radar scanning modeling.
Sampling rod bottom rebound, rain & dust protection, automatic lubrication.
Rail-mounted robot for high-precision multi-point sampling.
Excess grain automatically returned to vehicle.
Dimensions: 16644×1300×8427mm
Operating Temperature: -30℃~50℃

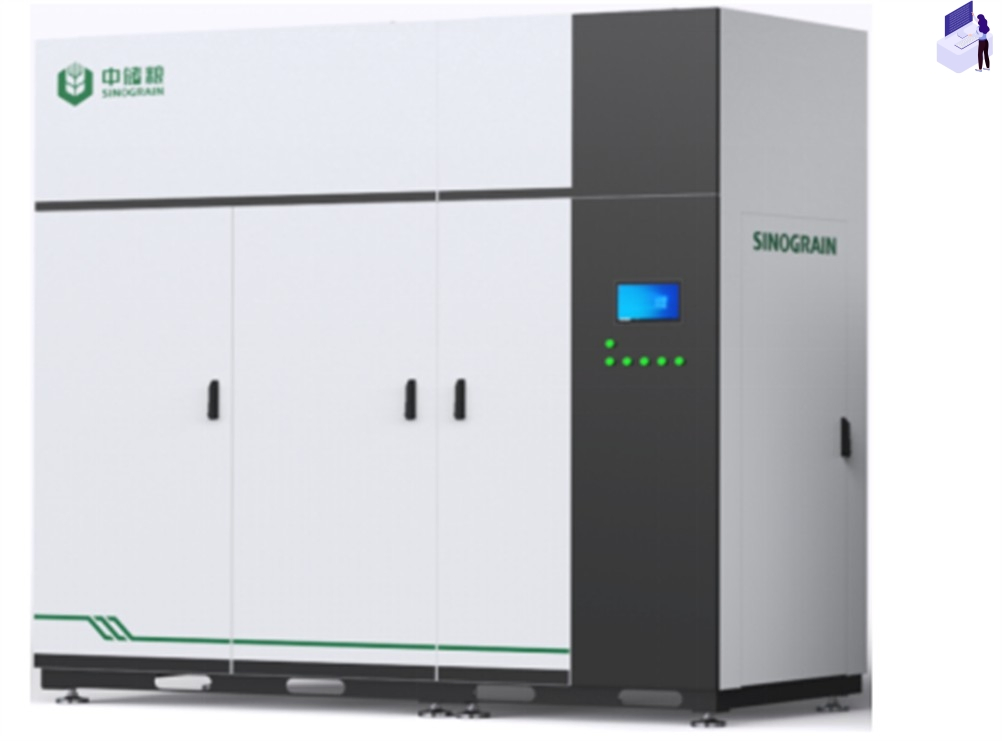

Automatic Sample Dividing Module

This module integrates functions of sample mixing, dividing, and retention. It operates automatically based on preset programs, enabling seamless sample circulation.

Main Components:
Ⅰ. Dust removal and aggregate module
Ⅱ. Sampling module
Ⅲ. Electric control cabinet

Dimensions: 2130 × 1140 × 2680 (mm)

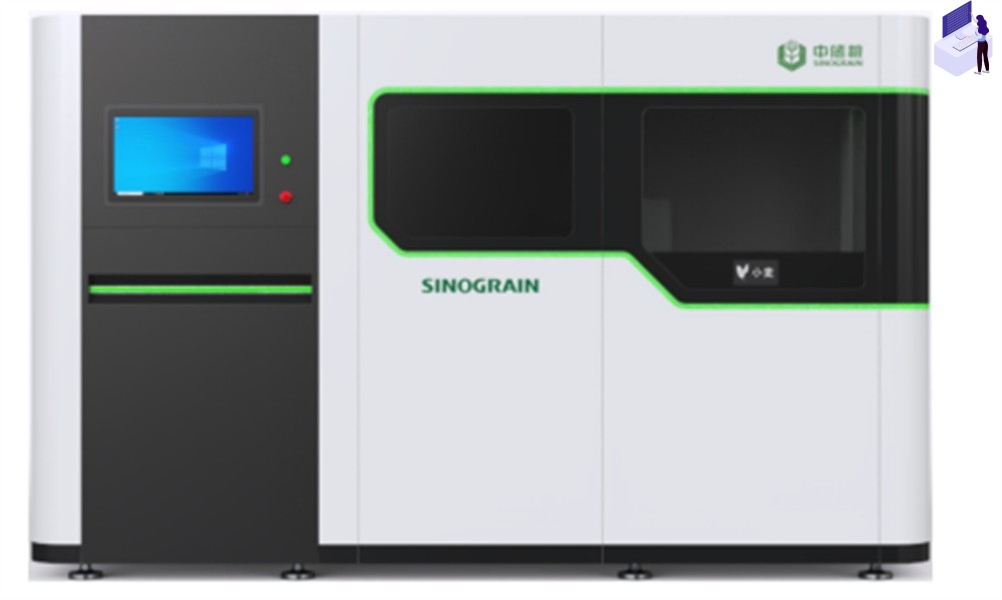

Intelligent Inspection Module

Tests: Impurity, moisture, bulk density, imperfect grains.

Main Components: Integrates robot, impurity screener, rice mill, volume reducer, bulk density tester, grain appearance inspector, weigher, and moisture meter.

Specifications:
Dimensions: 3380×1230×1840mm
Applicable Grains: Rice, corn, soybean, wheat, etc.

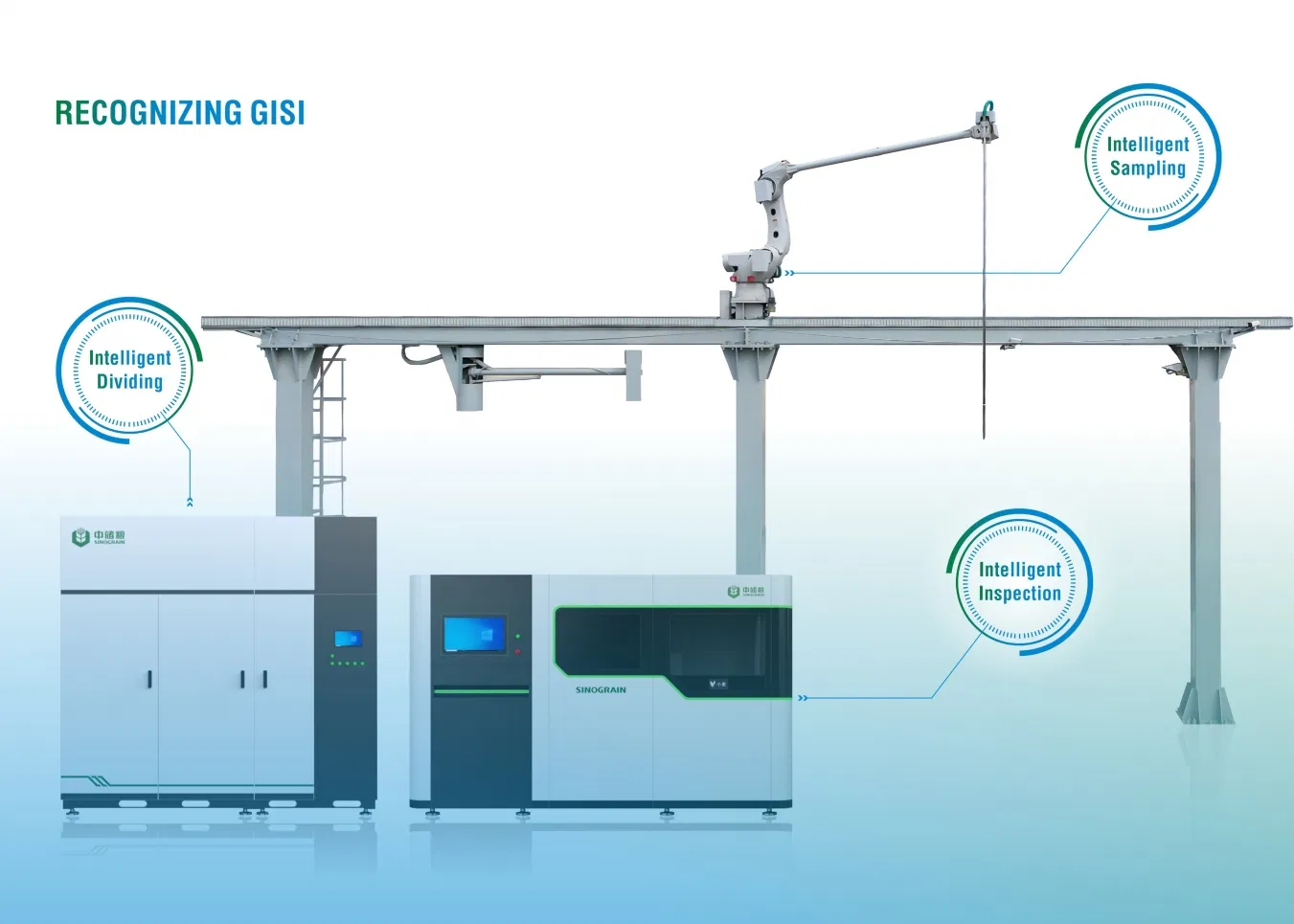

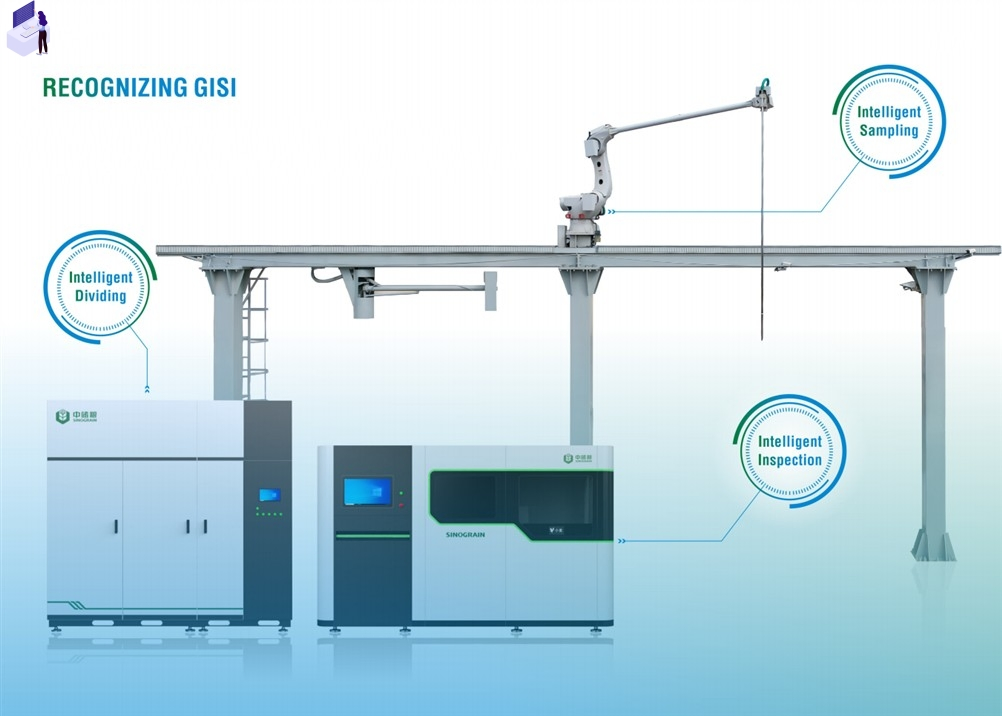

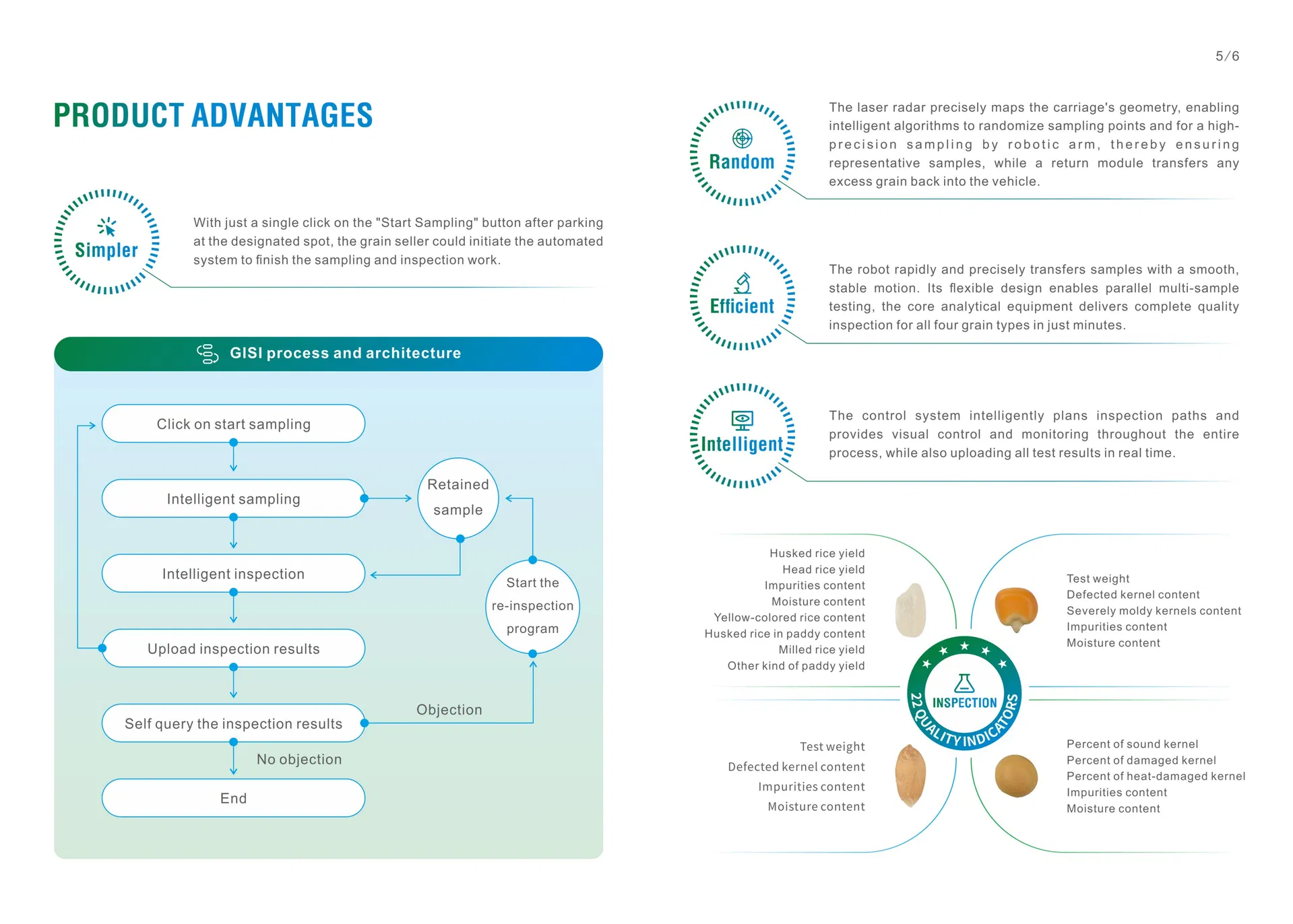

System Overview

Frequently Asked Questions

What grain varieties can this system inspect?

The system is versatile and can inspect various grains including rice, corn, soybeans, and wheat.

How long does the inspection process take per sample?

The system achieves high-speed throughput with approximately 13 minutes for rice and 8 minutes for wheat, corn, and soybeans during continuous operation.

Does the system support extreme weather operation?

Yes, the operating temperature range is -30℃ to 50℃. It includes a preheating program for snow conditions and automatically resumes operation at temperatures above -5℃.

Is the data traceable for procurement systems?

Absolutely. The system automatically collects and uploads all inspection data, ensuring real-time digital traceability and full integration with grain procurement platforms.

Can the system be monitored remotely?

Yes, the platform supports remote monitoring and features a centralized control system for efficient management.

How does the system ensure the fairness of grain grading?

By utilizing robotics and automated visual recognition, the system removes manual intervention and subjective judgment, preventing relationship-based grading and ensuring impartial results.
