Fully Automatic Robotic Multi-Parameter Grain Inspection and Analysis Platform

Basic Specifications

Model NO.

Customized

Grain Varieties

Soybeans, Wheat, etc.

Automatic Sampling

Yes

Automatic Conveying

Yes

Rapid Analysis

Yes

Visual Recognition

Yes

Component Determination

Yes

Intelligent Grading

Yes

Data Traceability

Yes

Sample Retention

Yes

Remote Monitoring

Yes

Production Capacity

10000 Pieces/Year

Transport Package

Wooden Crate

Origin

China

Product Overview

Intelligent Sampling and Inspection System

The Intelligent Sampling and Inspection System is a fully automated, robot-integrated platform designed to streamline the entire grain quality inspection process. It employs a modular architecture with robotics at its core, integrated with advanced control, imaging, and information technologies to enable intelligent, end-to-end inspection operations.

Core Advantages

⚙️ Ⅰ. Full-Process Automation

Automates workflow from sampling to data collection, eliminating manual intervention and ensuring unbiased results.

🧩 Ⅱ. Modular Architecture

Built around centralized control, supporting seamless upgrades and integration for various grain types.

🌾 Ⅲ. Multi-Grain Versatility

Inspects rice, corn, soybeans, and wheat physical quality indicators in one unified solution.

⚡ Ⅳ. High-Speed Throughput

Efficient cycles: ~13 mins/sample for rice and 8 mins for wheat, corn, and soybeans.

📊 Ⅴ. Data Integration

Real-time traceability and digital record-keeping with full procurement system integration.

🛡️ Ⅵ. Integrity Assurance

Prevents subjective evaluation and relationship-based grading through robotic impartiality.

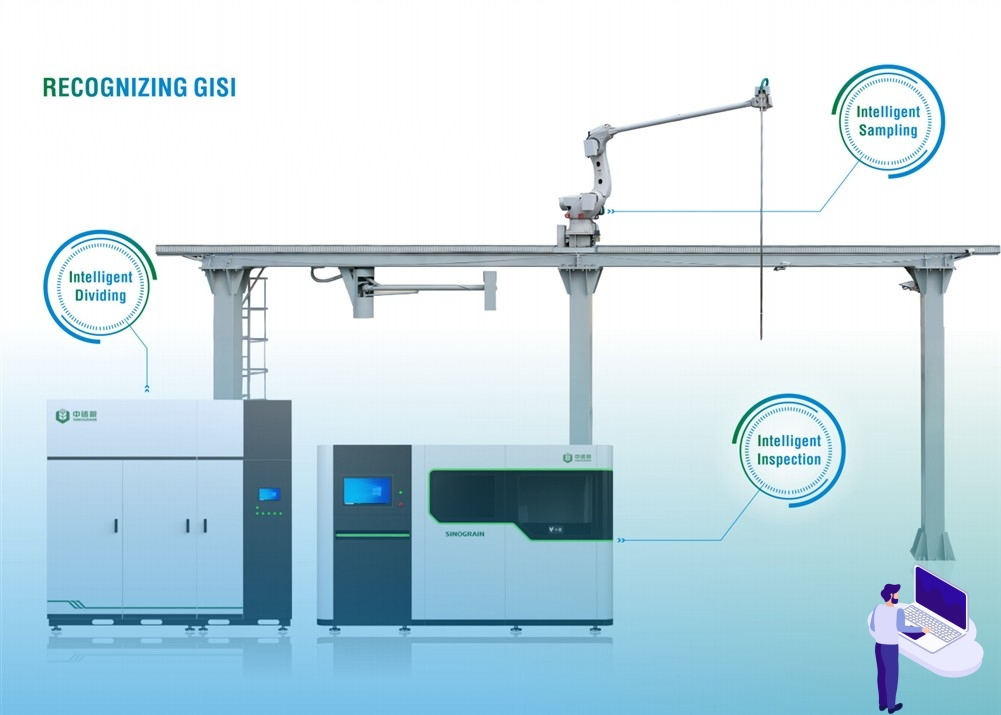

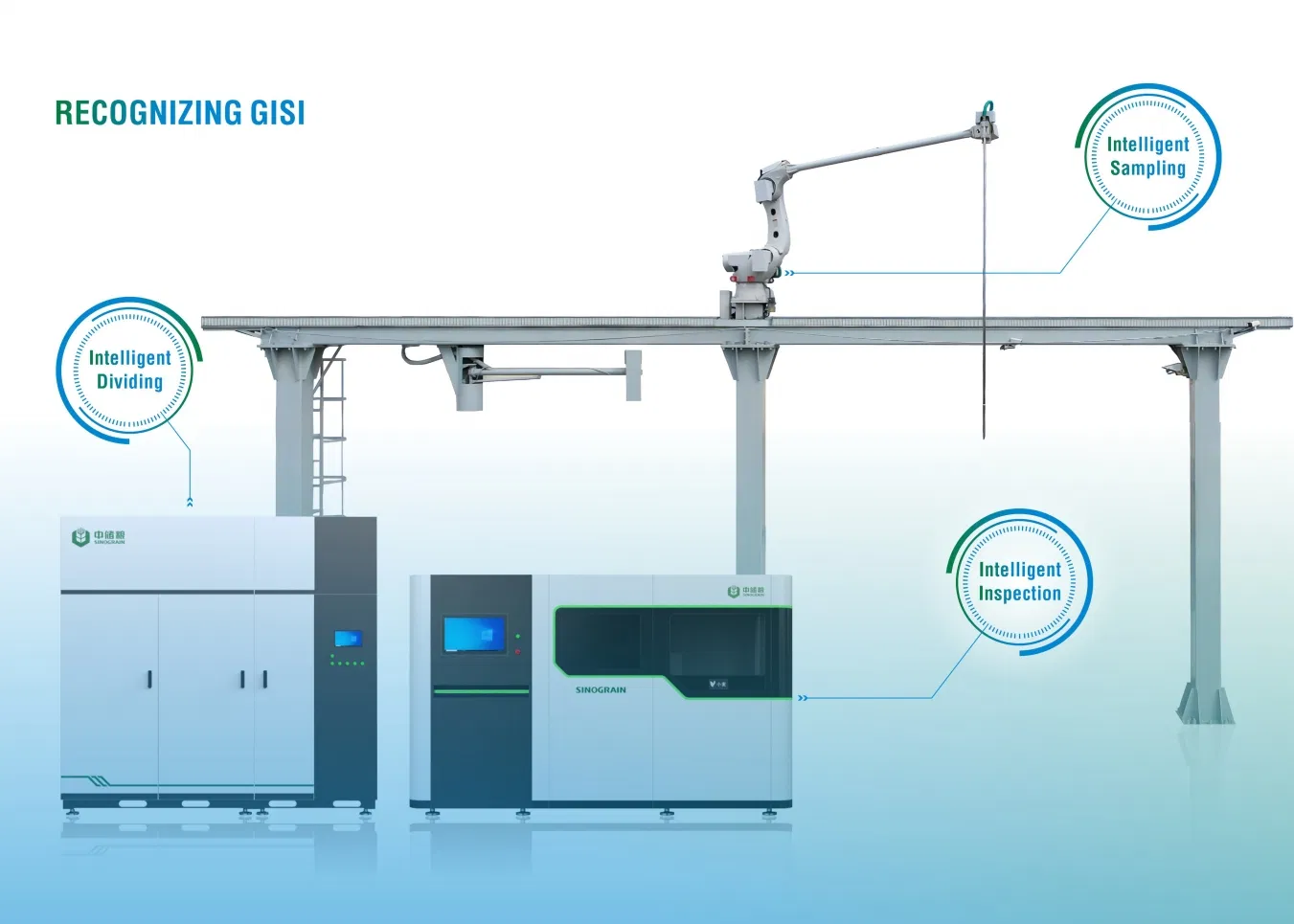

System Modules

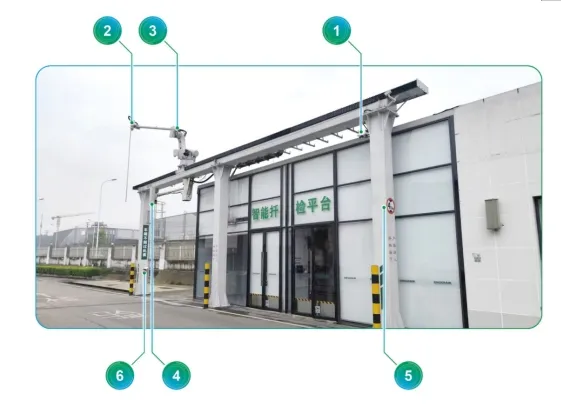

Intelligent Sampling Module

License plate recognition + real-time radar scanning modeling.
Automatic sampling point layout (adjustable parameters).
Rail-mounted robot for high-precision multi-point sampling.
Automatic grain return and rain/dust protection.
Operating temperature: -30℃~50℃.

Automatic Sample Dividing Module

Integrates mixing, dividing, and retention functions. Operates based on preset programs to enable seamless sample circulation without human contact.

Main Components:

Dust removal and aggregate module.
Sampling module & Electric control cabinet.
Dimensions: 2130 × 1140 × 2680 (mm).

Intelligent Inspection Module

Automated testing of impurities, moisture, bulk density, and imperfect grains.

Core Components:

Impurity screener & Rice mill.
Volume reducer & Bulk density tester.
Grain appearance inspector & Moisture meter.
Dimensions: 3380 × 1230 × 1840mm.

System Visuals

Frequently Asked Questions (FAQ)

What grain varieties can this system inspect?

The system is highly versatile and capable of inspecting physical quality indicators for rice, corn, soybeans, and wheat.

How fast is the automated inspection process?

During continuous operation, the system achieves efficient cycles of approximately 8 minutes for wheat, corn, and soybeans, and 13 minutes for rice.

Does the system require manual labor for sampling?

No, the system features a rail-mounted sampling robot and license plate recognition that automatically handles the sampling process without human intervention.

Can the system operate in extreme weather conditions?

Yes, the operating temperature range is -30℃ to 50℃. It includes a preheating program for snow conditions and auto-resumes operation at temperatures above -5℃.

What physical parameters are tested in the inspection module?

The intelligent inspection module tests for impurity levels, moisture content, bulk density, and imperfect grains using integrated precision instruments.

Is the inspection data traceable?

Absolutely. The system automatically collects and uploads all inspection data, ensuring real-time traceability and digital record-keeping for procurement management.
