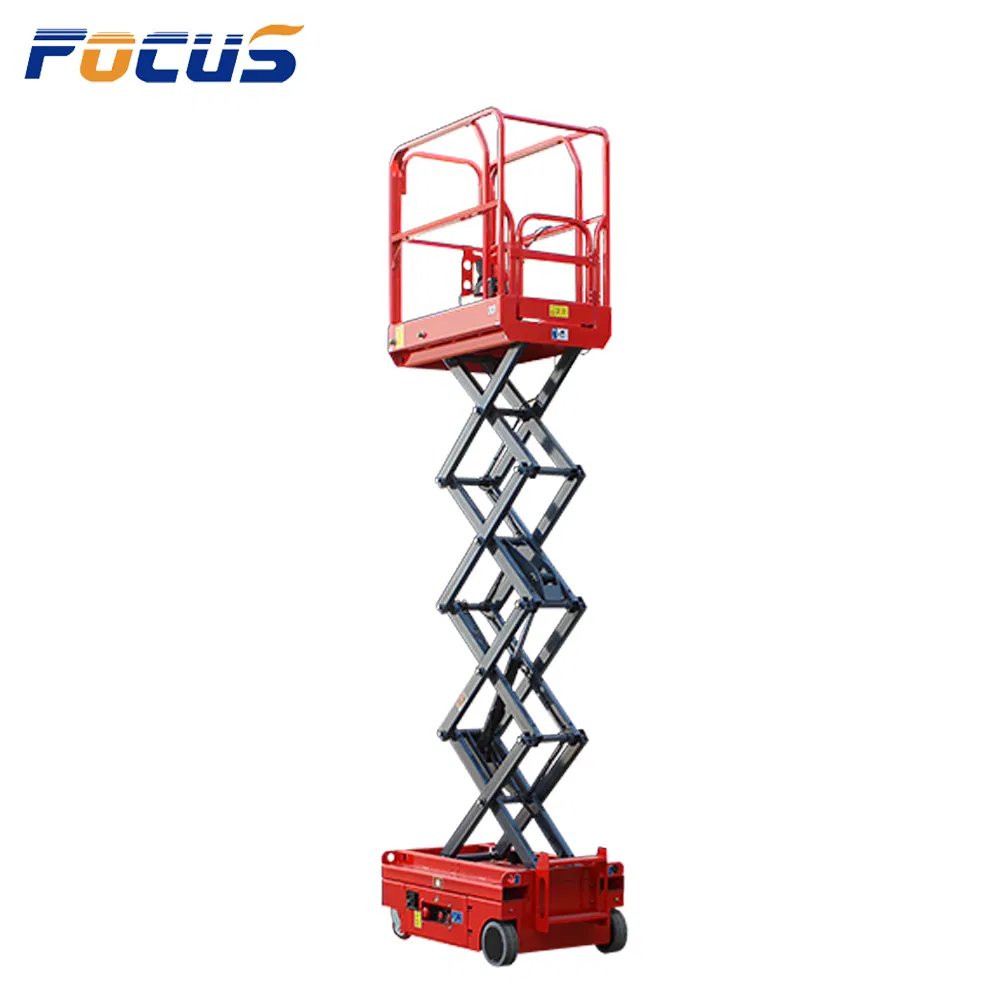

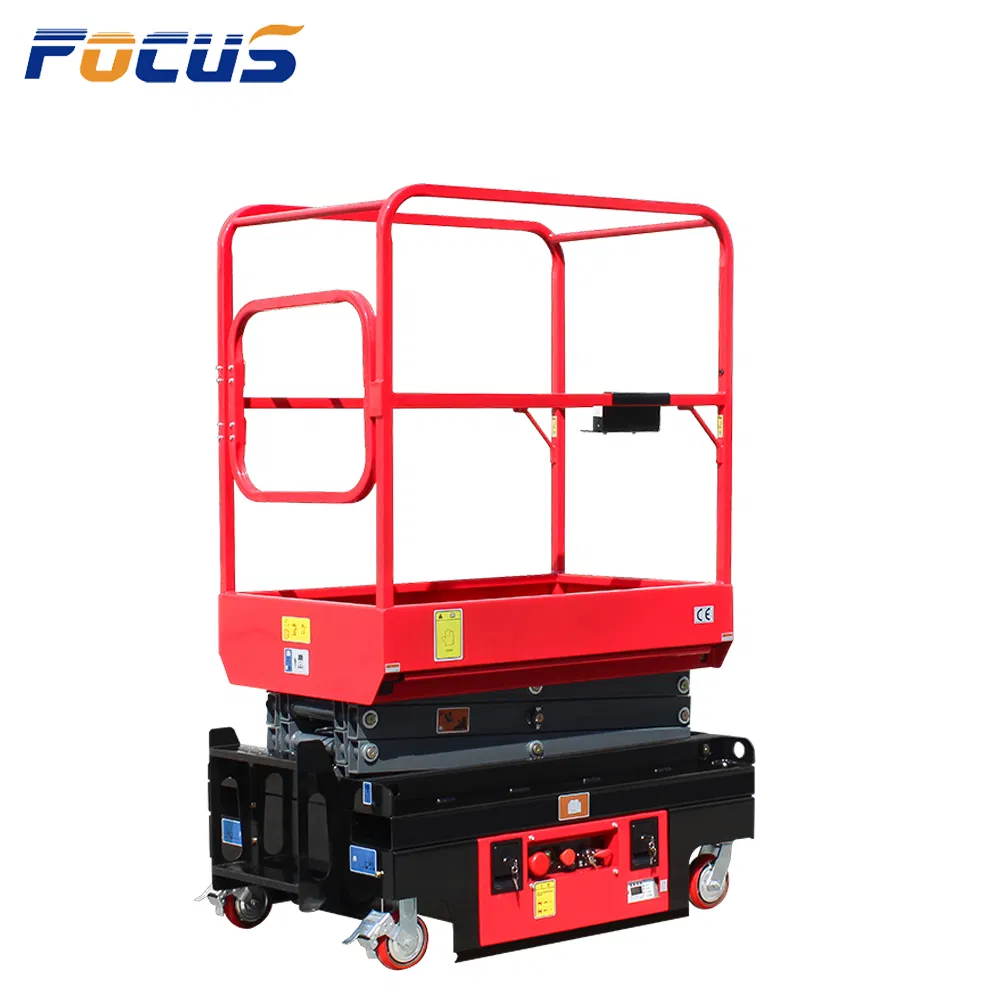

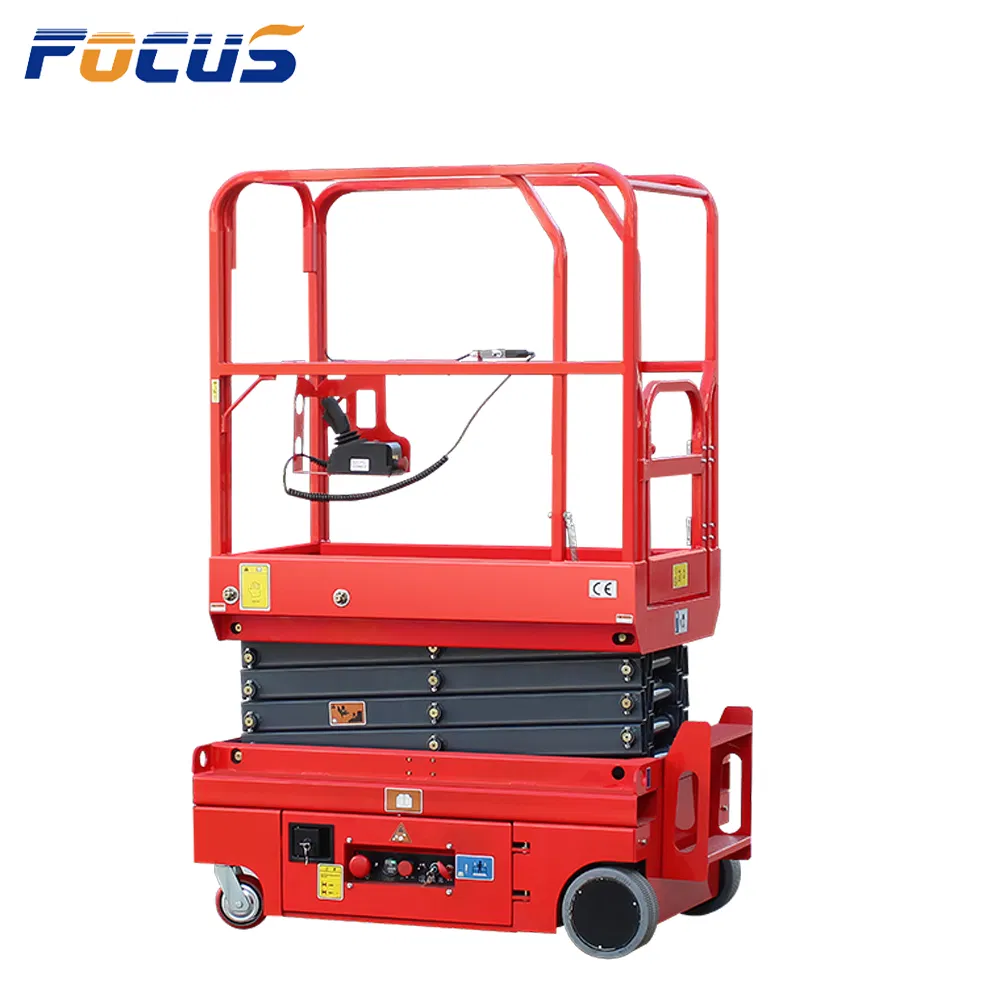

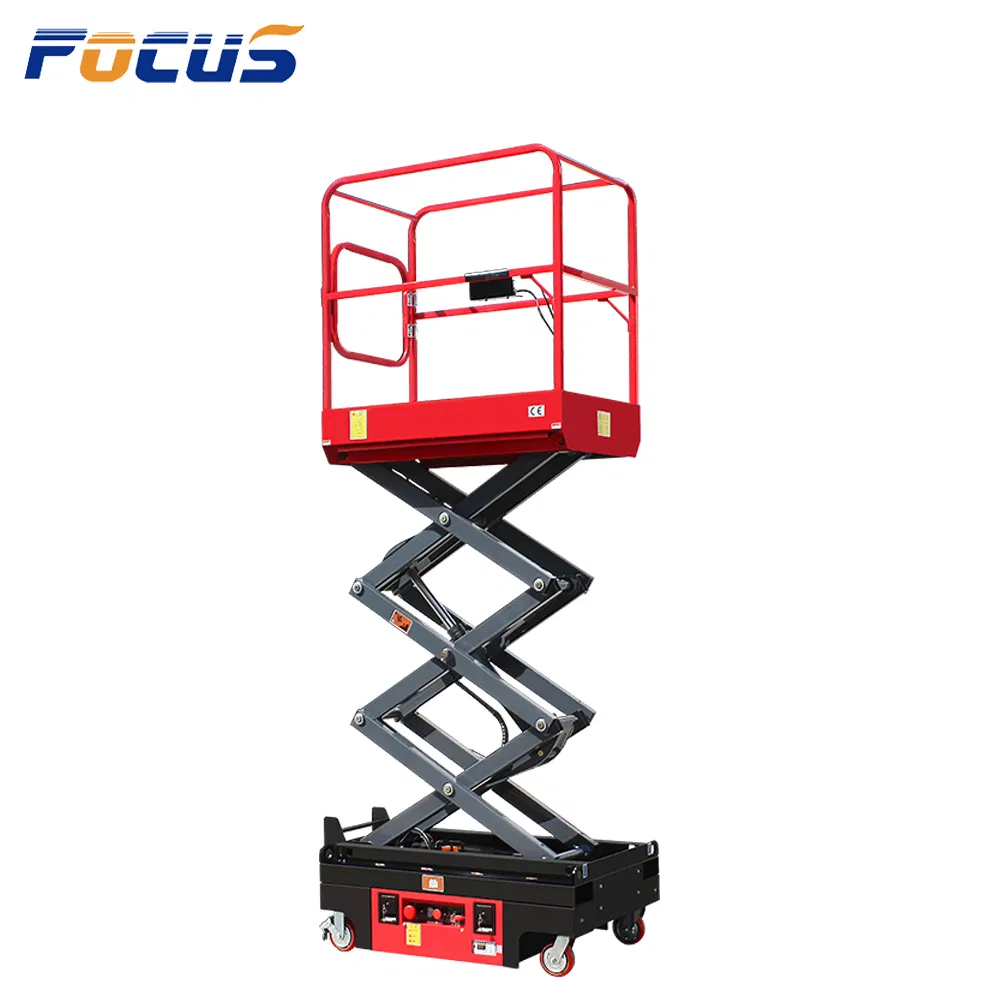

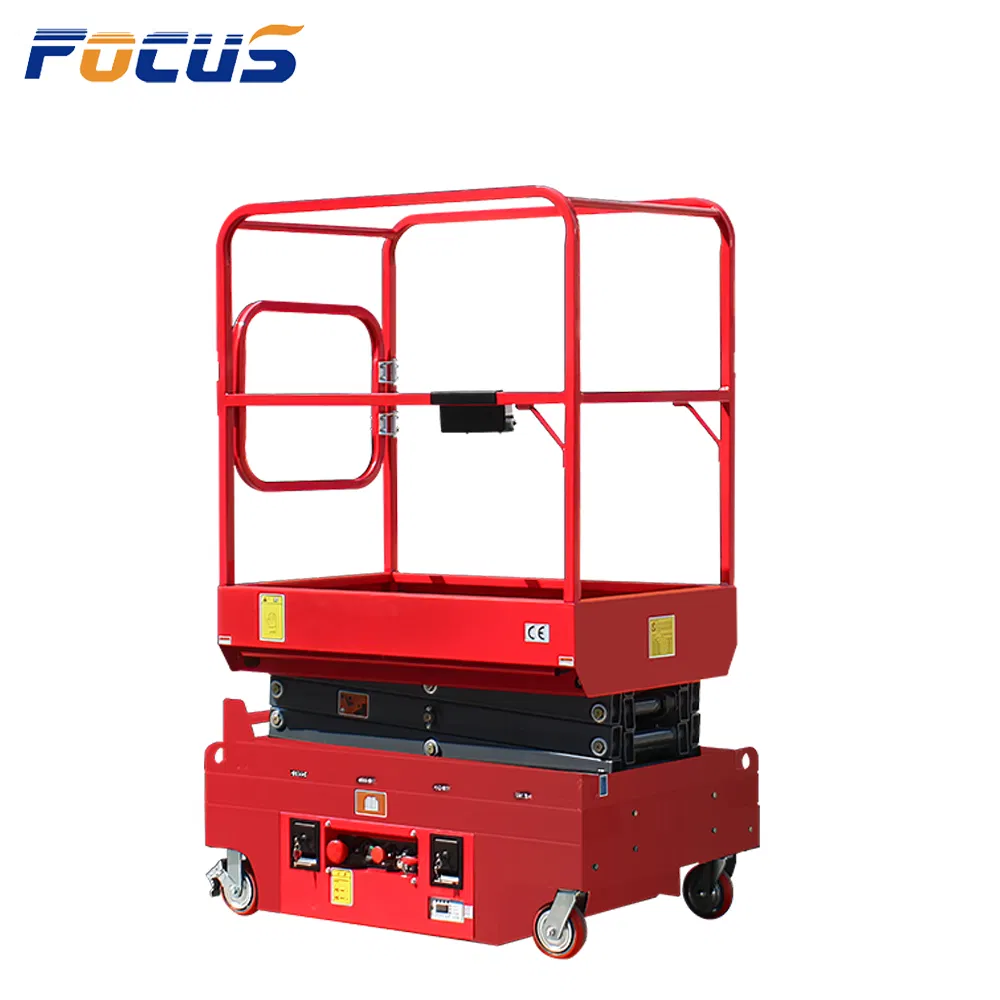

240kg 3-4m Platform Height Scissor Lift with Emergency Lowering System and Onboard Diagnostic System

Customization: Available
After-sales Service: Video Technical Support, Online Support, Spare PAR
Warranty: 1 Years

Product Description

📑 Basic Information
Model NO.
FCS-G Scissor lift
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
Hydraulic
Certification
CE, ISO 9001
Platform Height
19-FT
Platform Capacity
606-Lb
Weight
3,450-Lb
Gradeability
25%
Turning Radius
Inside: Zero / Outside: 66-in
Origin
China
Production Capacity
5000 Vehicle/Year
🏗️ Product Description

Scissor Lift Overview: Scissor lifts are a classification of manlift often found in construction and facility maintenance applications designed to elevate workers and their tools to working heights ranging from 5.9 m (19 ft) to 17.9 (59 ft).

These typically self-propelled machines get their name from their lifting mechanism design — a stack of crossed tubes that work in a scissor-like fashion when the platform is raised and lowered. One of the most common pieces of equipment found in rental fleets is the 19-ft platform height electric scissor lift.

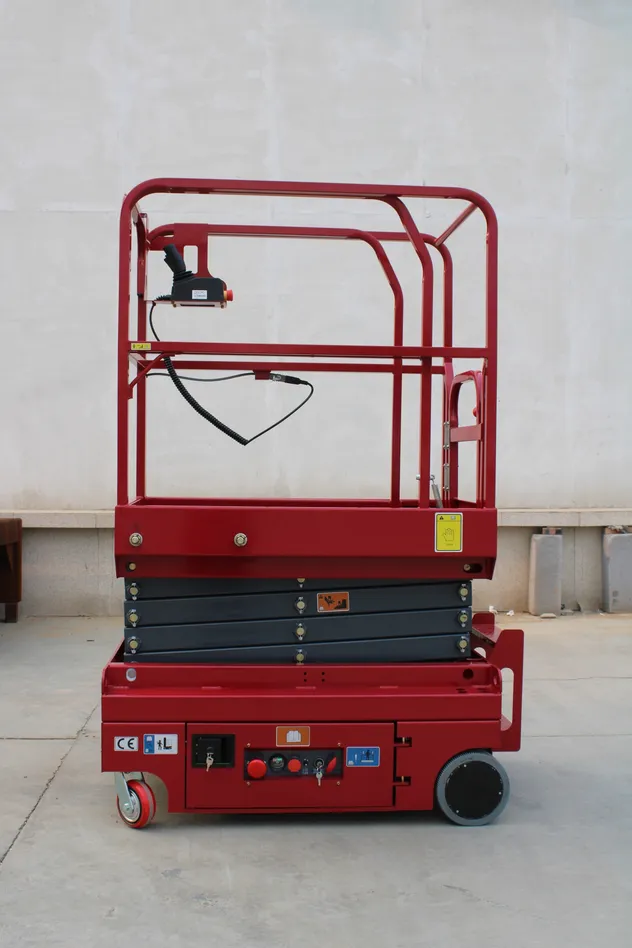

Scissor Lift Display 1

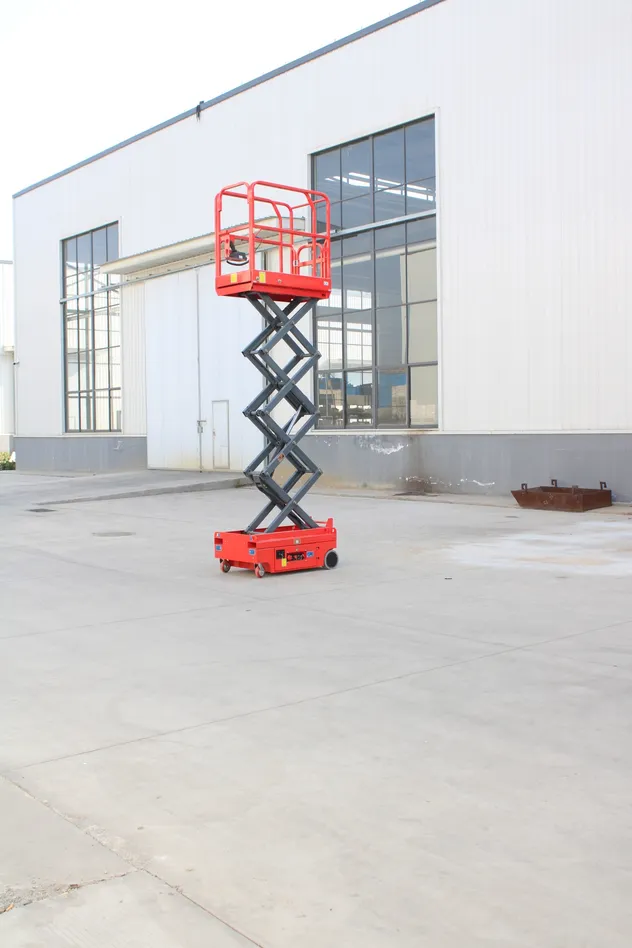

Scissor Lift Display 2

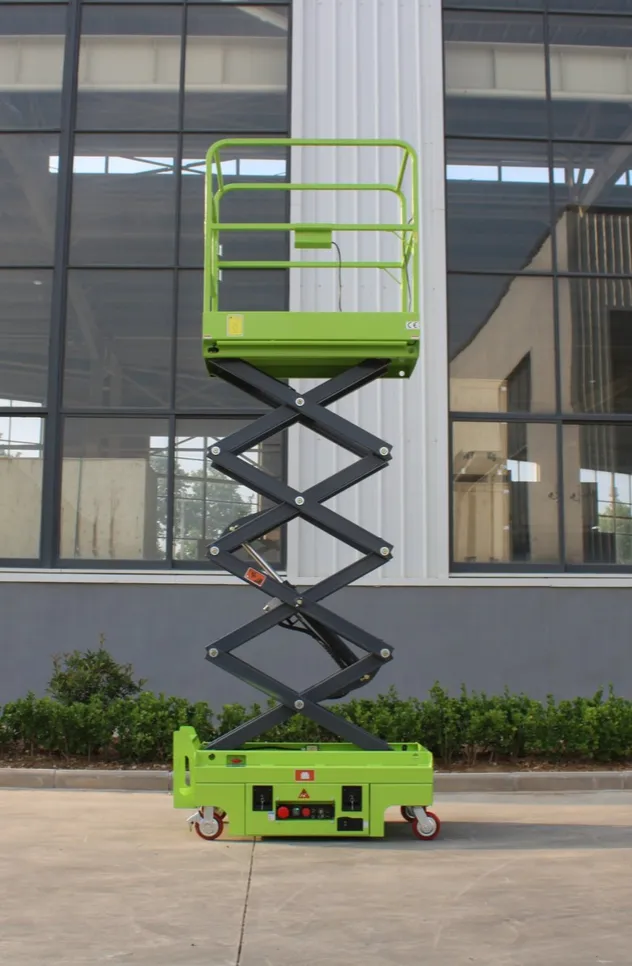

Scissor Lift Display 3

Scissor lifts are further classified as either slab scissors or rough terrain scissors. Slab scissors are compact machines with solid non-marking tires, intended for concrete slab type surfaces. They can access jobsites through single or double doors, enabling work in restricted access applications.

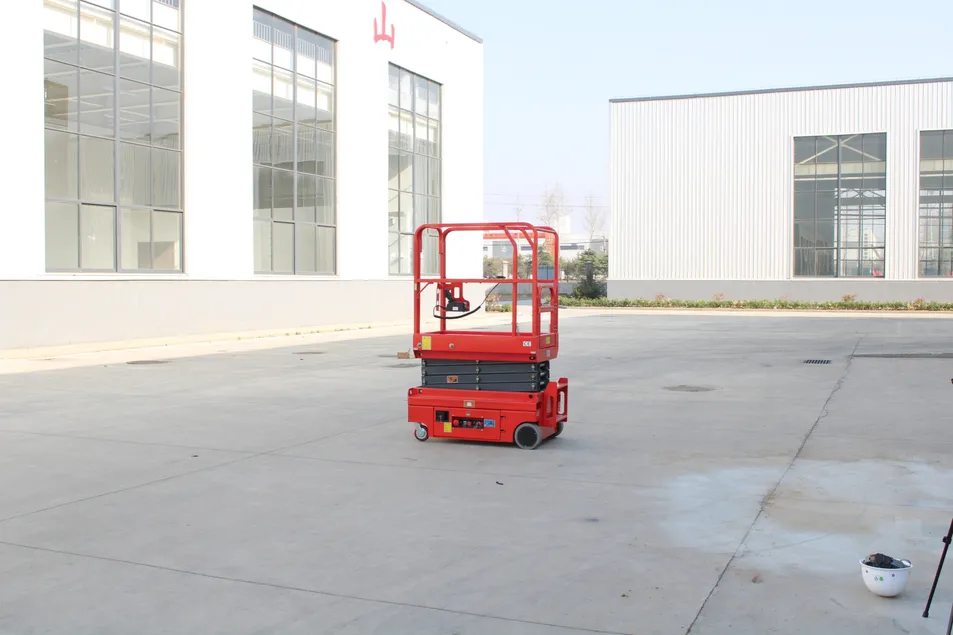

Operational Scissor Lift 1

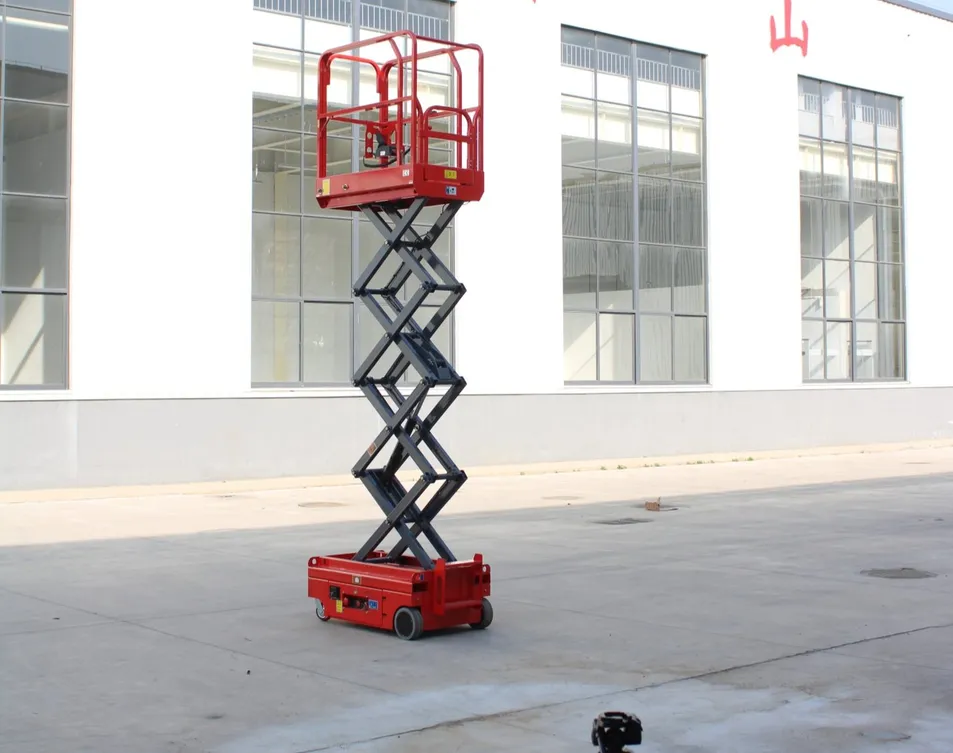

Operational Scissor Lift 2
📐 Key Models & Specifications
GS-3246 E-Drive Slab Scissor Lifts:

Compact dimensions and zero inside turning radius make this ideal for indoor and outdoor tasks on level ground. The AC electric E-Drive system offers unmatched efficiency and runtime.

GS-3246 Model
GS-4046 E-Drive Slab Scissor Lifts:

Increase productivity in high-rise spaces with a compact footprint ideal for narrow aisles. Features the state-of-the-art Genie AC electric E-Drive system for superior performance.

GS-4046 Model
JLG Series (AE1932 & ES1932):

The DaVinci AE1932 is all-electric with zero emissions and leaks. The ES1932 delivers double the battery life of standard scissors and features the QuikFold rail system.

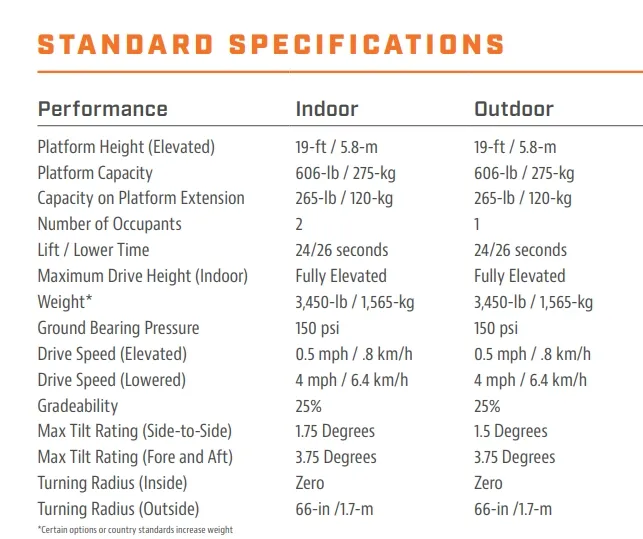

JLG AE1932

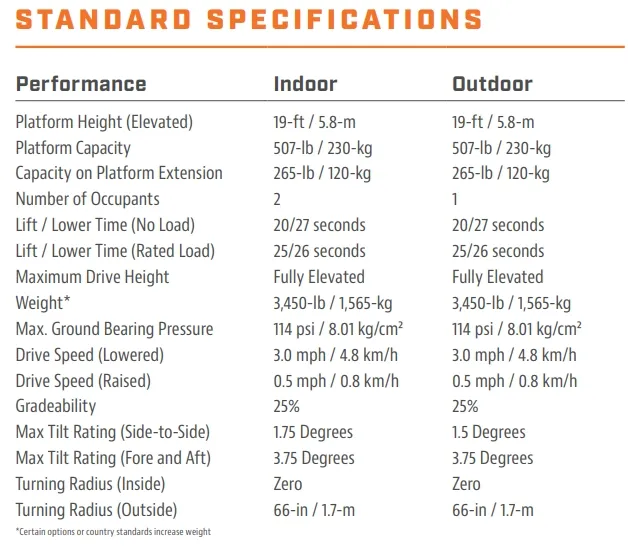

JLG ES1932
📊 Technical Specifications Table
Feature FCS-ES1330M FCS-ERT2669 FCS-ES1932 FCS-AE1932 FCS-RT2669
Platform Height13-ft / 3.8-m26-ft 2-in / 8-m19-ft / 5.8-m19-ft / 5.8-m26-ft 2-in / 8-m
Platform Capacity500-lb / 227-kg1.3-m507-lb / 230-kg606-lb / 275-kg1,500-lb / 680-kg
Extension Capacity250-lb / 115-kg1,500-lb / 680-kg265-lb / 120-kg265-lb / 120-kg300-lb / 136-kg
Occupants24224
Lift/Lower Time17/17s37/37s20/27s24/26s36/28s
Weight1,984-lb8,250-lb3,450-lb3,450-lb8,250-lb
Drive Speed (Low)2.4 mph3.5 mph3.0 mph4.0 mph3.5 mph
📸 Product Gallery

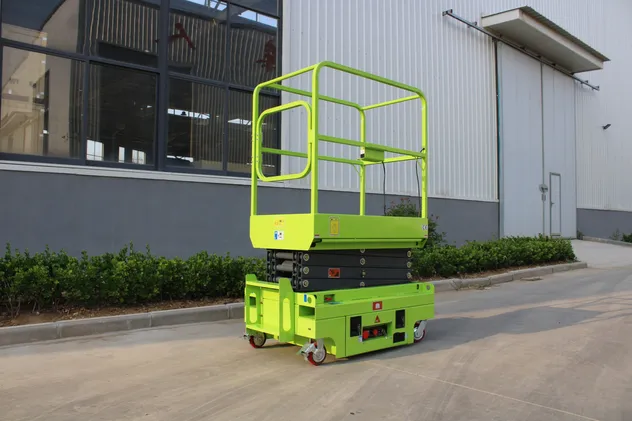

Gallery 1

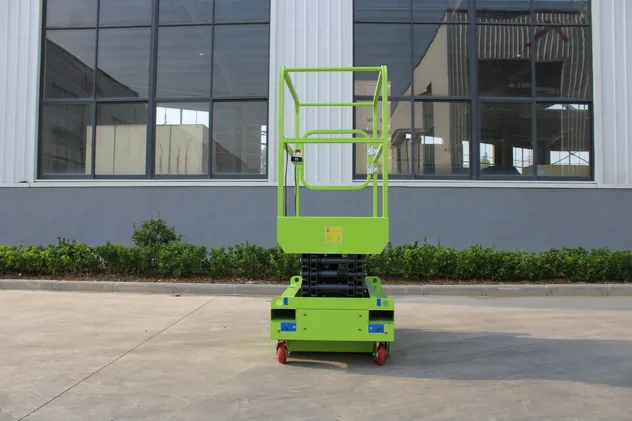

Gallery 2

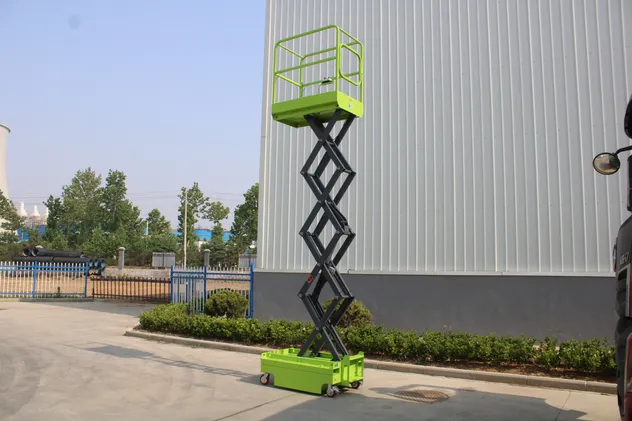

Gallery 3

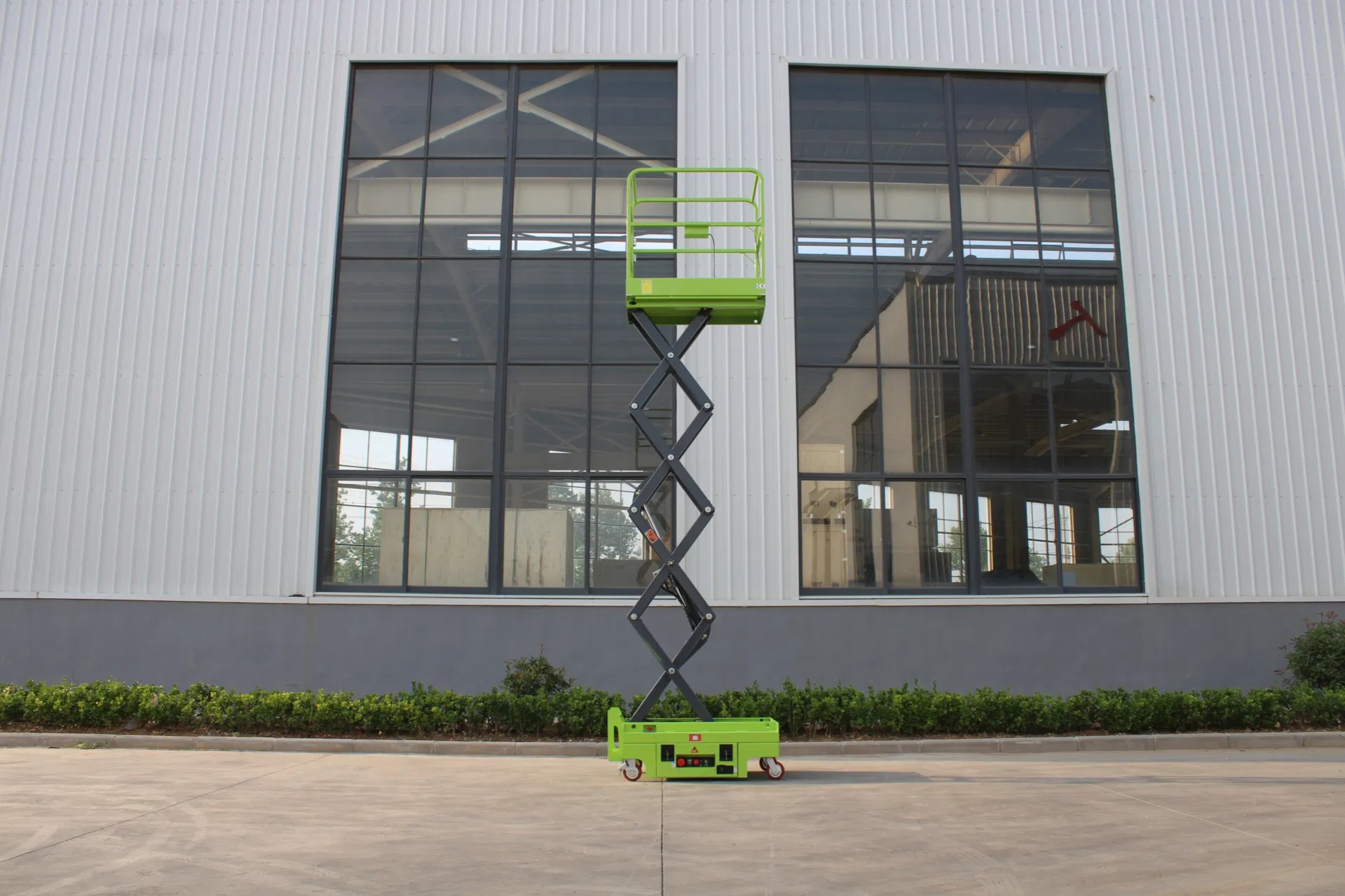

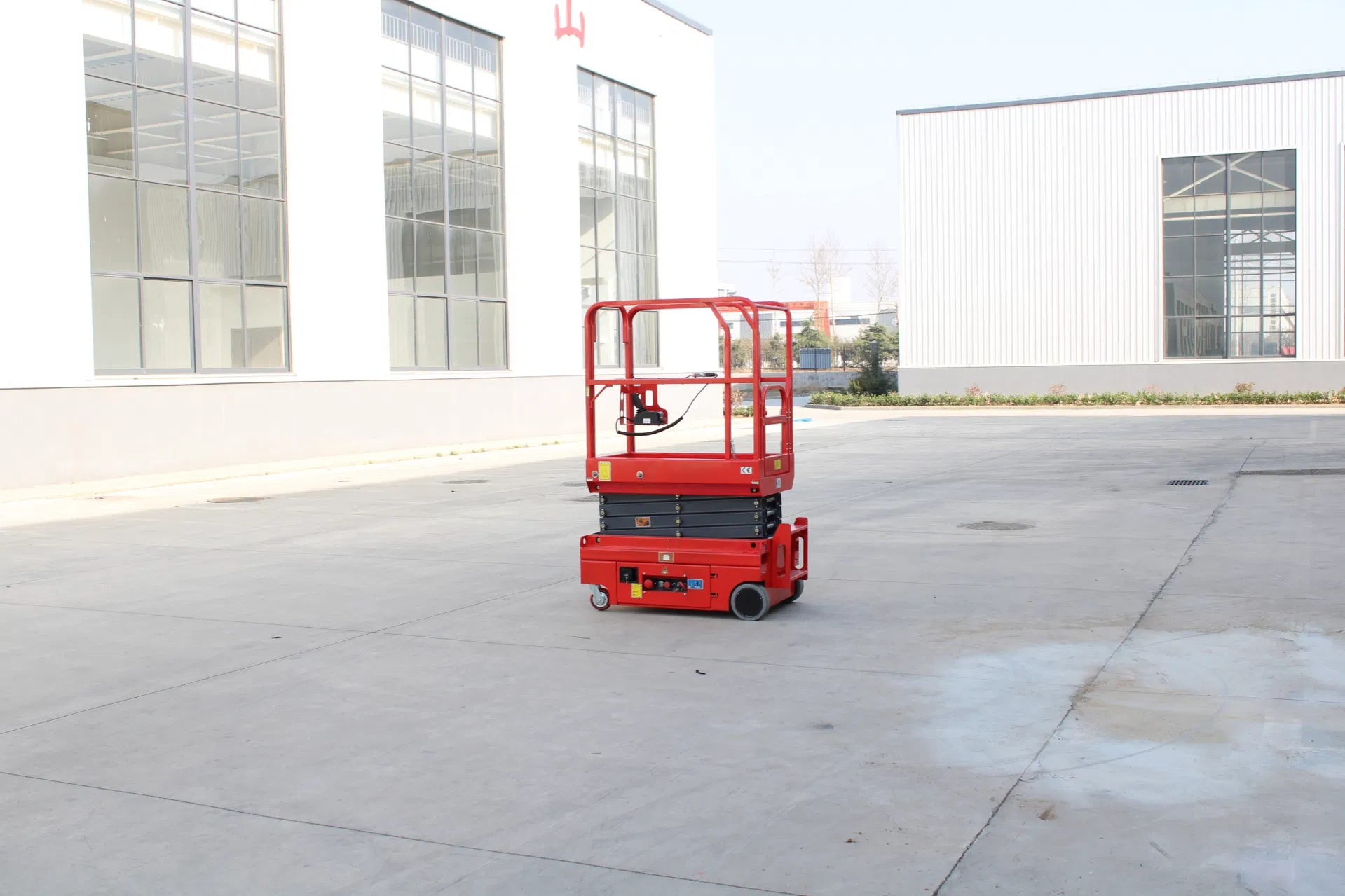

Structure Detail Component Detail
🛠️ Maintenance & Guidelines
Do not overload the platform and check ground conditions before use.
Perform a thorough operation check before each use and wear safety gear.
Check hydraulic oil, remove air, and lubricate moving parts every six months.
Always lower the forks to the lowest position after work is completed.
🤝 Service Promise
🔹24-hour support for quality and extended service.
🔹Lifelong free technical guidance service.
🔹Site instruction and technical training for bulk orders.
Frequently Asked Questions
1. What is the maximum platform height available for these scissor lifts?
Our standard scissor lifts range from 5.9 m (19 ft) up to 17.9 m (59 ft) working heights, depending on the specific model selected.
2. Can these lifts be used indoors on finished flooring?
Yes, our Slab Scissor models are designed with non-marking solid tires specifically for indoor use on concrete slabs and sensitive flooring.
3. What are the advantages of the E-Drive electric system?
The AC electric E-Drive system provides unmatched efficiency, longer runtimes per charge, and superior performance for jobsites requiring frequent driving.
4. How often should I perform maintenance on the lift?
We recommend a thorough check every six months, focusing on oil levels, lubrication of axles, and inspecting the lifting/lowering controls.
5. Are the scissor lifts capable of driving while elevated?
Most of our models, such as the GS and ES series, are designed to be driven at full elevation on level, smooth surfaces for maximum productivity.
6. What is the gradeability of these machines?
Standard slab models typically offer 25% gradeability, while rough terrain models can handle up to 40% inclines.
