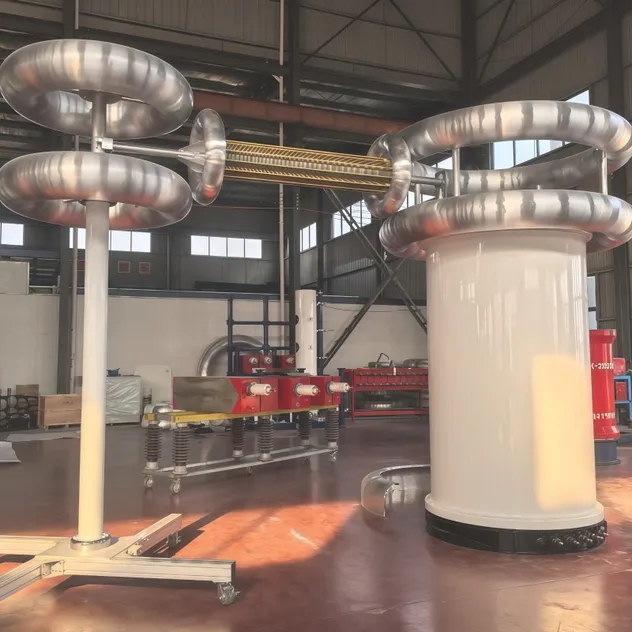

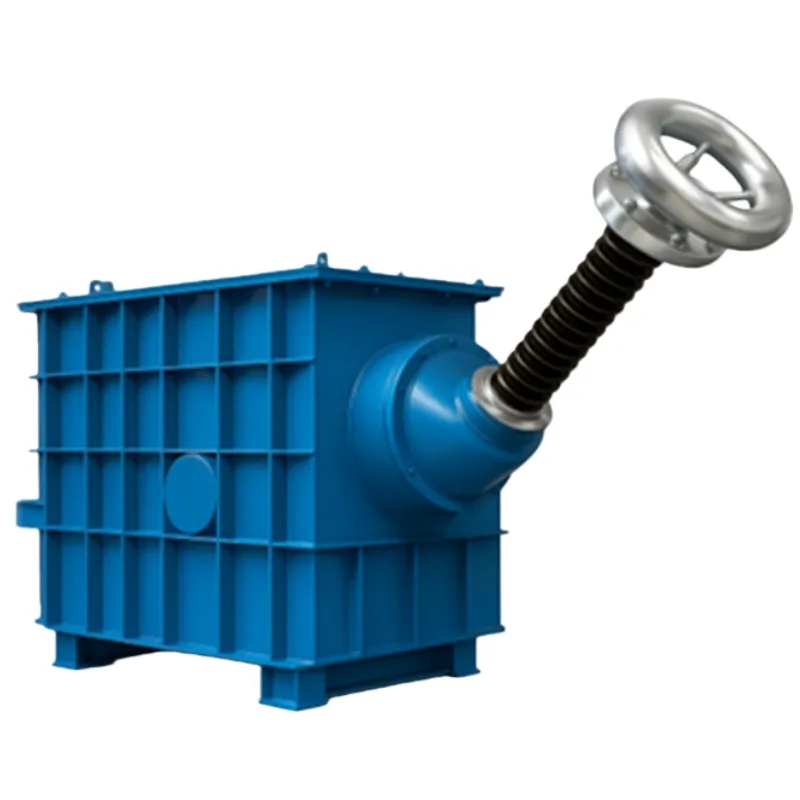

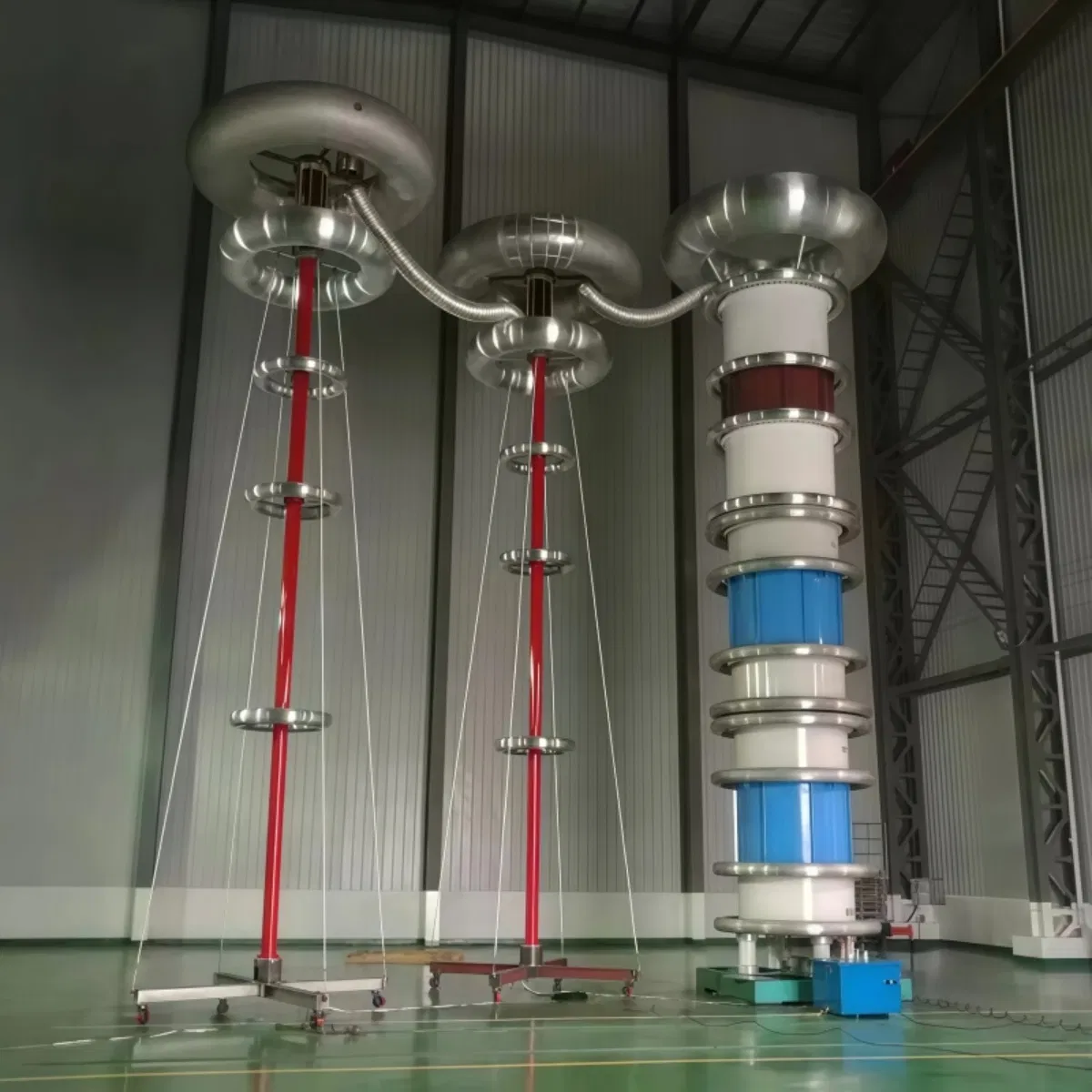

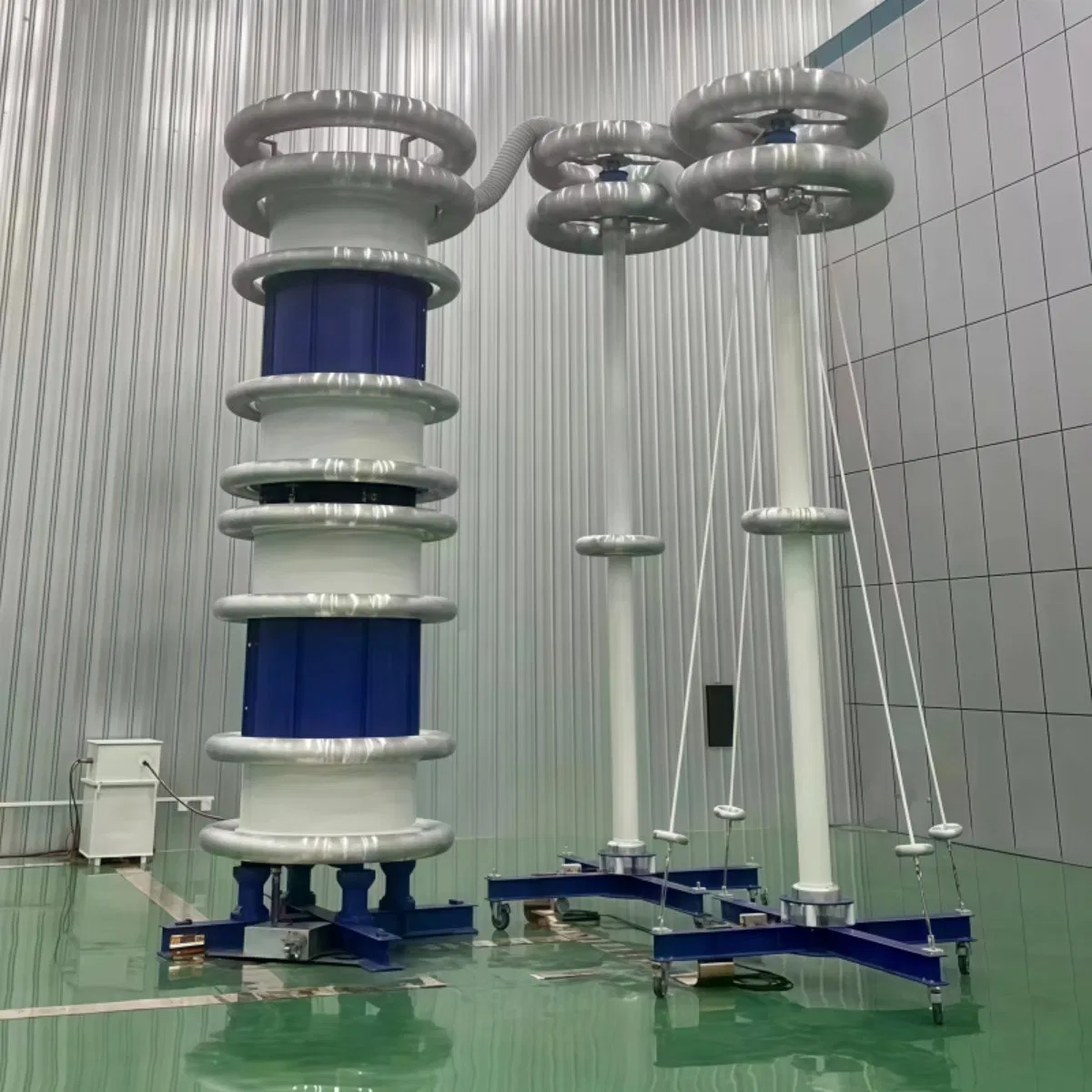

AC Resonant Test Systems consist of a high-voltage variable inductor and a small exciter transformer for HVAC cable testing. It meets IEC 60060-1 and IEC 60060-3 standards, providing a test voltage range of approximately 10% to 100% of the rated voltage. The system is installed in a standard 10ft container for easy transport. It operates in resonance, creating high test voltages with minimal power input by forming an oscillating circuit between the HV test system components and the load (power cable).

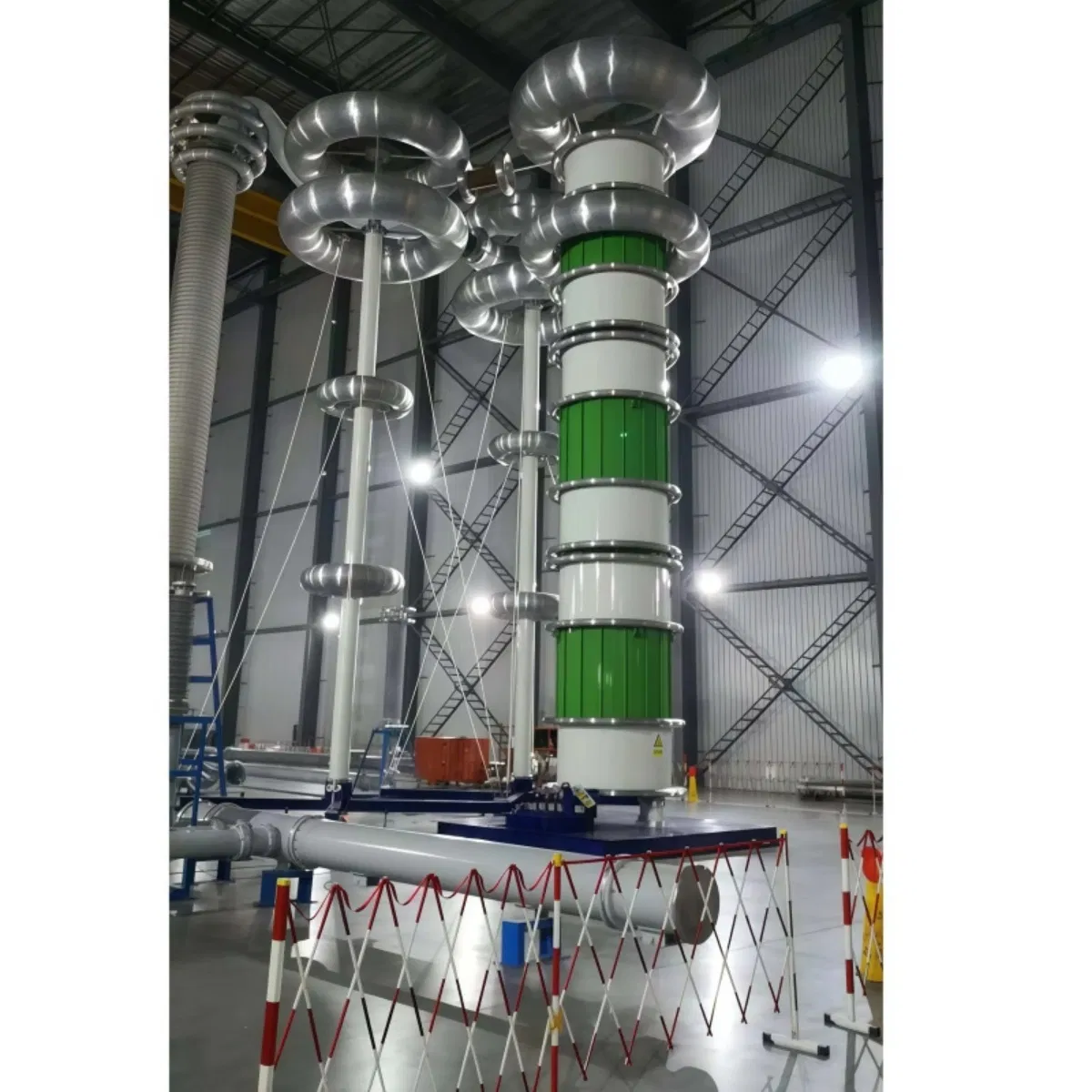

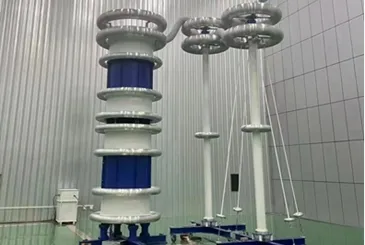

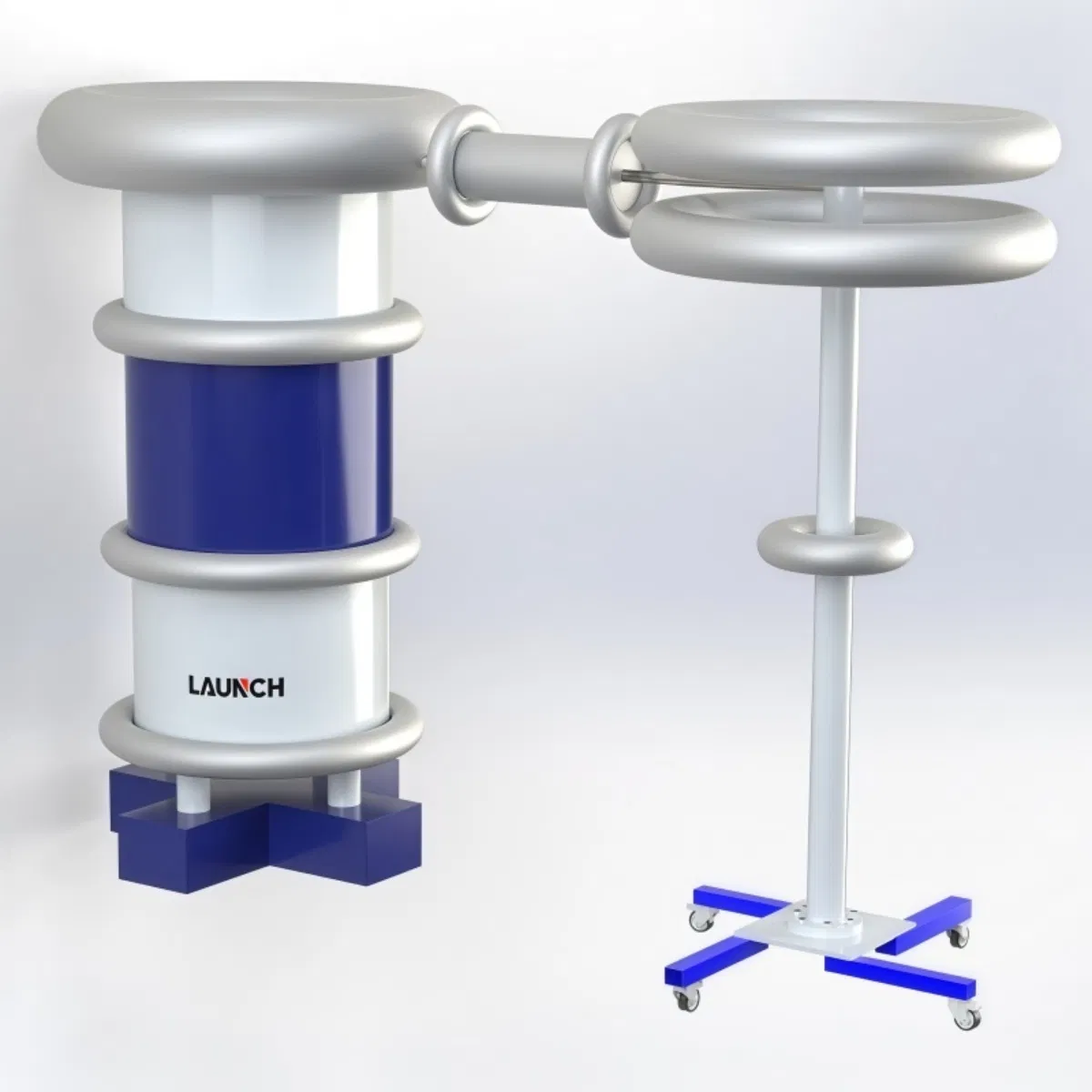

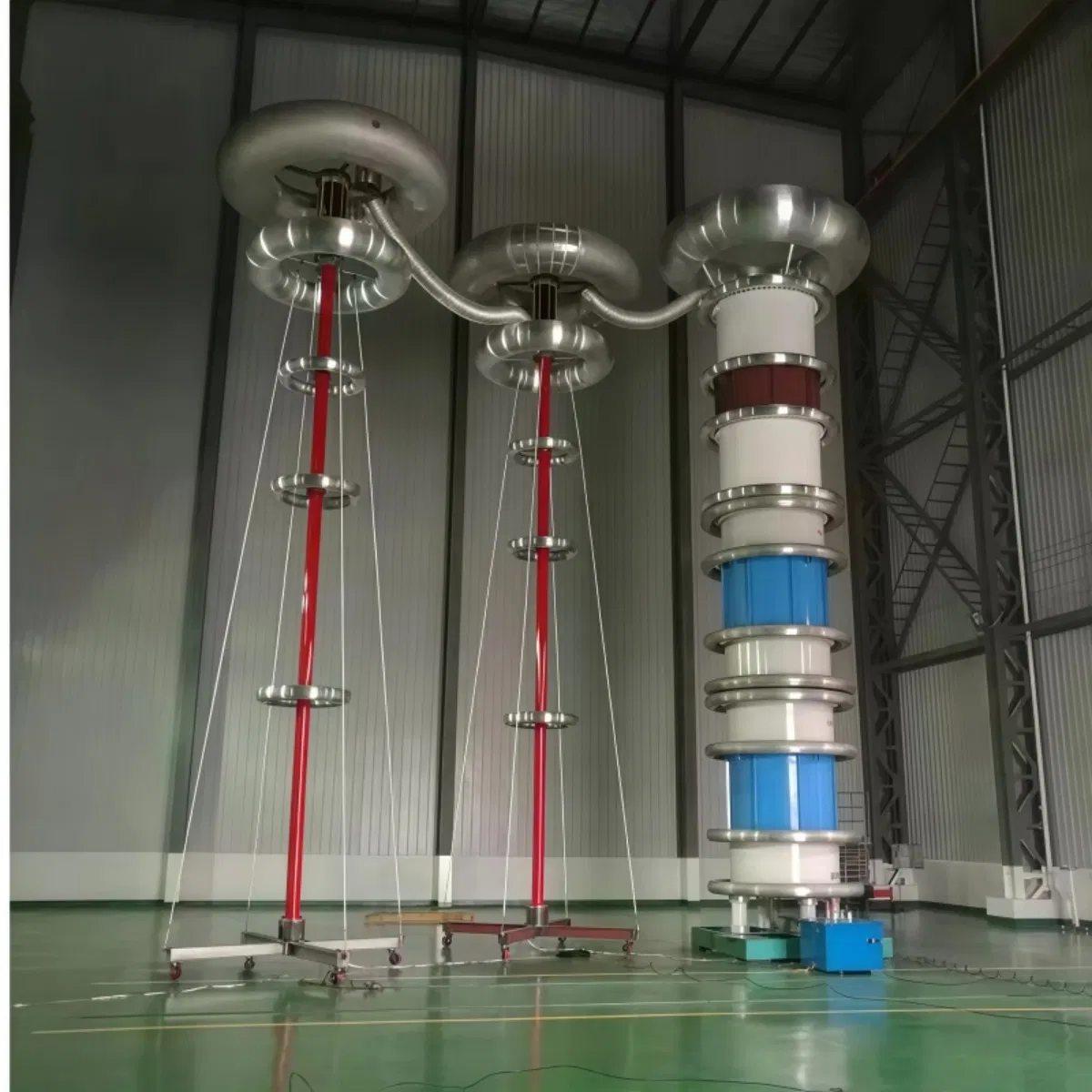

| Epoxy-cylinder AC Resonant Parameters | |
|---|---|
| Rated Output Voltage | Based on different test objects, max up to 1000KV |
| Output Frequency | 20-300Hz |
| Waveform | Pure sine wave, THD < 1.0% |
| Max. Capacity | Max up to 20000KVA |
| Duty Cycle | Continuous working time 60mins at full power output |
| Adjustment Sensitivity | 0.1Hz, instability < 0.05% |
| Power Supply | 380/220V±15% / 50Hz±5% |
Our vision is to transform the high-voltage industry through innovation and engineering excellence. We provide trusted solutions for the power sector, defined by precision, reliability, and a deep commitment to quality—delivering systems that meet the evolving demands of modern energy infrastructure.
To drive progress in high-voltage testing through innovation and safeguard energy security with precision and reliability.
To lead the revolution in high-voltage testing with innovative technologies for a sustainable future.

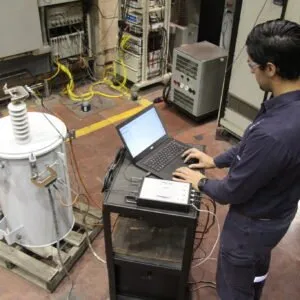

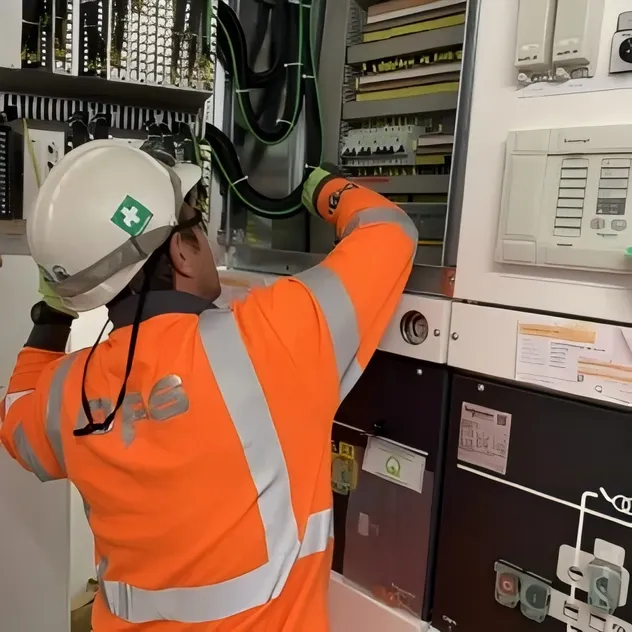

Trained technicians deliver precise diagnostics, swift repairs, and dependable GIS system recovery.
