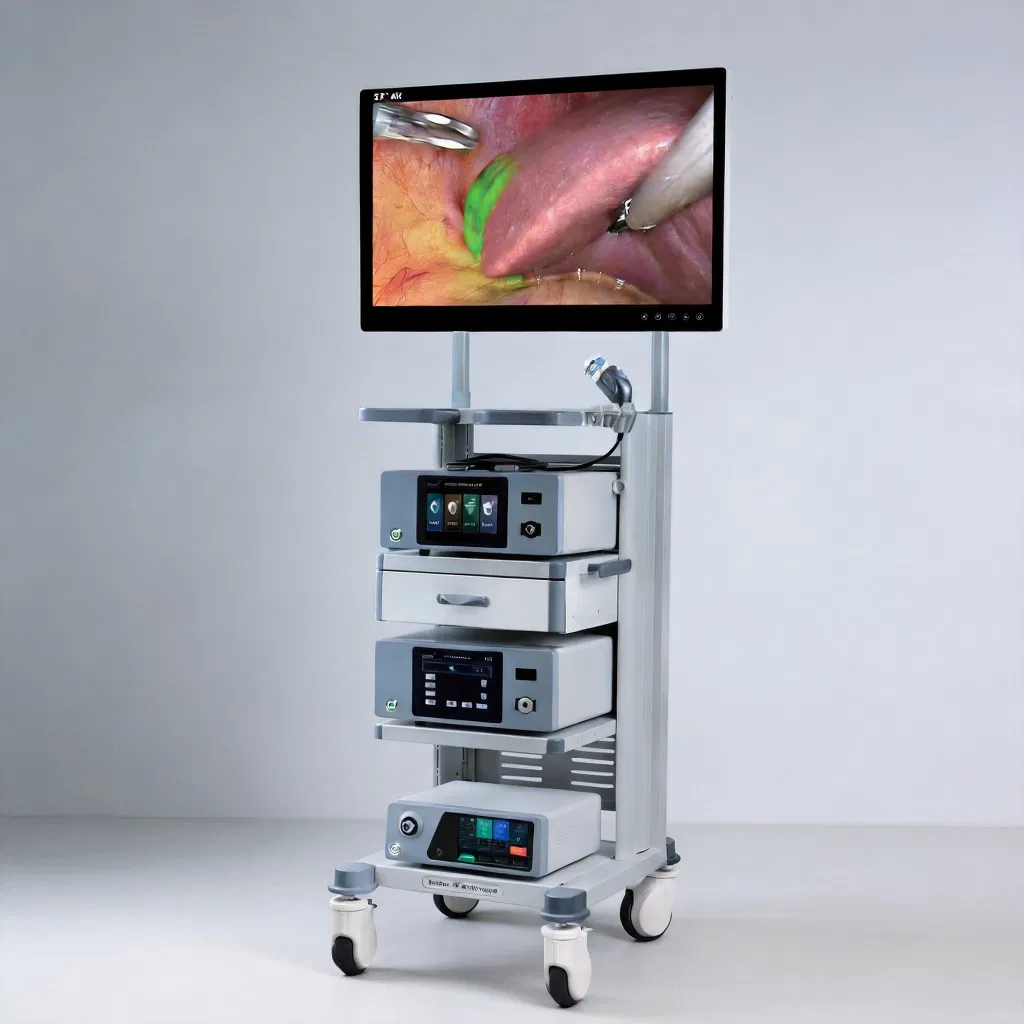

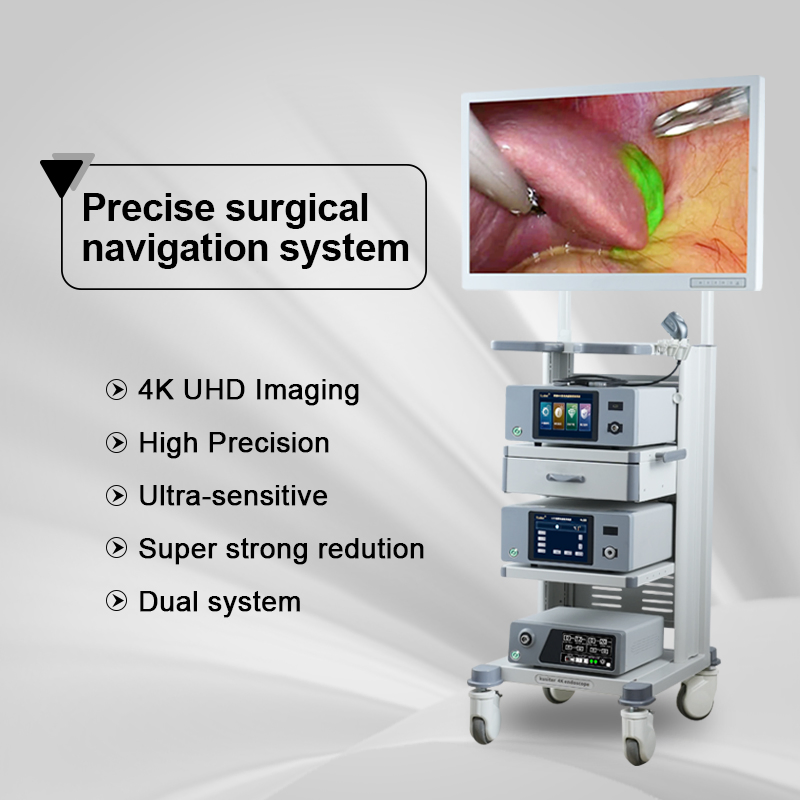

Medical Laparoscopic Unit 4K Vision Nir Icg Fluorescence Imaging Platform

📍 Basic Product Information

Model NO.	GEV-650	Certification	CE, FDA, ISO13485, RoHS
Target Group	Middle-aged and Old	Camera Resolution	40960*2160 (4K UHD)
Monitor Size	32 Inches	Interfaces	HDMI, SDI, BNC with Storage
Origin	China	HS Code	3203964268

🚀 Key Advantages

1. Superior Image Quality

The 4K imaging system offers four times the resolution of 1080p and nine times the resolution of HD imaging systems. This high resolution provides exceptional image clarity and detail, allowing surgeons to see fine structures and subtle changes during surgical procedures.

2. Enhanced Color Reproduction

Utilizing advanced image processing technology and optical design to reproduce accurate and vivid colors within the surgical field. This enables observation of patterns and structures with high precision.

3. Fluorescence Imaging

Addition of fluorescence technology allows the use of contrast agents like indocyanine green (ICG). Under near-infrared light, it highlights lymphatic vessels, lymph nodes, and tumors, aiding in precise identification and treatment.

4. Real-time Visualization

Provides high-definition real-time imaging, aiding surgeons in making more accurate decisions and performing precise surgical interventions during operations.

5. Wide Range of Applications

Applicable in gastrointestinal surgery, urology, gynecology, and hepatobiliary surgeries involving the liver, pancreas, and biliary system.

⚙️ Product Parameters

Camera Sensor	9,000,000 pixels 1/3" CMOS image sensor
Resolution	3840(H)*2160(V)
Definition	2100 Lines
Video Output	HDMI 2.0 / 3G-SDI / DVI / USB 3.0
Shutter Speed	1/60~1/60000(NTSC), 1/50~50000(PAL)
Language Support	English, Chinese, Russian, Japanese, Spanish
Application	Thoracic, Urology, Hepatobiliary, Gastrointestinal, Gynecology

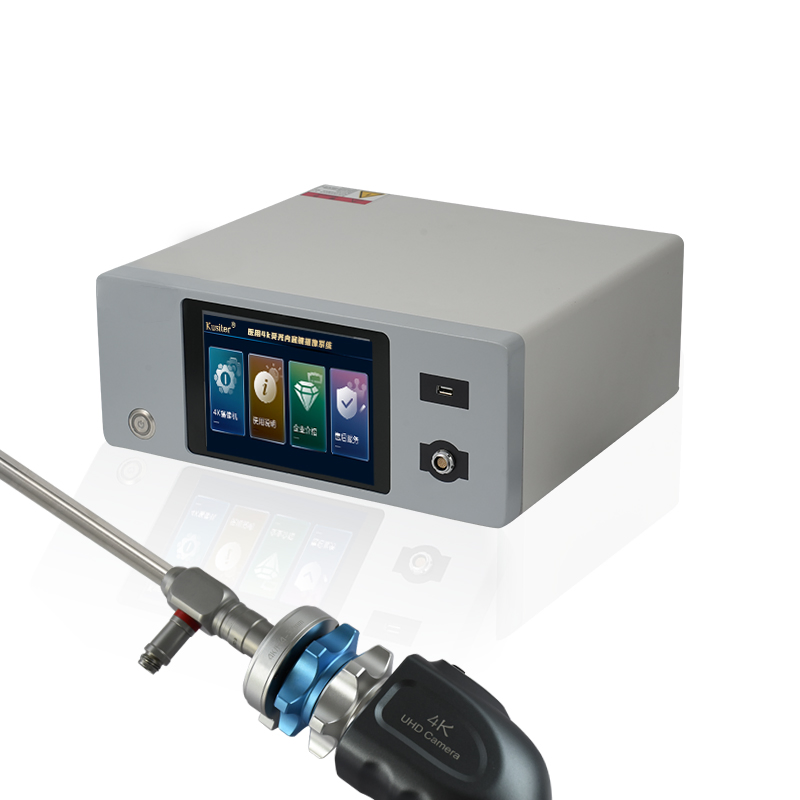

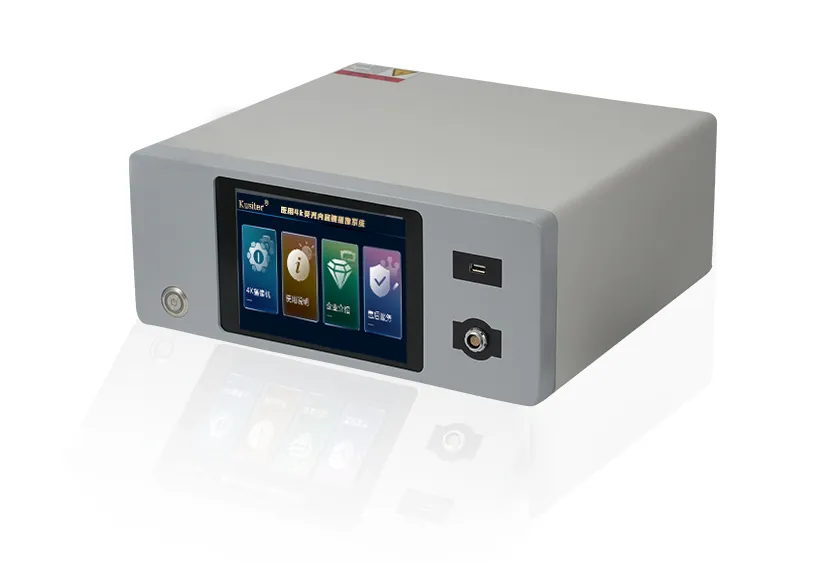

4K Fluorescent Camera Features:

Resolution ≥3840×2160 pixels
Excellent photosensitive performance through 4CMOS sensor
Dedicated 4K optical lens
Electronic magnification functions
Customizable camera buttons

🖥️ Medical Monitor Parameters

Screen Size	32" / 55"
Input Interface	VGA, SDI, S-VIDEO, YPbPr, RGB, DVI, VIDEO, YC
Resolution	4096*2160
Display Ratio	16:9
Display Color	1.07B

Multiple Imaging Modes:

Includes high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging for safe and precise surgery.

🔬 Advanced Imaging Standards

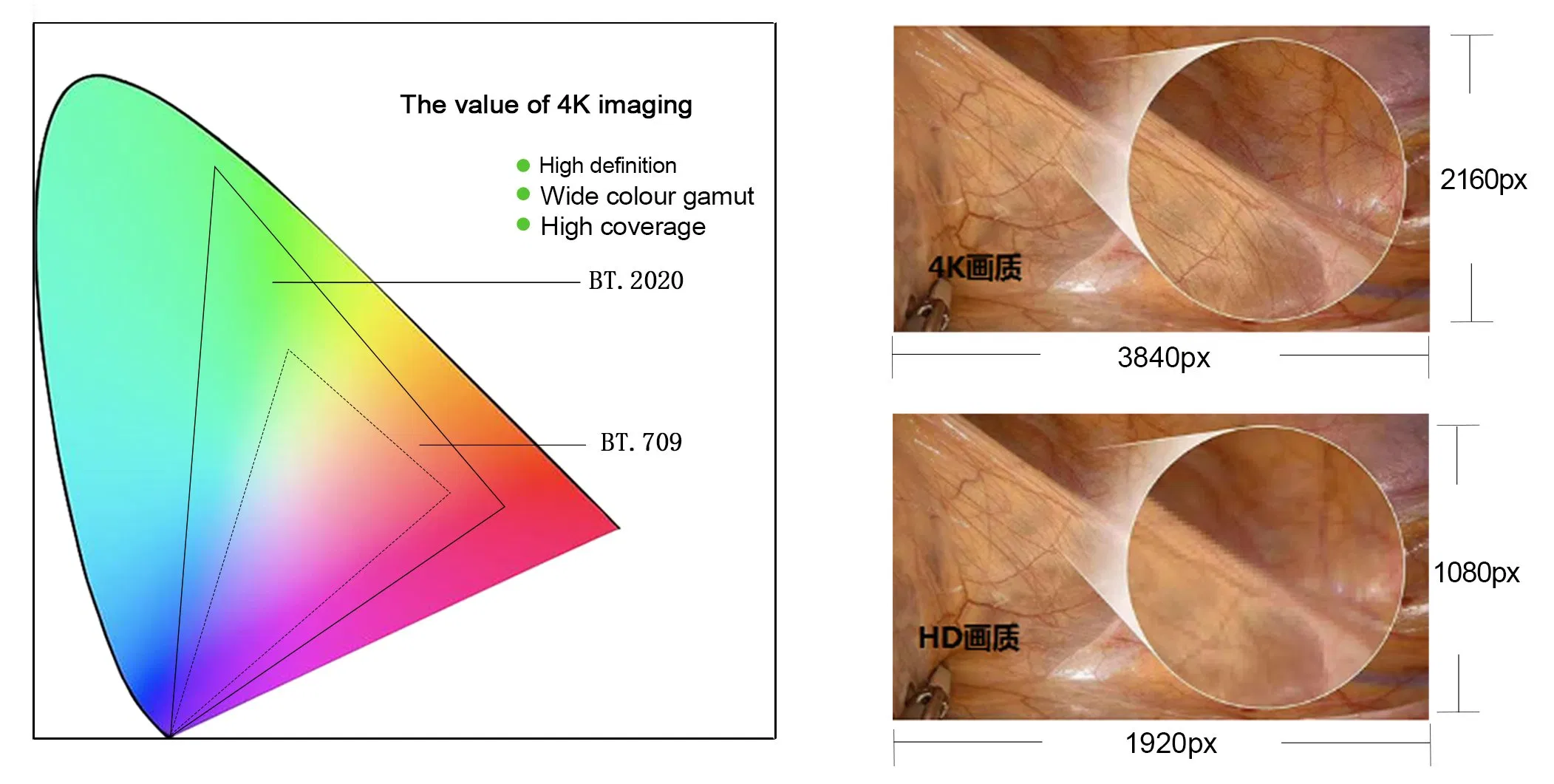

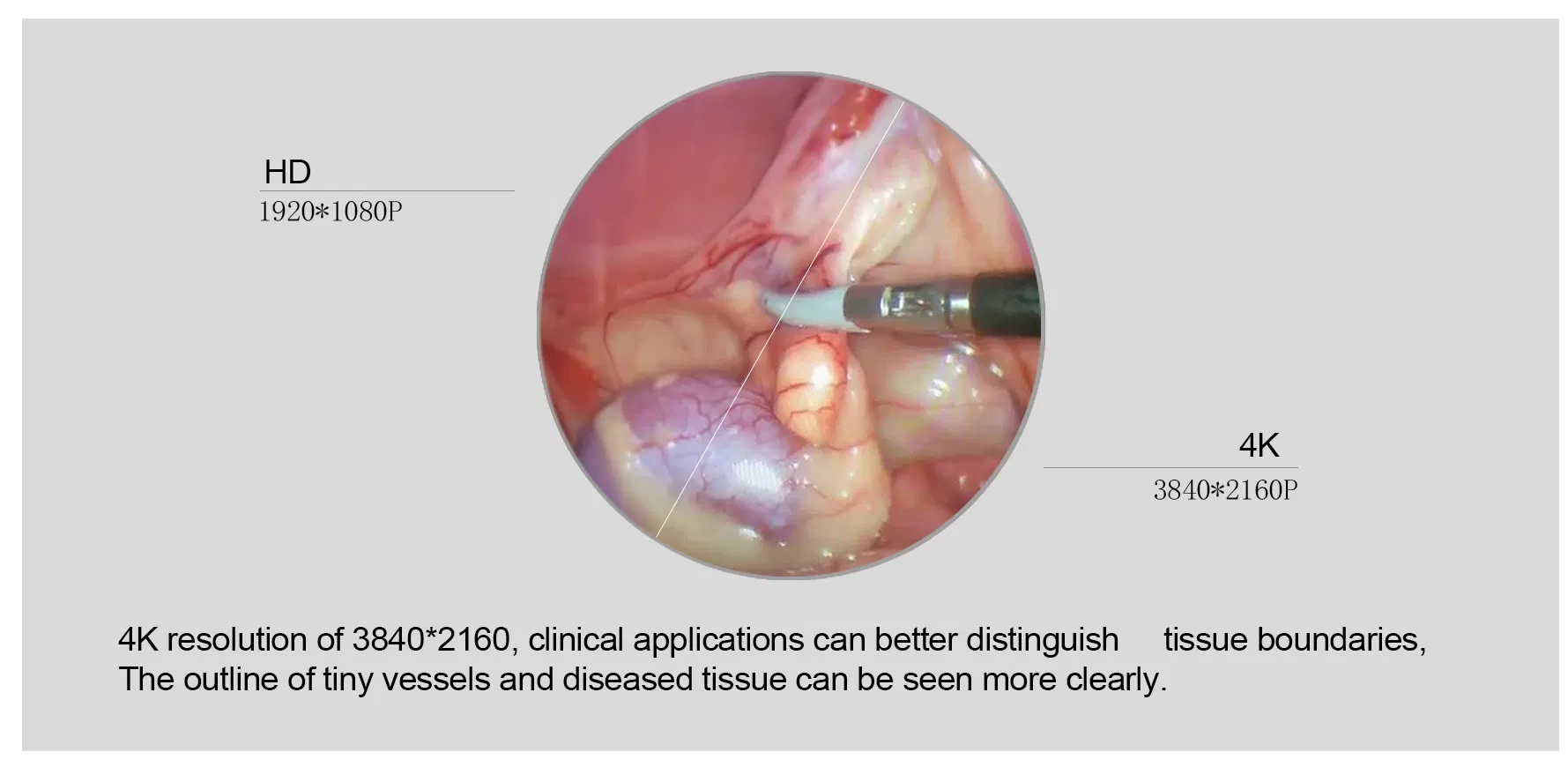

Physical resolution of 3840x2160 (4Kx2K) is four times the area of ordinary Full HD (1920x1080). The BT.2020 color standard allows better discrimination of tissue boundaries, fat, nerves, and vascular junctions.

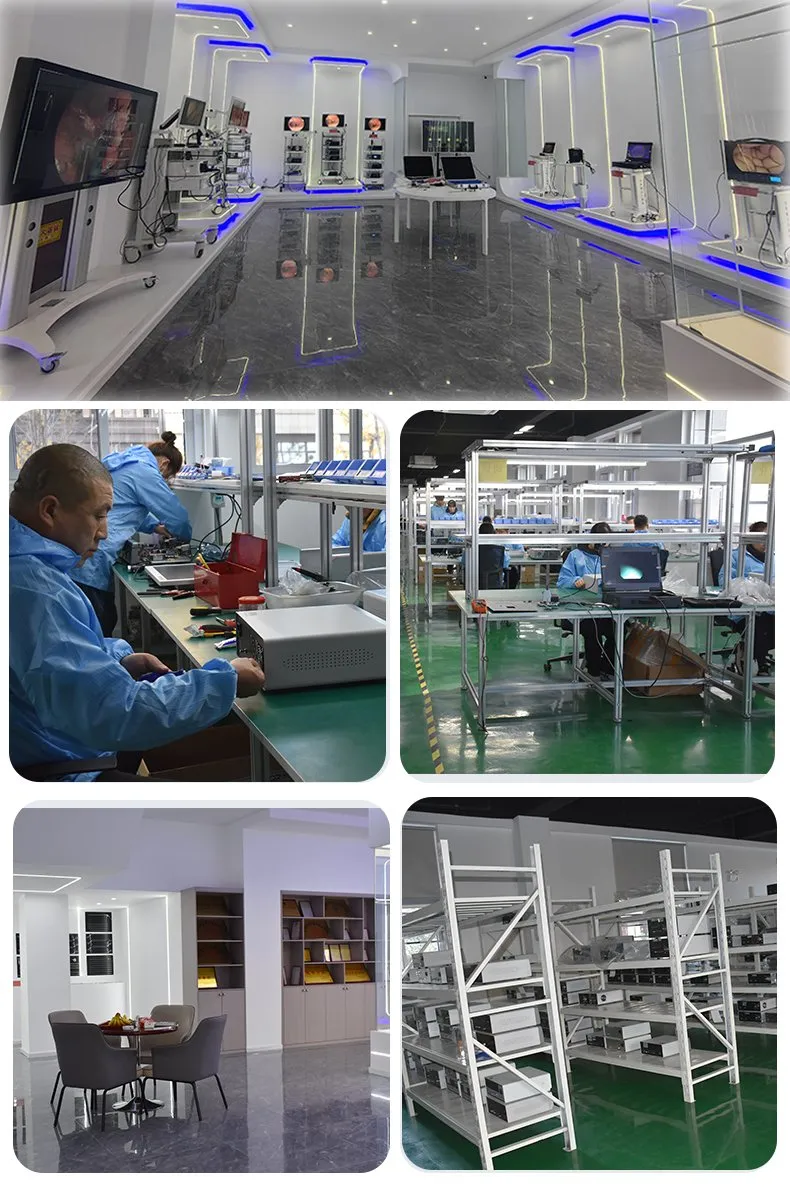

📦 Manufacturing & Capacity

We provide a comprehensive range of medical devices focused on integration and innovation. Main product lines include Endoscope Image Processing Systems, High Definition Camera series, LED cold light sources, medical monitors, and various laparoscopic simulators.

🚢 Packaging & Shipping

Packaging: Secure wooden or carton packaging.

Lead Time: 1-5 units: 7 days; >5 units: To be negotiated.

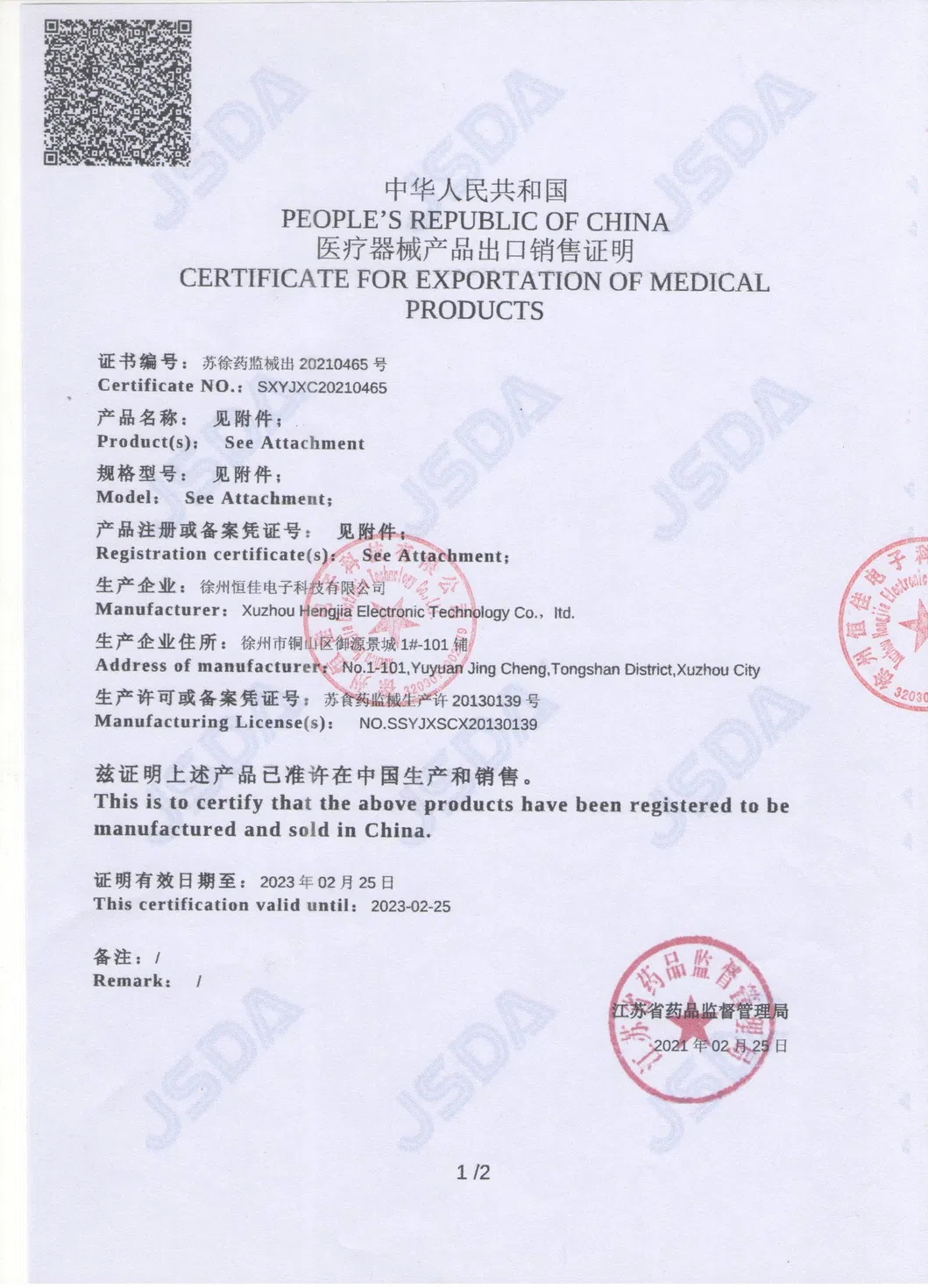

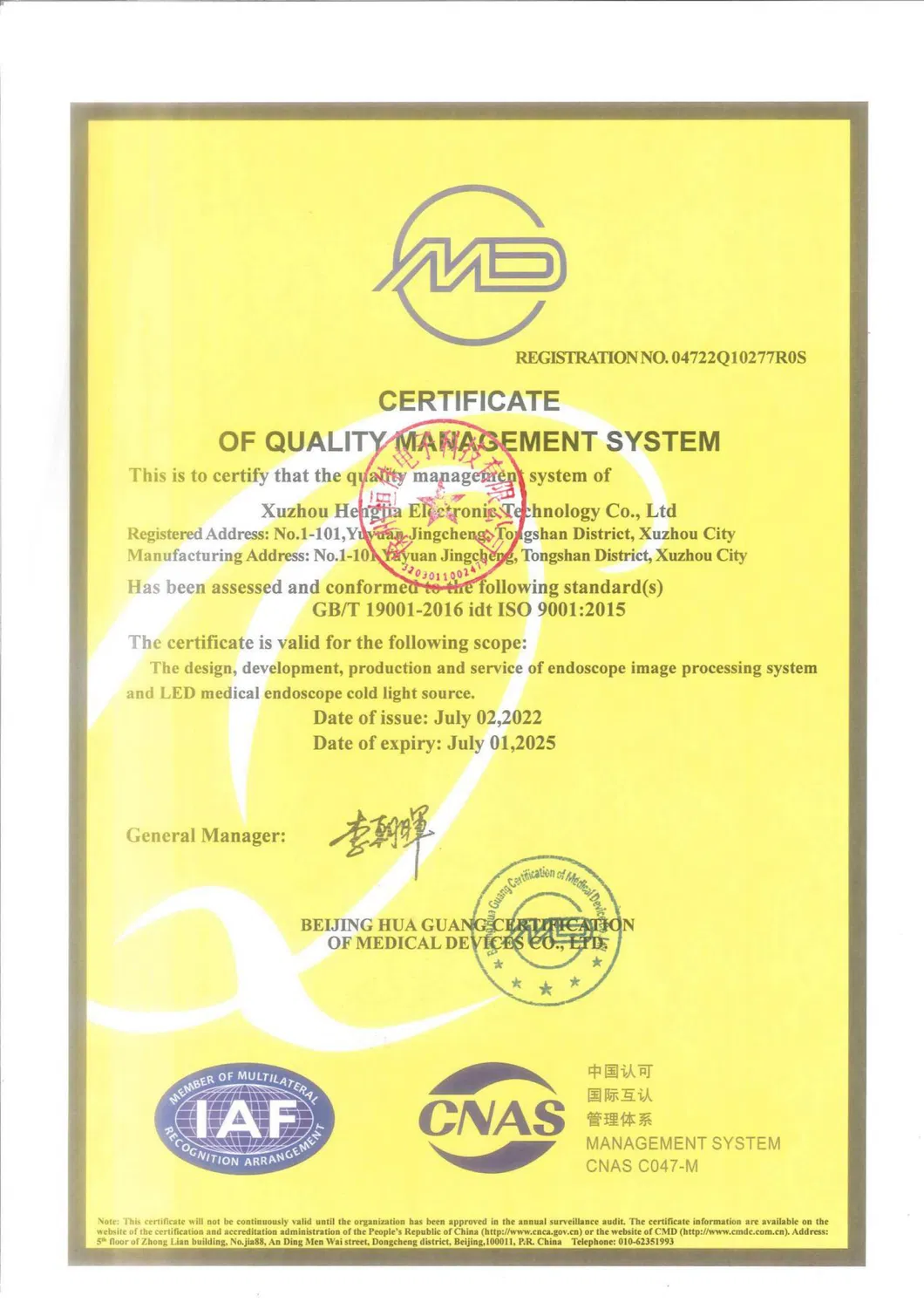

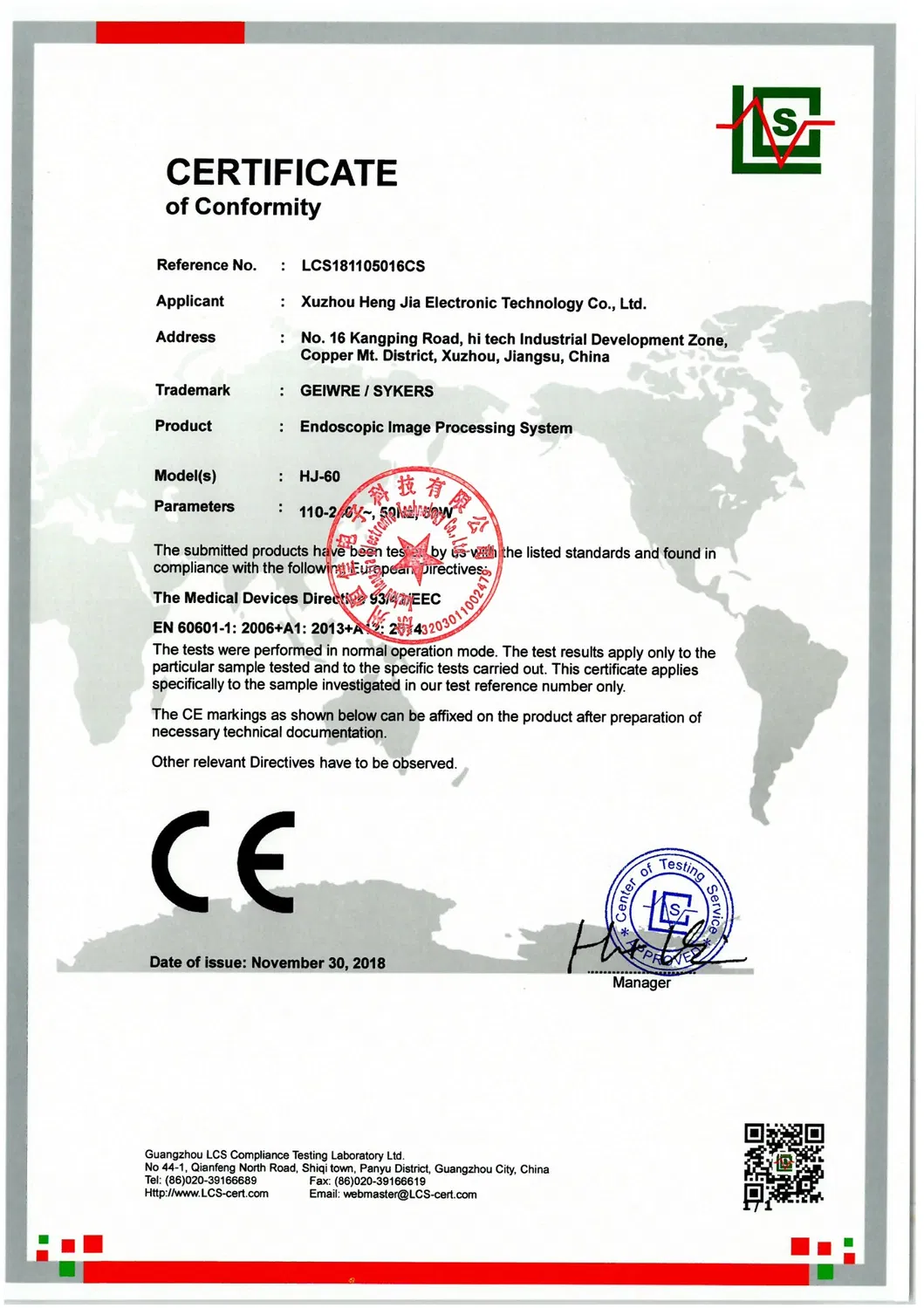

🏆 Exhibitions & Certifications

❓ Frequently Asked Questions

Q1: How can I purchase these medical products? You can order directly through our platform or contact our sales team. They will assist with configuration details, shipping methods, and guide you through the purchase process.

Q2: What payment terms are accepted? We accept multiple payment methods including T/T bank transfer, Western Union, MoneyGram, PayPal, L/C, and cash.

Q3: What is the estimated delivery time and shipping method? Standard delivery is usually 3-7 days. We offer air, sea, and express delivery through global partners. We also provide door-to-door services including customs clearance and tax handling for many countries.

Q4: What kind of after-sales service do you provide? Products include a two-year warranty with free replacement or maintenance. We also provide lifelong technical support and service through our trained engineers.

Q5: How is transaction security guaranteed? As a professional medical company with government certifications, we ensure 100% secure payment methods and transactions to protect our global customers.

Q6: Can I customize the camera settings? Yes, the function of the camera buttons can be customized according to specific surgical requirements, and it supports multiple languages for global clinical use.
