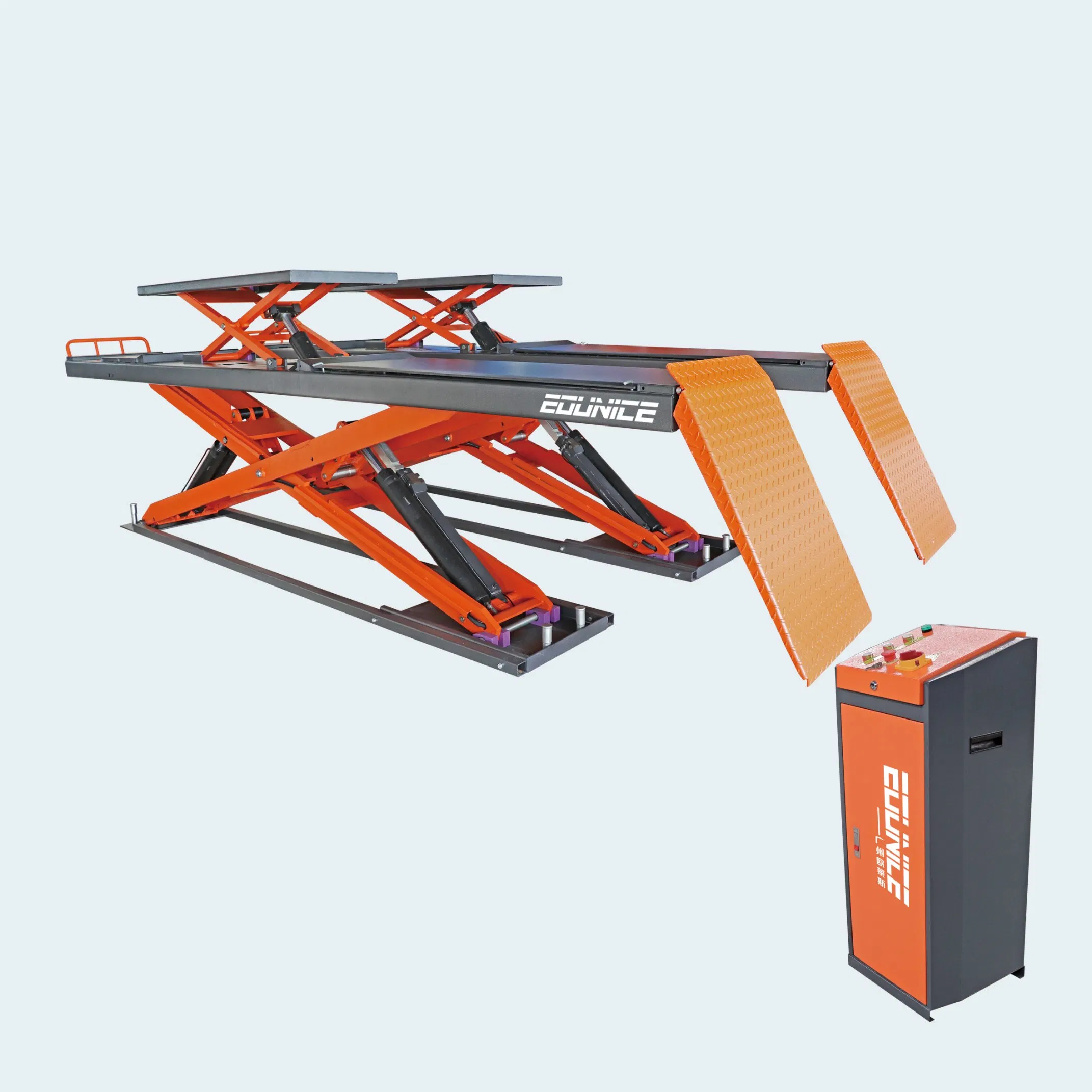

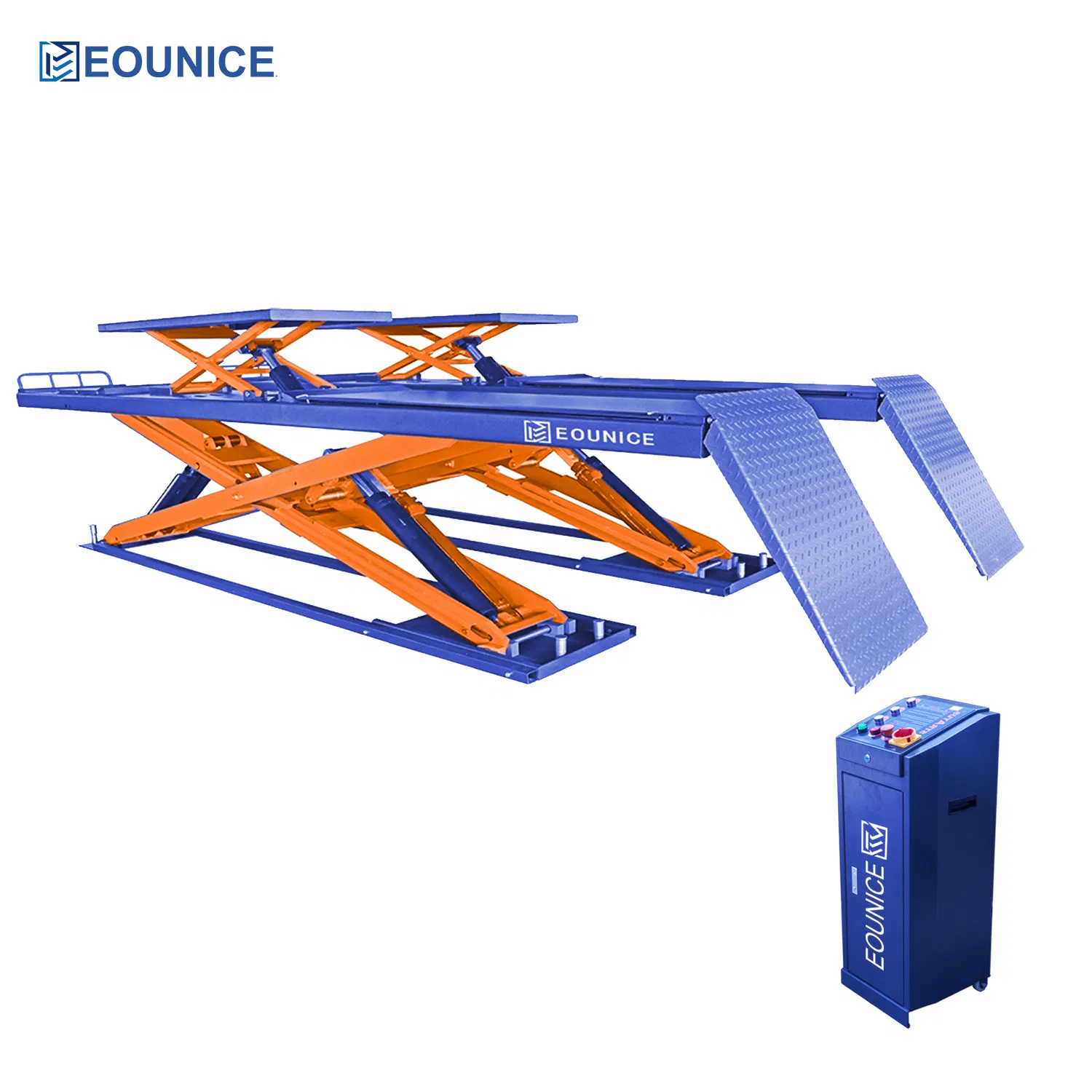

4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
1 / 5
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift
4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift

4.0t Auto Diagnostic Tool Profile Dual Platform Wheel Alignment Scissor Lift

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ON-7804B
Lifting Capacity
4T
Driving Type
Hydraulic
Certification
CE, ISO
Mechanical Lift
1 Motor
Double Cylinder
Thin Plate Type
Shearing Lift Type
Ultrathin Type
Condition
New
Design
Scissor
Specification
4800*560*700MM
Origin
China
HS Code
8425429000
Packaging & Delivery
Package Size
460.00cm * 70.00cm * 66.00cm
Gross Weight
2030.000kg
Product Description

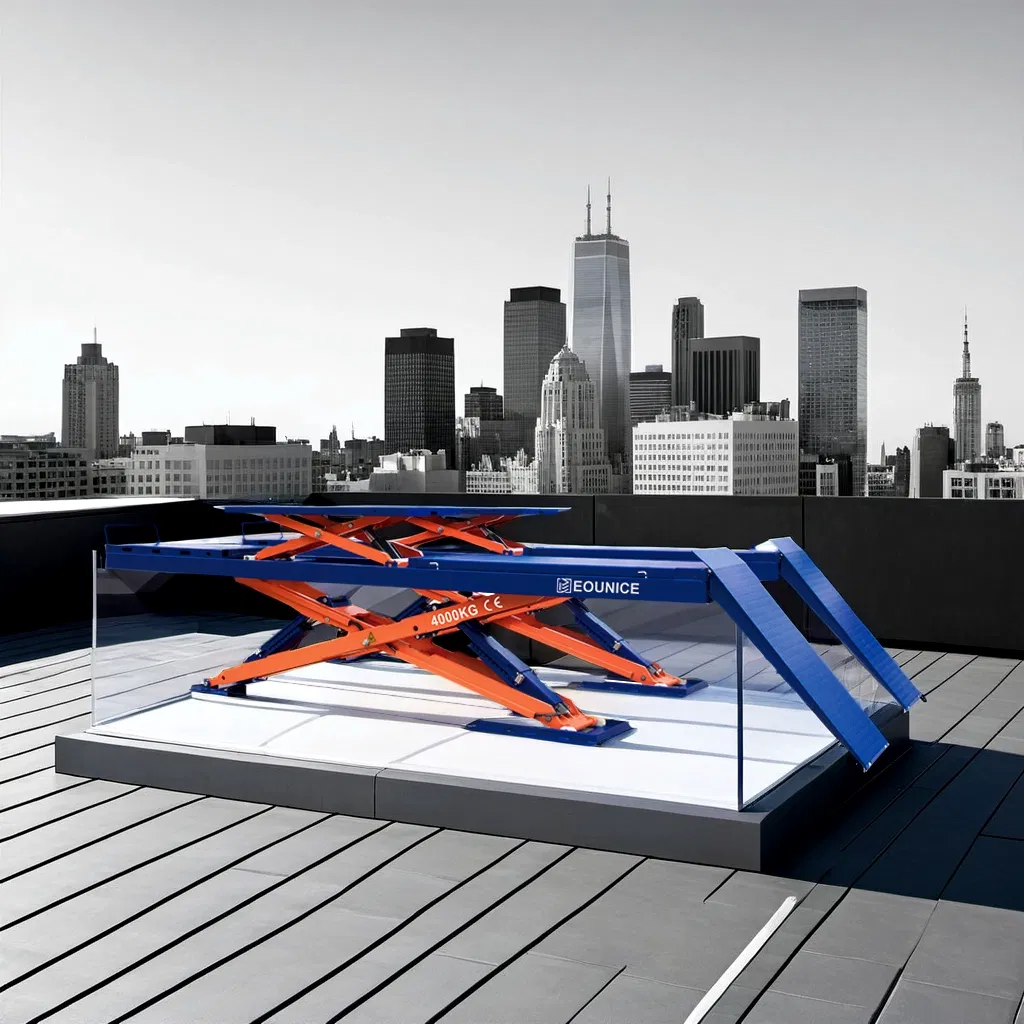

Scissor Lift Platform

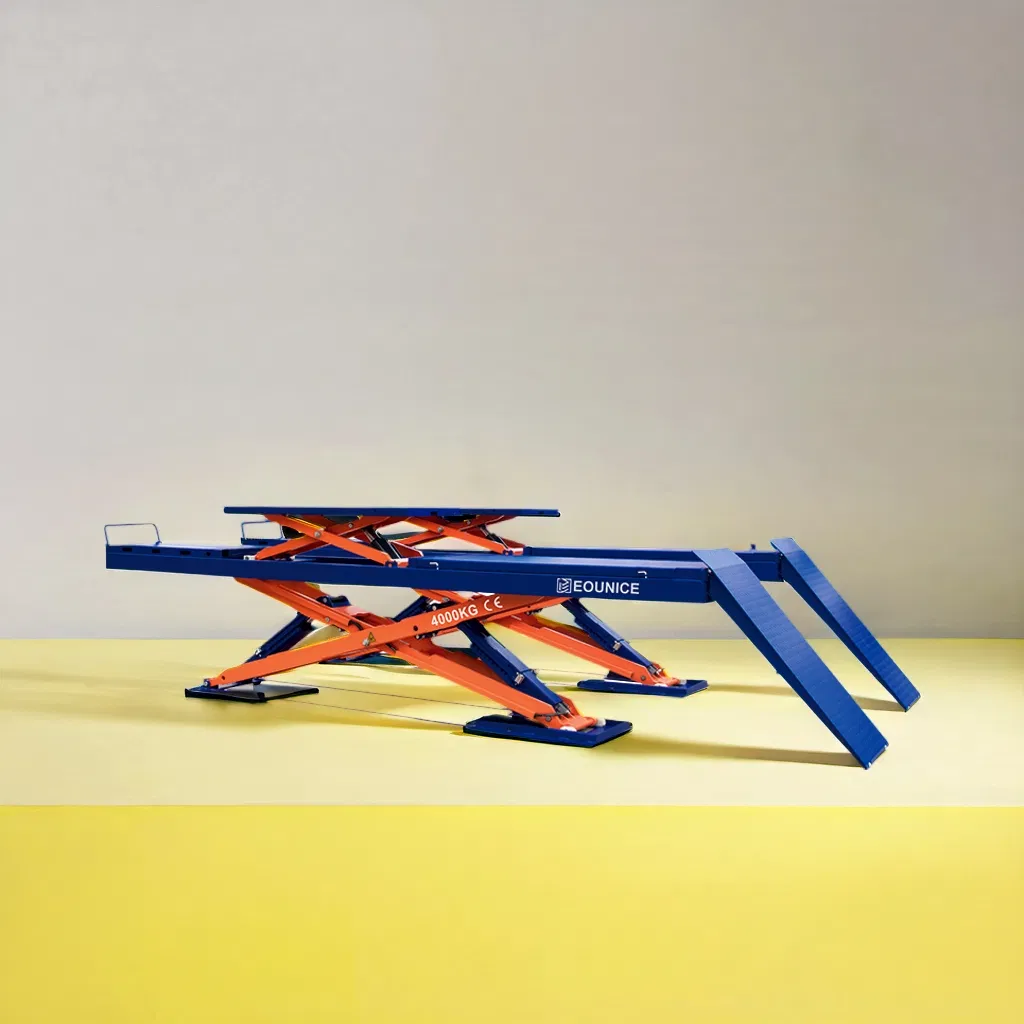

Diagnostic Tool

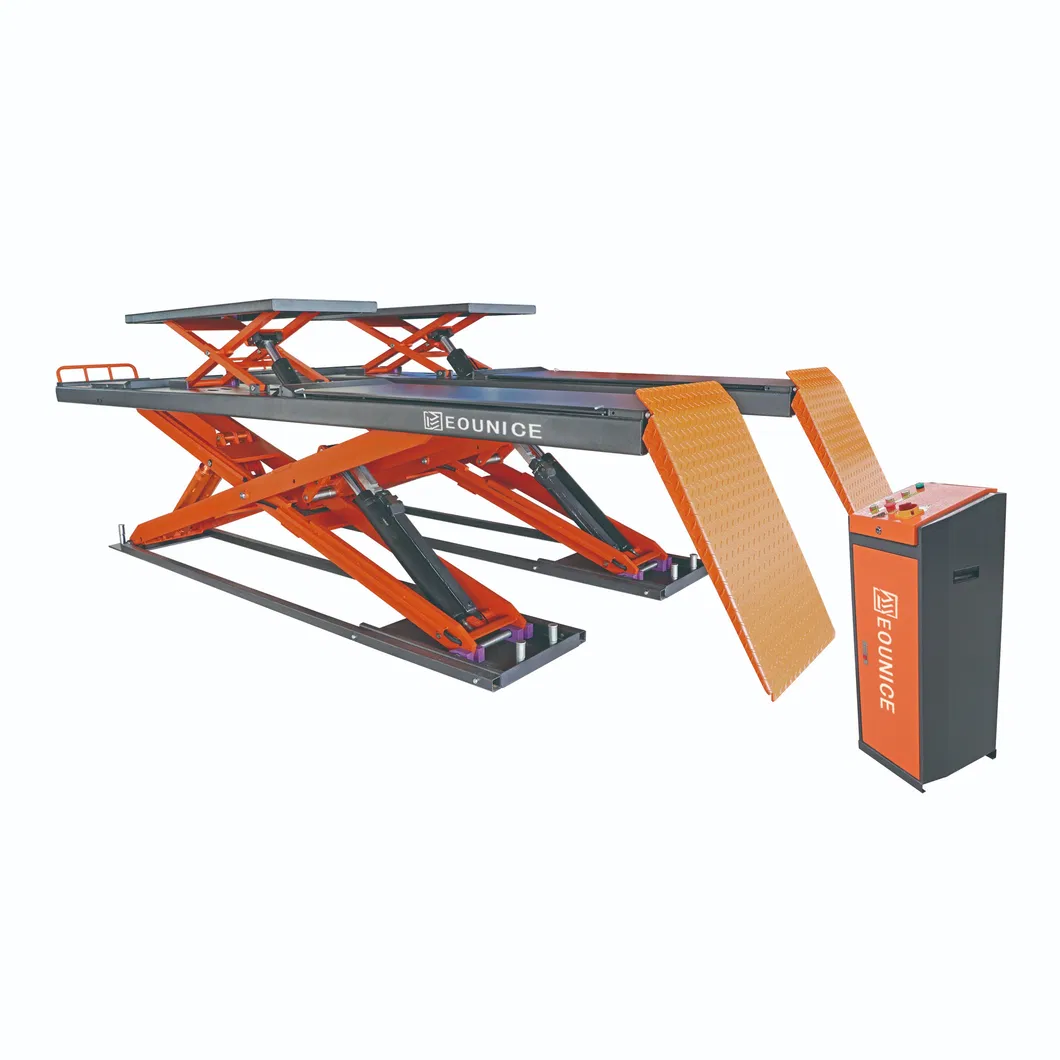

Wheel Alignment Lift

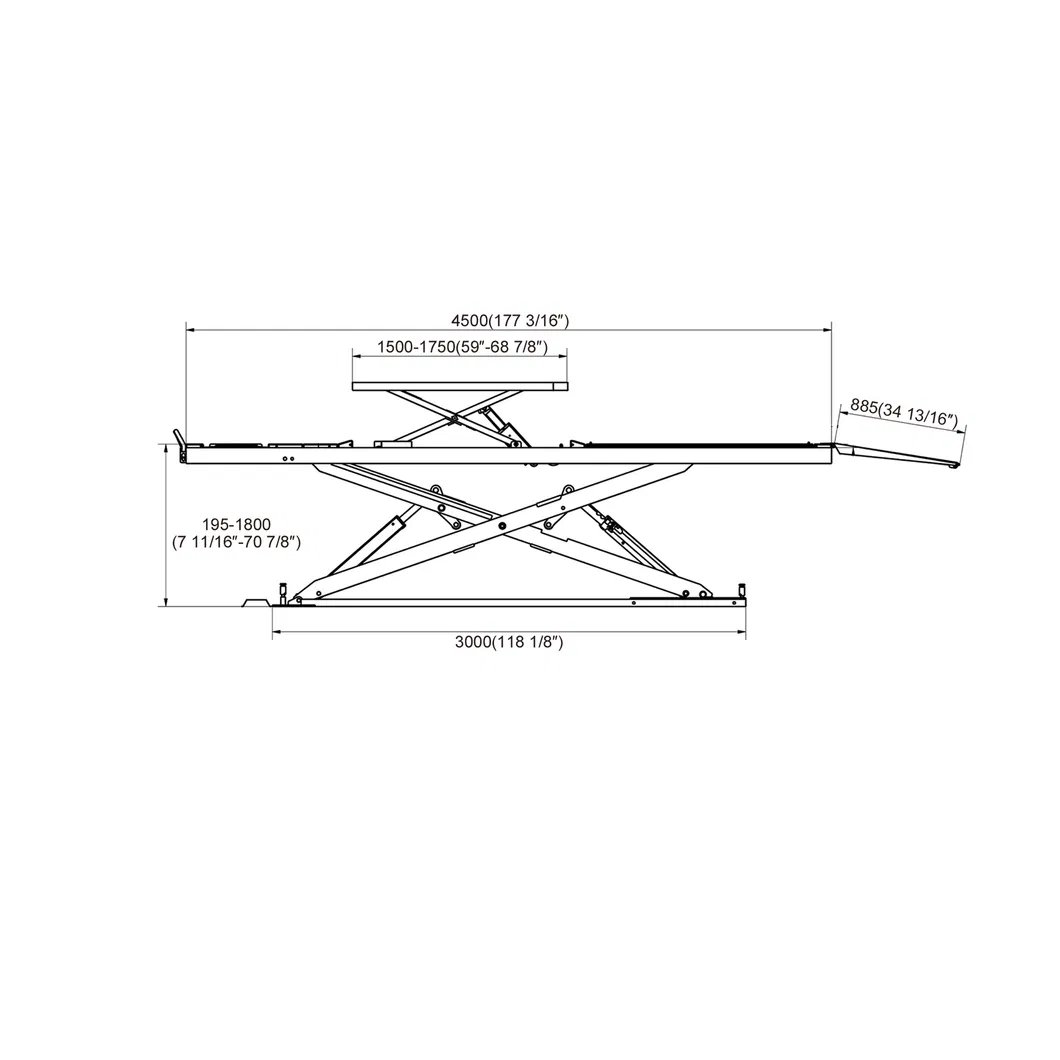

Secondary Lifting Platform
Technical Data
Model Lifting Capacity Lifting Time Lifting Height Min Height Runway Length Overall Length Gross Weight Motor Power
ON-7804B 4,000kgs (9,000LBS) ≤50S 1800mm 195mm 4500mm 5480mm 2,030kgs 2.2KW (3HP)
Product Introduction
  • CE approval with 4,000Kg (9,000LBS.) lifting capacity.
  • Low profile design for quick inspections, body diagnostics, tire and body repairs.
  • Secondary lifting platform for easy maintenance of tires; platform can be extended for different wheelbases.
  • Mechanical lock device ensures safety during lift operations.
  • Pneumatic safety lock release system.
  • 24V low voltage electrical control system with alarm buzzer during descent.
  • Self-lubricated bushing and bearing for long-term durability.
  • Hydraulic valve plate with manual unloading knob for safety during power outages.
  • Equipped with a standard aluminum motor power unit.
Main Features
  • Low Profile Design: Minimum height is only 195mm, ideal for low-chassis vehicles.
  • High-Quality Material: Scissor arms are cut from high-quality alloy steel plates with welded sleeves for maximum rigidity.

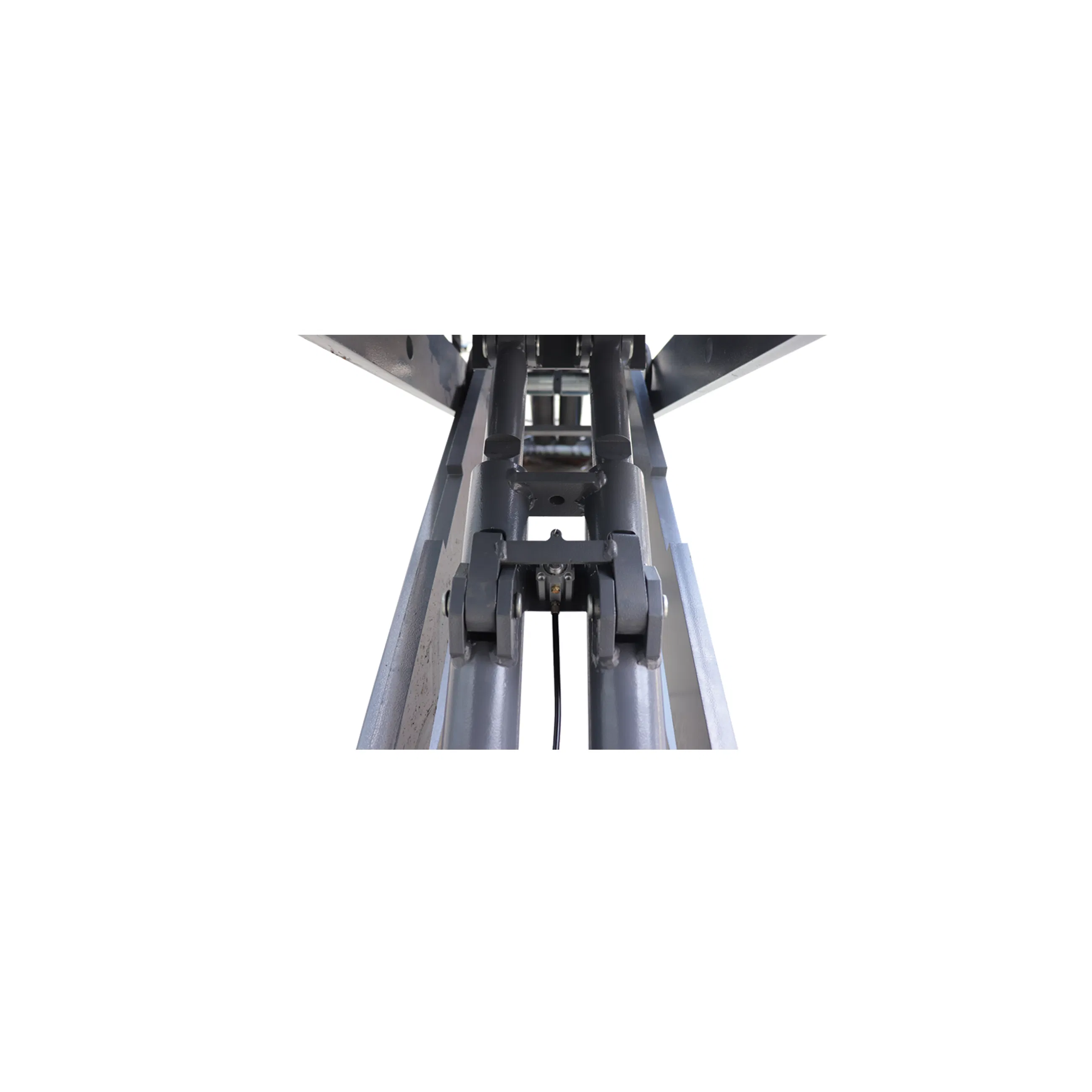

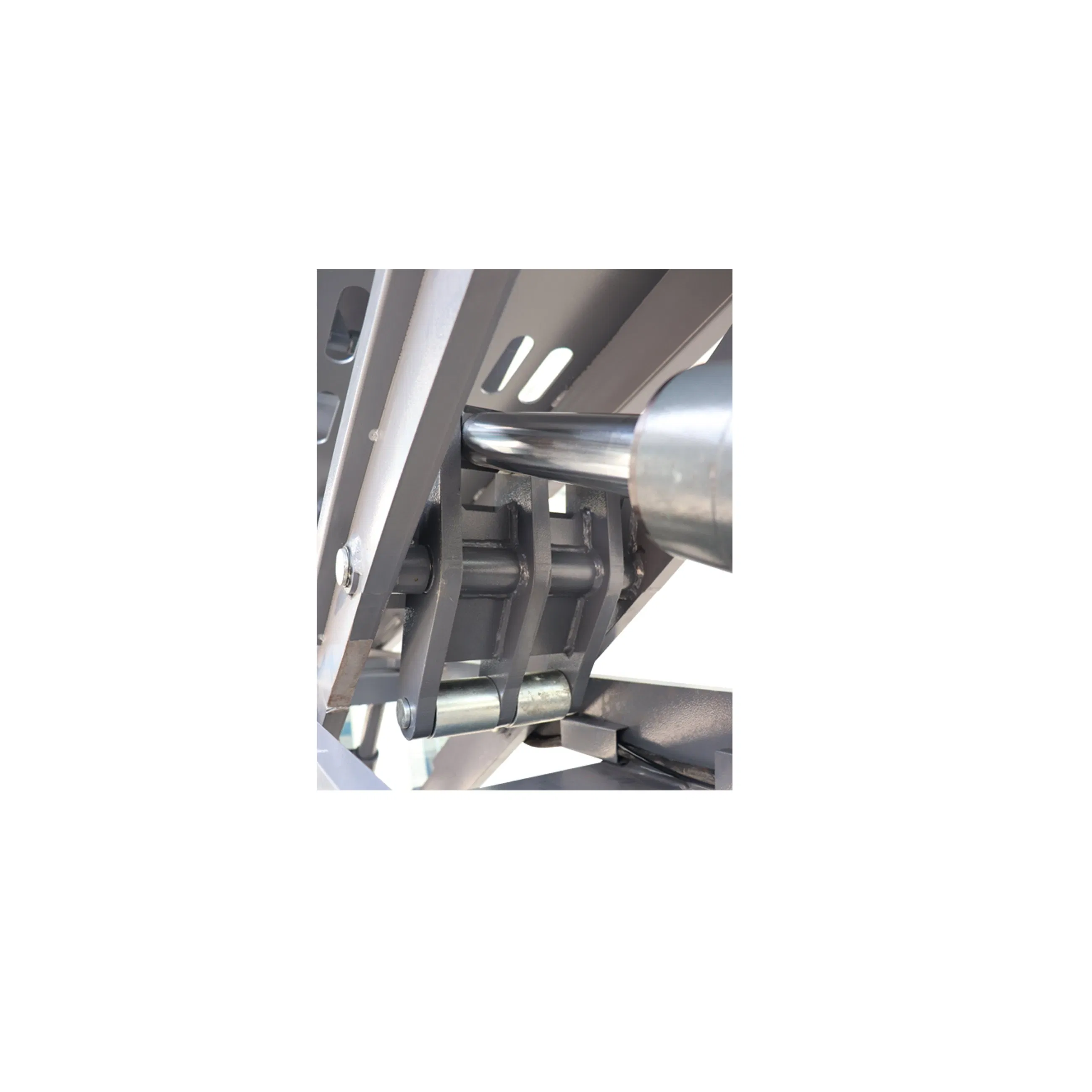

  • Synchronous Cylinders: Dual synchronous cylinders (80mm master cylinder) increase hydraulic service life.
  • Robot Welding: Main structural parts are welded by robots for consistency and high strength.
  • Premium Finish: Structural parts are sprayed with imported powder and high-temperature cured for strong adhesion.
Factory Overview

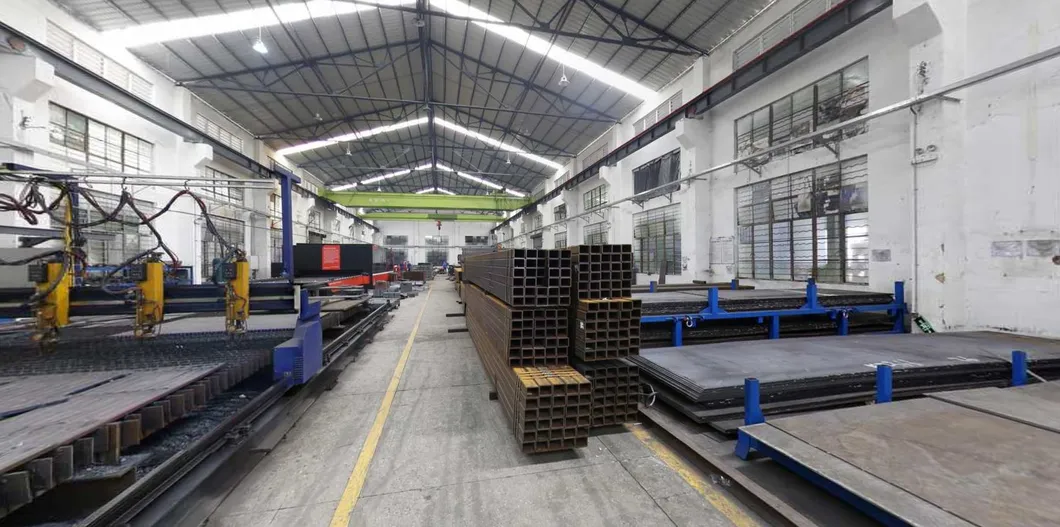

Factory 1

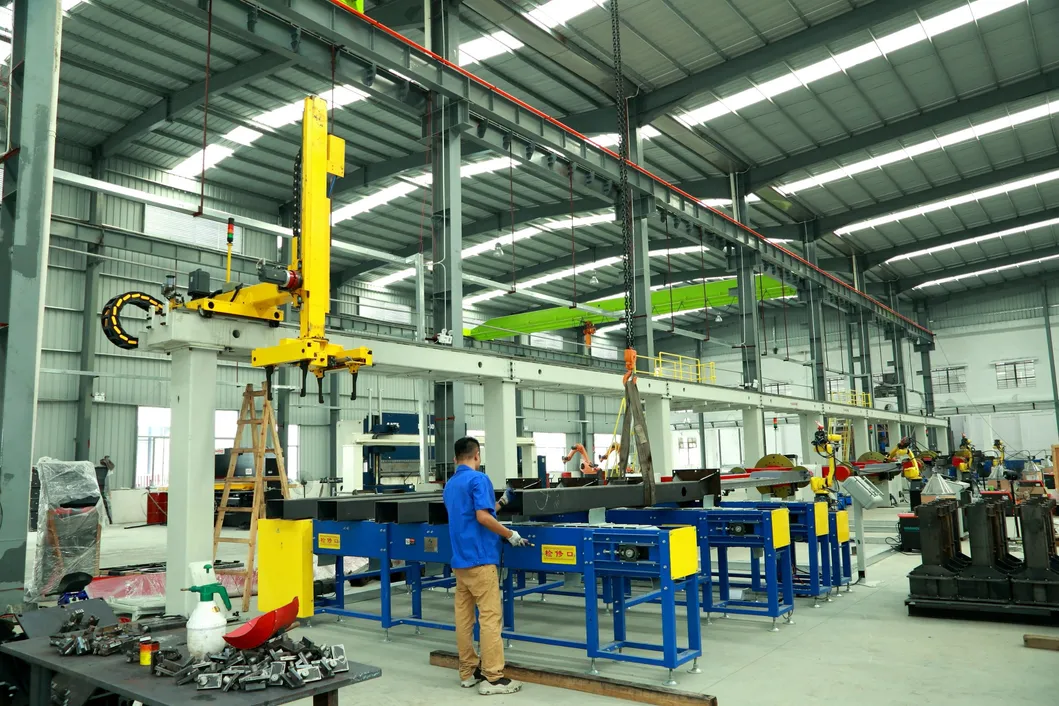

Factory 2

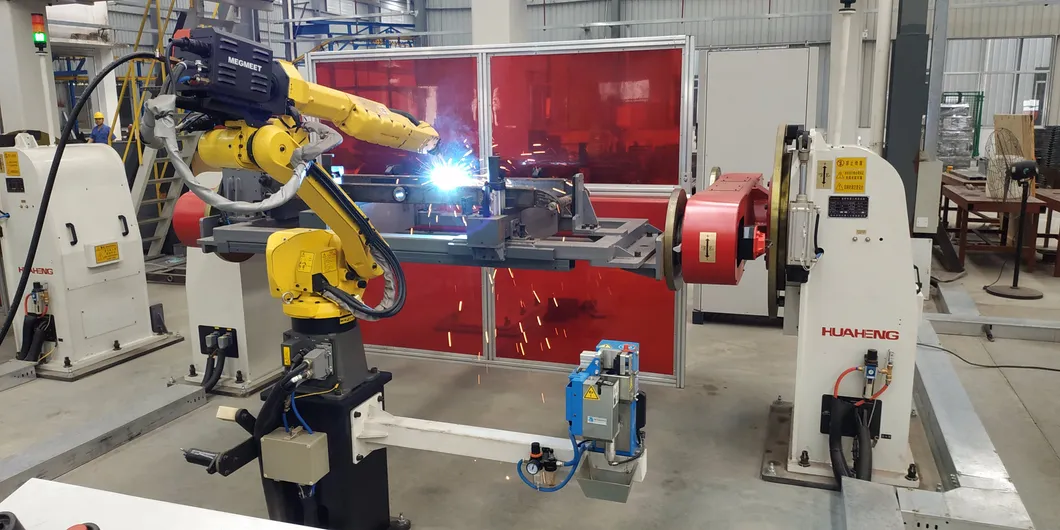

Factory 3

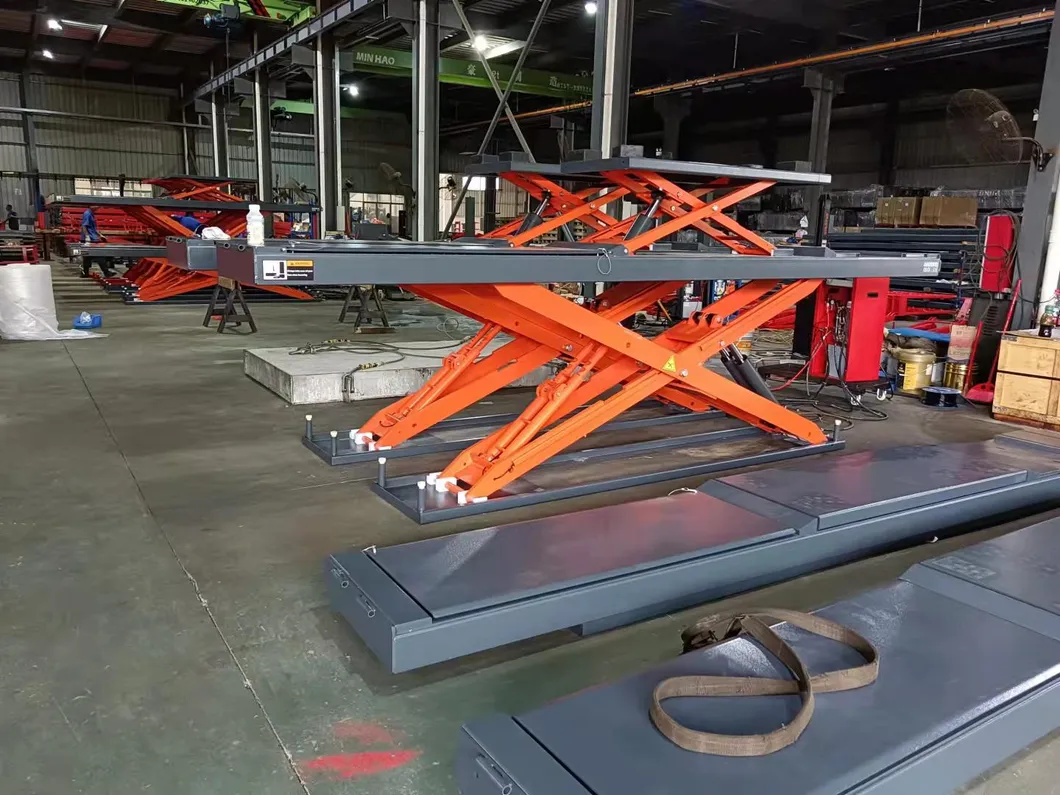

Factory 4
Warranty Terms:

One-year warranty on equipment structure (material and workmanship). Motors, gearboxes, power units, hydraulic cylinders, cables, chains, and valves are warranted for one year under normal use.

Our Services
  • OEM & ODM professional services.
  • Customized sizing and color solutions.
  • One-year quality warranty with free spare parts (shipping costs apply).
  • Life-long professional technical support.
Frequently Asked Questions
Are you a trade company or a manufacturer?
We are a manufacturer with our own trading department, ensuring direct factory quality control and support.
What is the standard lead time for delivery?
Commonly, the lead time is within 15 days after receiving a 30% deposit or L/C, based on container volume.
Can I request a custom color for the equipment?
Yes, while our regular colors are Blue, Red, and Yellow, we can produce machines in special colors according to your request.
Is it possible to order a special size?
Yes, sizes can be customized as long as they fit within the inner dimensions of standard shipping containers.
What safety features are included?
The lift includes a mechanical safety lock, pneumatic release system, and a 24V low voltage control system with an alarm buzzer.
How does the lift handle power outages?
The hydraulic valve plate is equipped with a manual unloading knob, allowing vehicles to be lowered safely and smoothly during power failures.
