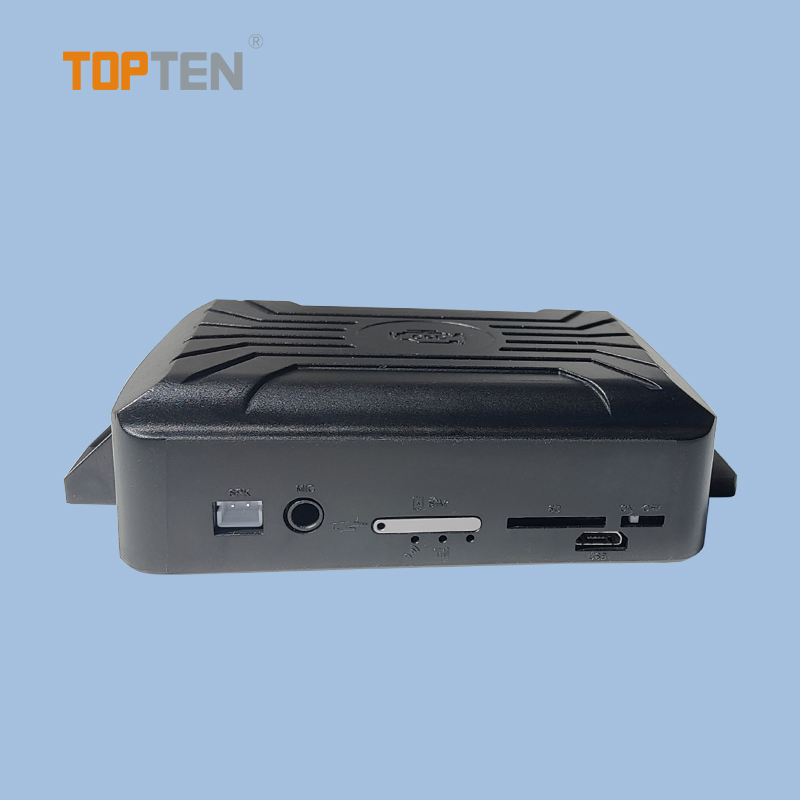

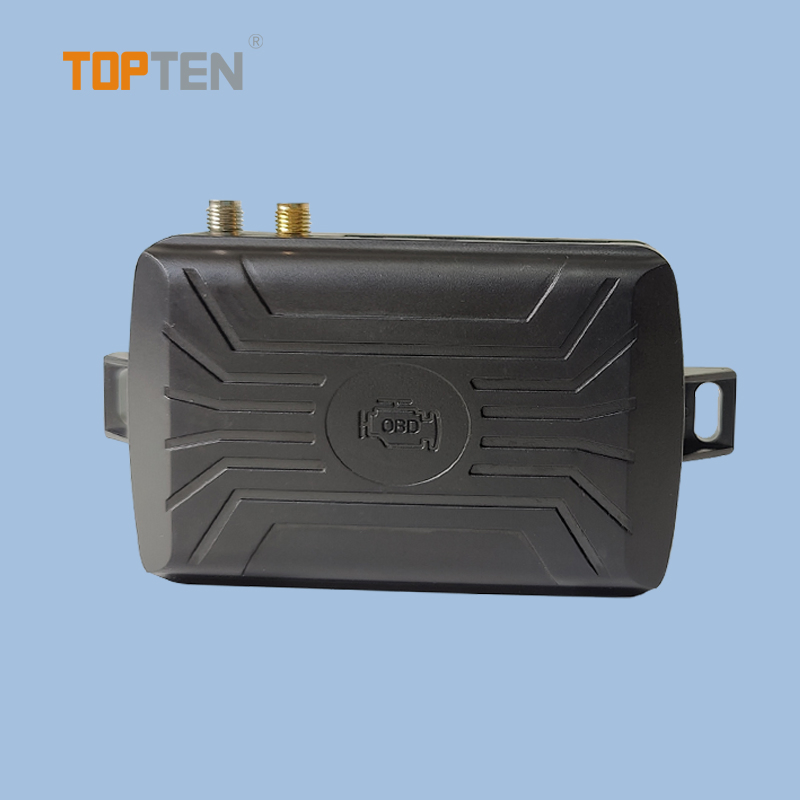

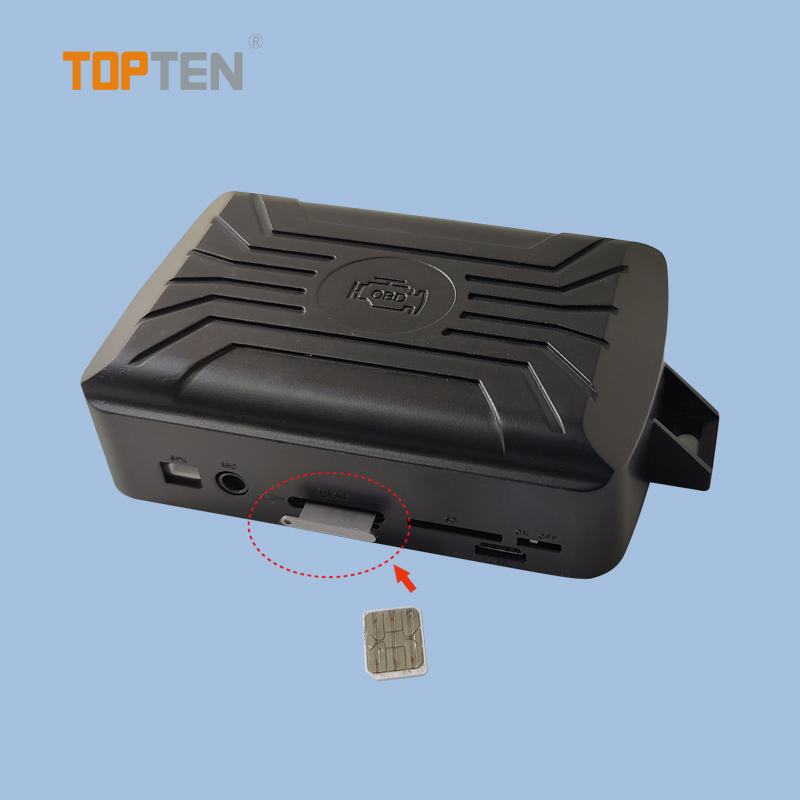

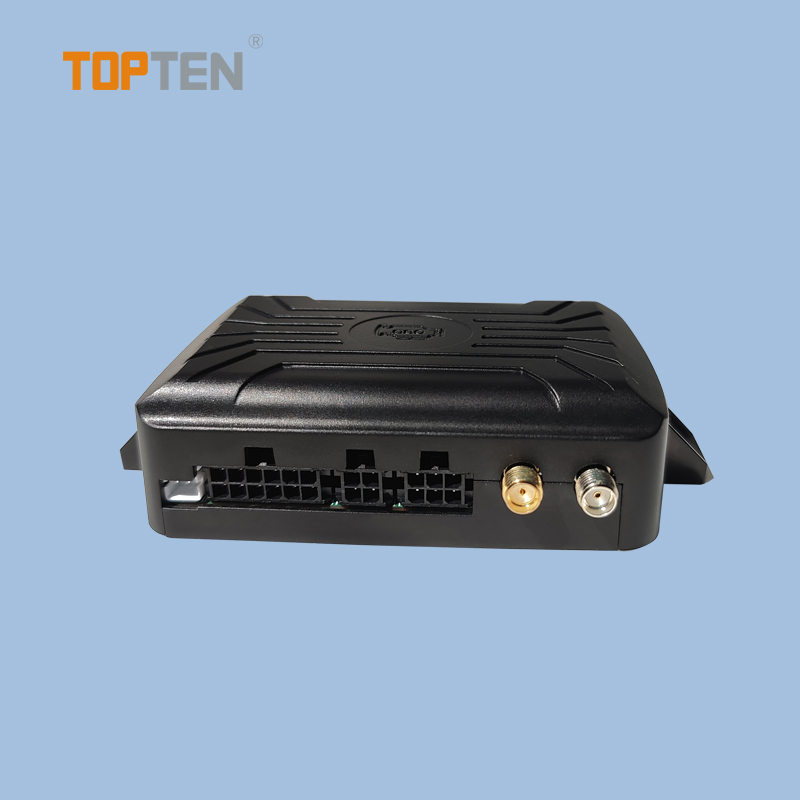

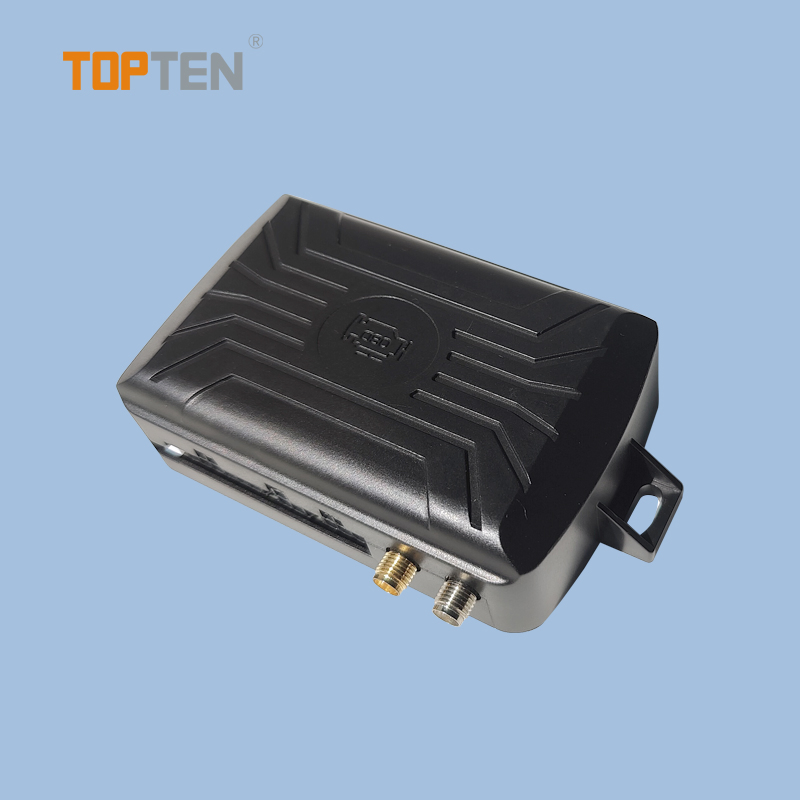

4G GPS Tracker Bluetooth Diagnostic Car Alarm with Platform (TK528-TN)

Basic Specifications

Model NO.

TK528-TN

Working Mode

Active

Certification

CE, FCC, RoHS

Application

Outdoor

Working Principle

GPS GSM GPRS

Transmission

Wireless

Frequency

Quadband, 2G/3G/4G

Arm/Disarm

Yes

Driver Behavior

Yes

Monitor Voice

Yes

RFID for Driver

Dynamic 2.4G

Package

Neutral Packing

Product Overview

Preface

TK528 GPS Vehicle tracker is the most advanced & cost-effective solution for vehicle security, real-time tracking & fleet management & remote diagnostic. It includes unique functions such as:

OBDII CANBUS & K-Line data acquisition
Bluetooth vehicle data & control system
Camera for snapping & monitoring via platform
RFID car alarm system with long-distance tag
Crash alarm, fuel leaking alarm, speed limiter & SD card storage

Key Features

4G GPS vehicle tracker for comprehensive fleet management
Integrated GPS tracker + OBDII + Bluetooth + RFID Car alarm + Camera
Active RFID Driver ID identification or Bluetooth ID (optional)
Arm/disarm by SMS, phone call, RFID tags or Platform
Support OBDII CANBUS & K line data acquisition
Acceleration & Deceleration (Crash) Alarm, Turn over alarm
Speed limiter with automatic slowing and siren alert
OTA function: Upgrade firmware over the air
Cut off engine to stop the car safely via SMS/GPRS
Analog input for fuel/temperature monitoring and fuel loss alarm
Remote diagnostics: Transmission of CANBUS data (RPM, speed, fuel consumption, etc.)

Technical Specifications

Size of the main unit	906020(mm)
Weight of the main unit	75G
Inside Backup battery	Rechargeable 3.7V 350mAh Li-ion battery
Working temperature	-20~85 centigrade
GSM frequencies	2G: 850/900/1800/1900MHz; 4G: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
Receiving sensibility	-162dBm
Positioning accuracy	≤10m (wide-open area)
Working voltage	+6.0 ~+45VDC/1.5A
GPS Position time	Cold start: 40s; Warm start: 20s

System & Software Display

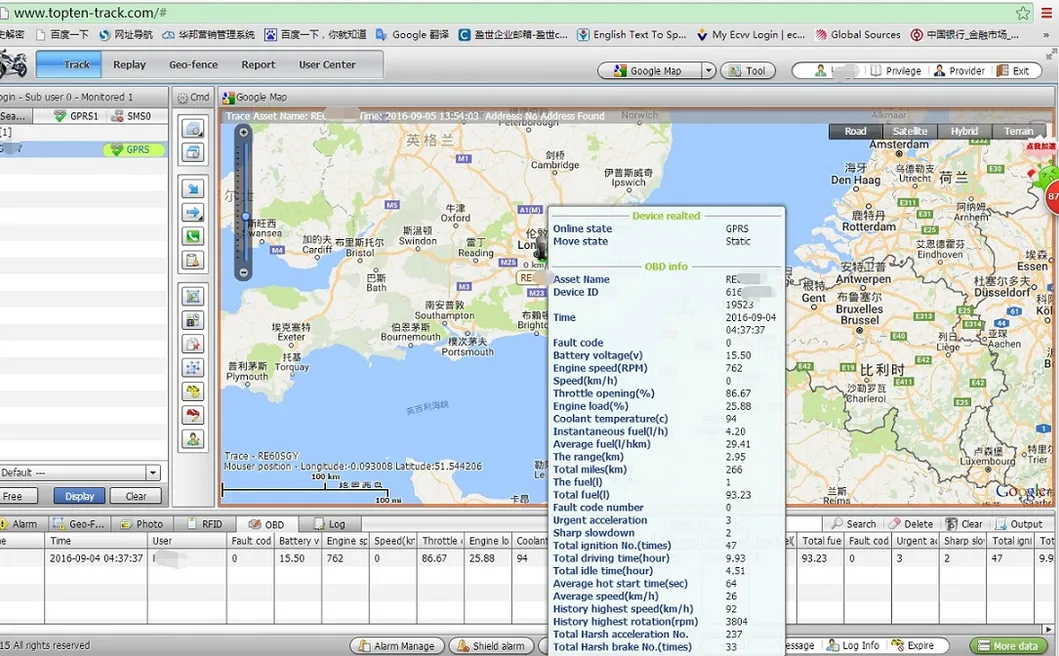

GPS Tracking Software Interface

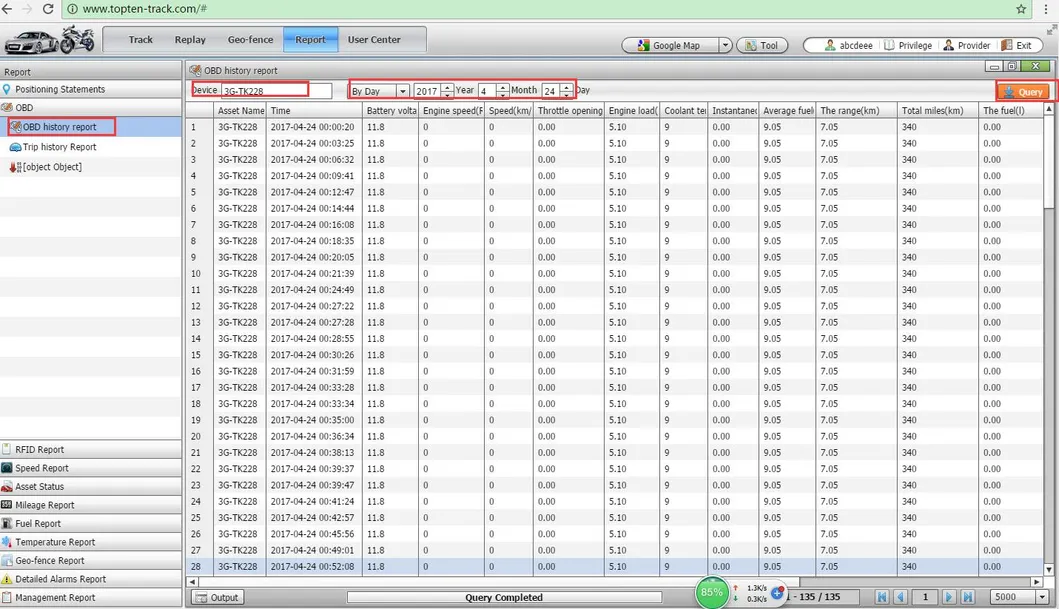

OBD Diagnostic Code Report

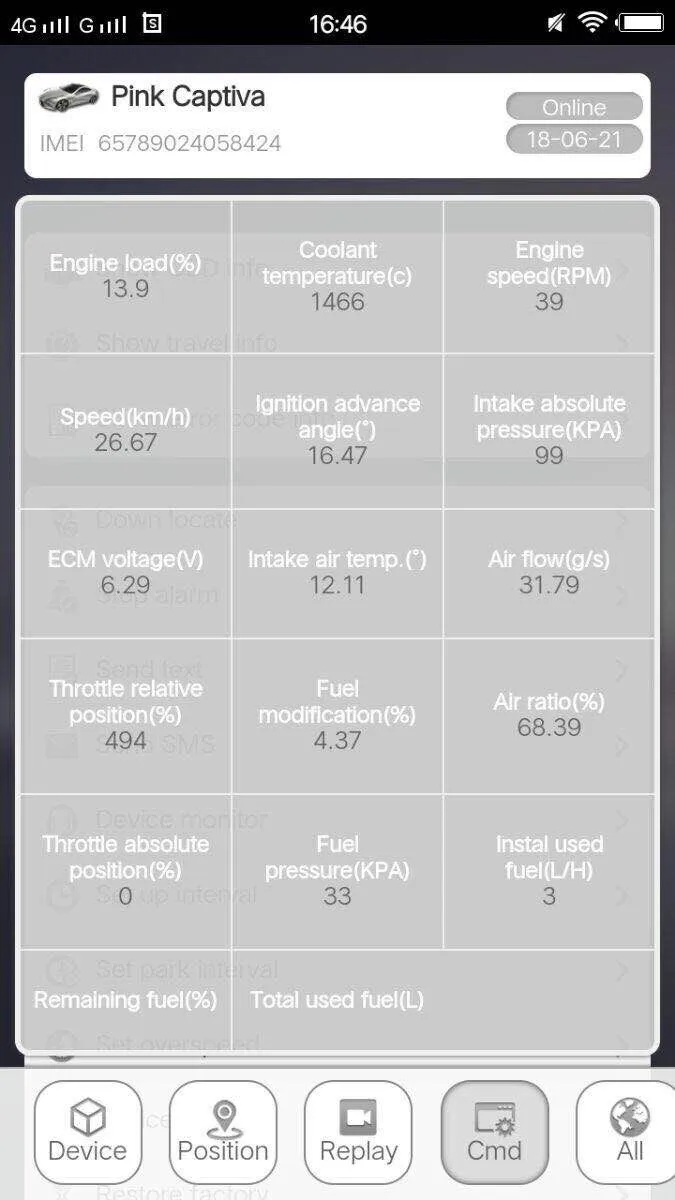

Mobile Application Tracking

2.4G RFID Driver Identification

Hardware Connection Diagram

Frequently Asked Questions

How does the alarm function work?

The device functions as a tracker, alarm, and diagnostic tool. If someone tampers with the vehicle, it sends an alert SMS to the owner and a notification to the software.

When does the device send an alarm?

The device triggers an alarm if the vehicle is vibrated or moved, the engine is started, or if the device is illegally disconnected or powered off.

Can I add more than one RFID tag to each tracker?

Yes, multiple RFID tags can be paired with a single tracking unit.

How long does the RFID tag battery last?

The RFID tag contains a battery that typically lasts at least 1 year and can be easily replaced when needed.

What is the range between the tracker and the RFID tag?

The effective detection range between the tracker and the RFID tag is approximately 3 to 5 meters.

What are the main functions of the RFID tag?

It has two main functions: 1. Auto Arm/Disarm (the unit disarms when the tag is close and arms when it moves away). 2. Driver Management (identifies who is driving and records driving duration).
