Biobase Dry Chemistry Analyzer Biochemistry Analyzer

Customization:	Available
Classification:	Biological Diagnostics
Type:	Biochemistry Analyzer

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

SMT-120

External Size

SMT-120

Sample Volume

90-120

Barcode

Qr Code

Testing Time

12mins/Sample

Controlling Temp

37±0.2℃

Resolution

0.001ABS

Absorbance

0-3.0ABS

Sample Type

Anti-Coagulation Whole Blood

QC & Calibration

IQC Intelligent QC

Condition

Temperature: 10-32º

Testing Principle

Absorbance Spectroscopy

Testing Method

End Point

Light Source

12V/20W

Power Supply

AC100-240V, 50-60Hz

Power

105W

🔭 Product Description

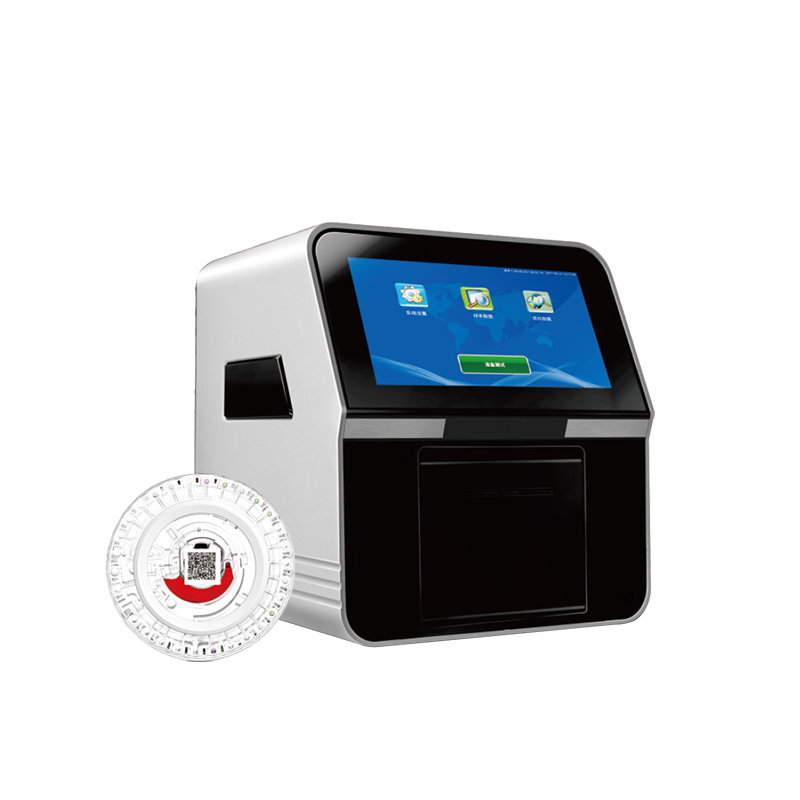

Dry Chemistry Analyzer

✔

Little Sample Volume Required: Sample volume needed is 1/10-1/20 of traditional chemistry analyzer.

✔

Easy to Carry: The portable analyzer is designed to save space, use it anywhere anytime.

✔

Less Maintenance: No consumables needed such as tubes, pump, valve etc., saving your maintenance expenses.

✔

Accurate Result: Using the photoelectric colorimetric principle, this analyzer has many advantages versus traditional dry biochemistry analyzers using light reflection. Dilution of test sample is guaranteed without random errors and cross contamination.

⚙ Product Parameters

Model	SMT-120
Sample Volume	90-120ul
Barcode	QR code
Testing Time	12mins/sample
Controlling Temperature	37±0.2ºC
Resolution	0.001Abs
Absorbance	0-3.0Abs
Sample Type	Anti-coagulation whole blood, serum and plasma
QC & Calibration	IQC Intelligent QC
Working Condition	Temperature: 10-32ºC; Humidity: <85%
Testing Principle	Absorbance spectroscopy, transmission turbidimetry
Testing Method	End point, kinetic, fixed time, turbidimetry, etc.
Light Source	12V/20W, Halogen tungsten lamp, life span over 2500h
Power Supply	AC100-240V, 50-60Hz
Display	6.5 inches touch screen
Storage	4G, 100.000 results
Print	Built-in thermal printer
Gross Weight	6.85 KGS

📦 Packaging & Shipping

• Cartons packaging - Customized packaging available.

• All packing checked before shipping.

• International Express: DHL, TNT, EMS, FedEx.

• Sea / Air Transportation options.

• Standard international carton case or plywood case packaging.

🏭 Manufacturing & Service

Global Presence: Operations across North America, Europe, Southeast Asia, and other regions.

R&D Centers: Advanced research facilities located in key global innovation hubs.

Specialized Areas: Medical diagnosis, biosafety protection, disinfection and sterilization, water purification, cold chain products, and clean room projects.

⭐ Service Advantages

Pre-Sales Service:

Inquiry and consulting support.
Quick response with detailed quotations.
OEM services welcomed.
Factory inspections and technical validation.

After-Sales Service:

1-year comprehensive warranty.
Full installation and operational training.
Engineers available for overseas machinery service.

Frequently Asked Questions

What is the required sample volume for a test?

The analyzer requires a very small sample volume of only 90-120ul, which is about 1/10 to 1/20 of the volume required by traditional chemistry analyzers.

How long does it take to get the results?

The testing time is highly efficient, providing results in approximately 12 minutes per sample.

What types of samples can this analyzer process?

It is compatible with anti-coagulation whole blood, serum, and plasma samples.

Does the device require frequent maintenance?

No, the design eliminates the need for common consumables like tubes, pumps, or valves, significantly reducing maintenance needs and expenses.

Is the analyzer portable?

Yes, it is a portable analyzer designed to save space, making it easy to carry and use in various clinical settings.

How are the test results ensured for accuracy?

The system uses photoelectric colorimetric principles combined with IQC Intelligent QC to guarantee accurate results without random errors or cross-contamination.
