| Model NO. | FSTH-PL671RMC |
| OEM/ODM | Yes / Yes |
| Protection Level | IP66 |

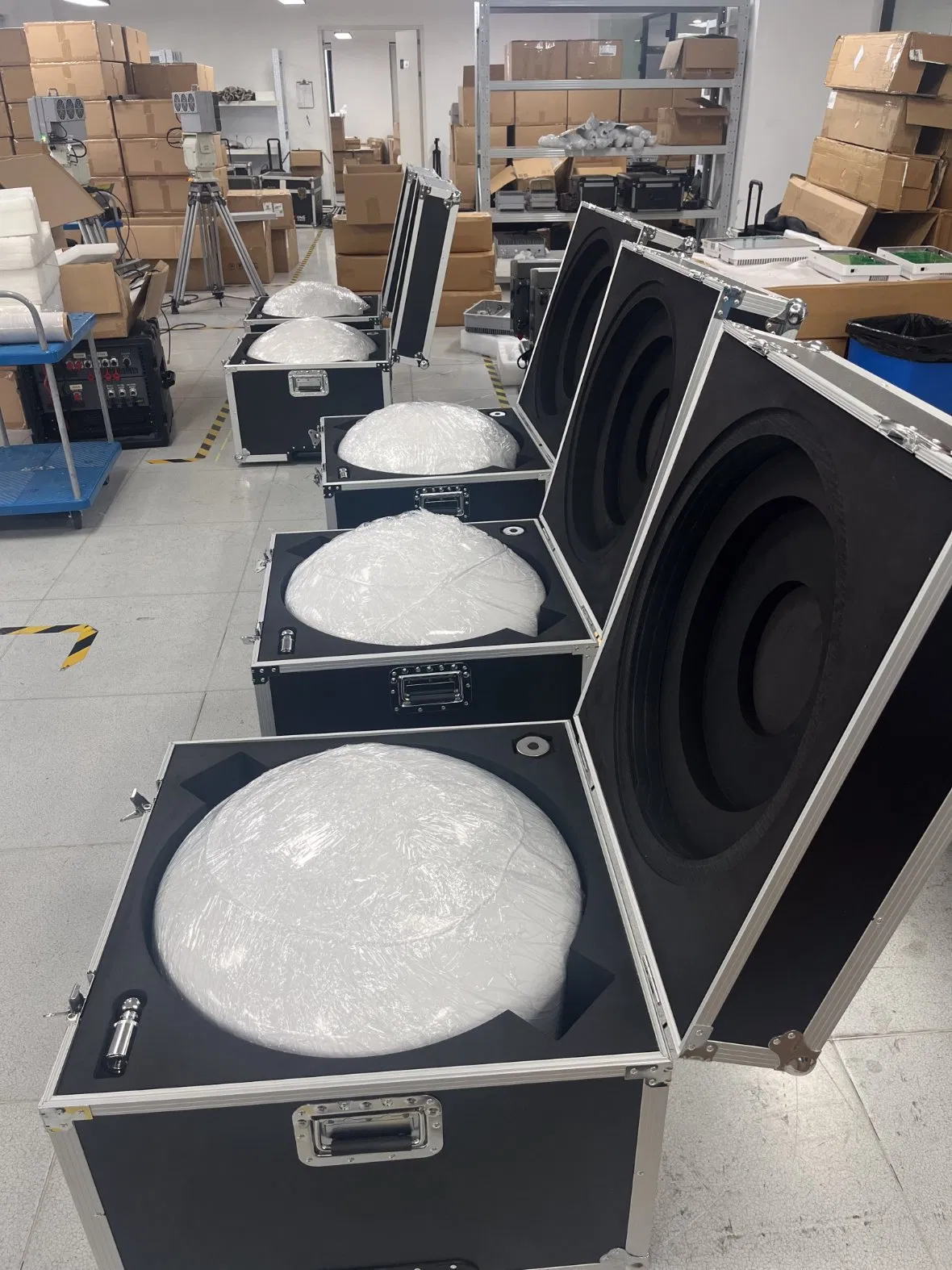

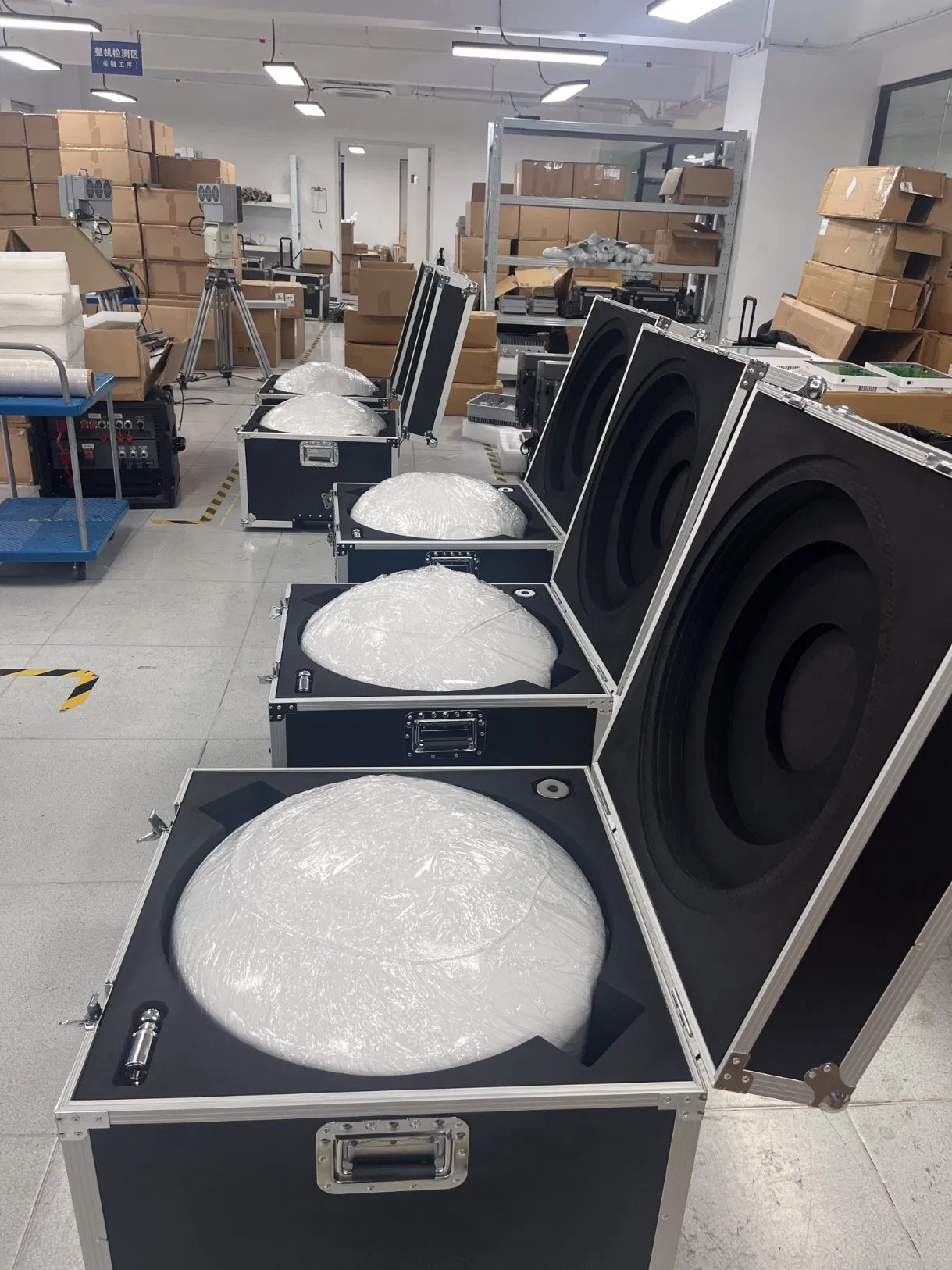

| Transport Package | Flight Case |
| Specification | Size: 600mm*600mm*400mm |
| Origin | China |

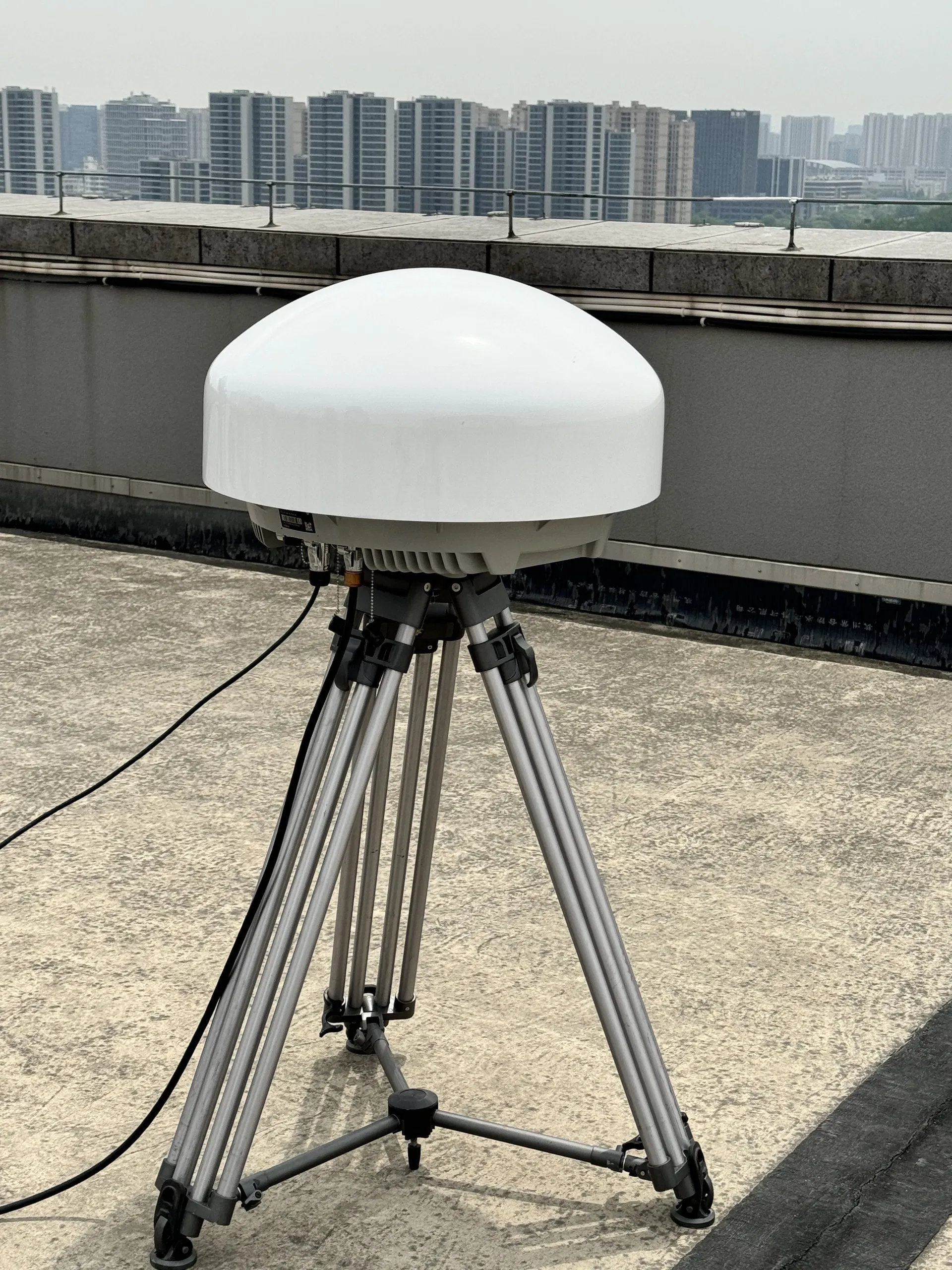

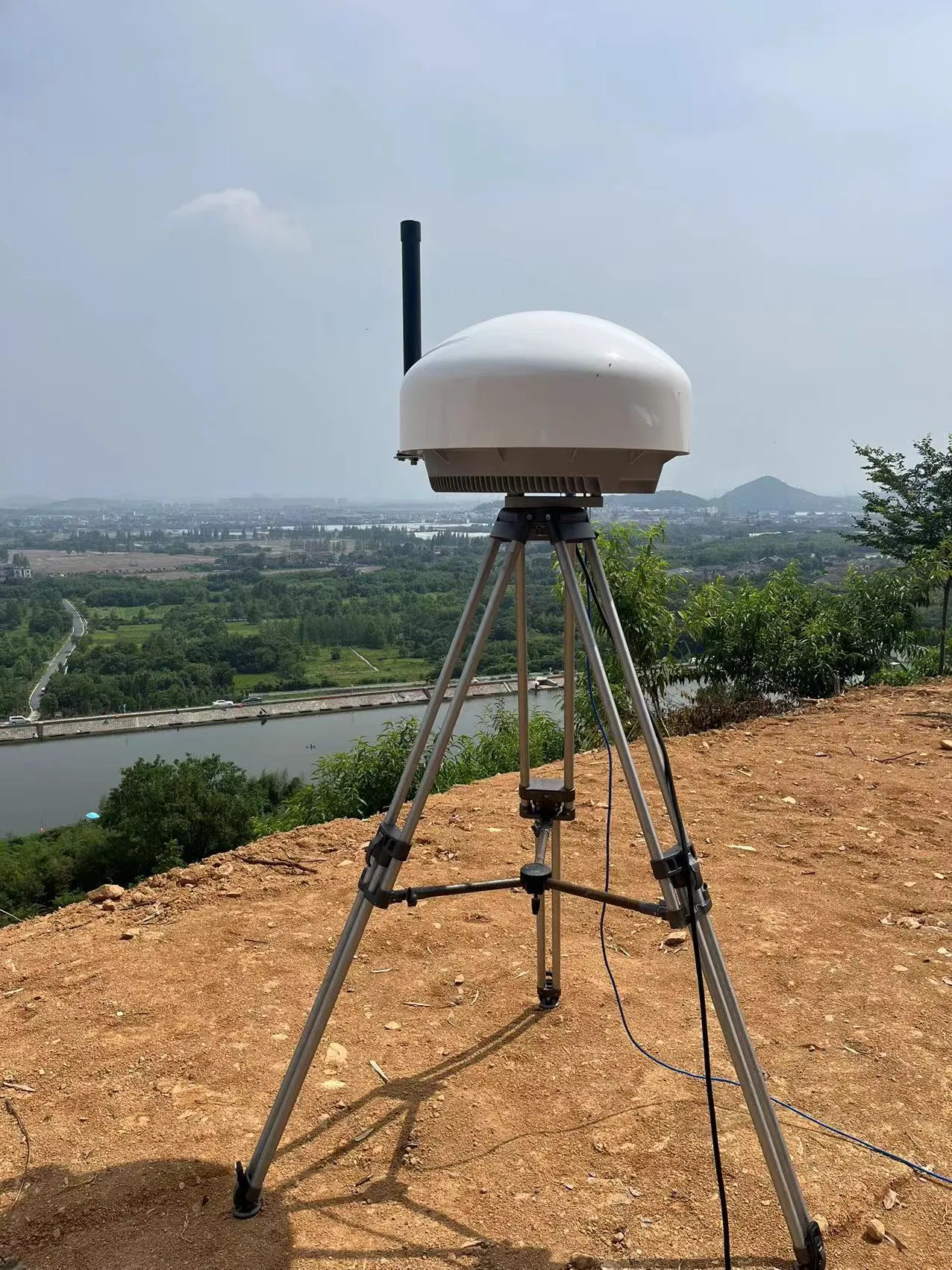

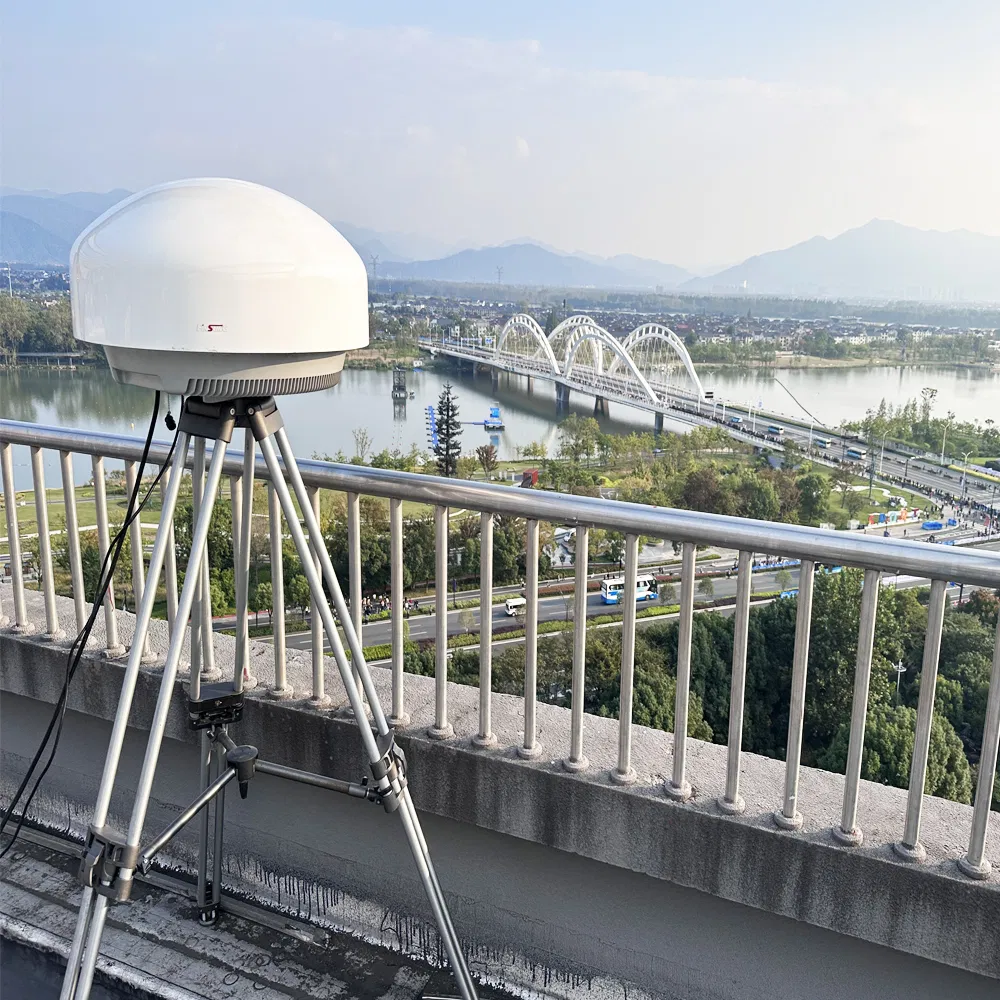

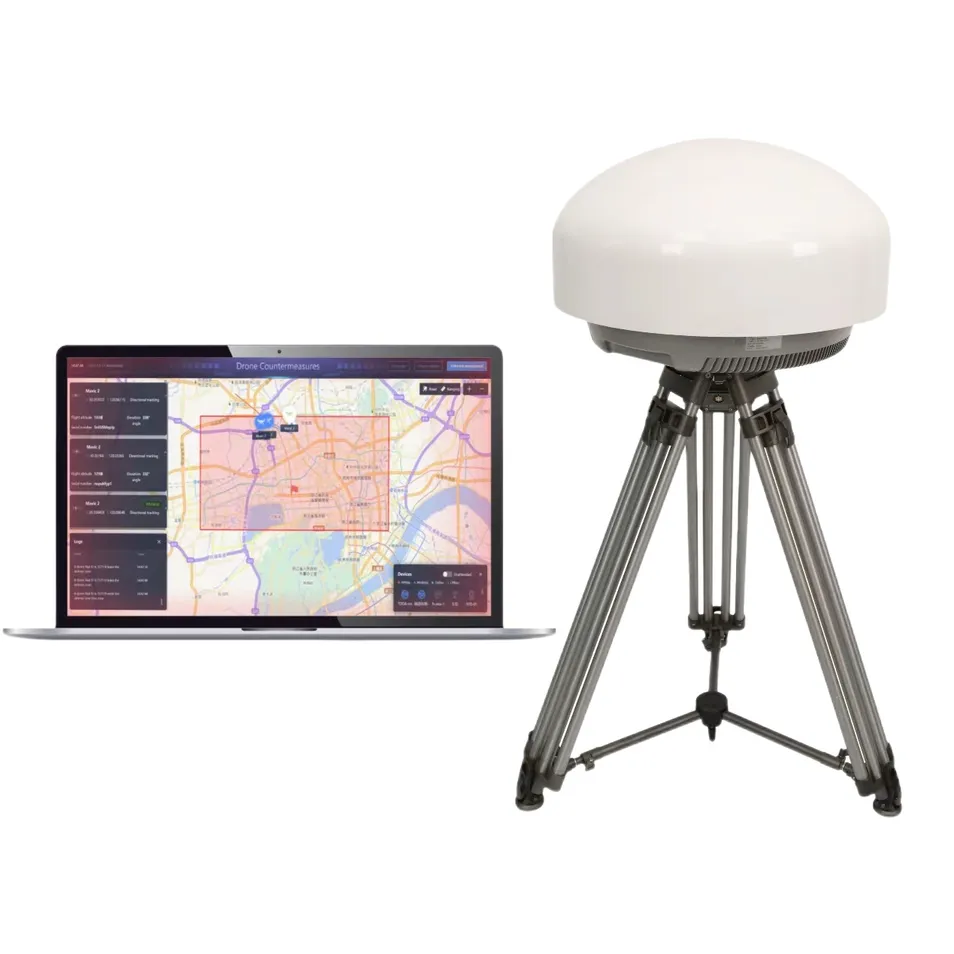

The UAV radio detection equipment can detect and find the UAV radio signals in the full spectrum range of 300MHz to 6000MHz, monitoring at a radius of 4KM. The equipment can detect and find the UAV radio signals, sending audible and visible alarms automatically once the equipment is turned on. According to the location and frequency detected, the equipment can turn on radio blocking equipment automatically by the low altitude safety control platform system, suppressing the target area and forcing the UAV to return to base or land.
| Frequency Range | 20MHZ-8000MHZ / 20MHZ-6000MHz / 300MHZ-6000MHz |
| Response Time | < 2s |
| Detection Angle | Horizontal: 360°; Vertical -20° to +70° (Finding) / -70° to +90° (ID) |
| Detection Radius | > 4km (DJI Series); > 3km (FPV, etc.) |
| Direction Accuracy | ≤ 3° |
| Protection Level | IP66 |
| Decoy Radius | 1km ~ 4km (adjustable) |
| Working Temp. | -45°C ~ +70°C |
| Dimension | Φ590mm x H350mm |
