Fast-Acting Nitrogen Liquefier for Efficient Genetic Testing Needs

Send Inquiry

Product Description

🚀

Key Features

Innovative Autonomous Operation Experience seamless efficiency as the machine works independently without the need for constant supervision.

Space-Saving Design Minimal land footprint and an impressively low profile of up to 2500mm in height.

Lightning-Fast Performance Delivers rapid liquid nitrogen production, achieving full output in a remarkable 1.5 hours post-start-up.

Reliable Maintenance Equipped with standard refrigerator compressors; easily repaired by technicians proficient in refrigerator maintenance.

Continuous Operation Zero downtime and no defrosting required, maximizing productivity and efficiency.

⚙️

Nitrogen Liquefier Working Principle

This state-of-the-art nitrogen liquefier utilizes a cutting-edge cryogenic mixed refrigerant throttle refrigerator technology. It employs a sophisticated regenerative multi-component mixed refrigerant throttle cycle. By integrating components with diverse boiling points—high, mid, and low—each component precisely matches its cooling temperature zone, transitioning from ambient temperatures down to a chilling -196 °C. This process successfully achieves the desired outcome of nitrogen liquefaction at -180 °C and 0.6 MPa.

Figure 1. Detailed flow diagram illustrating the process of nitrogen liquefaction.

📊

Nitrogen Liquefier Specifications

Model	WG-STD-05L	WG-STD-1L	WG-STD-3L	WG-STD-5L	WG-STD-10L	WG-STD-20L	WG-STD-25L	WG-STD-30L	WG-STD-40L	WG-STD-50L
L.Nitrogen Output (L/day)	12	24	80	120	240	500	360	720	1000	1200
L.Nitrogen Output (L/h)	0.5	1	3	5	10	20	25	30	40	50
Power (KW)	1	5	8	9	11	25	25	25	35	35
N2 consumption (Nm³/h)	≥1	≥1.5	≥4	≥6	≥12	≥30	≥35	≥40	≥50	≥60
N2 Purity	99.9%	99.9%	99.9%	99.9%	99.9%	99.9%	99.9%	99.9%	99.9%	99.9%
Cooling form	Air	Air	Air	Air	Water	Water	Water	Water	Water	Water
Cooling water (Ton/h)	-	-	-	-	≥4	≥8	≥8	≥8	≥15	≥15
Dimensions (mm)	850×950×1960				1500×1000×2000				2500×1500×2000

🖼️

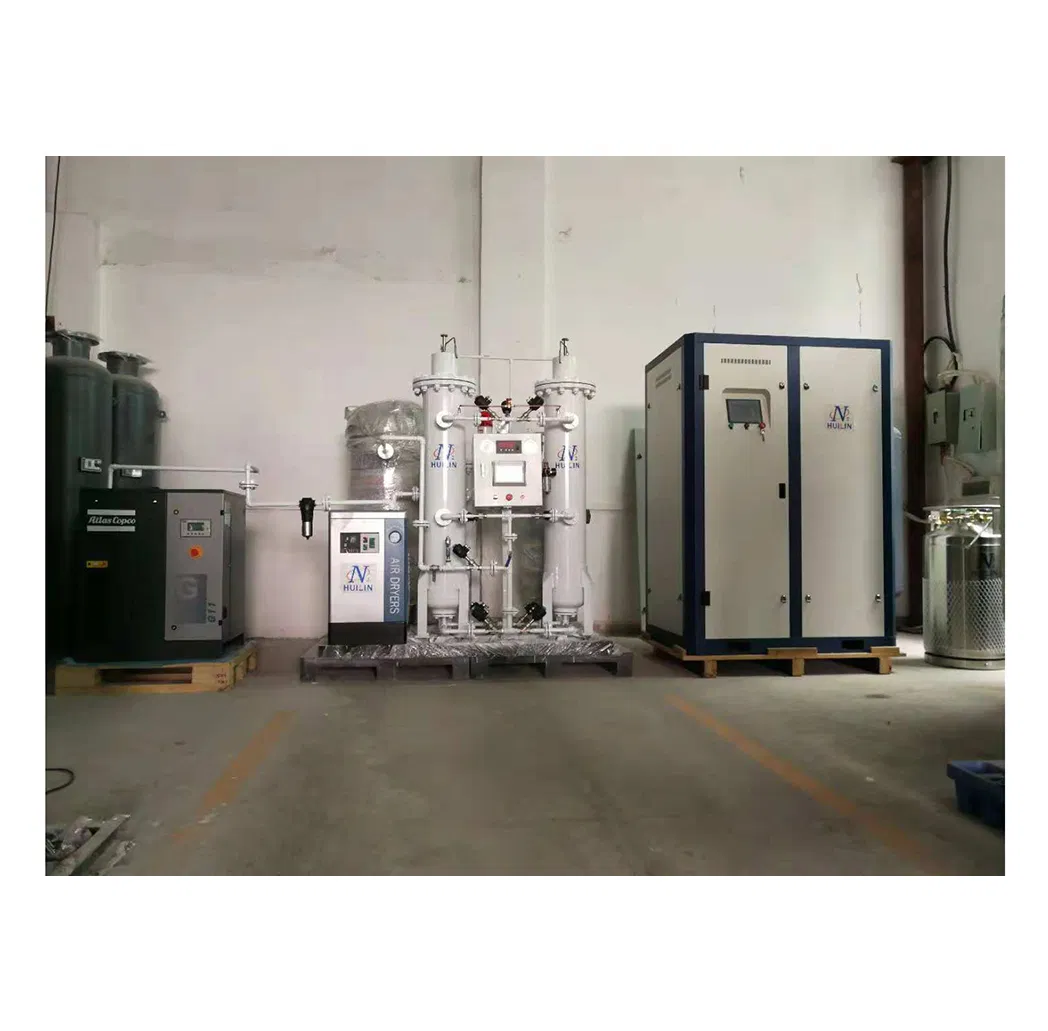

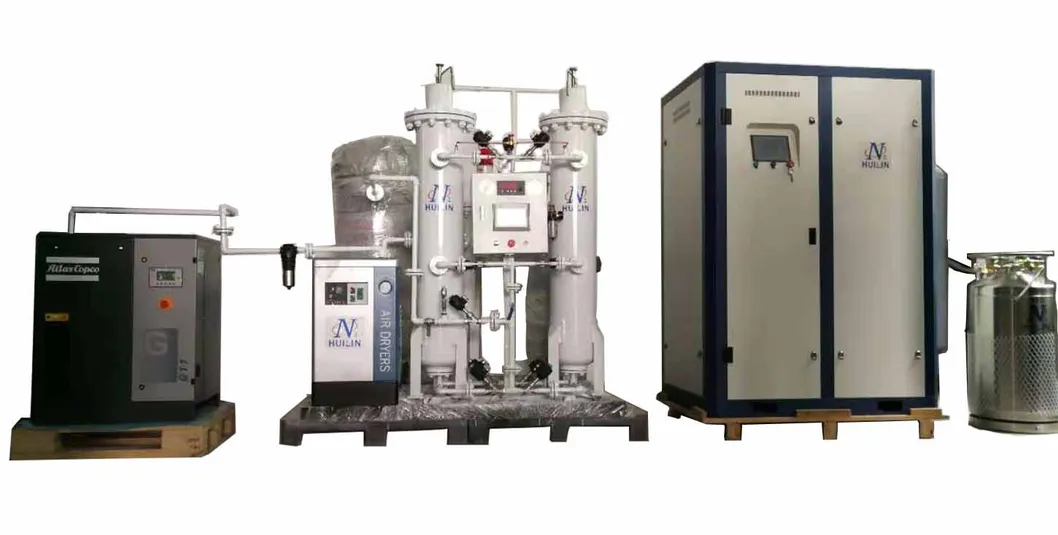

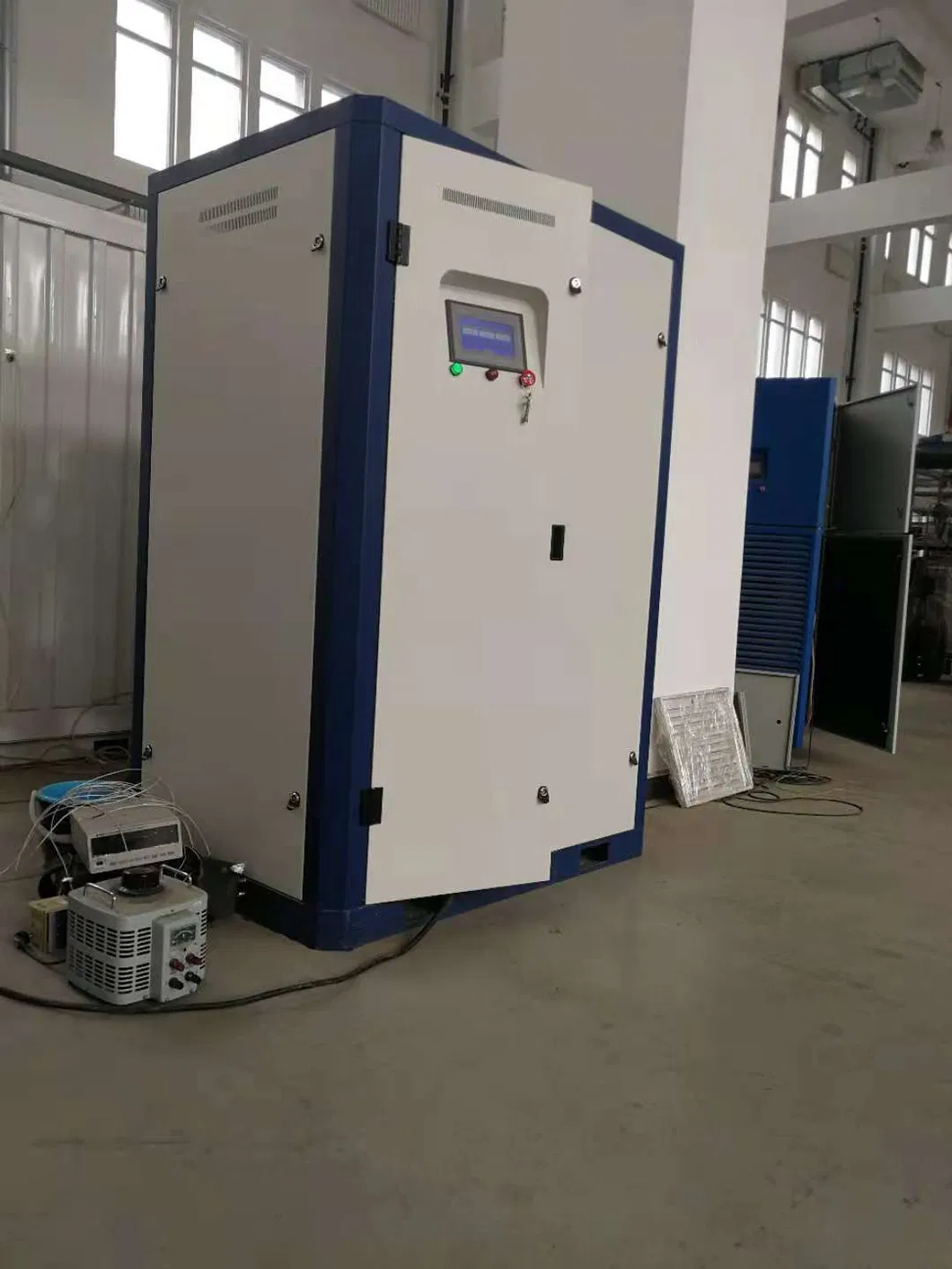

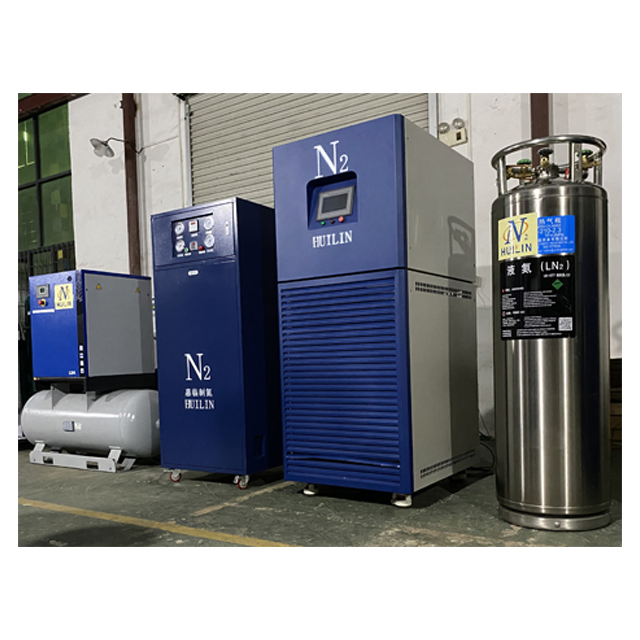

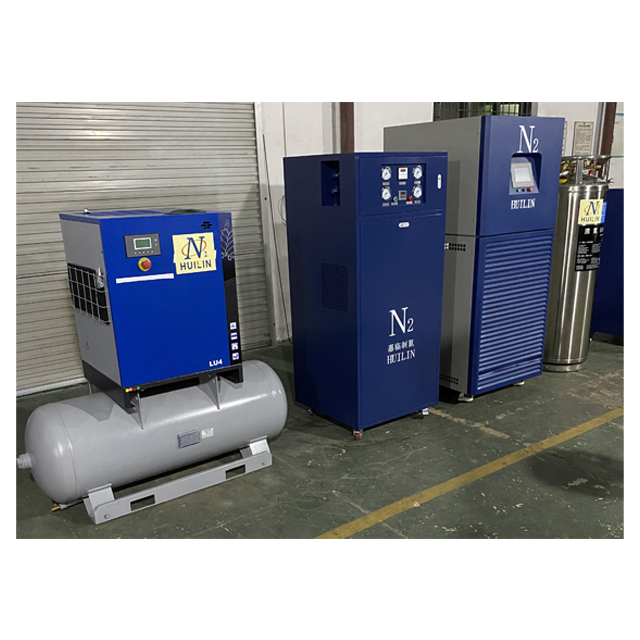

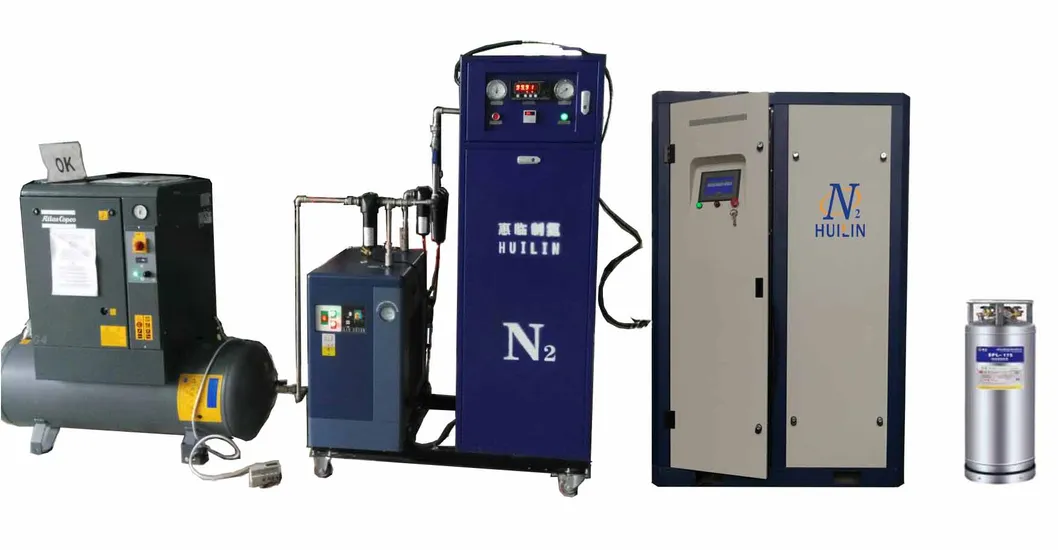

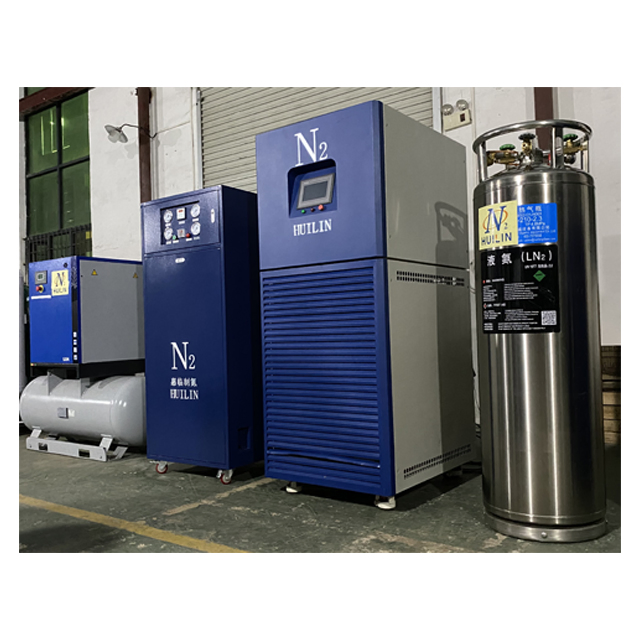

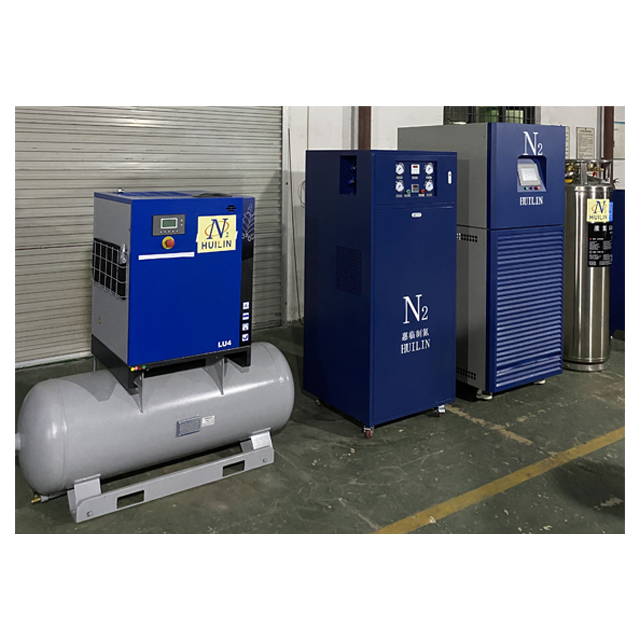

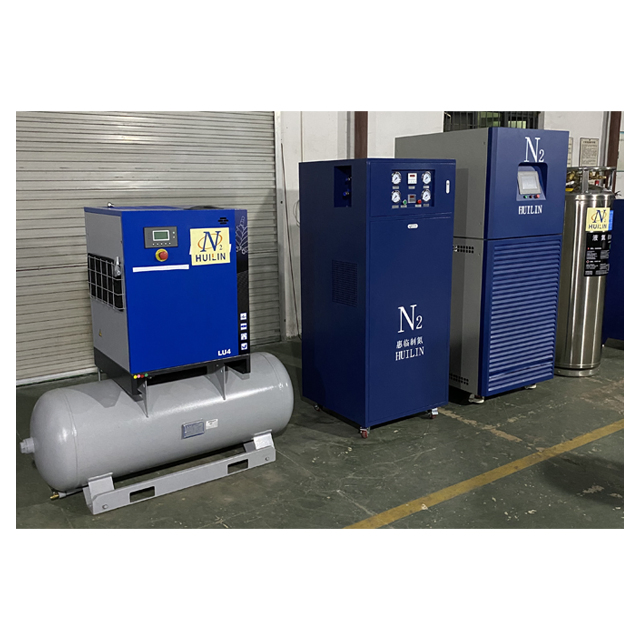

Product Display

Frequently Asked Questions

How long does it take to start producing liquid nitrogen?

The system features lightning-fast performance, achieving full liquid nitrogen output in just 1.5 hours after start-up.

Does the machine require constant supervision?

No, the system is designed for innovative autonomous operation, allowing it to work efficiently on its own without constant oversight.

What is the maintenance requirement for the compressors?

The equipment uses standard refrigerator compressors. This ensures it can be easily maintained or repaired by technicians who are proficient in general refrigerator mechanics.

Is there any downtime for defrosting?

The nitrogen liquefier supports continuous operation with zero downtime and requires no defrosting, which maximizes overall productivity.

What is the maximum height of the equipment?

The equipment features an ultra-space-saving, low-profile design with a maximum height not exceeding 2500mm.

What temperature and pressure levels are achieved?

The system achieves nitrogen liquefaction at -180 °C and 0.6 MPa, utilizing temperatures as low as -196 °C through its mixed refrigerant throttle cycle.
