Product Description

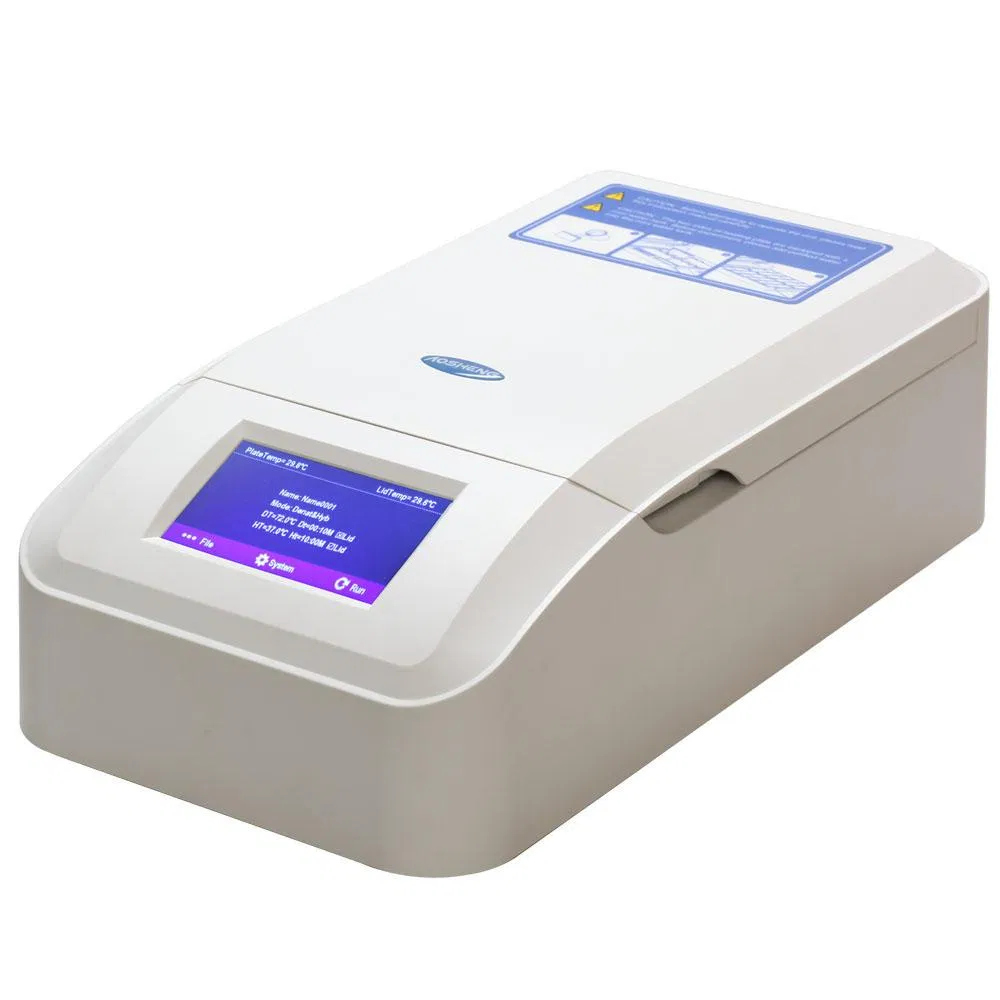

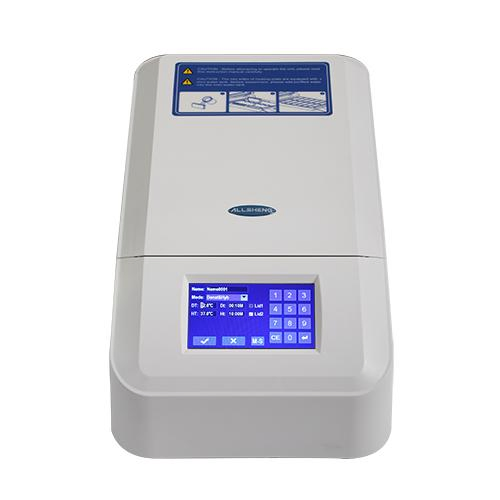

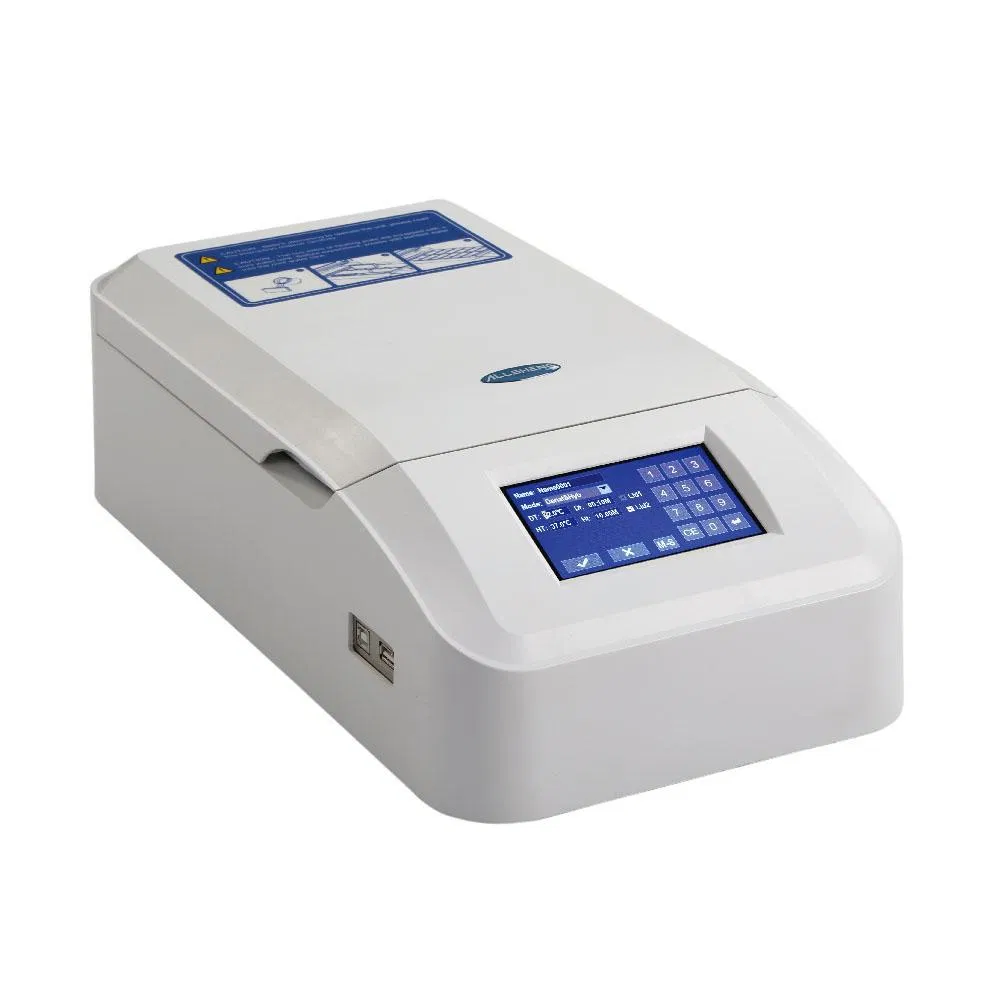

Hybridization System FISH Hybridization System

Programmable system with two-side heating of slides. Model: LTL-TDH-500

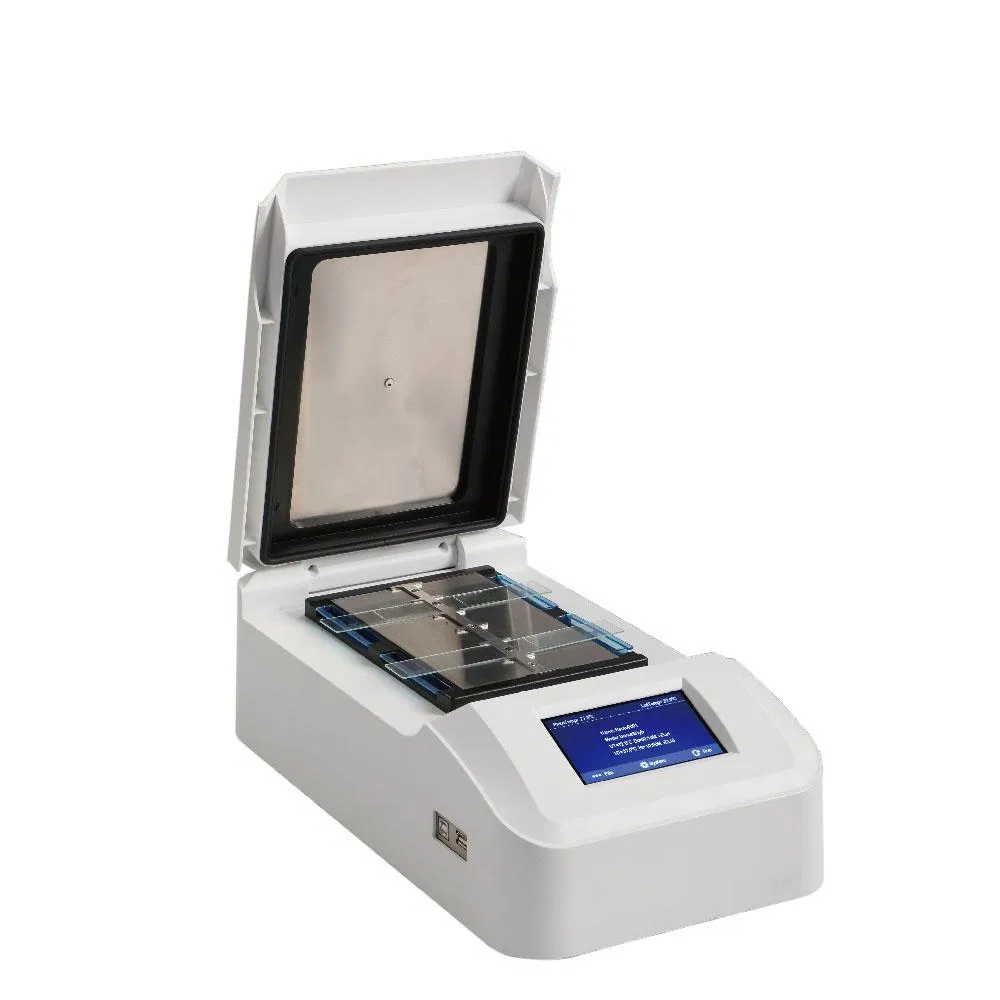

Hybridization System 1
Hybridization System 2
Hybridization System 3

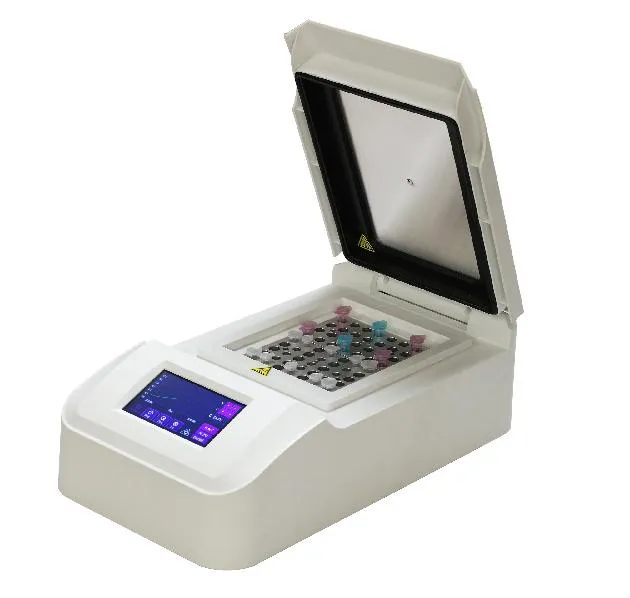

Hybridization System Details

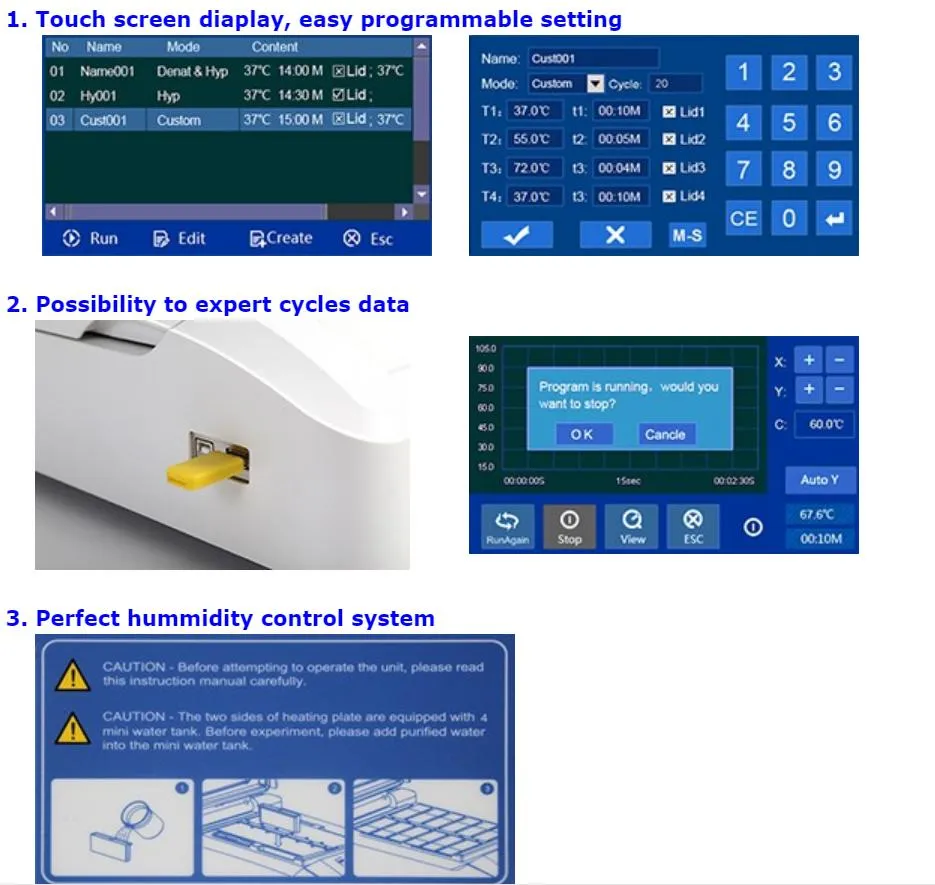

Hybridization System Operation
Key Features

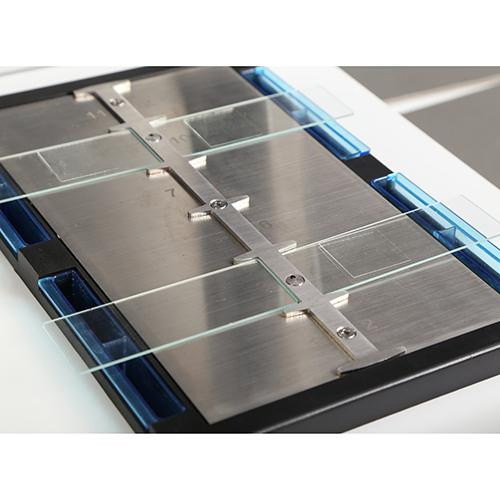

A programmable system and humidifying that automates the steps in a slide-based FISH procedure, providing walk-away convenience for clinical and research personnel. Up to 12 slides can be easily added or removed with one hand. Two-side heating of slides allows achieving exact correspondence of the set and actual temperature, maintaining uniform temperature across all slide positions. Ideally suited for the needs of cytogenetic laboratories.

  • Touch screen: Easy to read, program, and use
  • Supports In-situ PCR experiments
  • Data Export: USB memory support for cycle data
  • 4 Operation Modes: Denaturation/Hybridization, Fixed Temp, Custom, In-situ PCR
  • Versatile: Can be used as a fixed temperature slide warmer
  • Rapid Warm-up: High accuracy of ±1°C
  • Uniformity: Superior temperature consistency across slides
  • Humidity Control: Perfect integrated system
Technical Specifications
Model TDH-500
Temperature Control Range RT +5°C ~ 99.9°C
Temperature Accuracy ±1°C
Temperature Uniformity ±1°C
Timer 1min ~ 99h59min or 1sec ~ 99min59sec
Temp Display Accuracy ±0.1°C
Heating Time (37°C to 95°C) ≤3min
Cooling Time (95°C to 45°C) ≤7min
Programmable Temp Range 30°C ~ 100°C
Capacity 12 slides
Display Touch screen
Dimensions (LxDxH) 225 × 420 × 143 mm
Weight 5.8 kg
Recommended Laboratory Analyzers
Hematology Analyzer
Blood Gas Analyzer
Blood Coagulation Analyzer
Urine Analyzer
Urine Flow Meter
Microplate Elisa Reader
Chemistry Analyzer
Electrolyte Analyzer
Automated HbA1c Analyzer
Thermal Cycle
Real Time PCR Analyzer
Genetic Analyzer
Technical Documentation
Technical Specifications Overview
Frequently Asked Questions
1. What is the maximum slide capacity of the TDH-500 system? The system can accommodate up to 12 slides at a time, and they are designed to be easily added or removed with one hand for maximum laboratory efficiency.
2. Which operation modes does the hybridization system support? It supports four distinct operation modes: denaturation/hybridization, hybridization at a fixed temperature, custom programming, and In-situ PCR.
3. How fast can the device reach denaturation temperatures? The TDH-500 features rapid temperature warm-up, capable of heating from 37°C to 95°C in 3 minutes or less.
4. Does the system ensure uniform heating across all slide positions? Yes, the system utilizes two-side heating of slides to maintain a superior temperature uniformity of ±1°C across all 12 positions.
5. Can I export experimental data for research records? Yes, the system allows for the export of cycles data via a USB memory stick, making it convenient for clinical and research data management.
6. How is the humidity controlled during the hybridization procedure? The TDH-500 features a built-in perfect humidity control system to automate and maintain the environment required for successful slide-based FISH procedures.
