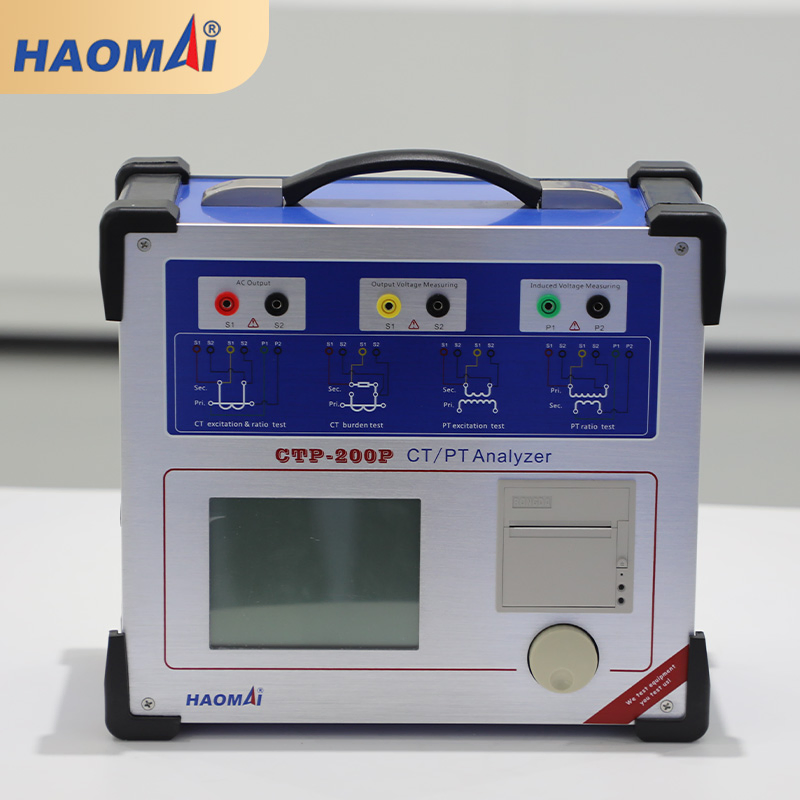

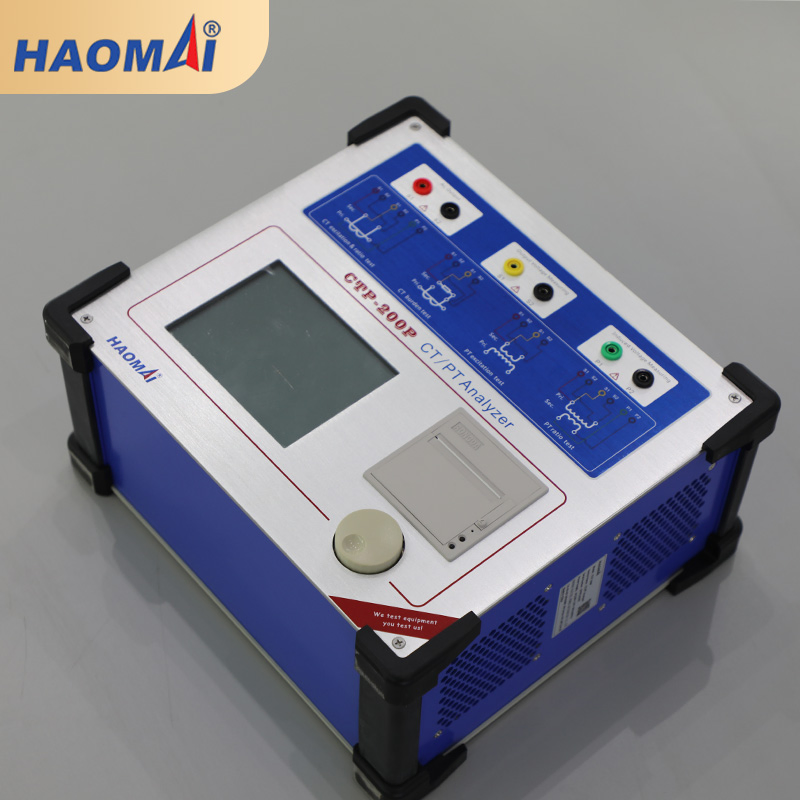

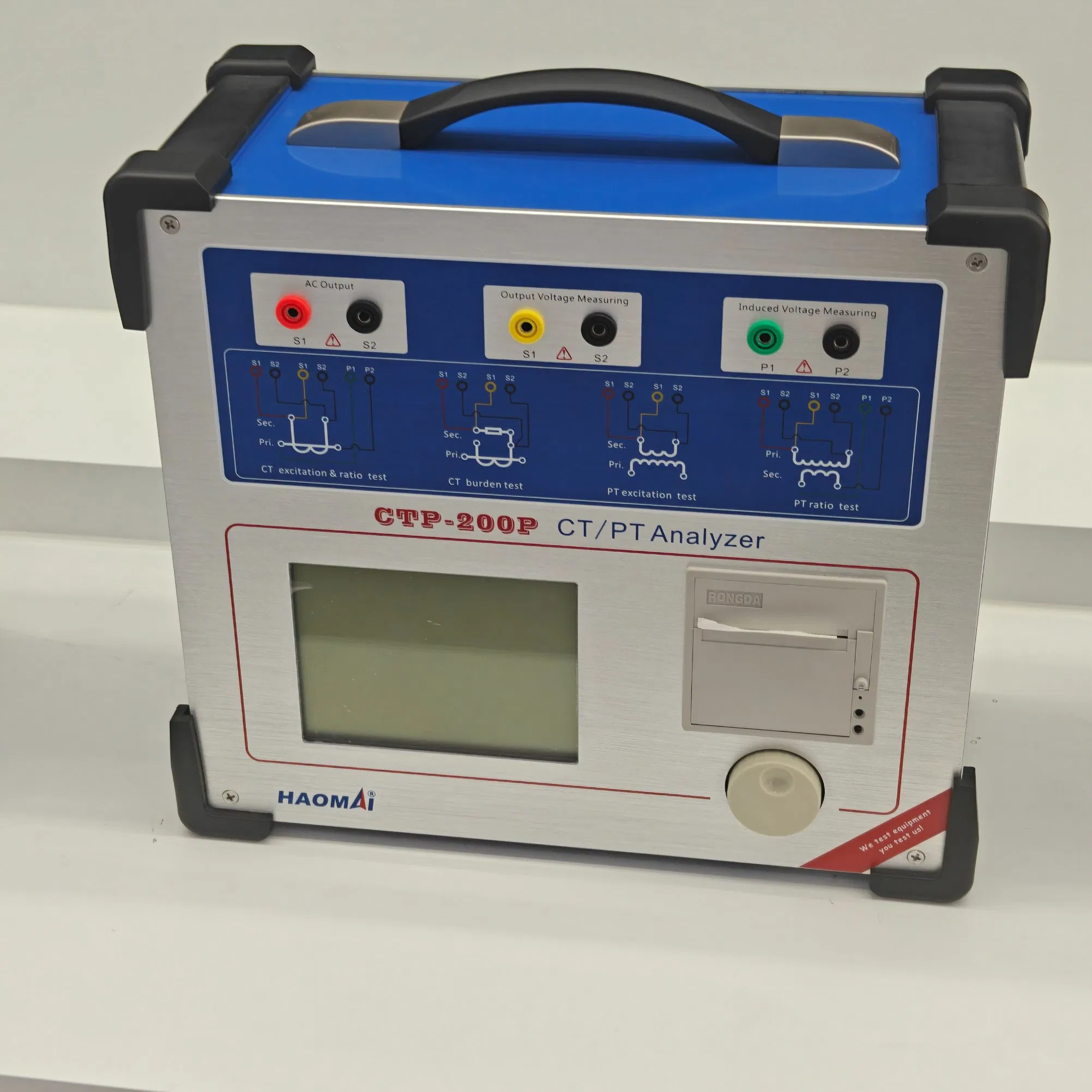

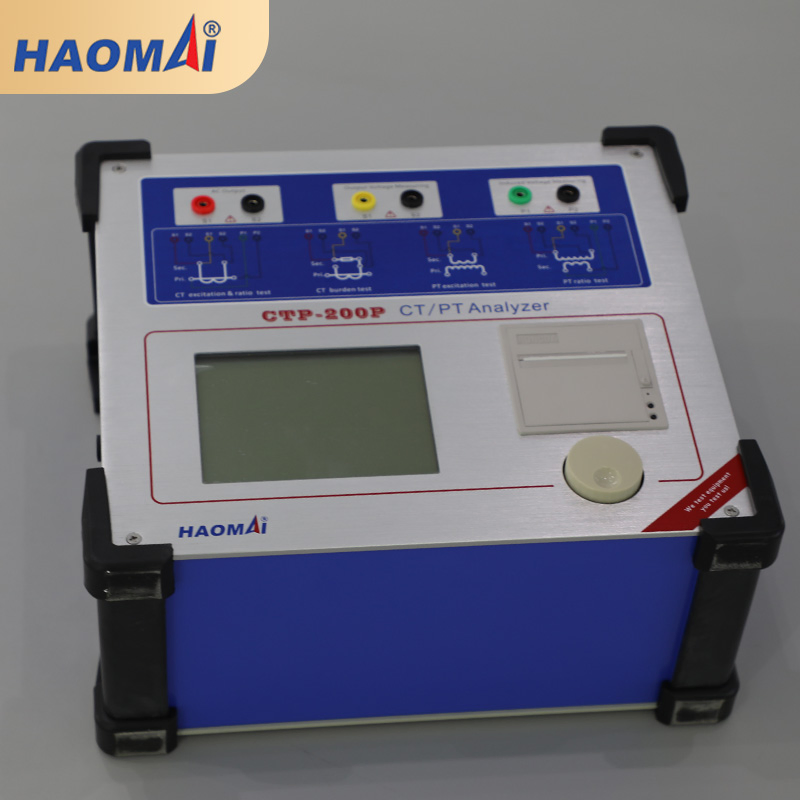

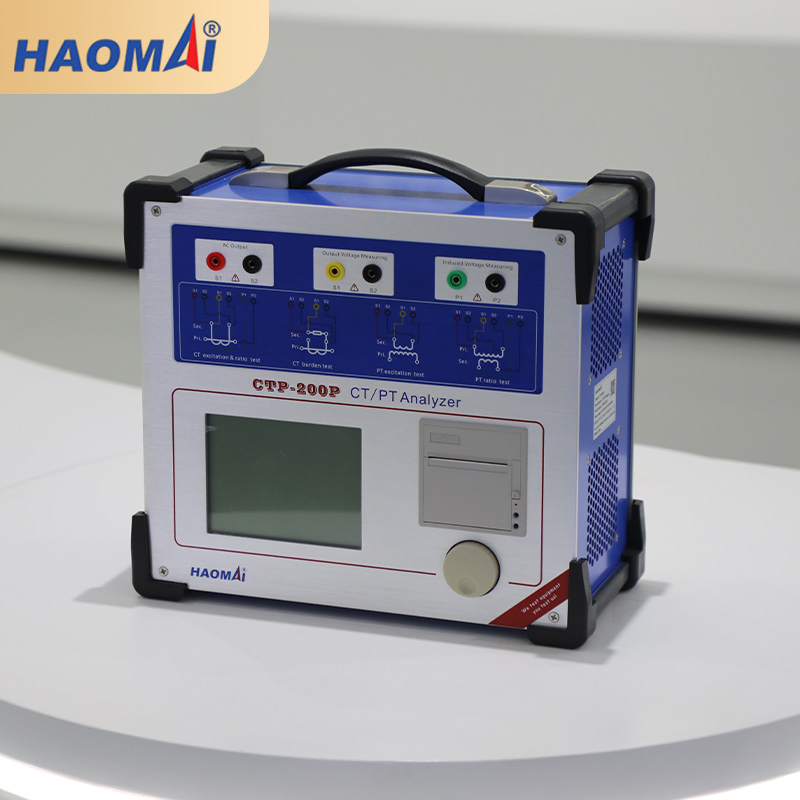

Lightweight CT PT on-Site Diagnostic Platform

Customization:	Available
After-sales Service:	on-Site Training
Warranty:	3 Years

Send Inquiry

Product Description

Basic Information Overview

Model NO.

CTP200P

Weight

9kg / 19.84 Lbs

Calibration Accuracy

0.05%

Testing Object

CT and PT

Knee Voltage Range

>30kv

Connection Port

2 USB2.0, 1 Comm Port

Product Description

The CT and PT Tester is a revolutionary diagnostic system designed for testing various Current Transformers (CTs) and Potential Transformers (PTs) in accordance with international standards including IEC61869-2, IEC61869-3, and IEEE/ANSI C57.13. With a single click of the patented multifunctional rotary mouse, the analyzer automatically completes complex testing sequences within seconds.

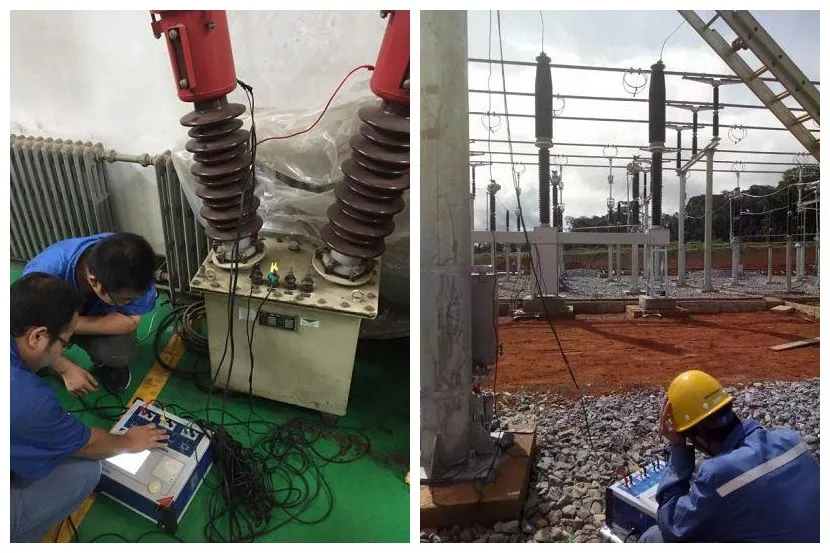

💡 Portability: Weighing only 9kg (19.84 lbs), the CTP-200 is exceptionally easy to transport, making it the ideal solution for on-site power grid testing, production facilities, and laboratories.

Main Features

Compatible with Protection CTs, Measuring CTs, TP class CTs, and inductive PTs.
Low-frequency measurement principle for excitation characteristic and error curves.
Measures ratio, polarity, ratio error, and phase displacement using the voltage method.
Automatic demagnetization of the CT following test completion.
Integrated 5.7-inch LCD screen and DSP/ARM embedded LINUX operating system.
Support for both local standalone testing and remote PC operation.
High precision measurement accuracy of 0.05%.
Built-in thermal printer for immediate results.

Technical Specifications

Parameter	Specification Details
Test Standards	IEC61869-2, IEC61869-3, IEEE/ANSI C57.13
Max Knee Voltage	40kV
Output Voltage	0 ~ 180V (RMS)
Output Current	0 ~ 12A (RMS), 36A (Peak)
CT Ratio Range	1 ~ 30000 (Accuracy: ±0.05%)
PT Ratio Range	1 ~ 10000 (Accuracy: ±0.05%)
Phase Measurement	Accuracy: ±2min, Resolution: 0.01min
Burden Range	0 ~ 300VA (Accuracy: 0.1% ±0.1VA)

Measurement Principle

The tester calculates ratio and phase angle errors by measuring turns ratio (Np/Ns) and excitation loss (Iex). The equivalence principle diagram below illustrates how Iex amplitude and phase position affect overall accuracy.

Figure: CT's equivalence principle diagram

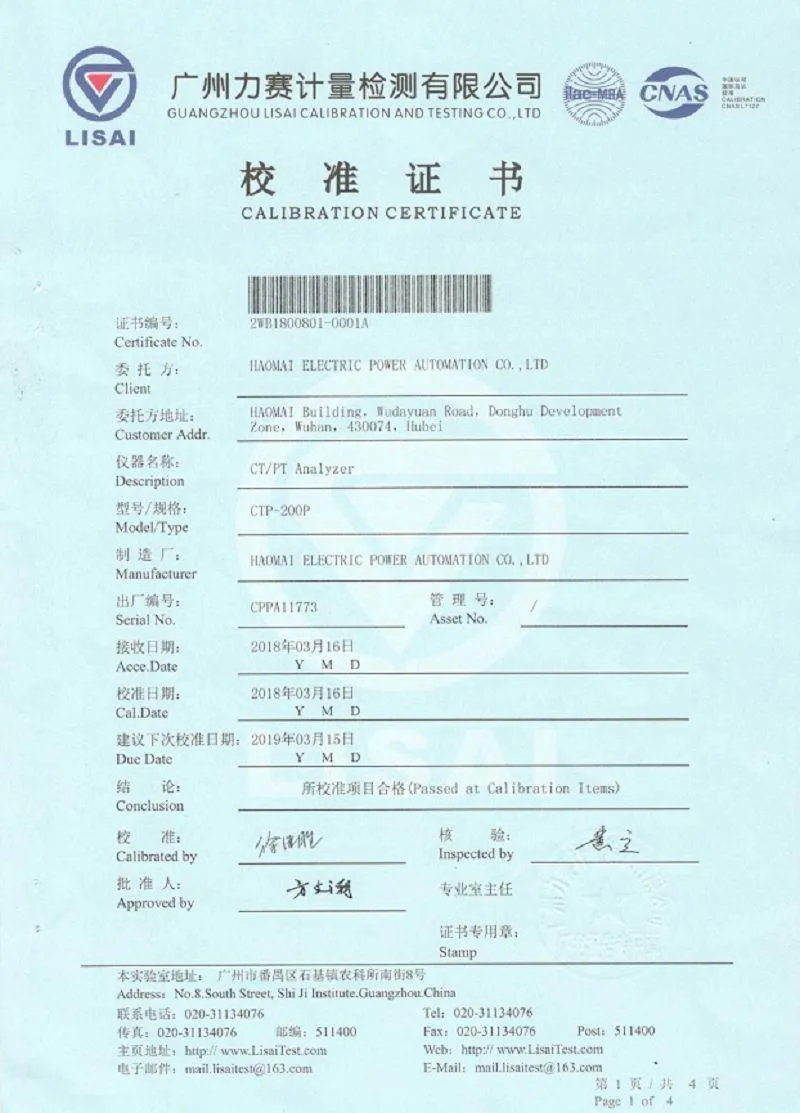

Certifications & Calibration

The device is calibrated in third-party laboratories accredited under ISO/IEC 17025, ensuring global traceability and accuracy standards.

Professional Production & Quality Control

Our production facilities utilize advanced instrumentation including Agilent high-precision meters, EMH standard meters, and insulation test systems. We follow standardized processes certified by ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007.

Frequently Asked Questions

What types of transformers can the CTP200P test?

It is designed to test Protection CTs, Measuring CTs, TP class CTs, and inductive PTs.

How does the device achieve such a low weight for on-site testing?

By adopting a low-frequency measurement principle, the internal components are significantly lightened, resulting in a portable 9kg unit without compromising on a 40kV knee voltage measurement capability.

Does the tester require an external PC to function?

No, it can be operated locally using the 5.7-inch LCD and multifunctional rotary mouse. However, PC remote testing is also available if preferred.

What is the measurement accuracy for CT ratio?

The device offers a high measurement accuracy of 0.05% for ratio measurements.

Can I get a physical printout of the test results on-site?

Yes, the unit features a built-in thermal printer for immediate on-site documentation of test results.

Which international standards are supported?

The tester complies with IEC61869-2 (IEC60044-1, 60044-6), IEC61869-3 (IEC60044-2), and IEEE/ANSI C57.13.
