Product Description

⚙️ Features
🤖
The machine operates autonomously, requiring no constant supervision.
📏
Incredibly minimal land footprint and low height (Max Height ≤ 2500mm), fitting effortlessly into various spaces.
⚡
Rapid liquid nitrogen output: Production starts in just 1.5 hours post start-up, ensuring swift availability.
🛠️
Safe, reliable, and easy to maintain. Uses standard refrigerator compressors, repairable by skilled refrigerator maintenance personnel.
🔄
Zero downtime maintenance: No defrosting required, ensuring continuous and uninterrupted service.
💡 Working Principle
This nitrogen liquefier employs a highly efficient cryogenic mixed refrigerant throttle refrigerator. It utilizes a sophisticated regenerative multi-component mixed refrigerant throttle cycle. By harmoniously combining components with high, middle, and low boiling points, each component matches its refrigeration temperature zone, seamlessly cooling from ambient temperature to -196 °C, thereby achieving the goal of nitrogen liquefaction (-180 °C @ 0.6 MPa) with precision and efficiency.
Flow diagram for nitrogen liquefier

Figure 1. Flow diagram for nitrogen liquefier

📊 Specifications
Model WG-STD-05L WG-STD-1L WG-STD-3L WG-STD-5L WG-STD-10L WG-STD-20L WG-STD-25L WG-STD-30L WG-STD-40L WG-STD-50L
L.Nitrogen Output (L/day) 12 24 80 120 240 500 360 720 1000 1200
L.Nitrogen Output (L/h) 0.5 1 3 5 10 20 25 30 40 50
Power (KW) 1 5 8 9 11 25 25 25 35 35
N2 consumption (Nm3/h) ≥1 ≥1.5 ≥4 ≥6 ≥12 ≥30 ≥35 ≥40 ≥50 ≥60
N2 Purity 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% 99.9%
Cooling form Air Air Air Air Water Water Water Water Water Water
Cooling water (Ton/h) - - - - ≥4 ≥8 ≥8 ≥8 ≥15 ≥15
Dimensions (mm) 850×950×1960 1500×1000×2000 2500×1500×2000
📷 Product Gallery

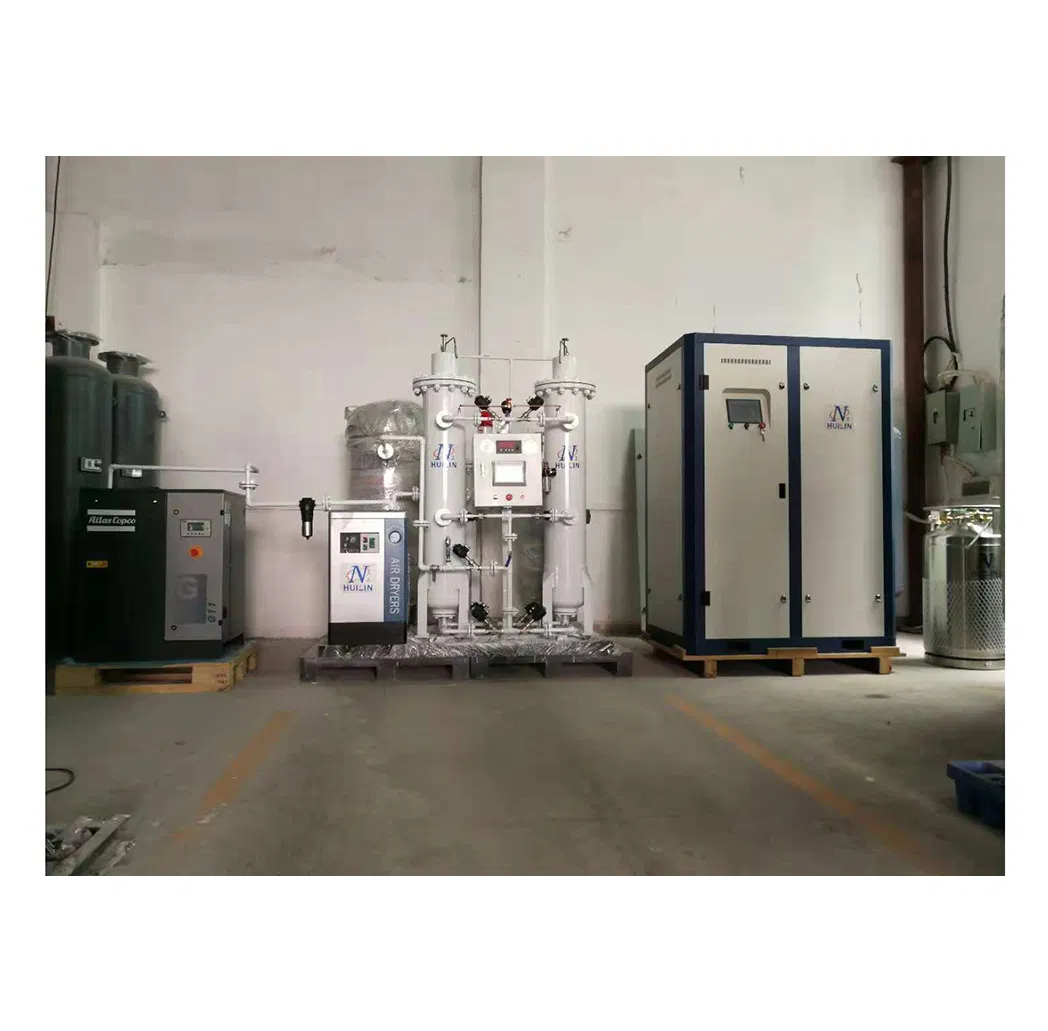

Equipment Detail 1

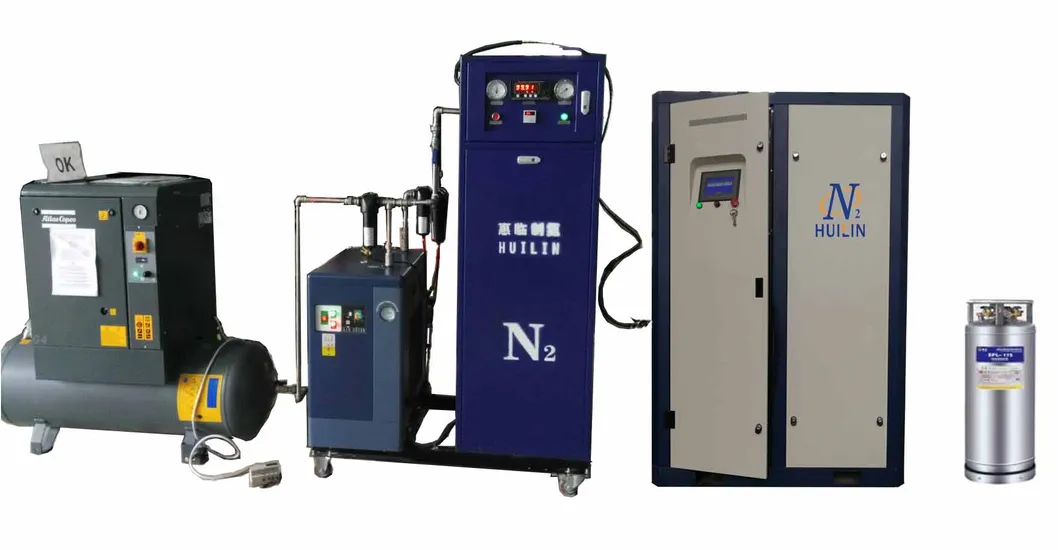

Equipment Detail 2

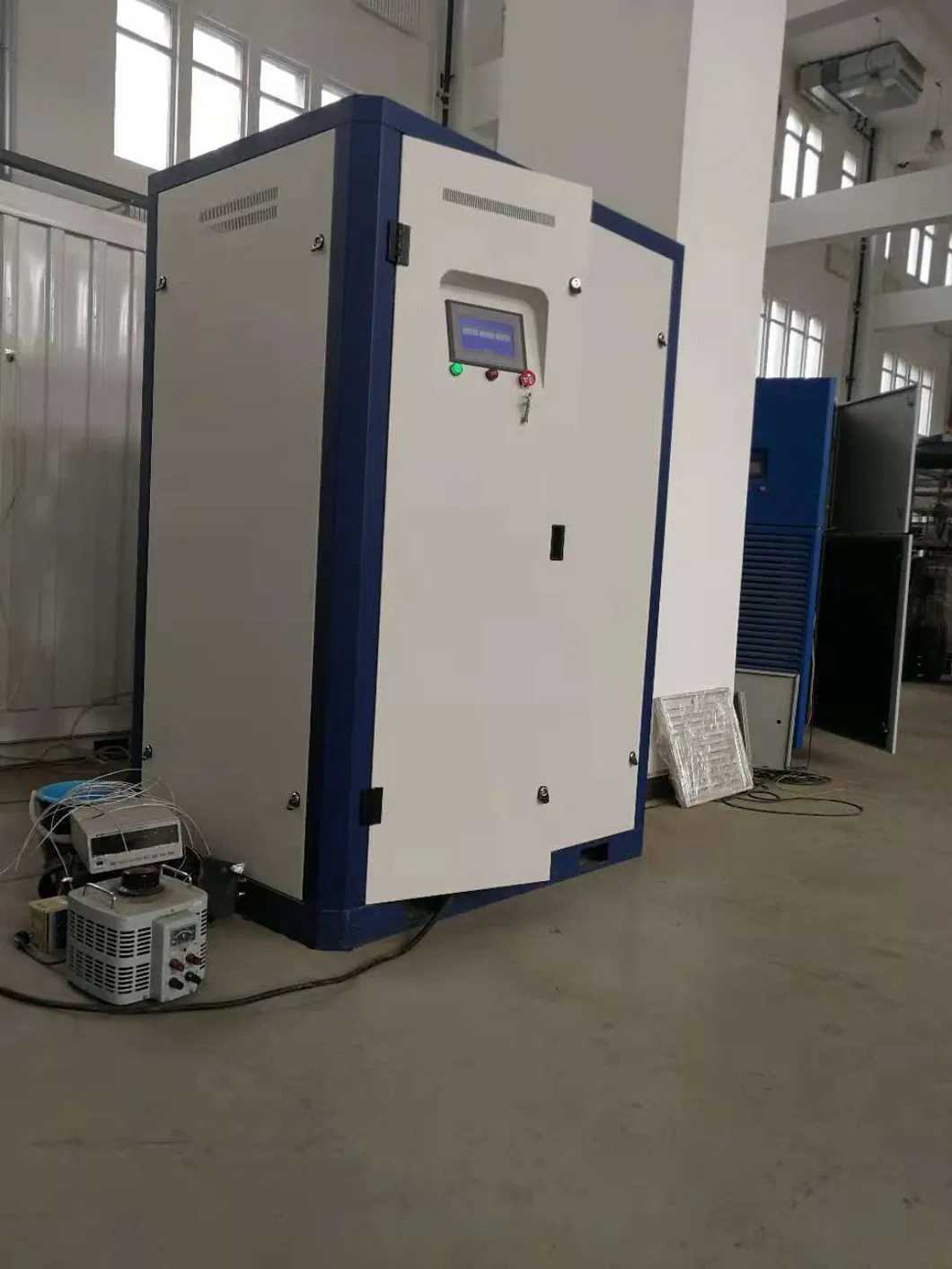

Equipment Detail 3

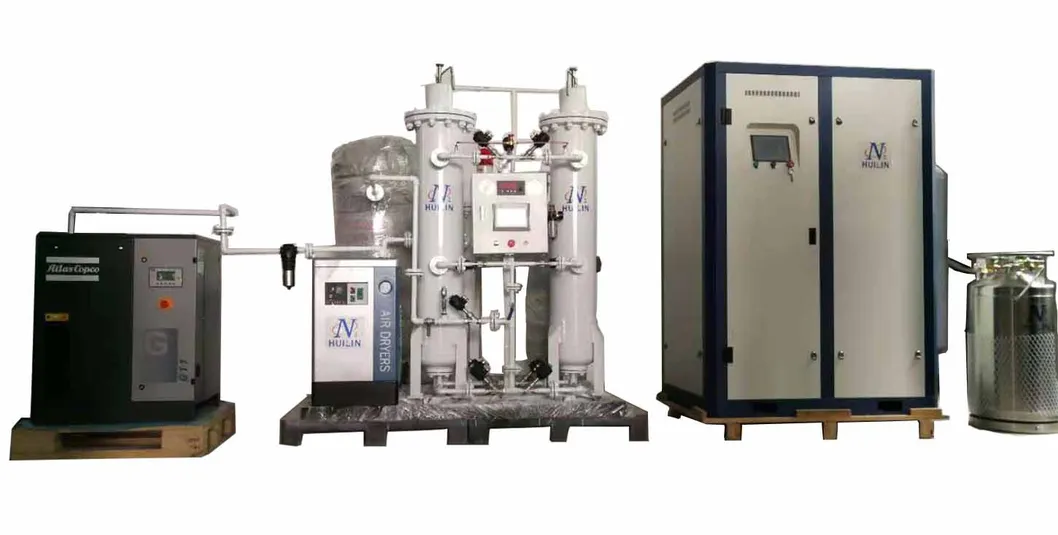

Equipment Detail 4
Equipment Detail 5
Equipment Detail 6
Equipment Detail 7
Equipment Detail 8
❓ Frequently Asked Questions
Q1: How long does it take to produce liquid nitrogen after start-up?
The system features rapid liquid nitrogen output, achieving production in just 1.5 hours after initialization.
Q2: Does the machine require constant human monitoring?
No, the machine is designed to operate autonomously and does not require constant supervision.
Q3: What are the space requirements for installation?
The equipment has a very small land footprint and a low maximum height (≤2500mm), making it suitable for most indoor environments.
Q4: Is it difficult to maintain or repair the unit?
Maintenance is straightforward. It uses standard refrigerator compressors, which can be serviced by anyone skilled in refrigerator maintenance.
Q5: Can the machine operate continuously without stopping for defrosting?
Yes, the system is designed for zero downtime maintenance, eliminating the need for periodic defrosting.
Q6: What cooling method is used for the liquefier?
Smaller models (up to 5L/h) utilize air cooling, while larger models (10L/h and above) utilize water cooling for optimal performance.
