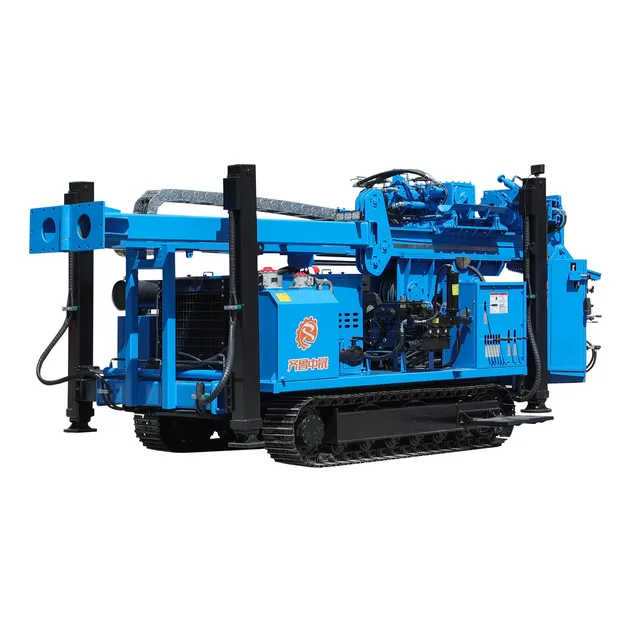

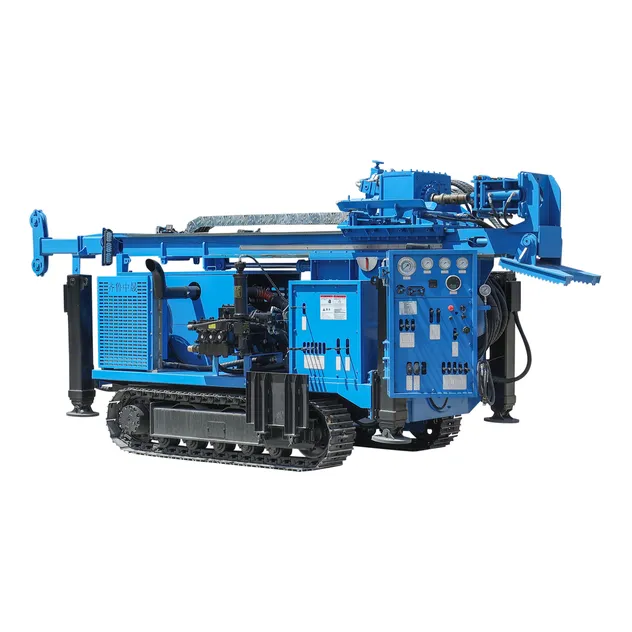

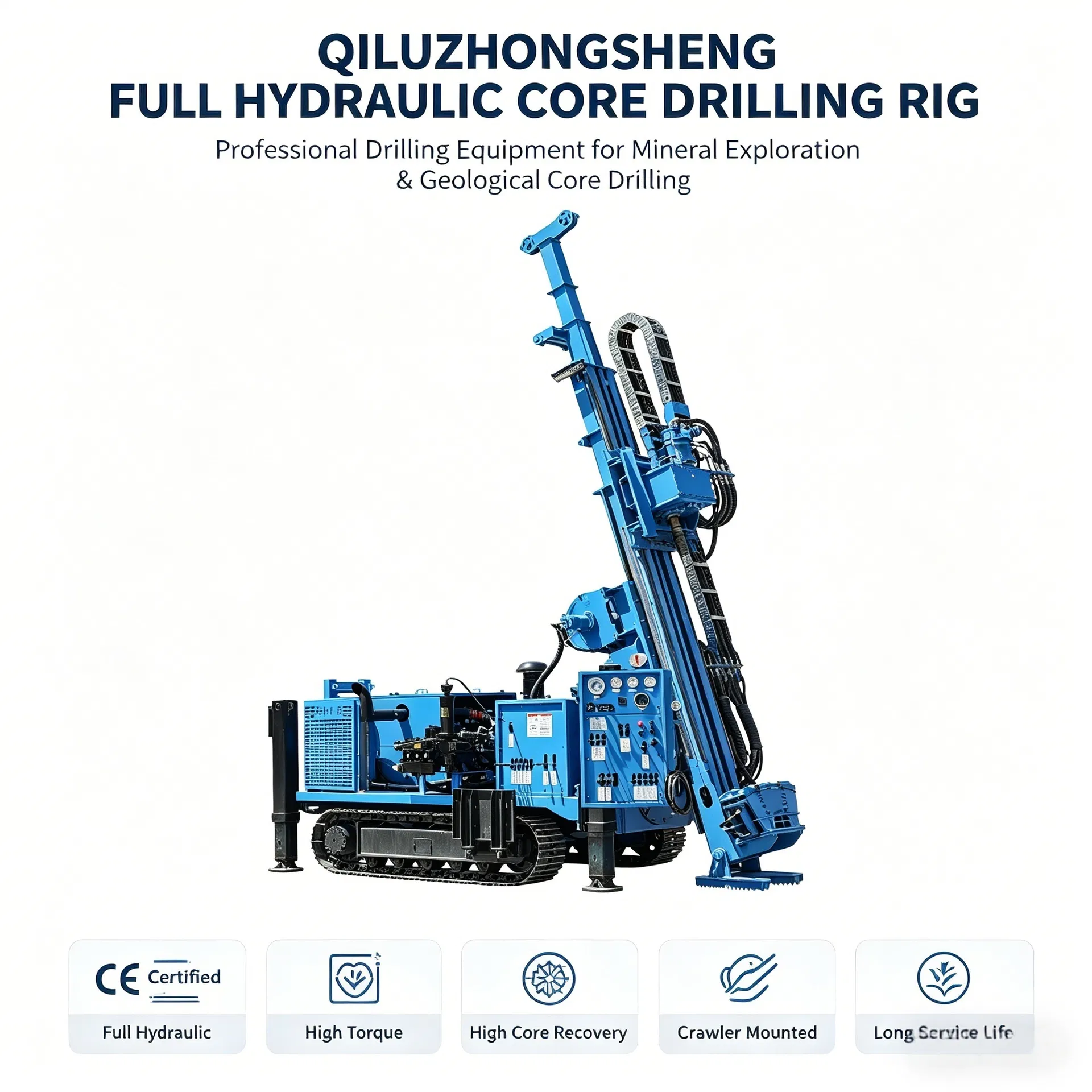

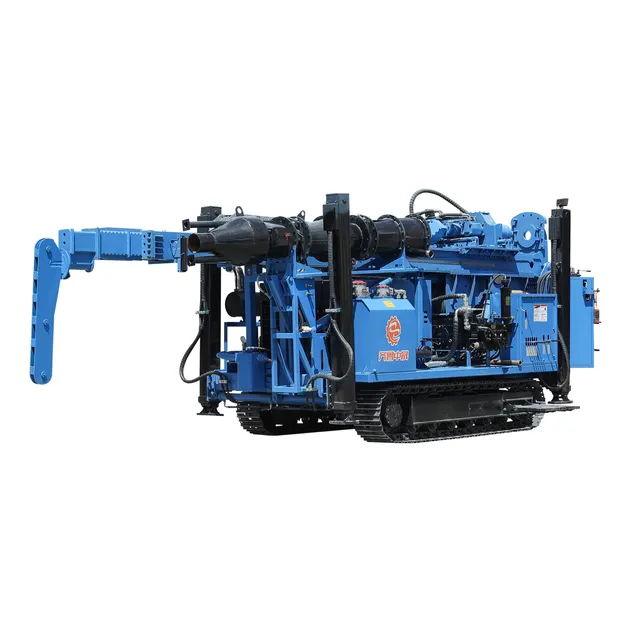

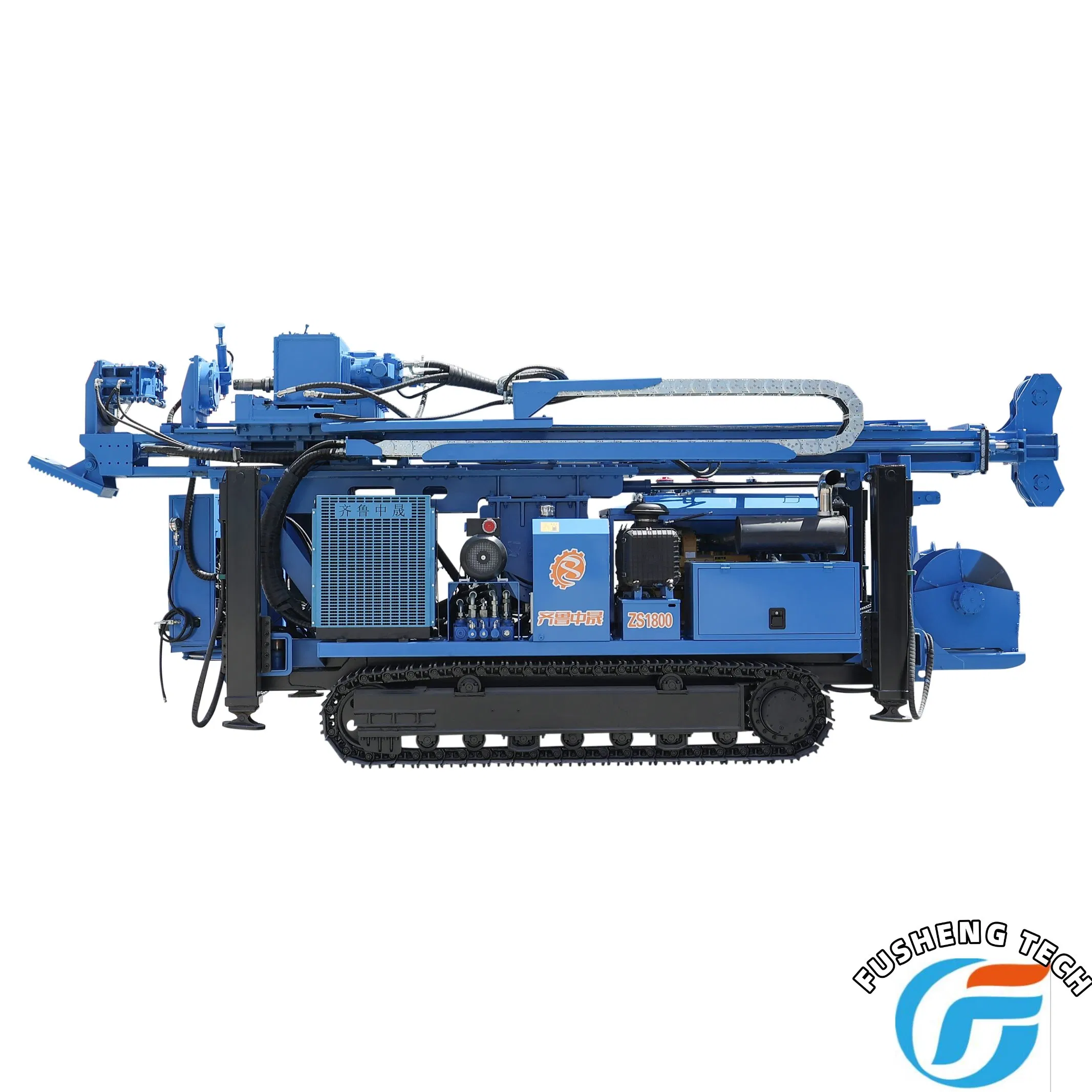

Our high-performance core drilling rig is engineered for precision, reliability, and efficiency in geological exploration, mineral prospecting, and geotechnical investigations. Designed with advanced drilling technology and rugged construction, this rig ensures superior core recovery, stable operation, and excellent penetration rates across various rock formations. Suitable for demanding field conditions, it delivers consistent performance in both surface and underground drilling applications.

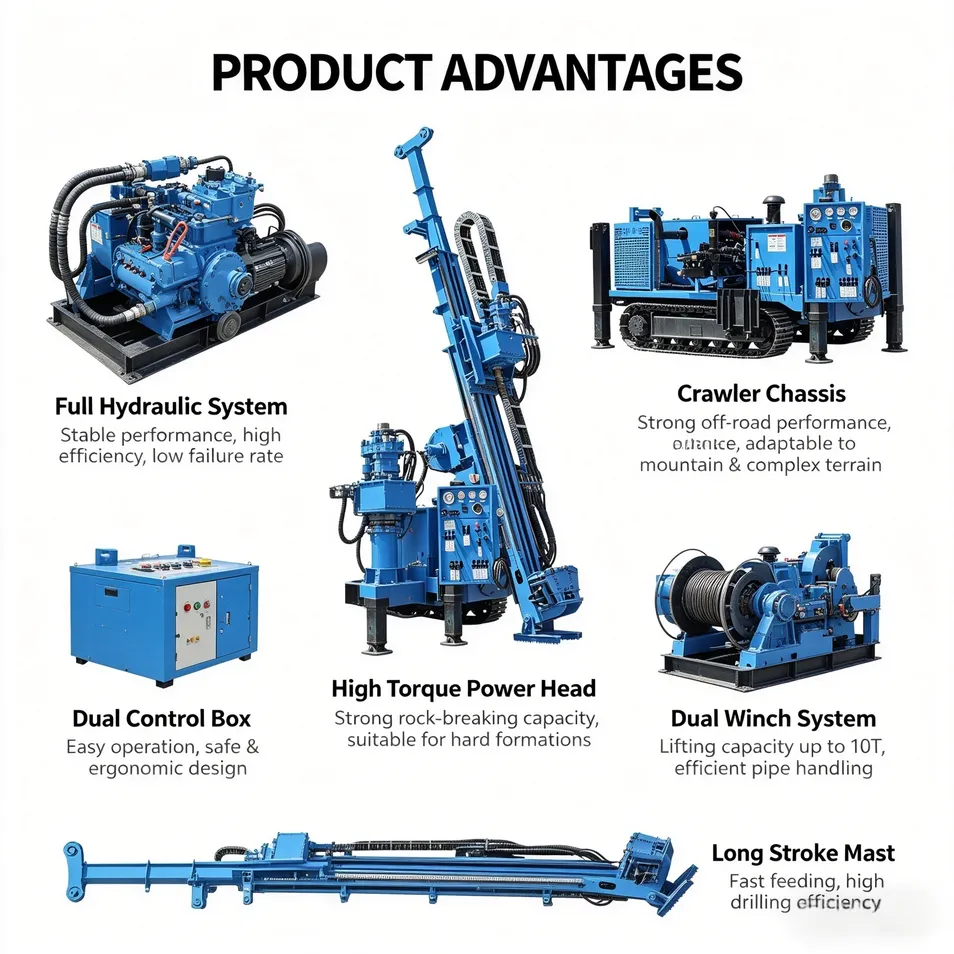

Power System: High-torque, low-emission diesel engines (Tier III / Tier IV compliant). Optional oil-electric hybrid dual power system or electric motor option.

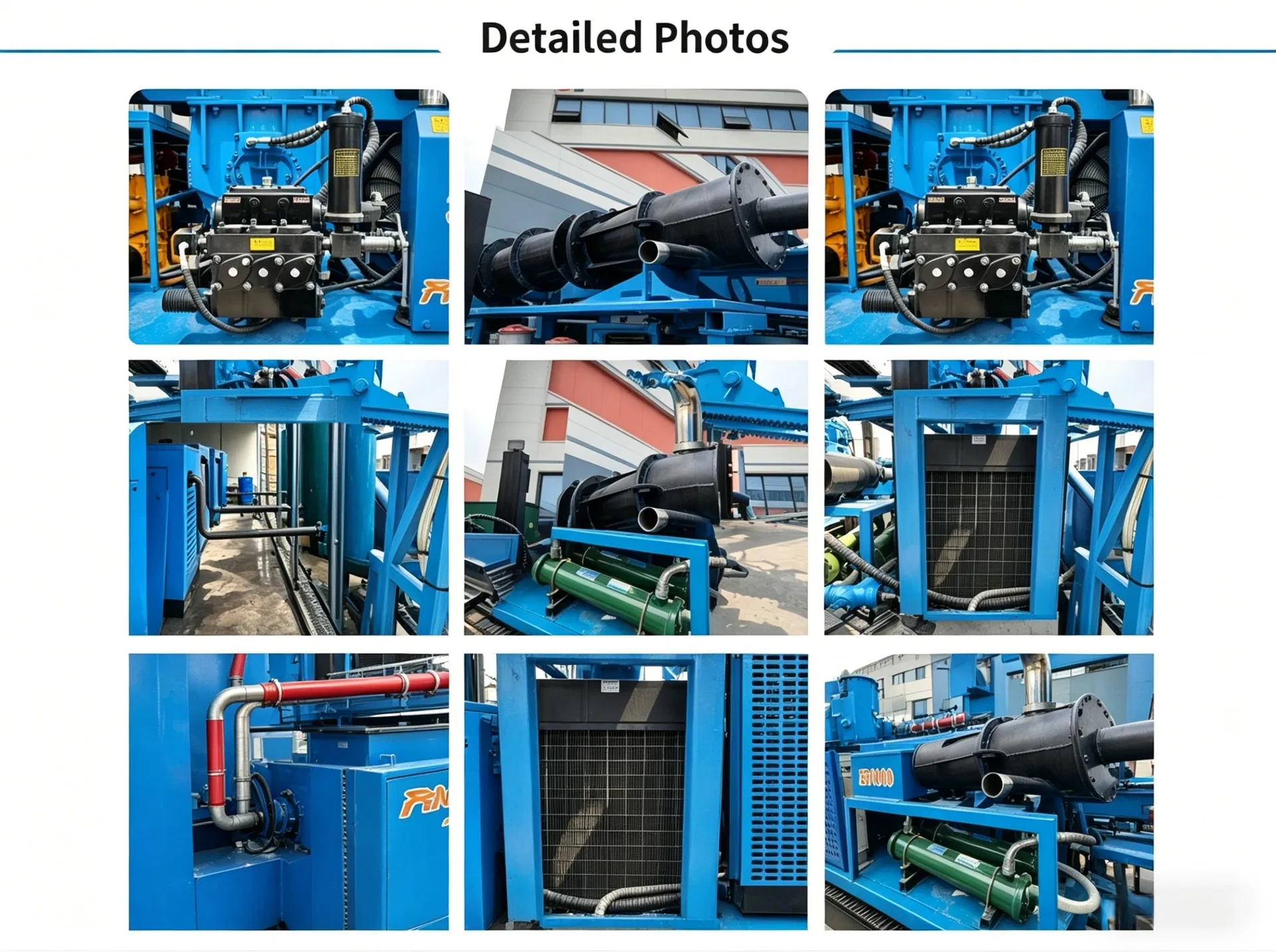

Hydraulic System: Precision-controlled pumps and valves (Kawasaki series or equivalent). Variable piston motors for smooth and responsive operation. High-efficiency cooling system.

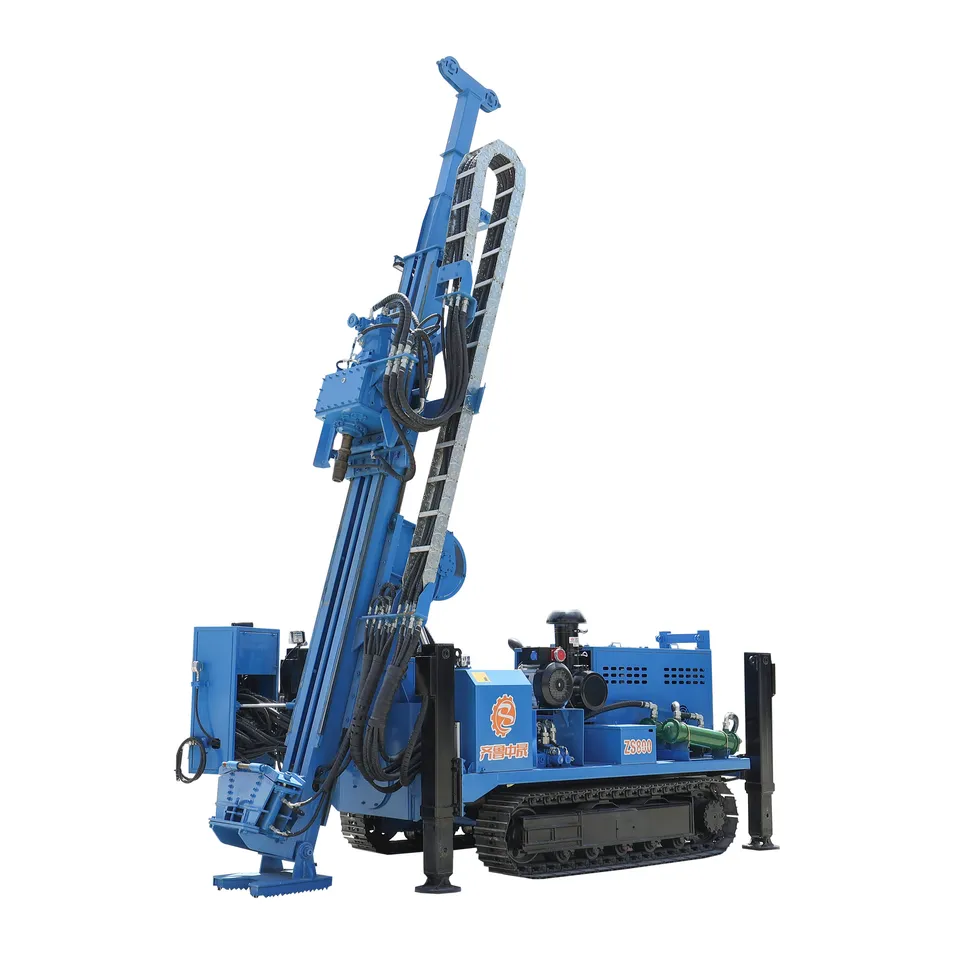

Drilling Mast & Feed System: Rigid steel mast with adjustable drilling angle (40°–90°). Hydraulic feed control with adjustable stroke length.
(Custom configurations available upon request.)
| Model | ZS800 | ZS1000 | ZS1200 | ZS1600 | ZS1800 |
|---|---|---|---|---|---|
| Drilling depth | 800M | 1000M | 1200M | 1600M | 1800M |
| Drill rod length | 1.5M | 1.5M/3M | 1.5M/3M | 1.5M/3M | 1.5M/3M |
| Max slip clamp diameter | 160MM | 160MM | 160MM | 160MM | 160MM |
| Power head stroke | 2.2M | 3.8M | 3.8M | 3.65M | 3.65M |
| Drilling angle | 40°-90° | 40°-90° | 40°-90° | 40°-90° | 40°-90° |
| Maximum torque | 1800N·m | 2480N·m | 5500N·m | 7000N·m | 7500N·m |
Specialized in the R&D, manufacturing, and engineering services of drilling equipment. The core product portfolio includes: Full hydraulic core drilling rigs, RC reverse circulation drilling rigs, Water well drilling rigs, Large-diameter DTH hammer drilling rigs, and Integrated blasting rigs.
With an annual production and sales capacity of approximately 400 drilling rigs, our solutions have gained a strong reputation for superior performance and reliability. They are utilized globally across South America, Africa, Central Asia, Southeast Asia, Russia, and Mongolia.
