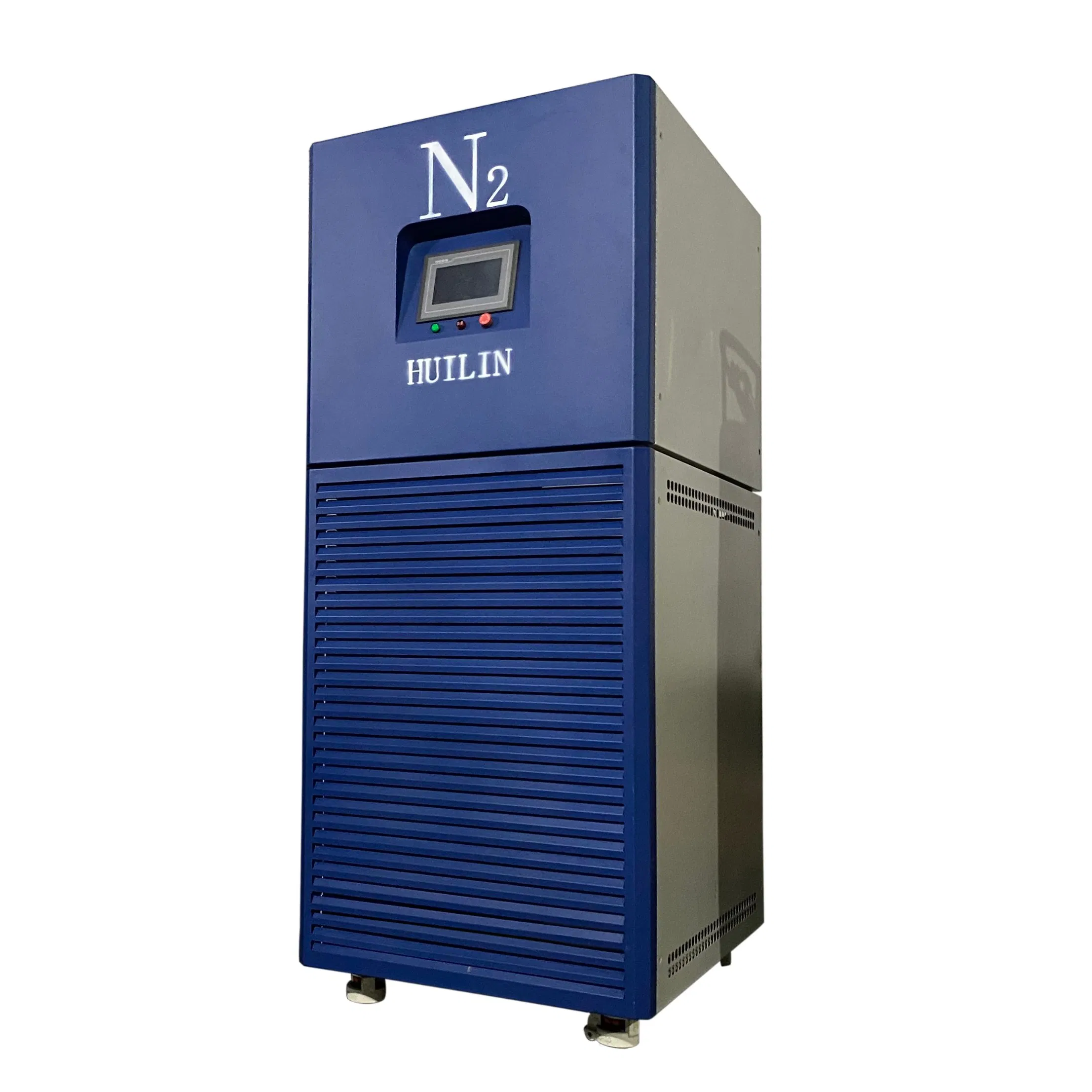

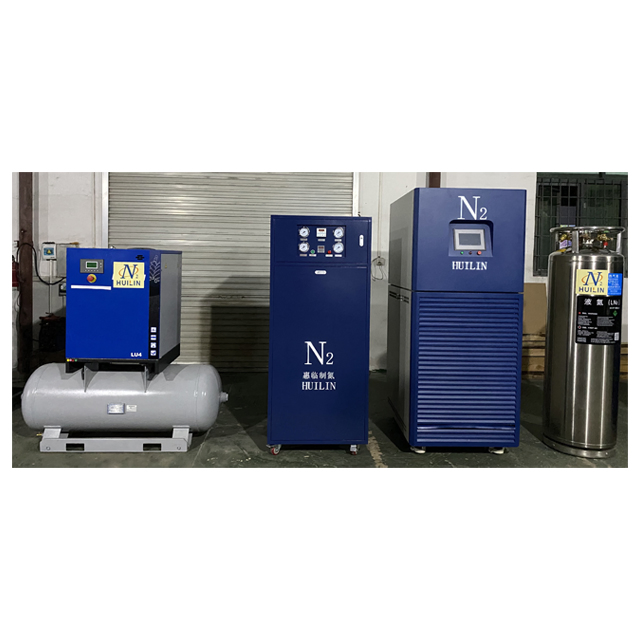

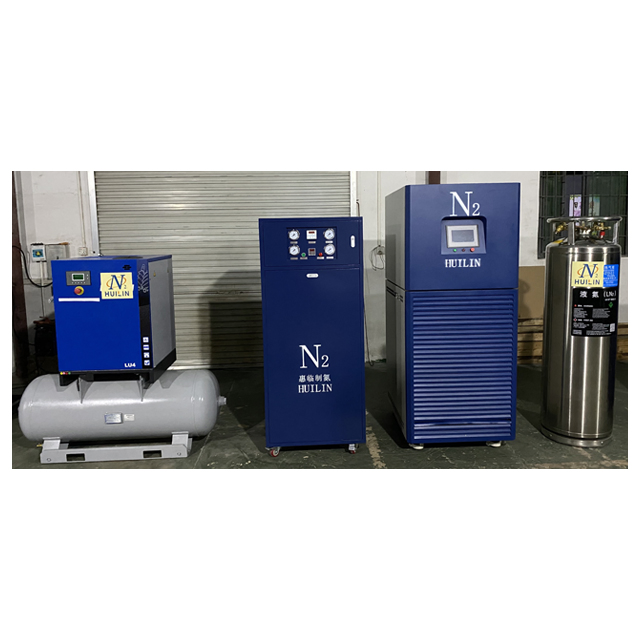

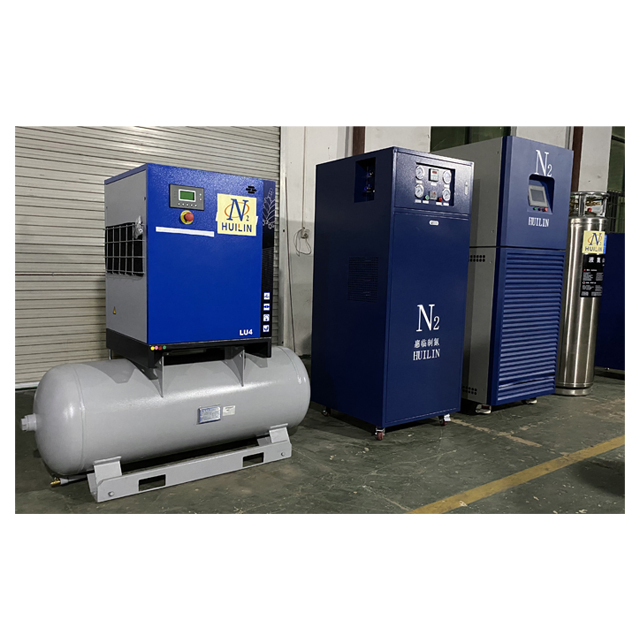

Complete Autonomy: The machine operates with complete autonomy, ensuring no constant oversight is necessary.
Minimal Footprint: Low land footprint and a low height profile (maximum Height ≤ 2500mm).
Rapid Output: Delivers optimal liquid nitrogen output in just 1.5 hours post initiation.
Reliable Technology: Uses standard refrigerator compressors for straightforward maintenance and safe operation.
Zero Downtime: Maintenance requires zero downtime, eliminating the need for defrosting.

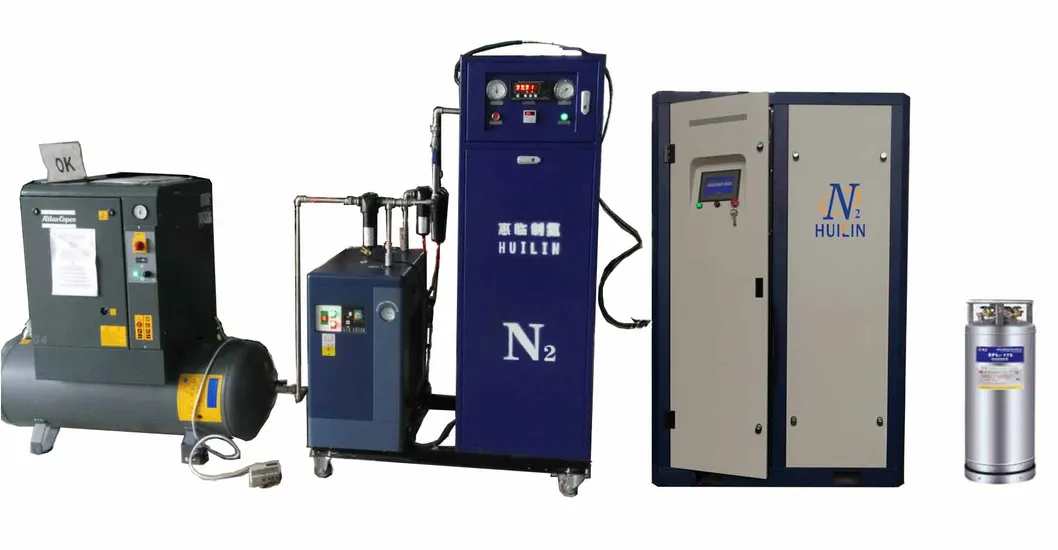

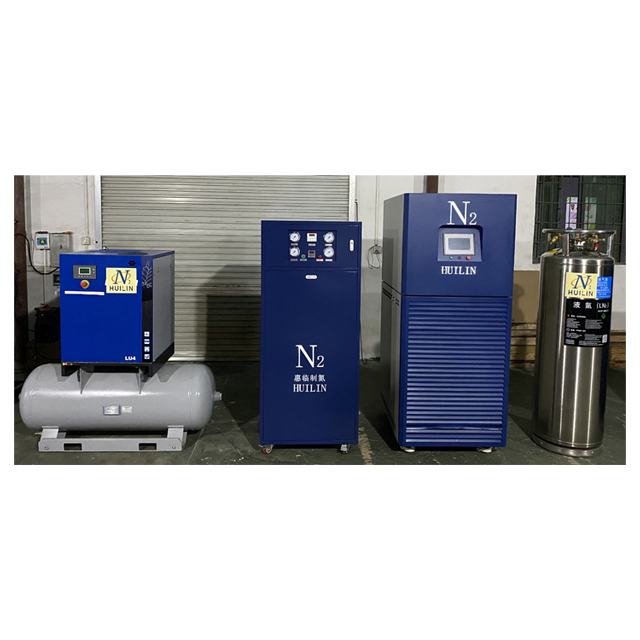

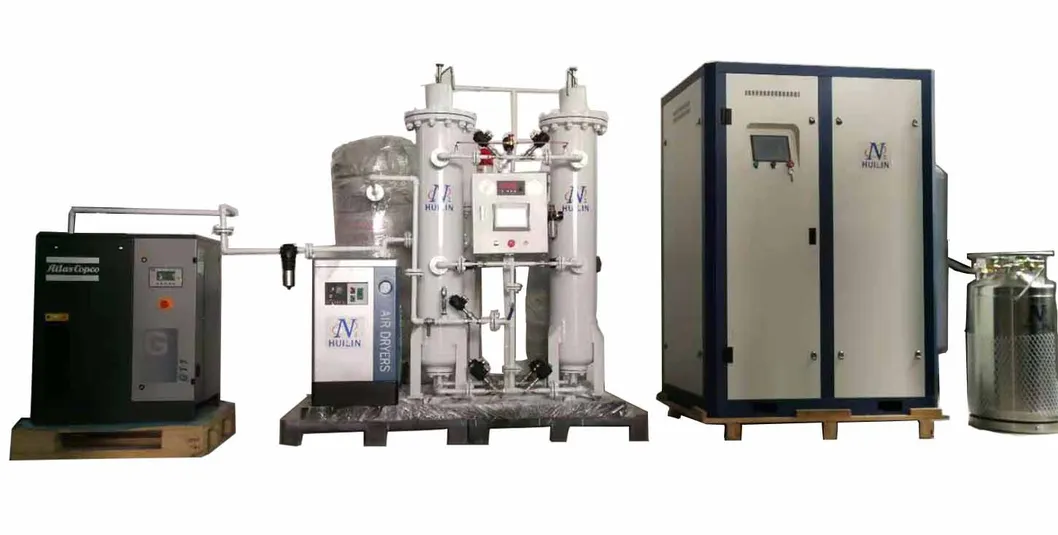

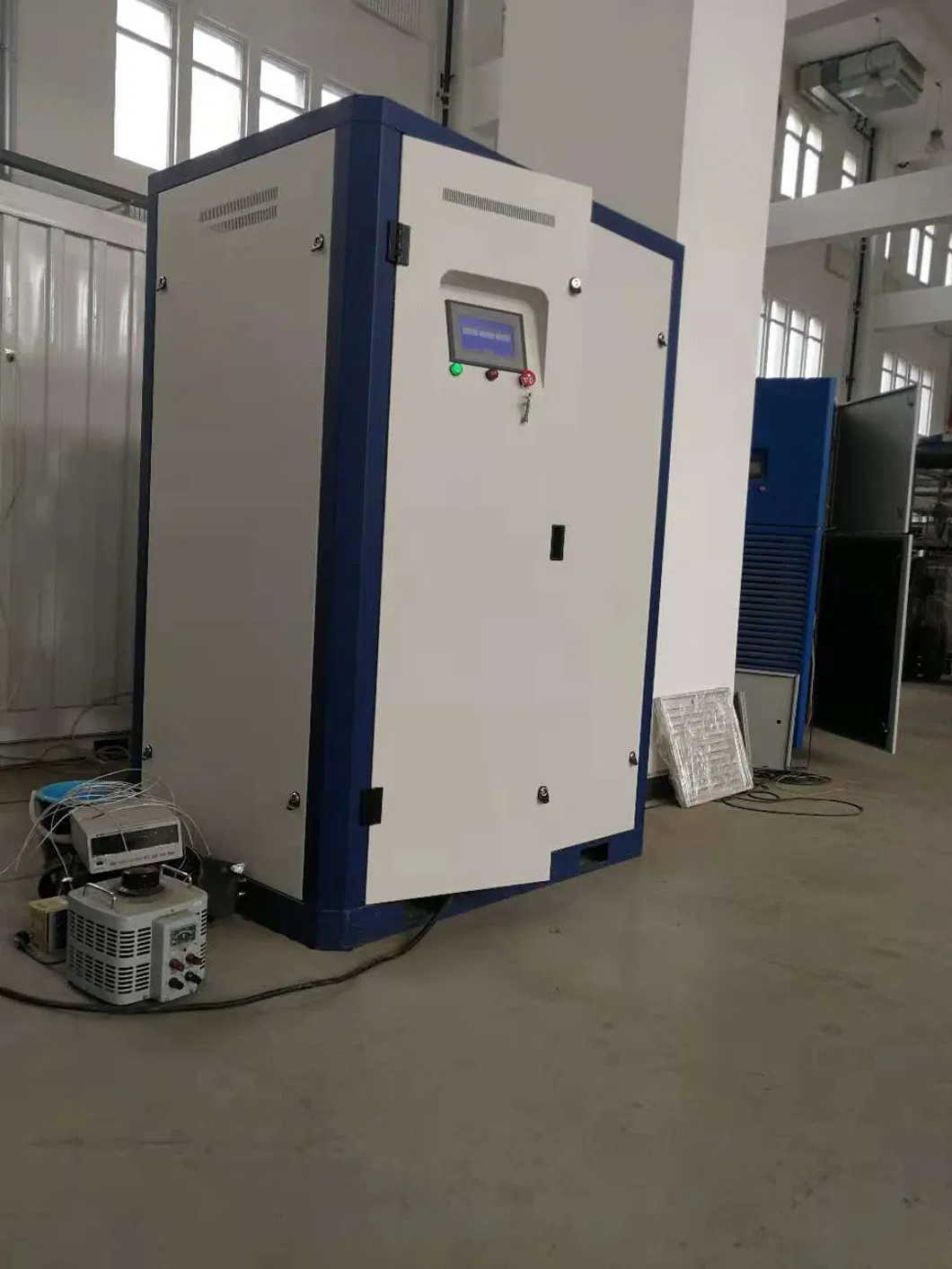

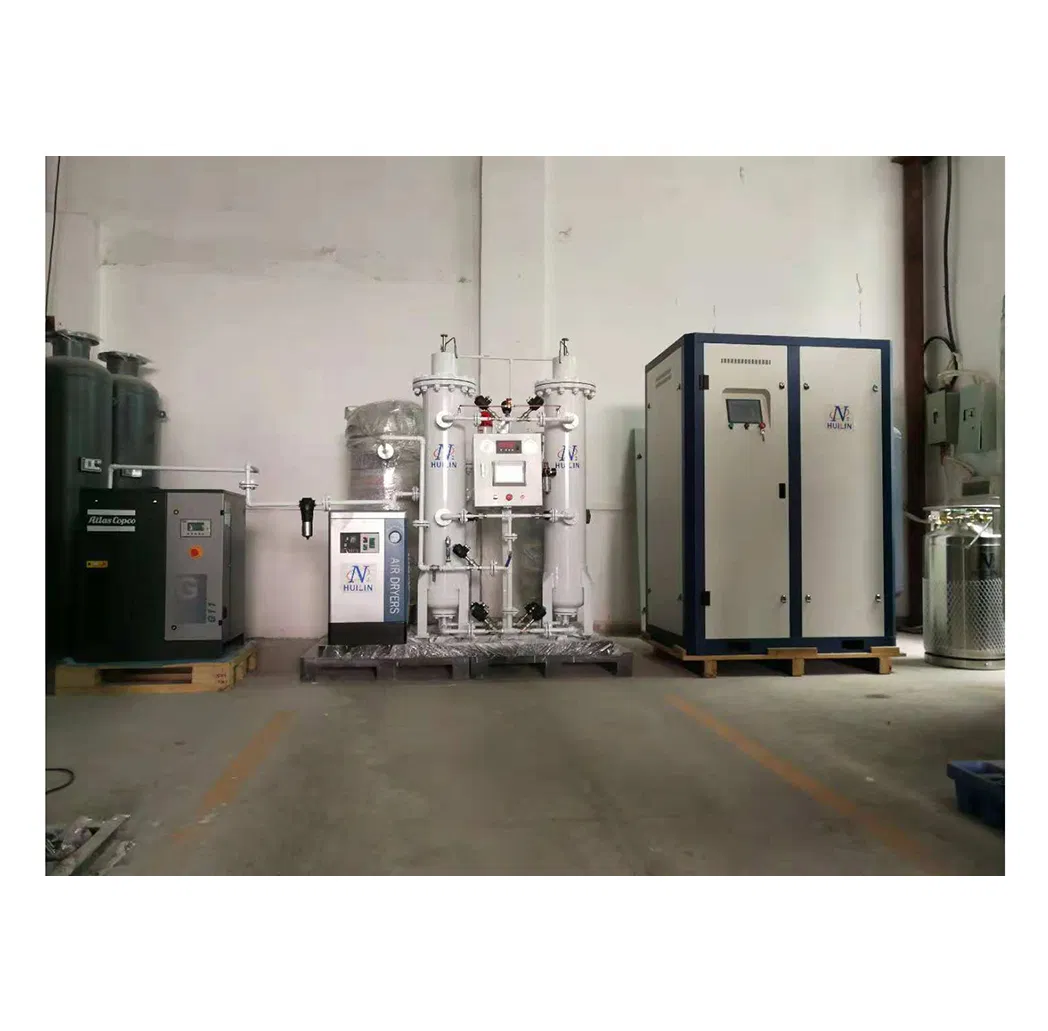

This advanced nitrogen liquefier uses a state-of-the-art cryogenic mixed refrigerant throttle refrigeration process. It employs a regenerative multi-component mixed refrigerant throttle cycle. By blending components with varying boiling points—high, middle, and low—each component efficiently targets its specific refrigeration temperature zone, enabling cooling from ambient temperature to an ultra-cold -196 °C, achieving nitrogen liquefaction at -180 °C and 0.6 MPa.
Figure 1. Flow diagram for nitrogen liquefier
| Model | WG-STD-05L | WG-STD-1L | WG-STD-3L | WG-STD-5L | WG-STD-10L | WG-STD-20L | WG-STD-25L | WG-STD-30L | WG-STD-40L | WG-STD-50L |
|---|---|---|---|---|---|---|---|---|---|---|
| L.Nitrogen Output (L/day) | 12 | 24 | 80 | 120 | 240 | 500 | 360 | 720 | 1000 | 1200 |
| L.Nitrogen Output (L/h) | 0.5 | 1 | 3 | 5 | 10 | 20 | 25 | 30 | 40 | 50 |
| Power (KW) | 1 | 5 | 8 | 9 | 11 | 25 | 25 | 25 | 35 | 35 |
| N2 consumption (Nm³/h) | ≥1 | ≥1.5 | ≥4 | ≥6 | ≥12 | ≥30 | ≥35 | ≥40 | ≥50 | ≥60 |
| N2 Purity | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| Cooling form | Air | Air | Air | Air | Water | Water | Water | Water | Water | Water |
| Water consumption (T/h) | - | - | - | - | ≥4 | ≥8 | ≥8 | ≥8 | ≥15 | ≥15 |
| Dimensions (mm) | 850×950×1960 | 1500×1000×2000 | 2500×1500×2000 | |||||||
