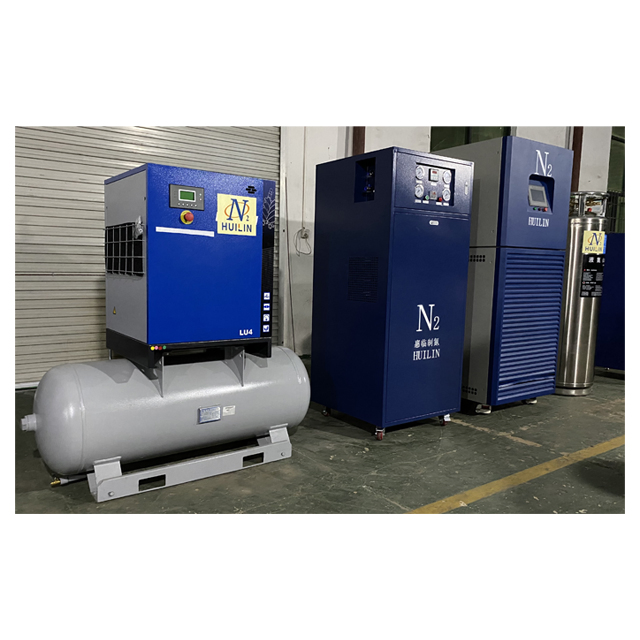

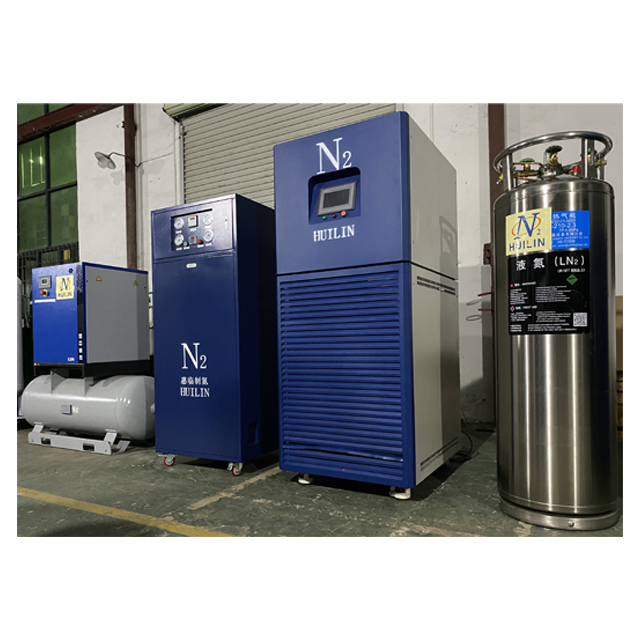

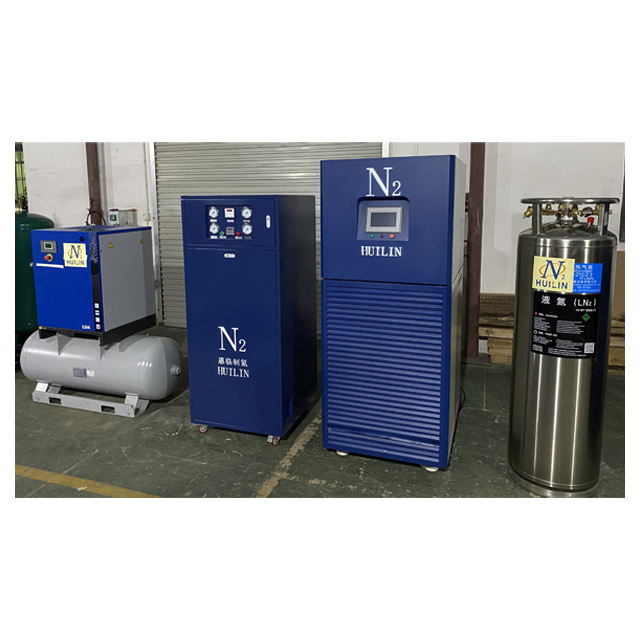

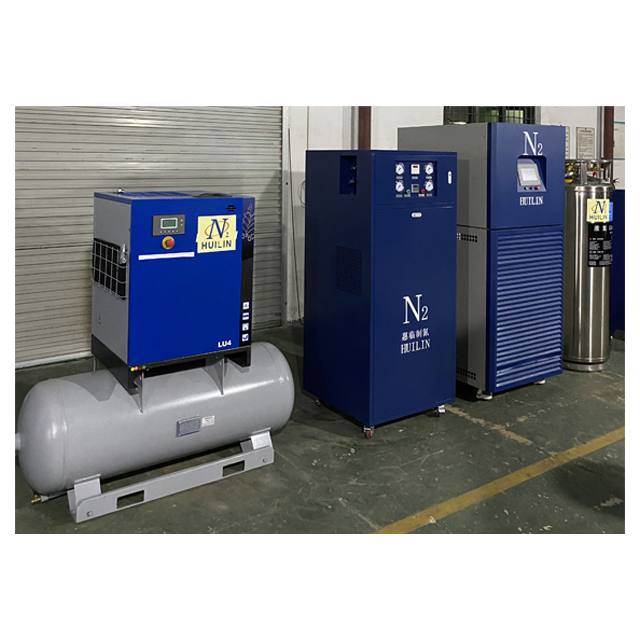

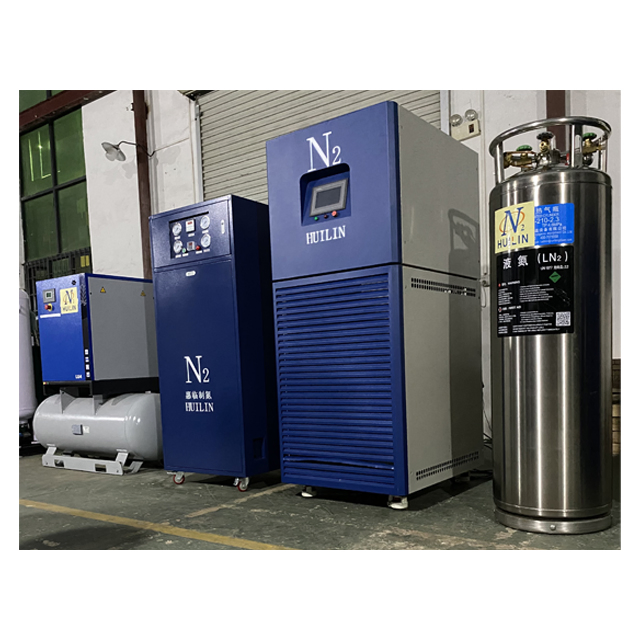

Autonomous Operation: Operates effortlessly with no need for constant supervision.
Space Efficient: Minimal land footprint with a maximum height of less than 2500mm.
Rapid Output: Delivers liquid nitrogen results in just 1.5 hours post start-up.
Easy Maintenance: Utilizes standard compressors repairable by skilled refrigerator technicians.

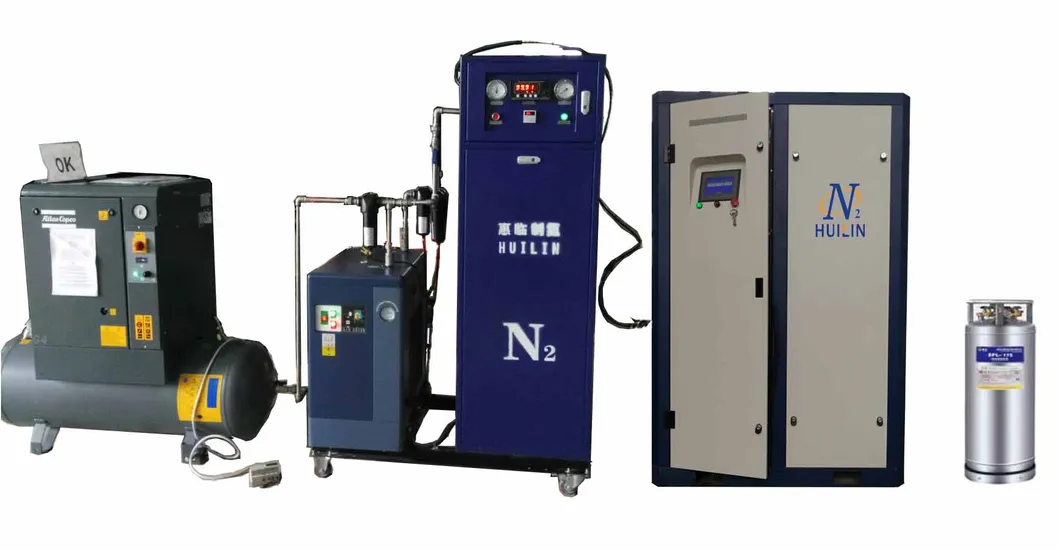

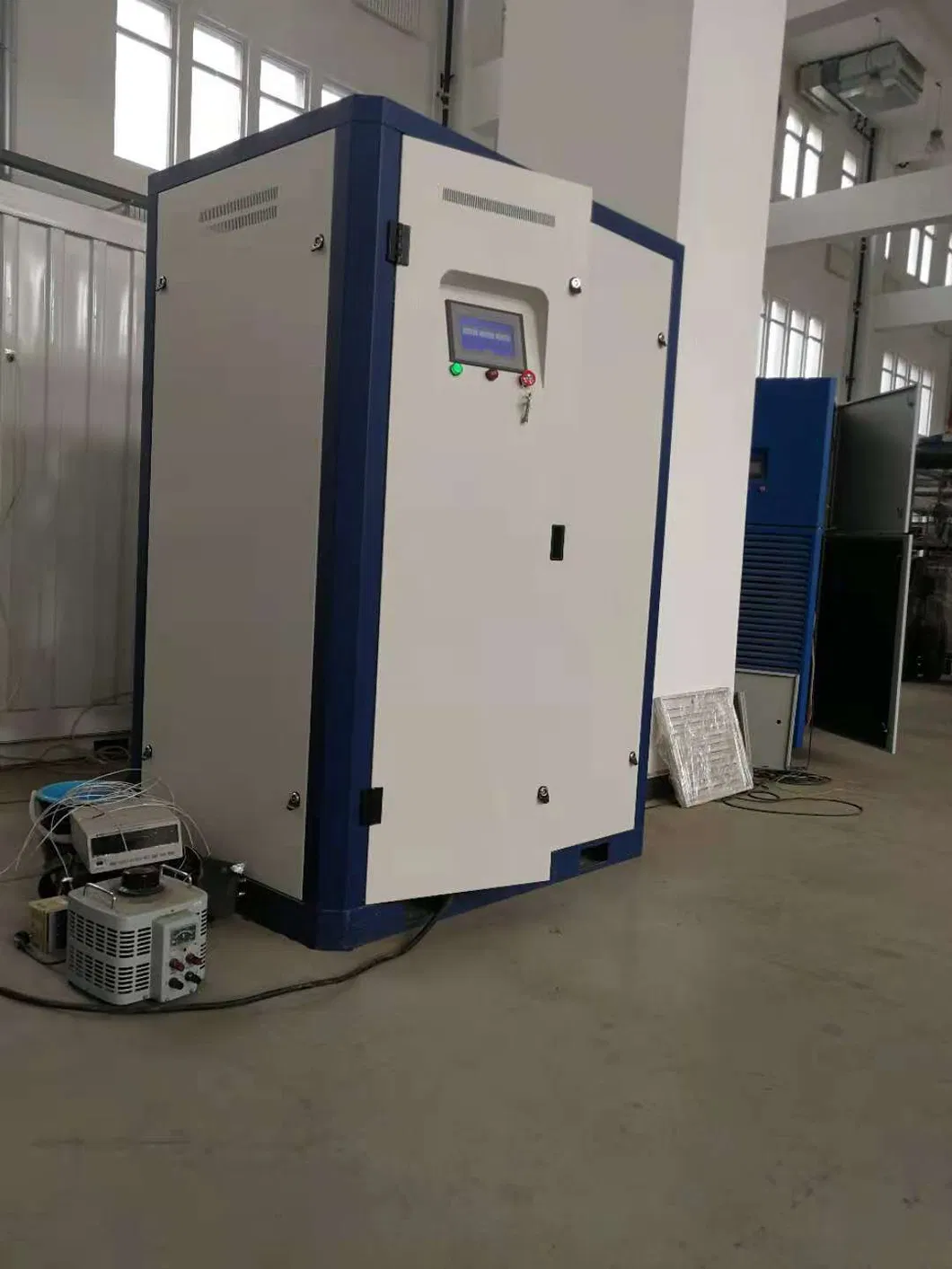

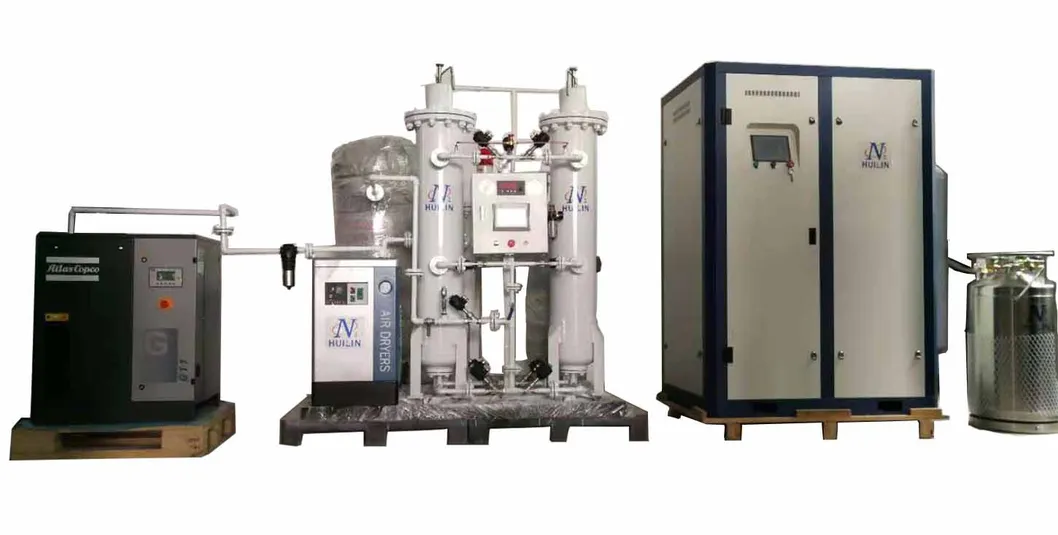

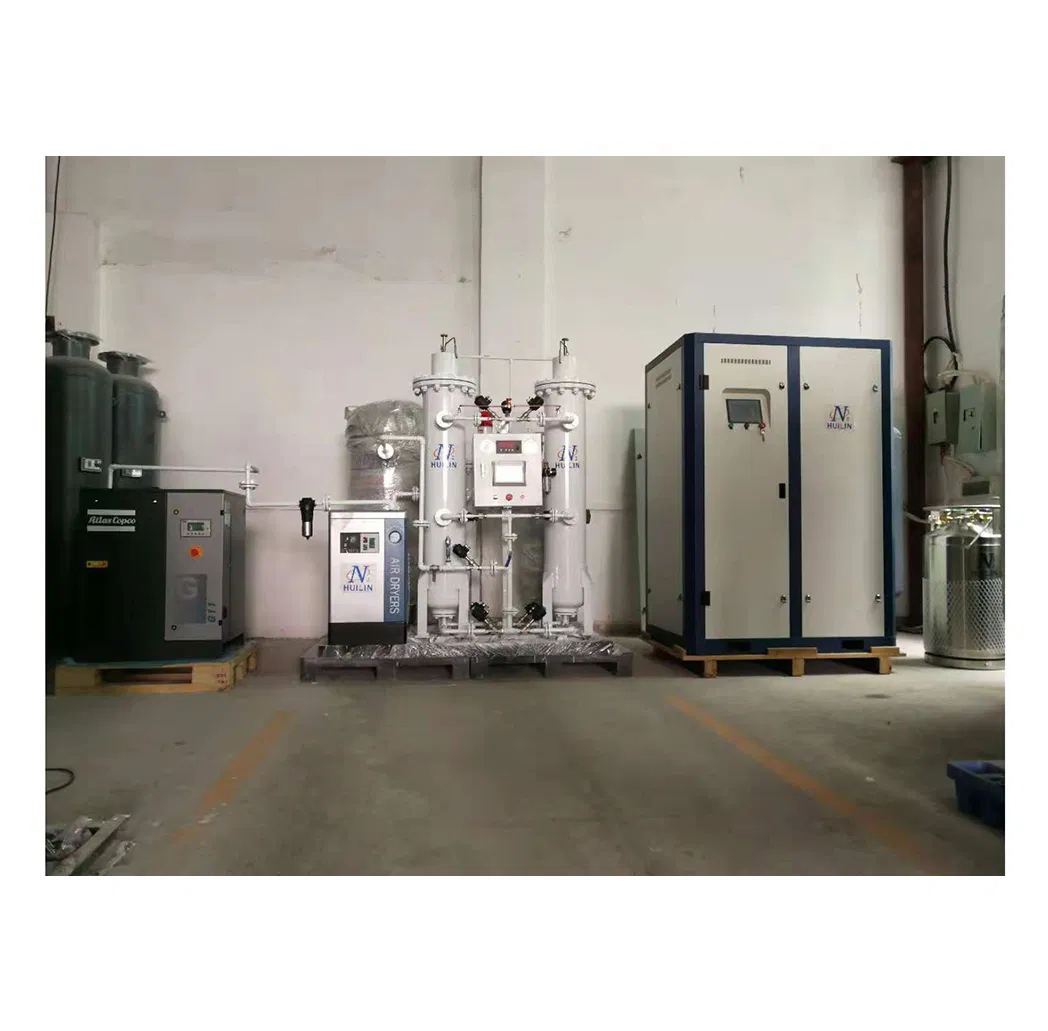

This nitrogen liquefier employs an advanced cryogenic mixed refrigerant throttle refrigerator. It utilizes a regenerative multi-component mixed refrigerant throttle cycle. By combining components with strategic boiling points, each element effectively aligns its refrigeration temperature zone, smoothly cooling from ambient temperature to -196 °C, achieving the purpose of nitrogen liquefaction (-180 °C @ 0.6 MPa) efficiently.
Figure 1. Flow diagram for nitrogen liquefier
| Model | WG-STD-05L | WG-STD-1L | WG-STD-3L | WG-STD-5L | WG-STD-10L | WG-STD-20L | WG-STD-25L | WG-STD-30L | WG-STD-40L | WG-STD-50L |
|---|---|---|---|---|---|---|---|---|---|---|
| L. Nitrogen Output (L/day) | 12 | 24 | 80 | 120 | 240 | 500 | 360 | 720 | 1000 | 1200 |
| L. Nitrogen Output (L/h) | 0.5 | 1 | 3 | 5 | 10 | 20 | 25 | 30 | 40 | 50 |
| Power (KW) | 1 | 5 | 8 | 9 | 11 | 25 | 25 | 25 | 35 | 35 |
| N2 consumption (Nm³/h) | ≥1 | ≥1.5 | ≥4 | ≥6 | ≥12 | ≥30 | ≥35 | ≥40 | ≥50 | ≥60 |
| N2 Purity | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| Cooling Form | Air | Air | Air | Air | Water | Water | Water | Water | Water | Water |
