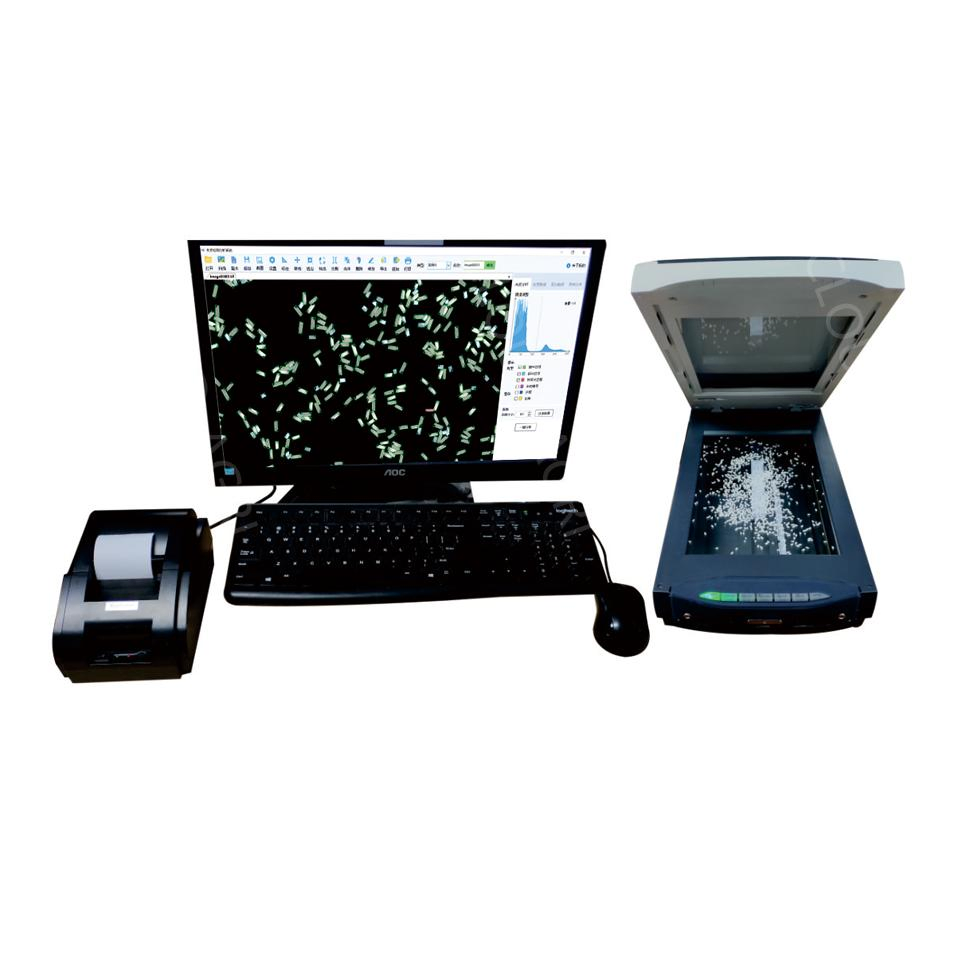

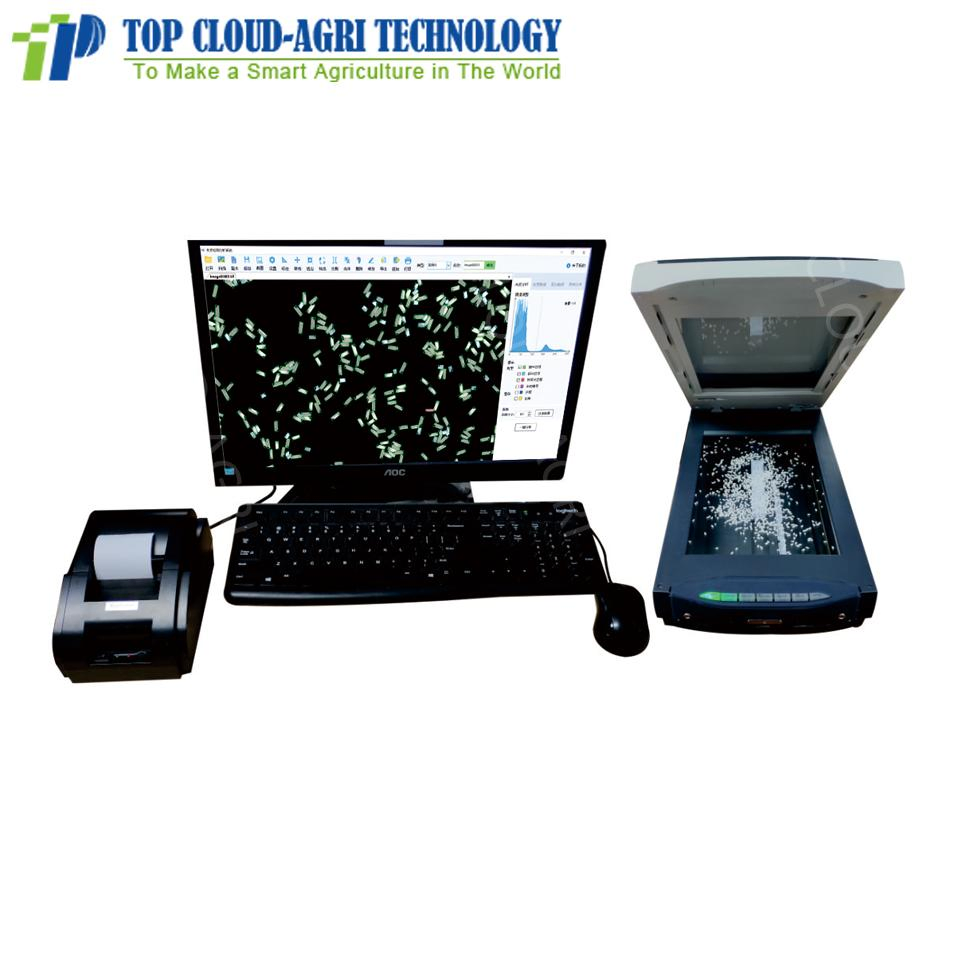

Good Quality Rice Shape Analysis System

Customization: Available
After-sales Service: Support
Warranty: 1 Year

Product Description

📊

Overview & Basic Info

Model NO.
TPMZ-A
Application
Rice Quality and Traits Analysis
Analyze Parameter
Area, Diameters, Roundness, Rice Disease, Color
Optical Resolution
4800*9600
Scanning Width
30 Cm*20 Cm
Sample Weight
30g
Sample Number
1-1200 Kernals
Specification
ISO
🔍

Product Description

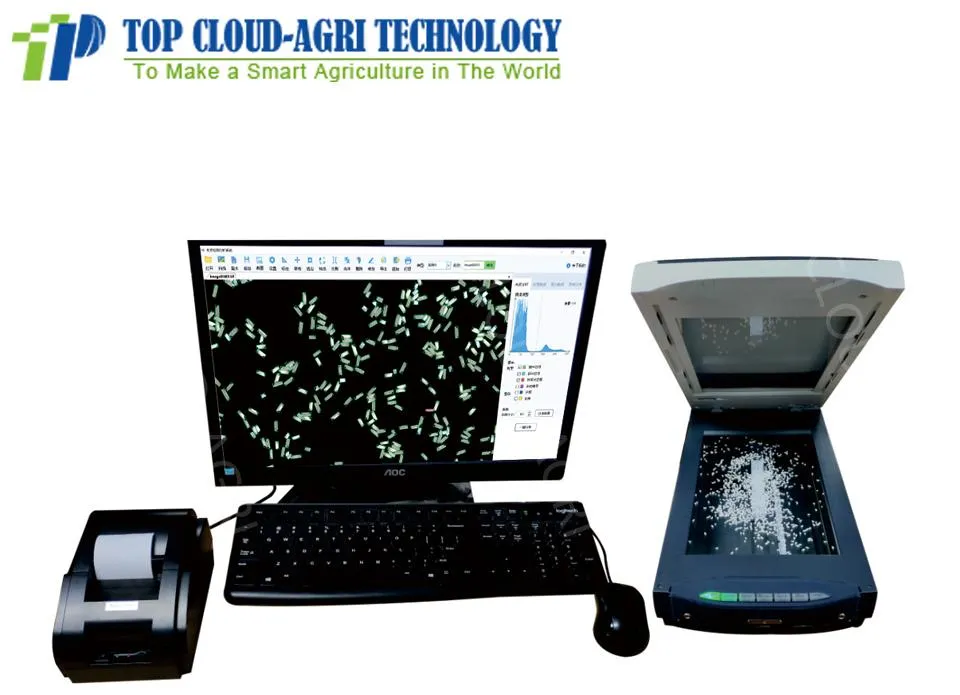

Rice Quality Detector

The rice quality detector automatically analyzes and evaluates all types of rice, including indica, japonica, glutinous, silk seedling, special, and organic rice. As a professional instrument, it detects rice quality indices by scanning images. It is widely utilized in quality supervision centers, laboratories, gene research institutes, and grain processing enterprises.

🛠️

Key Features

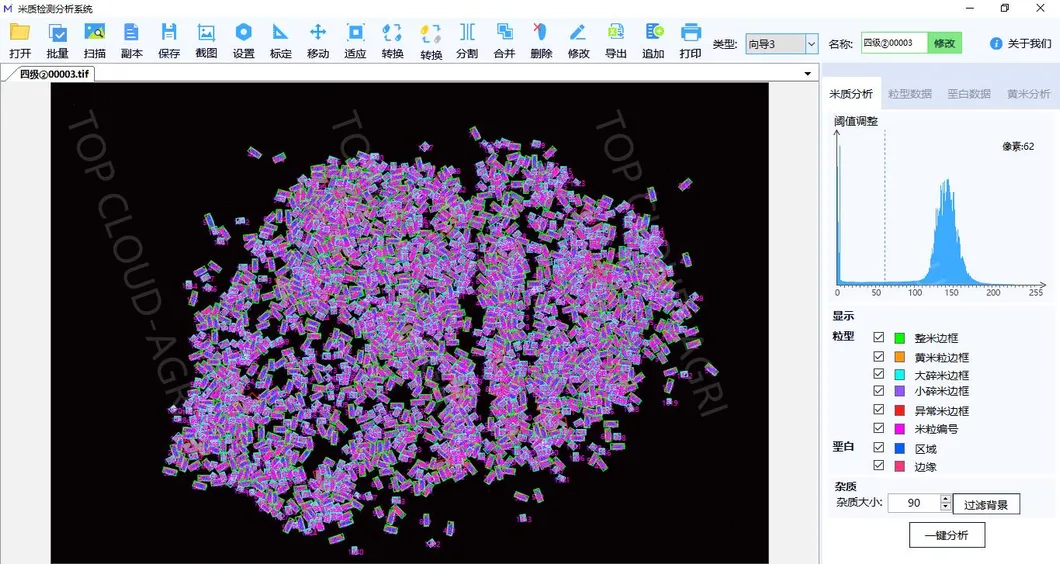

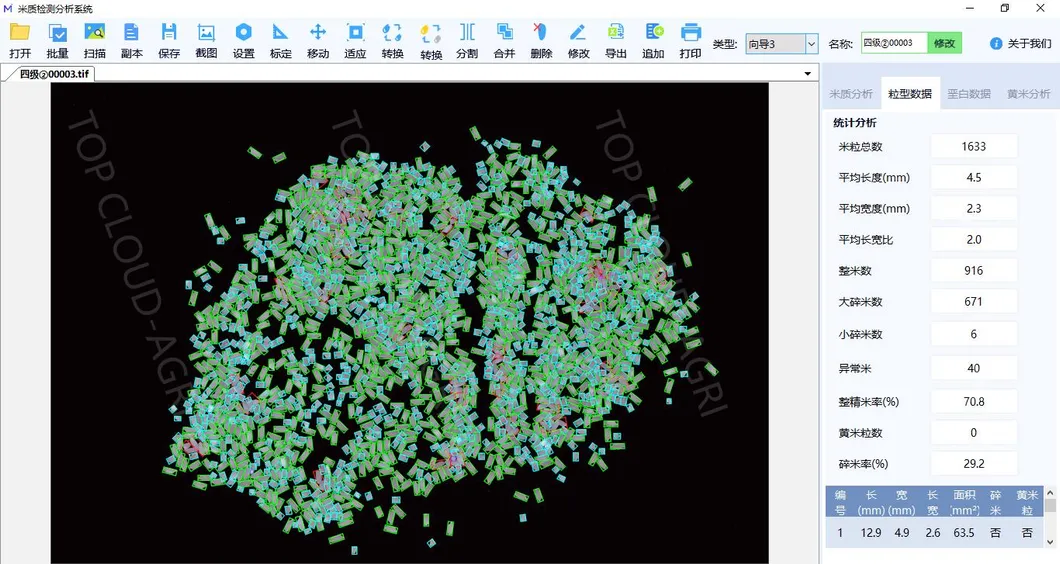

Feature Analysis 1 Feature Analysis 2

1. Comprehensive Testing: Evaluates whole rice rate, chalky grain rate, chalky whiteness, yellow grain rice, and grain types.

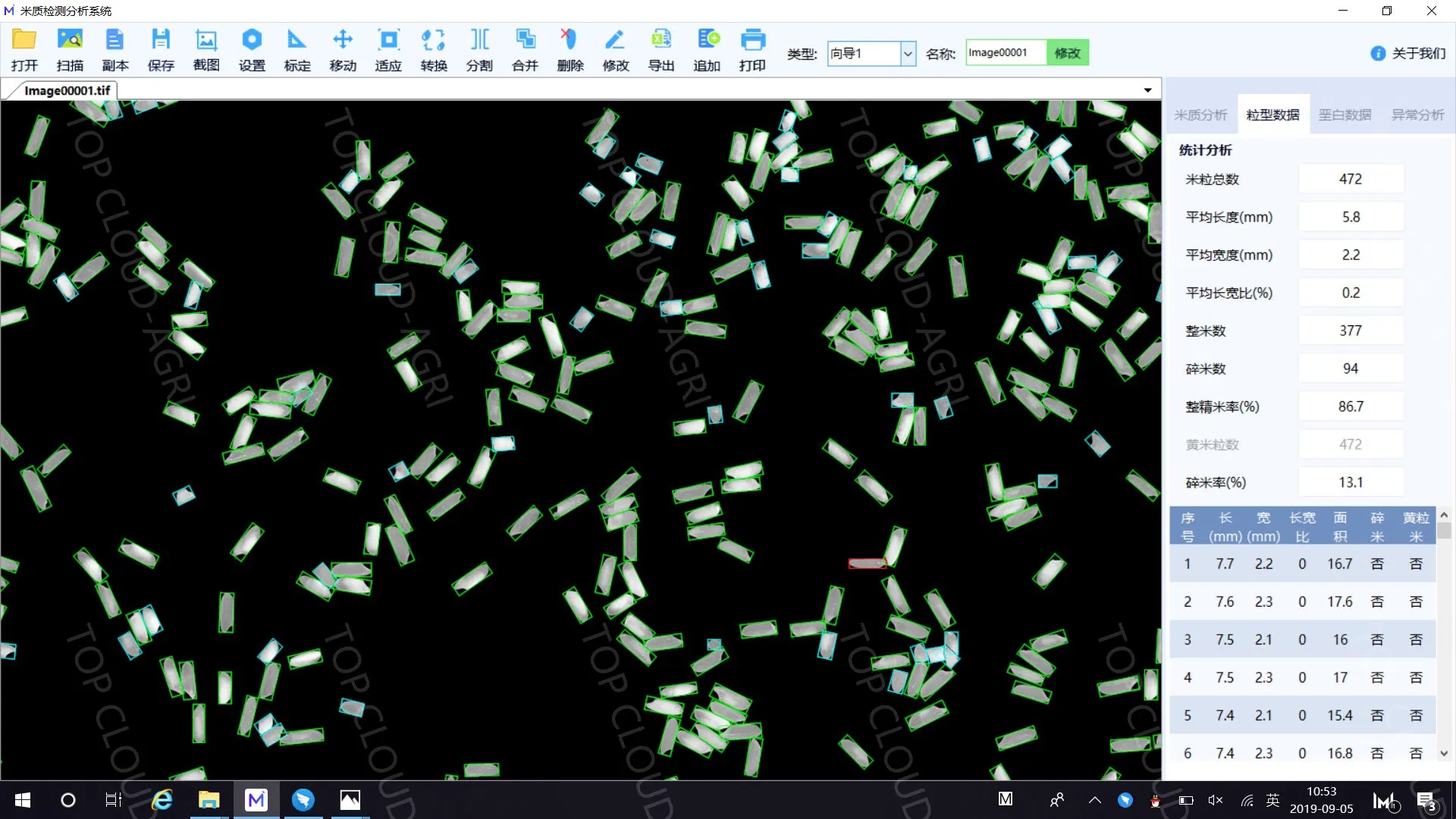

2. Automatic Measurement: Calculates area, length, diameter, aspect ratio, and roundness for each grain automatically.
3. Chalkiness Analysis: Determines average chalky size, transparency, and grain count within the sample.

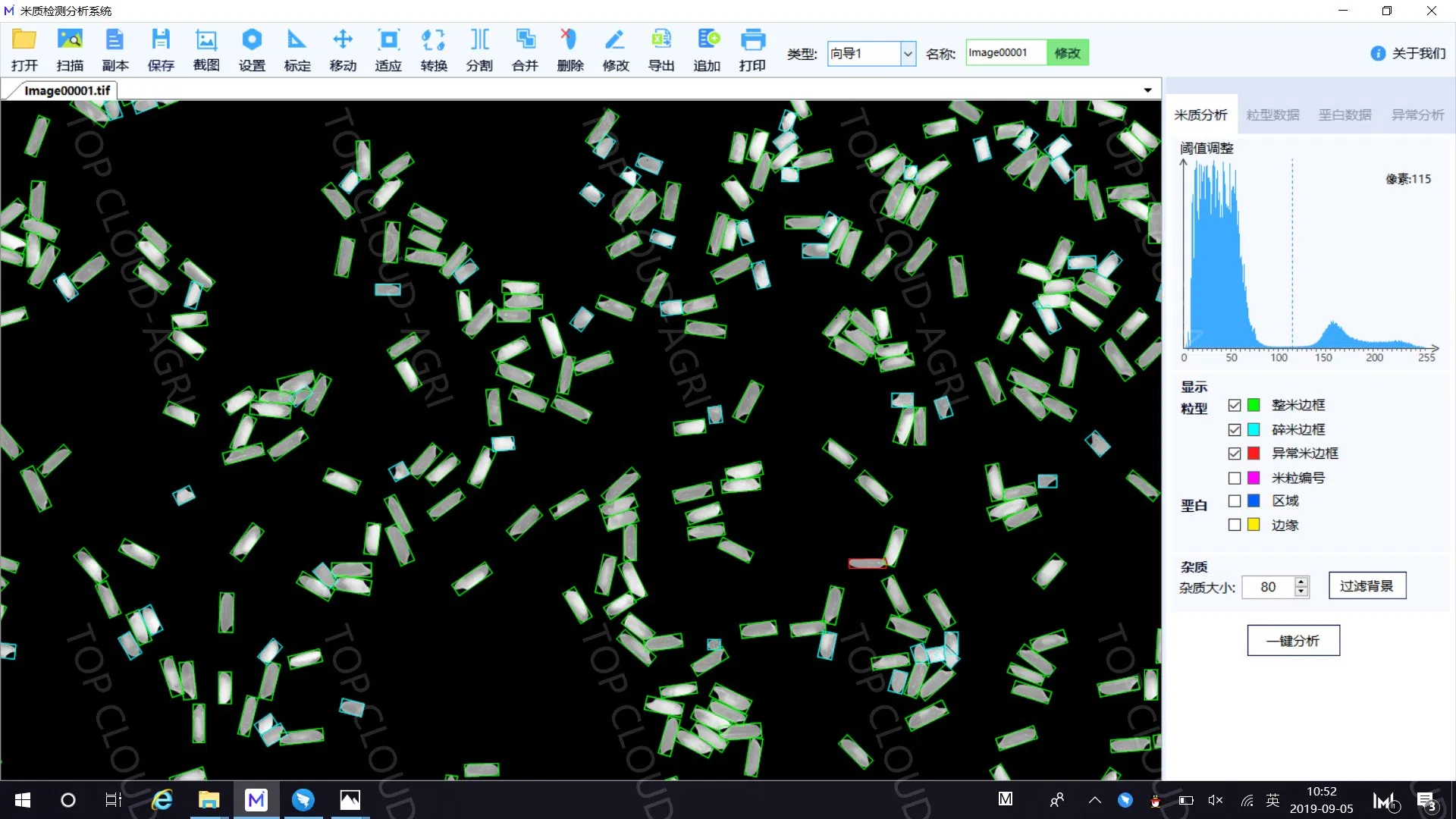

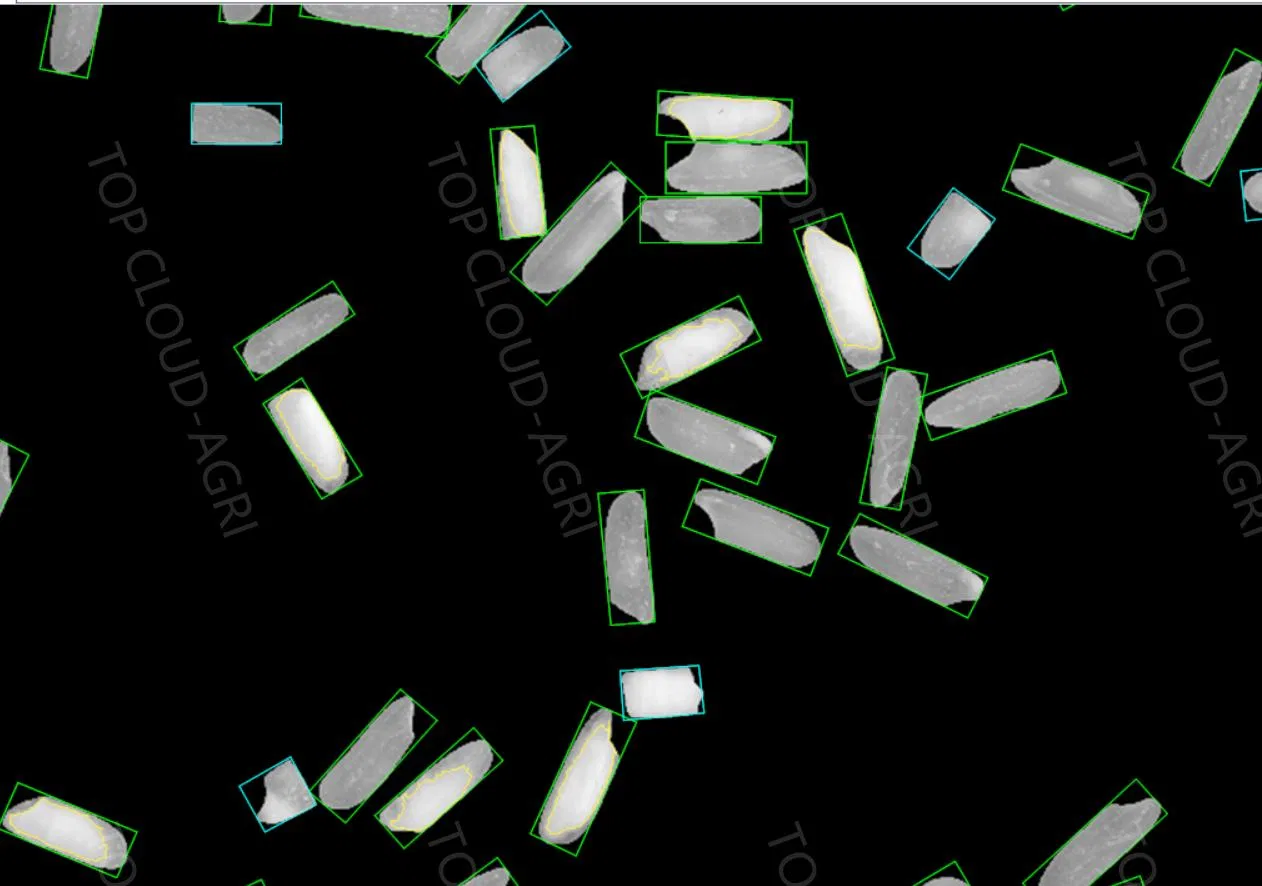

4. Broken Rice Identification: Displays broken, whole, and abnormal grains in different colors for easy visual inspection.
5. Data Management: Saves images, distribution maps, and result data as Excel documents; supports thermal printing.
6. High Accuracy: Automatic measurement accuracy ≥99%, reaching 100% after interactive correction.

⚙️

Technical Parameters

Parameter Item Specifications
Scanner Optical resolution: 4800*9600; Width: 30cm*20cm; Min pixel: 0.0053mm*0.0026mm
Detection Speed Approx. 30s for 30g rice sample
Sample Quantity 1-1200 pieces (Recommended: 12g)
Long/Width Error ≤±0.05mm
Whole Rice Rate Error ≤±1.0%
Chalky Whiteness ≤1.0%
📦

Packing and Delivery

Packing Shipping
We provide a professional after-sales team with global service coverage and 24-hour availability to ensure timely solutions.
After Sales Service
🏆

Quality Assurance

The equipment is manufactured under strict quality control systems including ISO9001, ISO14001, and ISO45001. Our specialized inspection team oversees every process from raw material selection to final packaging.

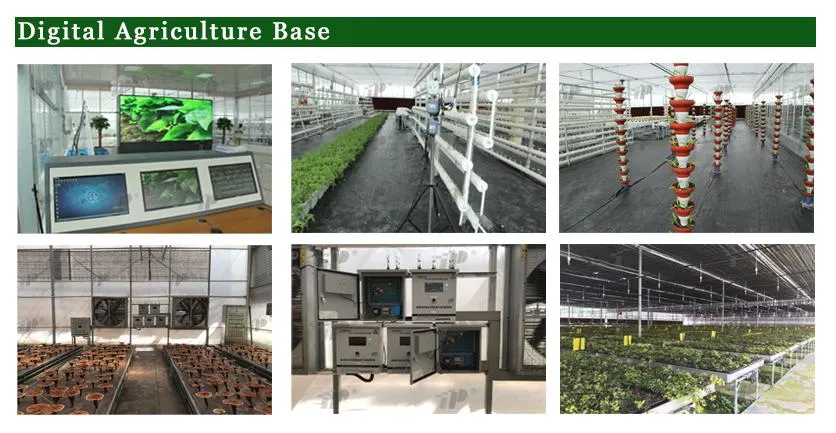

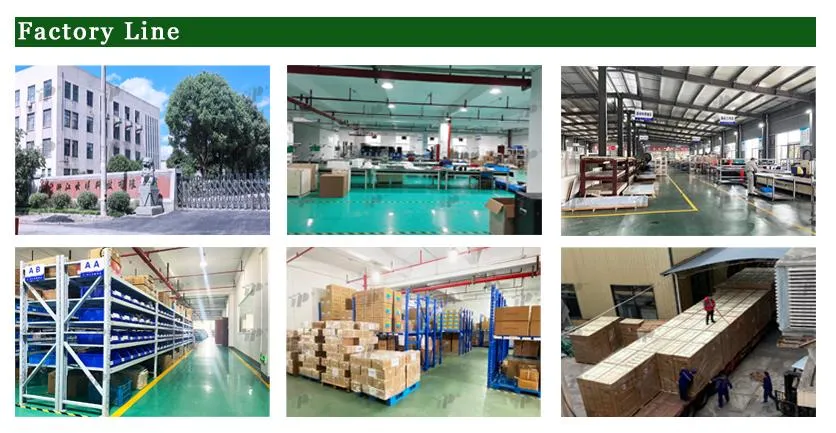

Certificate 1 Certificate 2 Certificate 3
Main Certificate Customer Response

Frequently Asked Questions

1. How do you guarantee the quality of the products?
We adhere to ISO9001 / 14001 / 45001 quality system certifications and maintain a professional inspection team of over 30 inspectors for strict process control.
2. What is the standard after-sales service policy?
We offer a full 1-year warranty and provide lifelong maintenance support to ensure the long-term operation of your equipment.
3. How long is the typical delivery lead time?
General delivery takes 3-5 days, though this may vary depending on the specific product model and order quantity.
4. Can the system export data for further analysis?
Yes, the software can save distribution maps and result data as EXCEL documents, making it compatible with standard office and research software.
5. Is OEM customization available?
Yes, OEM services are acceptable. Please contact our team with your specific requirements for more detailed information.
6. What is the measurement accuracy of the device?
The automatic measurement accuracy is ≥99%, and it can reach 100% accuracy after interactive correction through the software.
