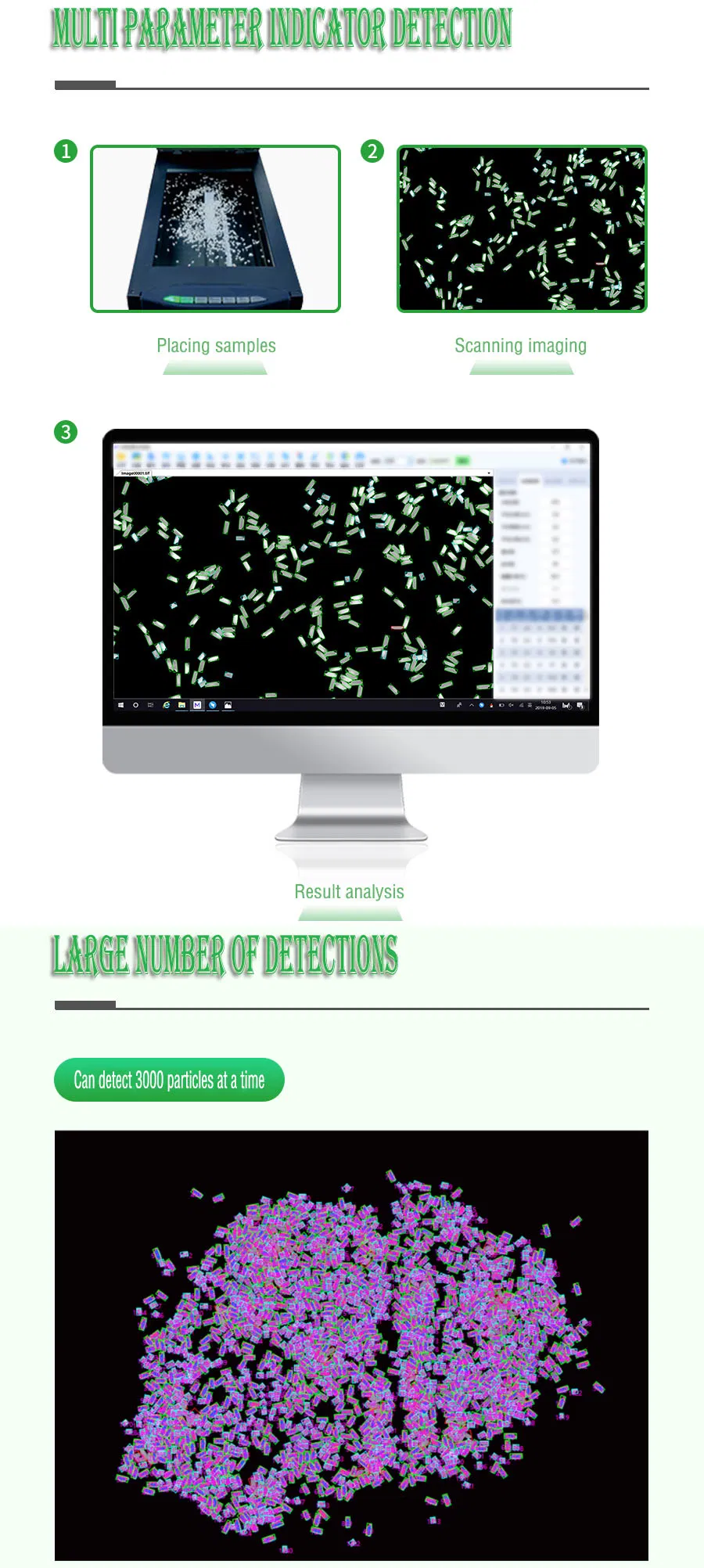

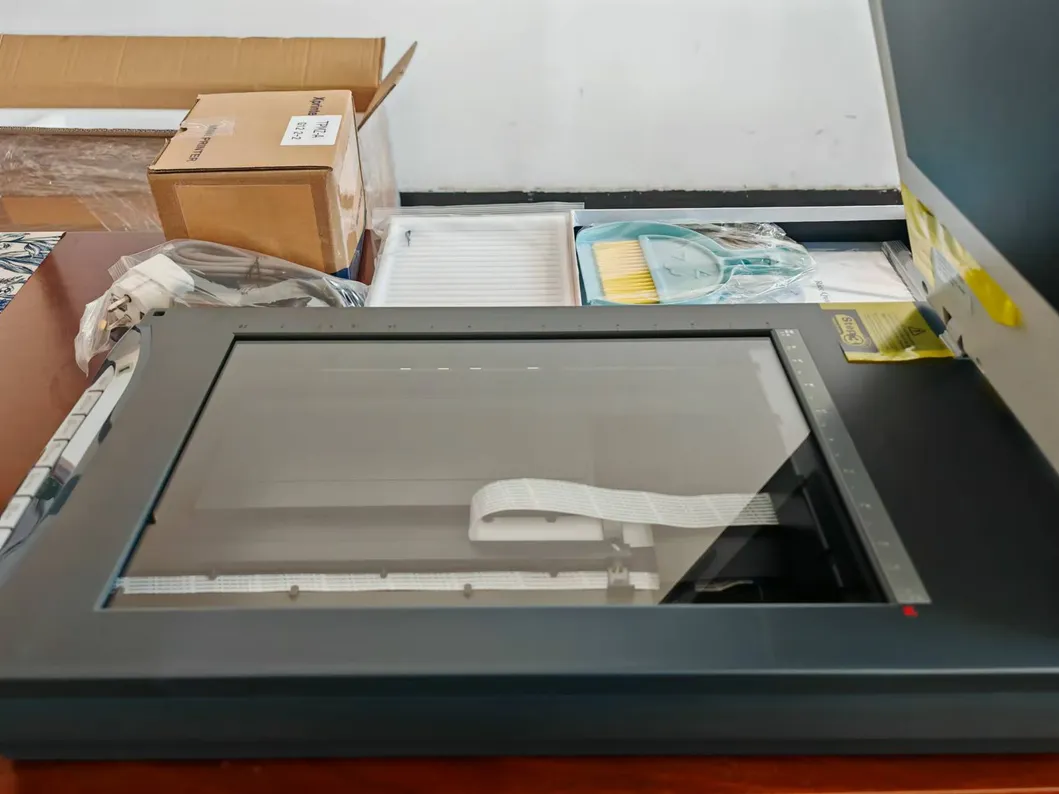

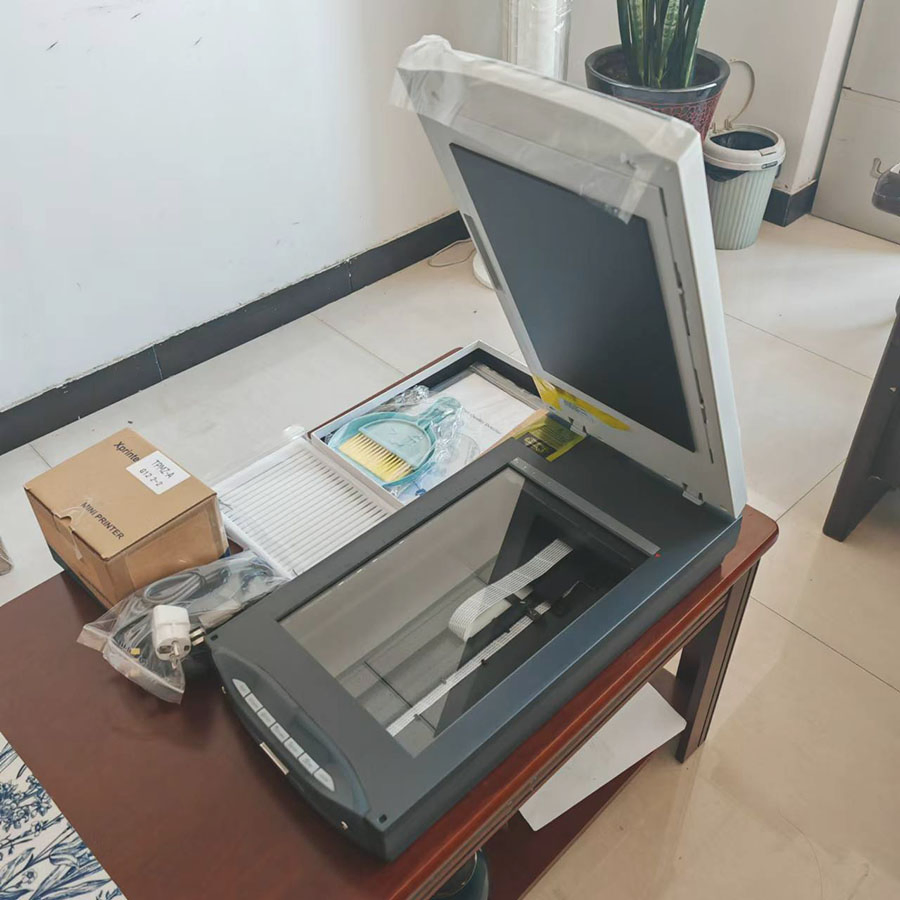

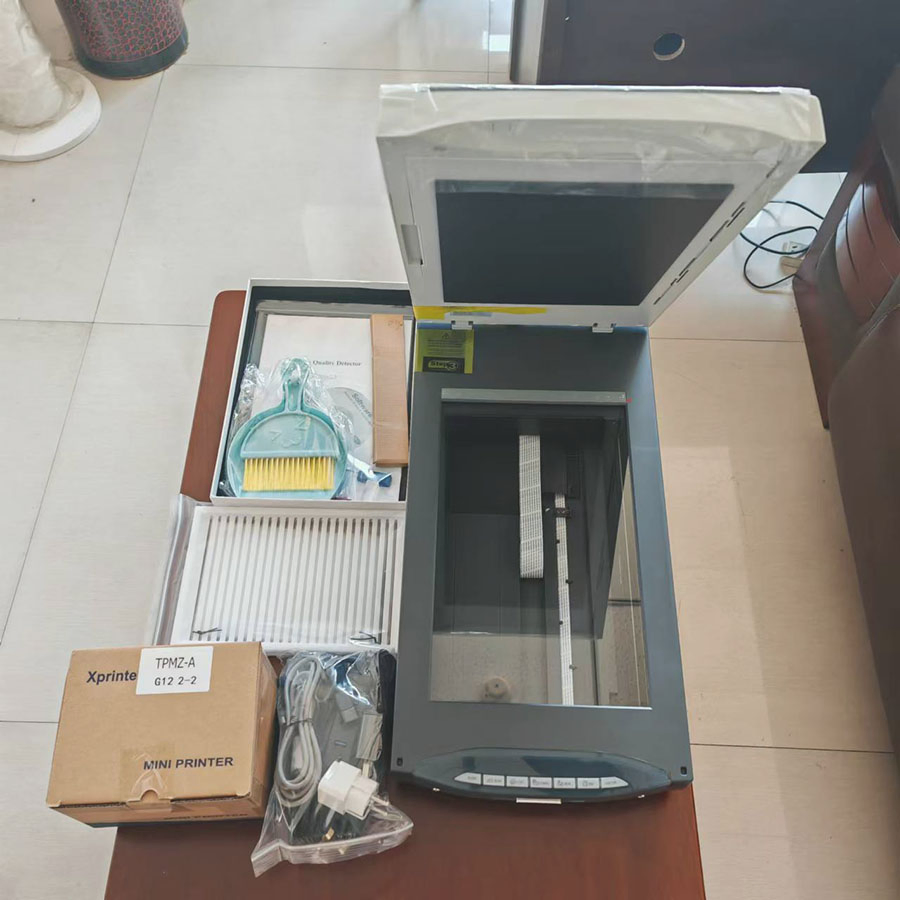

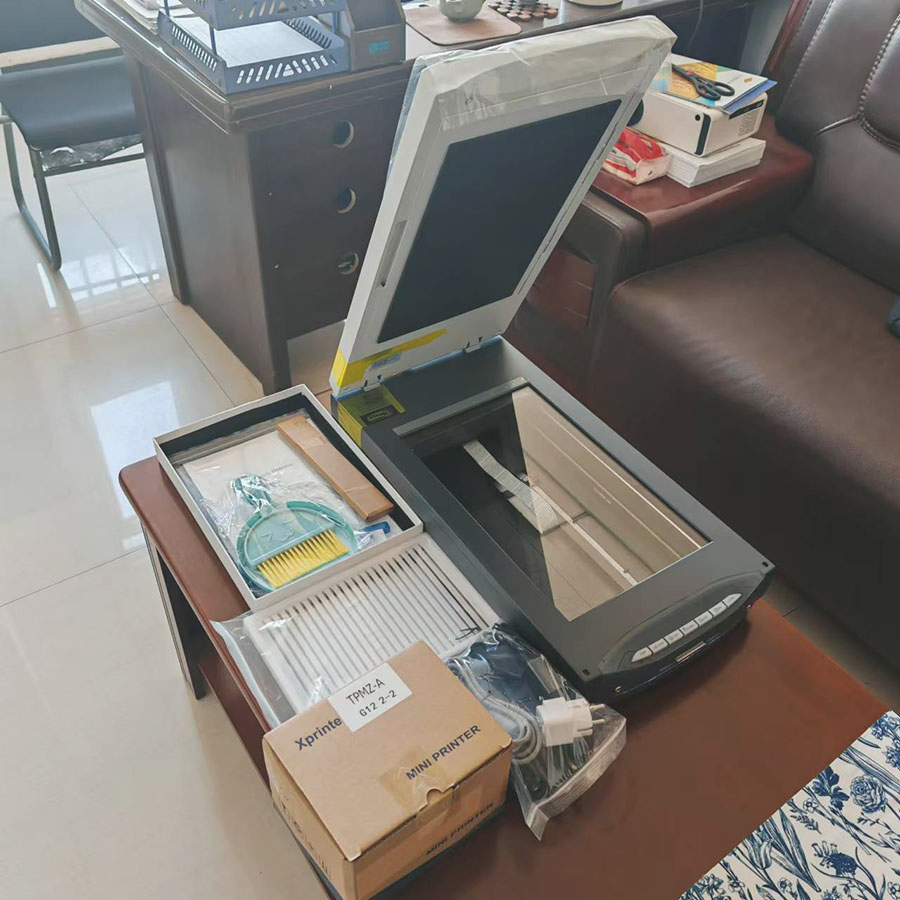

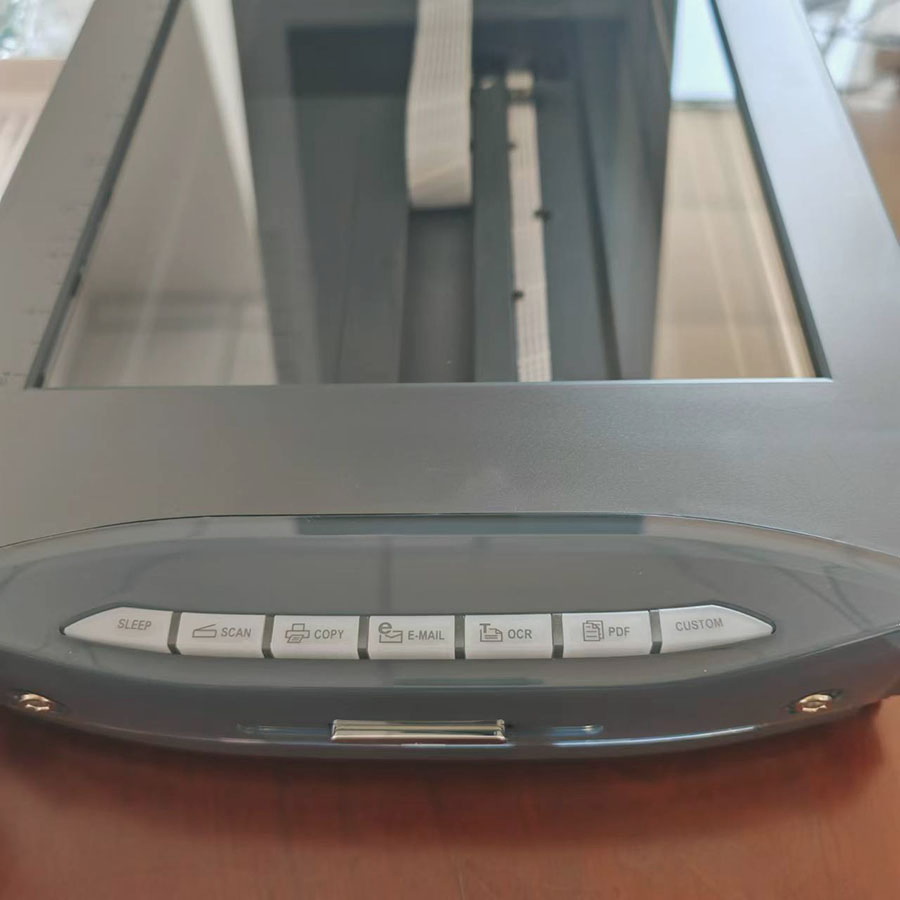

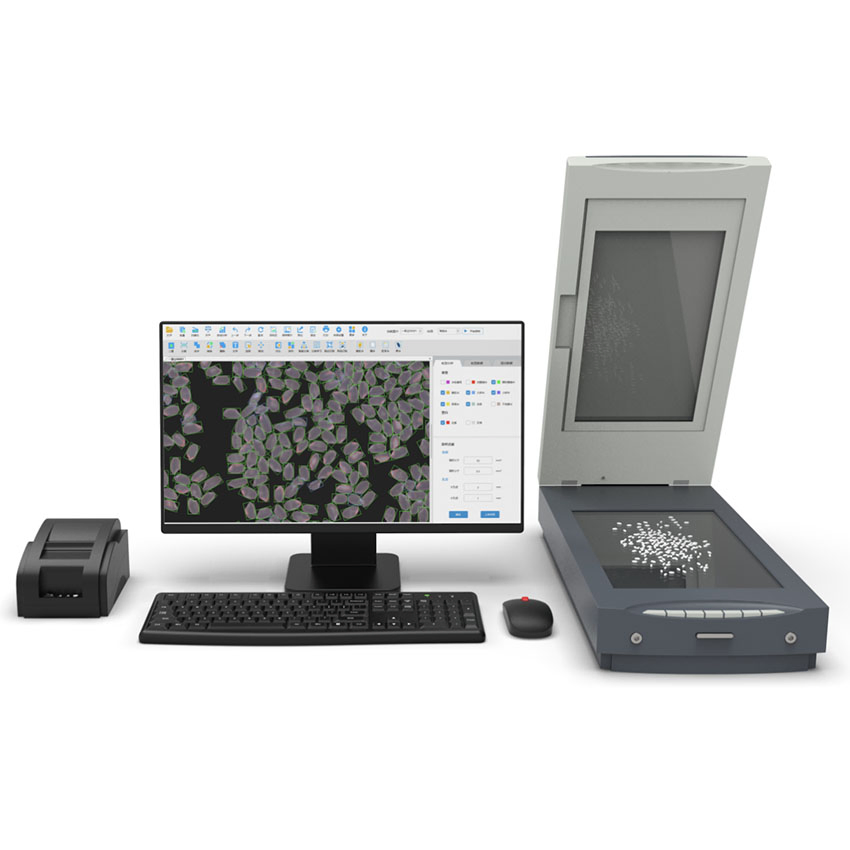

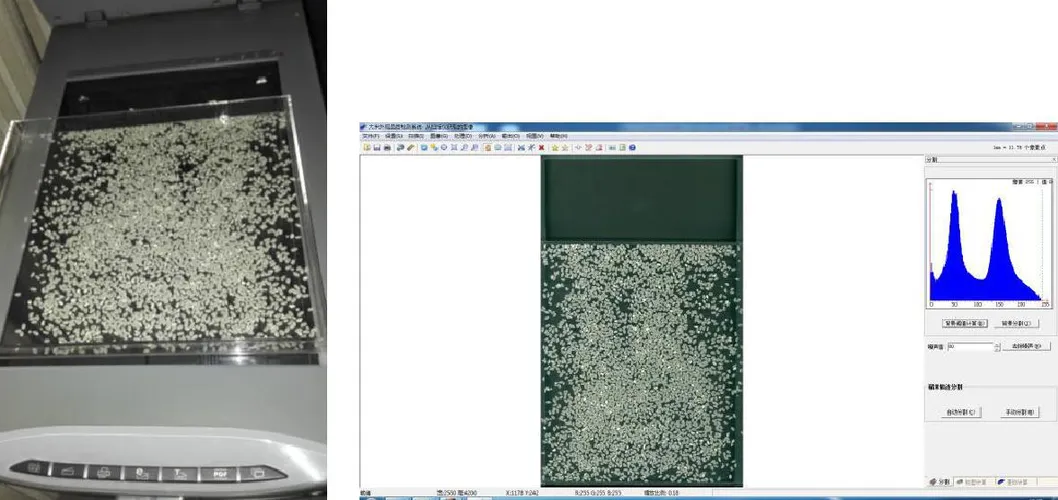

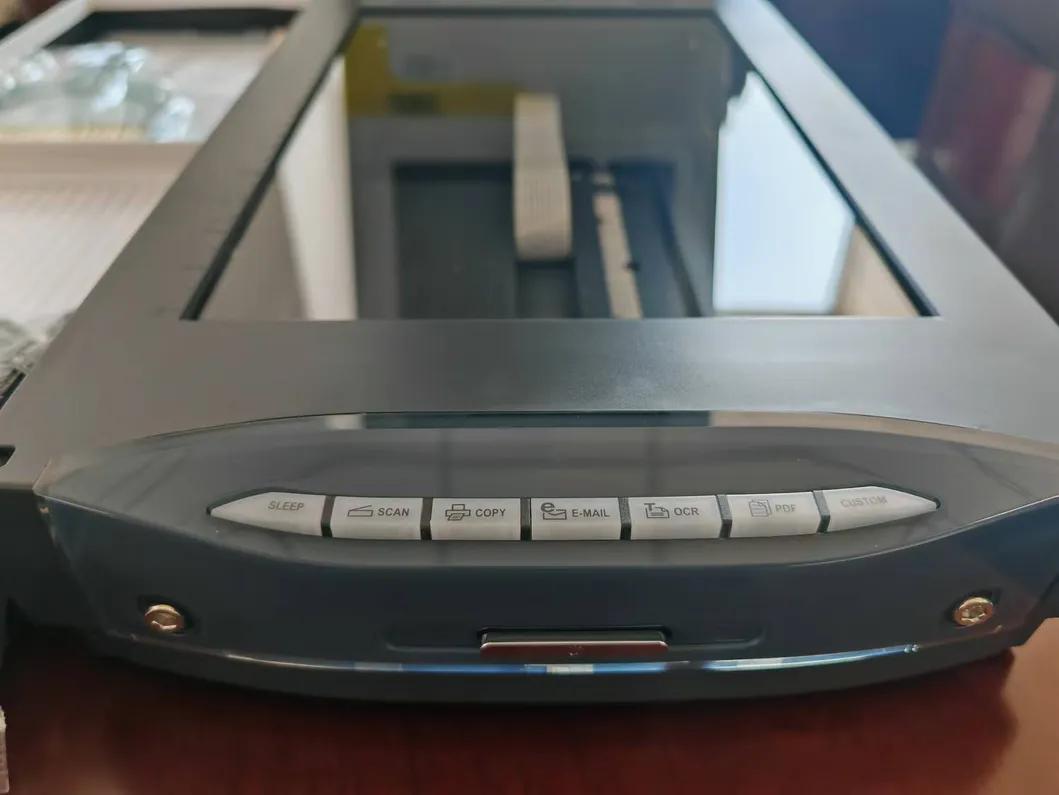

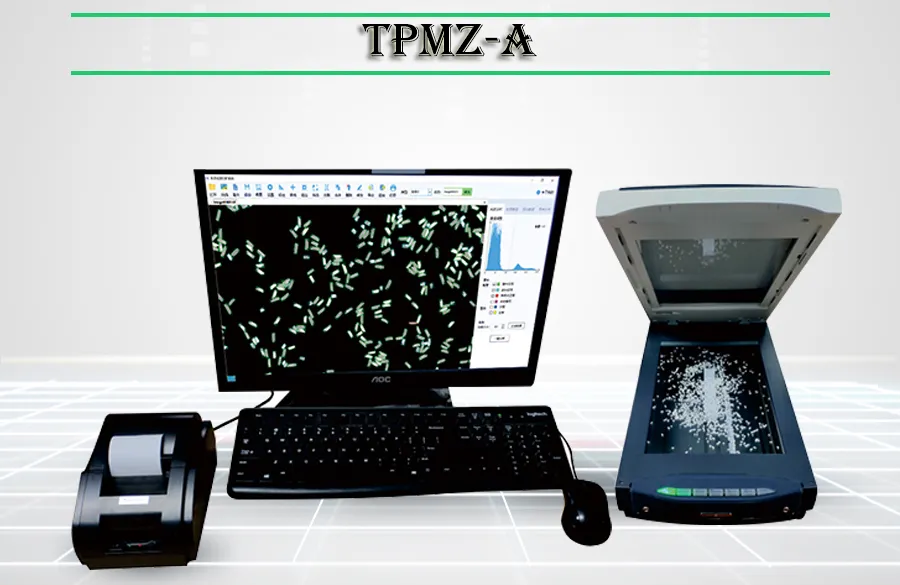

The instrument adopts image scanning and acquisition method, and uses general computer and special processing software for image processing.
1
Test the whole rice rate of Rice, the chalky grain rate, chalky whiteness, yellow grain rice, imperfect grain, grain type of rice and so on.
2

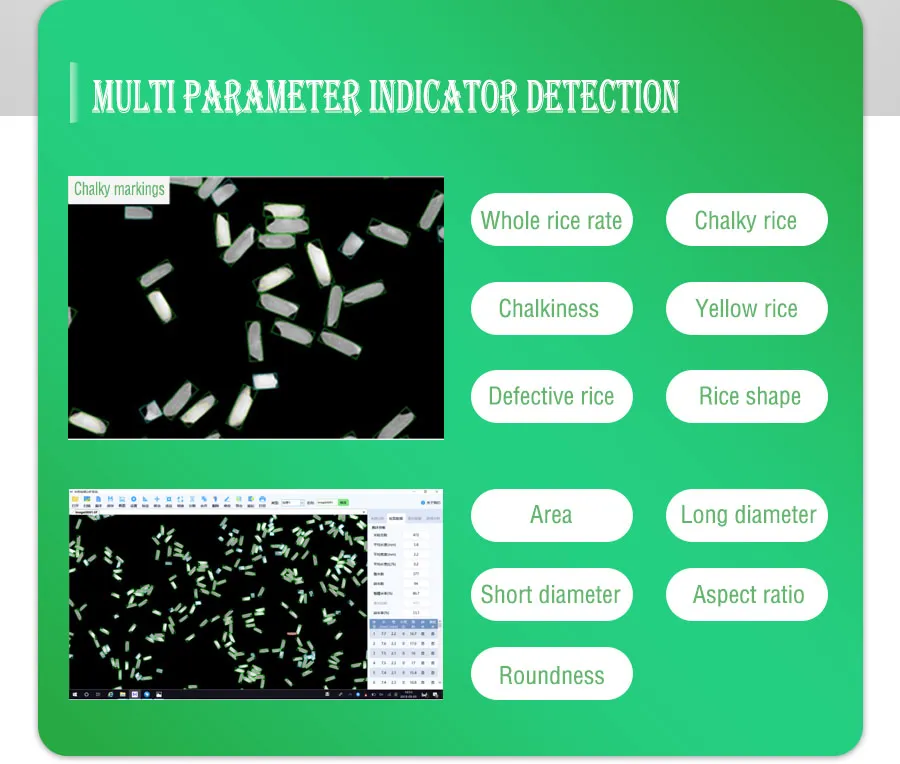

Automatically measure the area, length and diameter, short diameter, aspect ratio, roundness and equivalent diameter of each grain, and can automatically analyze the processing and output results in large quantities.
3

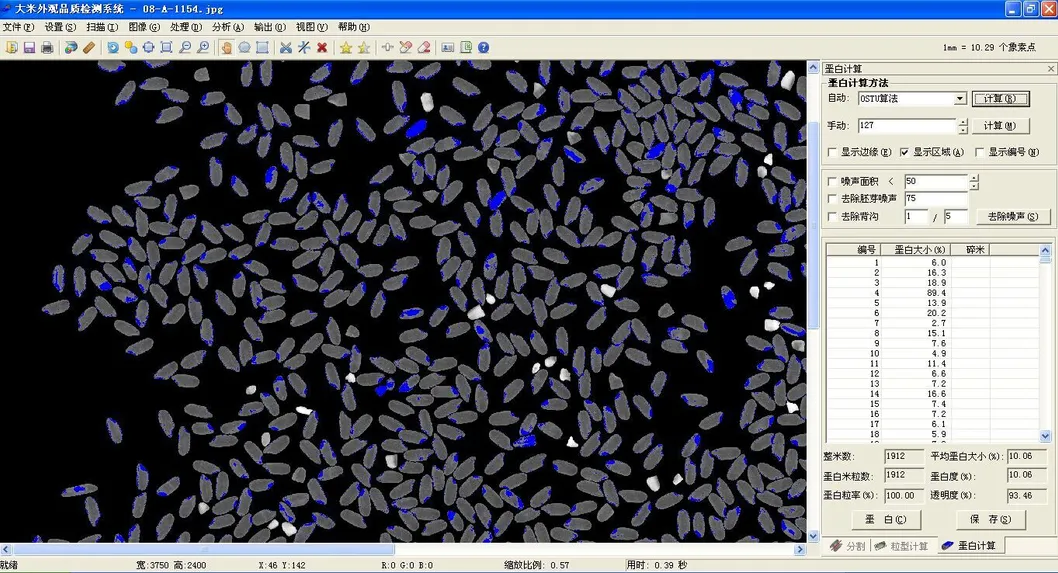

Chalkiness: the average chalky size, chalky grain number, chalky whiteness, chalky grain rate and transparency in the whole rice.
4

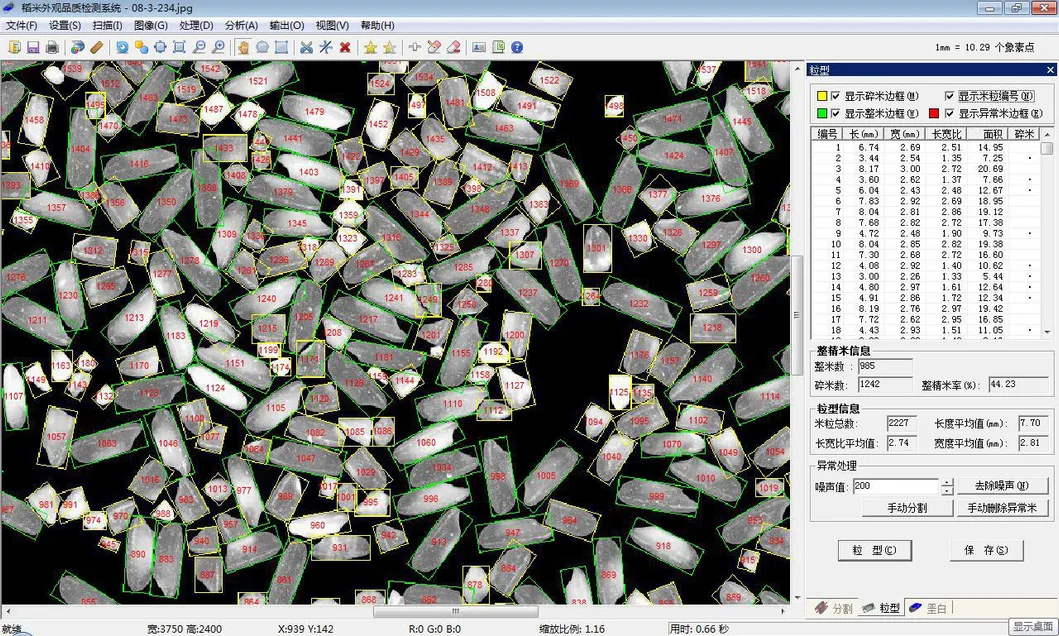

Broken rice: in the rice grain image, broken rice, whole rice, rice grain number and abnormal rice can be displayed with different color. Can see the different grain types of each rice grain; the system can manually delete the abnormal meter, the data can be automatically updated.
5
Data storage and print: save each analysis Image, distribution map and result data; inspection information can be saved as EXCEL documents.
6
Corresponding to national standards GB/T1350 Rice, GB/T17891 high-quality rice or GB1354 Rice, and Ministry of Agriculture NY/T2334-2013.
7

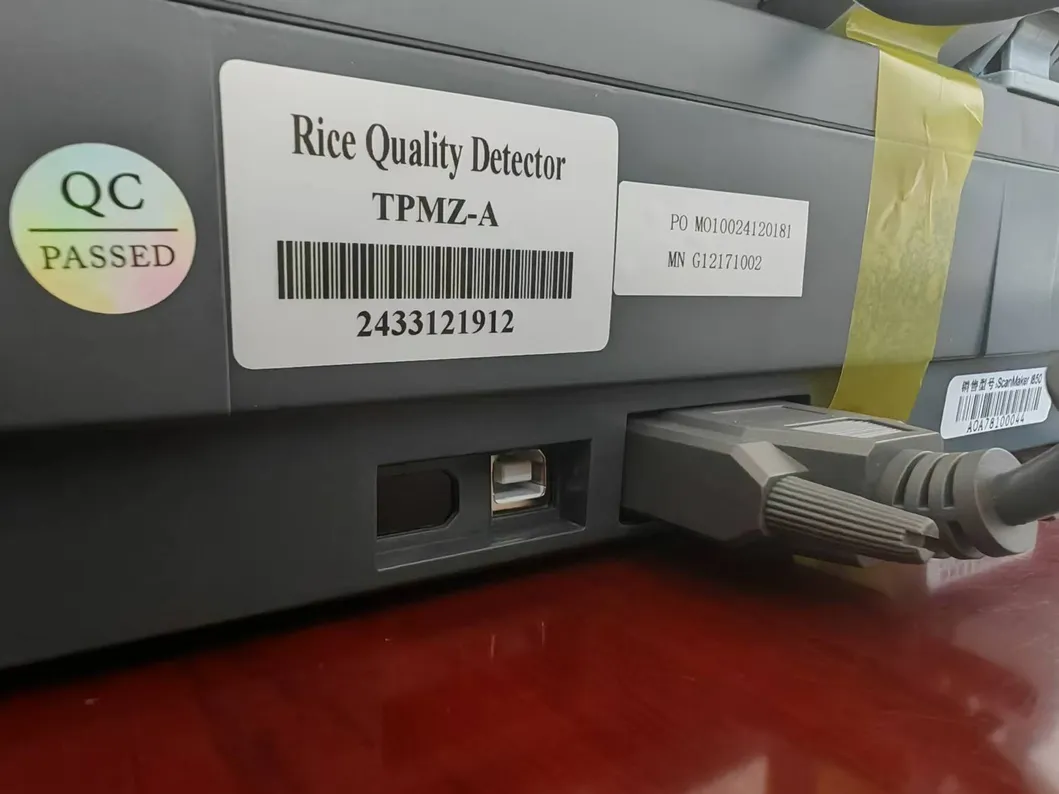

With a sample barcode and RS232 data software interface for electronic balance. Measurement accuracy is ≥99%.
8
Software encryption is secured by encryption dog + dynamic two-dimensional code.
