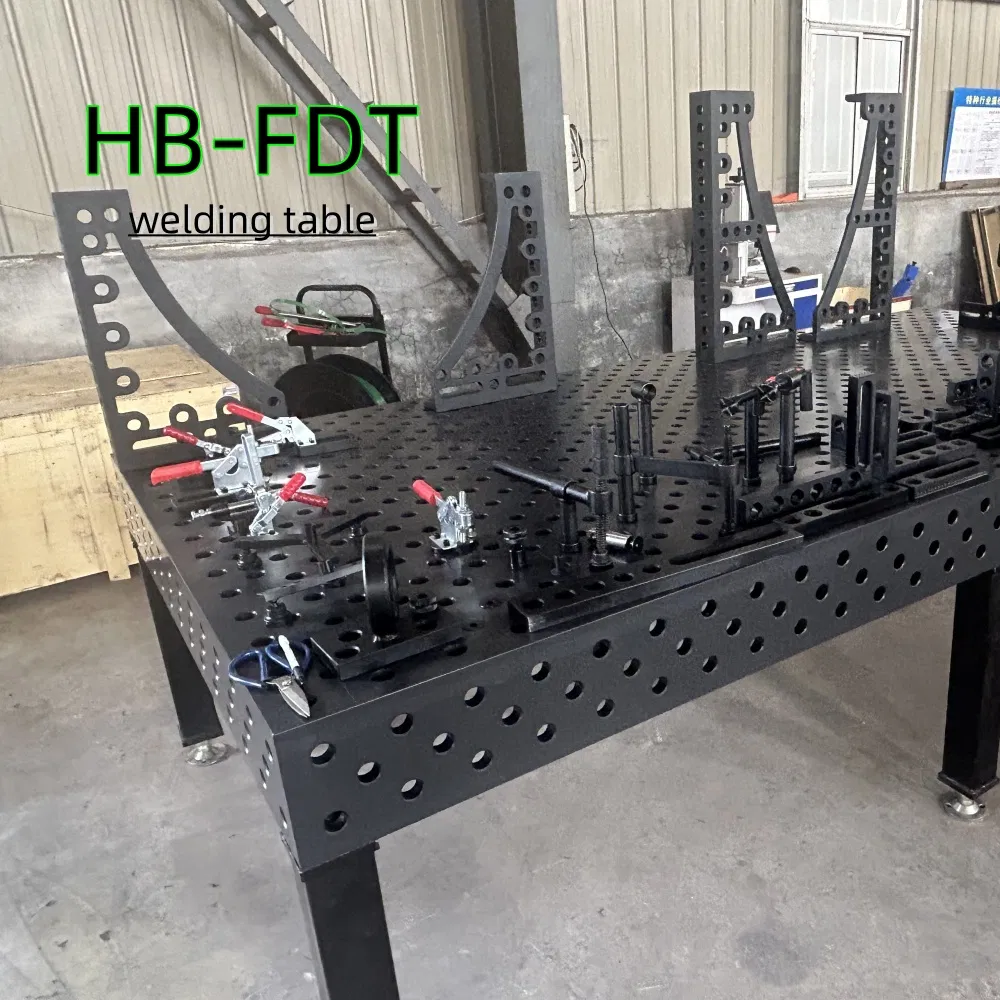

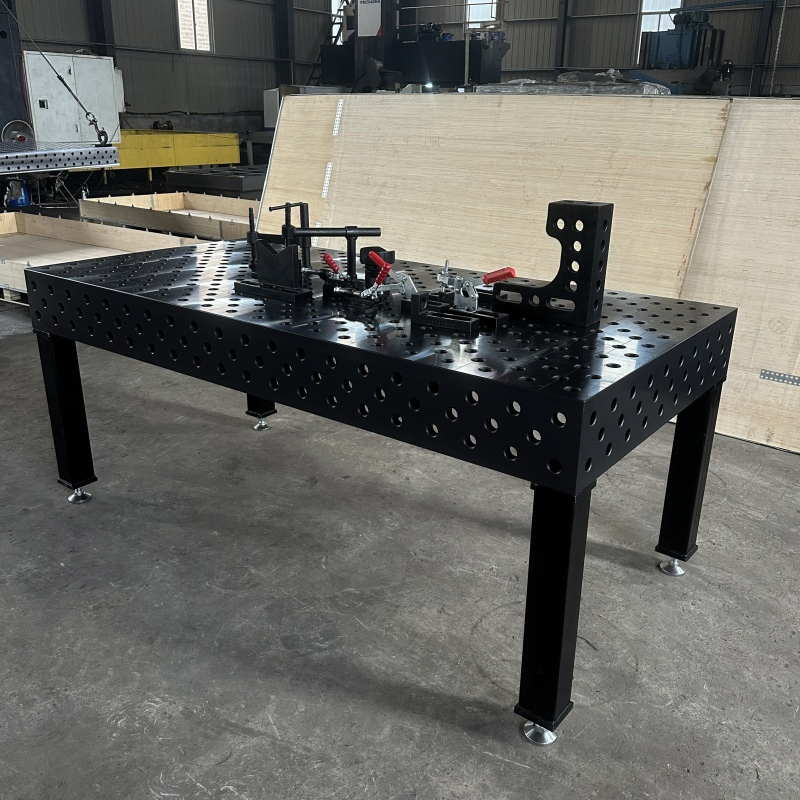

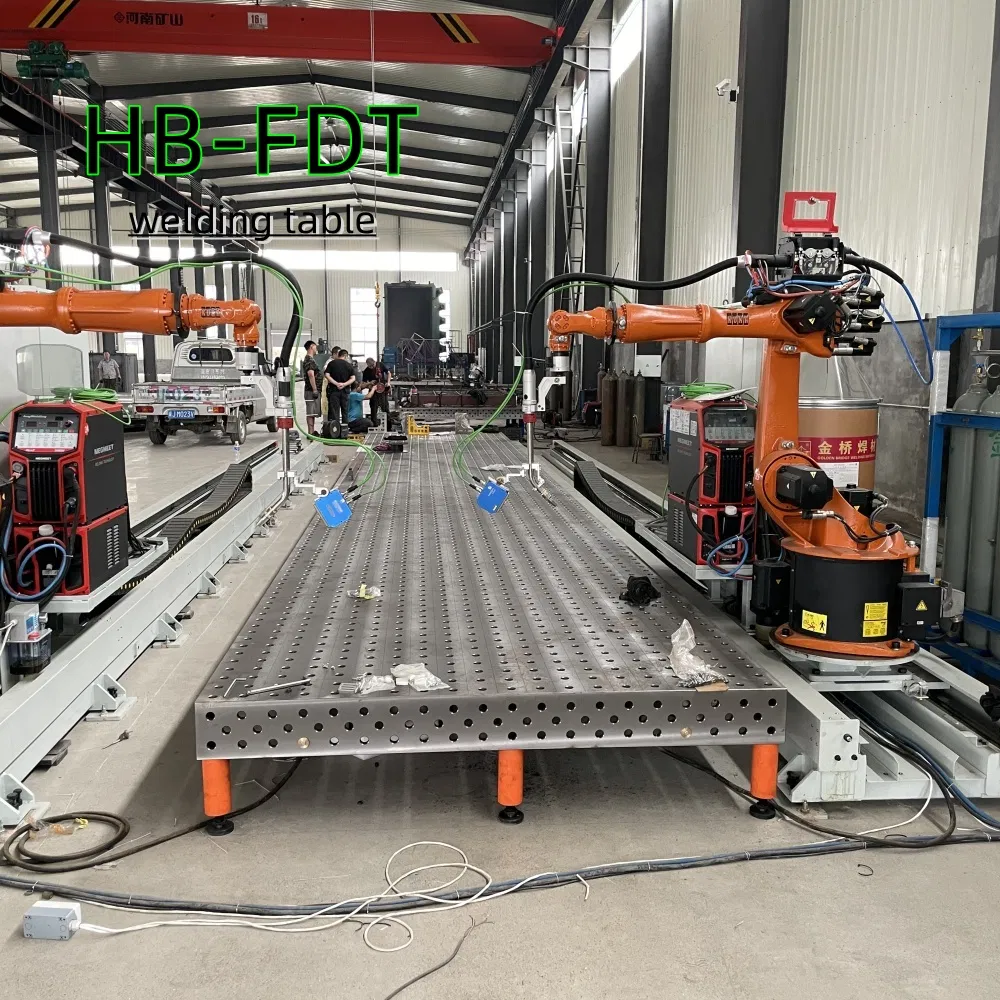

3D Flexible Welding Platform, Exceptional Precision and Flexibility, Transforming Welding Processes

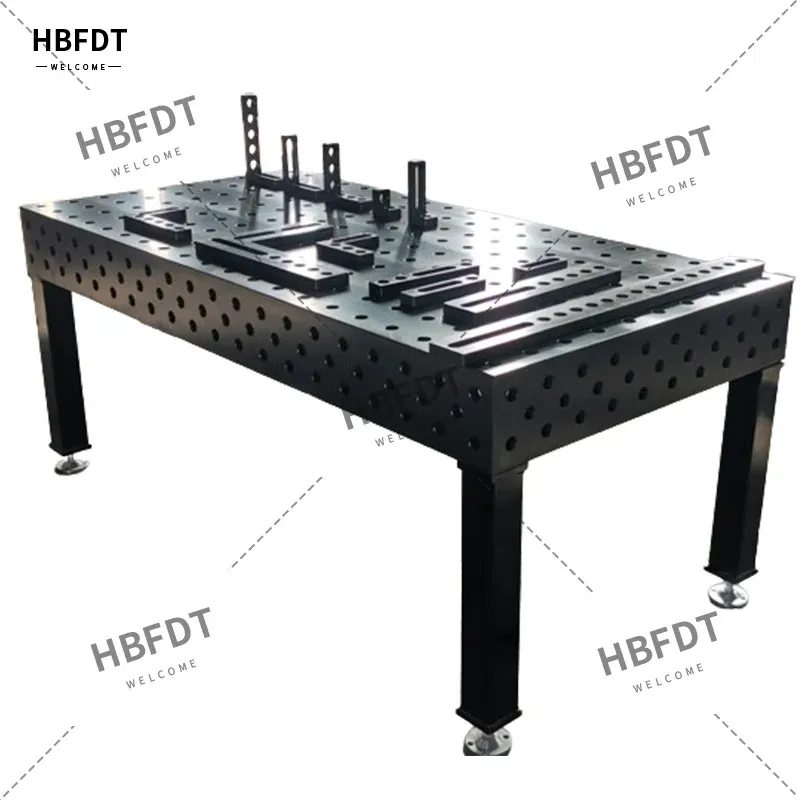

3D Steel New Metal Welding Workbench

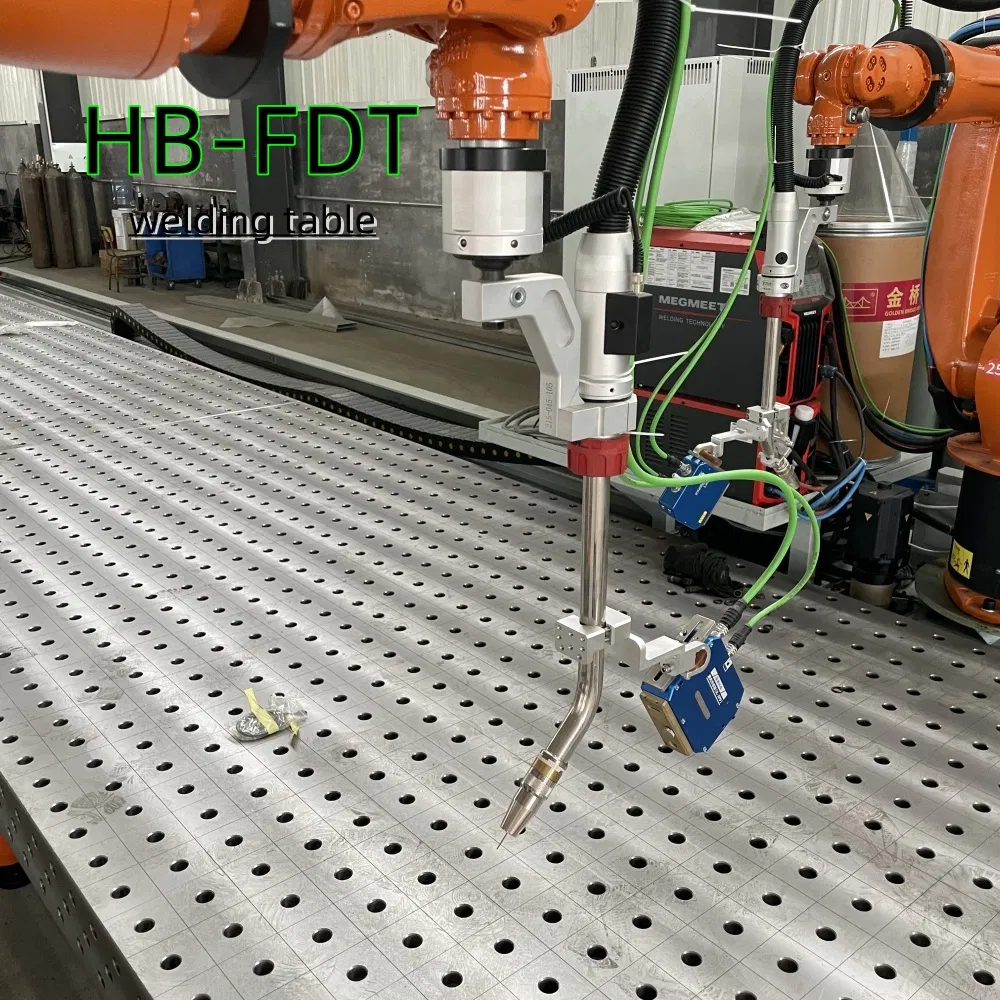

The 3D welding table/welding platform is a specialized device engineered for automated and high-precision welding operations. Equipped with a three-dimensional motion control system, it allows for seamless multi-axis movement to accommodate workpieces of various shapes and sizes. This equipment significantly enhances welding efficiency and accuracy, making it an essential tool in manufacturing, automotive, and aerospace industries.

🛠 Material Q355 steel plate or high hardness steel plate

🎯 Aperture A = φ28.065 -- φ28.149mm

📏 Hole Spacing L1 = 100±0.05mm

⚖ Flatness 0.1/1000mm

🏗 Bearing Capacity Standard: 2T | Frame Type: 5T

💎 Hardness HV450-HV630 (Nitriding layer)

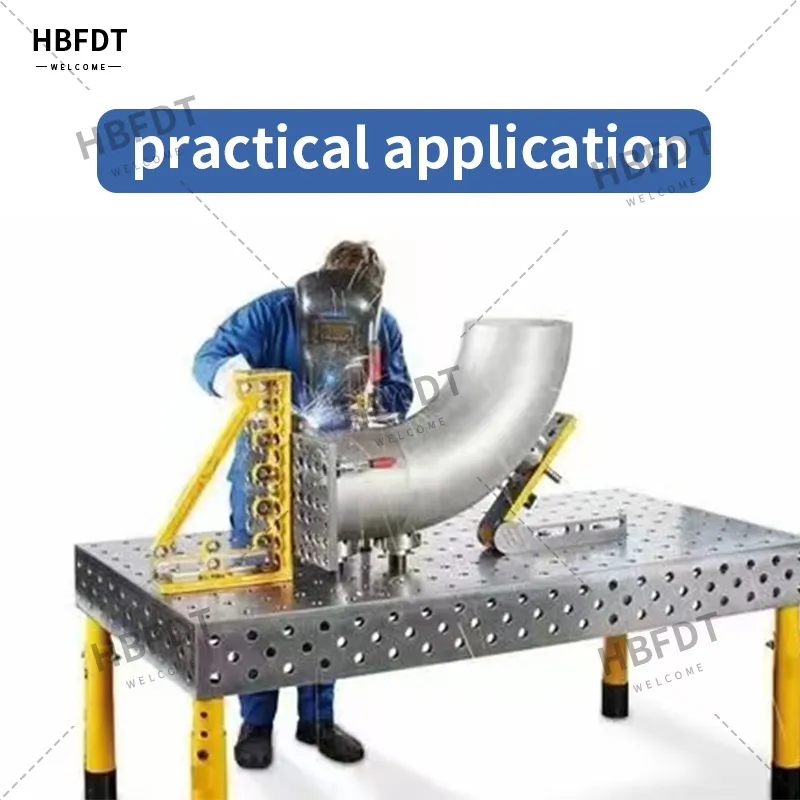

Optimizing Your Workflow with 3D Fixture Tables

1. Choose a Suitable Work Platform Select a 3D welding platform based on product size. D16 series is ideal for sheet metal and small steel structures, while D28 series is designed for heavy machinery and large steel structures.

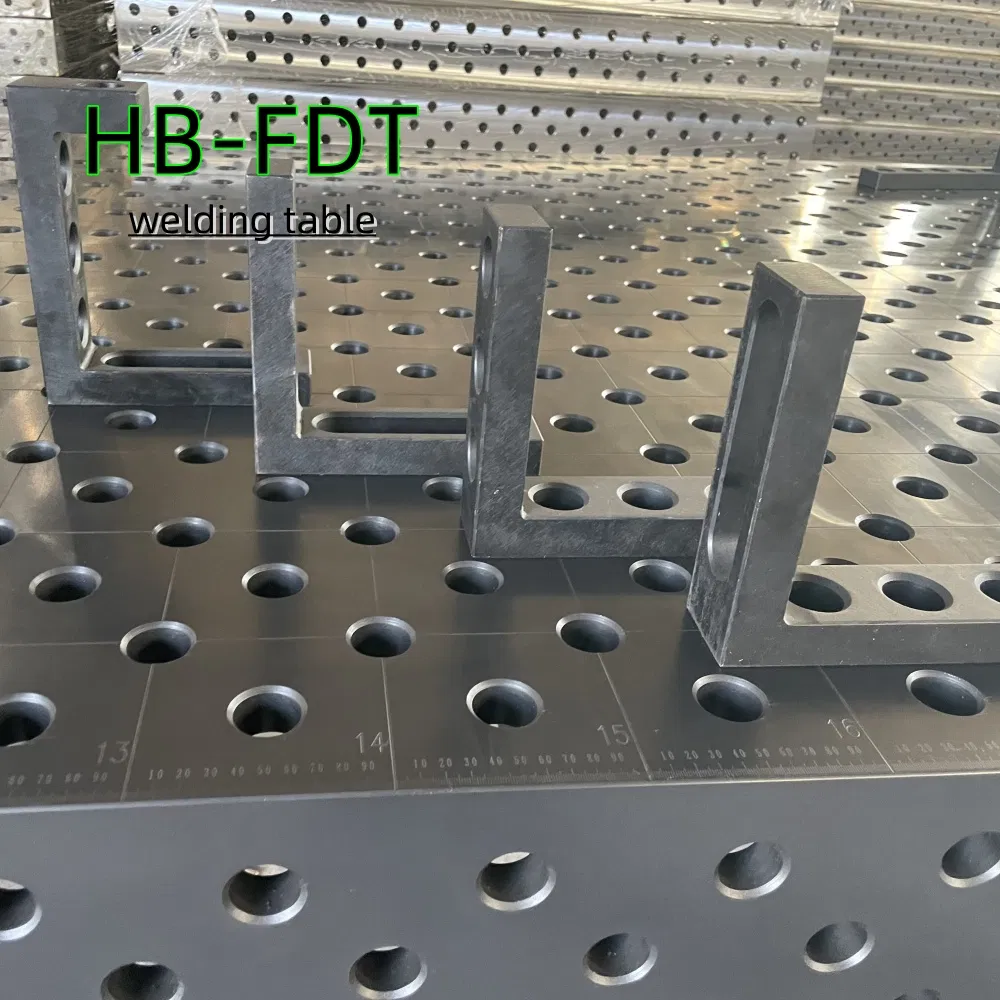

2. Configure Corresponding Fixtures Select accessories based on workpiece complexity. For oversized pieces, utilize U-shaped square boxes, L-shaped square boxes, and support angle irons for expansion.

3. Quick Assembly and Positioning Leverage the modular design and standard hole system. Accessories can be quickly assembled and accurately positioned using quick locking pins.

4. Precision Welding and Assembly Once clamped, proceed with welding. High stability and precision ensure superior welding quality and maximized work efficiency.

D16 Series 3D Welding Table

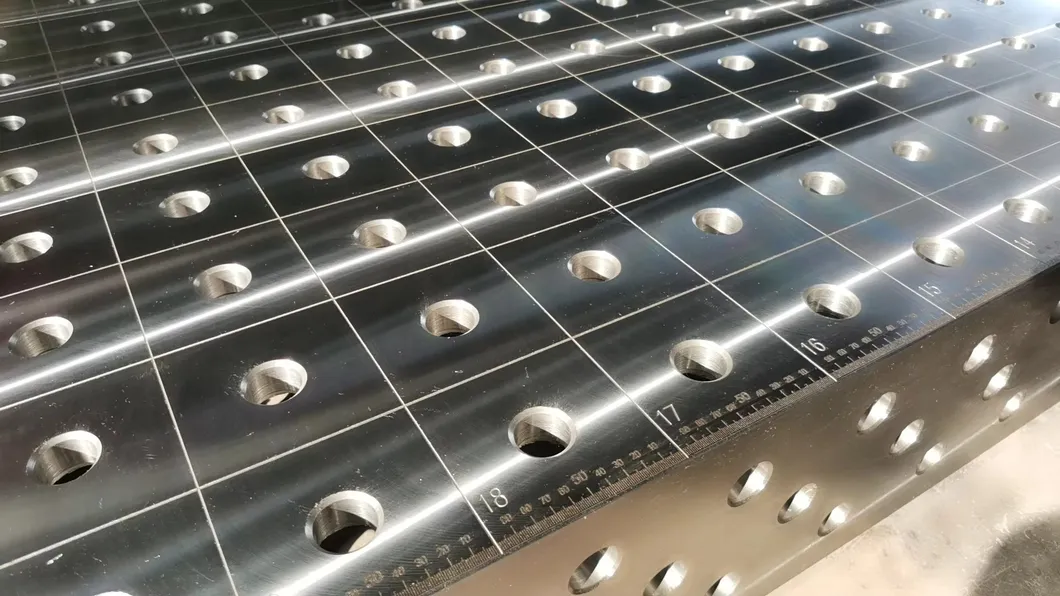

✔️ Precision machined working surfaces (5 sides)
✔️ Hole diameter: 16mm
✔️ Grid lines: 50mm*50mm
✔️ Material thickness: approx. 14mm
✔️ Side surface height: 100mm
✔️ Reinforced rib structure underneath
✔️ Customization: Five-hole patterns & scales available

D28 Series 3D Welding Table

✔️ Heavy-duty steel or cast iron construction
✔️ Hole diameter: 28mm
✔️ Grid lines: 100mm*100mm
✔️ Material thickness: approx. 23mm
✔️ Side surface height: 200mm

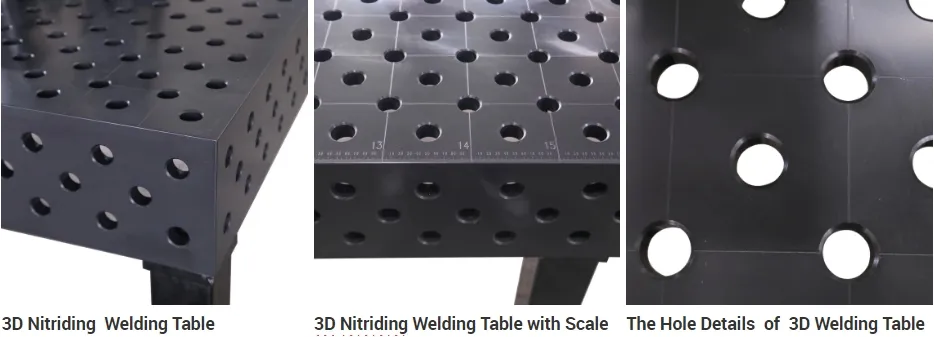

✔️ Nitriding treatment available for durability
✔️ High load-bearing reinforced design

Advanced R-Angle Processing

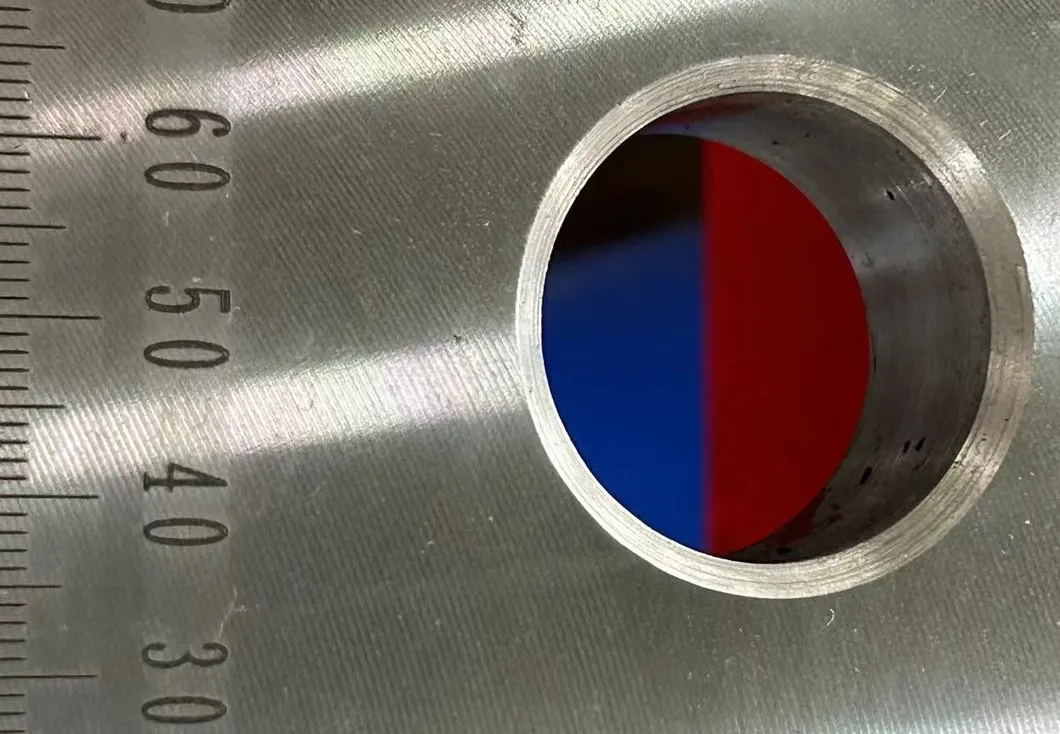

Features radius machining for every hole and edge of the workpiece. This precision process greatly increases the service life and safety of the welding platform.

Production Specifications

Item No.	Specification (LxW) mm	Height (mm)	Material	Hole Diameter (mm)
1	4000 x 2000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
2	3000 x 2000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
3	3000 x 1500	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
4	2500 x 2000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
5	2500 x 1500	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
6	2000 x 2000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
7	2400 x 1200	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
8	2000 x 1500	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
9	1500 x 1500	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
10	2000 x 1000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
11	1200 x 1200	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
12	1200 x 1000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
13	1000 x 1000	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16
14	1000 x 800	200/150/100	Q355/Q235/Cast Iron/Stainless Steel	D28/D16

Welding Table Variety

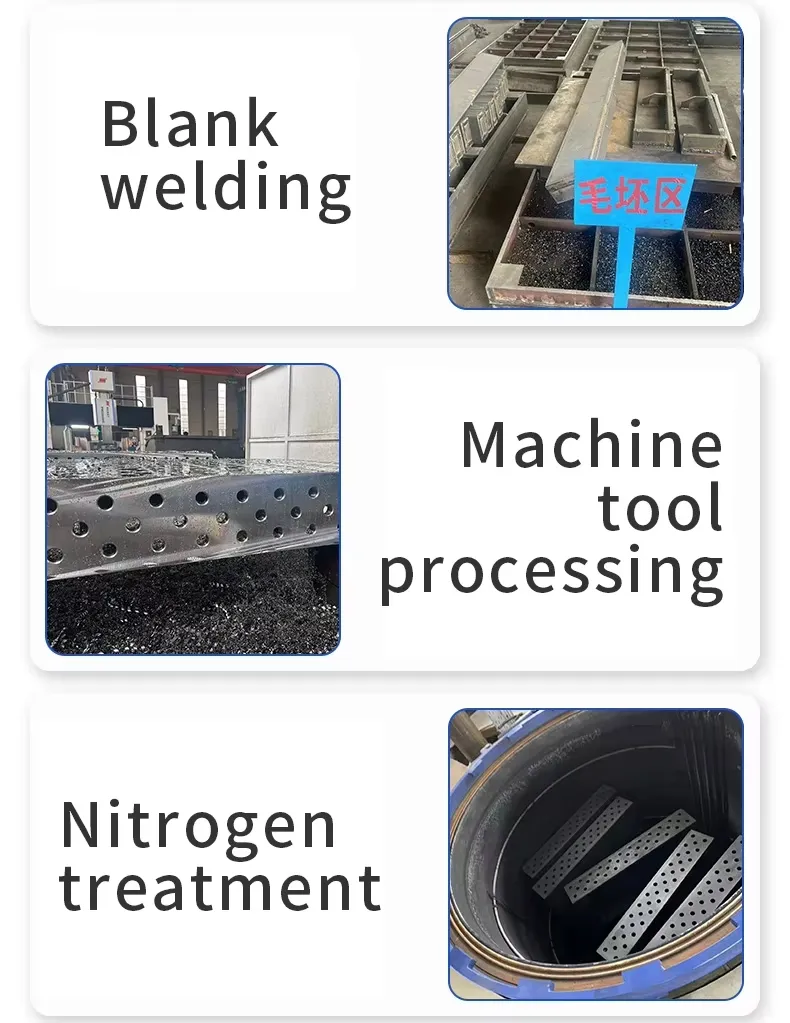

Manufacturing Process & Details

Clamping Systems

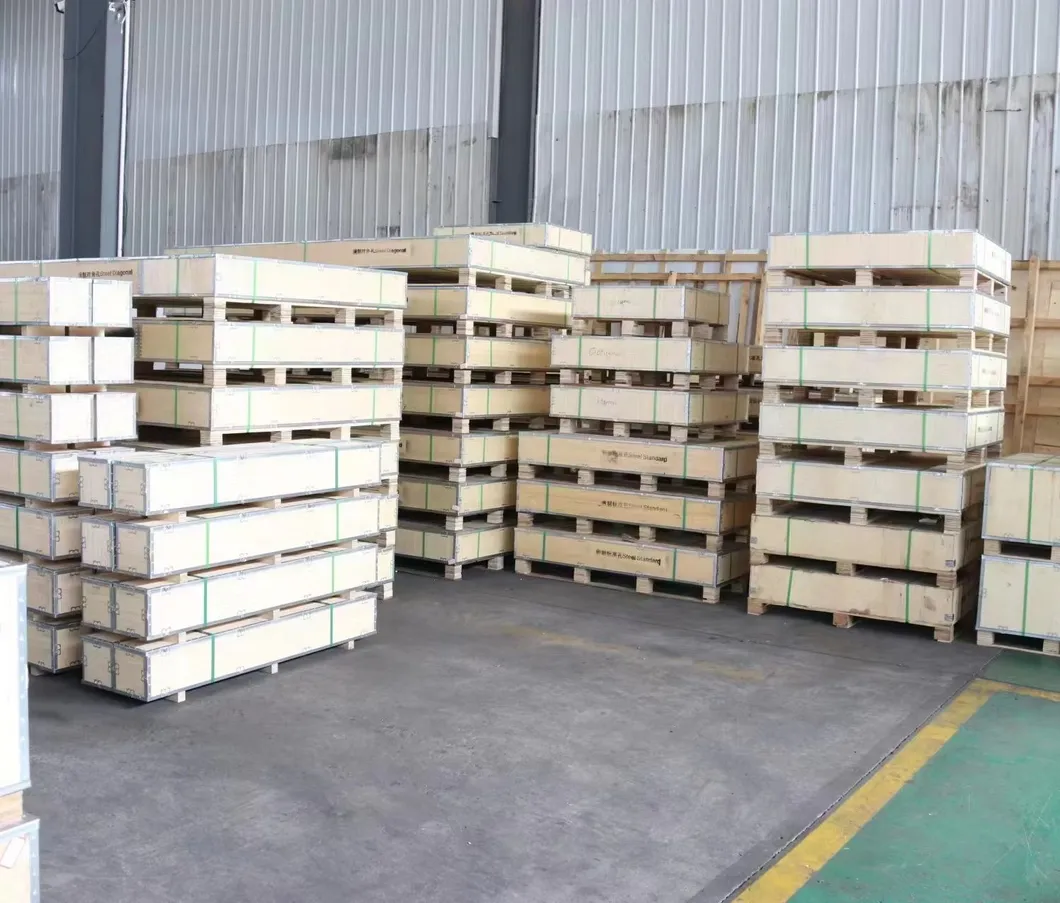

Packaging & Export

Frequently Asked Questions

What materials are used for the 3D welding tables?

Our welding tables are manufactured using high-quality Q355 steel, Q235 steel, cast iron, or stainless steel depending on the specific industrial requirement.

How is the quality of the welding platforms guaranteed?

We maintain strict quality control protocols, including pre-production sample evaluations and a comprehensive final inspection before shipment to ensure precision and durability.

What are the benefits of the nitriding treatment?

The nitriding process after aging treatment makes the welding table rust-proof, significantly harder (HV450-HV630), and more durable for long-term industrial use.

Can the size and hole patterns be customized?

Yes, we provide customized solutions for hole patterns, scales, and table sizes to meet the unique requirements of your robotic or manual welding stations.

What shipping and delivery terms are available?

We offer flexible delivery terms including EXW, FOB, CIF, DAP, and DDP. Shipping can be arranged via sea, air, train, or truck to suit your timeline and budget.

What types of fixtures and accessories can I purchase?

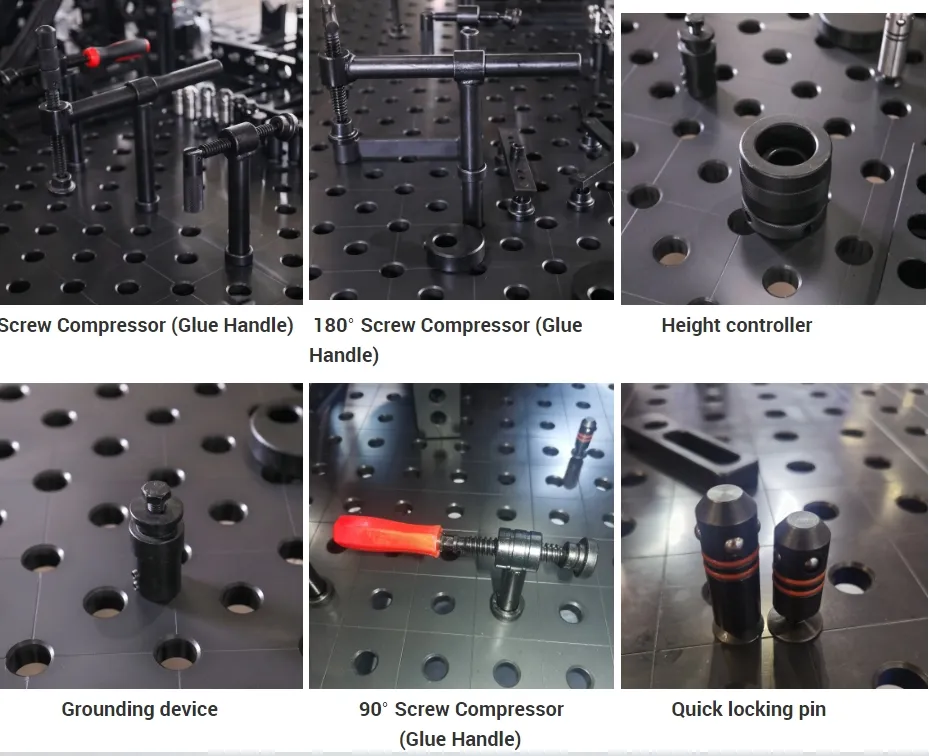

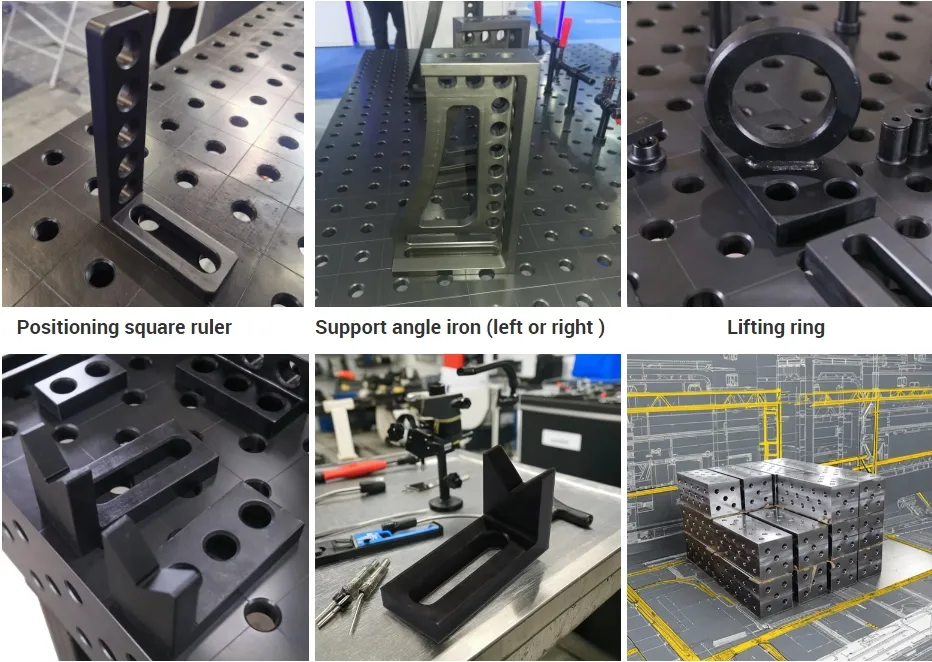

We provide a complete range of welding fixtures, including quick locking pins, clamps, U-shaped square boxes, and support angle irons for modular assembly.
