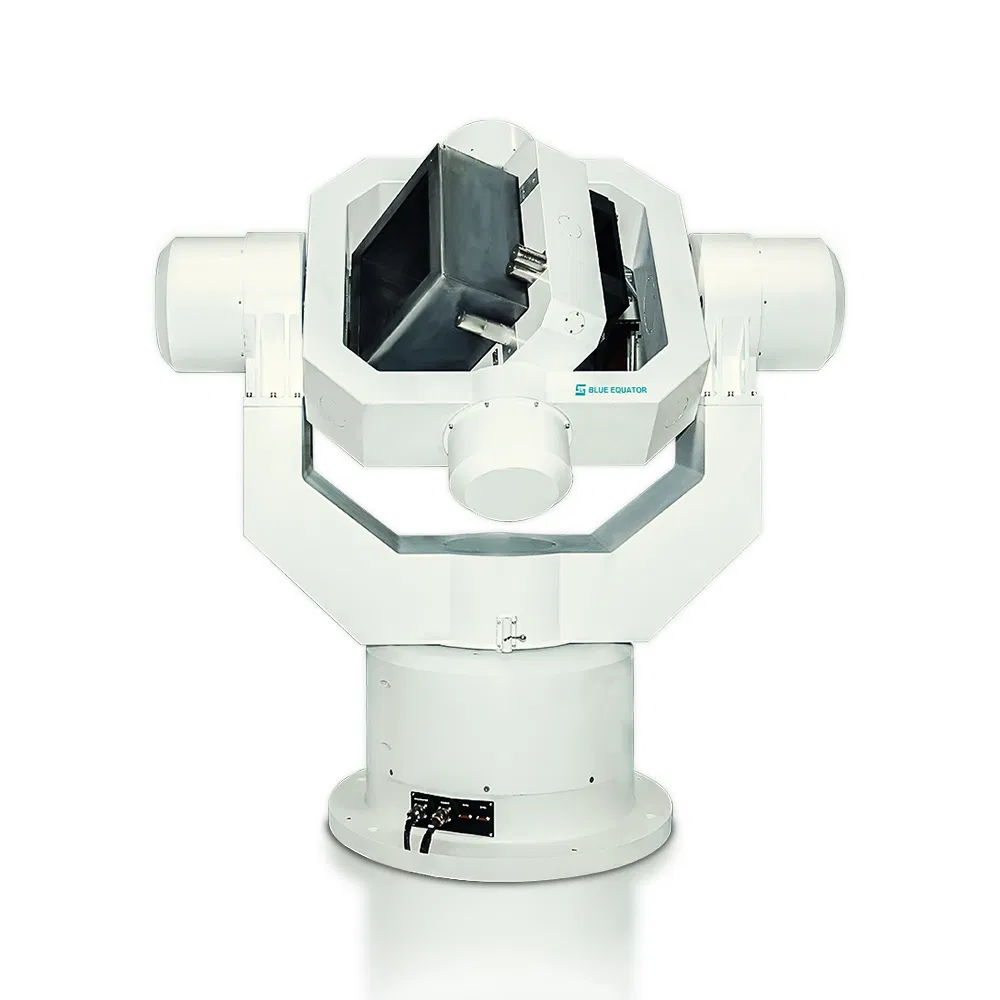

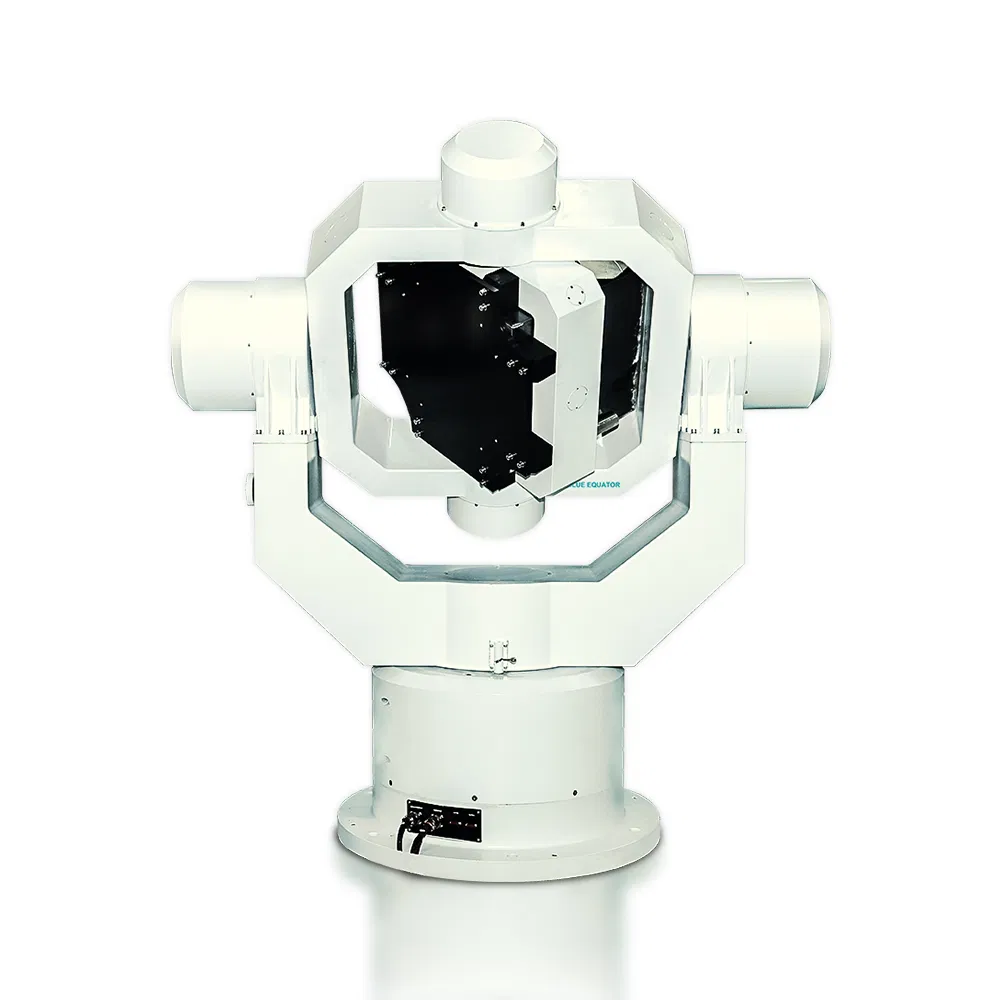

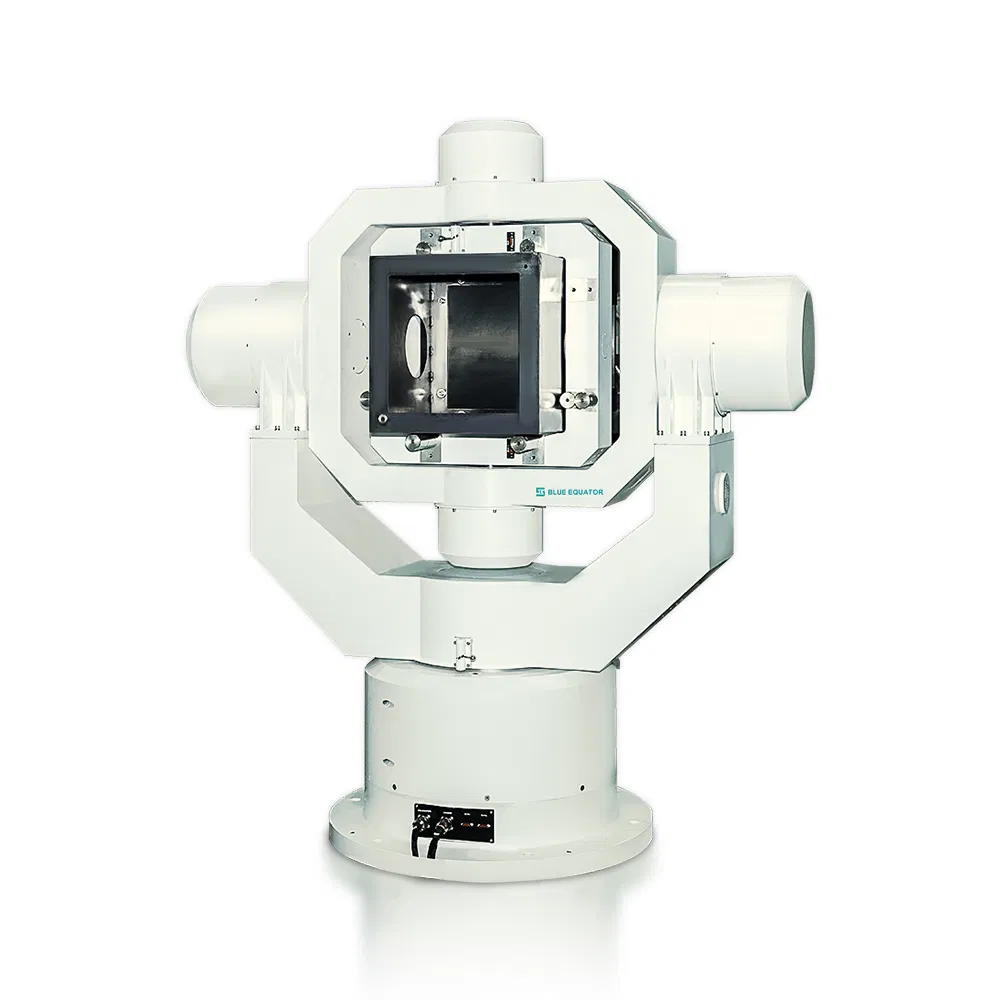

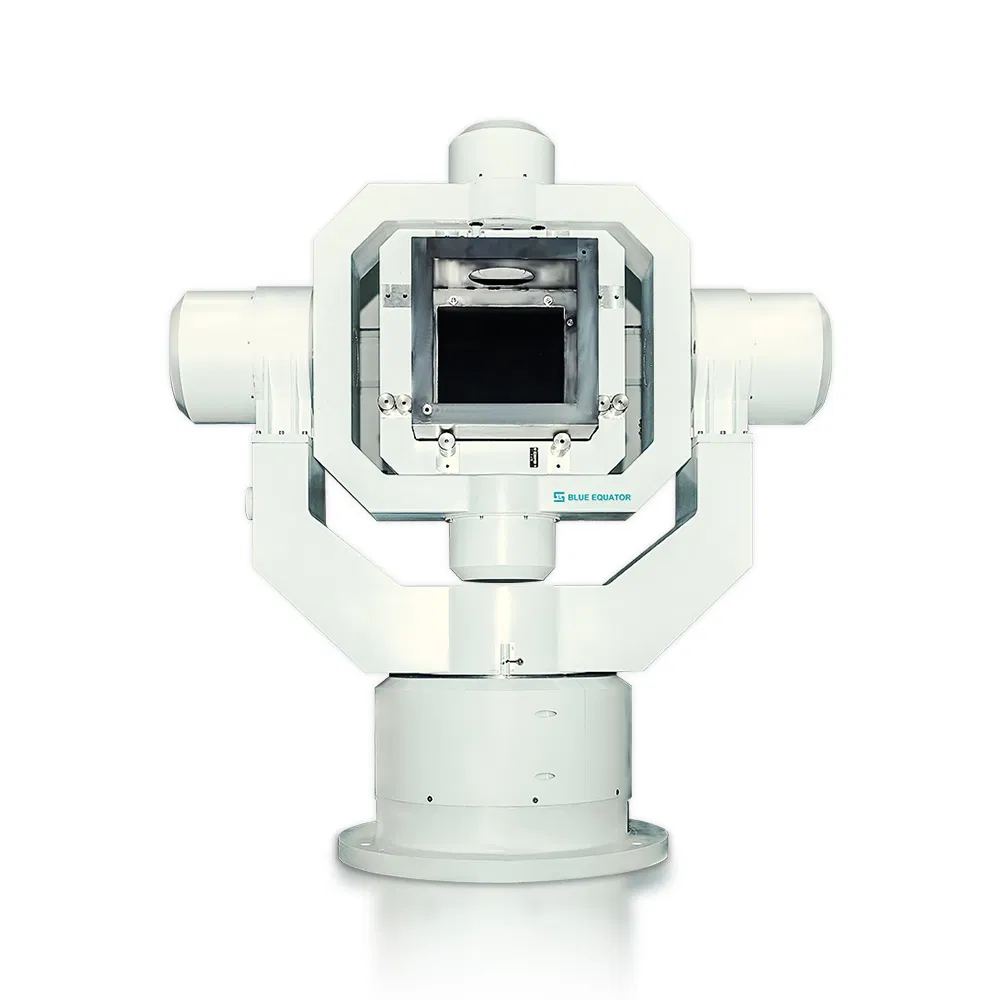

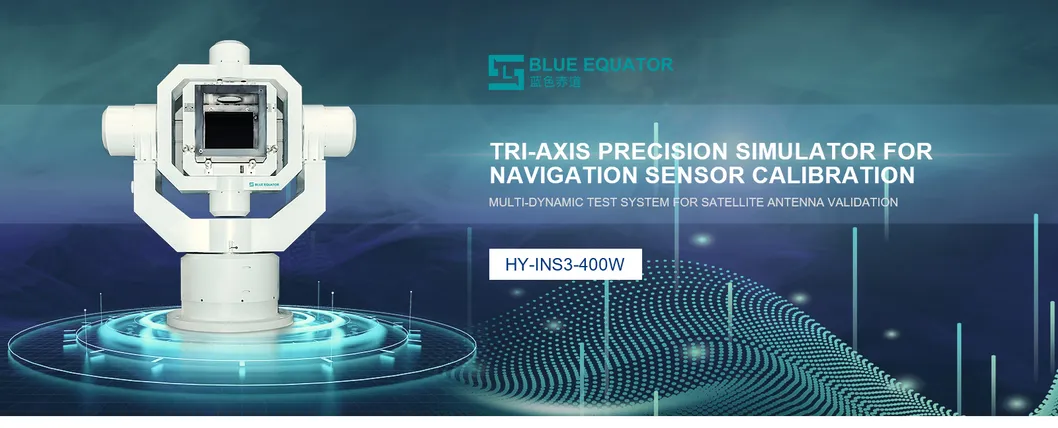

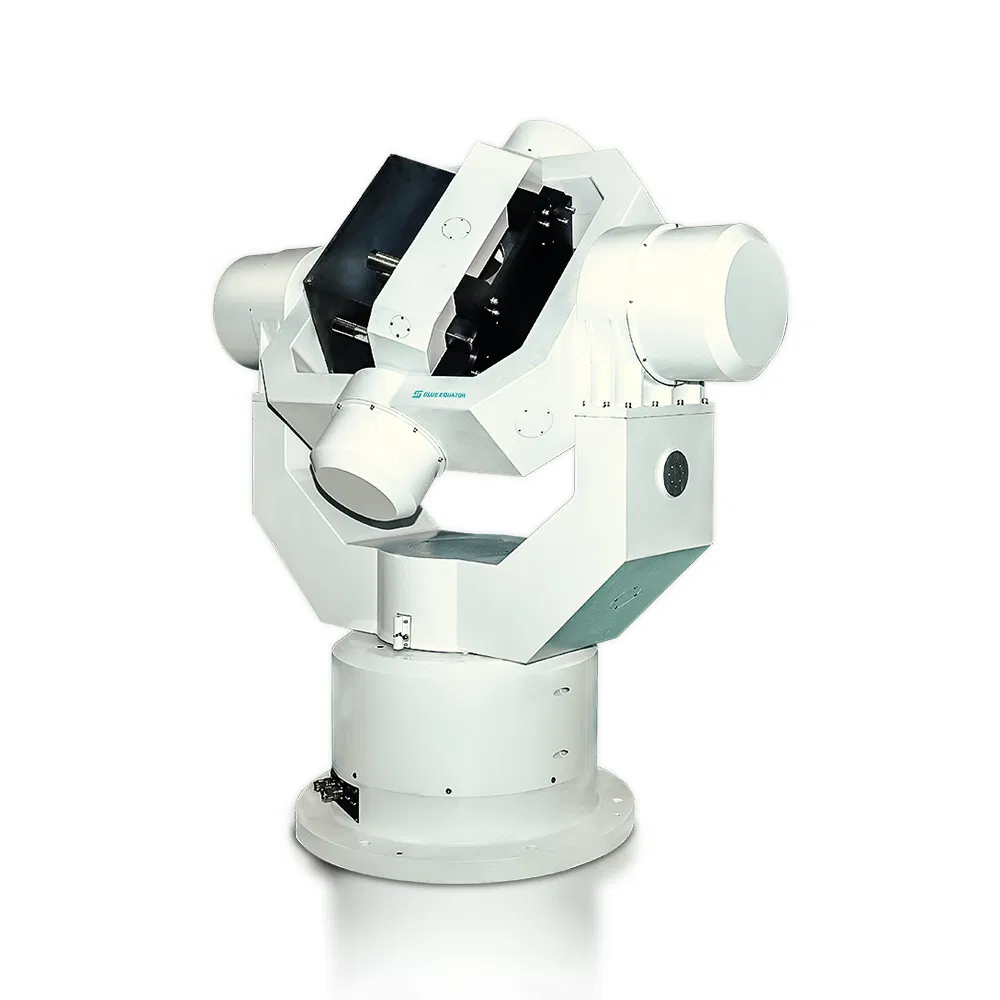

Navigate the future, starting with precise testing. The HY-INS3-400 three-axis positioning and rate stage provides an unparalleled motion simulation environment for your IMU/INS. Even in complex simulation scenarios, it delivers stable and reliable angle and rate control, ensuring the precision of every "sensor." Focusing on high-precision testing, it defines the performance benchmark for next-generation inertial systems.
Core Performance: It not only provides extremely high angular position and angular rate control accuracy, but more importantly, it maintains this accuracy over extended periods throughout the entire testing process, without drift or jitter.
Core Performance: The product design is not merely about "rotation," but about reproducing complex, multi-dimensional, and continuously changing motion states in the real world (such as aircraft maneuvers and vehicle bumps).
Core Performance: Designed specifically for the stringent requirements of IMU/INS testing, featuring deep optimization in structural rigidity, control algorithms, signal interfaces, and software integration.
Widely used in high-end industrial automation, autonomous driving, aerospace, unmanned aerial vehicles, robotics, and advanced marine navigation for performance calibration and algorithm verification.

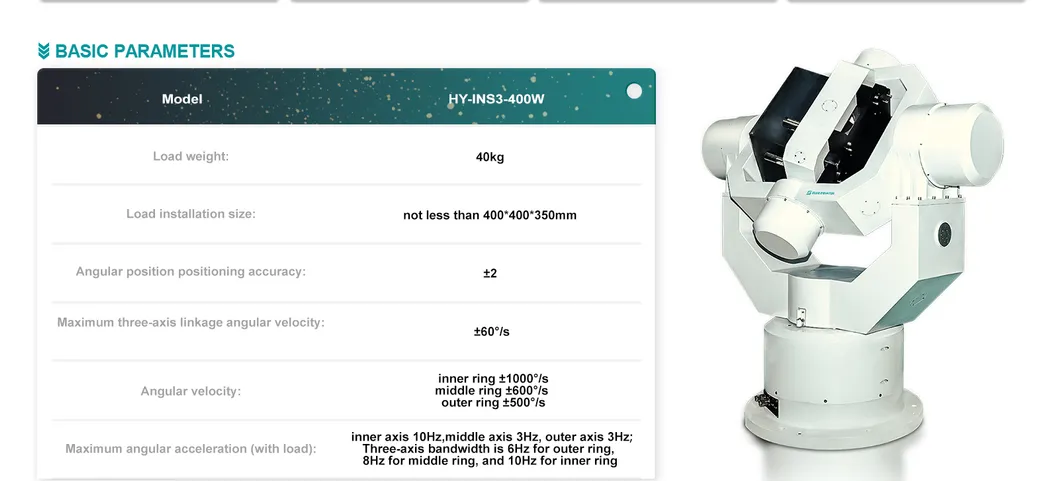

| Technical Specifications | |||
|---|---|---|---|
| Unit Under Test (UUT) | Load weight: 40 KG | Height < 350 mm | Size: 400 × 400 mm | ||

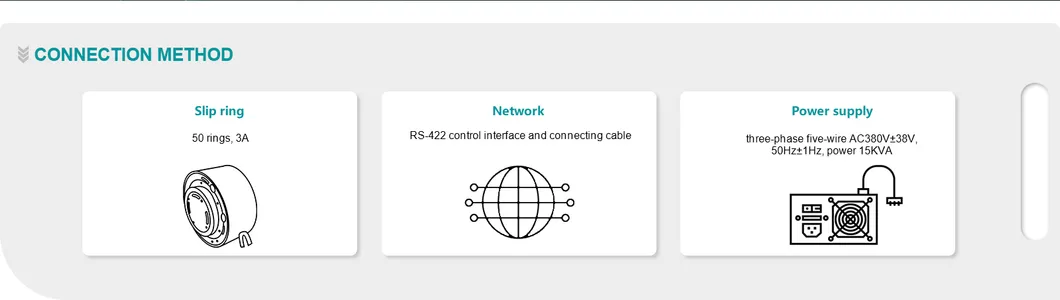

| Slip rings to UUT | Signal 50 ways, 3A @ 380VAC/50Hz, 40KW (Max) | ||
| Axis Parameters | Inner Axis | Middle Axis | Outer Axis |
| Angular freedom | Continuous | Continuous | Continuous |
| Accuracy | ±2 arc sec | ±2 arc sec | ±2 arc sec |
| Resolution | 0.36 arc sec | 0.36 arc sec | 0.36 arc sec |
| Range | ±0.001~1000 deg/s | ±0.001~600 deg/s | ±0.001~500 deg/s |
| Wobble | ±2 arc sec | ±2 arc sec | - |
| Swing frequency | 10 Hz | 8 Hz | 6 Hz |
| Dimensions | 1950 × 1280 × 1820 mm | ||
| Total weight | 2000 kg | ||
We maintain partnerships with professional freight forwarding companies, enabling us to flexibly arrange various modes of transportation—land, sea, or air—according to specific customer needs. Before shipment, we professionally package the products based on customized requirements and export standards. We select the most suitable materials to ensure products are protected from vibration and impacts during transit.
