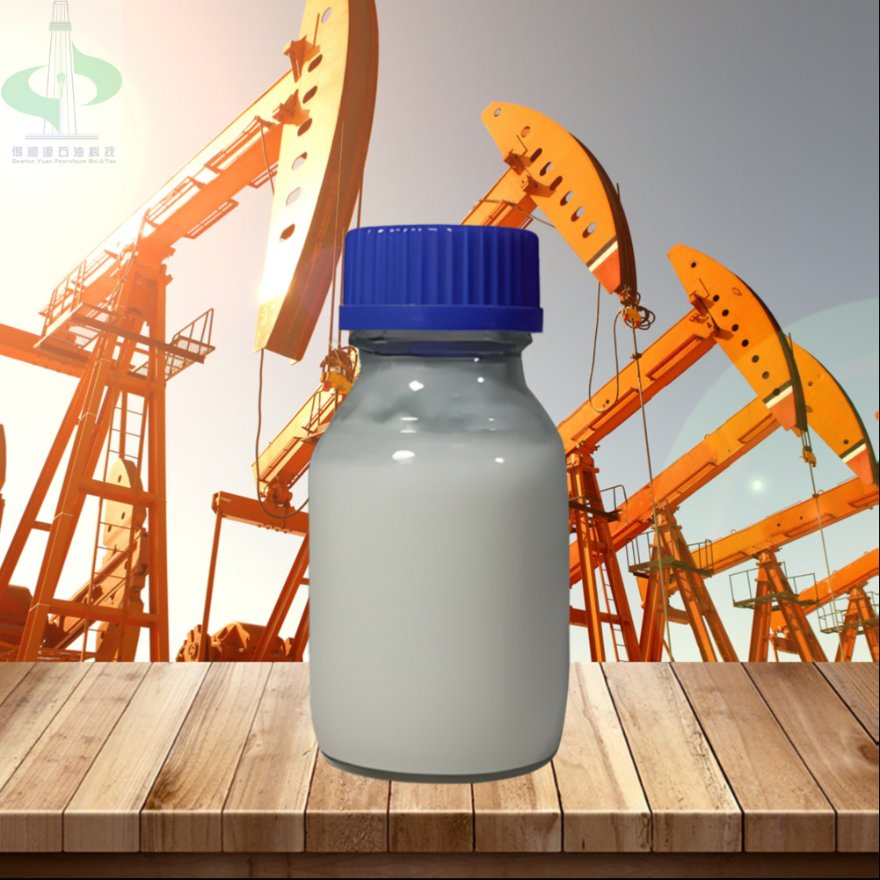

China's Nano-Polymer Stopping Solution for Np-1

📊 Basic Information Overview

Model NO.	Np-1
Classification	Specific Reagents
Grade	Industrial Grade
Specific Usage	Oilfield Drilling Chemicals
Usage	Oilfield Drilling Industry
Appearance	White Emulsion
Temperature Resistance	Up to 240℃
Property	Polymer
Transport Package	200 Kg Drum
HS Code	3902309000

🛡️ Product Description

Nano-polyester for Drilling Fluid NP-1 is a multi-polymer consisting of alkane sulfonate, alkyl ester, and crosslinking agent. It utilizes special technology to form nano-solid sealing material. The unique functional groups on the molecular chain exhibit strong adsorption ability and adhesion properties.

NP-1 effectively reduces pore-pressure transmission by sealing pore throats and micro-fractures due to its reasonable size distribution in muds. It is suitable for various water-based drilling fluids as well as some oil-based drilling fluids, with a recommended dosage of 3.5-10.5 ppb.

📋 Product Parameters

Items	Specifications

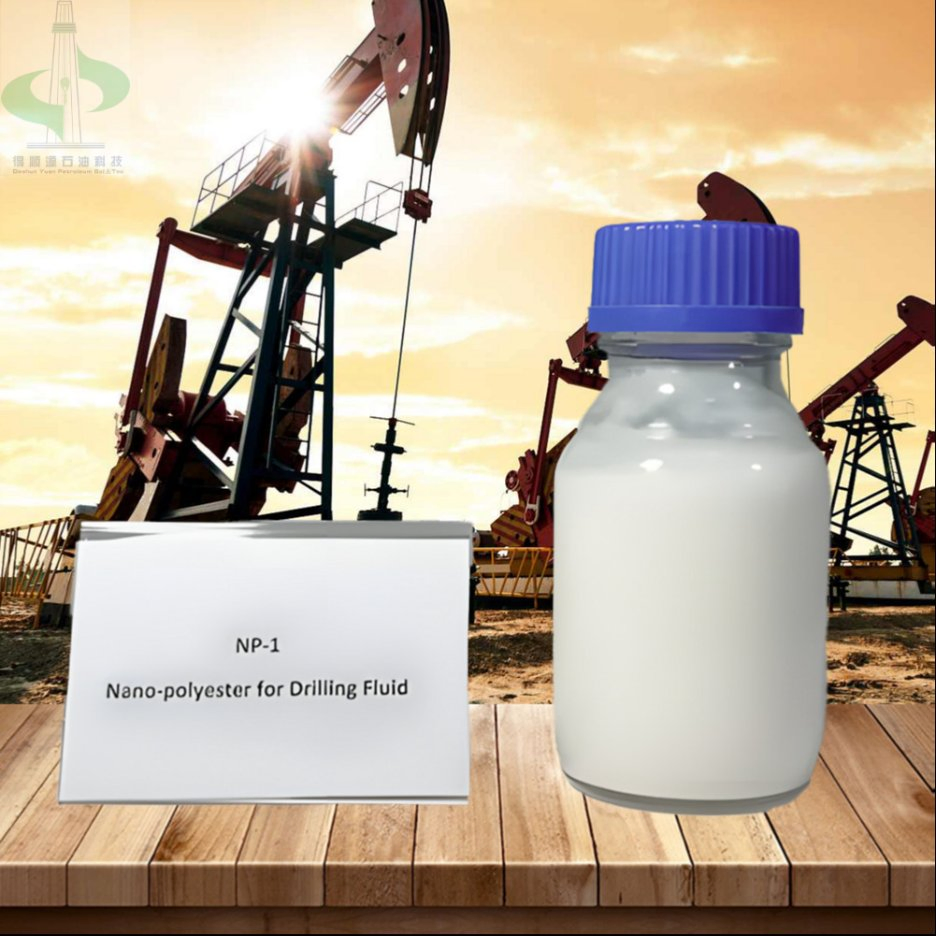

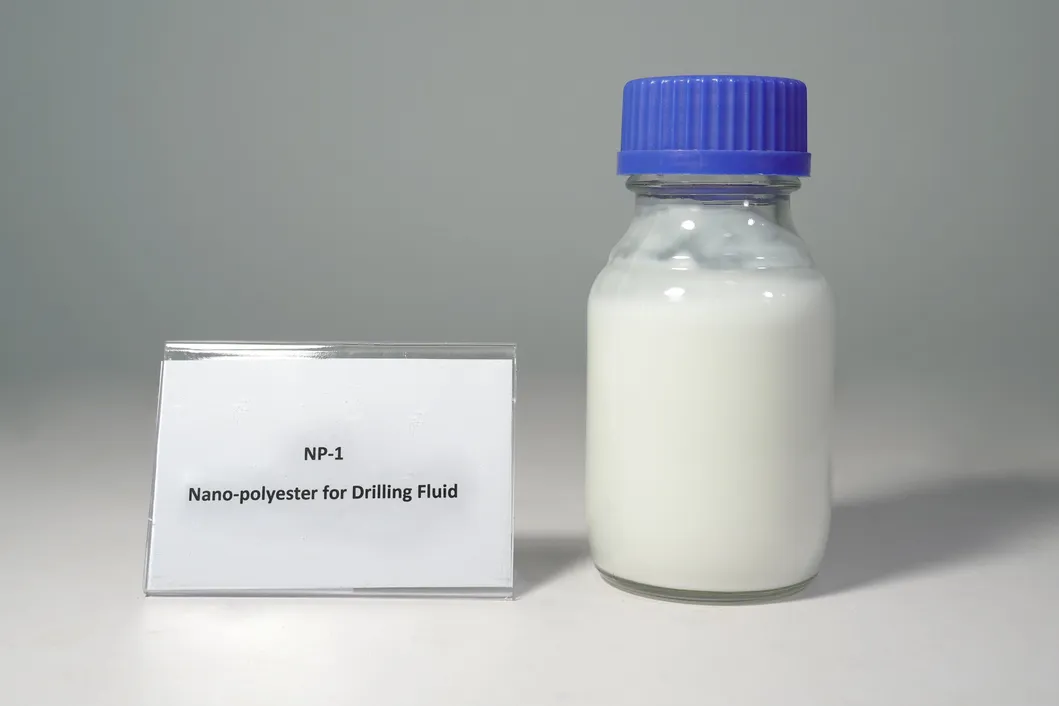

Appearance	White Emulsion
Solid content, %	≥ 30.0
FL API, mL	≤ 15.0
Particle size D50 after 150ºC/16h aging, μm	≤ 0.5

Form semipermeable membrane at the borehole interface and cutting surface to maintain stability.
Excellent performance of borehole stability for strong water-sensitive formations.
Resists high temperatures up to 240 ºC and reduces HTHP filtration.
Highly compatible with other additives.
Low fluorescence, suitable for exploration wells.
Acts as filtration reducer and sealing additive in some OBM.

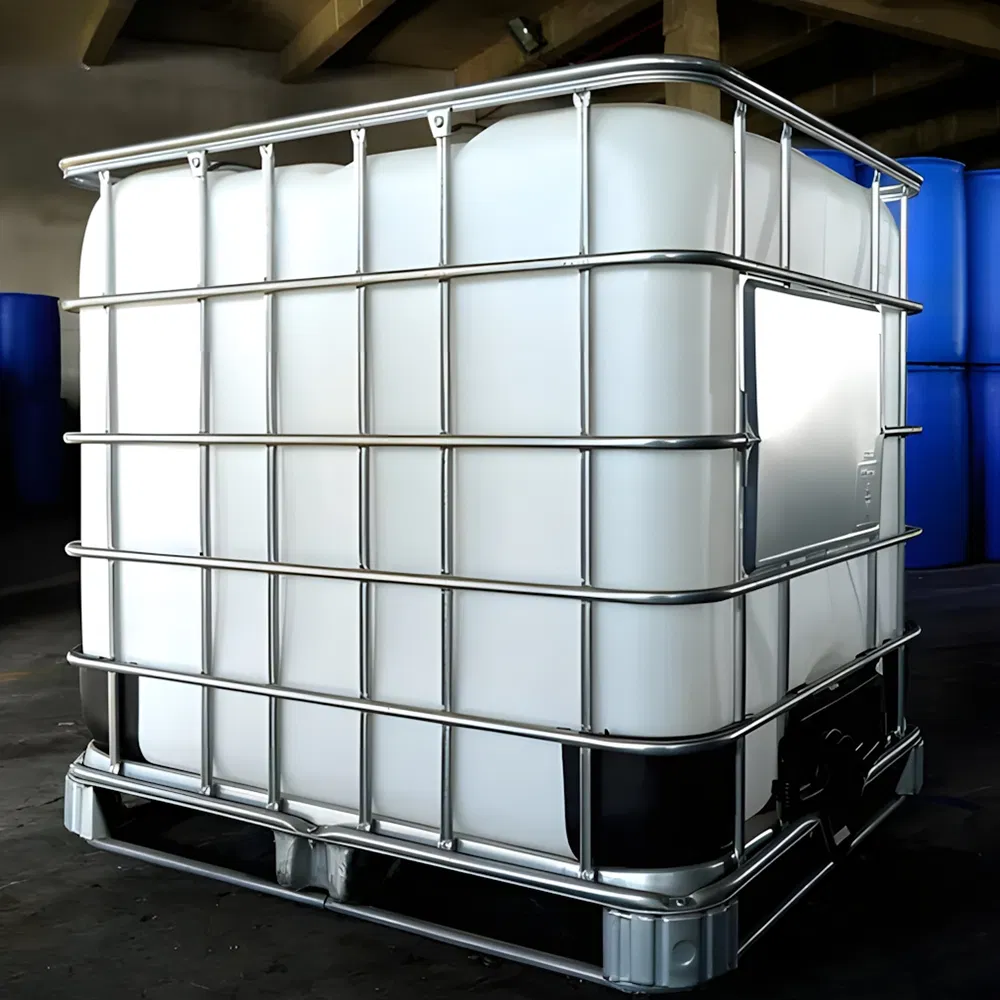

📦 Packaging & Storage

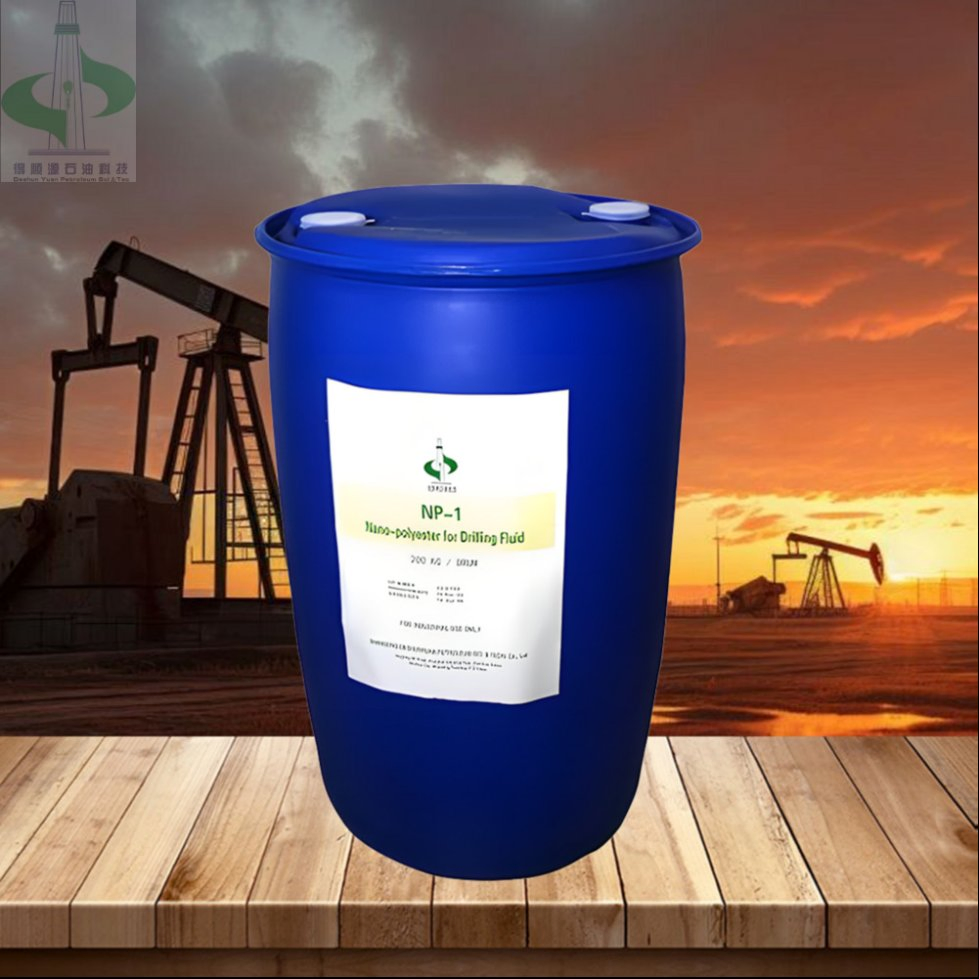

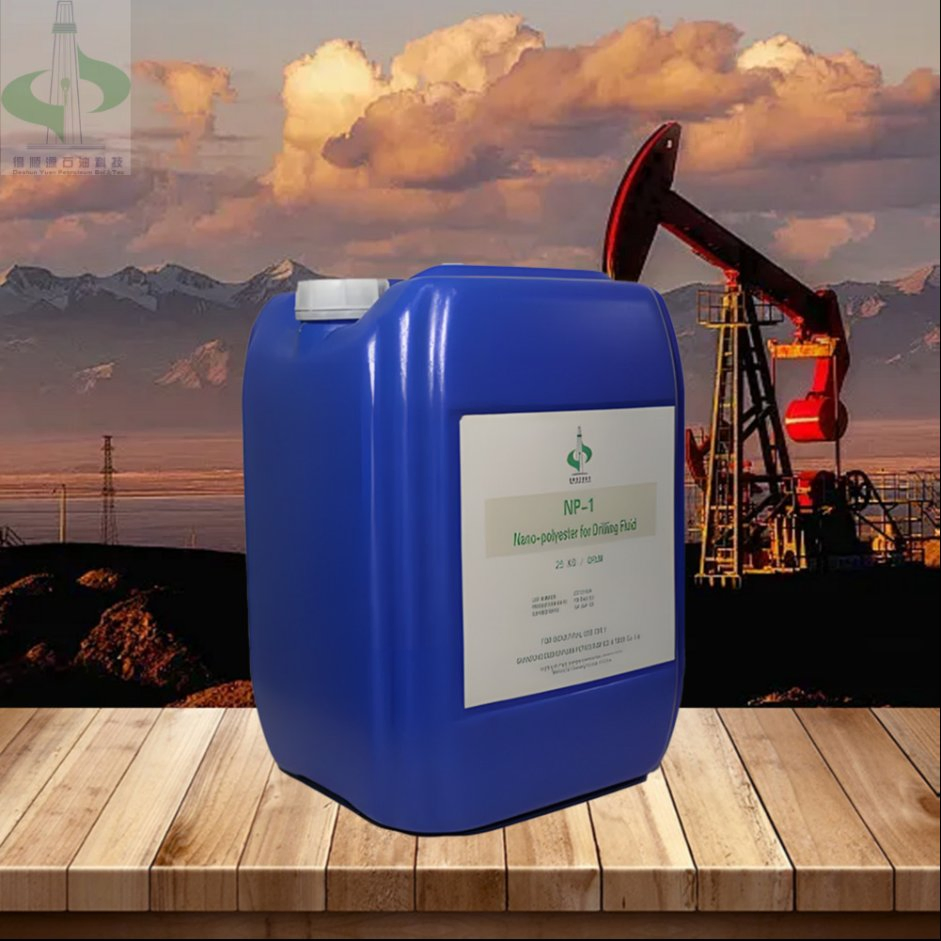

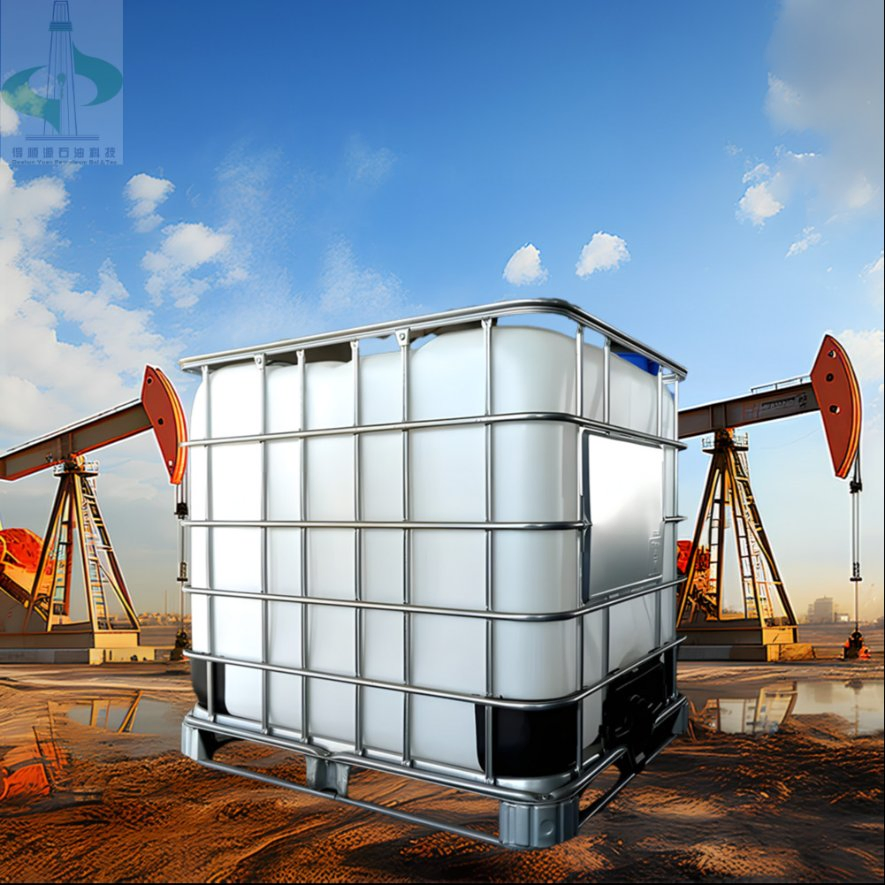

This product is a liquid packaged in 50L, 200 L, and 1000L drums. International packaging may vary. Products shall be stored in a shady and dry place with good ventilation.

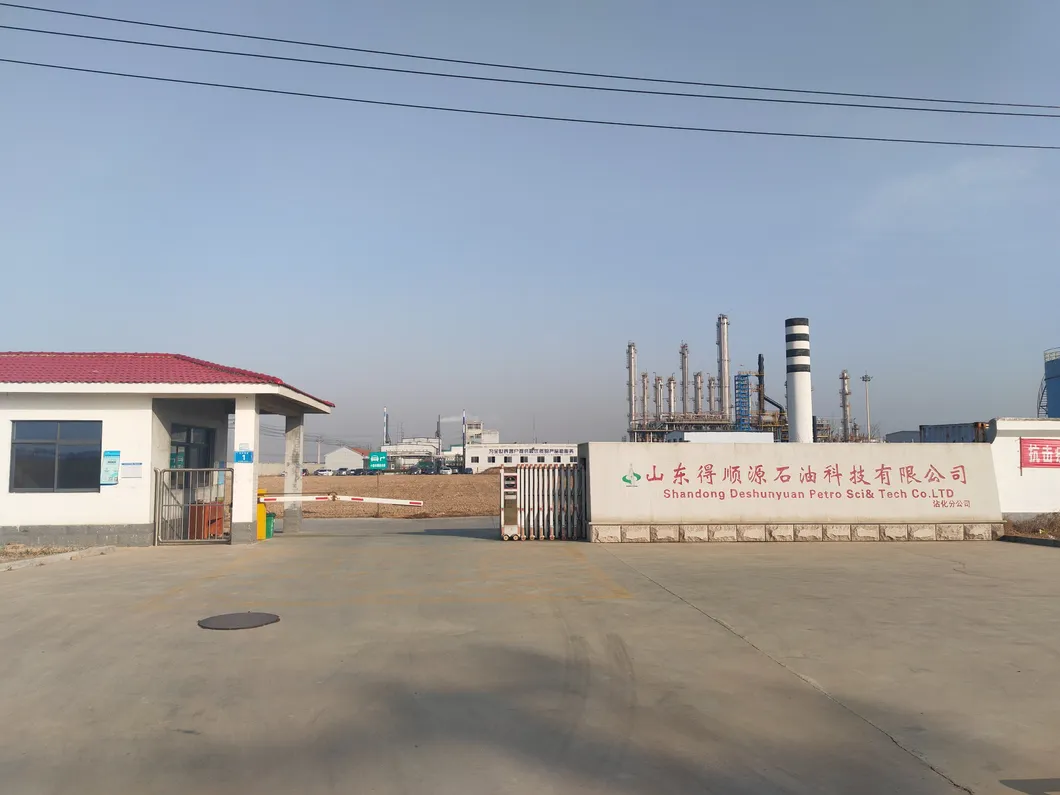

🏭 Manufacturing & Research

The enterprise is a high-tech entity dedicated to new petroleum technology development. With drilling fluid workshops spanning over 100 acres, the annual production capacity exceeds 30,000 MT of drilling fluid additives. Key services include drilling fluid engineering, harmless disposal of drilling waste, and R&D of oilfield chemicals.

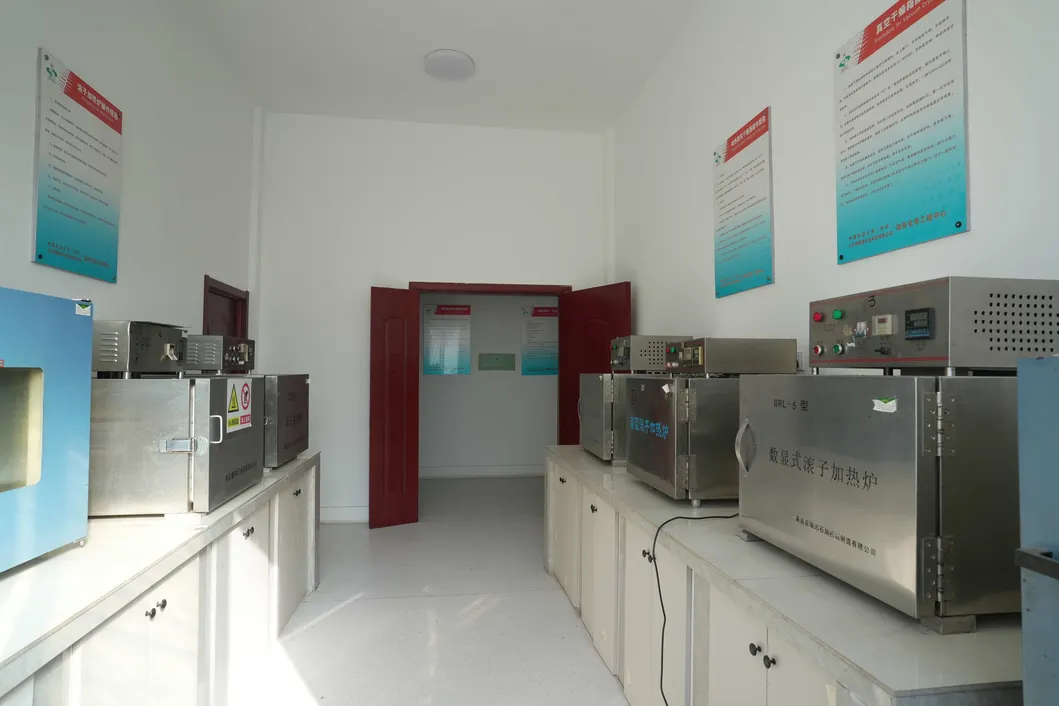

The Engineering Center features labs for chemical synthesis, analysis, and reservoir protection, equipped with over 100 sets of advanced testing instruments. Quality and environmental standards are maintained through ISO9001, ISO14001, and ISO18001 certifications.

❓ Frequently Asked Questions

1. What are the primary functions of NP-1 in drilling fluids?

NP-1 serves as a nano-solid sealing material that reduces pore-pressure transmission by effectively sealing pore throats and micro-fractures. It helps maintain borehole stability and the integrity of cuttings.

2. What is the maximum temperature resistance for this product?

NP-1 is designed to resist high temperatures up to 240ºC, making it suitable for deep and high-temperature drilling environments.

3. Can NP-1 be used in oil-based muds (OBM)?

Yes, it is suitable for various water-based drilling fluids and some oil-based drilling fluids. However, a compatibility test is required before adding it to OBM systems.

4. What is the recommended dosage for optimal performance?

The recommended dosage typically ranges from 3.5 to 10.5 ppb (pounds per barrel), depending on the specific drilling conditions and fluid requirements.

5. Does NP-1 interfere with geological exploration?

No, NP-1 has low fluorescence properties, which means it can be safely applied to exploration wells without interfering with the analysis of geological samples.

6. How should NP-1 be stored and handled?

It should be stored in a shady, dry, and well-ventilated area. During handling, avoid contact with eyes, skin, and clothing. If contact occurs, flush immediately with clean water.
