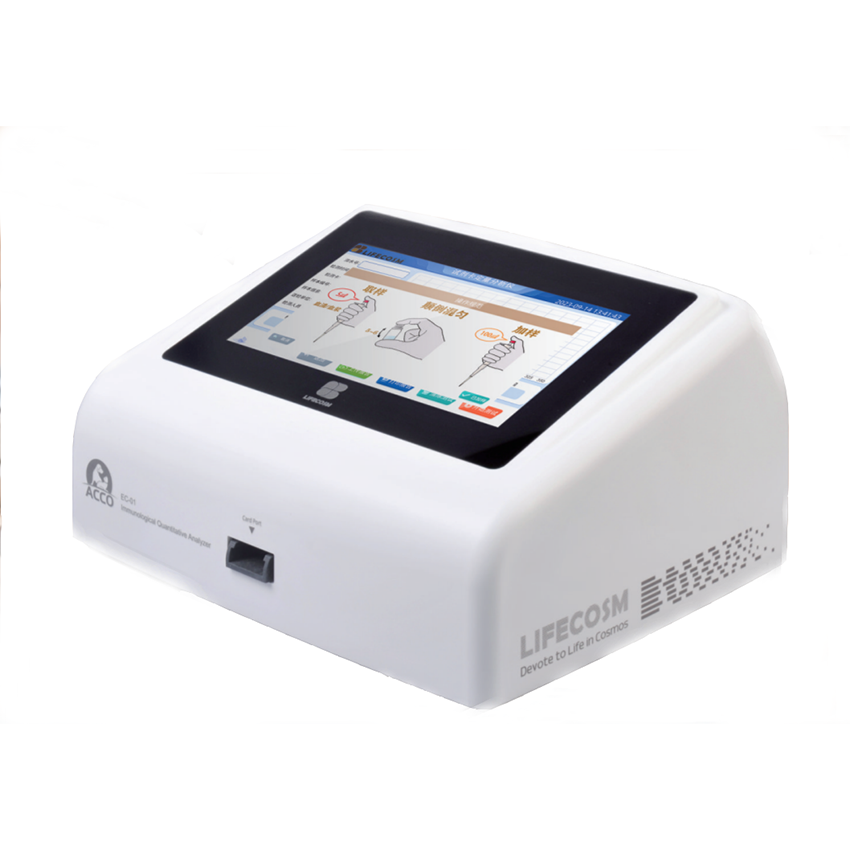

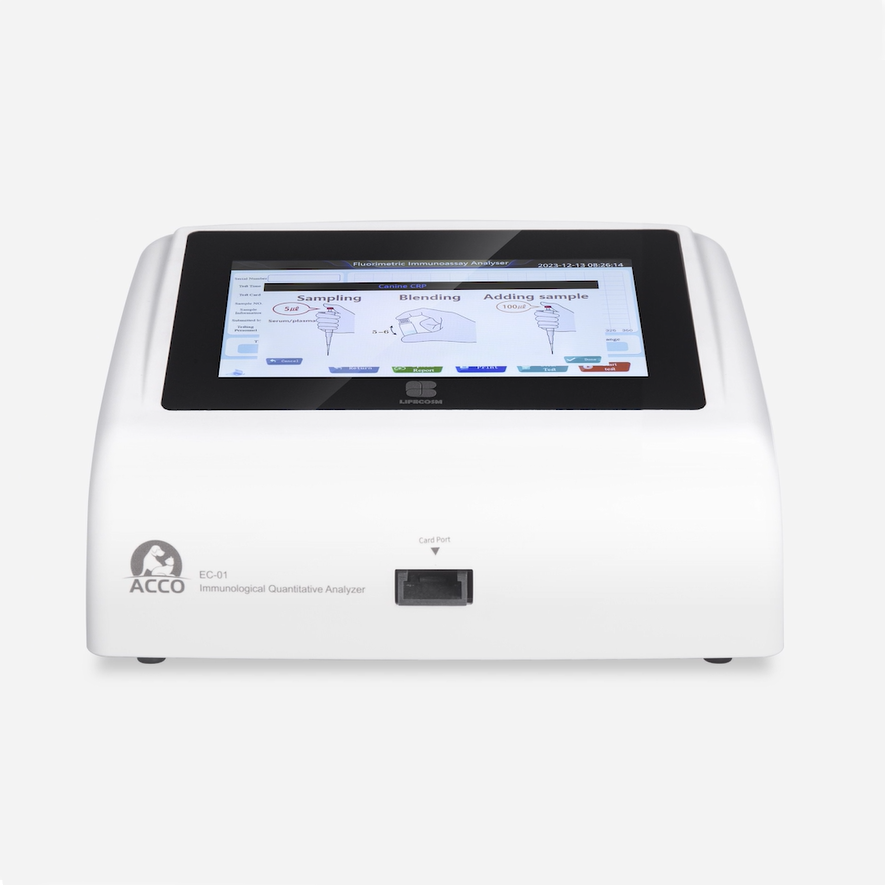

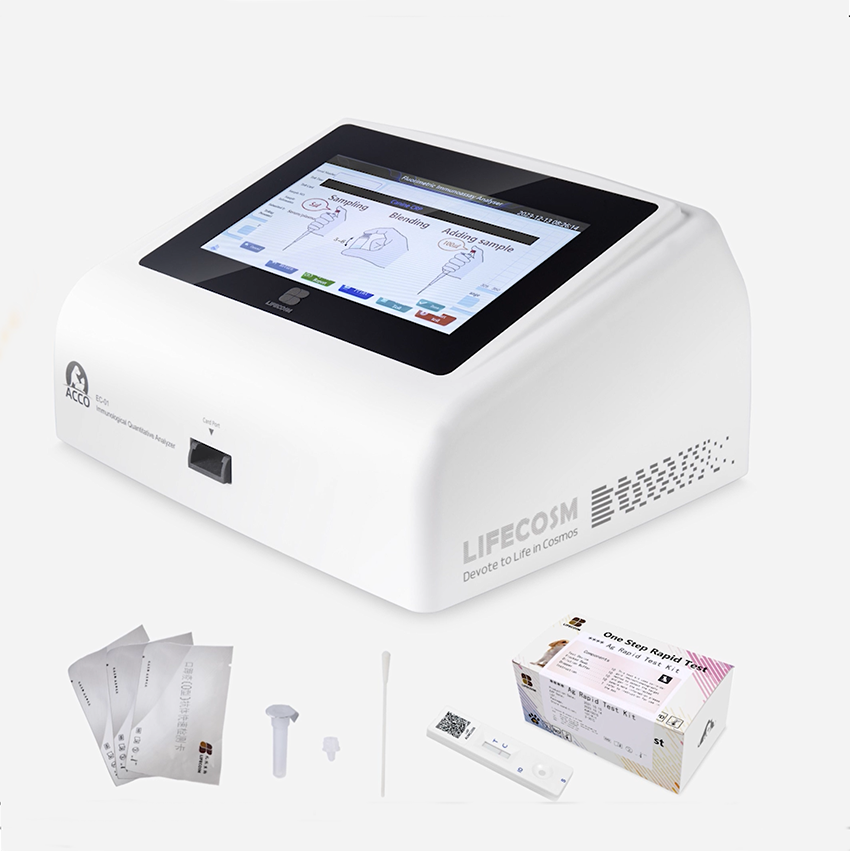

Colloidal gold / fluorescence detection 2 in 1
This instrument is capable of reading and analyzing both colloidal gold test cards and fluorescent test cards, providing versatile diagnostic solutions.
| Catalog Number | EC-01 |

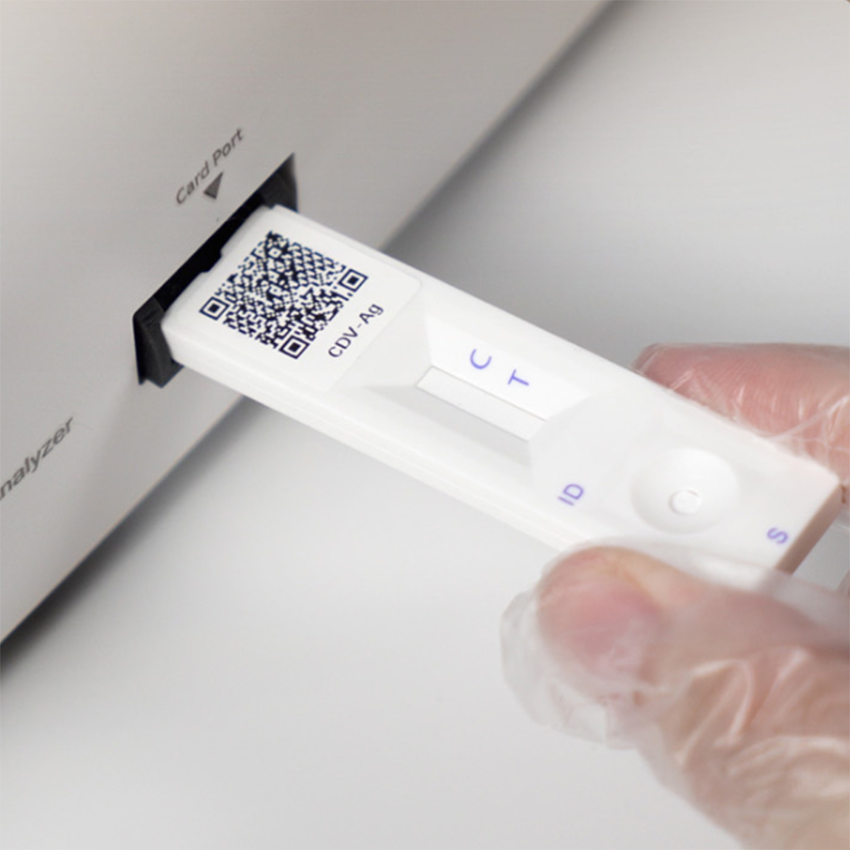

| Principle | The analyzer reads the 2D code on the test card, identifies the paper type, activates the excited light (525nm), and irradiates the T and C lines through an integrated light path. |
| Applications | Compatible with fluorescent and colloidal gold immunoassay technology. |
| Reading Time | 10 - 15 minutes |
| Analysis Efficiency | < 25 minutes |
| Accuracy | Relative deviation within ± 15% |
| Power Supply | AC 220V 50Hz / Power < 100VA |
| Dimensions & Weight | 235 x 190 x 120 mm / 1.5 kg |
| Operating Environment | Temperature: -10°C to 40°C | Humidity: 45% - 75% |
| Product Code | Item Name | Species | Reaction Time | Detection Range/Titer | Clinical Significance |
|---|---|---|---|---|---|
| RC-CF32 | cCRP | Canine | 5 mins | 20~30 mg/L / >30 mg/L | Equivocal / Abnormal |
| RC-CF33 | Cpl | Canine | 5 mins | 200~400 ng/ml / >400 ng/ml | Equivocal / Pancreatitis |
| RC-CF34 | NT-proBNP | Canine | 15 mins | 900~1800 pmol/L | Suspected Heart Conditions |
| RC-CF35 | CDV Ab | Canine | 10 mins | Titer 0-56+ | Immune status (Distemper) |
| RC-CF36 | CPV Ab | Canine | 10 mins | Titer 0-100+ | Immune status (Parvovirus) |
| RC-CF39 | fSAA | Feline | 5 mins | 5~10 ug/ml / >10 ug/ml | Equivocal / Abnormal |
| RC-CF40 | Fpl | Feline | 15 mins | 3.6-5.3 ng/ml | Pancreatitis Suspected |
| RC-CF57 | SDMA | Canine & Feline | 10 mins | ≥ 20 ug/dL | Kidney Disease Probable |
| RC-CF63 | T4 | Canine & Feline | 10 mins | 0.8-4.7 ug/dL | Thyroid Function status |
