High - Precision 3D Flexible Welding Platform, Quick Assembly for Industrial Welding

1 / 5

High - Precision 3D Flexible Welding Platform, Quick Assembly for Industrial Welding

Customization:	Available
Type:	Soldering Station
Structure:	Platform

Send Inquiry

Product Description

Basic Specifications

Model NO.

D-28-1500*1000*200

Rotation Speed

0.3-3rpm

Tilting Angle

0-90°

Voltage

110V/220V

Welding Table Type

Adjustable / Flexible

Material

Steel / Cast Iron

Hole Size

28mm / 16mm

Surface Treatment

Nitrided

Hardness

HV450-HV630

Certificate

ISO 9001

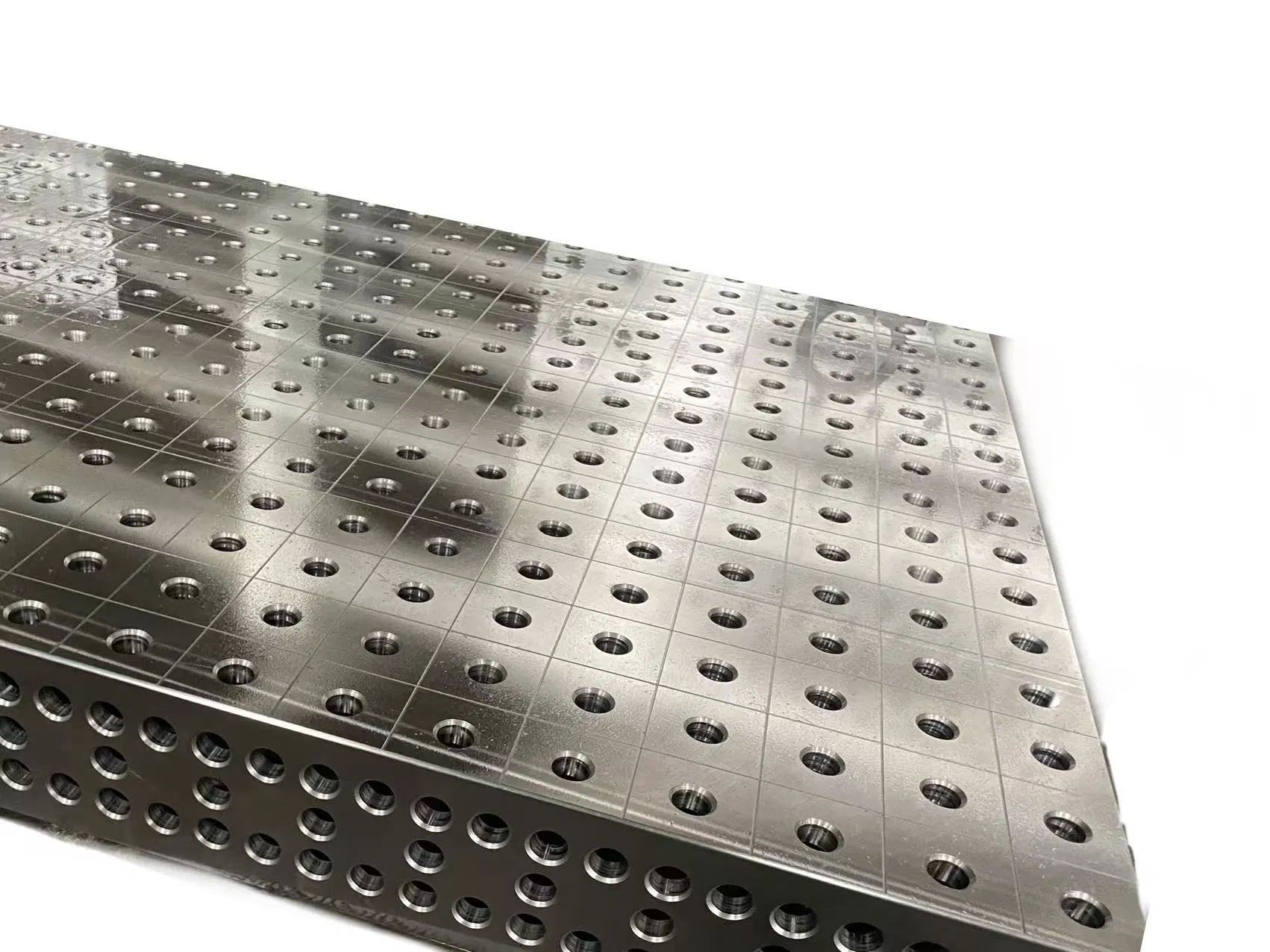

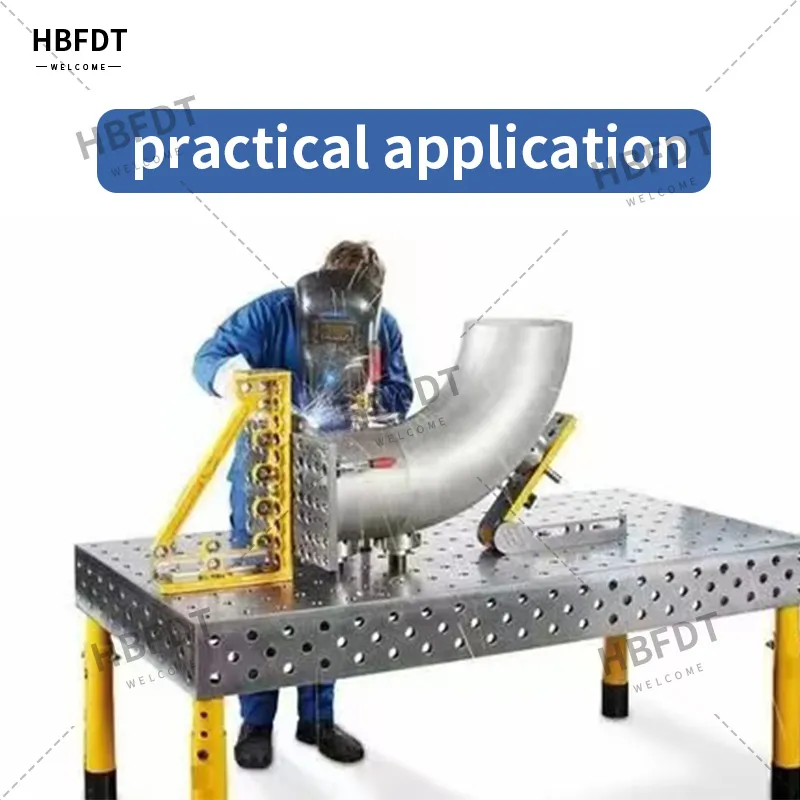

3D Steel Metal Welding Workbench with Clamps

The 3D welding table/platform is a high-precision device designed for automated and precise welding operations. Equipped with a three-dimensional motion control system, it accommodates workpieces of various shapes and sizes, significantly improving manufacturing efficiency in automotive, aerospace, and industrial sectors.

Aperture:

φ28.065 -- φ28.149mm

Hole Spacing:

100±0.05mm

Flatness:

0.1/1000mm

Bearing Capacity:

Standard 2T / Frame 5T

Optimizing Your Workflow with 3D Fixture Tables

Choose a suitable work platform: Select based on product size. D16 series is ideal for sheet metal and small structures; D28 series is designed for heavy machinery and large steel structures.

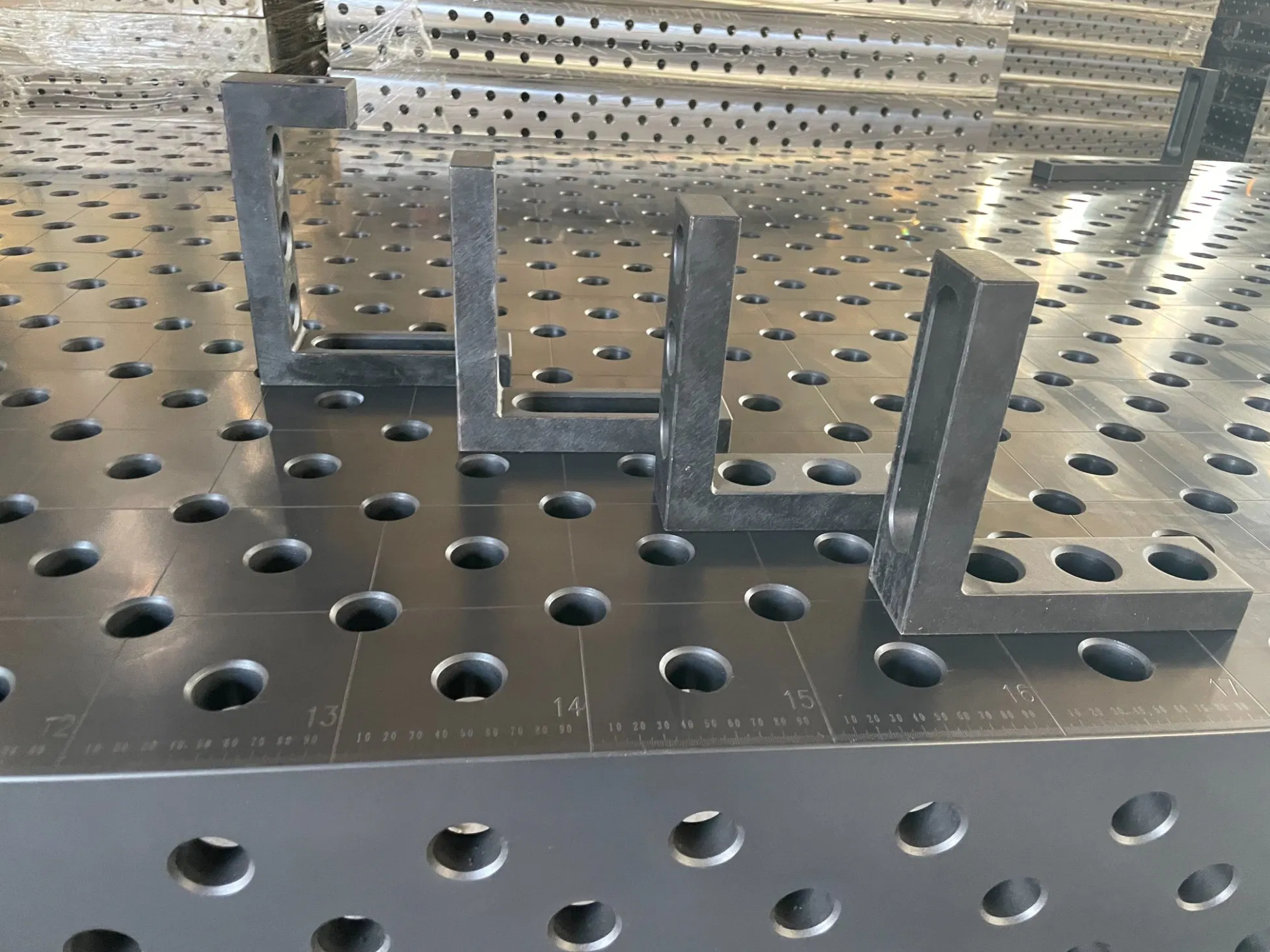

Configure corresponding fixtures: Use U-shaped or L-shaped square boxes and angle irons for extension when the platform size needs expansion.

Quick assembly and positioning: Leverage the modular design and standard hole system for rapid setup using quick locking pins.

Welding and assembly: Carry out operations with high stability and precision, ensuring superior welding quality and efficiency.

Series Comparison

D16 Series: 16mm Hole, 50mm Grid, 14mm Thickness, 100mm Side Height.

D28 Series: 28mm Hole, 100mm Grid, 23mm Thickness, 200mm Side Height.

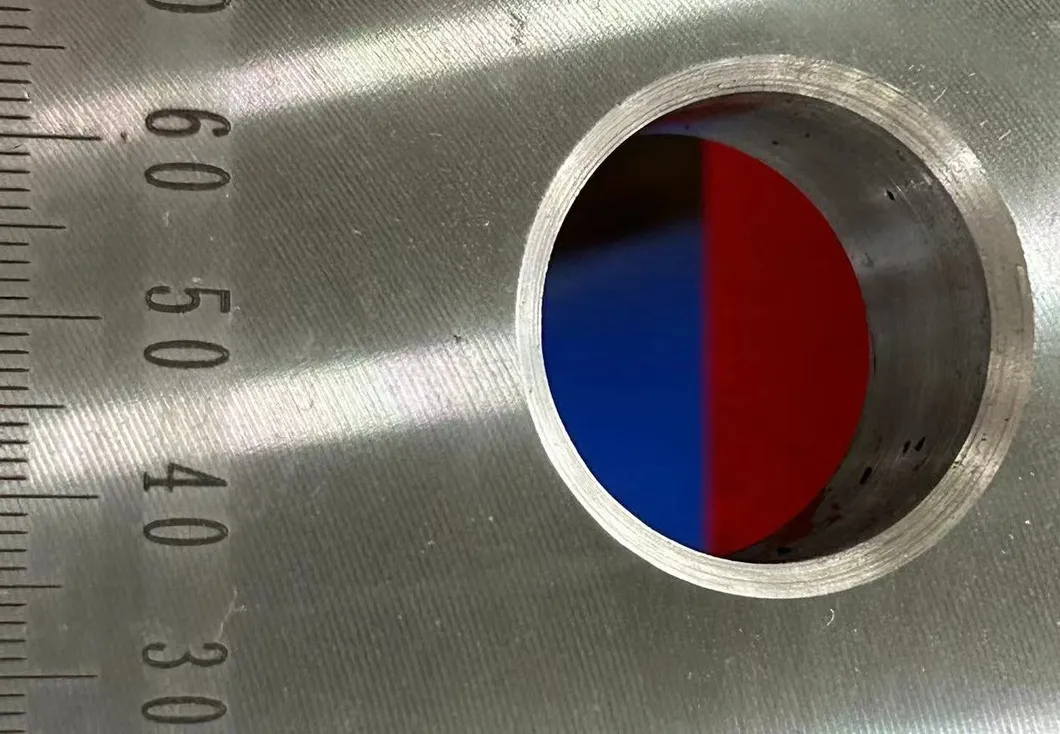

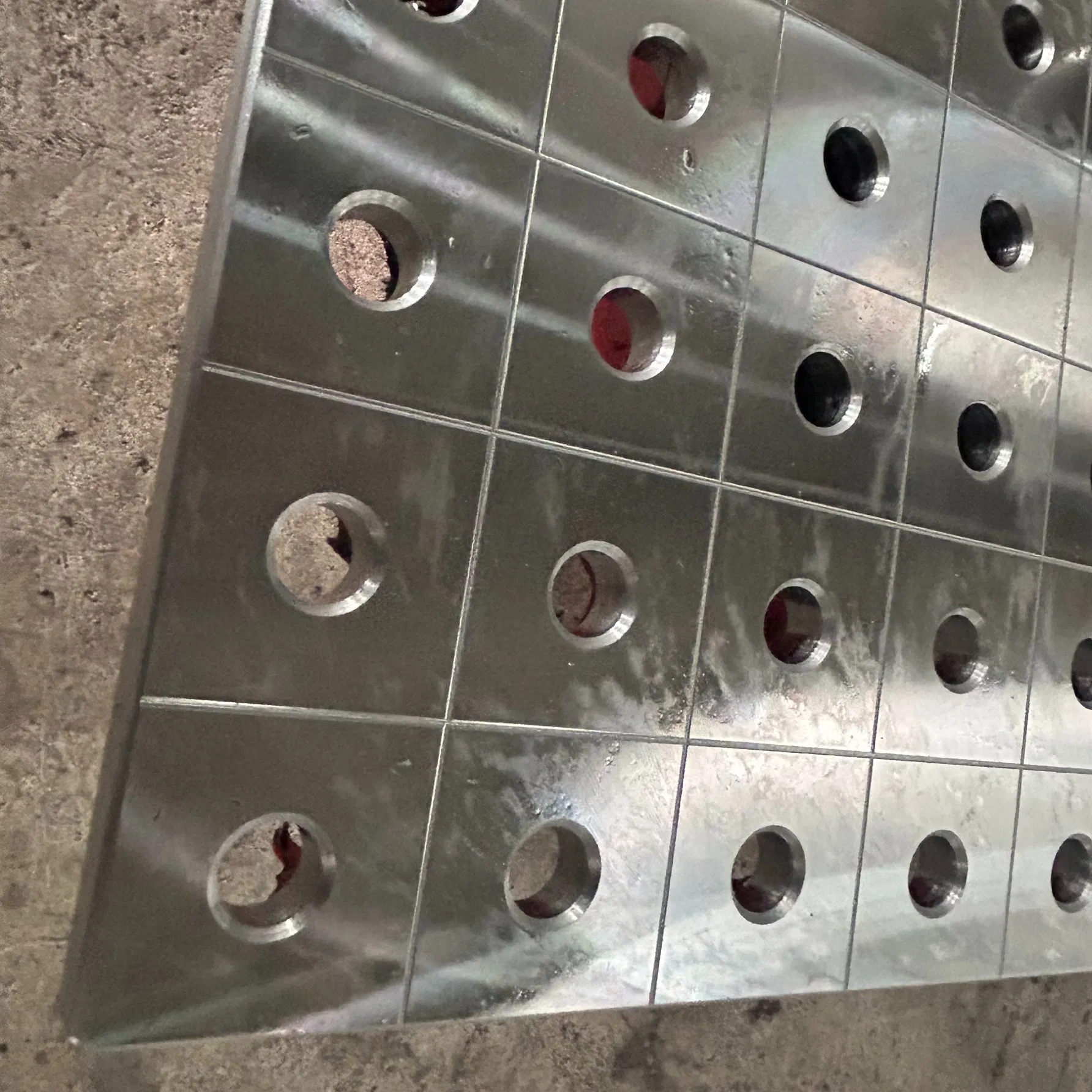

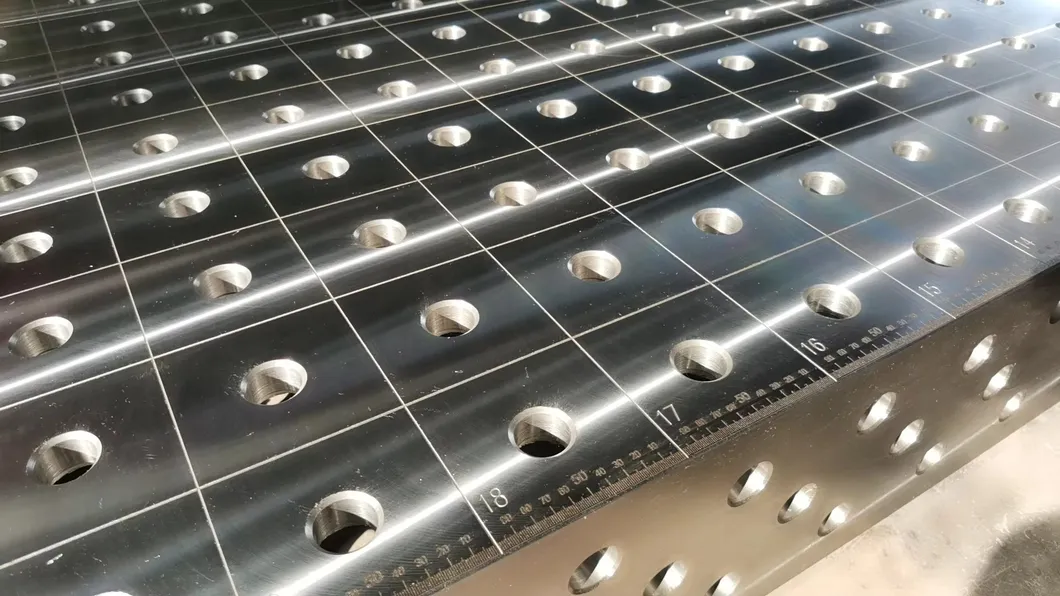

High-Quality R-Angle Processing

Radius machining on each hole and edge significantly increases the service life and safety of the workpiece.

Production Specifications

Item	Specification (LxW) mm	Height (mm)	Material	Hole Diameter
1	4000 x 2000	200/150/100	Q355/Cast Iron/SS	D28/D16
2	3000 x 2000	200/150/100	Q355/Cast Iron/SS	D28/D16
3	3000 x 1500	200/150/100	Q355/Cast Iron/SS	D28/D16
4	2500 x 2000	200/150/100	Q355/Cast Iron/SS	D28/D16
5	2000 x 1500	200/150/100	Q355/Cast Iron/SS	D28/D16
6	1200 x 1200	200/150/100	Q355/Cast Iron/SS	D28/D16
7	1000 x 1000	200/150/100	Q355/Cast Iron/SS	D28/D16

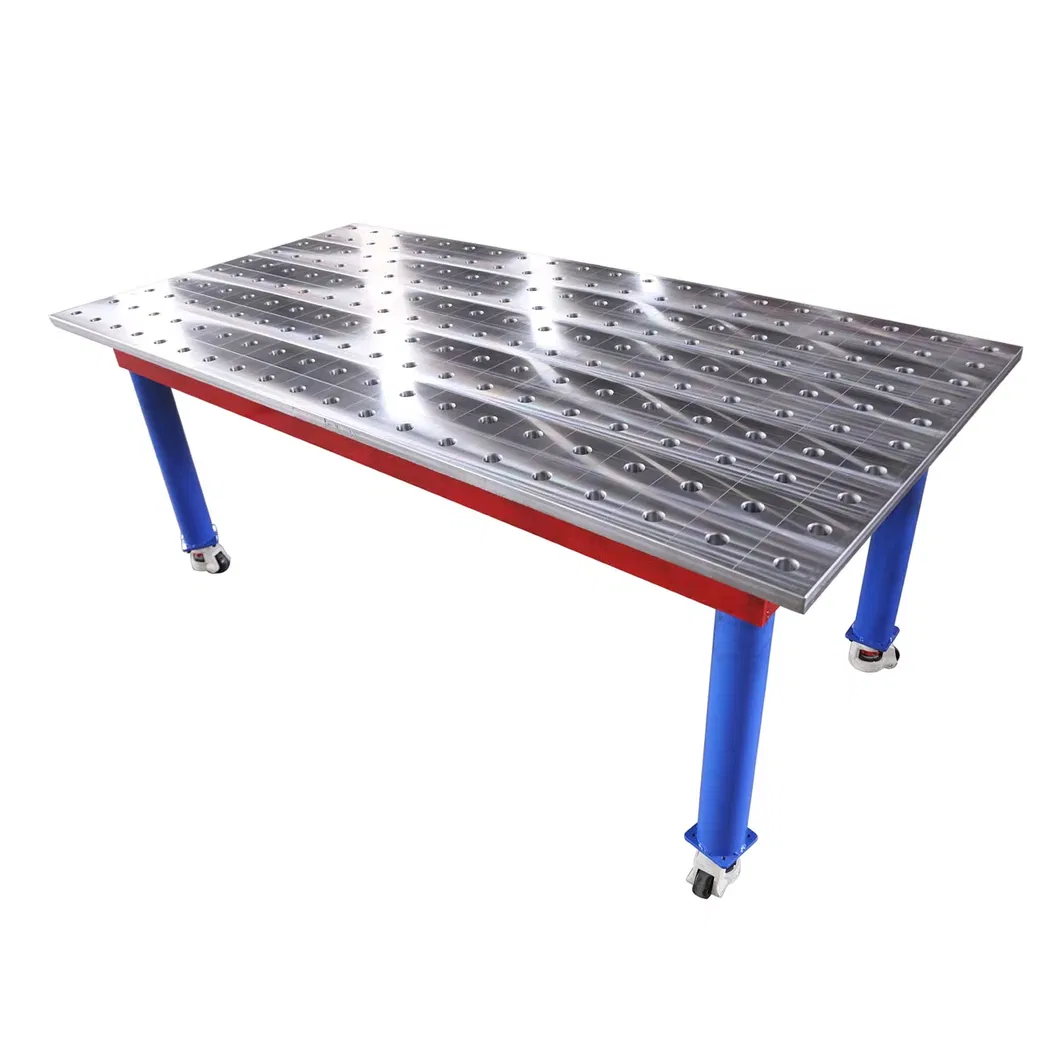

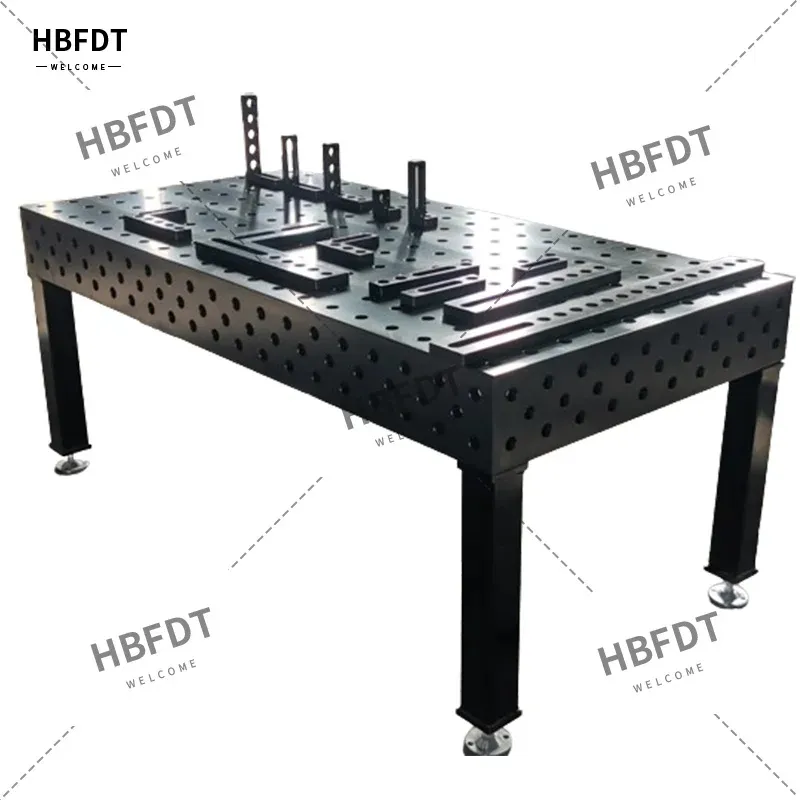

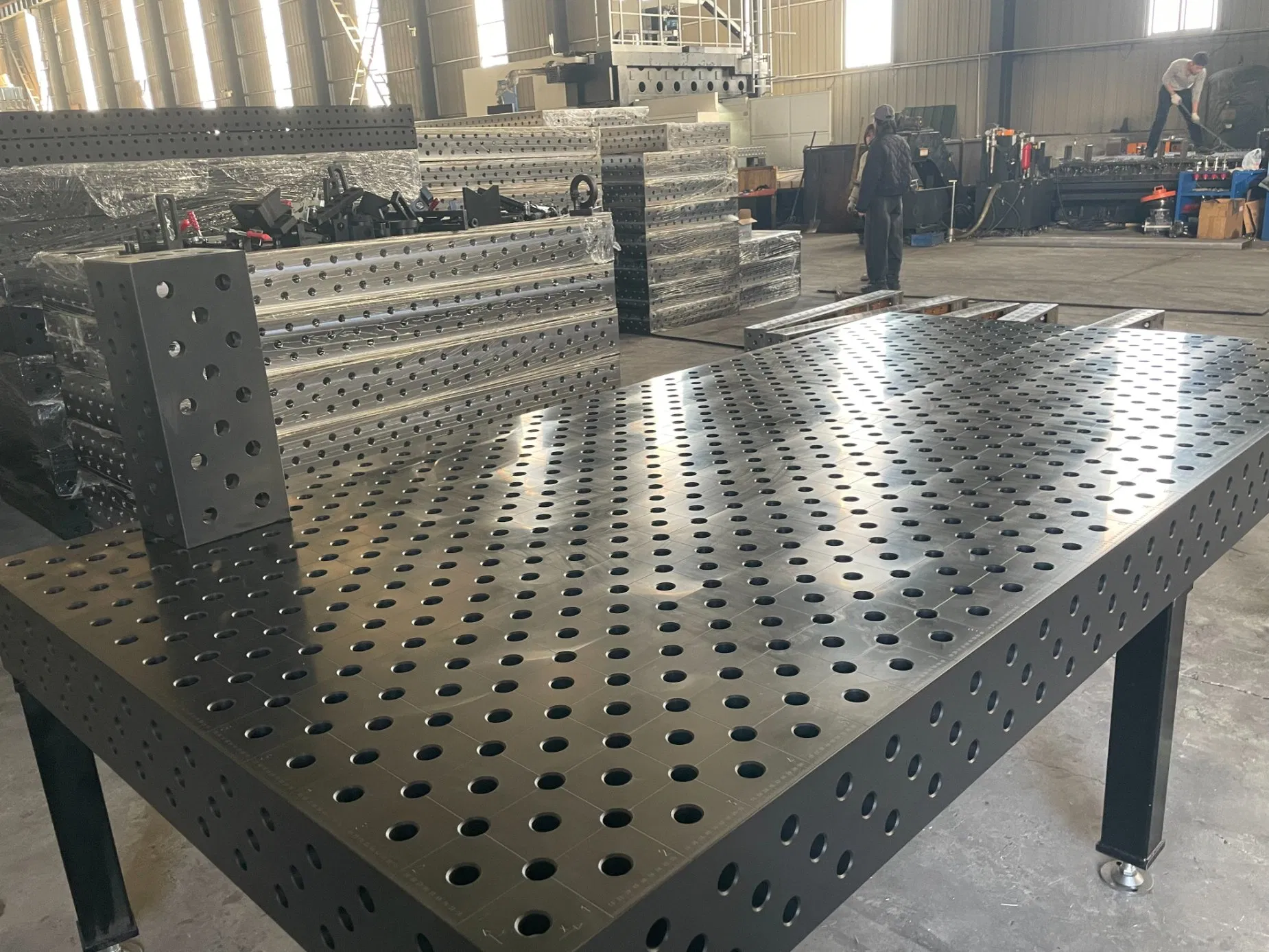

Welding Table Variety

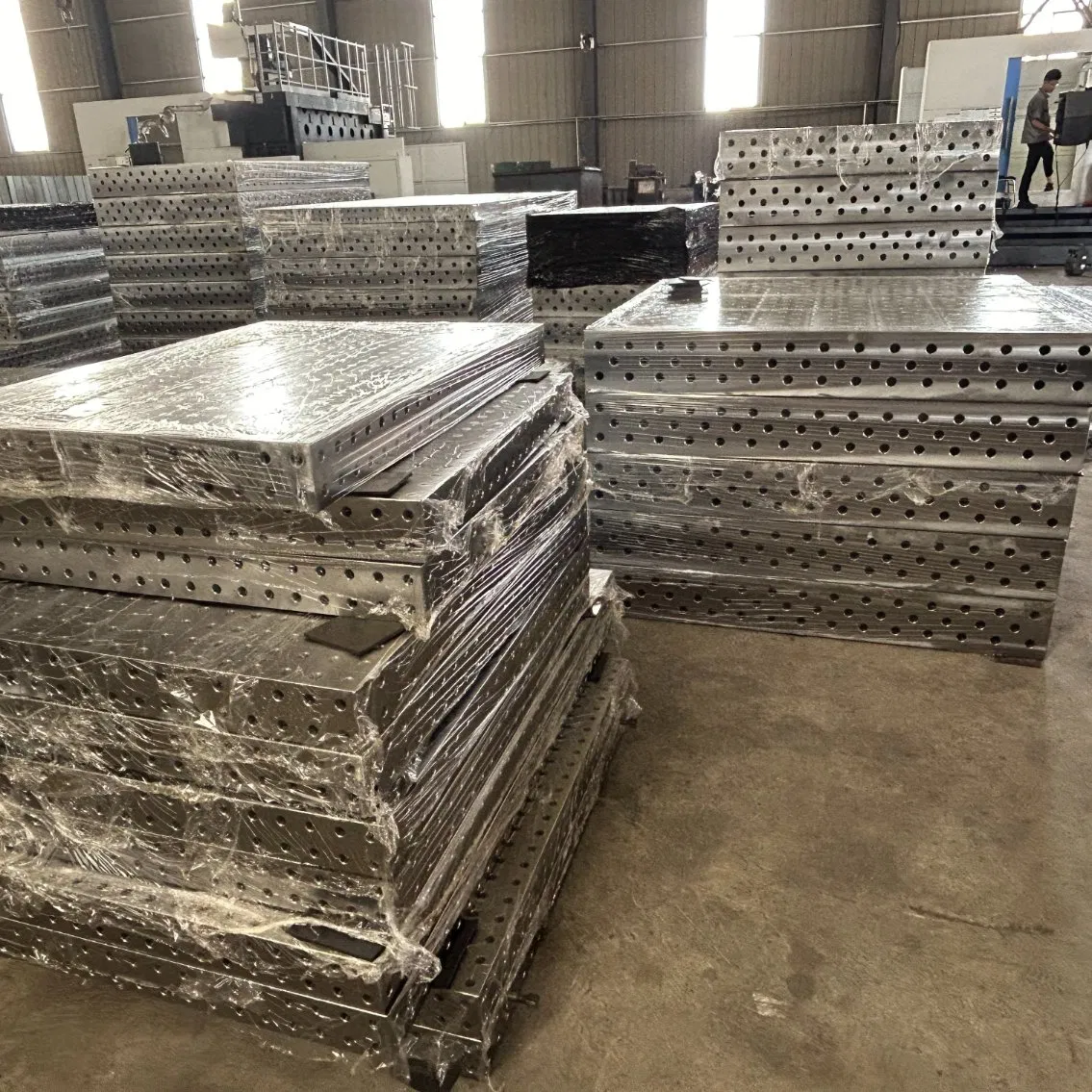

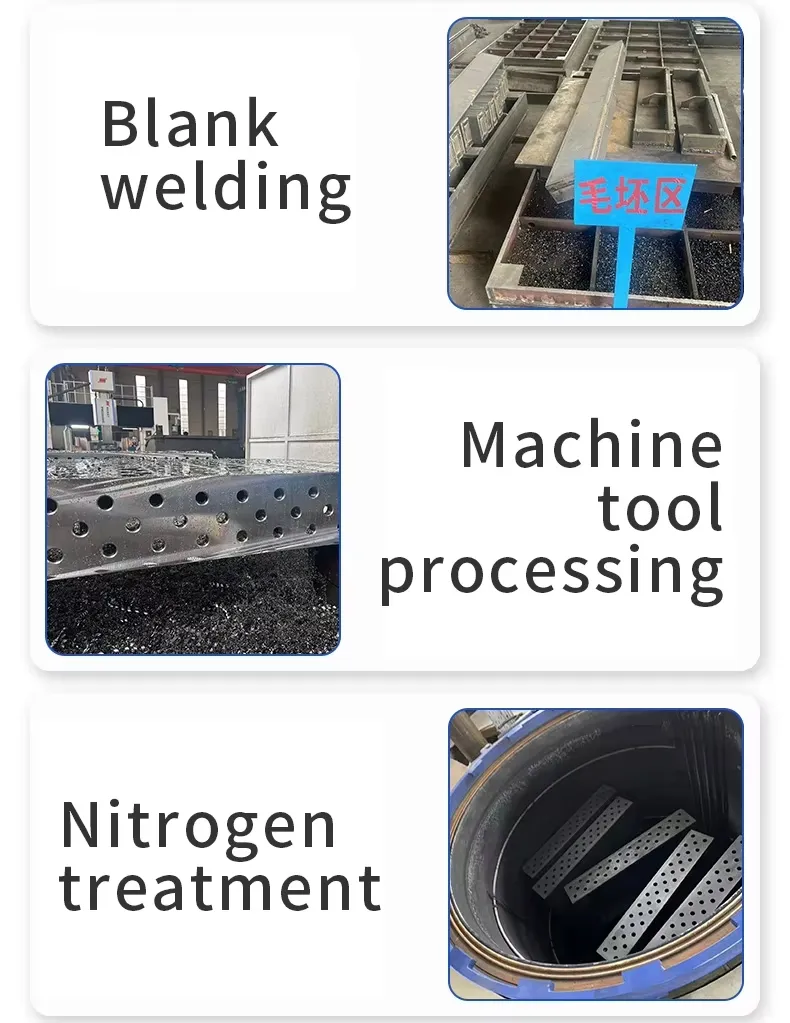

Manufacturing Process & Accessories

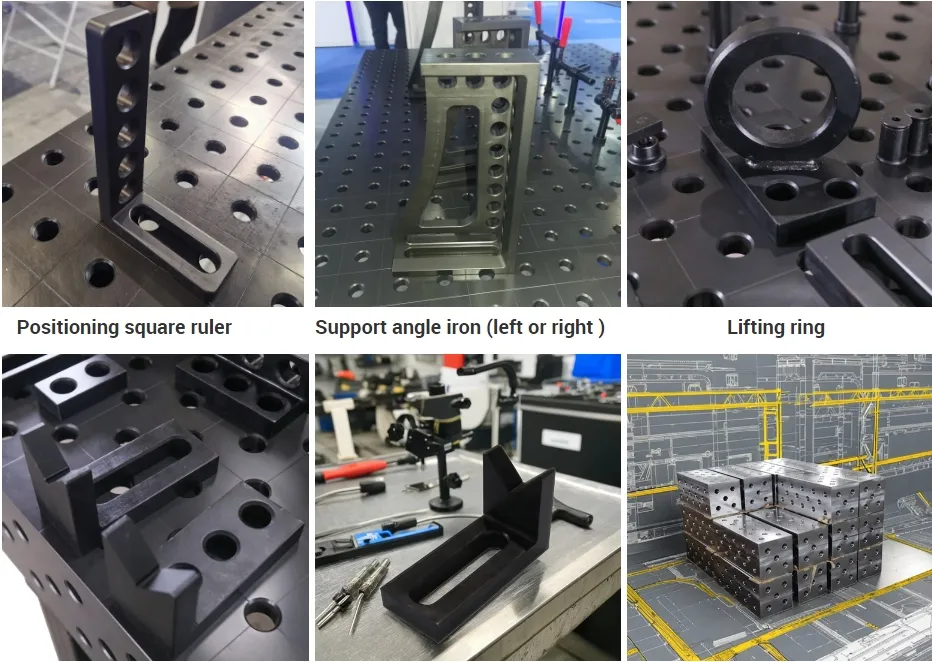

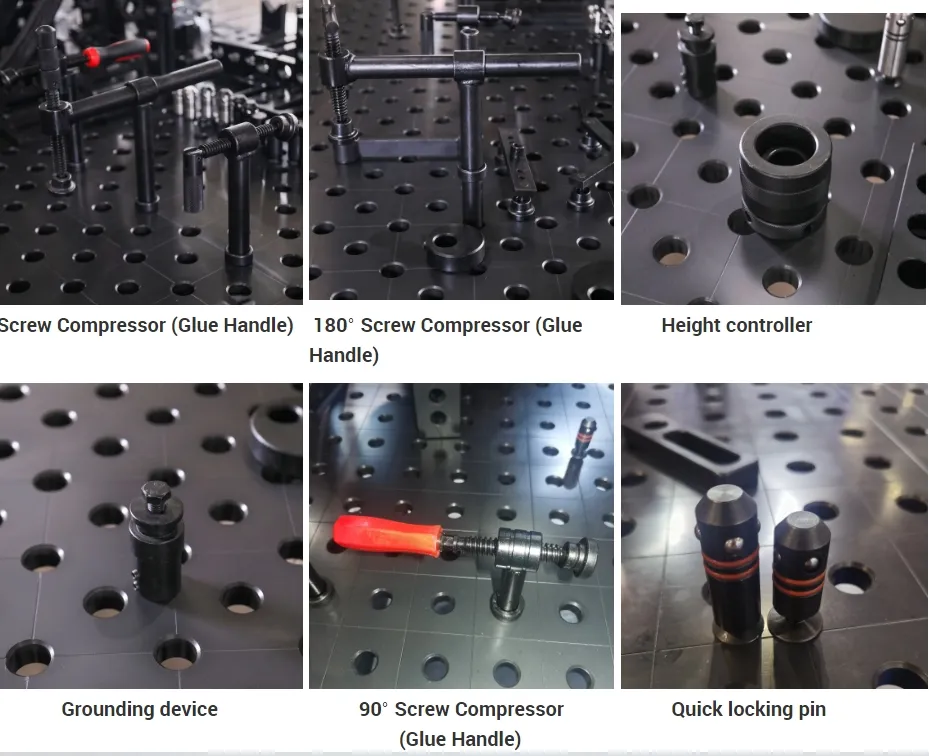

Precision Clamping Tools

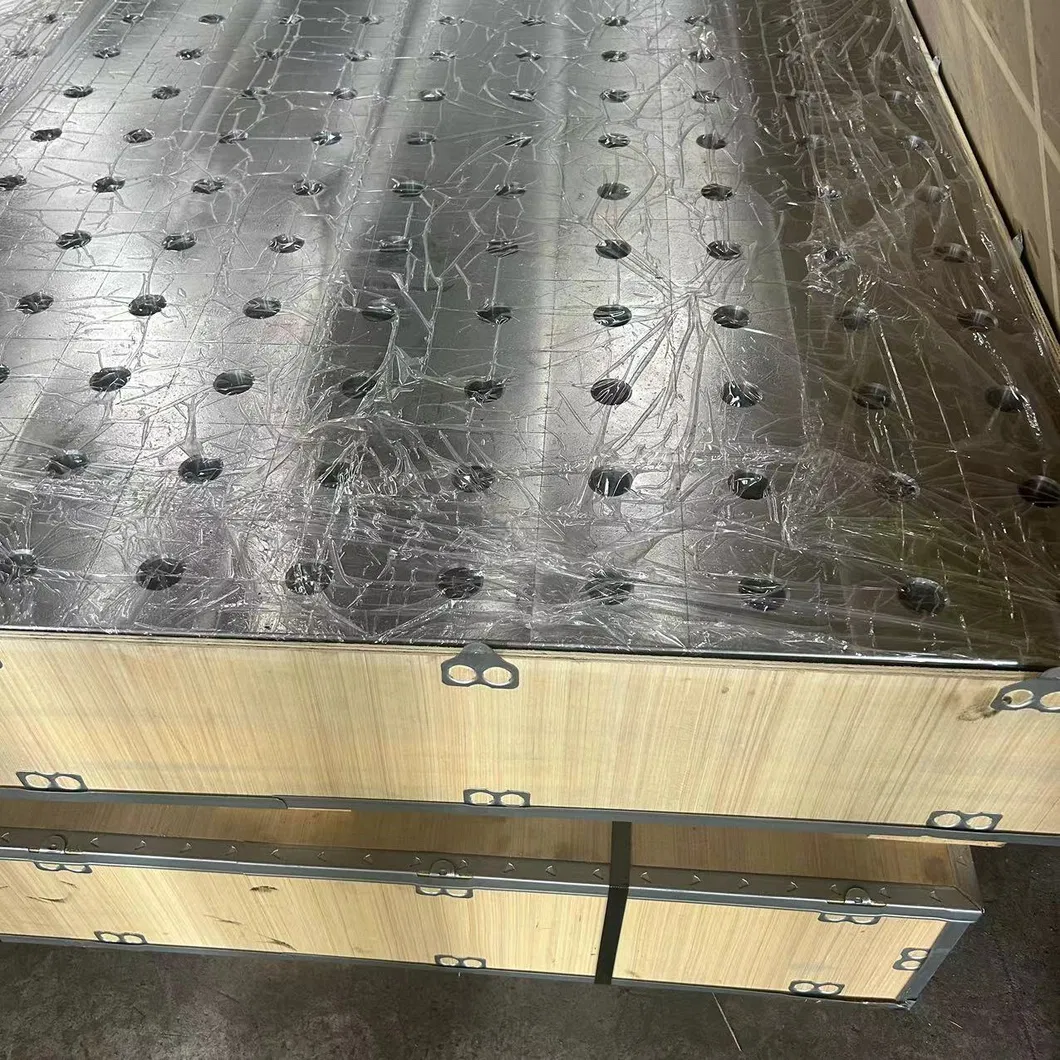

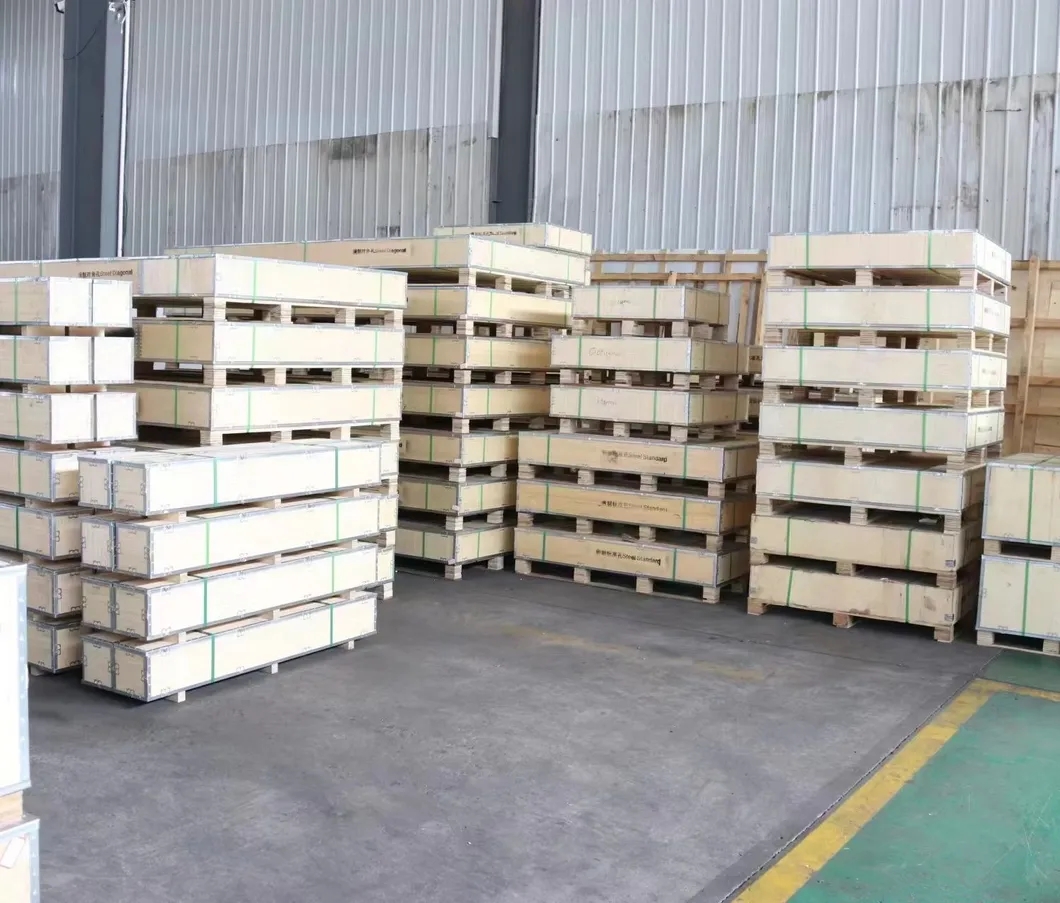

Standard Export Packaging

Frequently Asked Questions

How do you ensure the quality of the welding tables?

Quality is guaranteed through a rigorous process including a pre-production sample check before mass manufacturing and a final comprehensive inspection before shipment.

What materials are the welding tables made of?

Our welding tables are primarily constructed from high-quality Q355 steel or cast iron. They undergo nitriding and aging treatments to ensure they are rust-proof, wear-resistant, and durable.

Can the size of the 3D welding table be customized?

Yes, we provide customization options for size, scale, and hole configuration (D16 or D28) to meet your specific industrial requirements.

What products can I purchase for a complete welding setup?

We offer a complete modular system including 3D welding tables, various clamping fixtures, support boxes, and positioning pins for a full robotic or manual welding station.

What delivery and payment terms are accepted?

We accept multiple delivery terms such as FOB, CIF, EXW, DDP, and DAP. Payment can be made via T/T, L/C, Credit Card, or PayPal in various global currencies.

What shipping methods are available for international orders?

Orders can be shipped via sea, air, train, or truck, ensuring flexible and reliable delivery regardless of your location.
