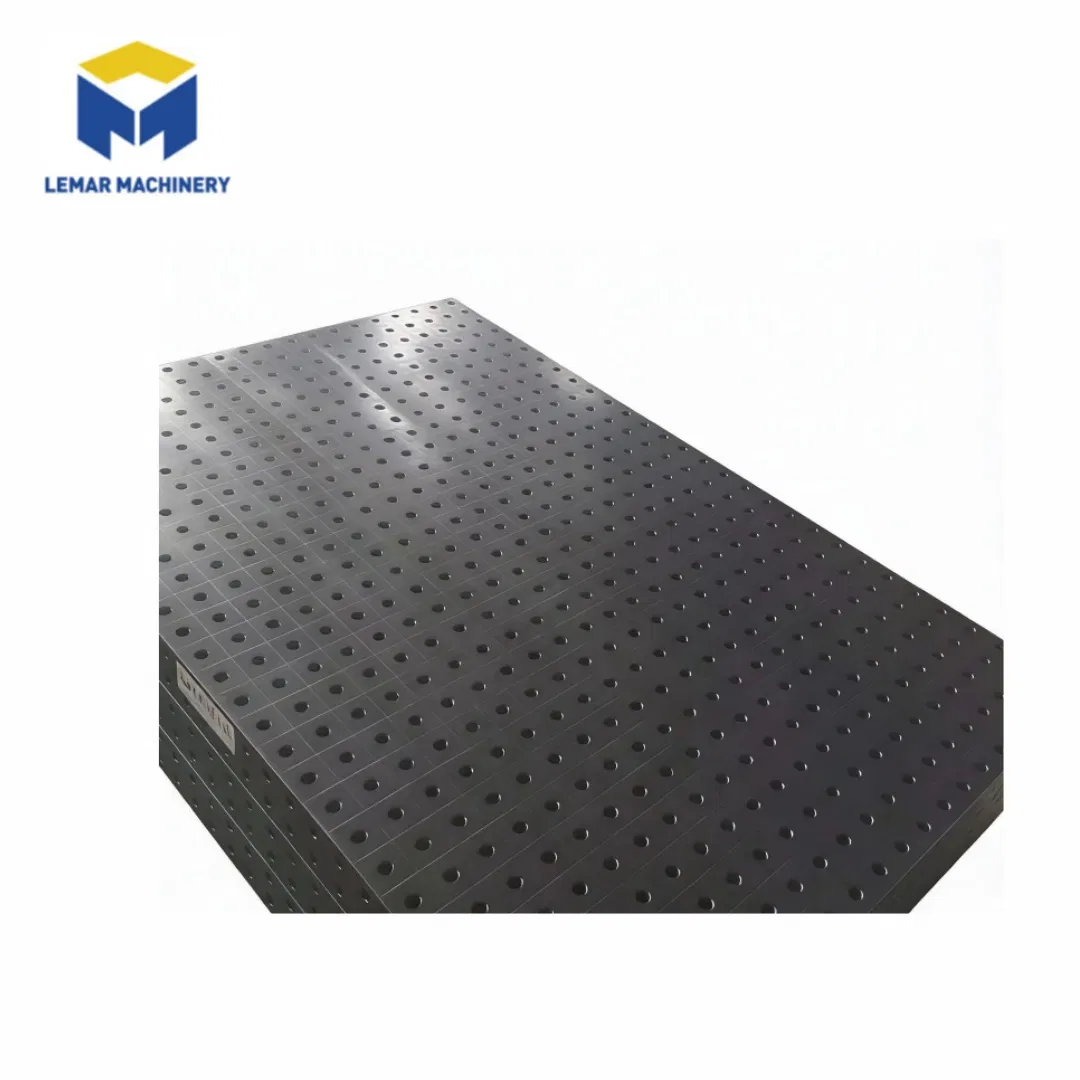

High Precision 3D Welding Reference Platform

Customization:	Available
Type:	3D Welding Table
Structure:	Platform

i

Basic Information

Model NO.

D28

Condition

New

Product Type

Multi Hole Rapid Positioning Welding Table

Thickness

25mm

Precision

0.1

Height

200mm

Diameter

28mm

Nitrided

Yes

Capacity

50000 PCS/Year

Export Port

Shanghai

P

Product Description

High precision 3D welding reference platform is a three-dimensional flexible welding platform with high-precision reference positioning function. It takes standardized hole arrays and modular components as its core and is a high-precision tooling equipment used for workpiece positioning and clamping in welding operations.

Reliable Positioning

High-precision hole systems and modular fixtures ensure workpieces of different shapes are firmly fixed, reducing displacement and deformation during high-temperature welding.

Strong Versatility

Quickly meet welding requirements for sheet metal, heavy steel structures, and irregular parts by combining standardized accessories like positioning blocks and locking pins.

High Stability

Features a box structure or cross rib plate design with strong load-bearing capacity. Wear-resistant and impact-resistant after hardening treatments like nitriding.

S

Technical Specifications

Size (mm)	Material	Precision (mm)	Inventory
1000800200	HT250/Q355	0.1	20
12001000200	HT250/Q355	0.1	20
15001500200	HT250/Q355	0.1	20
20001000200	HT250/Q355	0.1	20
24001200200	HT250/Q355	0.1	20
30001500200	HT250/Q355	0.1	20
40002000200	HT250/Q355	0.1	20

G

Product Gallery

V

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

?

Frequently Asked Questions

What is the typical lead time for orders?

The delivery time for the High-precision 3D welding reference platform is generally between 15 and 25 days.

What are the hole spacing and positioning accuracy?

Standard positioning hole spacing is 50mm or 100mm. Repeat positioning accuracy can reach ±0.02mm, with hole center tolerances within 0.05mm.

How does the platform handle heavy loads?

Under a concentrated load of 2 tons per square meter, deformation does not exceed 0.50mm. Under uniform loads, deformation is only 0.024mm, ensuring high-precision stability.

Which export documents are provided?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC (Certificate of Conformity).

How can I place an order?

You can contact us via our official channels for a formal quote, and then confirm your order with a Purchase Order (PO).

Are custom sizes available?

Yes, customized configurations and splicing customization are available upon request to meet specific workpiece requirements.
