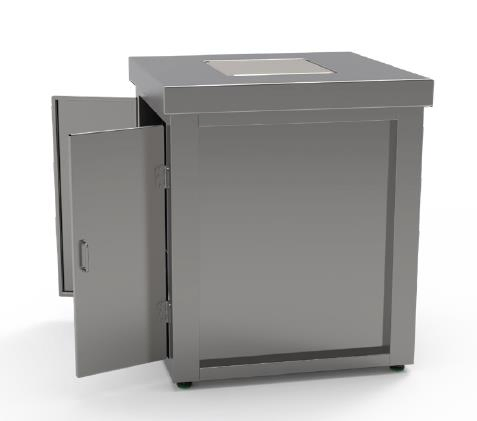

Hot Sale high precision Bench Top Anti vibration Platform

Customization: Available
After-sales Service: Returning or Replacing Service If Quality Issues
Warranty: 12 Months

Product Description

Basic Info
Model NO.
BenchTop-BL
Size
Customized
Load Range
40-160kg
Natural Frequency
12Hz
Material
Granite Surface
Transport Package
Wooden Case
Origin
China
Production Capacity
5000/Month
Product Description

Different versions available with full granite / aluminum honeycomb core sheets and individual vibration dampers

Vibration isolation in perfection: The ideal solution if your laboratory bench has to remain free from vibrations and mechanical shocks. With tabletops made of full granite or aluminum honeycomb core sheet and ideally matched vibration dampers, the laboratory bench guarantees the optimum work surface for all applications where testing and measuring equipment must be set up free of unwanted vibrations. Our vibration-isolating tables are available in different sizes and with different load capacities. Our experts will work with you to find the right model, for which different air spring elements are also available as vibration dampers - depending on customer-specific requirements.

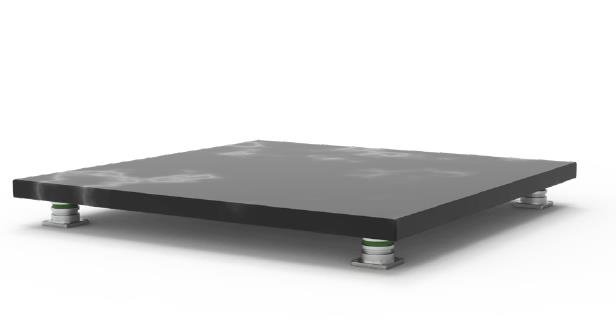

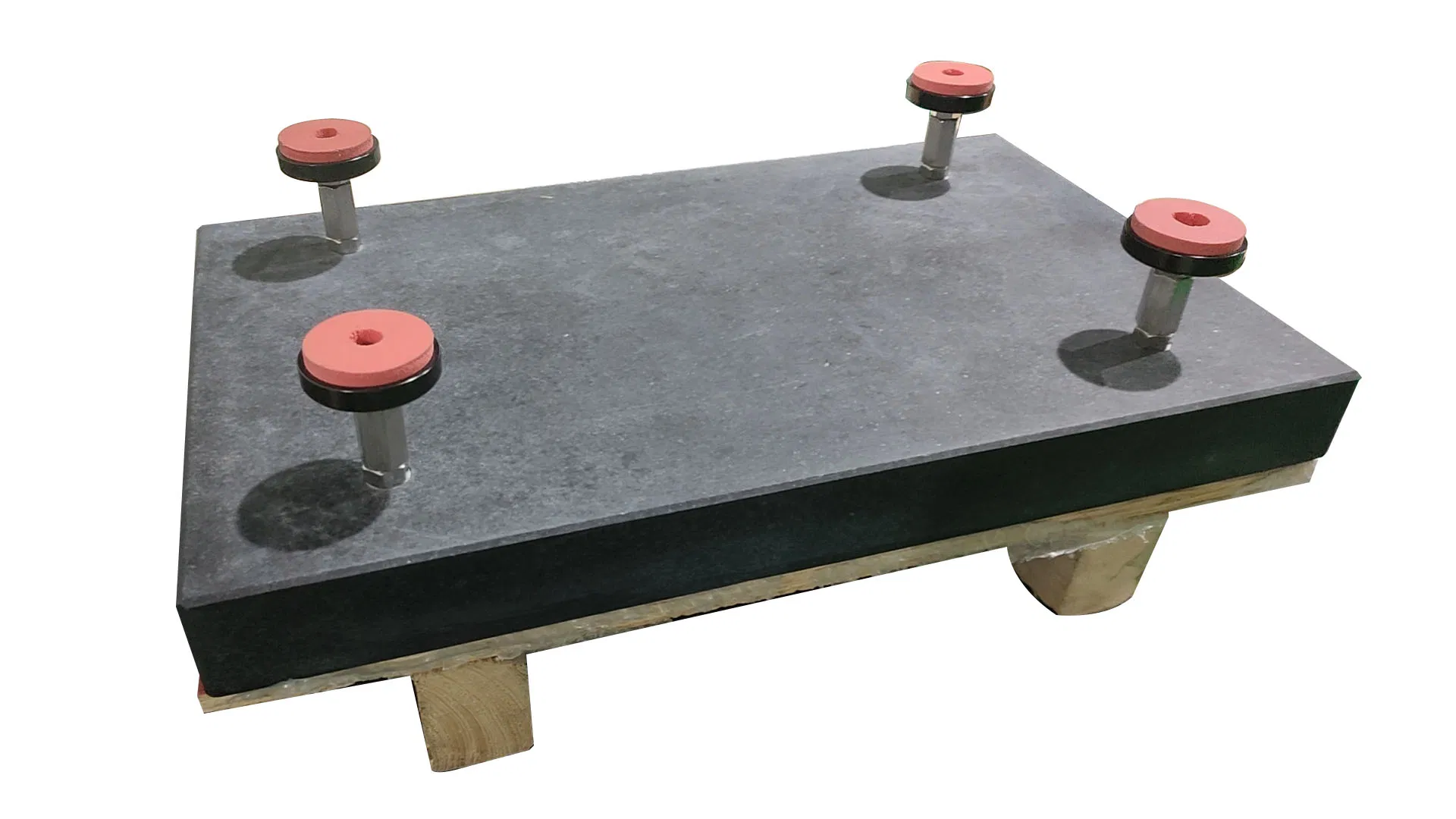

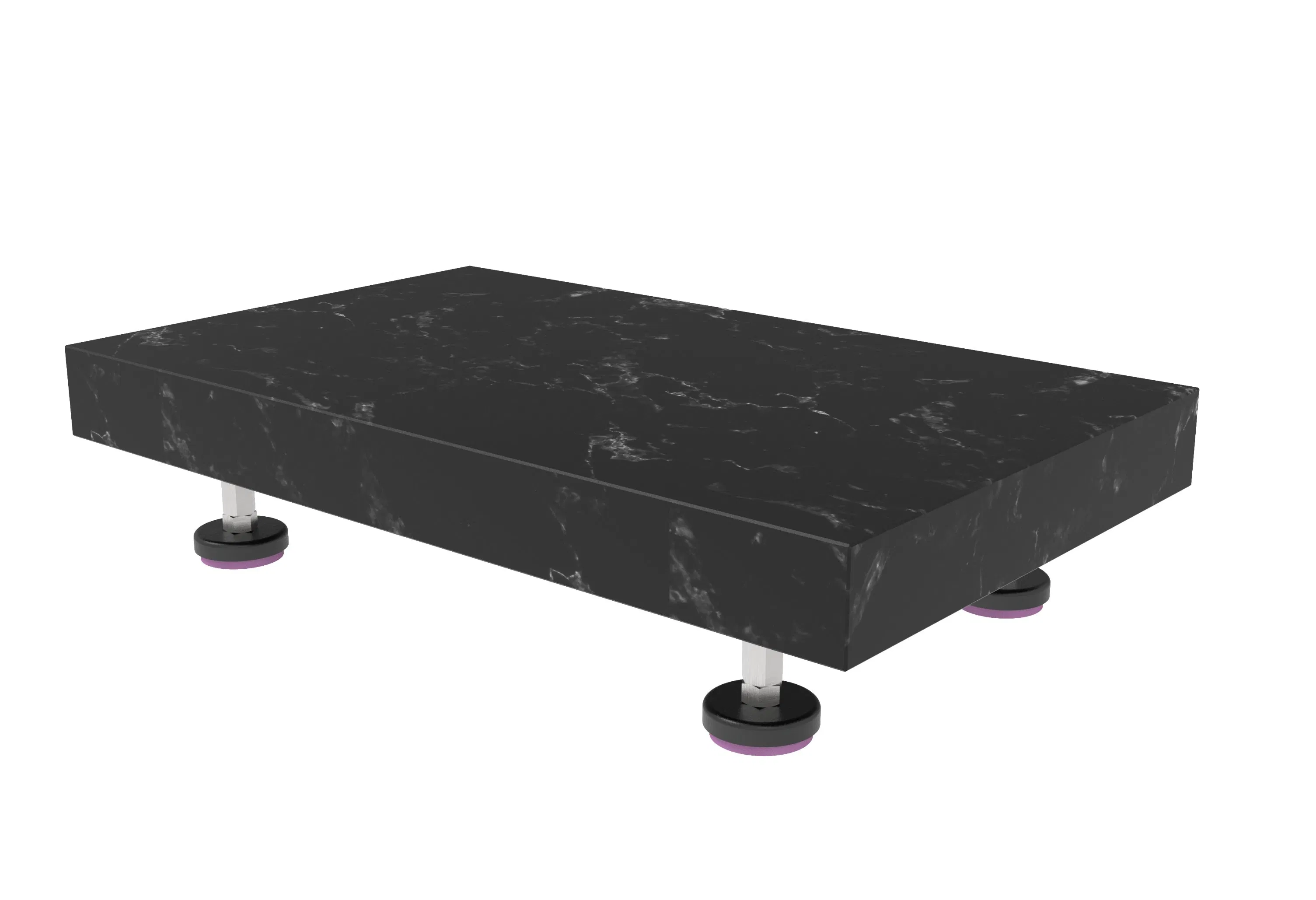

Bench Top Anti vibration Platform
Key Features:
  • Isolates laboratory equipment such as balances, petri dishes and low-power microscopes
  • Equipped with four flexible vibration isolators
  • Perfect passive vibration isolation performance
Product Parameters
Model 0304 0405 0506 0608 0810
Surface size (mm) 300x400 400x500 500x600 600x800 800x1000
Height (mm) 100
Load (kg) 40-160
Surface material Granite
Surface Height (mm) 30 30 40 50 60
Weight (kg) 10 28 22.5 50 80
Natural Frequency (Hz) 12
Load kg Capacity Mapping
Size / Model TSR-55 TSR-110 TSR-220 TSR-450 TSR-850
Isolator-E50 11 22 43 88 167
Isolator-E75 24 49 97 199 375
Isolator-E100 43 86 173 353 667
Isolator-E125 67 135 270 552 1043
Isolator-E150 97 194 389 795 4501

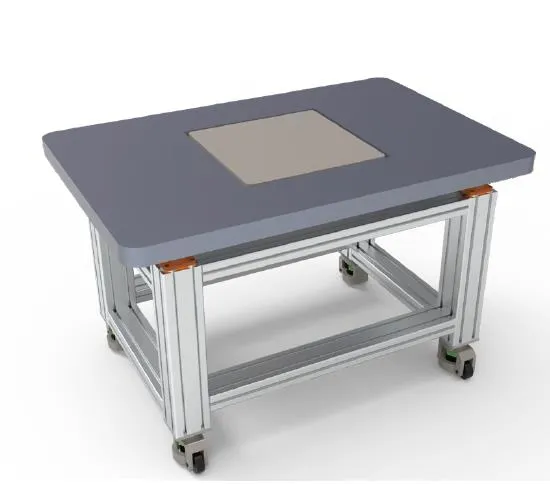

Detailed Photos

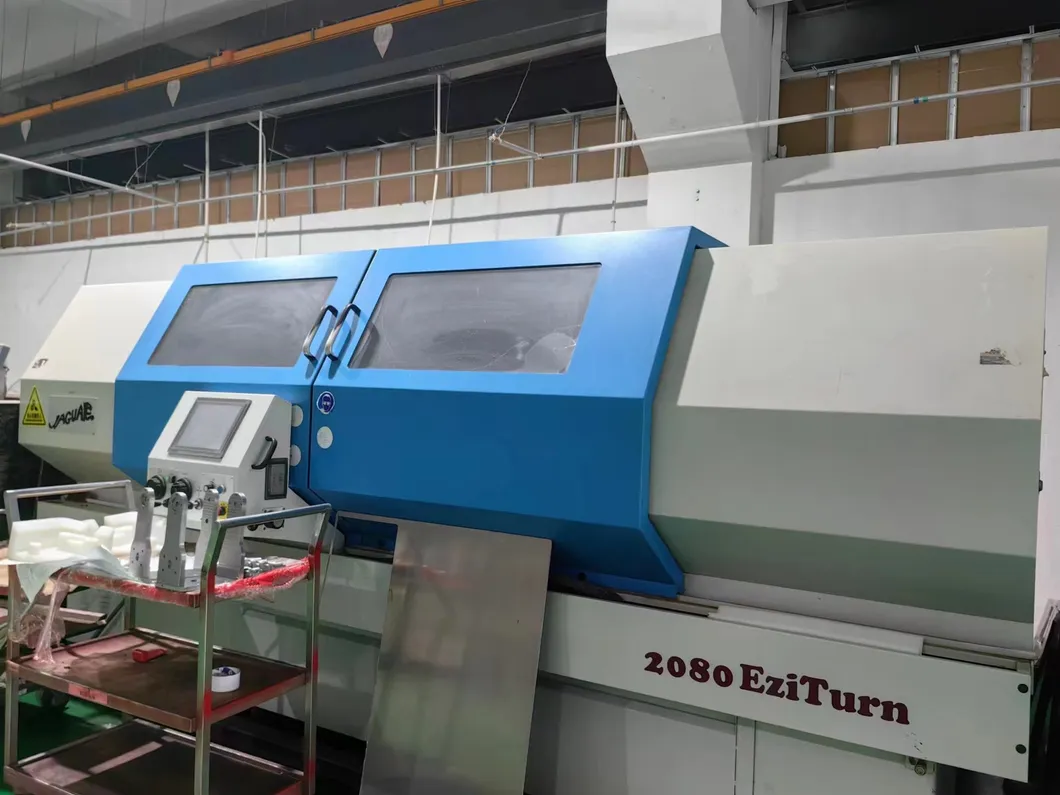

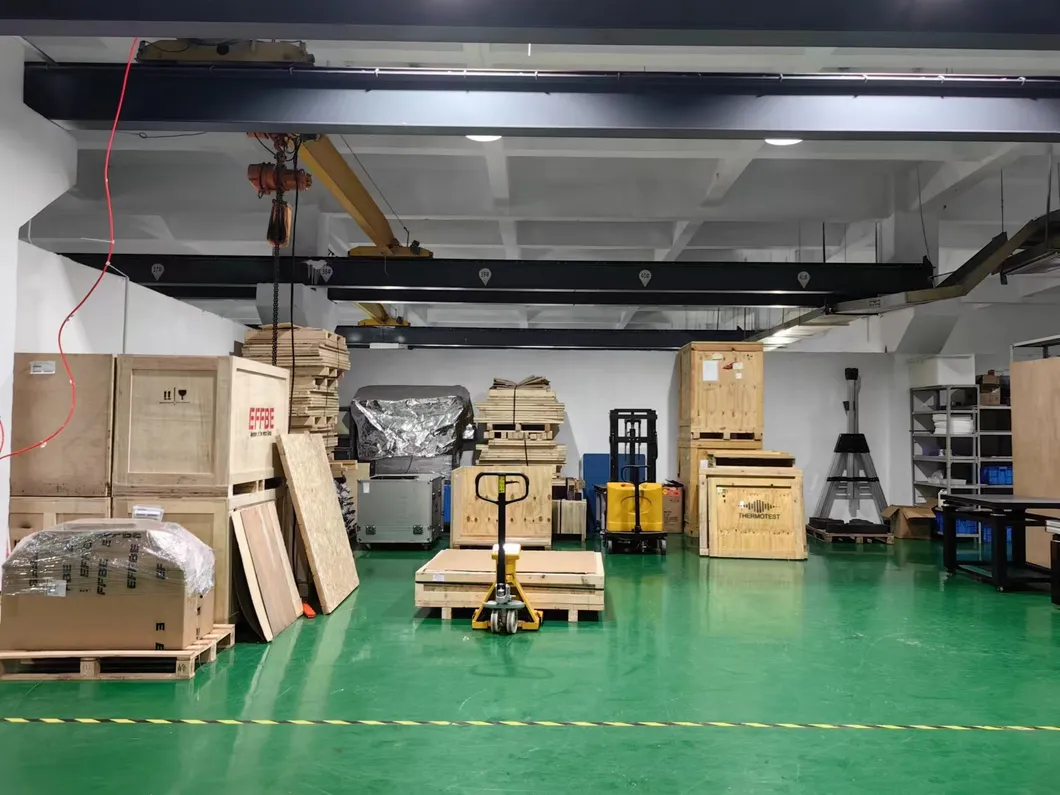

Manufacturing Facility

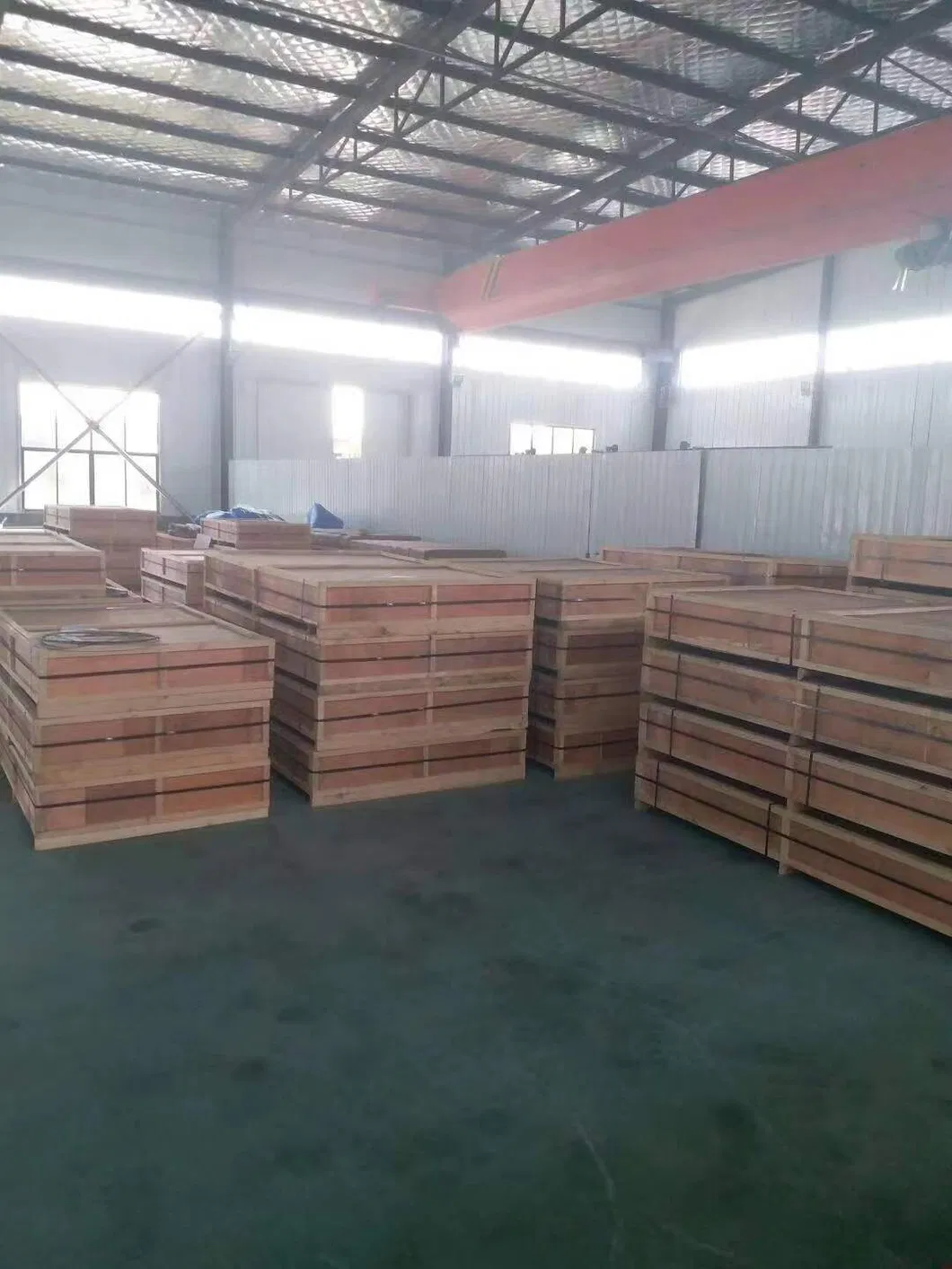

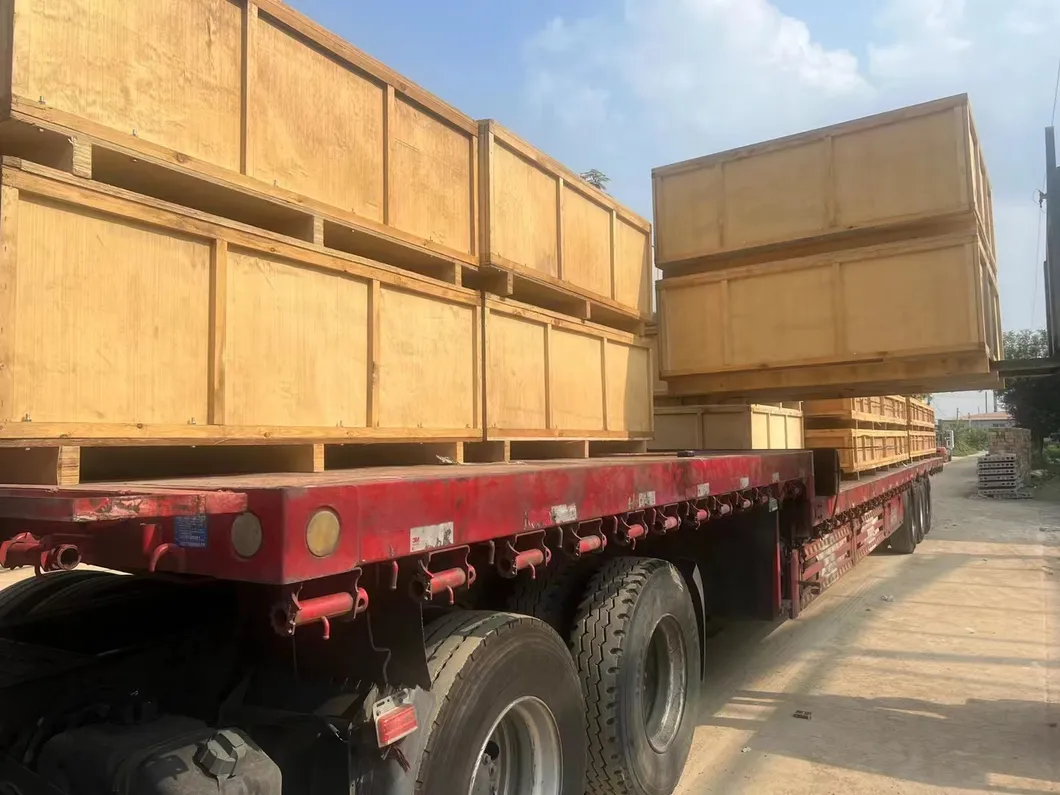

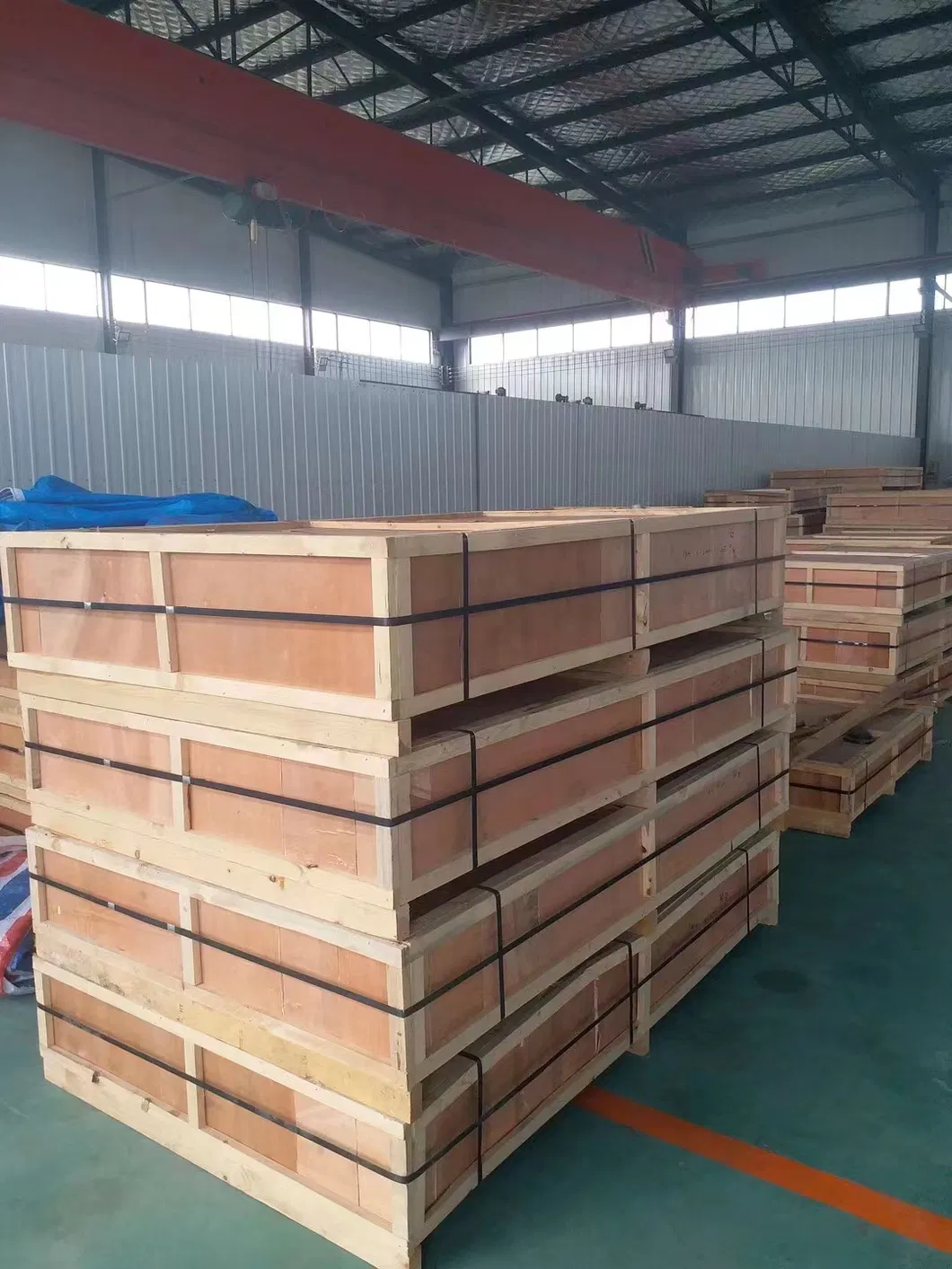

Packaging & Shipping
Frequently Asked Questions
What is the load range for the BenchTop-BL platform?
The platform supports a load range from 40kg up to 160kg, making it suitable for a variety of high-precision laboratory instruments.
Which materials are used for the table surface?
The standard surface is made of high-quality full granite, but versions with aluminum honeycomb core sheets are also available depending on your requirements.
What level of vibration isolation does this platform provide?
The platform features a natural frequency of 12Hz, providing excellent passive vibration isolation to protect sensitive equipment from mechanical shocks.
Can the size of the platform be customized?
Yes, we offer various standard sizes (such as 300x400mm to 800x1000mm) and also provide customized dimensions to fit specific laboratory needs.
What types of equipment are best suited for this anti-vibration platform?
It is ideal for isolating high-precision laboratory equipment such as analytical balances, petri dishes, and low-power microscopes.
How is the product secured for international shipping?
All platforms are professionally packed in sturdy wooden cases to ensure they arrive safely and free from damage during transport.
