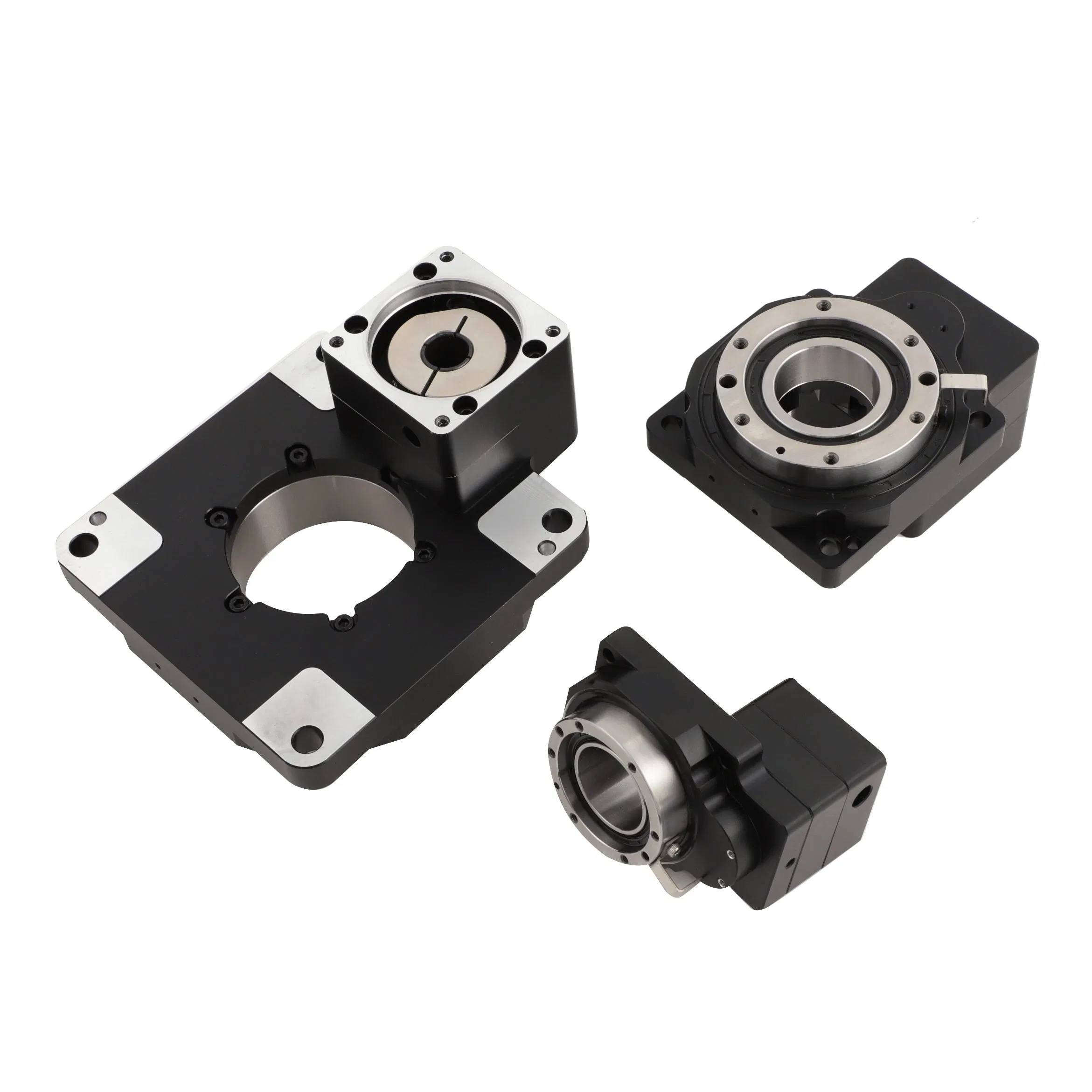

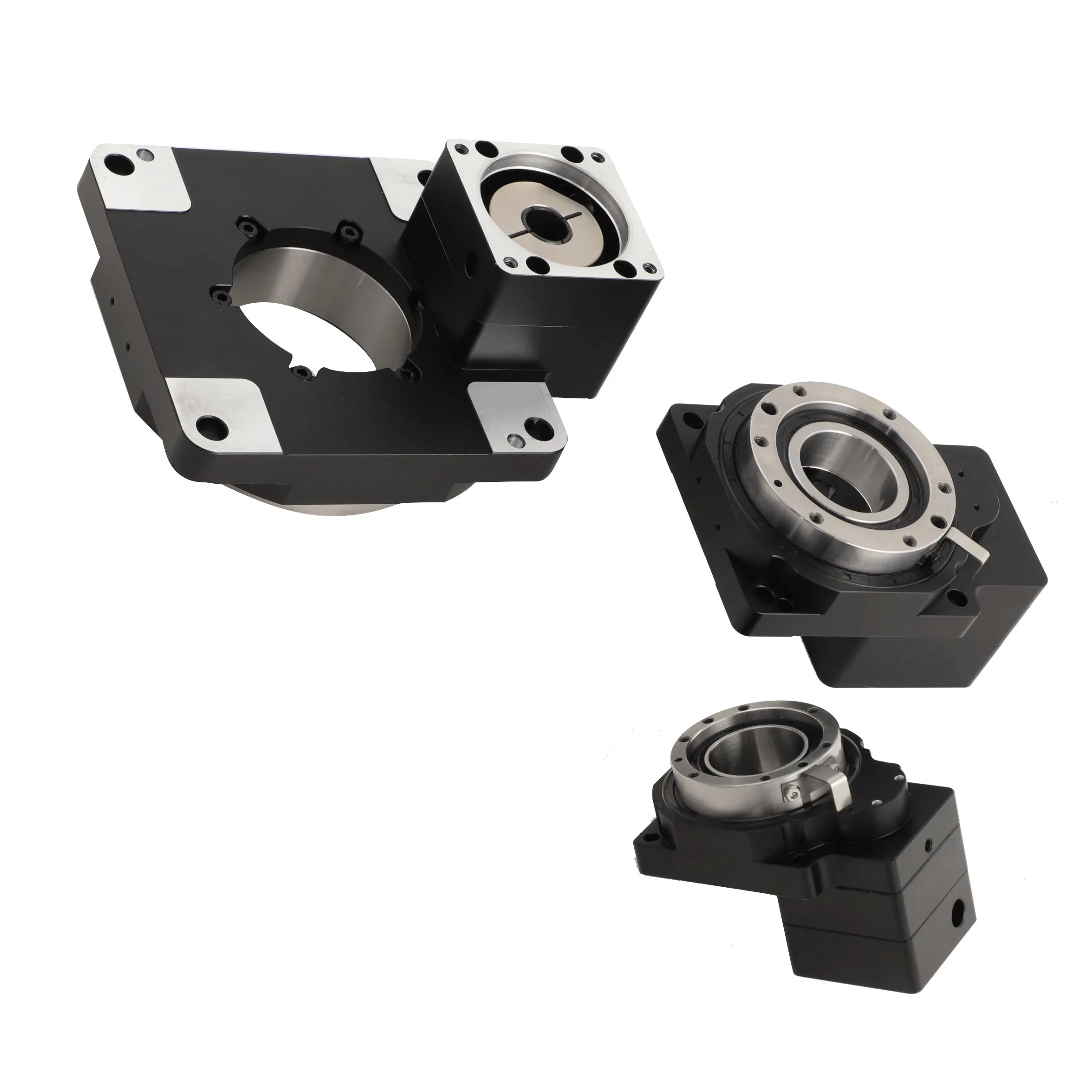

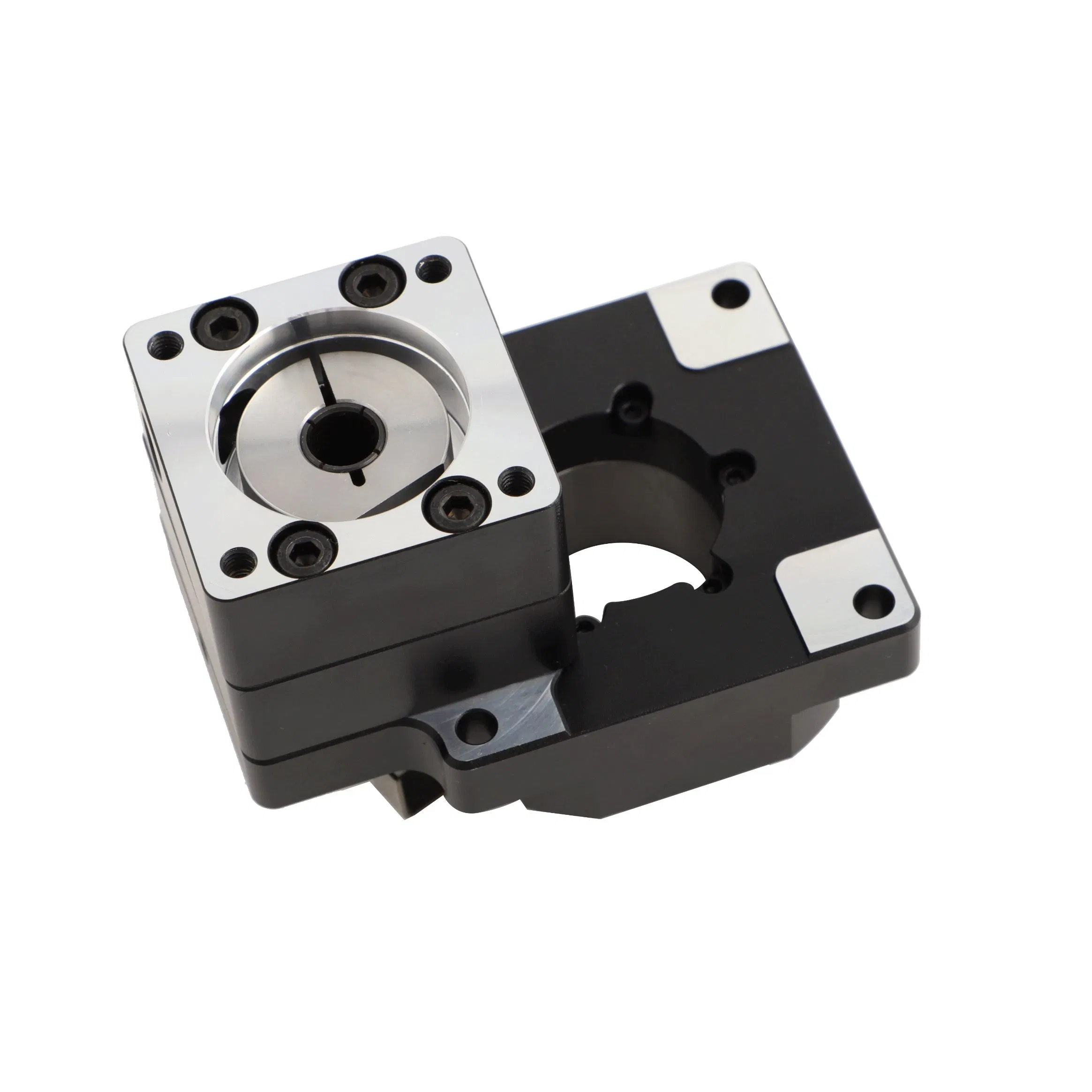

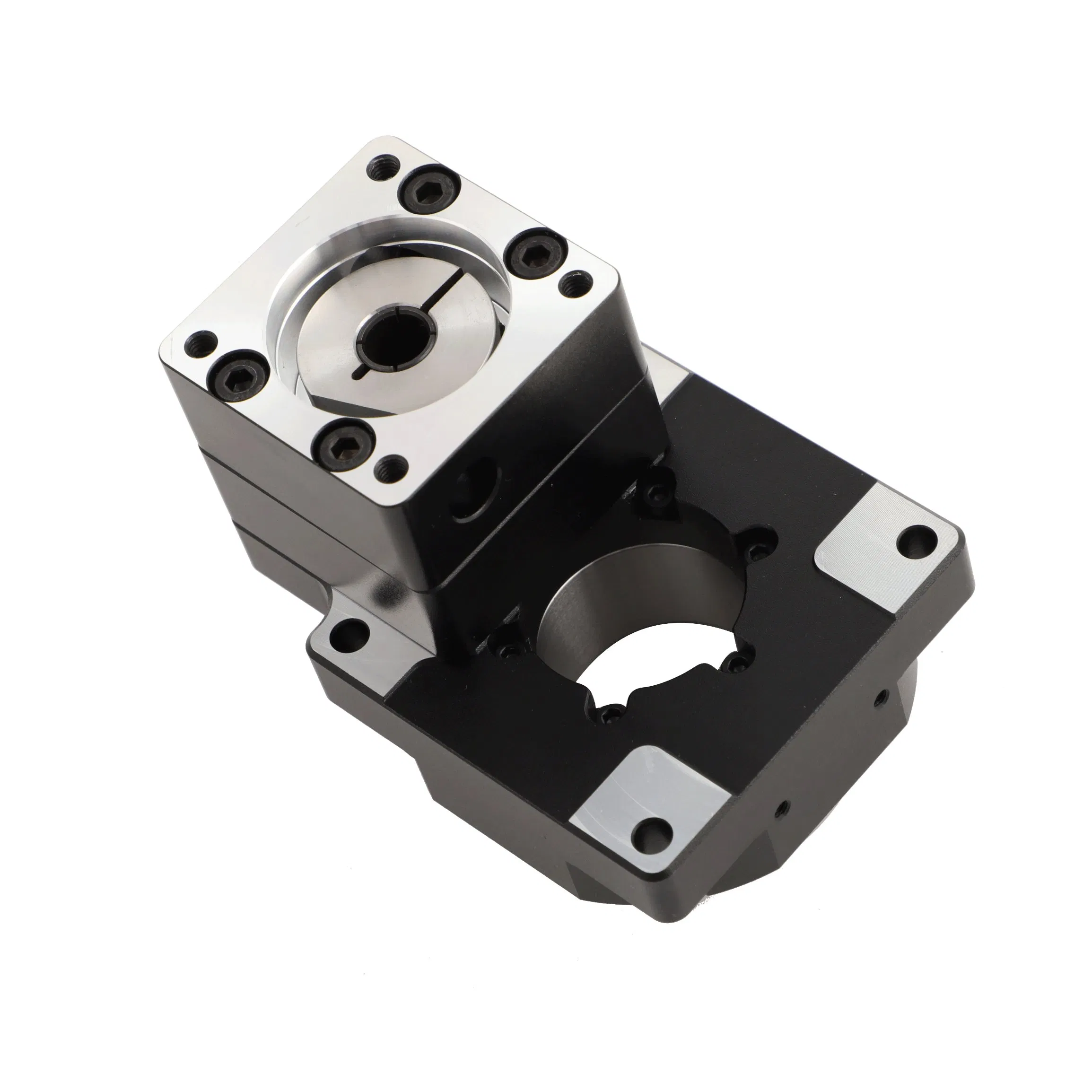

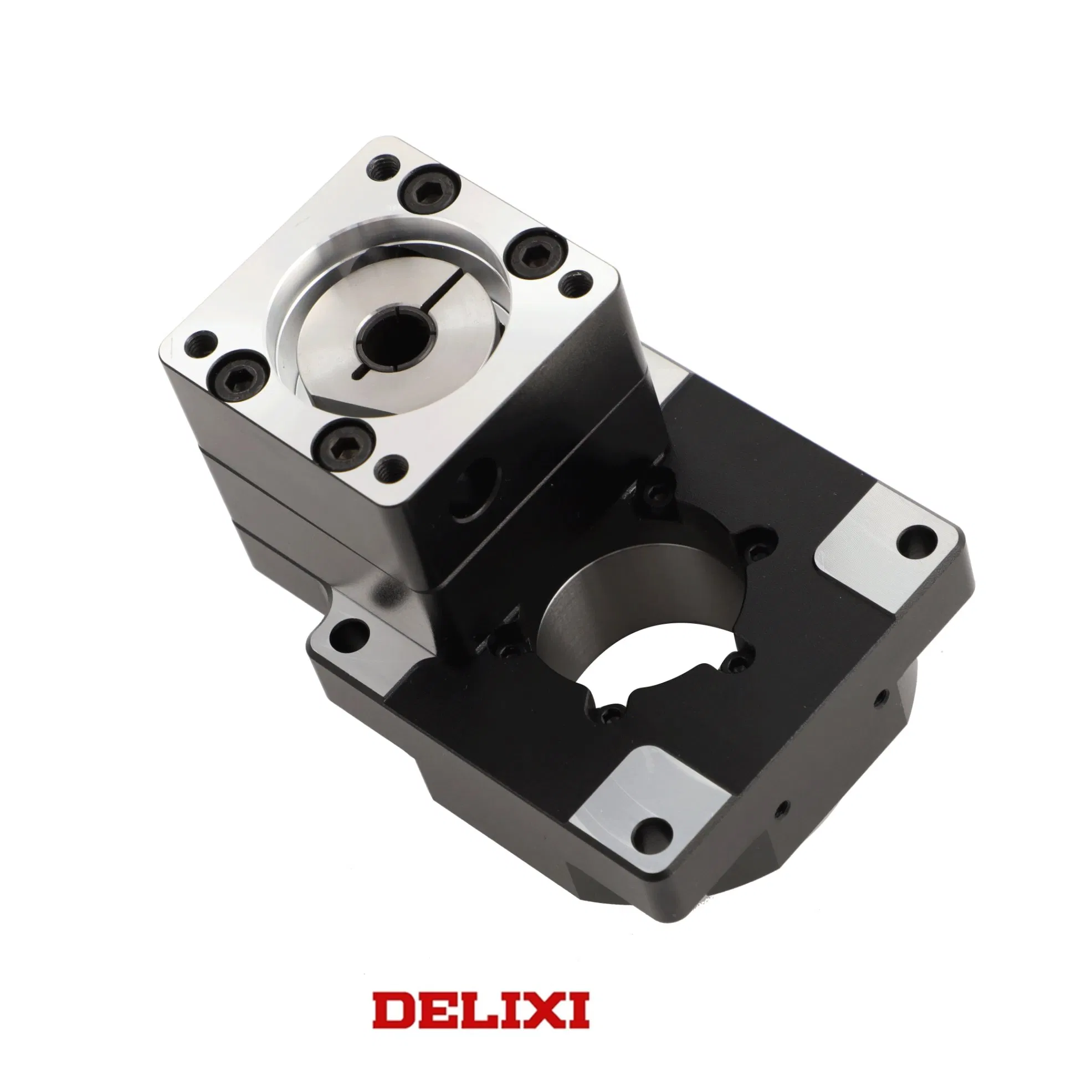

Product Description
The planetary reducer is a high-performance industrial solution designed to reduce motor speed while significantly increasing output torque. It serves as a critical component in lifting, mining, transportation, and construction machinery.
⚙️
Key Features: Lightweight construction, compact size, wide transmission ratio range, high efficiency, and smooth operation with minimal noise. It is highly adaptable to demanding environments like power generation and metallurgy.
Technical Highlights:
- Modular Design: Flexible combinations tailored to specific customer requirements.
- Ductile Iron Housing: Provides exceptional rigidity and superior shock resistance.
- Hardened Gears: All gears are carburized, quenched, and ground to ensure maximum wear resistance and extended service life.
- Transmission: Utilizes epicyclic planetary gear systems for efficient power distribution.
Output Torque: Up to 2,600,000 Nm
Motor Power: 0.4 - 129,340 kW
Our Advantages
🎯
High Precision: Rotating accuracy of 0.5 arc-min ensures precise positioning for robotics and high-end machinery.
🌍
Versatile Applications: Ideal for manufacturing, machinery repair, and diverse automated industries.
🛠️
Customization: OEM and ODM support available for customizable logos and packaging for orders exceeding 60 units.

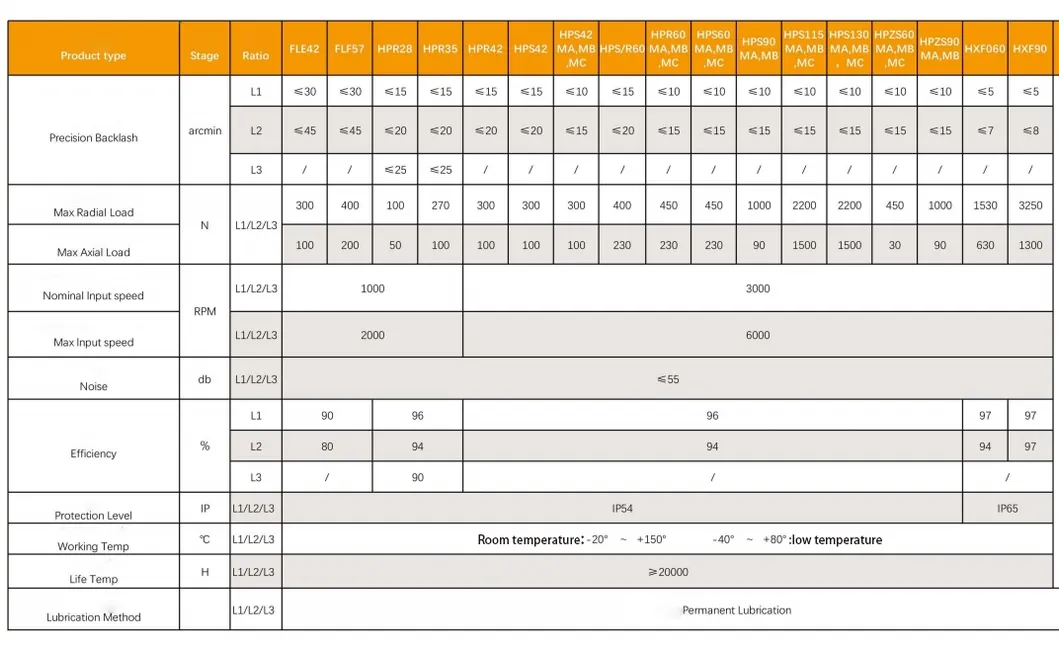

Product Parameters
Structural Integrity: The output shaft features a large-span double bearing design, integrated with the planetary arm bracket for maximum torsional rigidity. The inner ring gear and shell use an integrated design with nickel-plated anti-rust treatment for enhanced corrosion resistance.
| Type |
Stage |
Ratio |
FLE42 |
FLF57 |
HPR28 |
HPR42 |
HPS90 |
HPS130 |
HXF90 |
| Nominal Torque |
L1 |
3 |
/ |
/ |
/ |
8 |
/ |
/ |
104 |
| 4 |
9 |
25 |
2 |
9 |
80 |
220 |
112 |
| 5 |
9 |
25 |
3 |
9 |
90 |
230 |
112 |
| 7 |
/ |
/ |
2 |
5 |
60 |
150 |
100 |
| 10 |
5 |
10 |
1 |
5 |
39 |
90 |
76 |
Frequently Asked Questions
1. What is the precision level of this planetary gearbox?
The gearbox offers a high rotating accuracy of 0.5 to 3 arc-min, depending on the specific model and requirements.
2. What are the typical applications for this reducer?
It is widely used in automated industries, robotics, metallurgy, mining, transportation, and construction machinery.
3. What is the expected service life?
The gearbox is designed for a service life of ≥20,000 hours under standard operating conditions.
4. Can the gearbox be customized?
Yes, we provide OEM and ODM support, including customizable logos and packaging for bulk orders of 60 units or more.
5. What materials are used for the gears?
Gears are made from high-quality imported Japanese material and undergo vacuum carburizing heat treatment (58-62HRC) for maximum durability.
6. How is the product protected against rust?
The housing surfaces undergo nickel-plated anti-rust treatment to significantly enhance corrosion resistance.
