IP68 Heavy-Duty Amphibious Pipeline Inspection Crawler Robot System Advanced Sonar Radar&PTZ System | SDK & Customizable APP SDK

1 / 5

IP68 Heavy-Duty Amphibious Pipeline Inspection Crawler Robot System Advanced Sonar Radar&PTZ System | SDK & Customizable APP SDK

Send Inquiry

Product Description

LiDAR Sonar Support Auto Manual Cable Reel Sewer Inspection Camera with Meter Counter Amphibious Pipe Inspection Crawler Robot

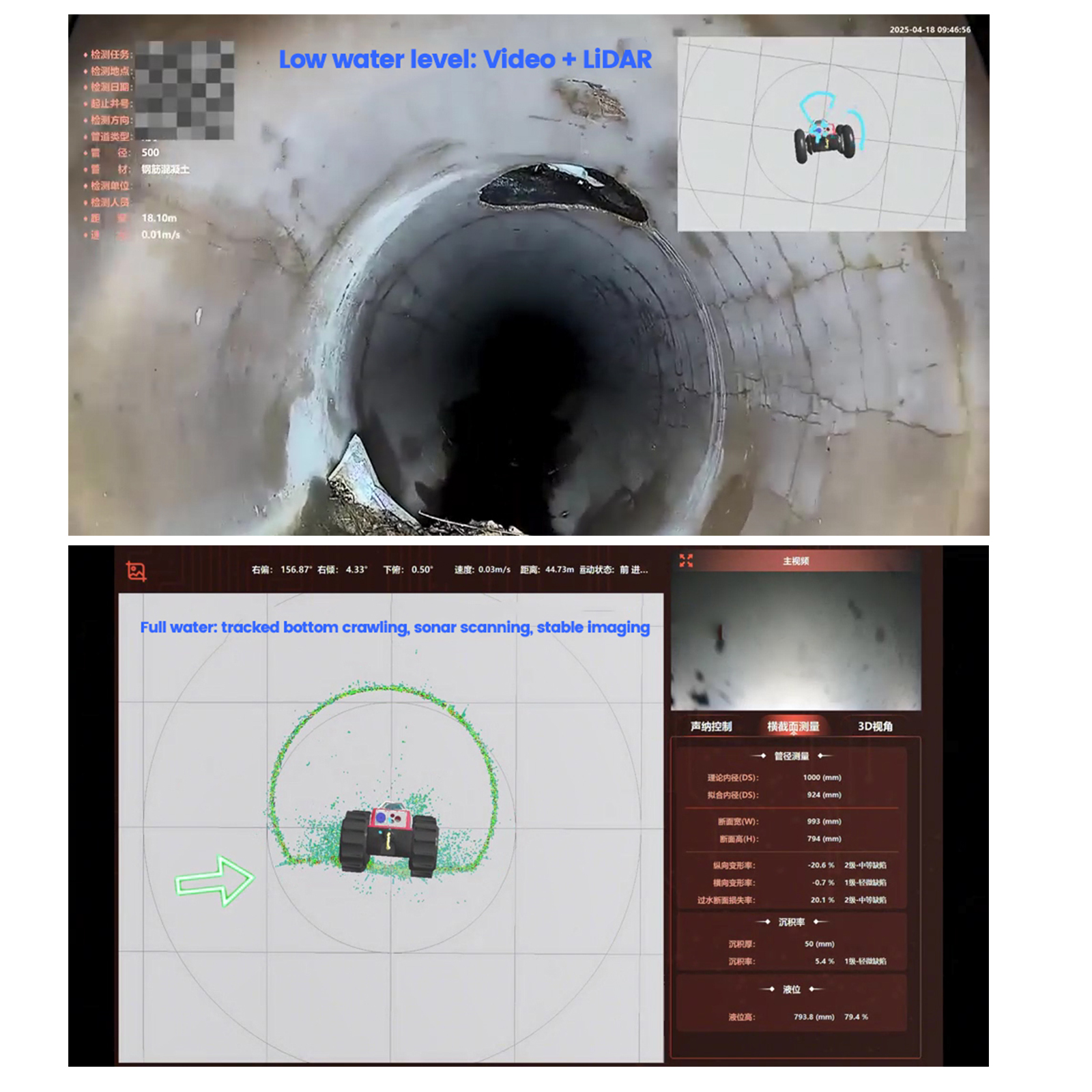

◈ Omnidirectional Detection: Builds 3D models and automatically calculates defects such as siltation and deformation, effectively improving detection accuracy.

◈ Positioning: Equipped with a centimeter-level meter counting device and UBW module for auxiliary measurement.

◈ High-Definition PTZ Camera: Equipped with an HD PTZ camera for rapid visualization of pipeline defects.

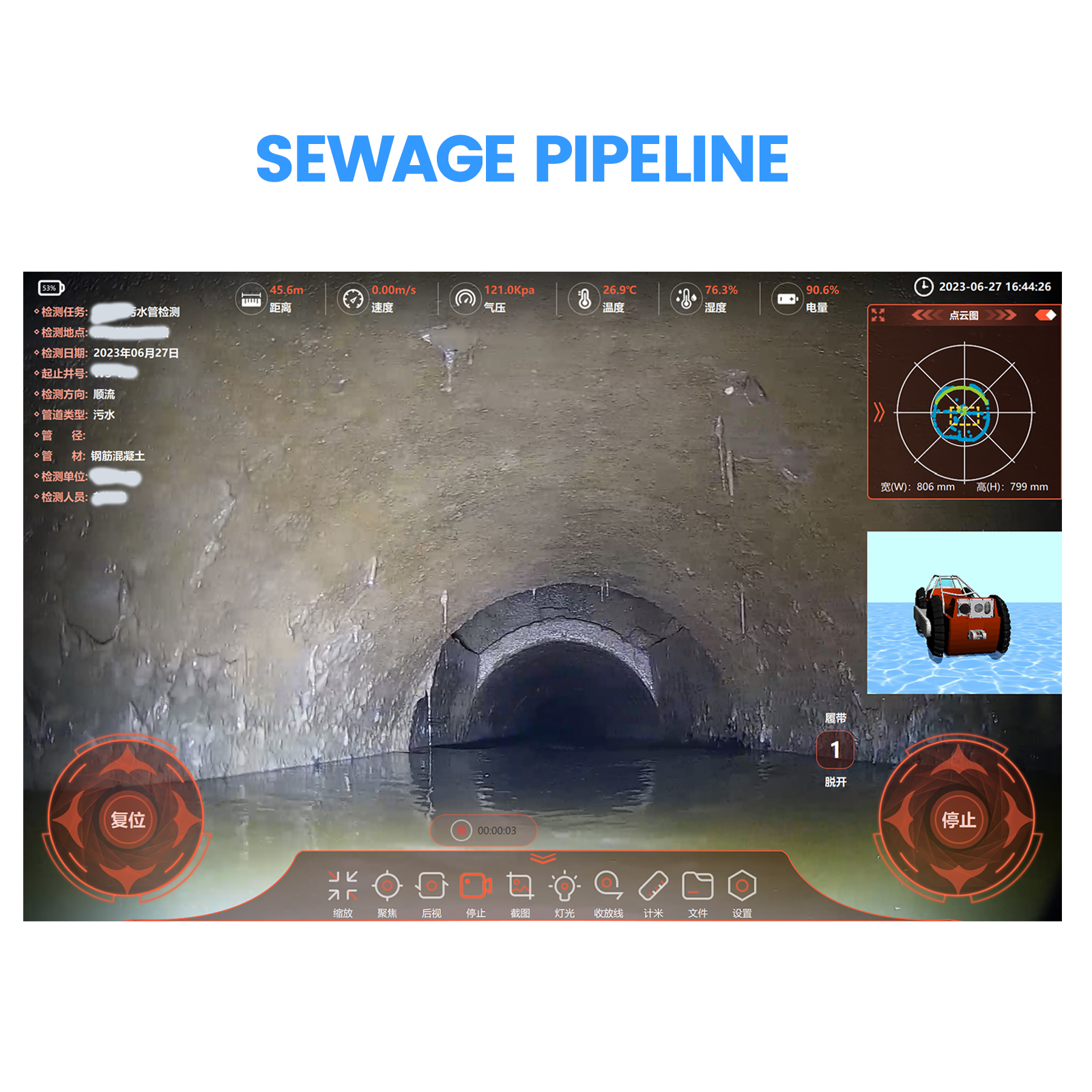

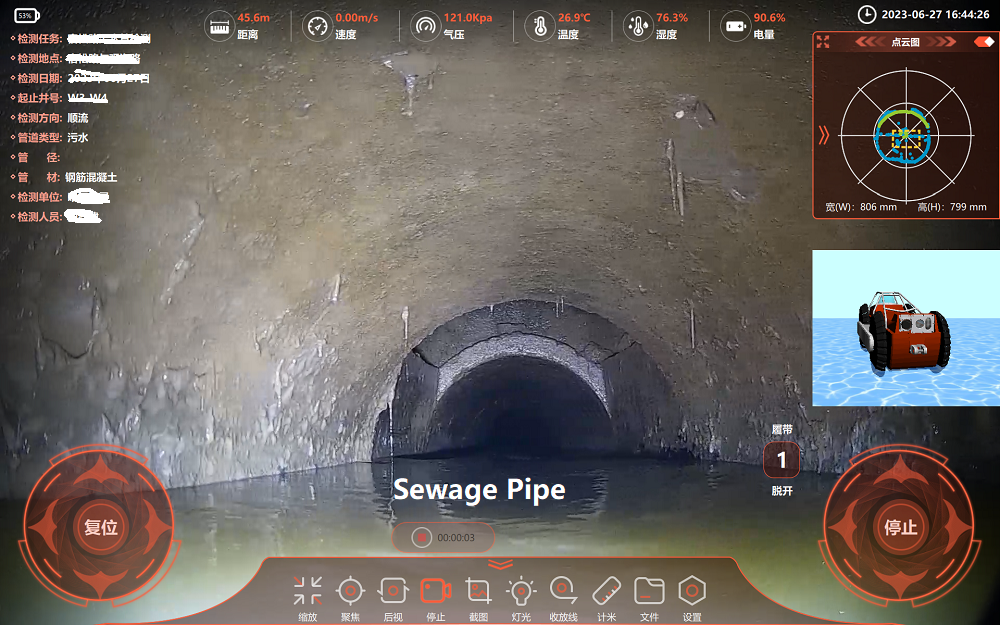

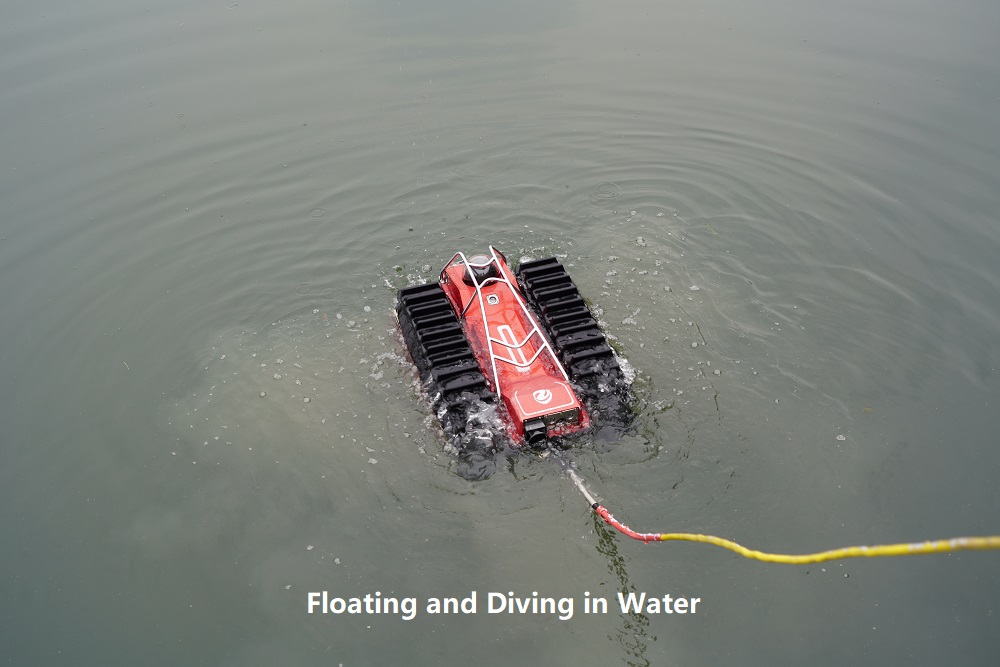

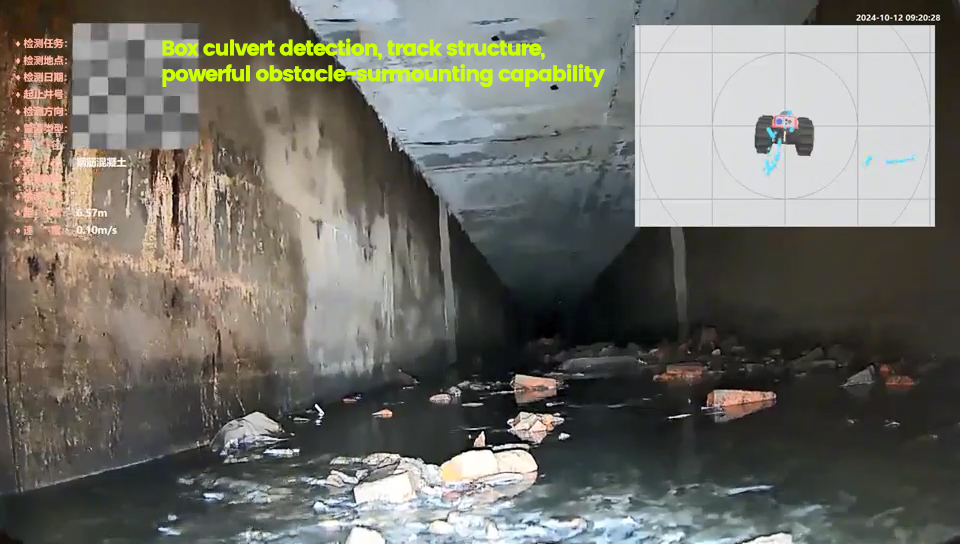

◈ Multi-Scenario Applicability: Works in water, mud, and garbage conditions; suitable for sewage pipes, mixed pipes, box culverts, rivers, etc.

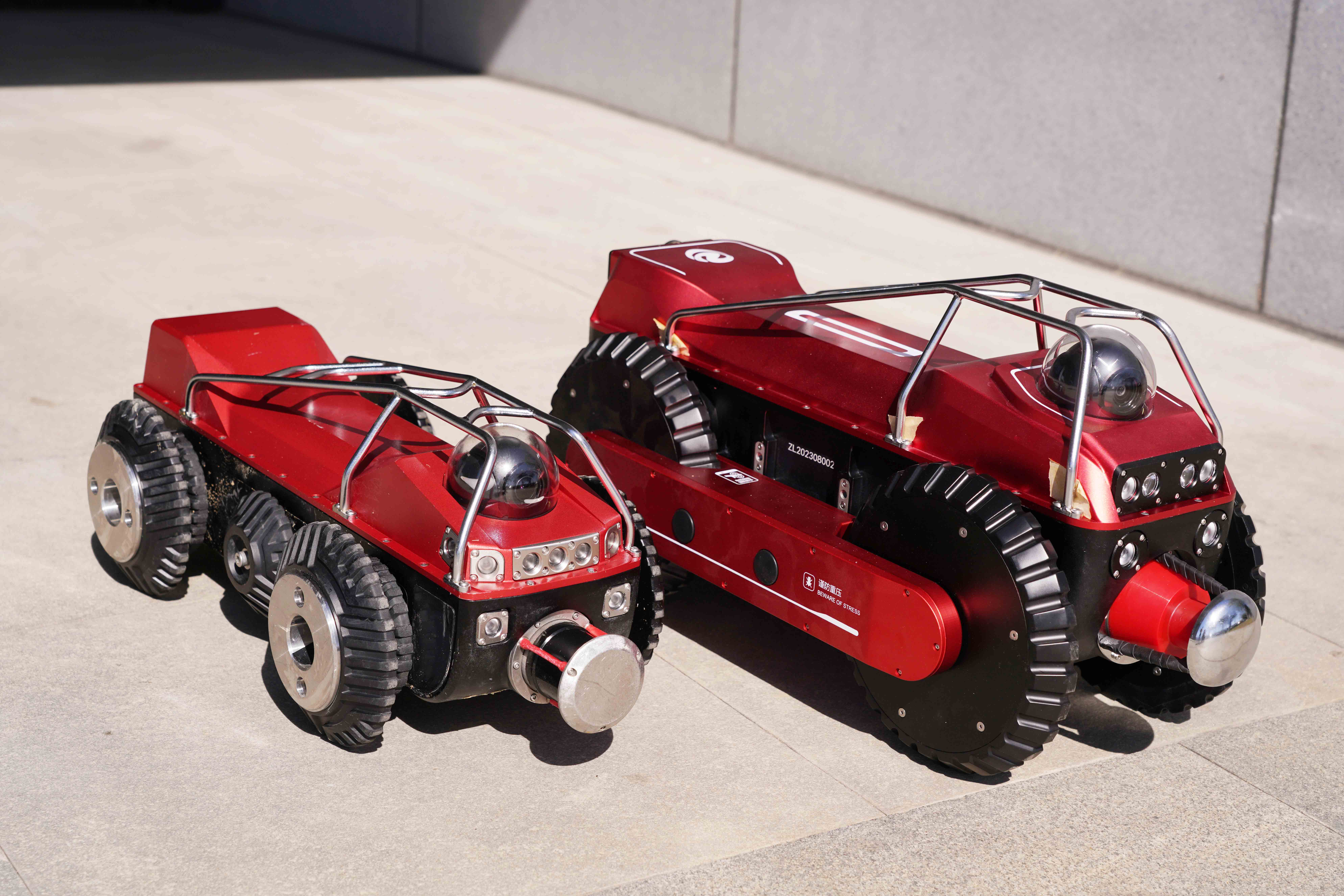

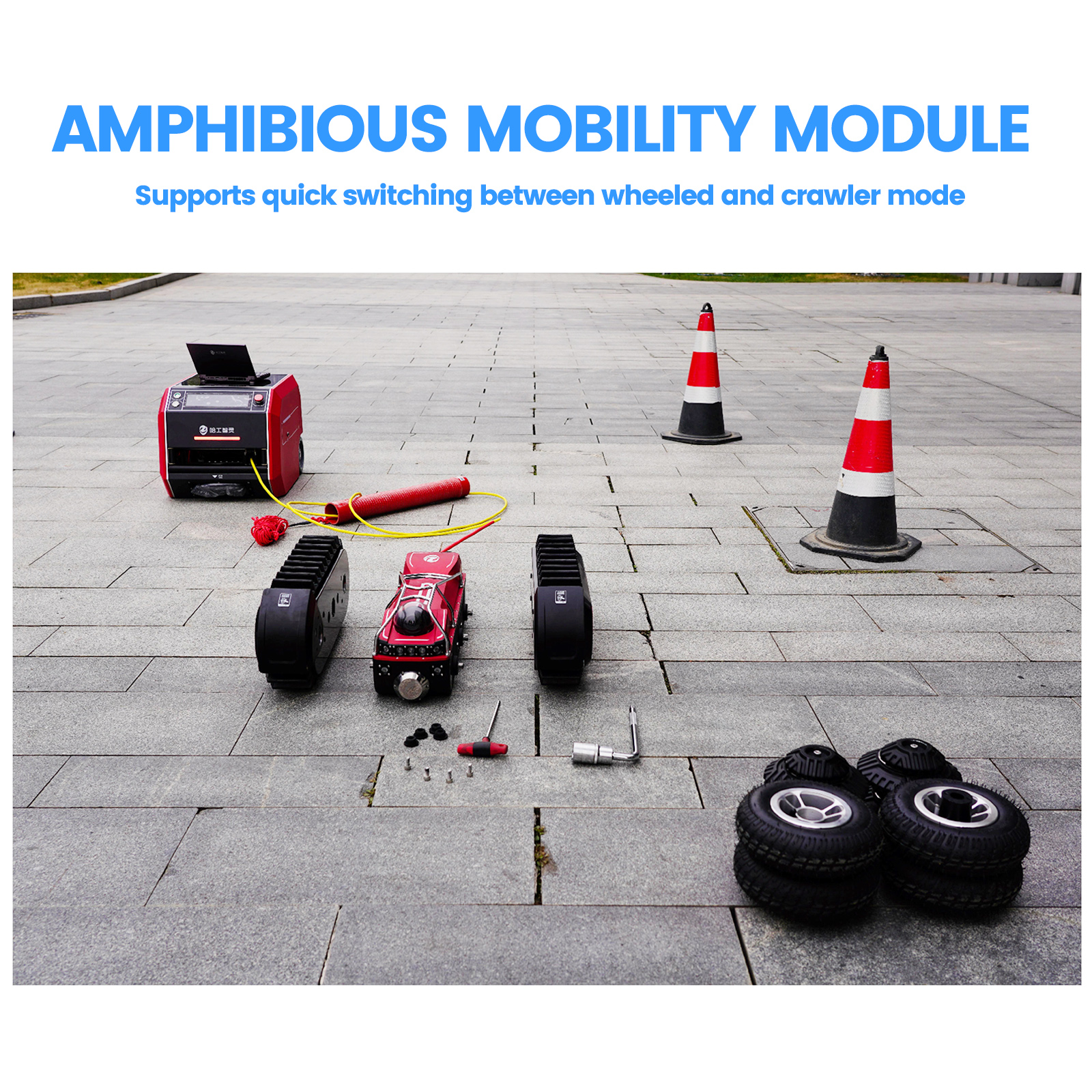

◈ Amphibious Mobility Module: Quick switching between wheel and track modes.

Product Description

Specification

Product name	Amphibious cctv pipe inspection robot
Front camera	2MP pixel, resolution 1920*1080, 360° horizontal rotation and 90° vertical swing
Rear camera	5MP, resolution 2592*1944
LiDAR	Frequency: 10Hz, Accuracy: ±30mm, Coverage: 360°, single-line
Sonar	Frequency: 2.25MHz, Scanning range: 0.05m—6m
Maximum ground speed	Solid pavement: 0.5m/s

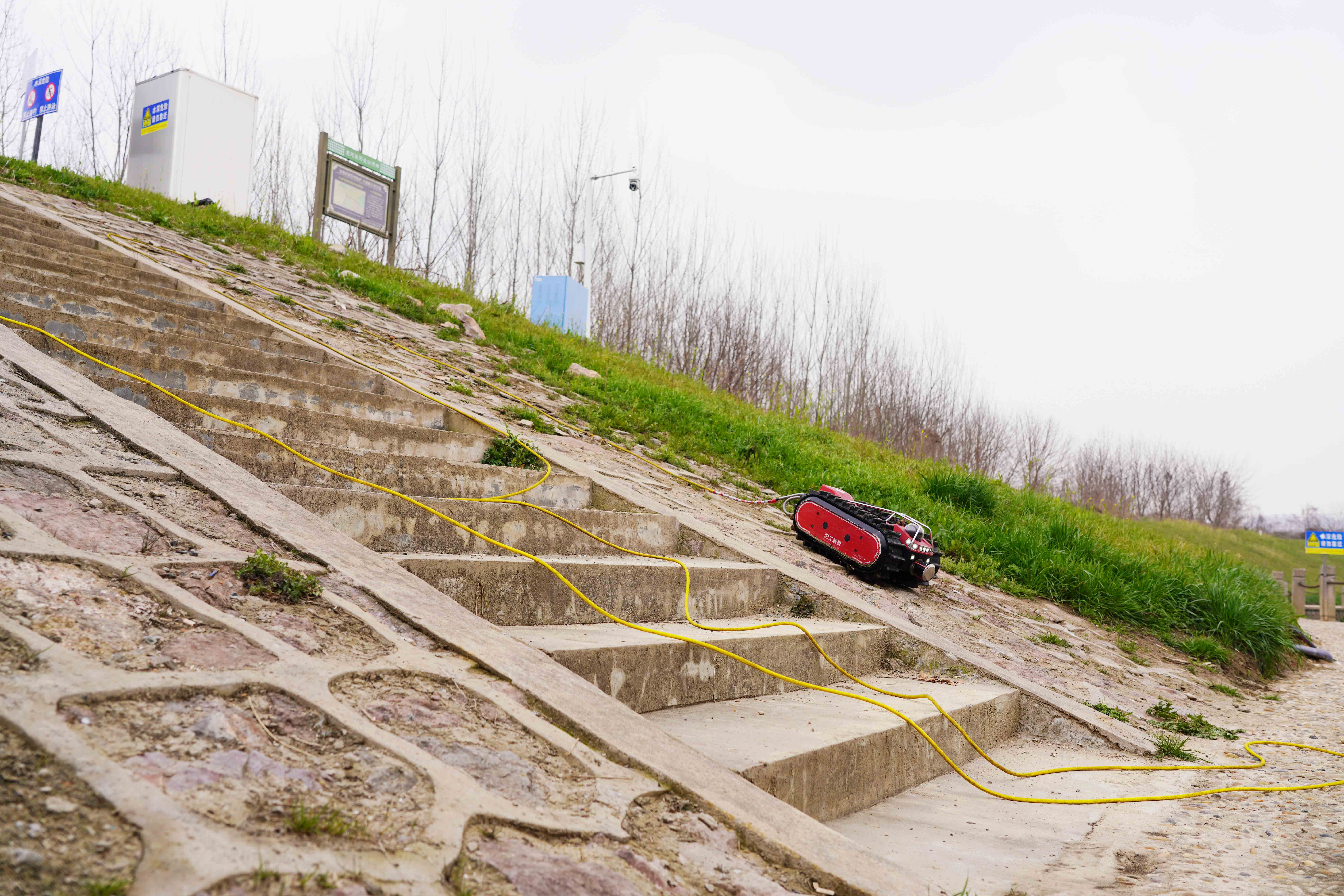

Maximum climbing capacity	≤45°
Maximum water surface speed	Tracked static water: 0.3m/s
Maximum obstacle crossing height	120mm
Driving mode	Track drive / six-wheel drive

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Frequently Asked Questions

How does the 3D modeling feature work?

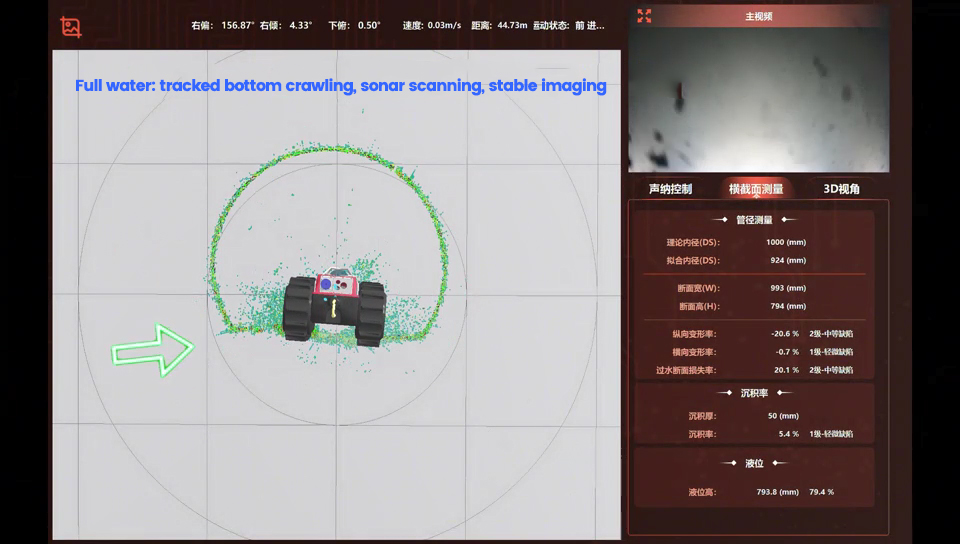

The robot uses integrated LiDAR to scan the pipe environment, building real-time 3D models to automatically identify and calculate deformation or siltation defects.

What environments can this amphibious robot handle?

It is designed for multi-scenario use, including water, mud, and garbage-filled conditions. It is ideal for sewage pipes, box culverts, and rivers.

How accurate is the positioning system?

The system provides centimeter-level accuracy using a dedicated meter counting device paired with a UBW module for precise auxiliary measurement.

Can the robot climb over obstacles?

Yes, it has a maximum climbing capacity of ≤45° and can cross obstacles up to 120mm in height.

What are the camera specifications?

The front camera is a 2MP HD PTZ unit with 360° rotation, while the rear camera provides 5MP resolution (2592*1944) for complete visibility.

Is the driving mode adjustable?

Yes, the amphibious mobility module allows for quick switching between wheel-drive and track-drive modes to suit different terrain requirements.
