Nano-Polymer Plugging Solution for Wbm Np-1, Chinese-Sourced

Still deciding? Get samples of $ !
Request Sample

Product Description

🔵 Basic Info.
Model NO.
Np-1
Odor
Odorless
Transport Package
200 Kg Drum
Specification
High Quality
Origin
China
HS Code
3902309000
🔵 Product Description

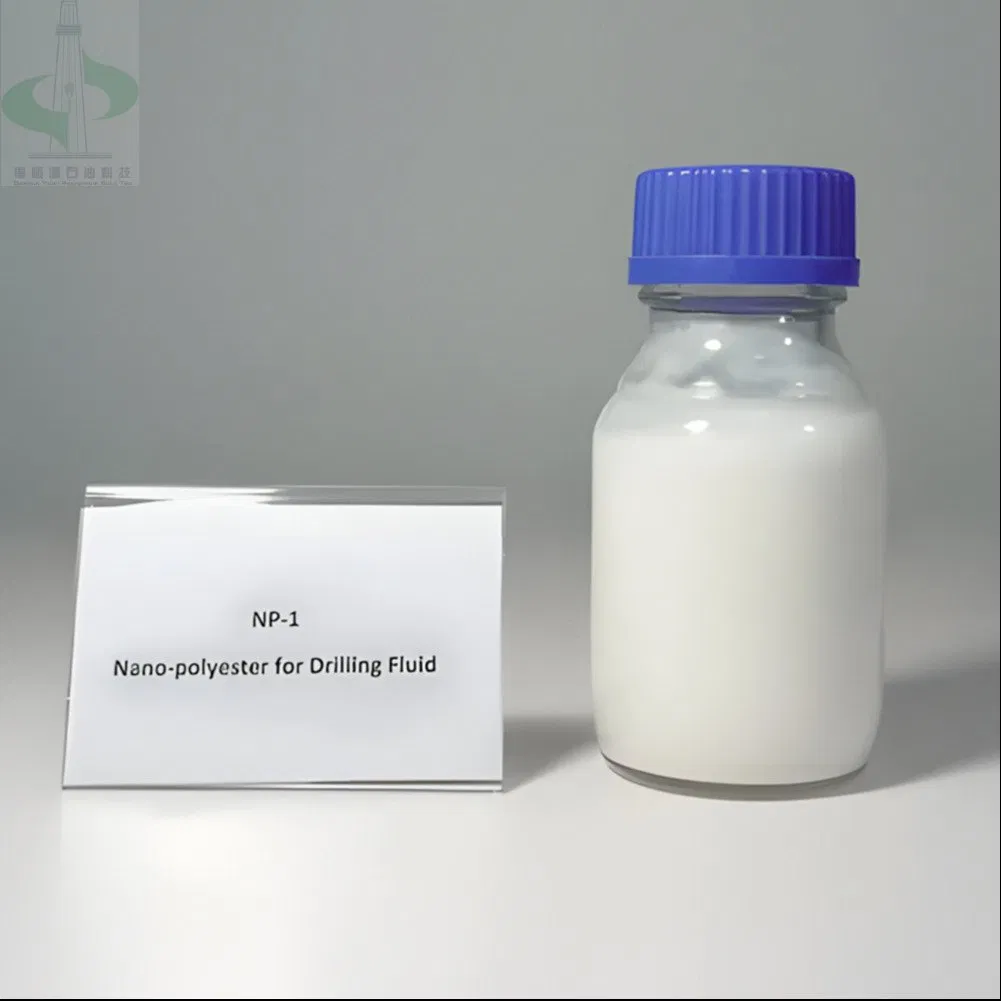

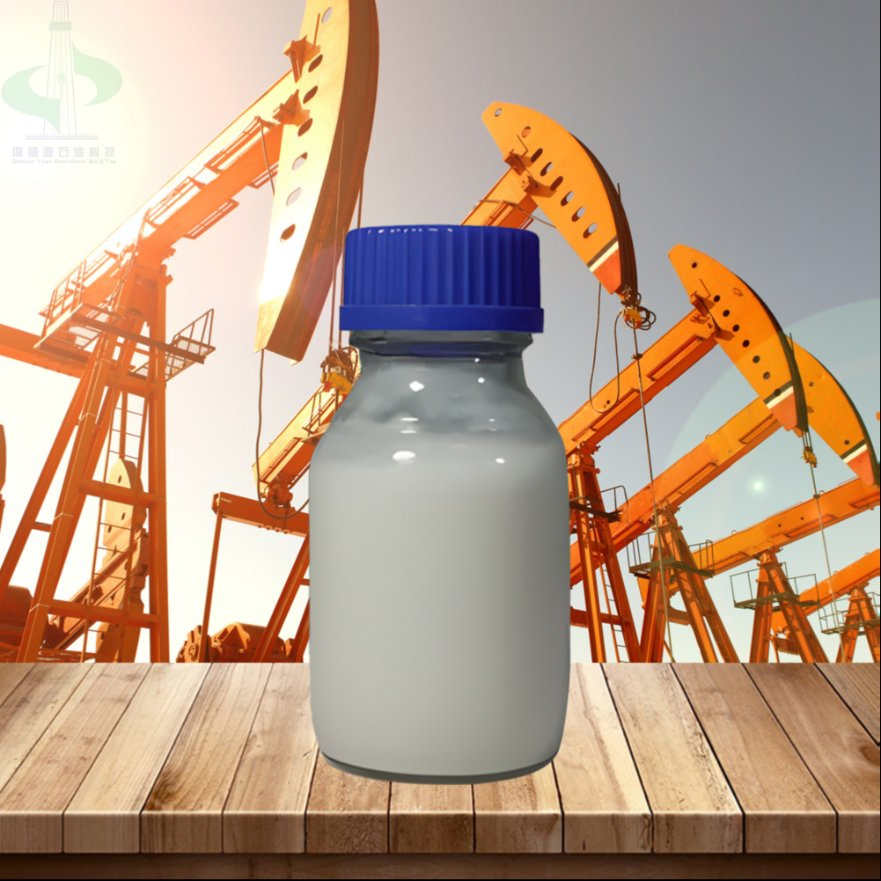

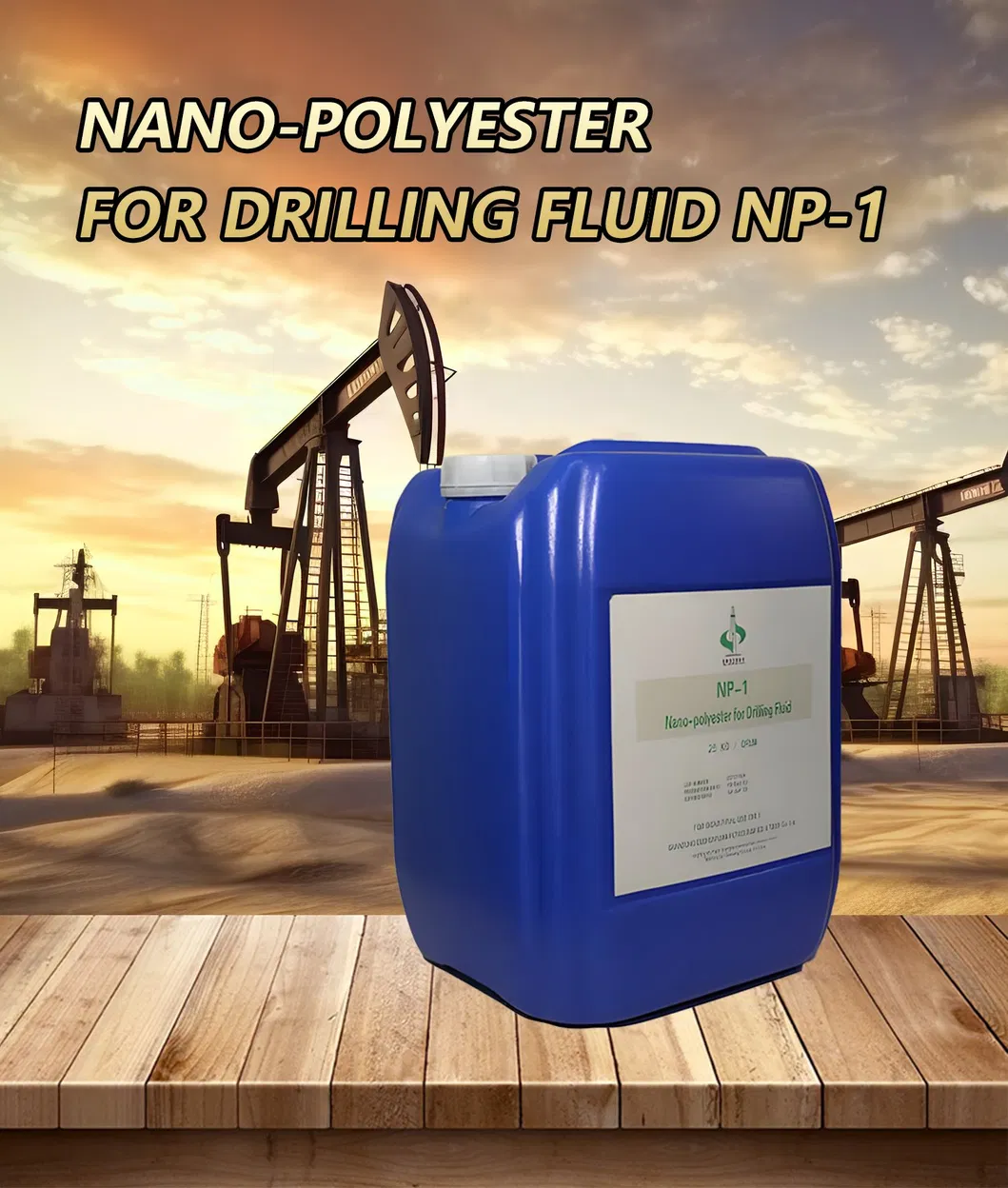

Nano-polyester for Drilling Fluid NP-1

NP-1 is a multi-polymer consisting of alkane sulfonate, alkyl ester, and crosslinking agent. It utilizes special technology to form nano-solid sealing material. The unique functional groups on the molecular chain exhibit strong adsorption ability and adhesion properties. NP-1 effectively reduces pore-pressure transmission by sealing pore throats and micro-fractures due to its reasonable size distribution in muds. It is suitable for various water-based drilling fluids as well as some oil-based drilling fluids, with a recommended dosage of 3.5-10.5 ppb.

🔵 Product Parameters
Items Specifications
Appearance White Emulsion
Solid content, % ≥ 30.0
FL API, mL ≤ 15.0
Particle size D50 after 150ºC/16h aging, μm ≤ 0.5
Performance Features
Form semipermeable membrane at the borehole interface and cutting surface to maintain stability and integrity.
Excellent performance of borehole stability, applicable to strong water-sensitive formations.
Resist high temperature up to 240 ºC and reduce HTHP filtration.
Highly compatible with other additives.
Low fluorescence, suitable for exploration wells.
Can be used as filtration reducer and sealing additive in some OBM.
🔵 Packaging & Storage

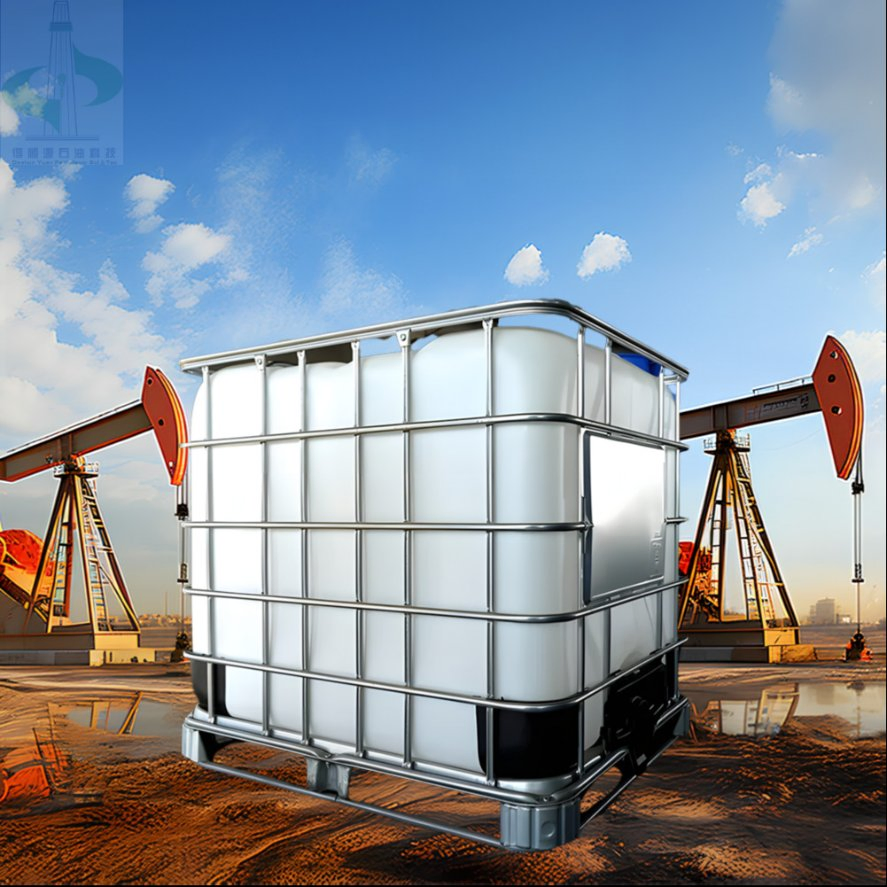

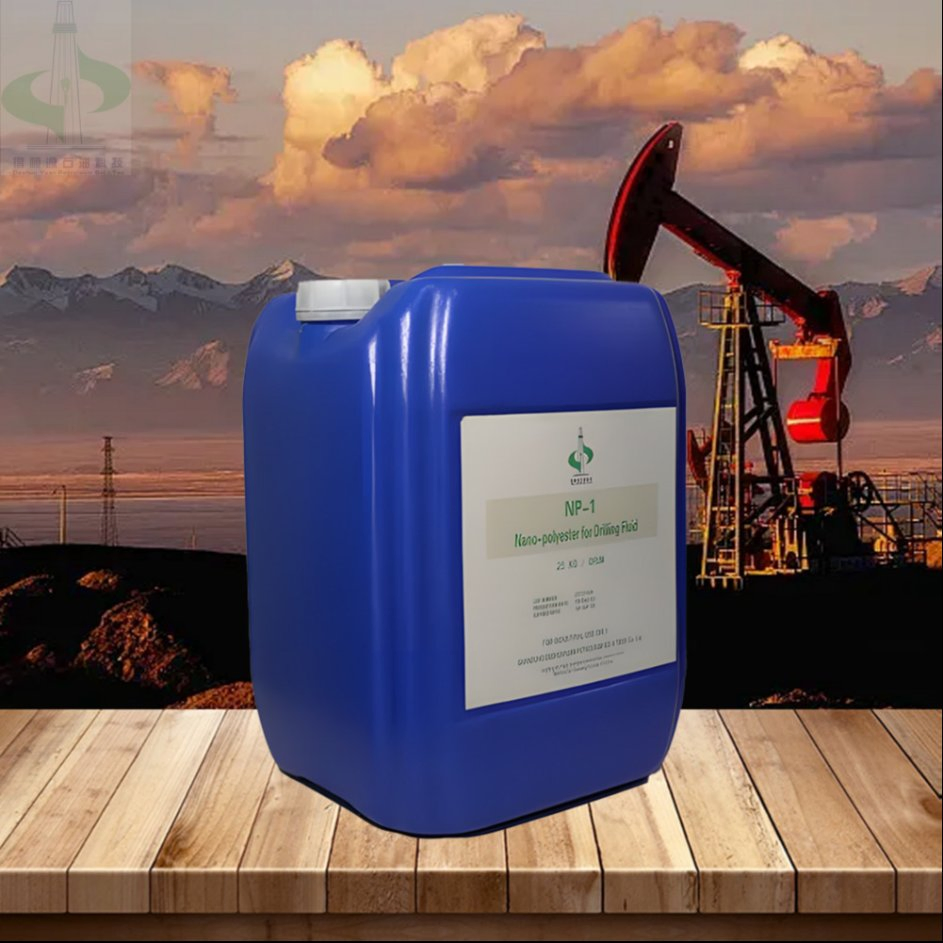

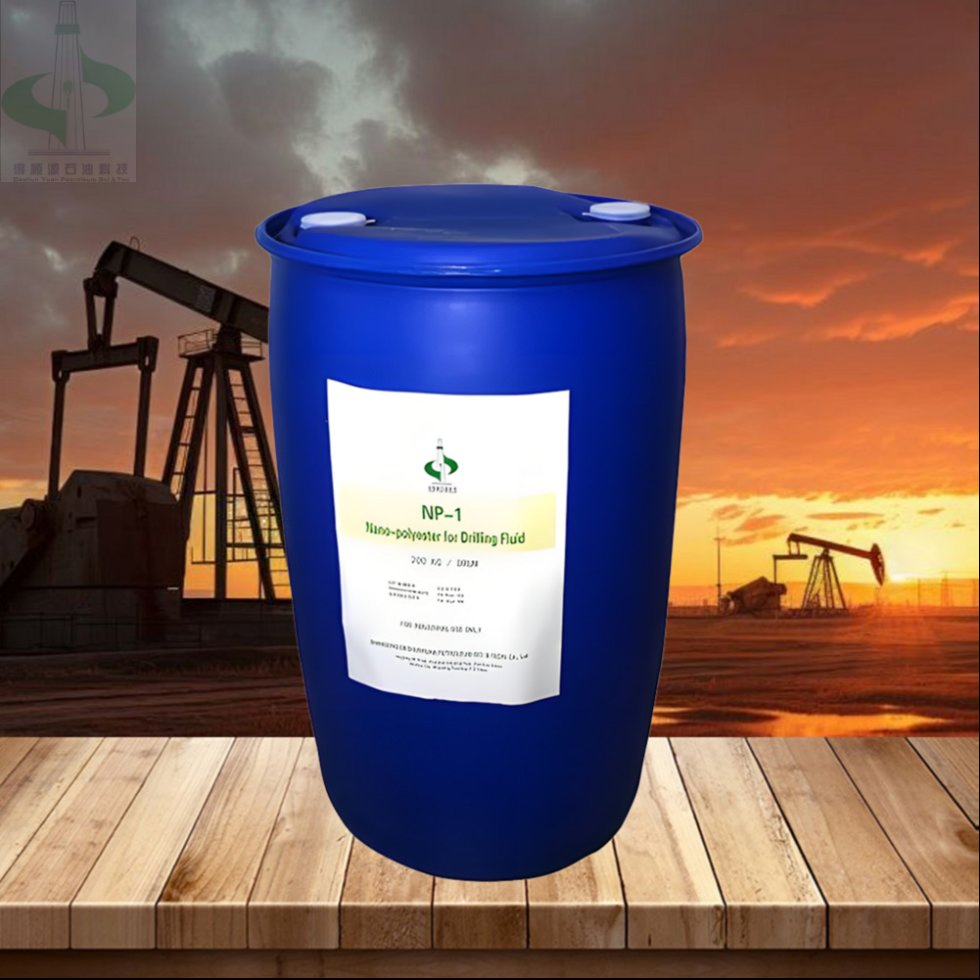

Packaged in 50L, 200L, and 1000L drums. Storage should be in a shady, dry place with good ventilation. Avoid contact with eyes, skin, and clothing. In case of contact, flush immediately with clean water. Refer to MSDS for handling methods and safety data.

Storage Info

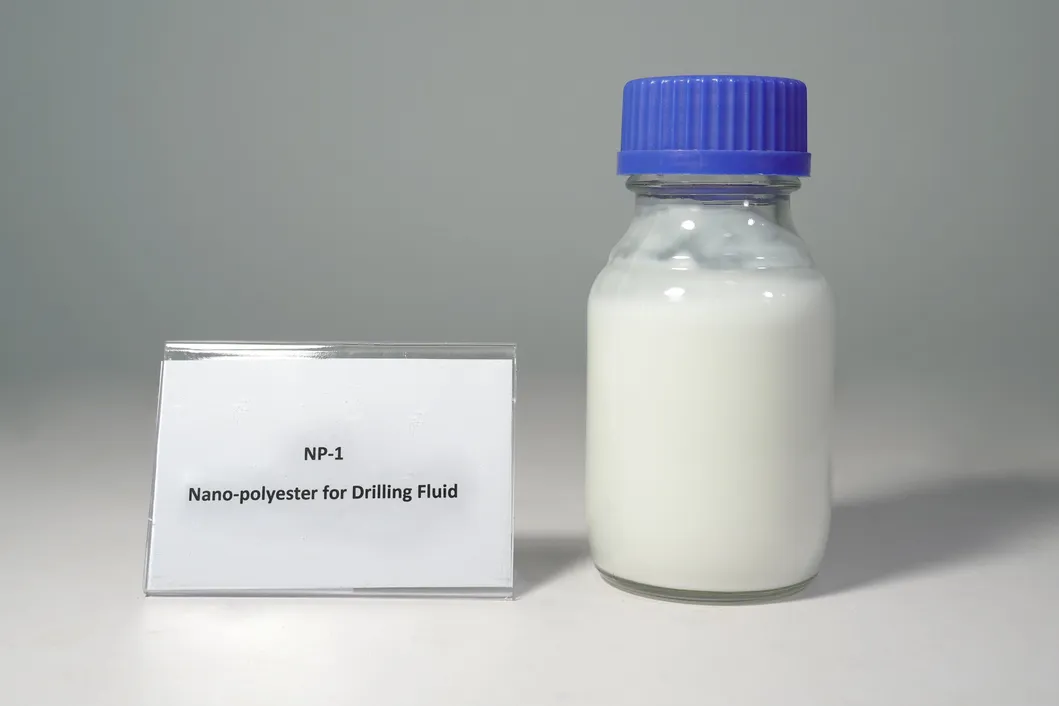

NP-1 Packaging 1 NP-1 Packaging 2
Drum Gallery
🔵 Enterprise Profile

Our high-tech enterprise is dedicated to petroleum technology development and application. We operate extensive drilling fluid workshops with an annual production capacity exceeding 30,000 MT. Our business covers additive production, engineering services, and R&D for oilfield chemicals.

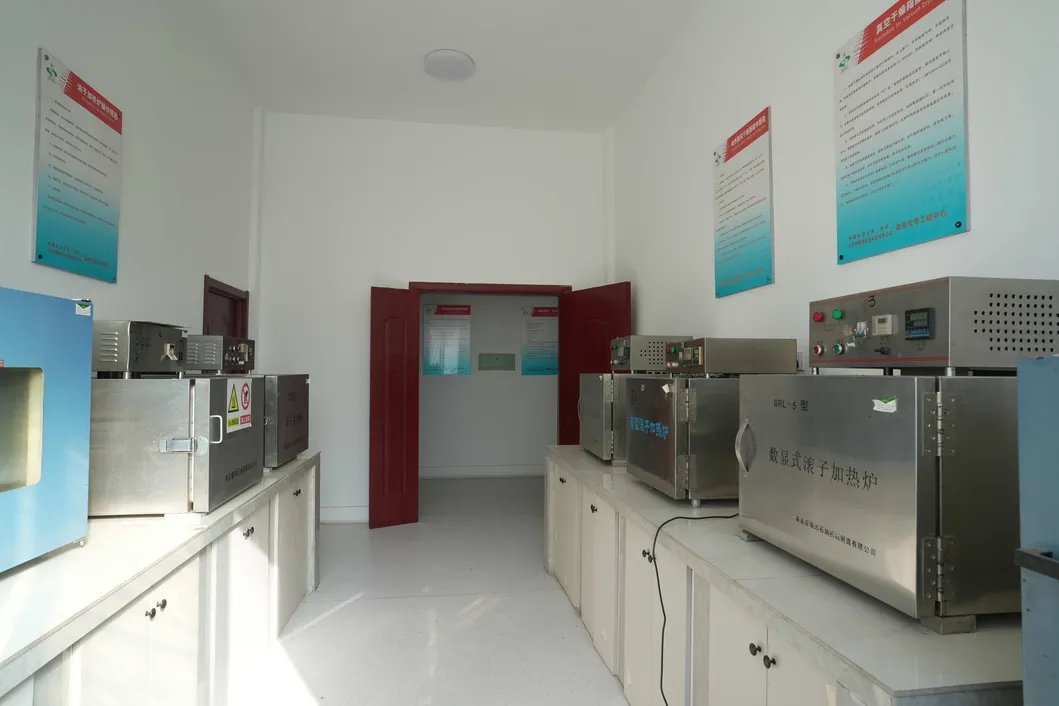

Equipped with advanced laboratories for chemical synthesis and reservoir protection, we utilize over 100 sets of testing instruments. Our technical team includes experienced researchers and senior engineers focused on maximizing productivity and cost-efficiency for international drilling operations.

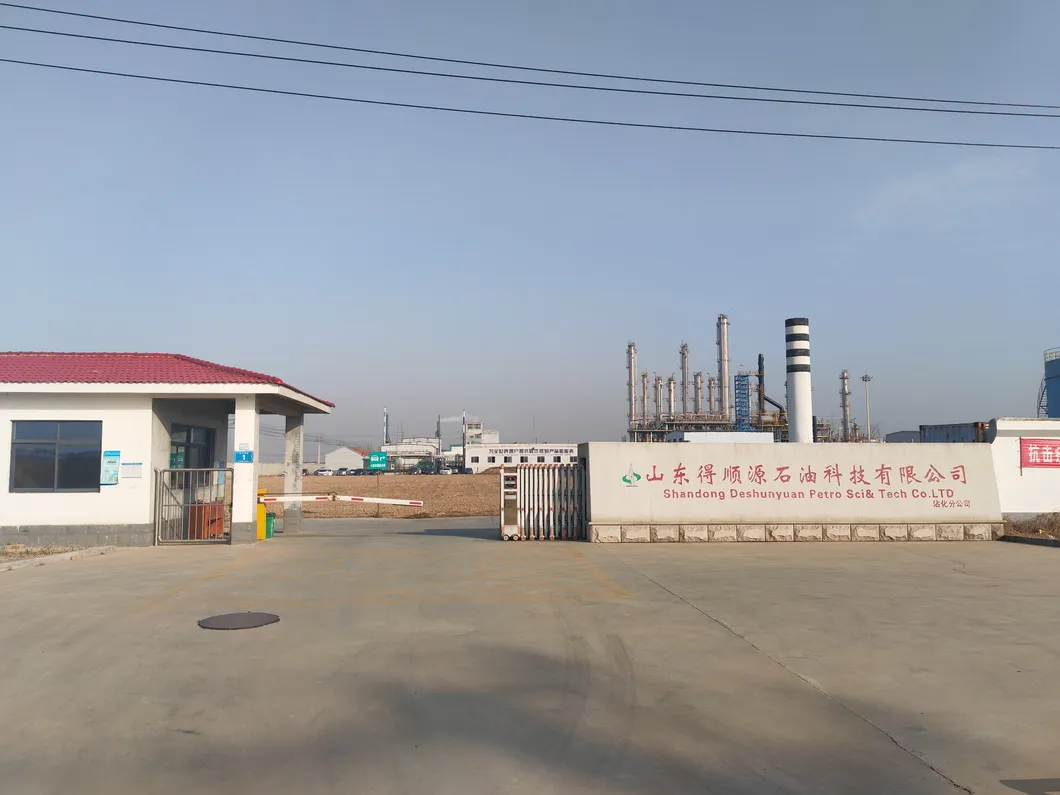

Facility 1 Facility 2
Certification
Logistics
🔵 Logistics & Shipping

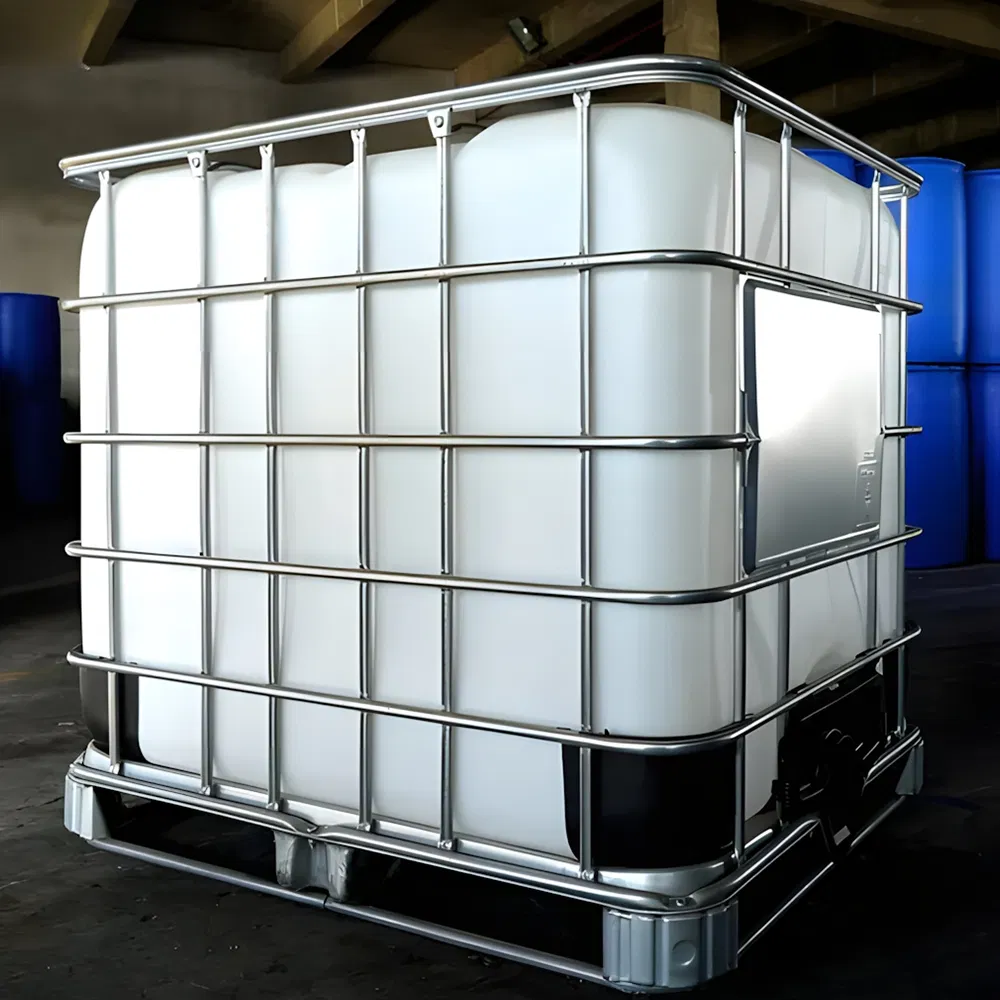

Shipping Details
Frequently Asked Questions
1. What are the primary components of NP-1? NP-1 is a multi-polymer composed of alkane sulfonate, alkyl ester, and a specialized crosslinking agent designed for nano-solid sealing.
2. What is the recommended dosage for drilling fluids? The suggested dosage for optimal performance in various drilling fluids is between 3.5 to 10.5 ppb.
3. Can NP-1 withstand extreme temperatures? Yes, NP-1 is designed to resist high temperatures up to 240ºC, making it effective for deep-well drilling.
4. Is NP-1 compatible with Oil-Based Muds (OBM)? Yes, it can be used in some OBM to control HTHP filtration, though a compatibility test is recommended prior to addition.
5. How does NP-1 contribute to borehole stability? It forms a semipermeable membrane at the borehole interface, sealing micro-fractures and pore throats to reduce pressure transmission.
6. What packaging options are available? The product is typically supplied in liquid form in 50L, 200L, or 1000L drums to suit different project requirements.
