Product Description

Industrial Heavy-Duty Solution

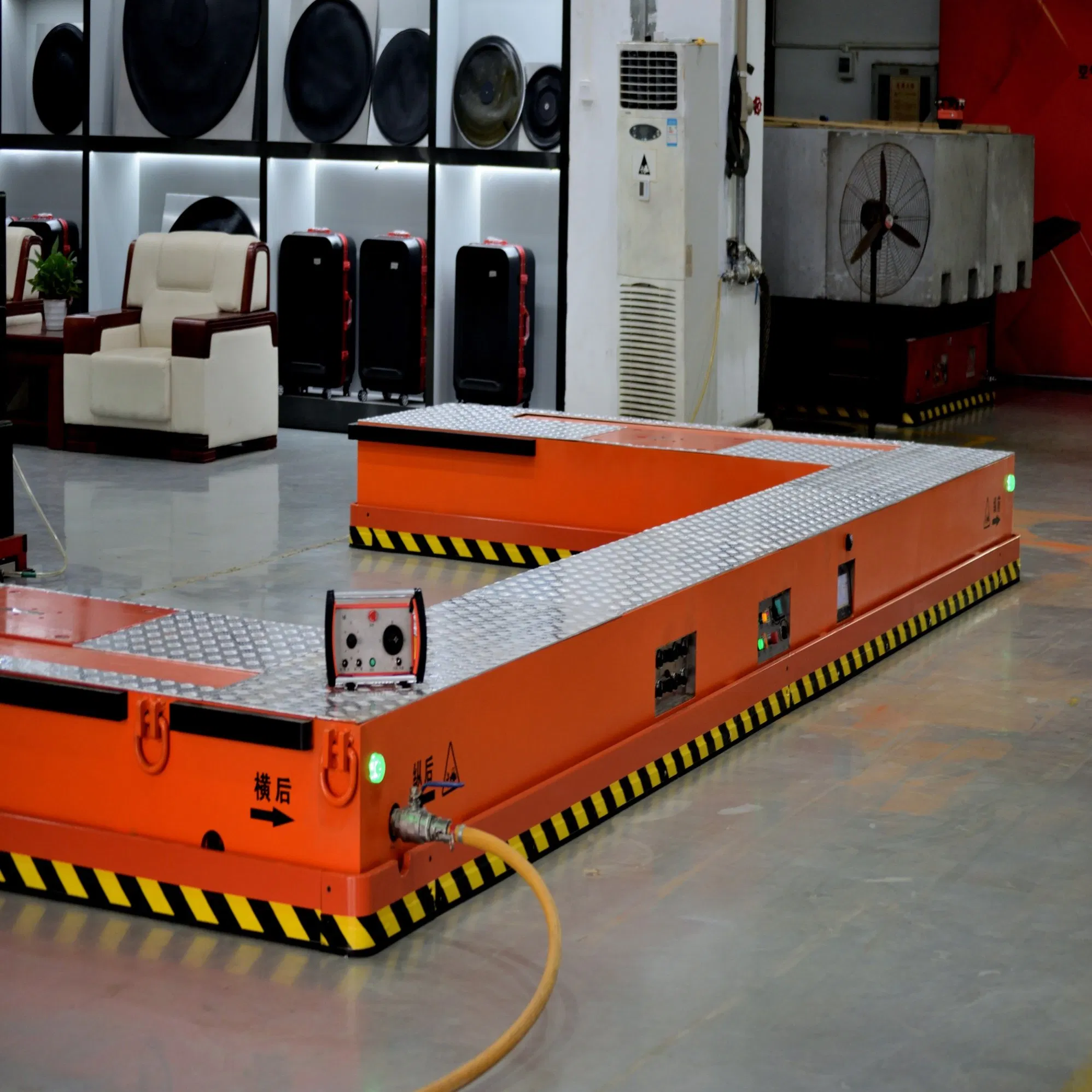

Air Bearing Transfer Cart

This remarkable air-floating flat transfer cart is engineered for heavy-duty, precision handling. Through the use of compressed air, it generates a frictionless cushion, facilitating the effortless movement of ultra-heavy loads with millimeter accuracy. Perfectly suited for environments such as cleanrooms, aerospace, semiconductors, and precision manufacturing.

🚀 Key Applications

✔ Aerospace Manufacturing: Seamlessly transport aircraft engines, fuselage sections, and precision components.

✔ Semiconductor & Electronics: Ideal for cleanroom handling of large equipment and sensitive instruments.

✔ Nuclear & Energy: Precisely move reactors and shielding blocks with unmatched accuracy.

✔ Medical Equipment: Effortlessly transport large-scale imaging devices like MRI and CT machines.

✔ Shipbuilding: Achieve precise alignment while moving large modules and heavy assemblies.

✔ Scientific Research: Flexible positioning of lab setups and test platforms.

⚙️ Key Configurations

Air Supply: 0.4–0.8 MPa working pressure.

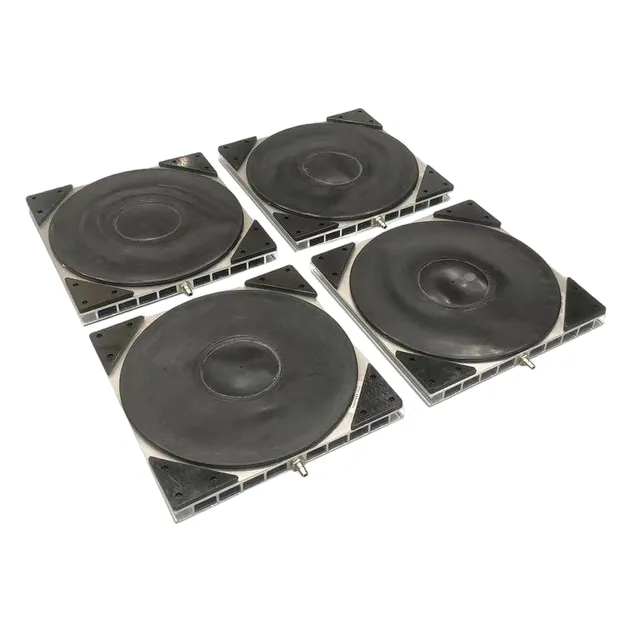

Floatation: Integrated air cushion modules for contact-free movement.

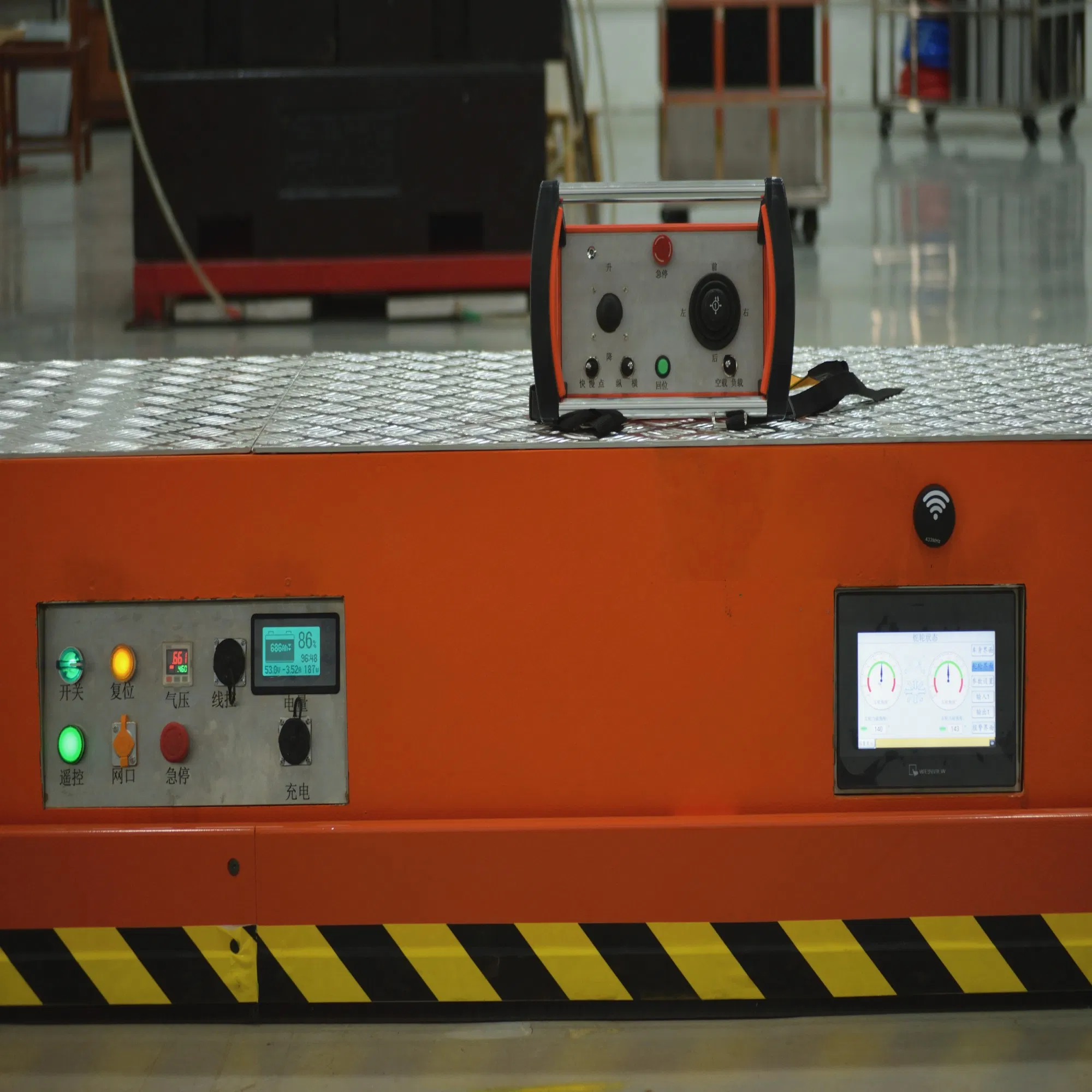

Control: Manual or remote control with emergency stop.

Load Capacity: Customizable from 1 ton to 1500 tons.

Mobility: Omnidirectional movement on smooth floors.

Safety: Pressure monitoring and overload protection.

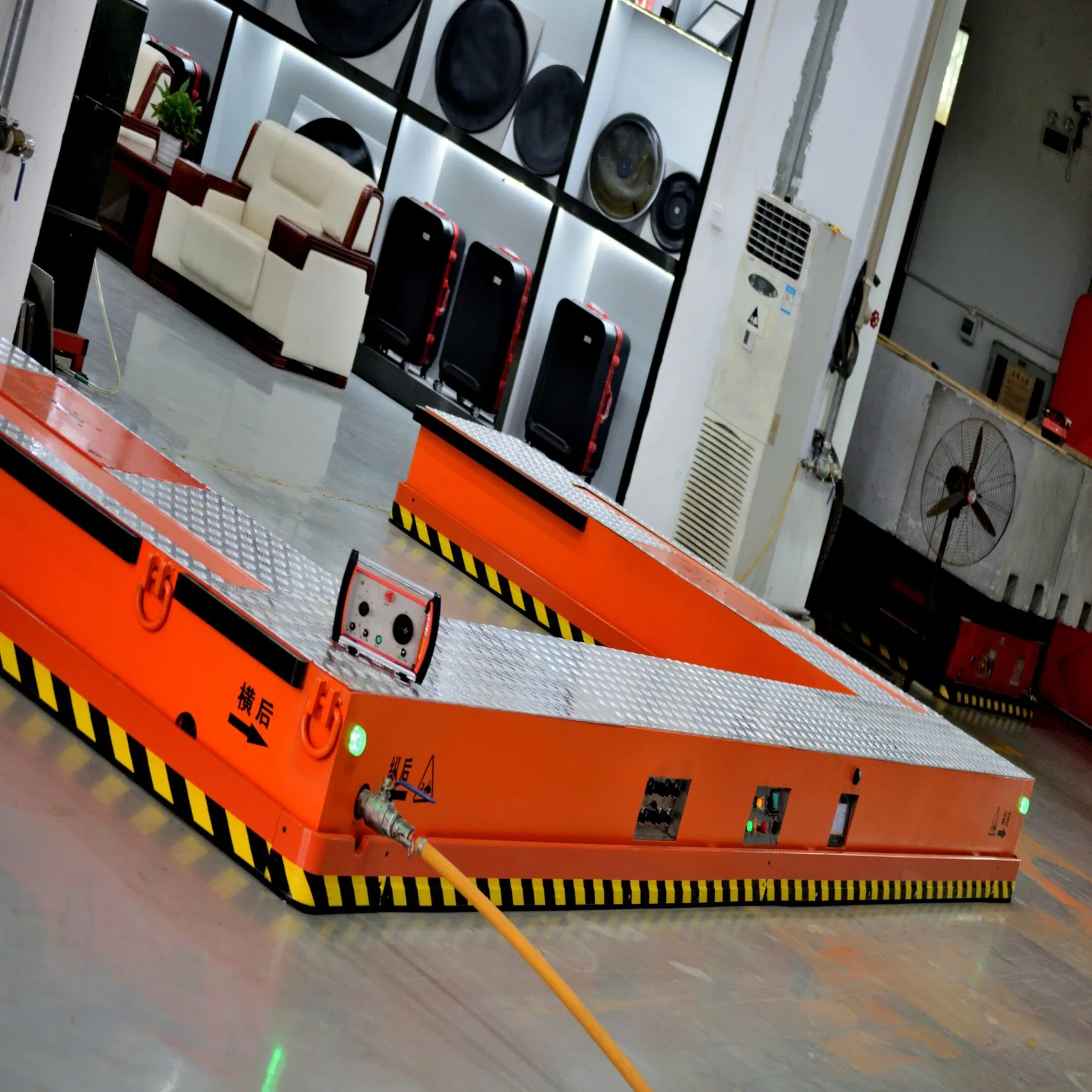

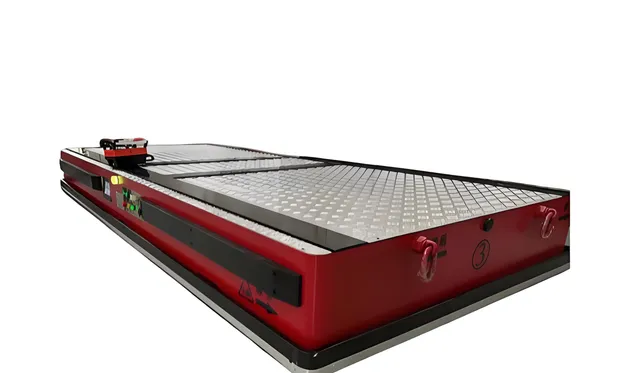

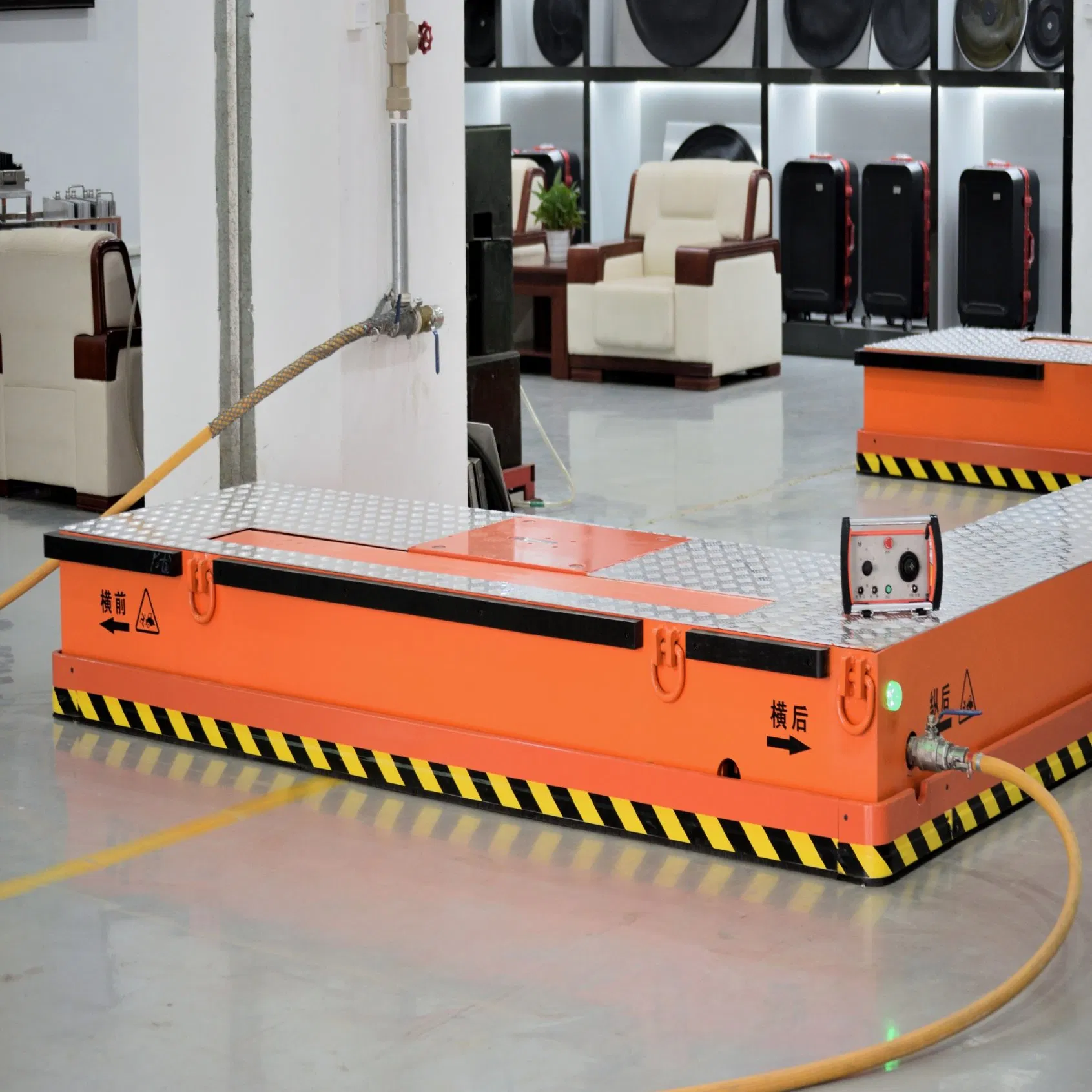

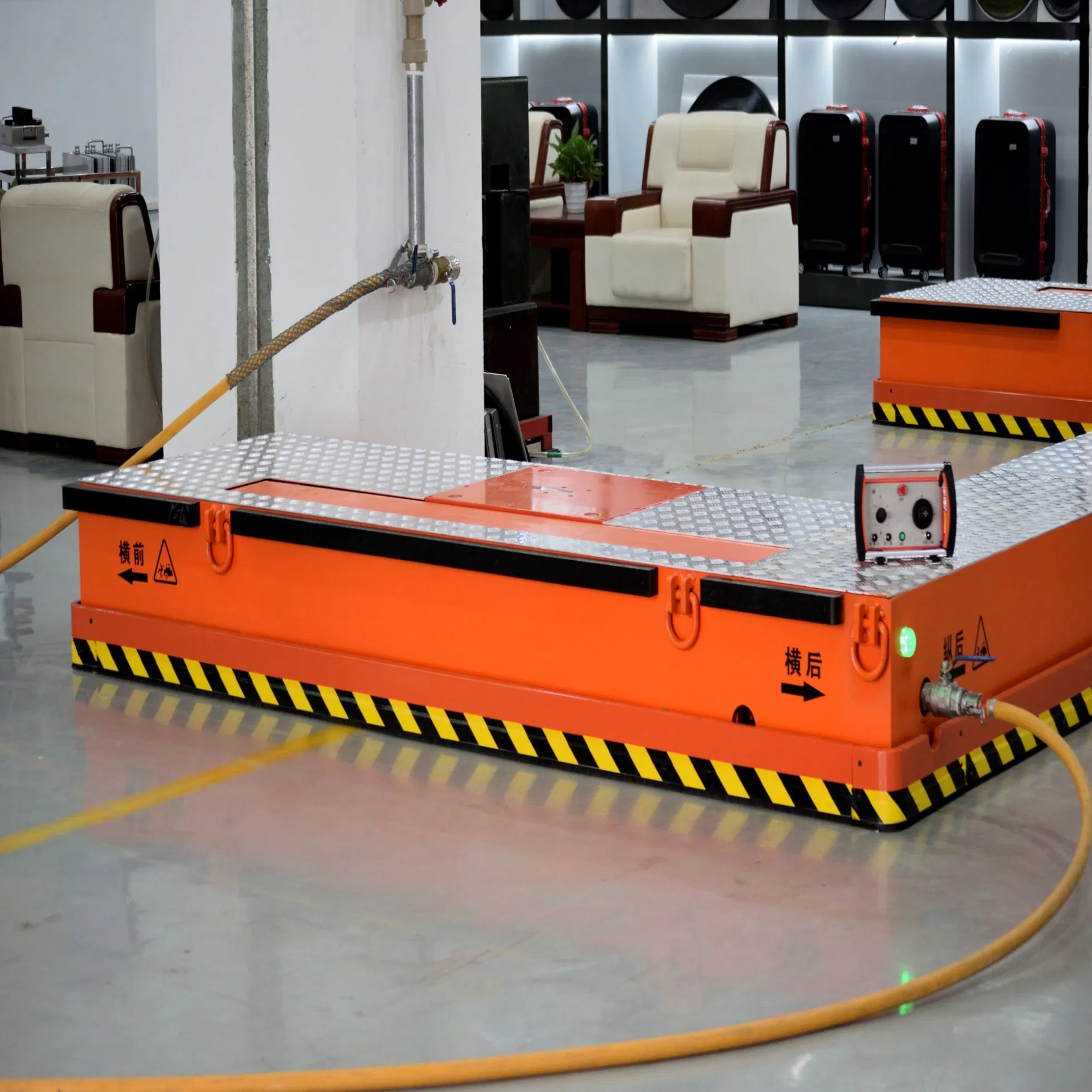

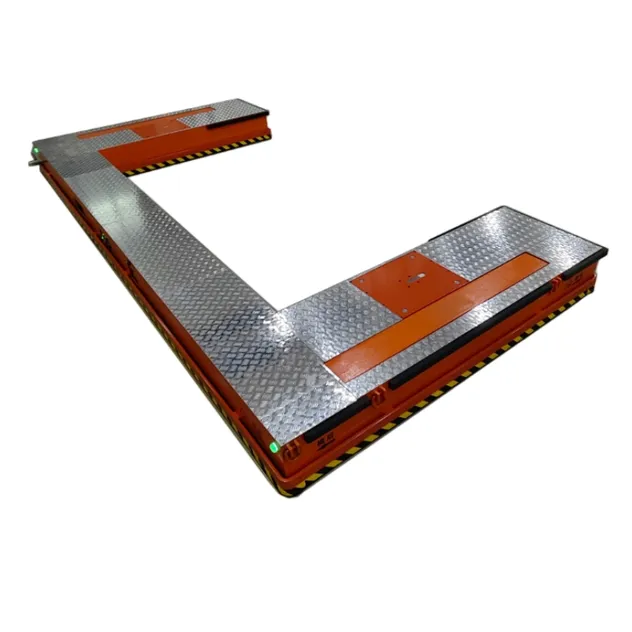

📸 Product Display

📊 Specification Range

Item	Specification Range	Remarks
Load Capacity	1 ton ~ 1500 tons	Common: 5t, 10t, 20t, 50t, 100t
Platform Size	Customizable	Based on material size and site
Ground Clearance	Typically 5mm ~ 10mm	Suspended after air film formation
Air Pressure	0.4 ~ 0.6 MPa	Matches factory compressed air
Power Supply	220V/380V/Battery/Pneumatic	Non-standard customization available
Movement	Manual / Electric / Auto-guided	Options: omni wheels, tow bar, AGV

🛠️ Professional Service

After Sales Service: 12-month standard warranty, 24/7 technical assistance, and comprehensive on-site or remote training.

Why Choose Us? We offer OEM/ODM capabilities, competitive pricing for high-quality products, fast shipping logistics, and full turnkey project solutions from concept to completion.

Frequently Asked Questions

Q: How does the air cushion platform work? A: Our air cushion platform ingeniously creates an air film between itself and the floor using compressed air, allowing for contact-free, smooth, and effortless floating transport.

Q: What kind of floor is required? A: To ensure optimal performance, a flat, smooth, non-porous hard surface like epoxy or concrete is recommended.

Q: What kind of air source is required? A: A compressed air source with a pressure range of 0.4–0.8 MPa is typically required to ensure optimal function.

Q: Is remote control supported? A: Yes, we offer convenient remote and handle control options, allowing for straightforward start/stop functions and precise directional control.

Q: Will it damage the floor? A: No, the platform moves without direct contact, preserving the integrity of your floors and eliminating any potential for damage.

Q: Is it suitable for cleanroom environments? A: Yes, it is an excellent choice for cleanrooms, offering frictionless and dust-free operation that maintains pristine conditions.
