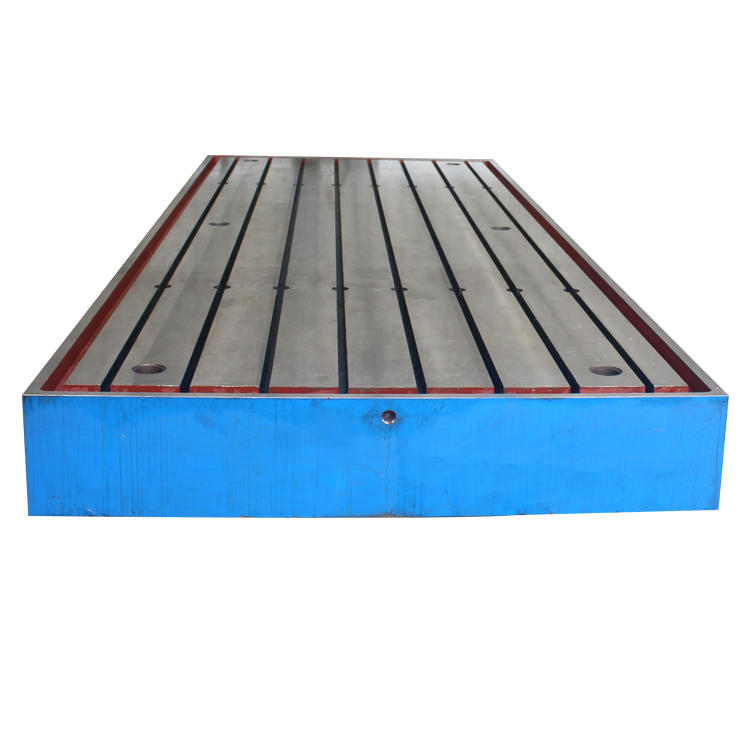

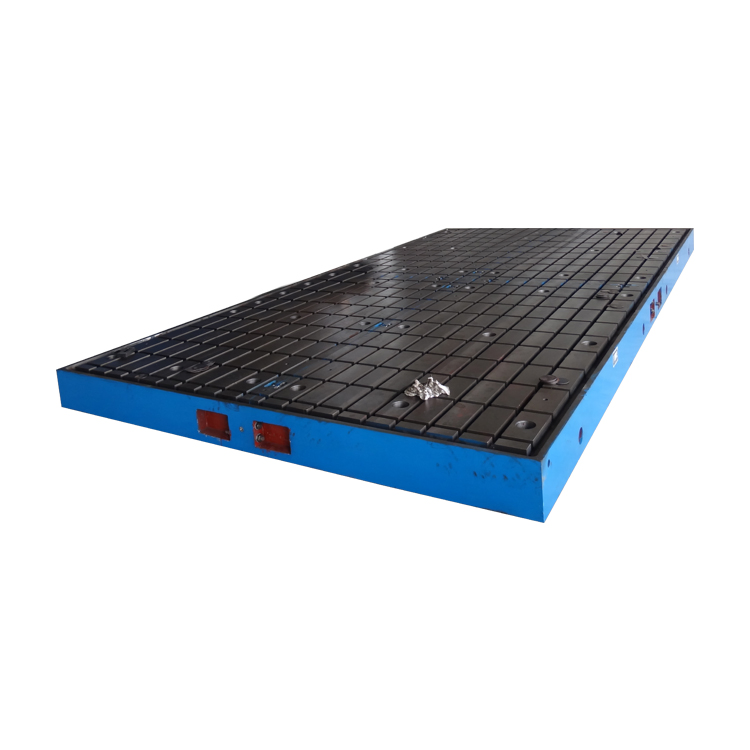

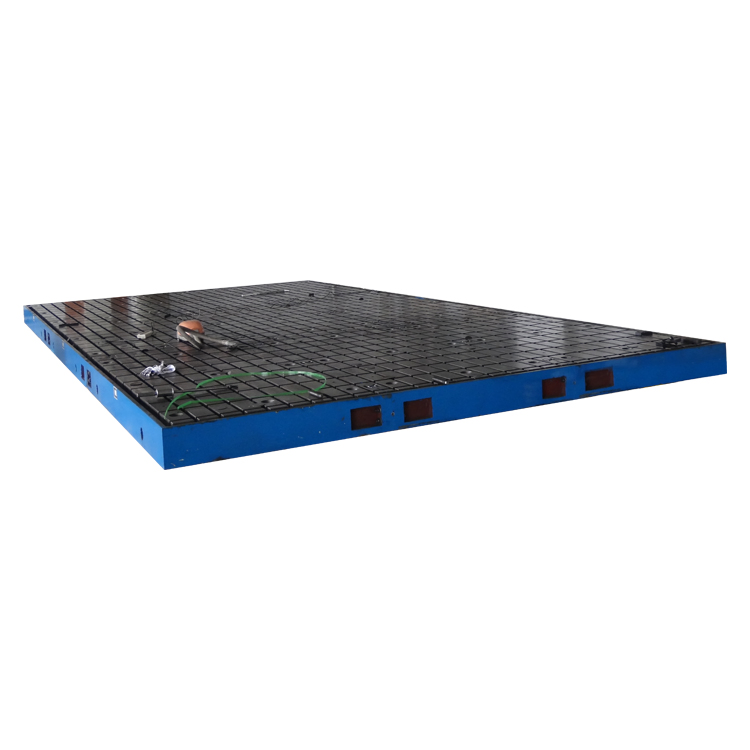

Cast iron surface plates are also known as cast iron platform. These plates are manufactured according to the GB4986-85 standard to ensure high quality. The products are typically designed as ribbed plates or box-type structures. We utilize a scraping process to significantly improve the precision of the surfaces.
Since the products are customized, customers can specify sizes according to their actual technical needs. Multiple cast iron surface plates can be spliced together. Once abrasion occurs after extensive use, the plate can be re-scraped to resume its original accuracy.
| Product Parameters | |
|---|---|
| Material | High-strength cast iron, HT200-300 |
| Type | 100*100~3000*8000mm or customize |

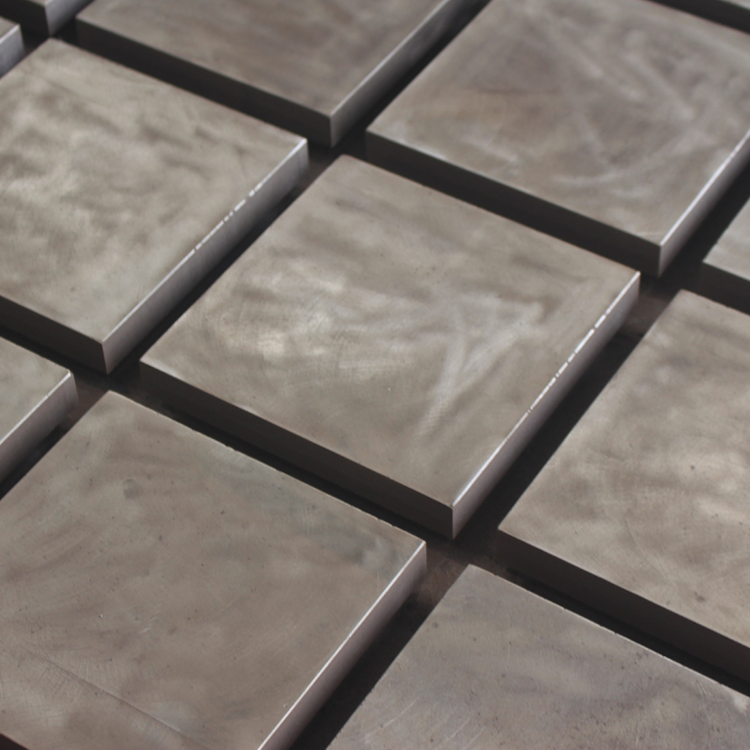

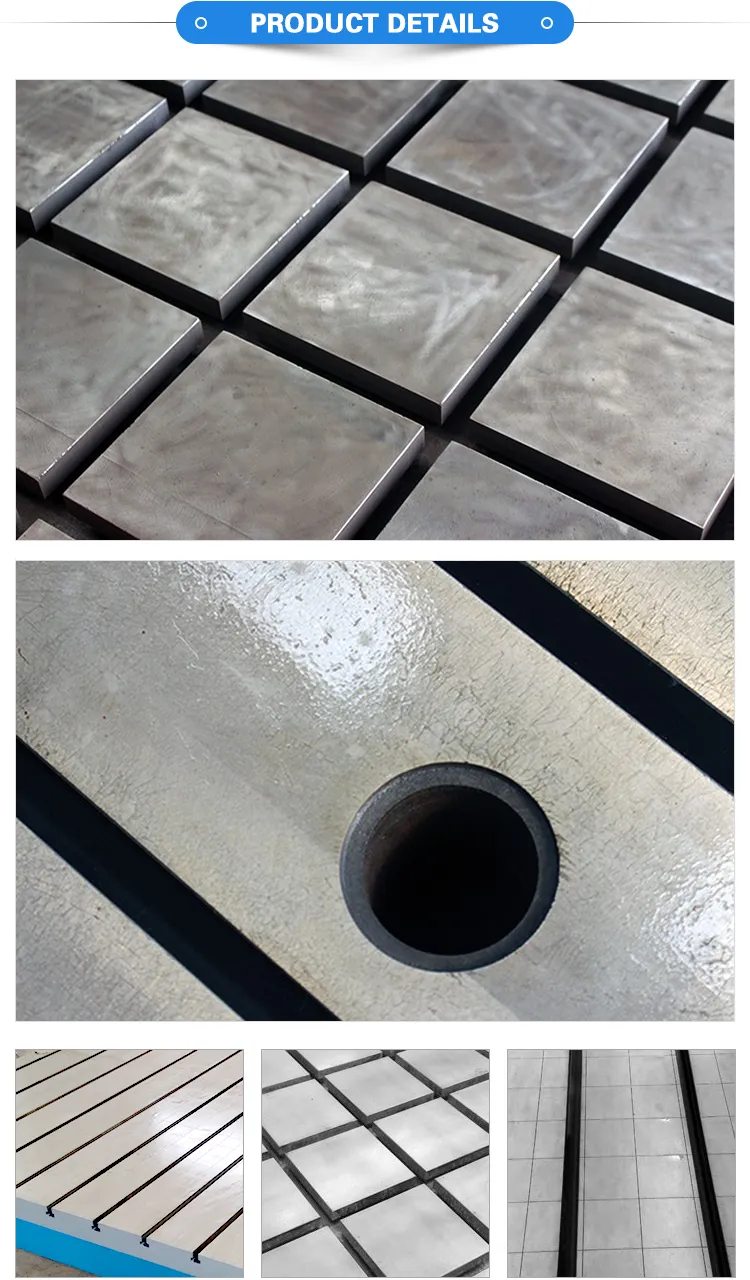

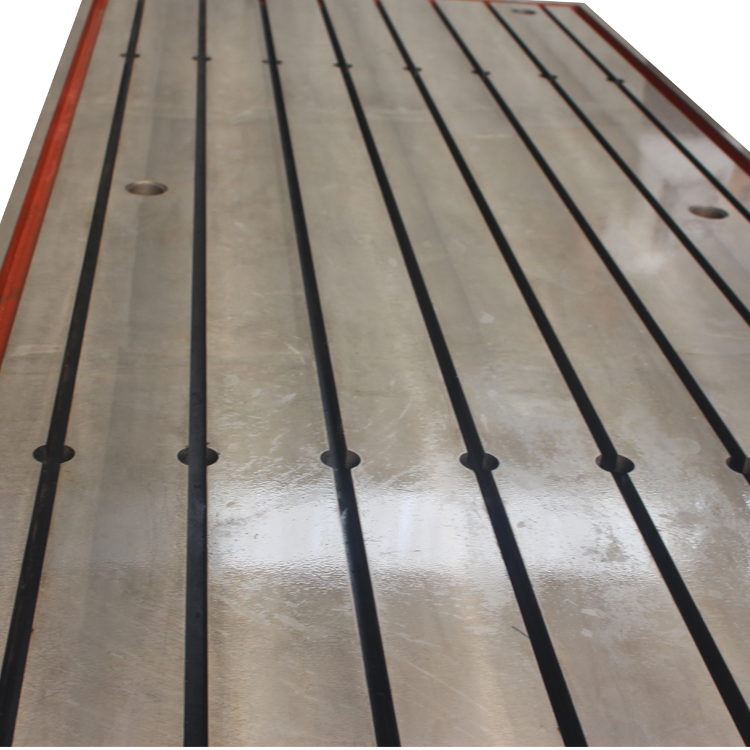

| The Surface | Flat or V, T, straight-shaped slots and tapped holes, long holes, grid lines |
| Surface Treatment | Hand-scraped, finish-milling or ground finish |
| Foundry Technology | Sand casting or centrifugal casting |
| Molded Type | Resin sand molding |
| Precision Grade | 0, 1, 2, 3 Grade |
| Hardness of Working Surface | HB170-240 |
| Working Temperature | (20±5)ºC |
| Package | Wooden box |
