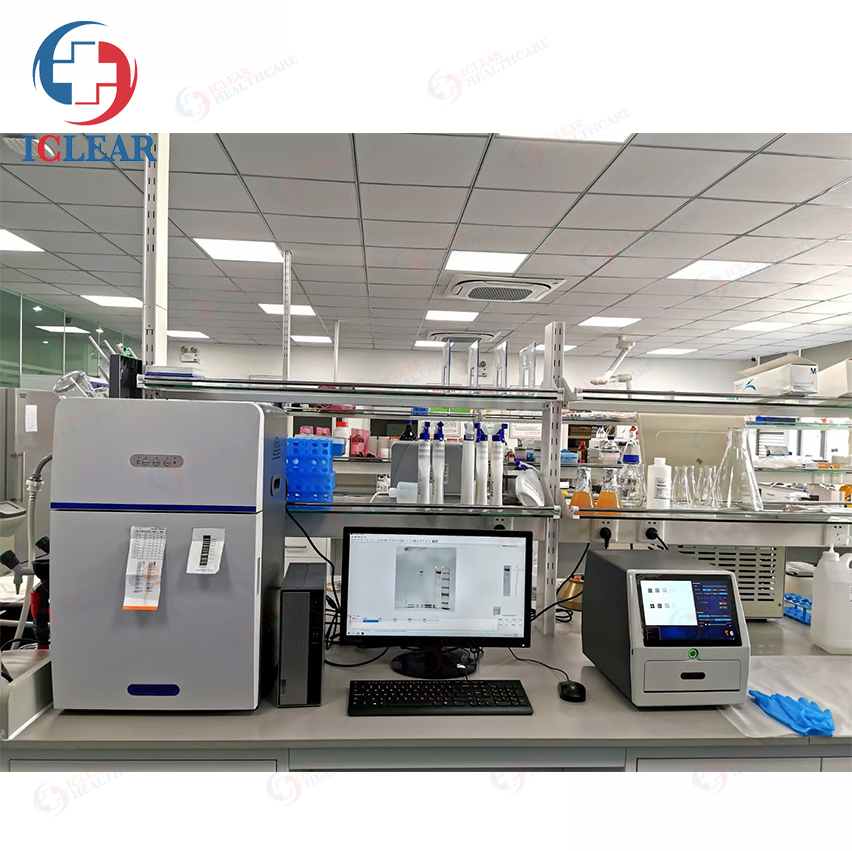

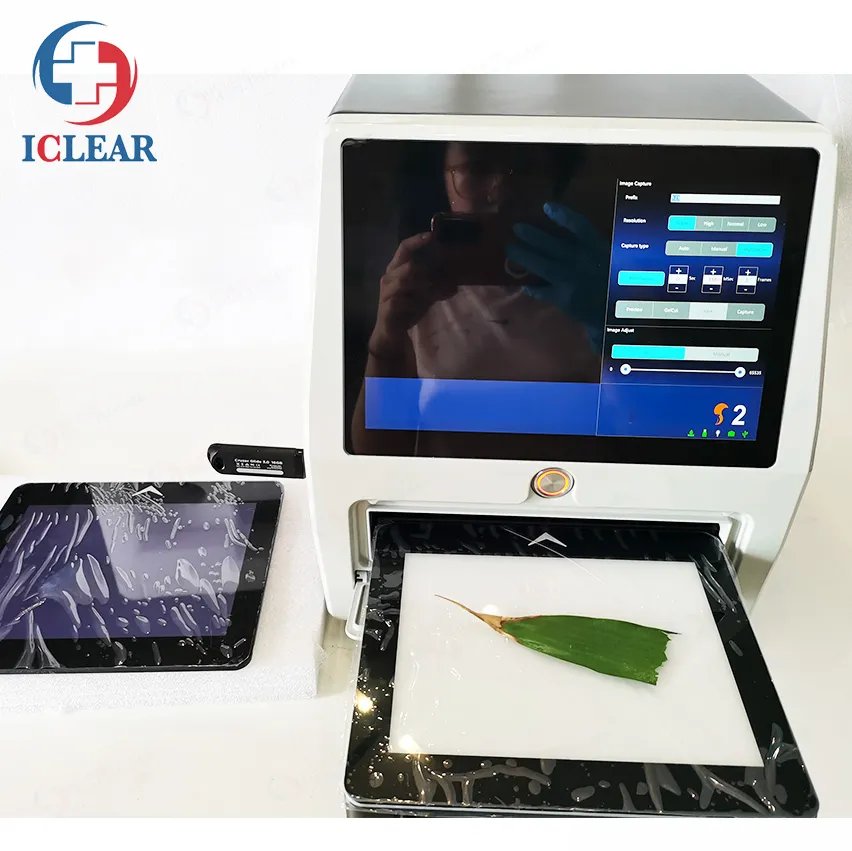

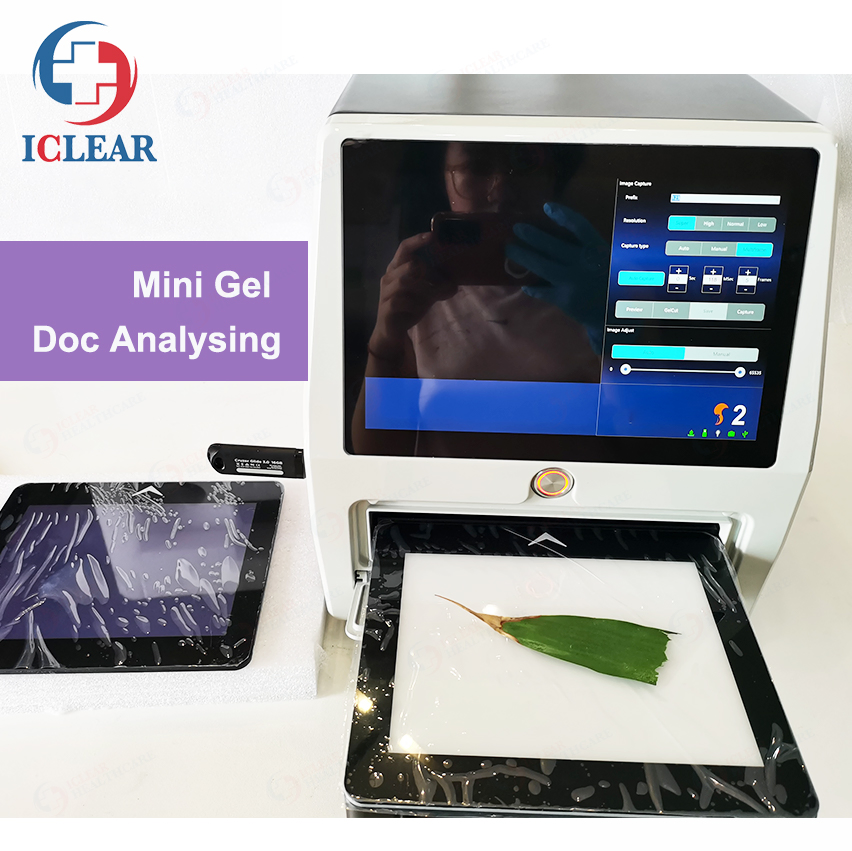

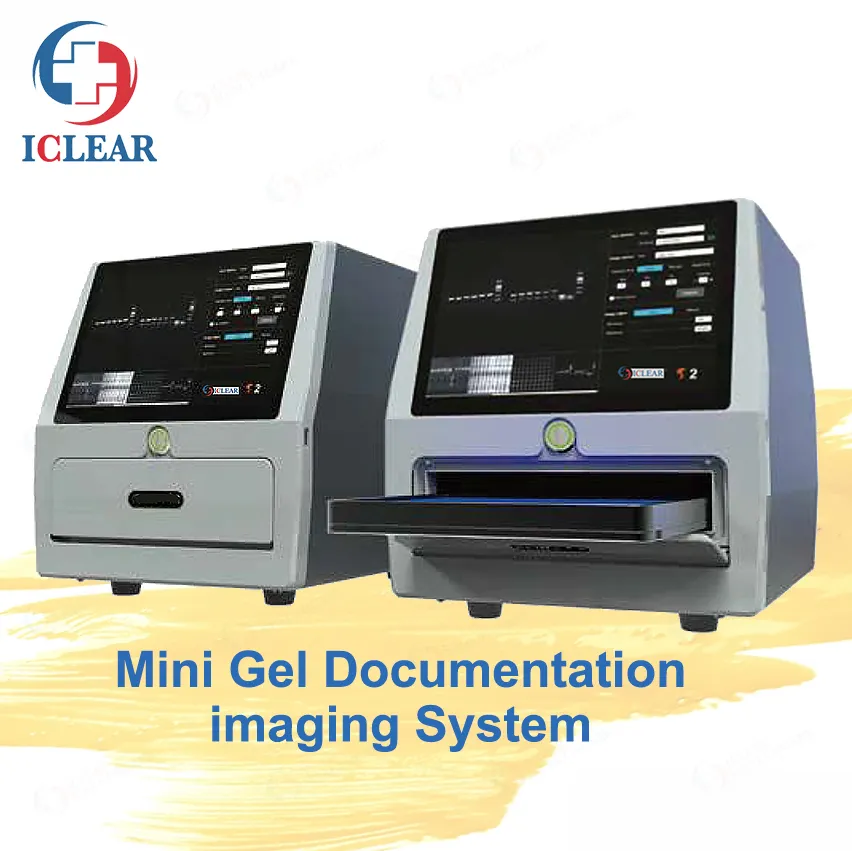

The CHL-S2 is a specialized gel imaging system designed for the analysis and research of electrophoresis gel images and hybridization membranes. Equipped with a high-resolution and high-sensitivity camera, it ensures no loss of bands even in low-light conditions. The system features fully automatic computer control, high programming capability, and a user-friendly interface. Its full-featured analysis software provides accurate and rapid results, streamlining workflows for molecular biology and clinical researchers.
| Parameter | Detail |
|---|---|
| Model | CHL-S2 |
| Shooting Area | 170 * 130mm |
| Camera | 16-bit scientific-grade digital camera |
| Lens | Fixed focus; F1.4 |
| Pixels | 6.44 megapixel (3096 * 2080) |
| Pixel Binning | 1*1 and 2*2 optional |
| Tablet Computer | 10.1-inch touch screen; max resolution 1920 * 1200 |
| Sample Tray | Power-driven |

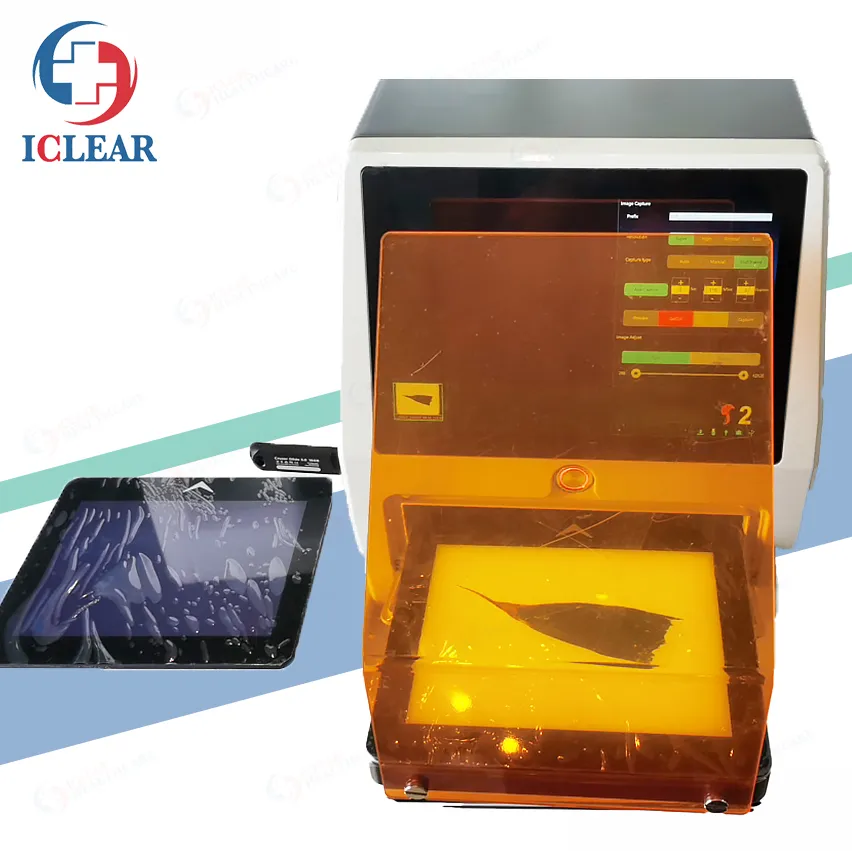

| Blue Light Wavelength | 470nm |
| Software | Manual/Auto exposure & multi-frame shooting |
| Dimension (W*D*H) | 286 * 355 * 321mm |
| Net Weight | 12 kg |

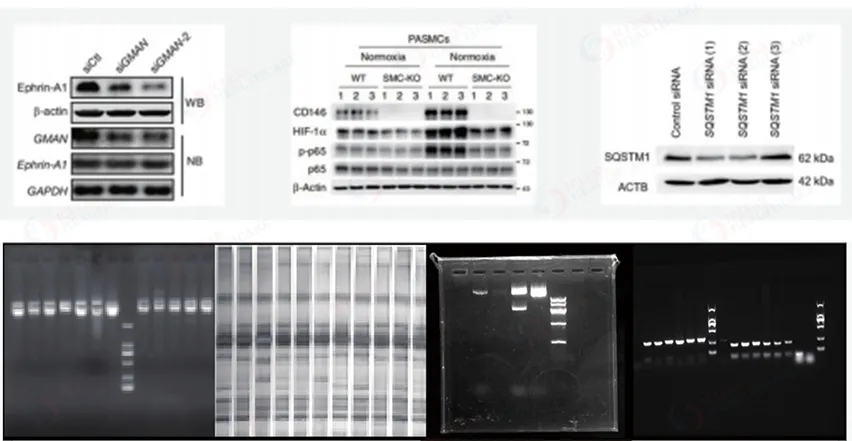

Nucleic Acid Testing: Detection of DNA/RNA labeled with various fluorescent dyes such as Ethidium Bromide, SYBR™ Gold, SYBR™ Green, SYBR™ Safe, GelStar™, Texas Red, and Fluorescein.
Protein Detection: Coomassie Brilliant Blue, Silver Stain, and Fluorescent Dyes like Sypro™ Red, Sypro™ Orange, Pro-Q Diamond, and Deep Purple labeling.
Other Applications: Hybridization membranes, protein transfer membranes, colony counting, microtiter plates, and TLC plates.
