Customization: Available
Classification: Biochemical Apparatus
Certification: CE
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.:SY-W007-1
Product Name:qPCR System
Multiplex Capability:Up to 4 Targets Per Well
Detection Threshold:3 Copies
Dynamic Range:>1.0e9
Signal Interface:USB 2.0
Reaction System:10-60μL
Fluorescence:6-Plex Detection
Operating System:10-Inch Touch Screen (Android)
Networking:WiFi, Online Report Printing
Certificates:NMPA, CE, FDA Establishment
📋

Product Description

Portable qPCR System
Capacity8 wells
ChannelsUp to 4 (FAM/SYBR Green, JOE/HEX/VIC, ROX/Texas Red, CY5/LIZ)
Excitation SourceHigh endurance LED
DetectorUltra-low-light CMOS bio-imaging chip
Thermal SystemSolid-state, Peltier-based
Tube Formats0.2mL, 4 or 8-tube strip
Temp UniformityWithin ±0.25°C at annealing stage
✨

Key Features & Applications

The SY-W007-1 is a portable high-performance real-time quantitative PCR system. It is optimally suited for applications where portability, minimal space, and fast results are required.

  • Fully compatible with standard qPCR assays and consumables.
  • Rugged design with no internal moving parts; no calibration needed.
  • Equipped with ultra-low-light sensitive CMOS fluorescent imager.
  • Intuitive cross-platform software with cloud connectivity.
  • Low power consumption (External 16V supply, < 150W).

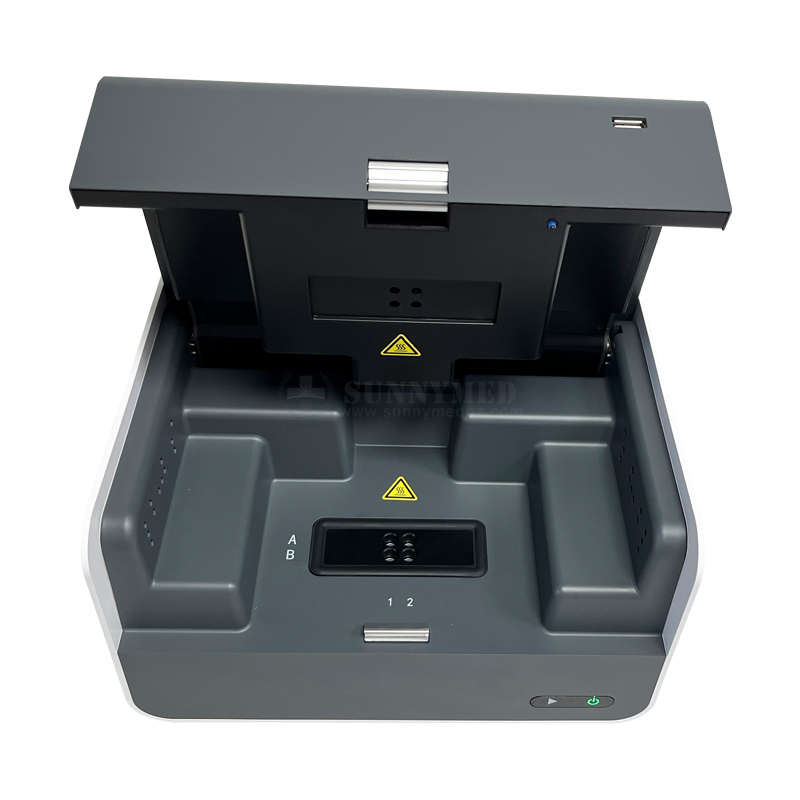

qPCR Device View
🖼️

Detailed Photos

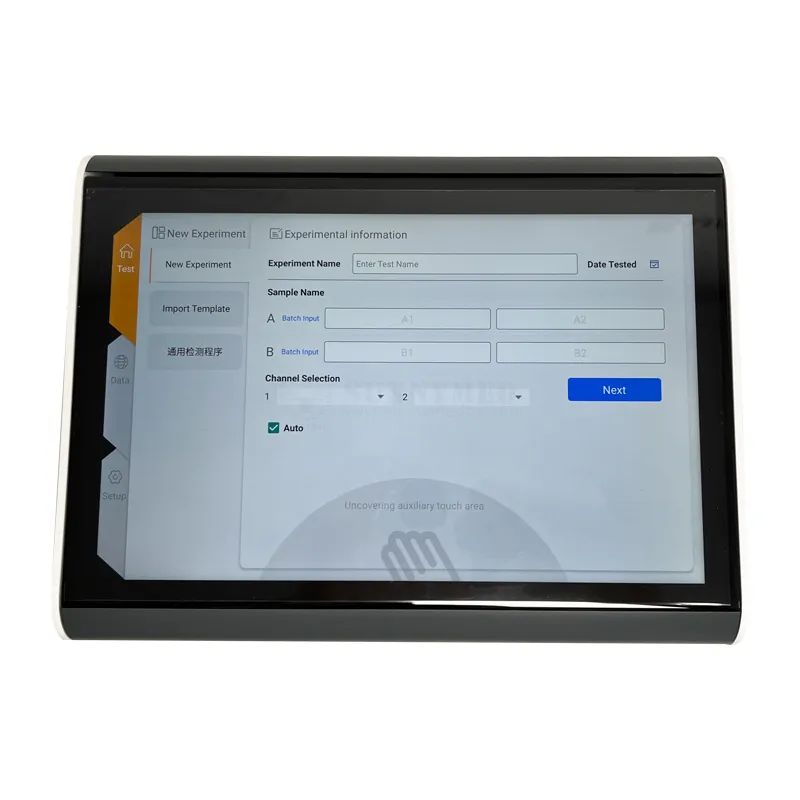

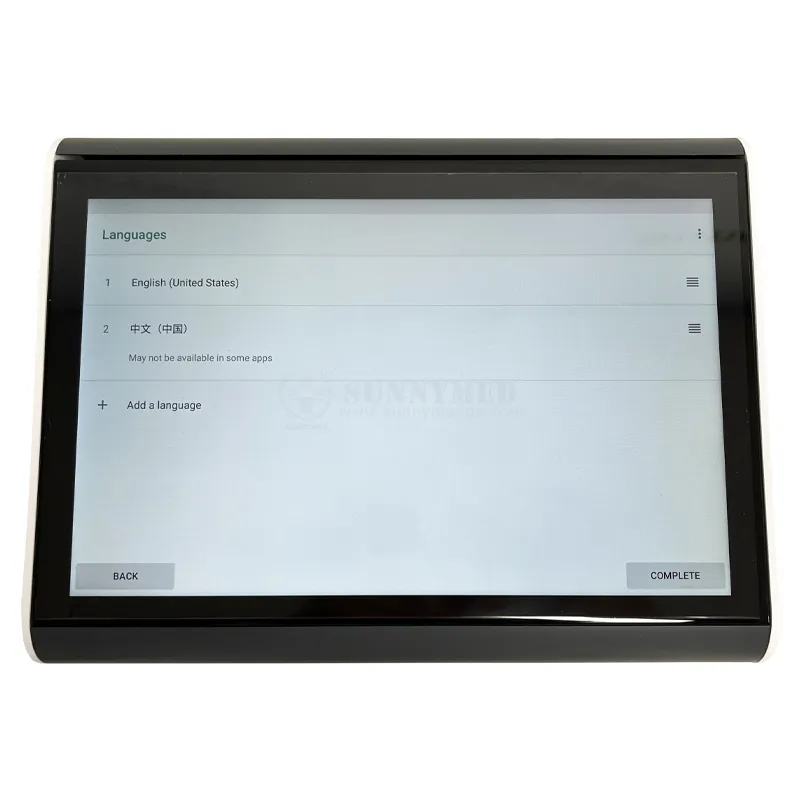

Interface View Compact Design Laboratory Use

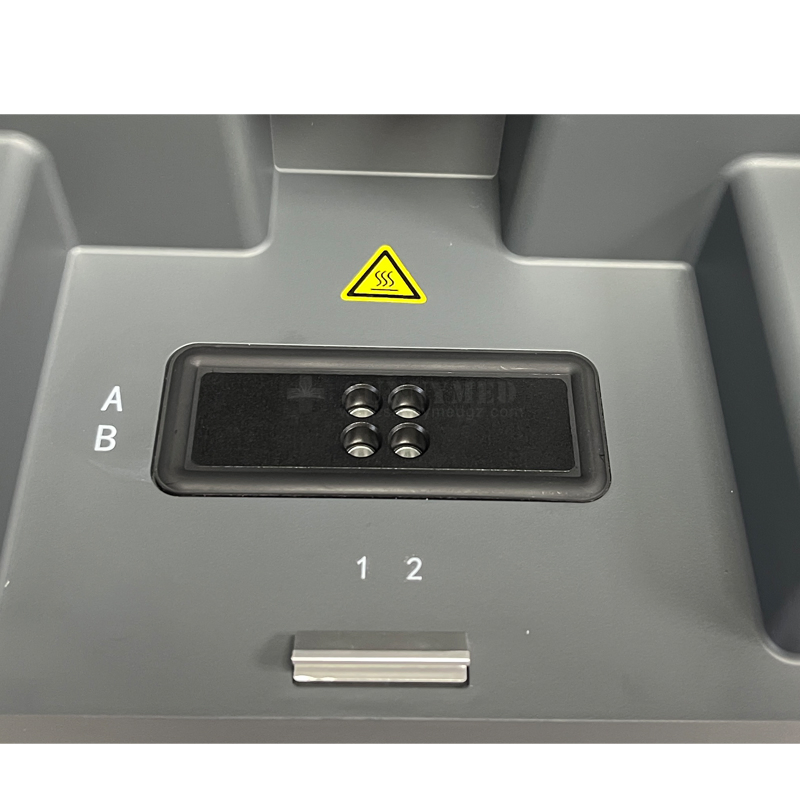

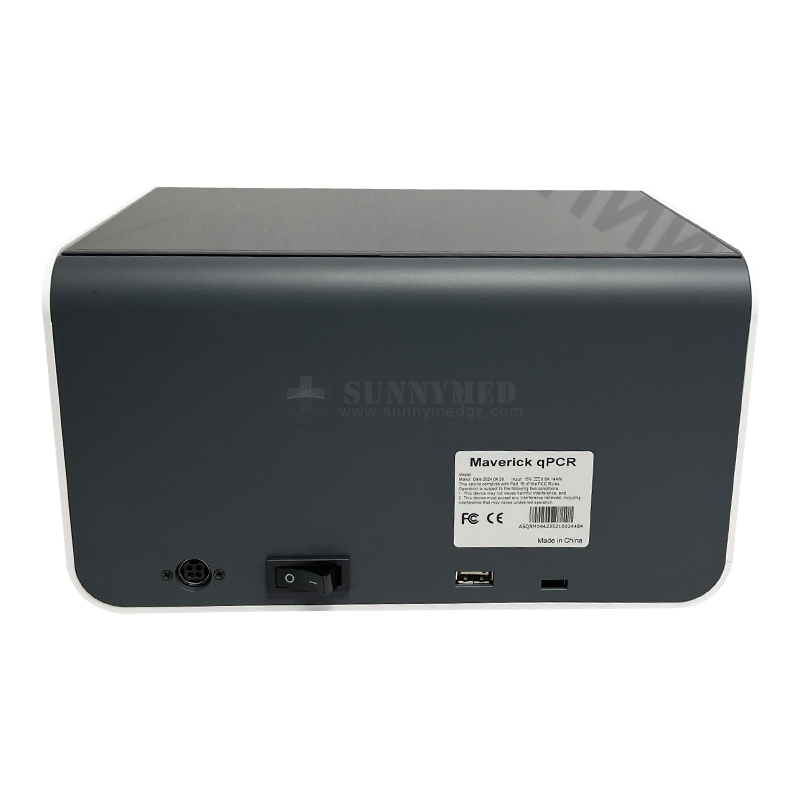

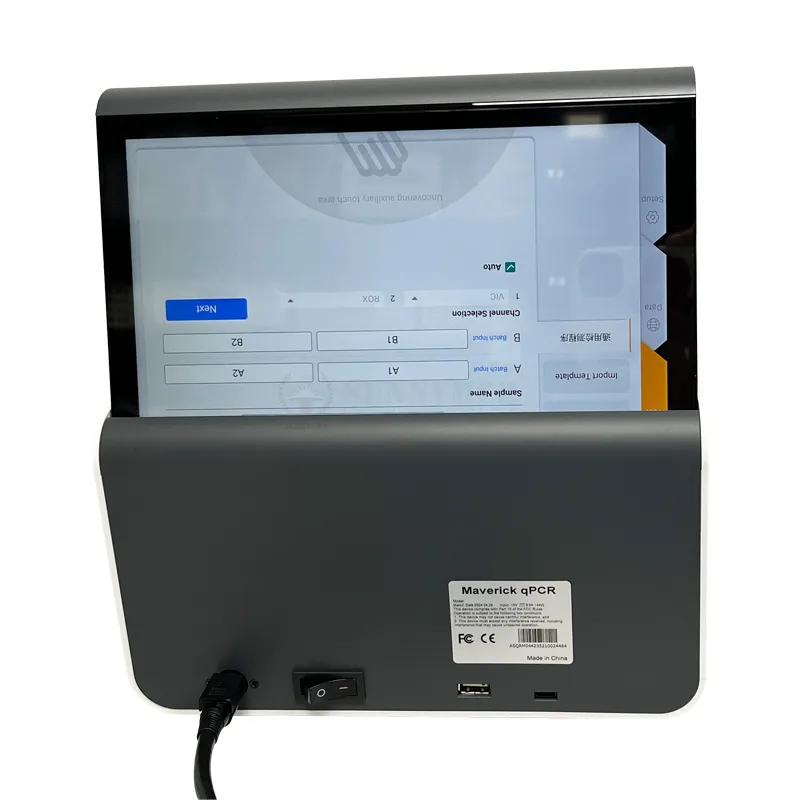

Detail 1 Detail 2
📦

Packaging & Logistics

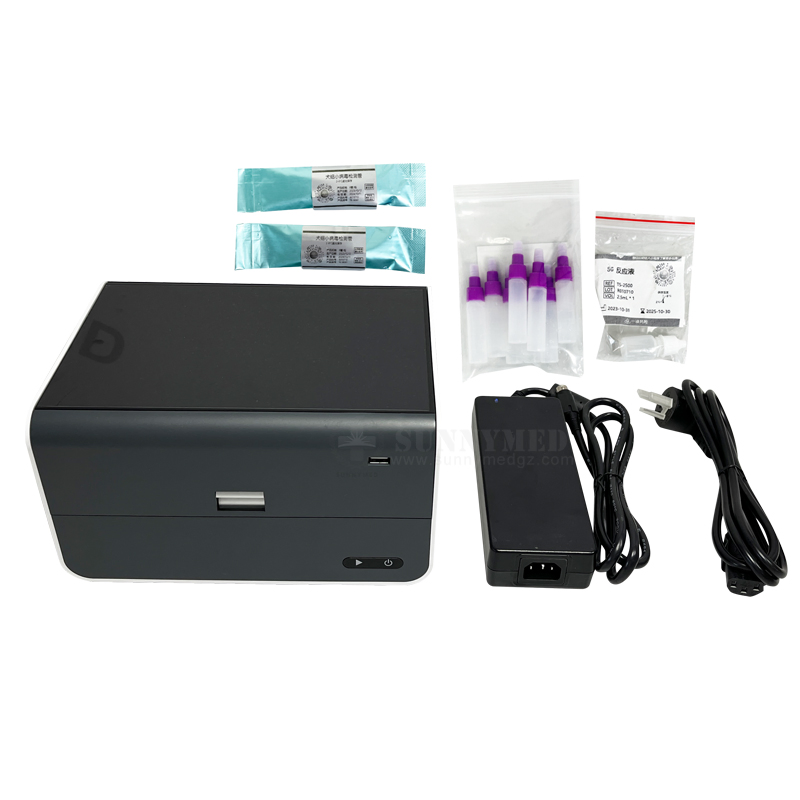

Packaging
Payment Methods Shipping Safety
🏆

Why Choose This System?

This system provides point-of-care molecular diagnostics (POCT), making it ideal for food safety, environment testing, agriculture, or research labs with limited bench space. Products are globally distributed across South America, Southeast Asia, North America, and Africa.

Quality Assurance
❓

Frequently Asked Questions

1. What is the minimum detection threshold for the qPCR system? The system features high sensitivity with a minimum detection threshold of 3 copies.
2. How many fluorescence channels are supported? It supports up to 4-channel direct imaging (6-plex fluorescence detection), including FAM, SYBR Green, JOE, HEX, VIC, ROX, and CY5.
3. Is the software easy to operate? Yes, the system comes with a self-contained 10-inch touch screen running intuitive Android software, supporting WiFi networking and online printing.
4. What type of thermal system does it use? The system utilizes a high-performance Peltier-based solid-state thermal cycler for precise temperature control.
5. Does the device require frequent calibration? No, the rugged design has no internal moving parts, which eliminates the need for regular internal hardware calibration.
6. What is the typical reaction volume? The system supports a reaction volume range between 10μL and 60μL, compatible with standard 0.2mL 4 or 8-tube strips.
