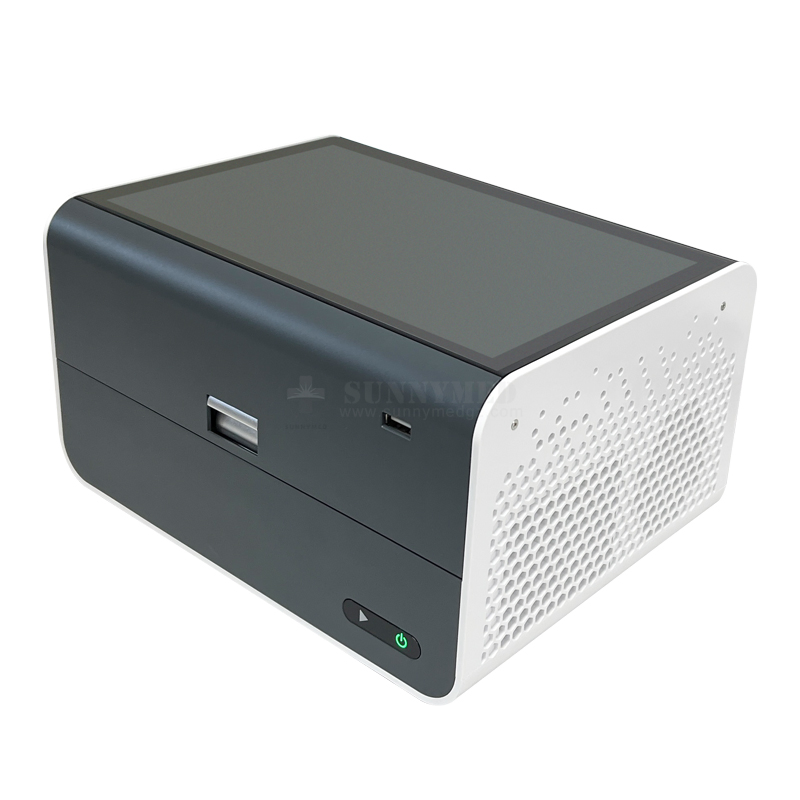

Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
1 / 5
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System
Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System

Sy-W007-1 Efiicient Vet PCR System 4-Channel Imaging Fluorescence Rapid Detection PCR System

Customization: Available
Classification: Biochemical Apparatus
Certification: CE
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SY-W007-1
Group
Human
Product Name
Qpcr System
Multiplex Capability
up to 4 Targets Per Well
Detection Threshold
3 Copies
Dynamic Range
>1.0e9
Signal Interface
USB 2.0
Reaction System
10-60UL
Fluorescence Detection
6-Plex Detection Capability
Operating System
10-Inch Touch Screen Android Software
Networking
Support WiFi, Online Report Printing
Certificate
NMPA, CE Certification, FDA Establishment
🔭 Product Description
PCR System Overview
Capacity (# of wells)8
Channels (# of Fluorophores)Up to 4 (FAM/SYBR Green, JOE/HEX/VIC/TET, ROX/Texas Red, CY5/LIZ/Cy5.5)
Multiplex CapabilityUp to 4 targets per well
Minimum Detection Threshold3 copies
Dynamic Range>1.0E9
Excitation SourceHigh endurance LED
DetectorUltra-low-light CMOS bio-imaging chip
Thermal SystemSolid-state, Peltier-based
Tube/Plate Formats0.2mL, 4 or 8-tube strip
Reaction Volume10uL - 60uL
Programming ModesqPCR amplification with touchdown; isothermal amplification; melting curve analysis
Temperature UniformityWithin ±0.25°C at annealing stage
📷 Detailed Photos & Features

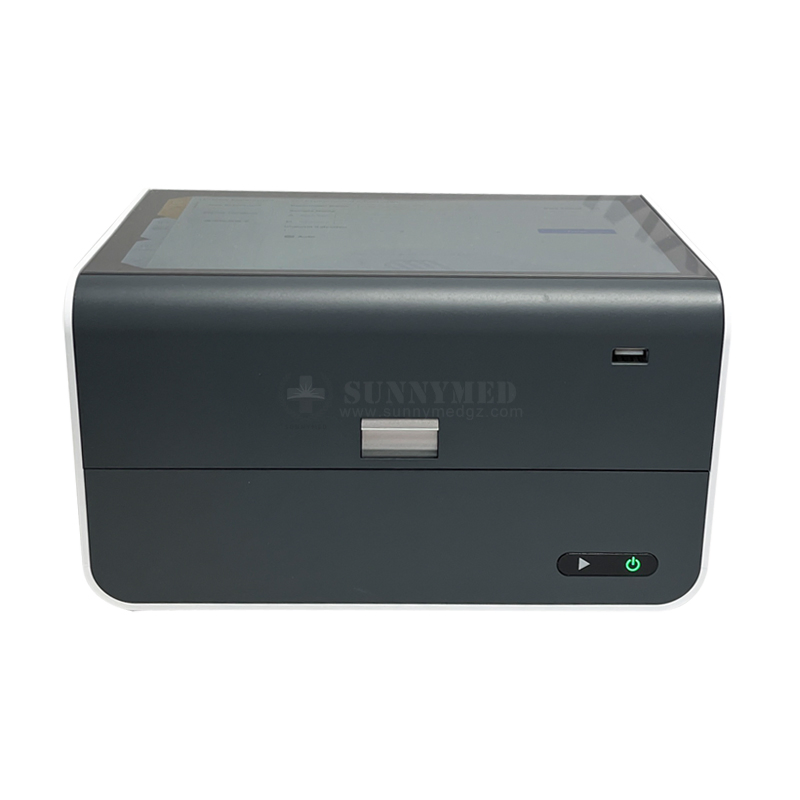

Portable PCR System
🚀
High Performance & Portable: A quantitative PCR system equipped with a 4-channel direct imaging fluorescence optical system.

Equipped with an ultra-low-light CMOS bio-imager sensor and a fast Peltier-powered thermal cycler, this system is optimally suited for applications where portability and fast results are required.

Ideal for point-of-care molecular diagnostics (POCT), food safety, environment testing, and research labs with limited space.

🛠
Key Features:
  • Fully compatible with standard qPCR assays.
  • Rugged design with no internal moving parts.
  • No calibration required.
  • Intuitive cross-platform software with cloud connectivity.
  • Low power consumption (< 150W).
PCR System Features

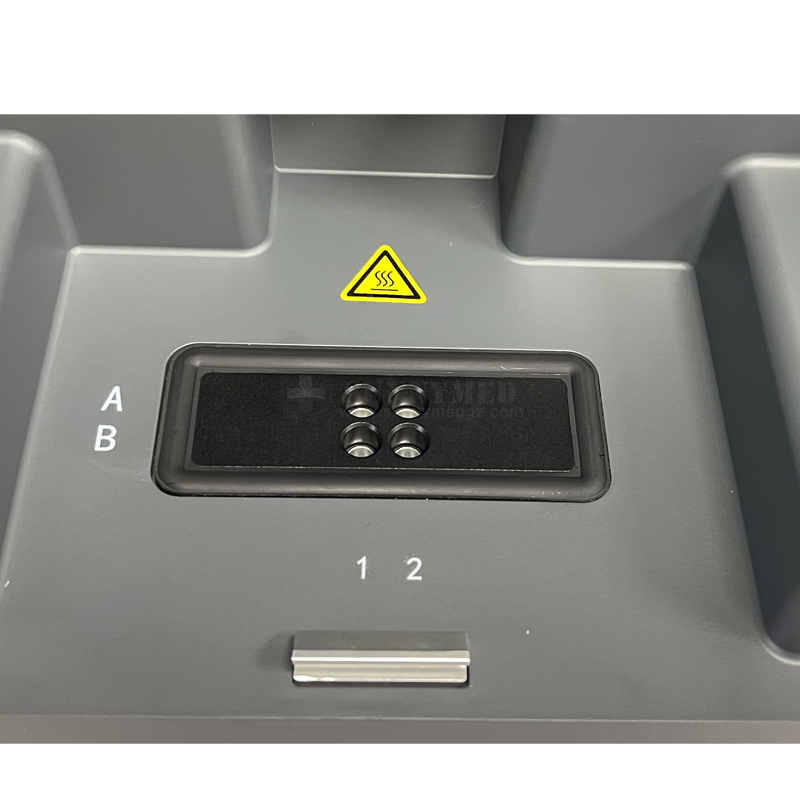

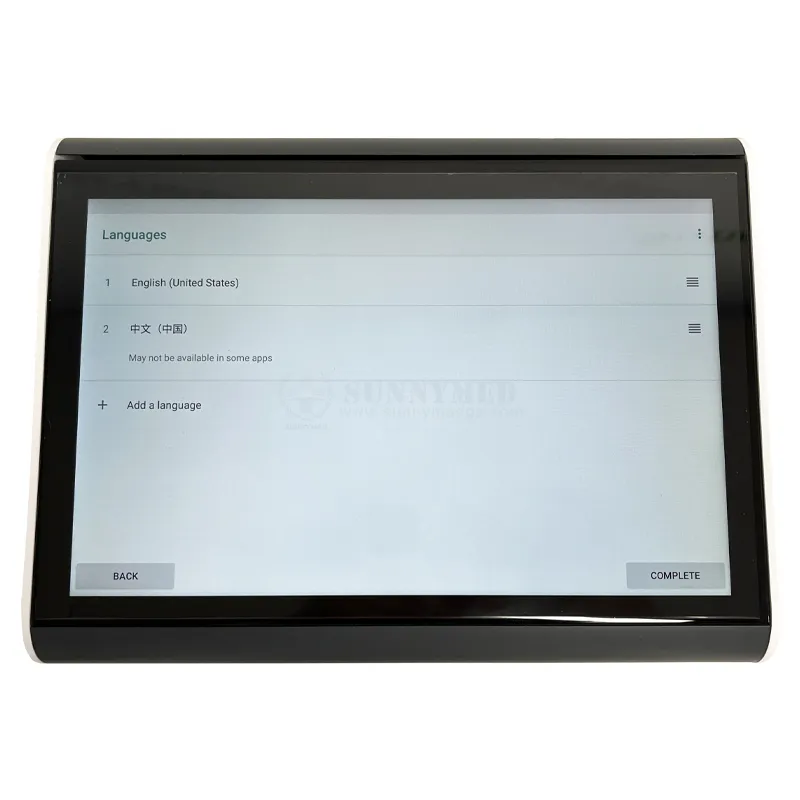

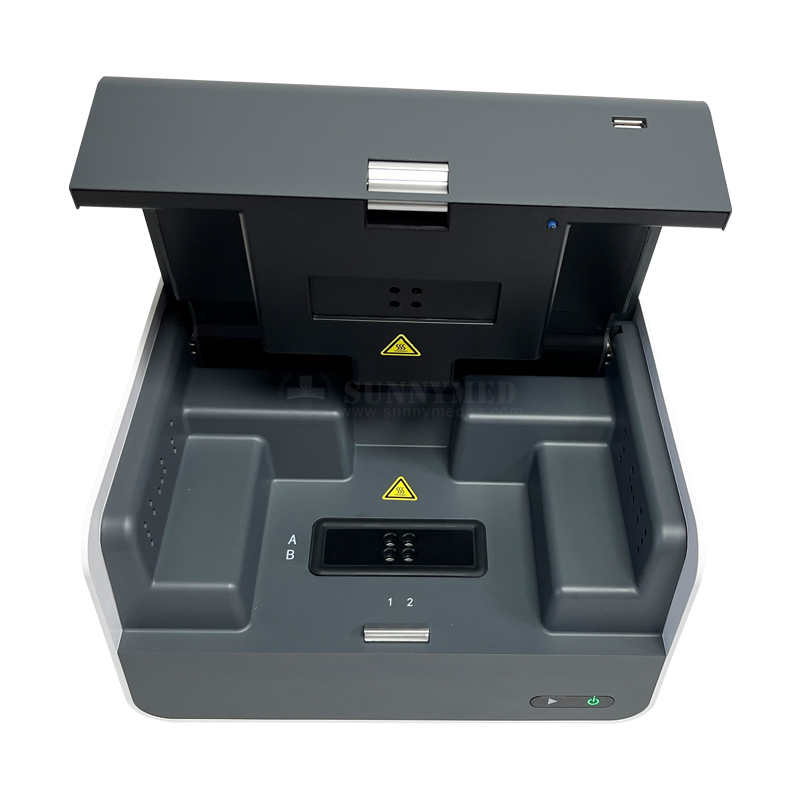

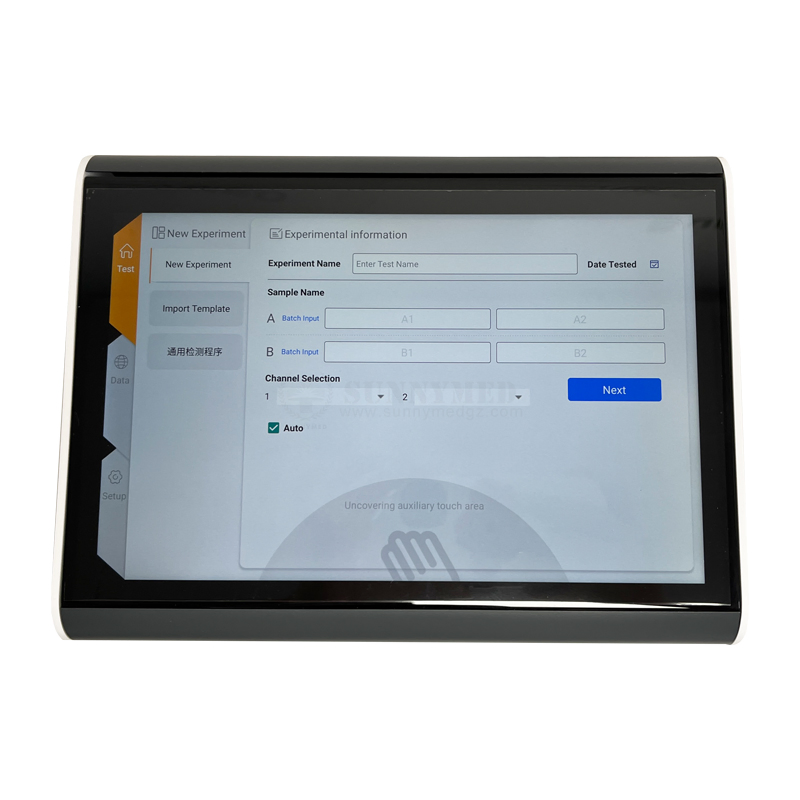

Interface view Internal view Hardware detail

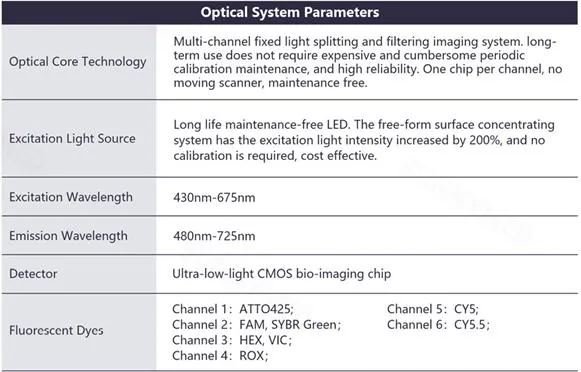

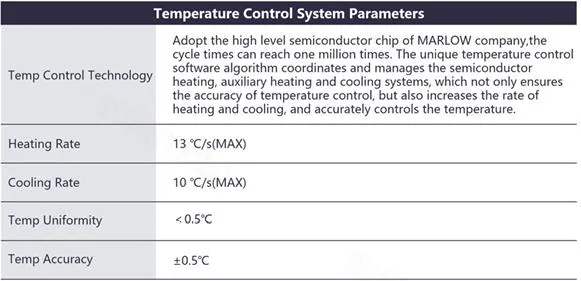

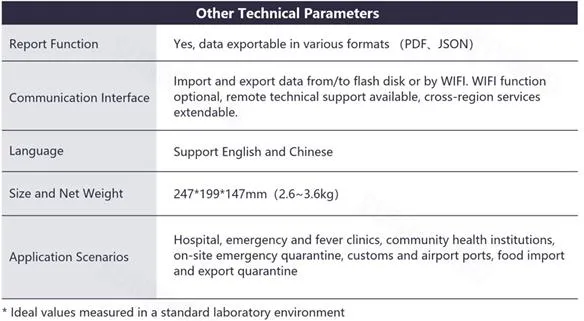

Testing data Analysis curve Result display
📦 Packaging & Shipping

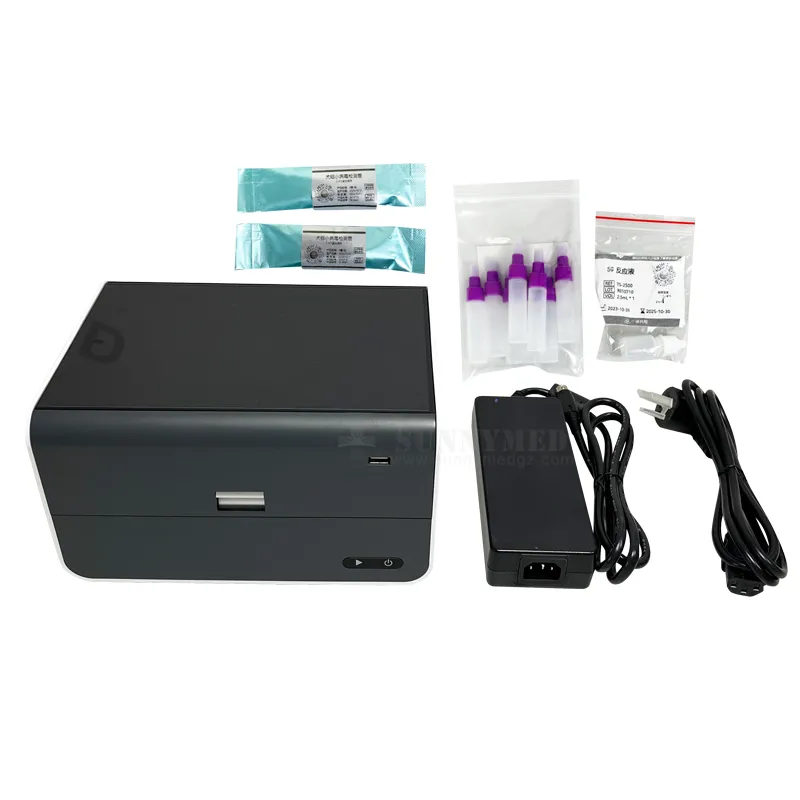

Packaging display Quality inspection
❓ FAQ
How many samples can be tested at once?
The system features an 8-well capacity, supporting 0.2mL individual tubes or 8-tube strips.
What is the detection sensitivity of the system?
The system has a high sensitivity with a minimum detection threshold of 3 copies and a wide dynamic range of over 1.0E9.
What types of fluorescence channels are available?
It supports up to 4 channels, including FAM/SYBR Green, JOE/HEX/VIC/TET, ROX/Texas Red, and CY5/LIZ/Cy5.5, allowing for multiplex capability of up to 4 targets per well.
Does the device require regular calibration?
No, the rugged design features no internal moving parts and is designed to operate without the need for frequent user calibration.
What support is provided for product operation?
We provide comprehensive video tutorials covering installation, operation, and maintenance. Additionally, real-time online video training is available for technical support.
What is the warranty period for this PCR system?
The product comes with a warranty period ranging from 12 to 60 months, with a commitment to reply to service inquiries within 8 hours.
Product usage roadmap
