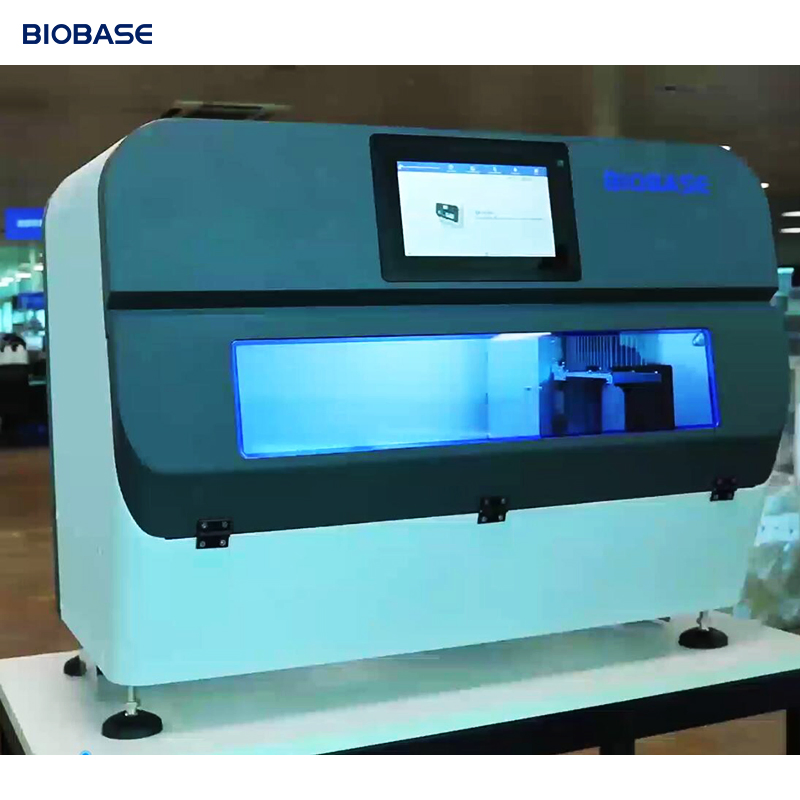

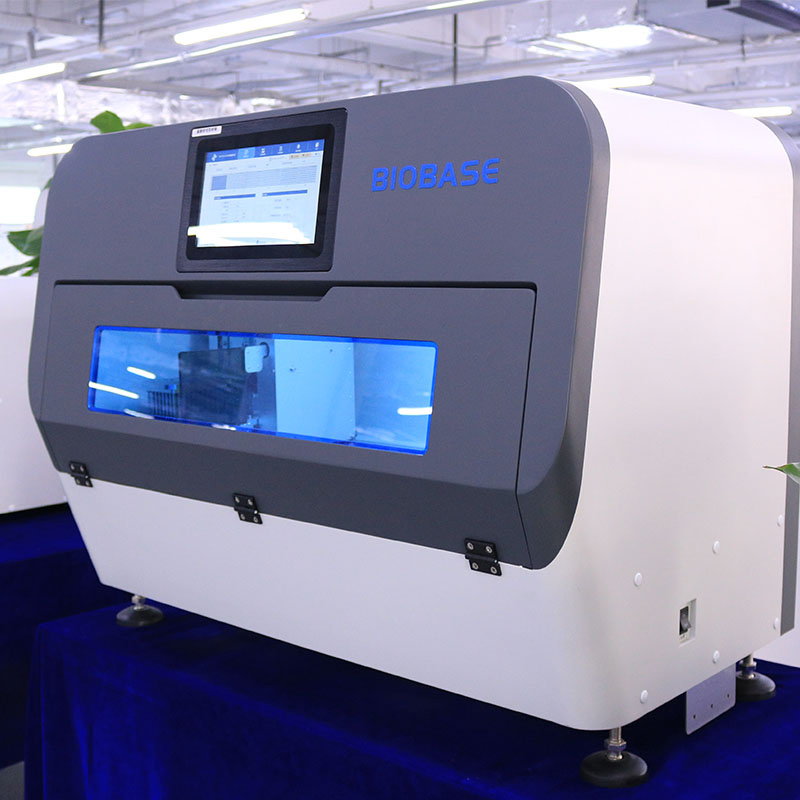

Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
1 / 5
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree
Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree

Biobase China Automatic Nucleic Acid Extraction System with USB Interface 105 Degree

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model
BK-HS96
Certification
CE, ISO13485
Method
Paramagnetic Particle
Capacity
96-Well
Sample Volume
20-1000uL
Extraction Time
11-60 min
Bead Recovery
≥98%
Temperature
RT-105ºC
Disinfection
UV Light
Product Description

Auto Nucleic Acid Extraction System

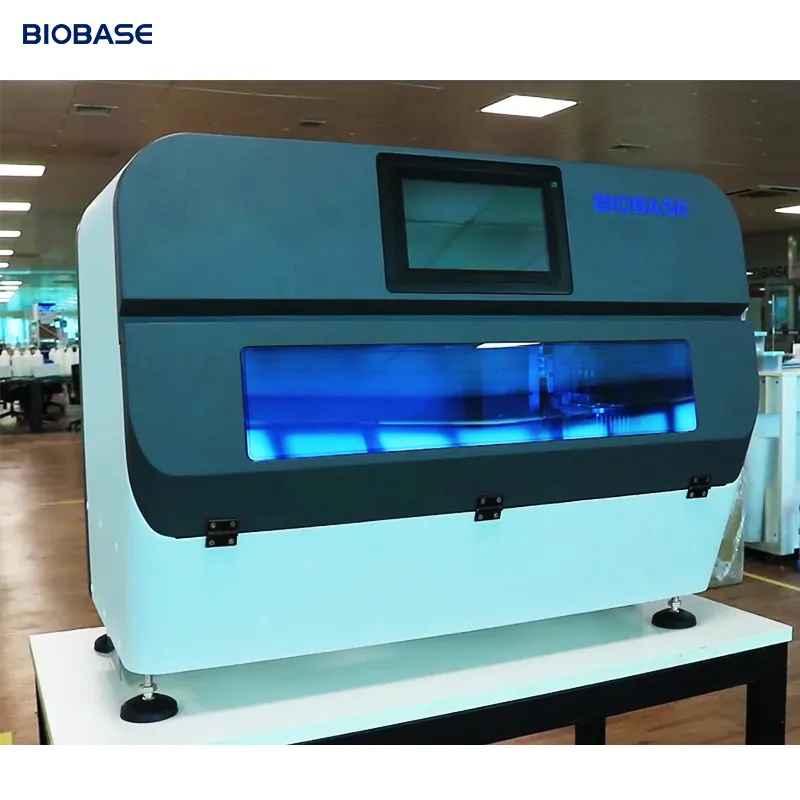

Nucleic Acid Extractor
High throughput, high sensitivity automatically extracted nucleic acid purification equipment.
Display: 10.1 inch touch screen, easy to operate.
Accurate temperature control and rapid temperature rise with active cooling to room temperature.
Module integrated with shocking and heating, allowing simultaneous mixing and heating to save time.

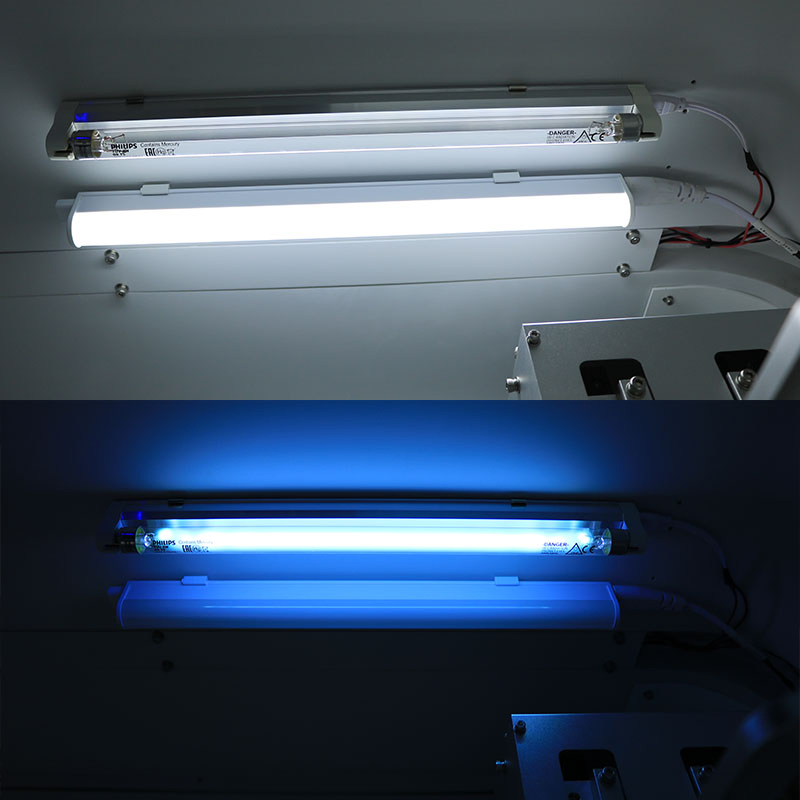

Equipped with ultraviolet disinfection lamp and HDPE high efficiency filter to prevent aerosol pollution.

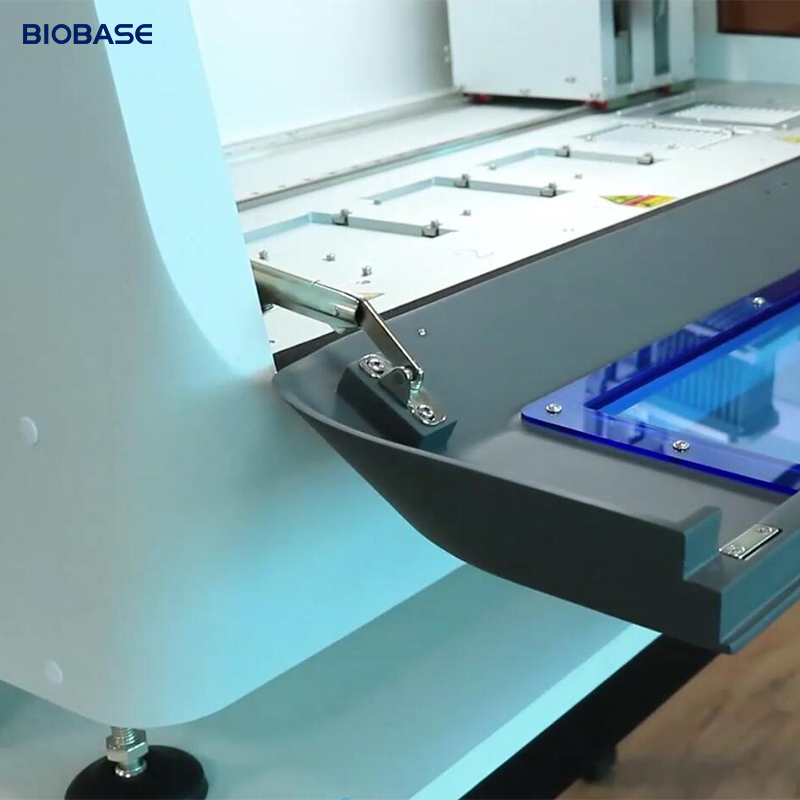

Safety door design: the instrument suspends operation when the door is opened.
Detailed Gallery

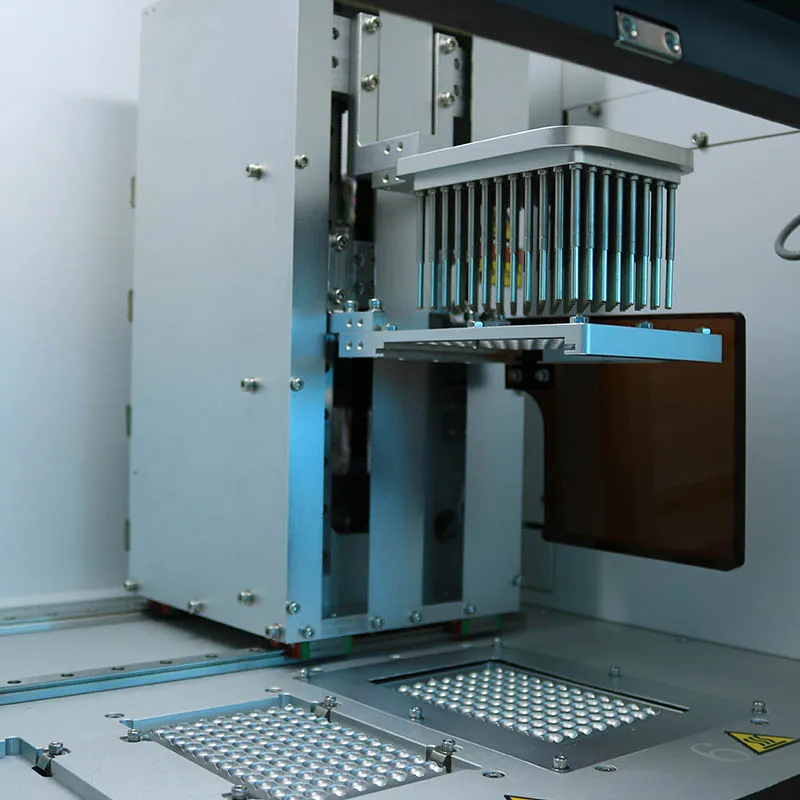

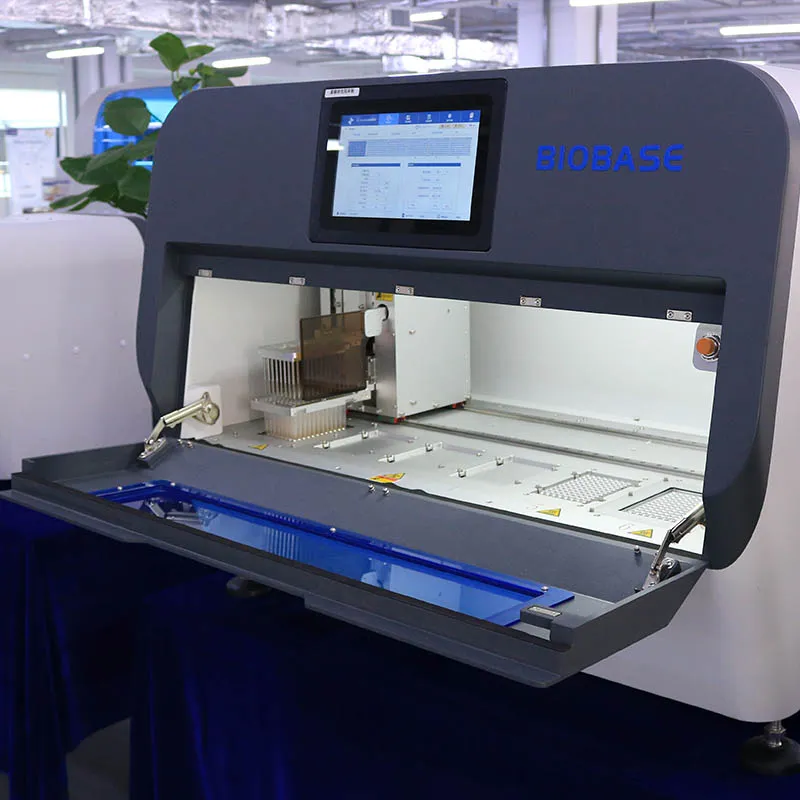

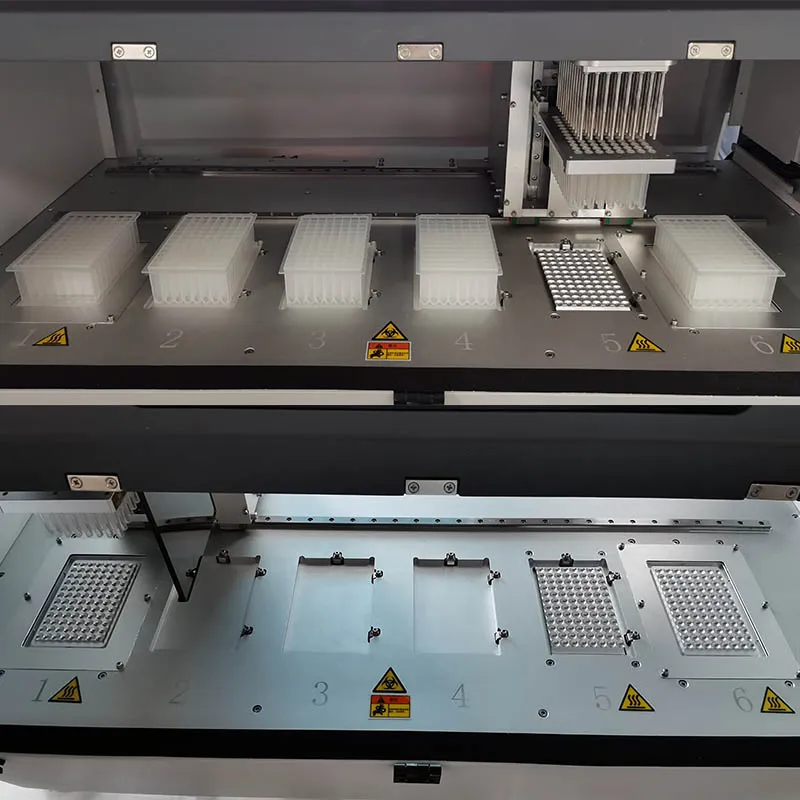

Detail 1 Detail 2 Detail 3
Detail 4

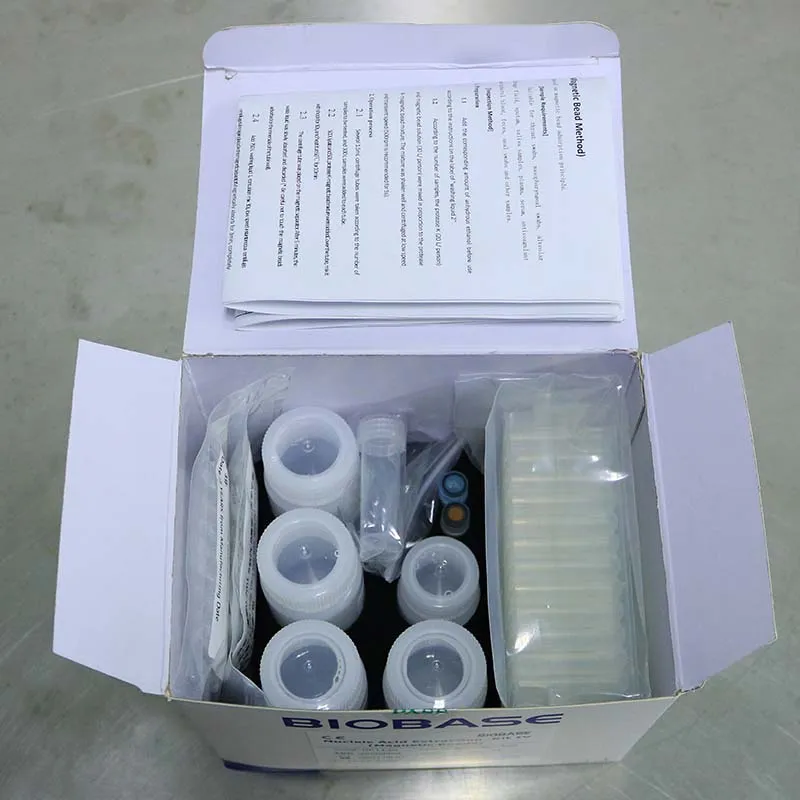

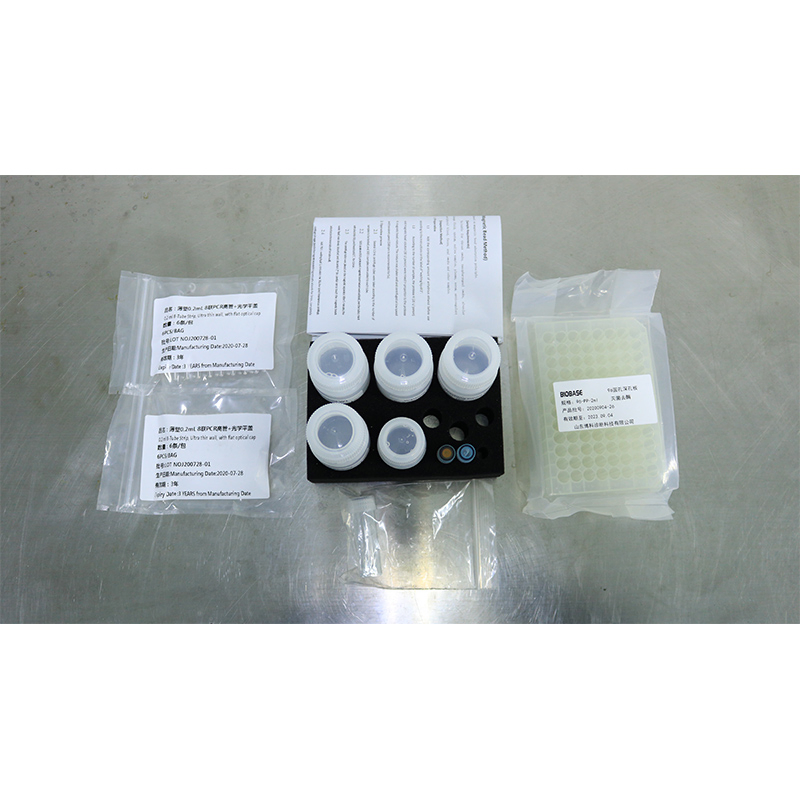

The magnetic beads and buffer system with unique separation effect can be used to extract high-purity viral DNA/RNA from samples quickly and efficiently. Applicable for plasma, serum, urine, cell culture fluid, and cell-free body fluids.

Product Parameters
ModelBK-HS96
Extraction MethodParamagnetic particle method
Sample Capacity96-well
Sample Volume20-1000ul
Extraction Time11min-60min
Magnetic Bead Recovery≥98%
Magnetic Flux of Bar≥4500Gs
Operating TemperatureRT-105ºC
Temperature Accuracy0.1ºC
Protection FunctionsPower on self-check, power off protection, high-temperature alarm
Disinfection MethodUV Light
Operating SystemWindows system
InterfaceUSB interface
Package Size (W*D*H)940*710*910mm
Gross Weight110kg
Certifications & Packaging
Certifications Packaging
Professional Manufacturing

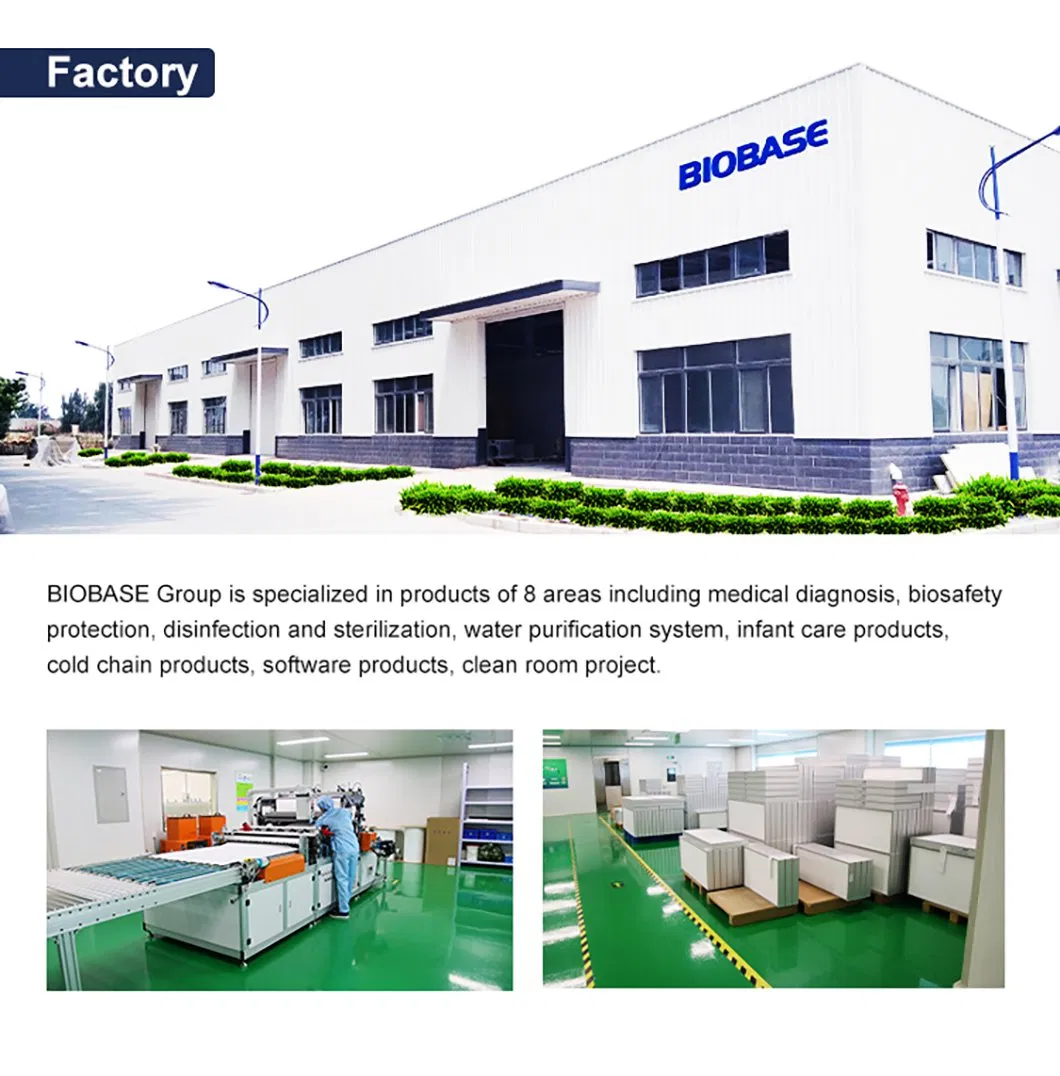

Profile 1 Profile 2
Our Advantages
Advantages 1 Advantages 2
Frequently Asked Questions
How many samples can the BK-HS96 process at once?
The system features a high-throughput 96-well capacity, allowing for the simultaneous extraction of up to 96 samples.
What is the typical extraction time?
Depending on the specific kit and sample type, the extraction process takes between 11 and 60 minutes.
Does the machine include a disinfection system?
Yes, it is equipped with a UV light disinfection system and an HDPE high-efficiency filter to effectively prevent aerosol pollution and cross-contamination.
Is the temperature control accurate for sensitive samples?
Absolutely. The system provides accurate temperature control with a precision of 0.1ºC and covers a range from room temperature up to 105ºC.
What safety features are integrated into the design?
The instrument includes a safety door design that automatically suspends operation when opened, power-off protection, and high-temperature alarms.
What types of samples are compatible with this extractor?
It is ideal for extracting viral DNA or RNA from plasma, serum, urine, cell culture fluid, and other cell-free body fluids.
