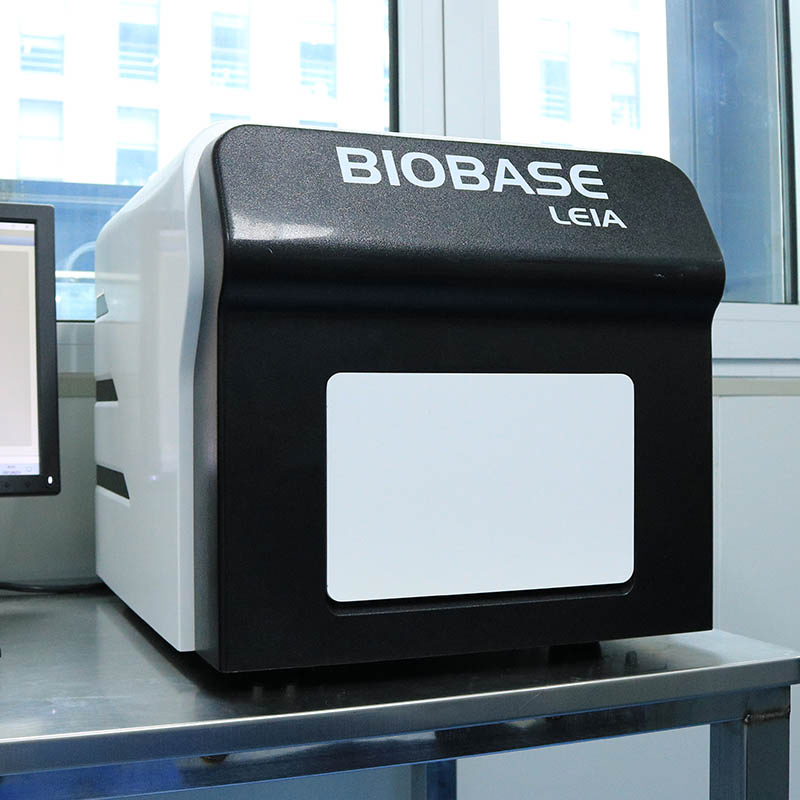

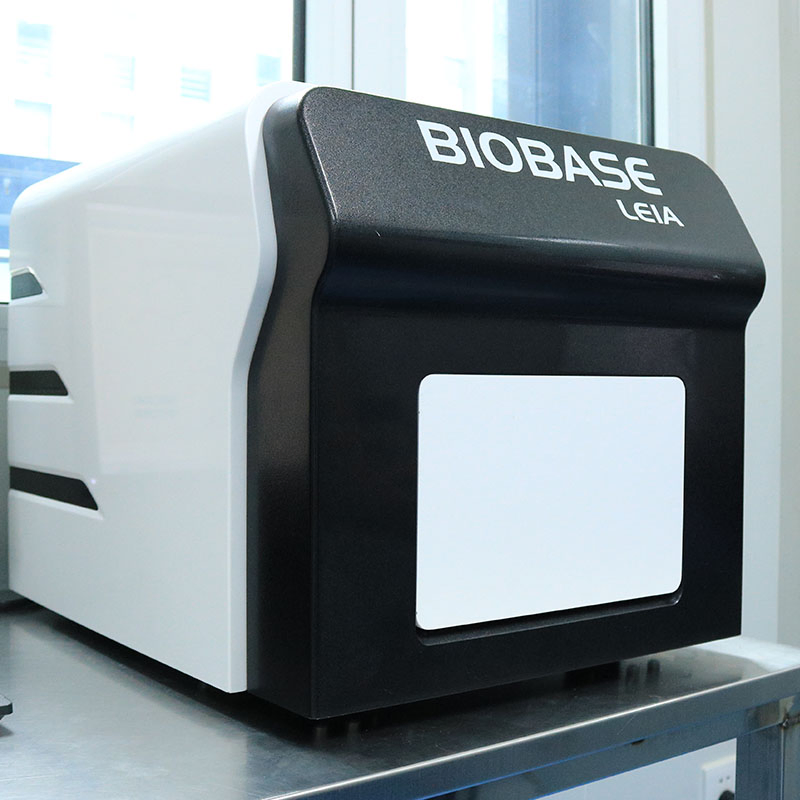

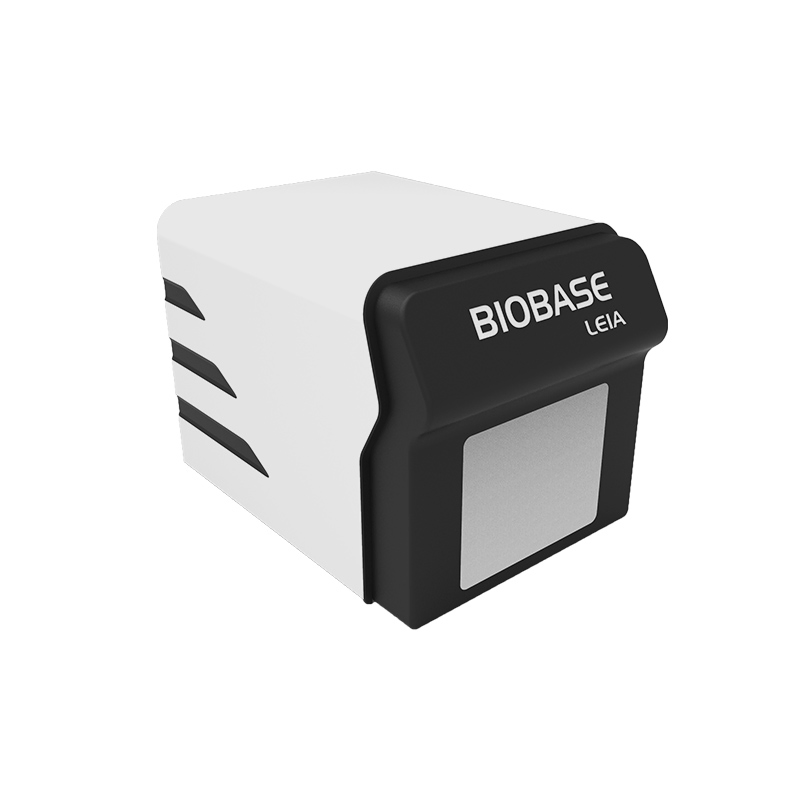

| Model NO. | LEIA-X4 |
|---|---|

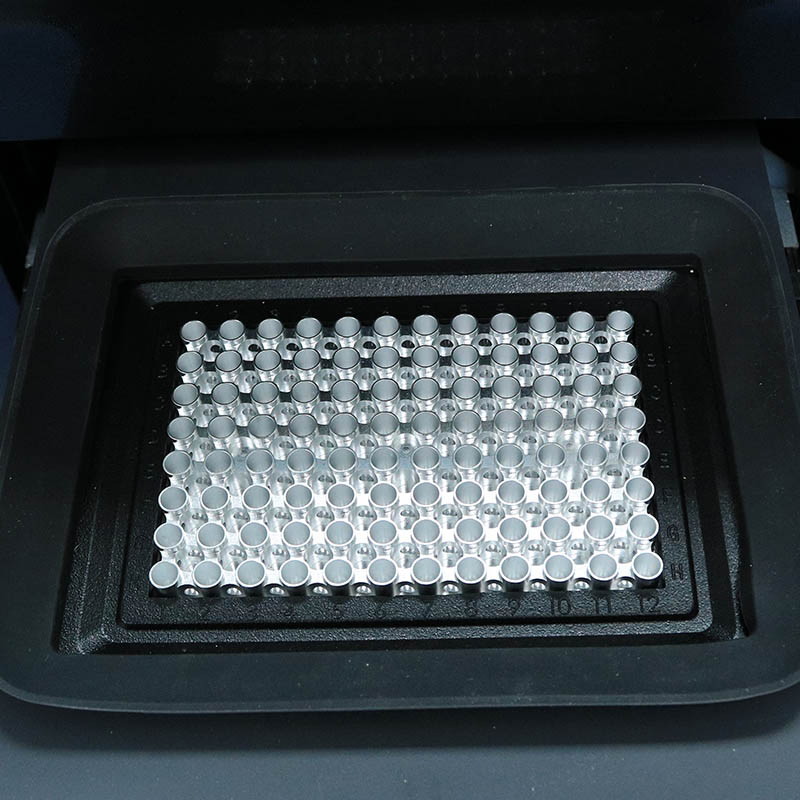

| Sample Capacity | 96X0.1ml PCR Plate, 12X8-Strip Tubes, 96*0.1ml Single Tube |
| Reaction System | 10~50μL |
| Dynamics Range | 1-10^10 Copies |
| Channel | 4 Channels |
| Emission Light | LED |
| Detector | MPPC |
| Temp. Range | 4-99ºC (Resolution: 0.1ºC) |
| Ramp Rate | 5.0ºC/S (Max) |
| Temp. Accuracy | ±0.3ºC |
| Temp. Uniformity | ≤ ±0.3ºC |

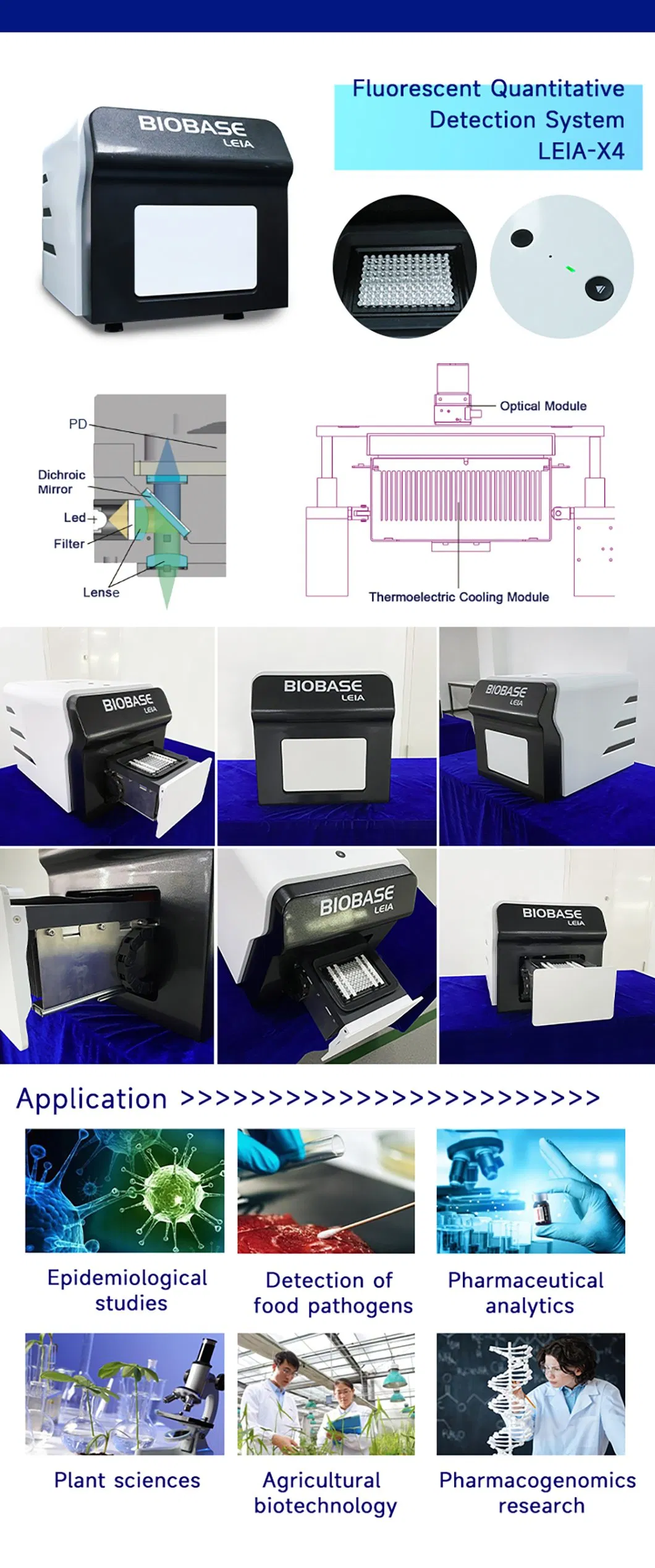

Real-time PCR is used for sensitive, specific detection and quantification of nucleic acid targets. This system utilizes powerful assay design algorithms, optimized qPCR reagents, and intuitive data analysis software to help harness the power of qPCR across a rich and diverse set of applications.
| Detection Path | F1, F2, F3, F4 |
|---|---|
| Suitable Probe/Dye | FAM/SYBR GREEN, VIC/JOE/HEX/TET, ROX/TEXAS-RED, Cy5 |
| Excitation Wavelength | 455~680nm |
| Detection Wavelength | 510~730nm |
| Detection Repeatability | CV ≤ 2% |
| Detection Accuracy | CV ≤ 3% |
| Detection Linearity | r ≥ 0.995 |
| Temp. Control Mode | Block mode |
| Gradient Temp. Range | 1-36ºC |
| Hot-Lid Temp. Range | 100ºC, Automatic Hot-lid |
| Scanning Mode | Full plate scanning (8.5s) |
| Operating System | Microsoft Windows 10 |
| Dimensions (L*W*H) | 375*490*365 mm |

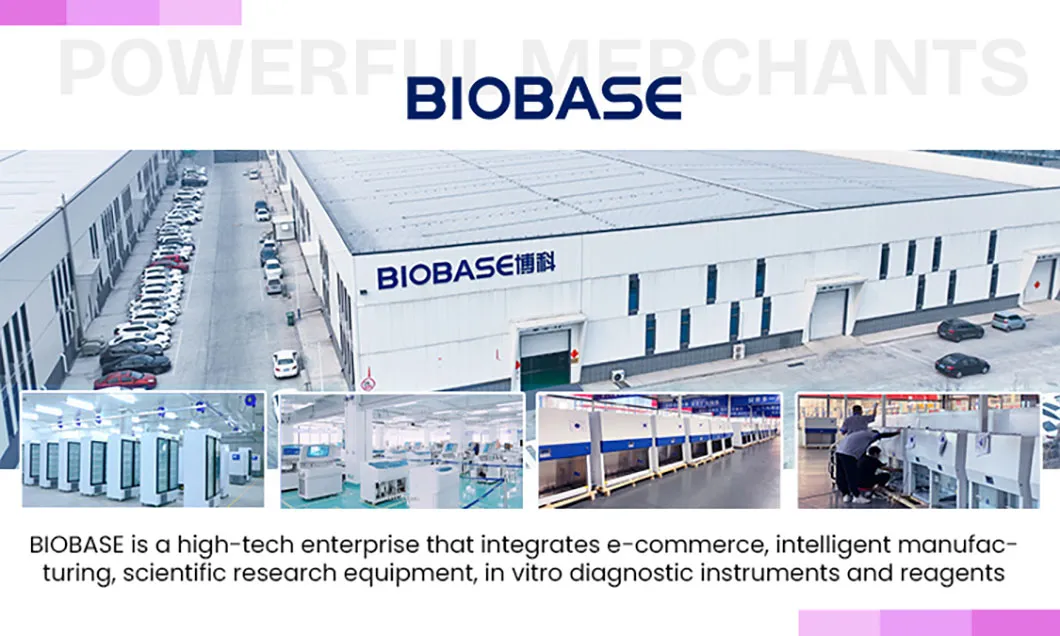

Our manufacturing facilities cover a total area of 932,900 m² with over 20 specialized workshops. As a high-tech enterprise, we focus on intelligent manufacturing of scientific equipment, In Vitro Diagnosis (IVD) instruments, and reagents, maintaining a catalog of over 200 high-tech laboratory products.
