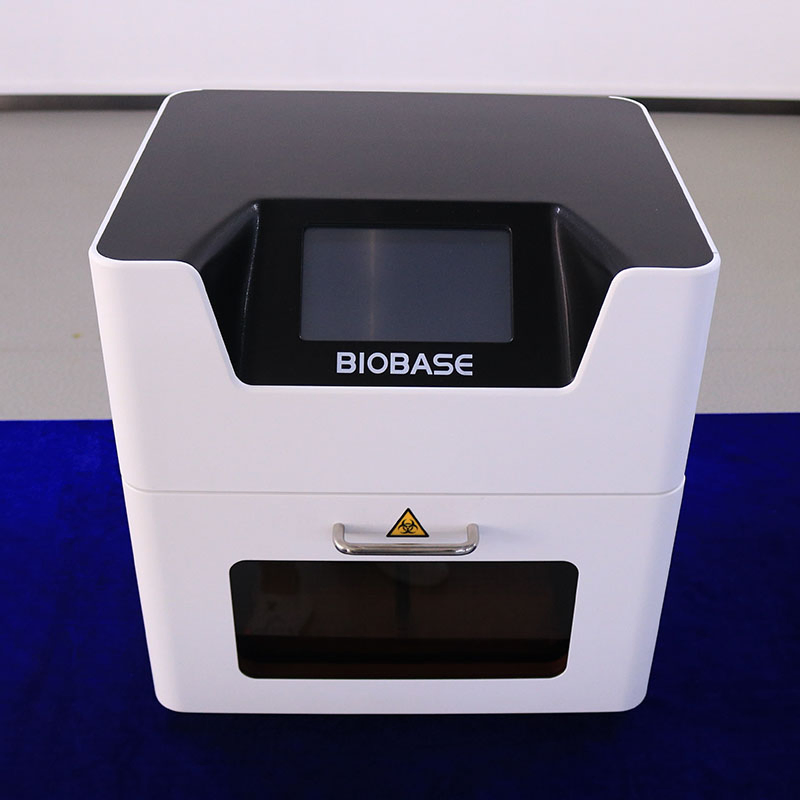

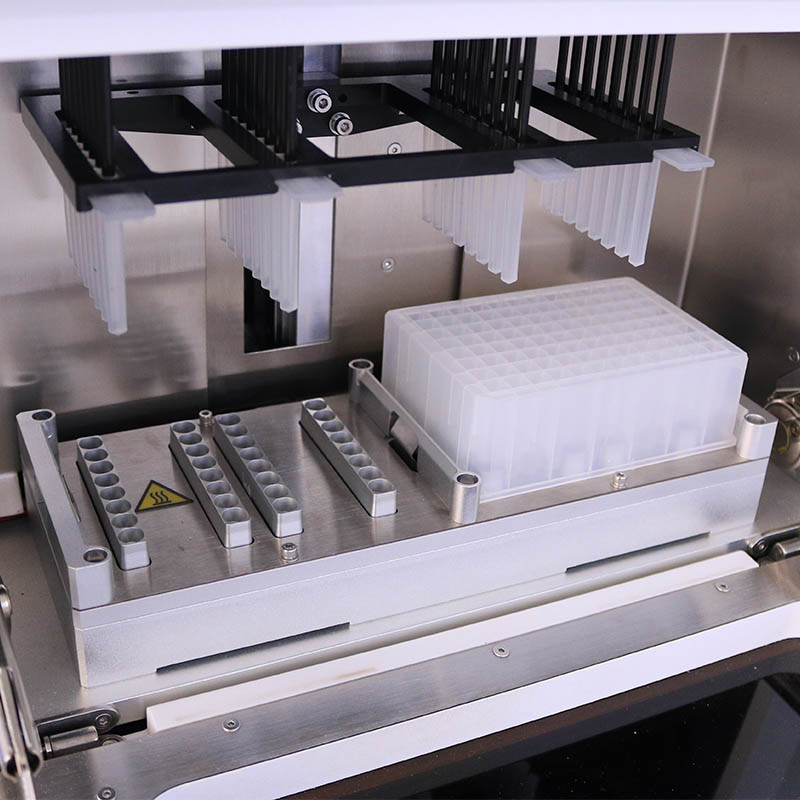

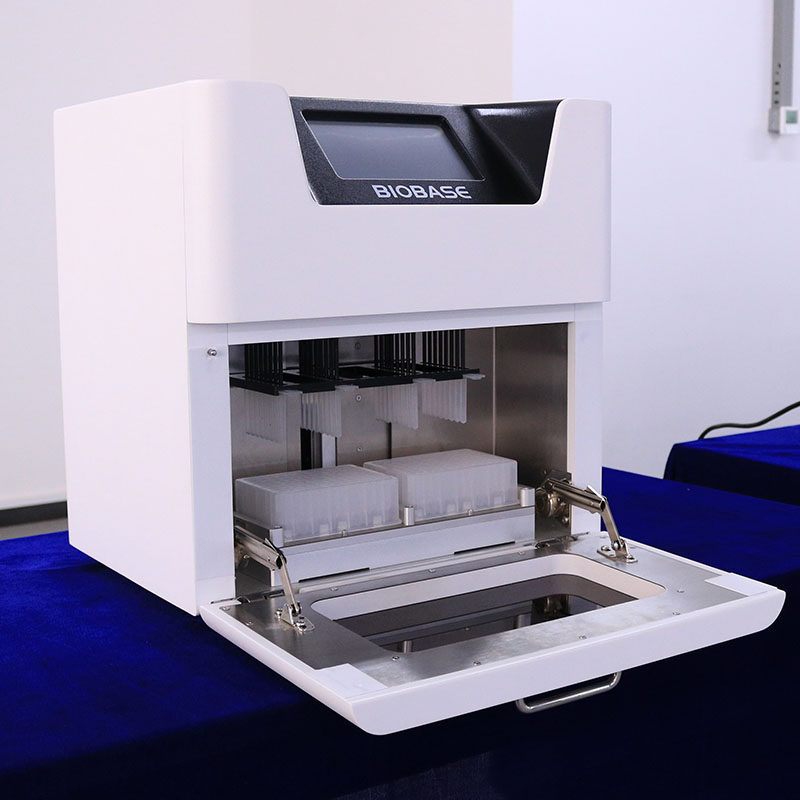

Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
1 / 5
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems
Biobase Lab Medical PCR Detection DNA Rna Extraction Systems

Biobase Lab Medical PCR Detection DNA Rna Extraction Systems

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
BNP32
Sample Quantity
32
Processing Volume
20UL-1000UL
Sample Throughput
1-32
Reagent Type
Magnetic Bead Open Platform
Built-in Air Duct
No
Ultraviolet Irradiation
Yes
Gross weight(Kg)
51
Origin
China
Production Capacity
200PCS/Month
Product Description

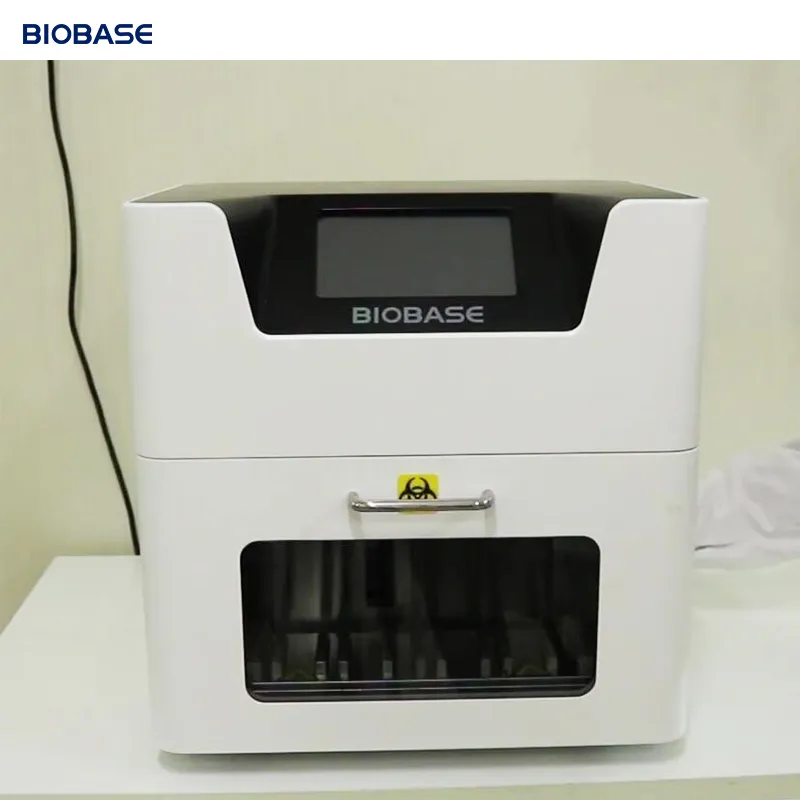

Extraction System 1

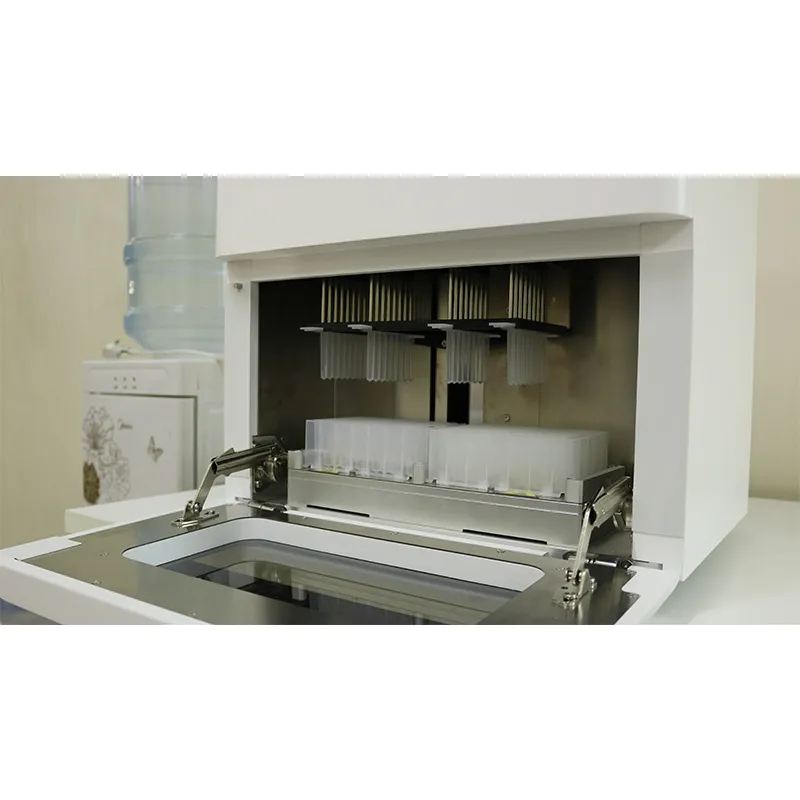

Extraction System 2

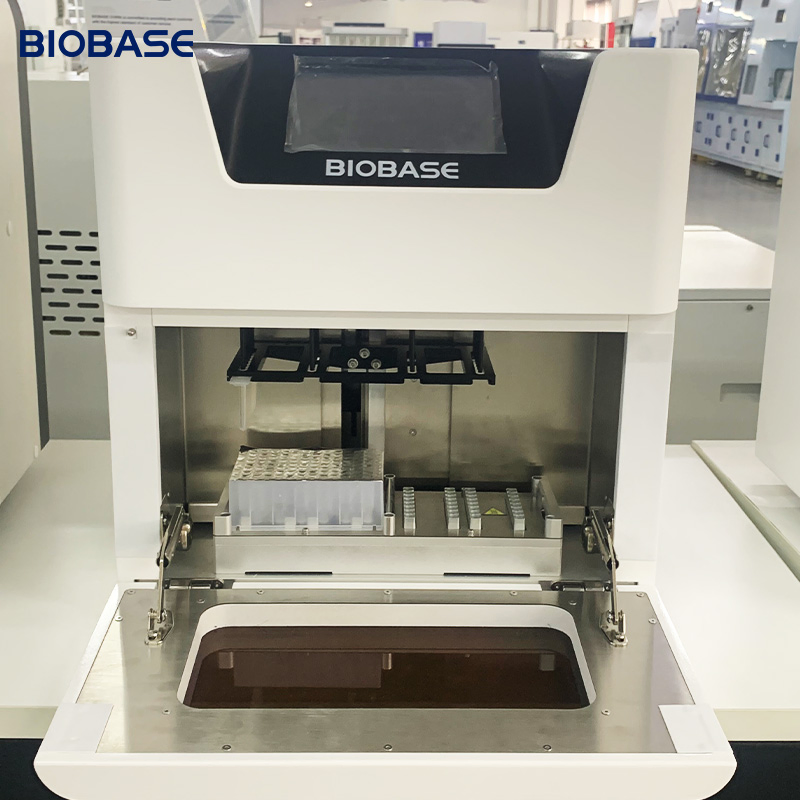

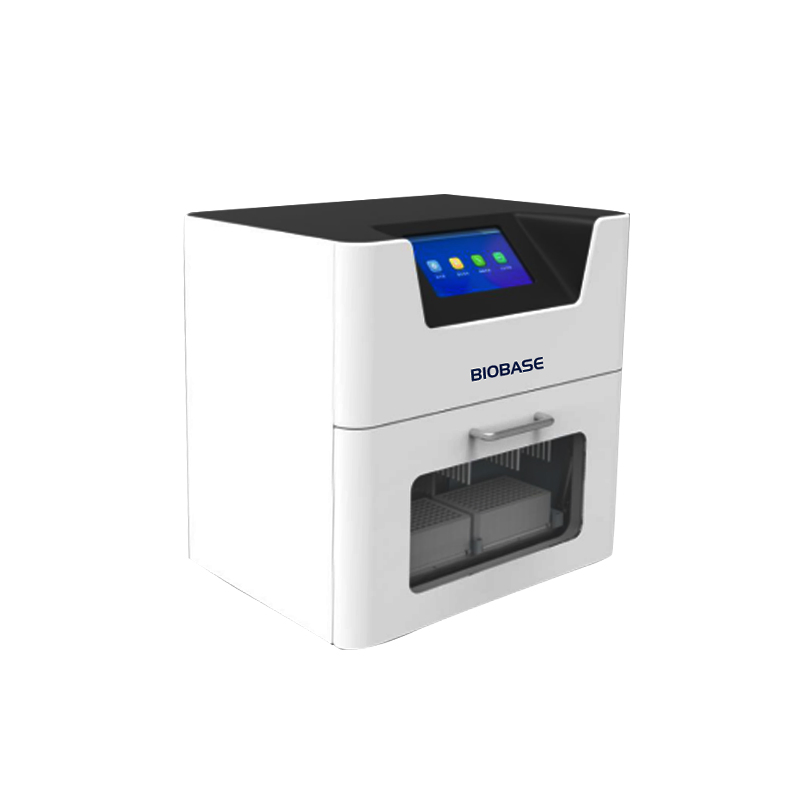

Nucleic Acid Extraction System BNP-32
Nucleic Acid Extraction System BNP-32
1. 7-inch touch screen, easy to use, fast response.
2. User-defined cracking and elution temperature.
3. UV disinfection function, time range 1min-24hour.
4. Automatic control system, no need to connect to computer.
5. Free programming to meet the needs of different reagents.
6. Open system, fully automatic, stable results and good repeatability.
7. Extract rapidly 15-40 minutes, 32/48 samples can be extracted at the same time.
Product Parameters
ModelBNP32
Sample Quantity32
Processing Volume20μL-1000μL
Sample Volume20-500μL
Sample Throughput1-32
Magnetic Bead Recovery>98%
Extracting Difference Between HolesCV≤3%
Heating Temperature8 independent heating modules, customize lysis and elution temperature
Oscillating MixingLow, medium and high third gears adjustable
Reagent TypeMagnetic bead open platform
Extraction Time15-40 min/round (depending on reagent)
Internal ProgramStore >100 groups of programs
Safety Door DesignAutomatic suspension when door opens
Packing Size(W*D*H)mm580*510*700
Gross Weight(kg)51
Related Products & Exhibitions
Related Product 1
Related Product 2
Exhibition 1
Exhibition 2
After Sales Service & Packaging
After Sales

Packaging: Cartons packaging; Customized packaging available.

Shipping: International Express (DHL, TNT, EMS, FedEx); Sea Transportation; Air Transportation.

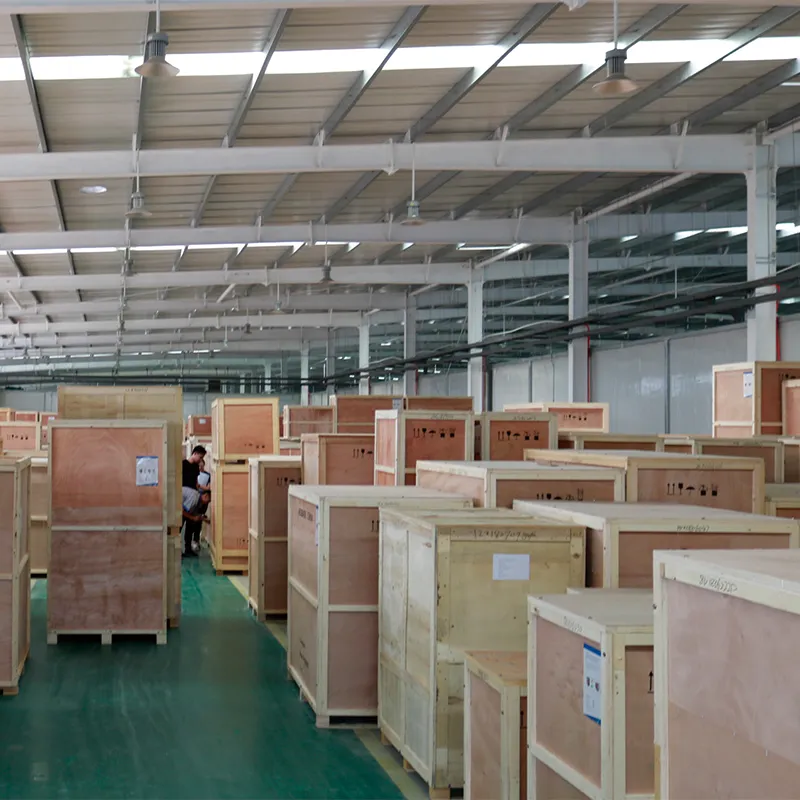

Packing 1
Packing 2
Contact us

Welcome to contact me!

Contact Info
Frequently Asked Questions
How many samples can the BNP32 process simultaneously?
The system can process between 1 to 32 samples per round, offering high throughput for laboratory needs.
Is this an open or closed reagent platform?
It is a magnetic bead open platform, providing flexibility to use various compatible reagents.
What is the typical extraction time for a round?
Depending on the reagent used, the extraction process typically takes between 15 to 40 minutes per round.
Does the system feature temperature control?
Yes, it features 8 independent heating modules allowing users to define specific cracking and elution temperatures.
How does the UV disinfection function work?
The system includes a built-in UV disinfection function with a customizable time range from 1 minute up to 24 hours.
Does it require an external computer for operation?
No, the BNP32 has an automatic control system with a 7-inch touch screen, allowing for standalone operation without a computer.
