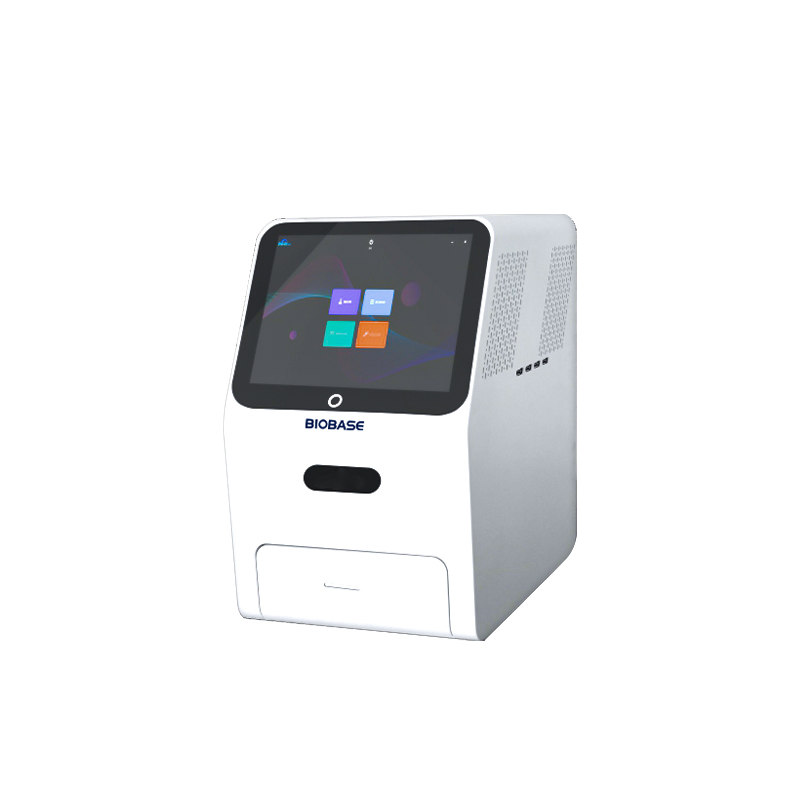

Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
1 / 5
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System
Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System

Biobase Nucleic Acid Detection Integrated Automatic Gel Imaging System

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

01

Basic Info

Model
BK-AGX3
Camera Resolution
6.0MP
Photosensitive Efficiency
≥79%
Exposure Time
1ms-5000ms
Pixel Density
16 Bits (0-65535)
OD
≥4.8od
UV Transmission
302nm
Shooting Area
21×21cm
Touch System
12.5-Inch
Origin
China
02

Product Description

Automatic Gel Imaging System
Automatic Gel Imaging System
Applications:
Nucleic acid detection with various fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel red Gel, Green Texas Red, Fluorescein labeled DNA/RNA, etc.
Key Features:
  • Camera lens: adopt dark field camera module F 1.0 Super aperture 20 million Solutions Analyticity
  • Touch system: 12.5 inches touch HD display, one touch imaging, intelligent processing system
  • Special filter: multilayer coated filter is adopted passing of absolute stray light
03

Product Parameters

ModelBK-AGX3
Camera Resolution6.0MP
Photosensitive Efficiency≥79%
Exposure Time1ms-5000ms
Pixel Density16 Bits (0-65535)
OD≥4.8OD
LensLarge aperture autofocus lens F=1:1.2, 20 million auto focus lens
UV Transmission302nm, optional other transmitted blue light
White Light ReflectionLED reflection (cold light)
White Light TransmissionWhite light conversion sample board
FilterStandard 590nm, other optional
Shooting Area21×21cm
Timer Shut Down1-60min
Touch System12.5-inch touch system
Power Supply110-240V, 50/60Hz
Packing Size450*462*666mm
Gross Weight22.3kg
04

Packaging & Shipping

- Cartons packaging / Customized packaging available.
- International Express: DHL, TNT, EMS, FedEx, etc.
- Sea / Air Transportation support.
- Goods packaged with international standard carton case or plywood case.
Packaging
05

Our Advantages

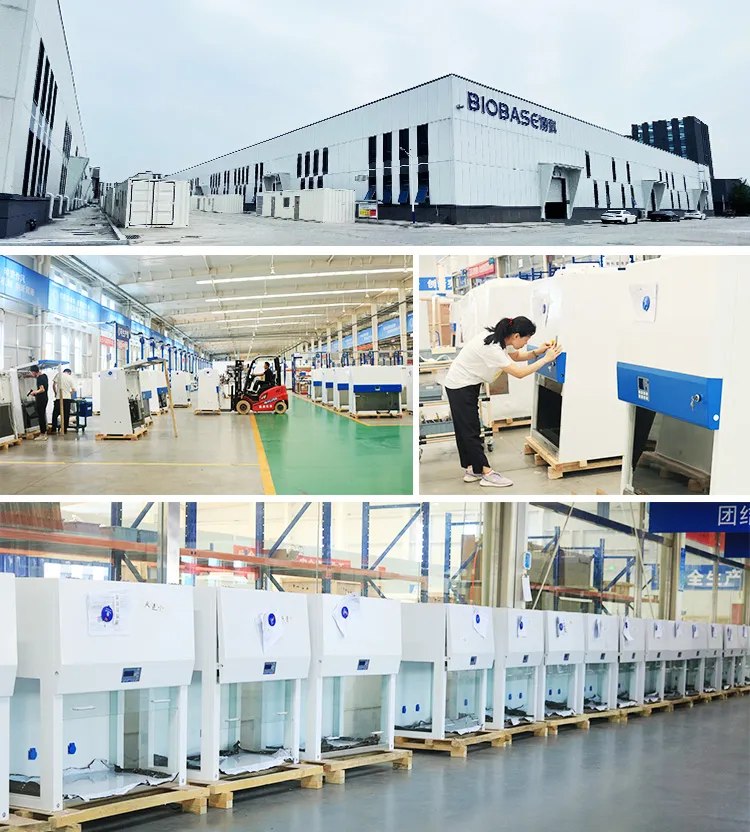

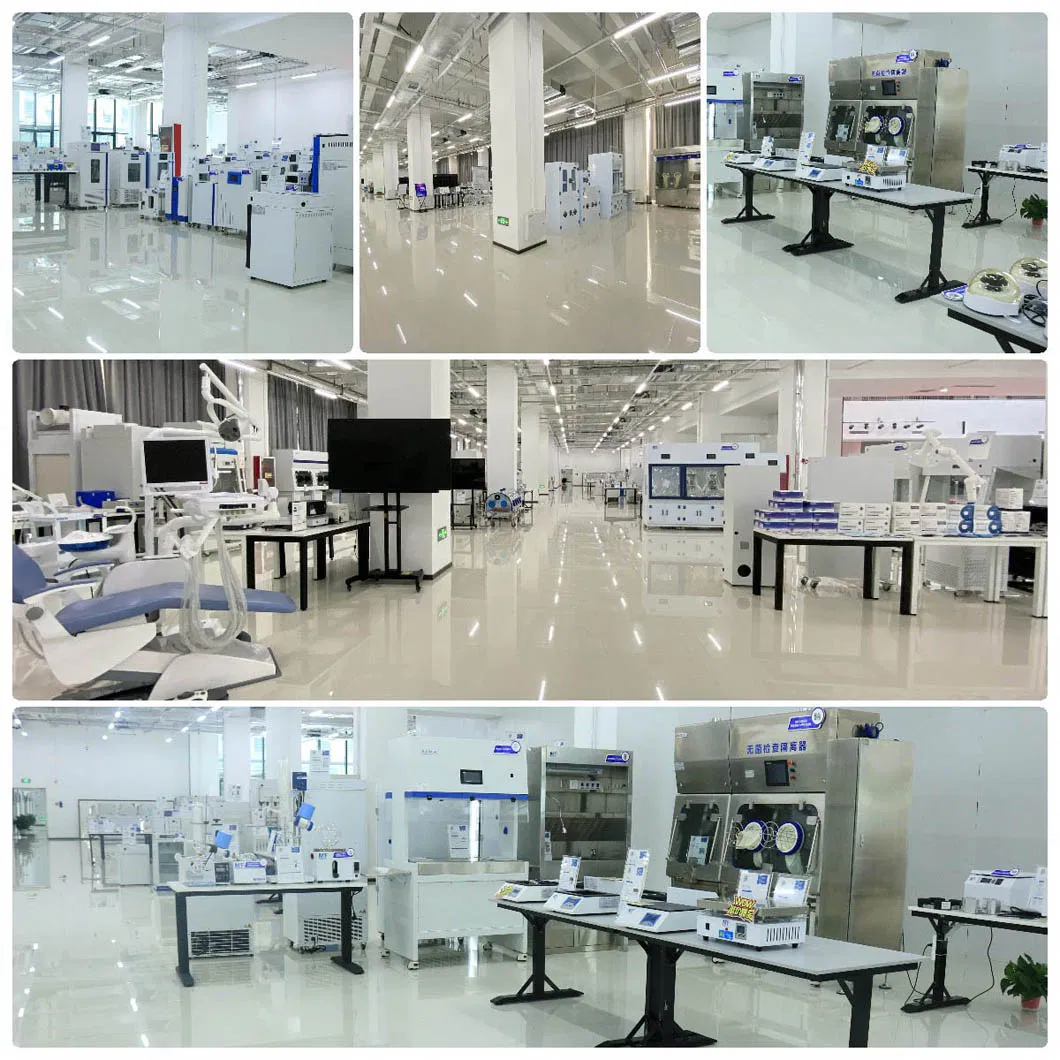

Global Network Production Capacity Laboratory Solution
Service Highlights:
  • Inquiry and consulting support with quick response.
  • One-stop laboratory solutions: PCR, Molecular biology, Cell, Microbiology.
  • OEM services welcomed.

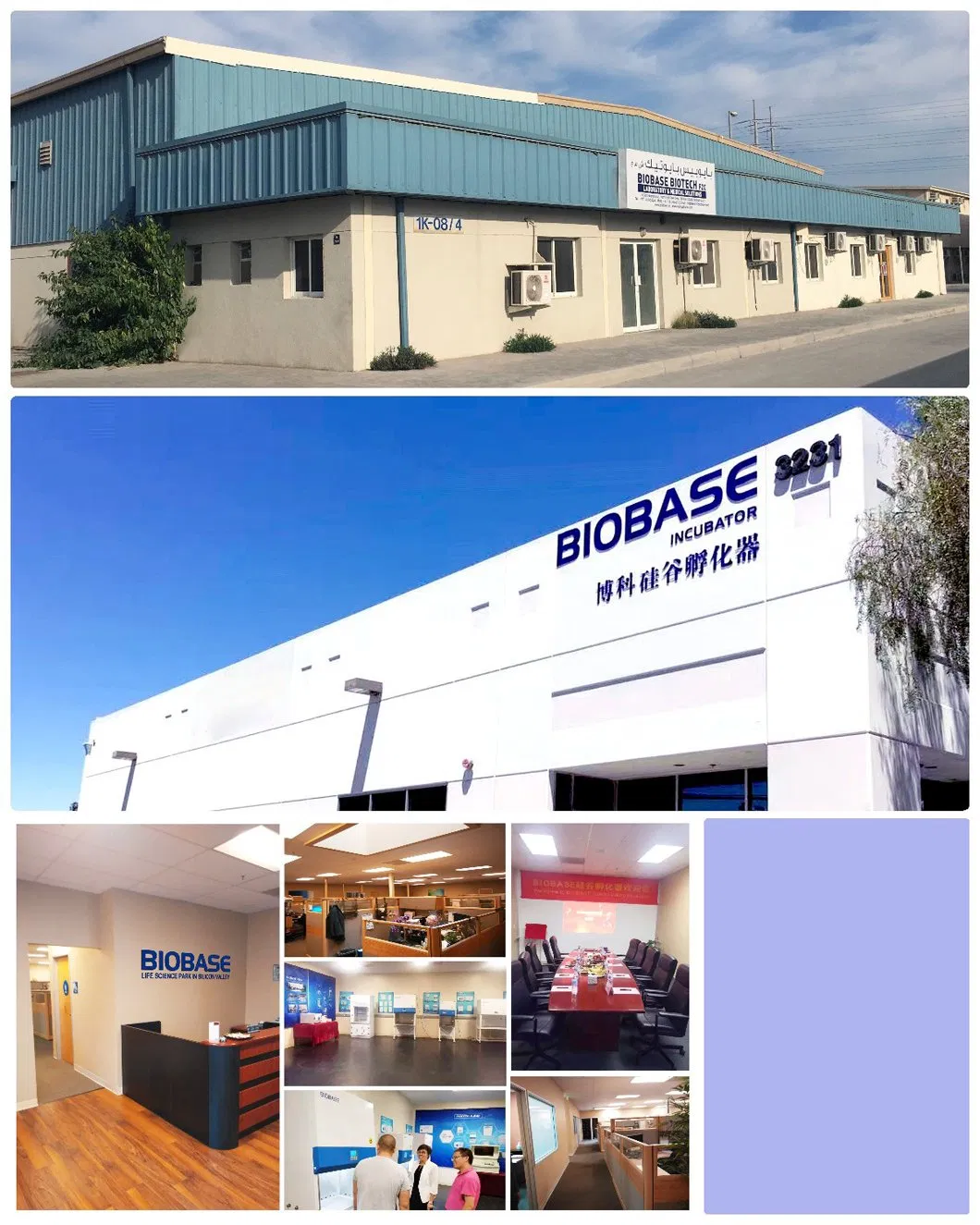

Service 1 Service 2 Service 3
06

After Sales Service

1. 1-year warranty period.
2. Professional training on installation and operation.
3. Engineers available to support overseas.

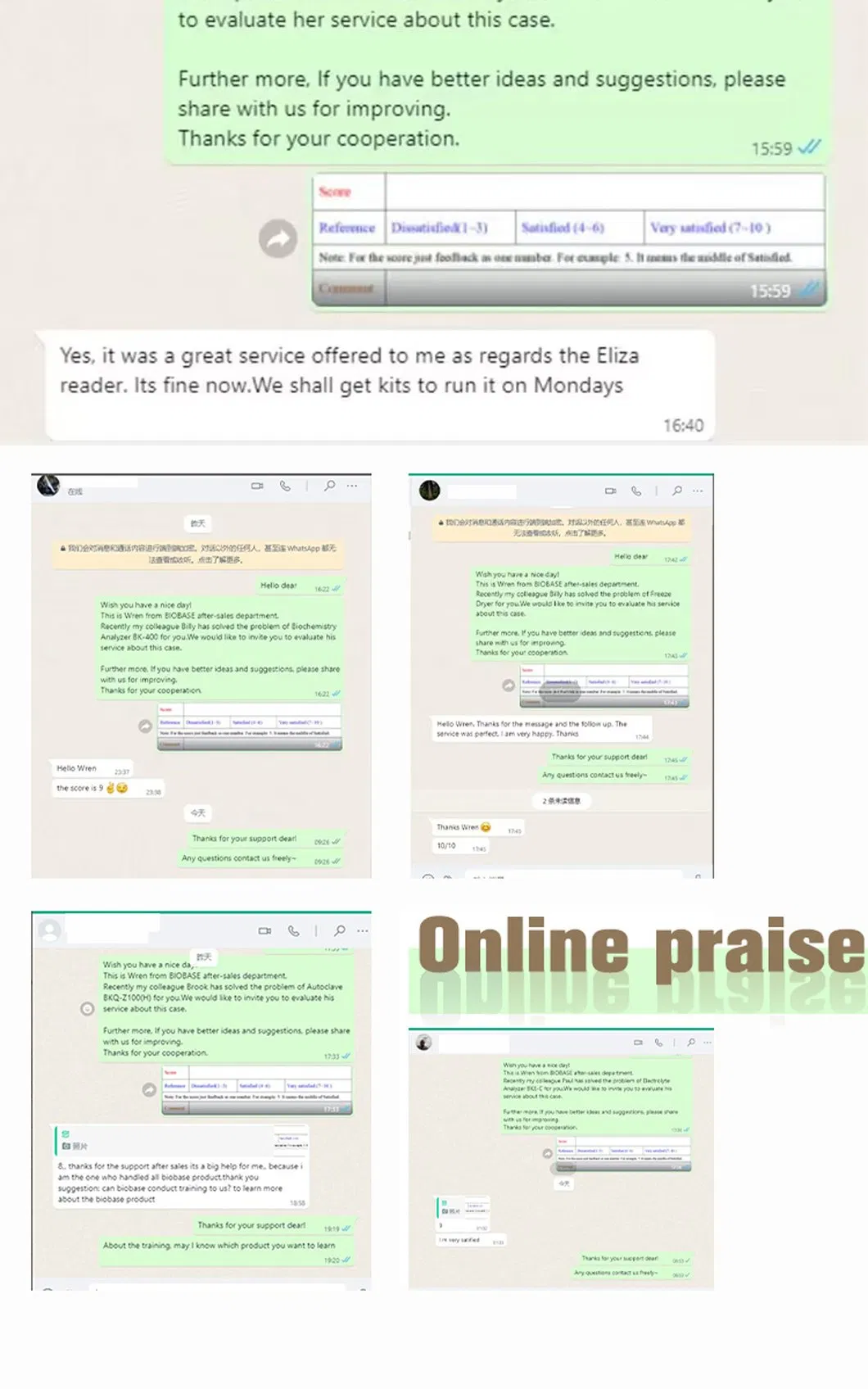

After Sales 1 After Sales 2 After Sales 3
Certification Contact Banner
?

Frequently Asked Questions

What are the primary applications of this gel imaging system?
It is designed for nucleic acid detection using various fluorescent dyes including EB, SYBR Gold, SYBR Green, SYBR Safe, Gel red, and others.
What is the resolution of the imaging camera?
The system features a high-resolution 6.0MP camera with a dark field camera module and a super aperture.
Does the system support touch operation?
Yes, it comes with a 12.5-inch HD touch display and an intelligent processing system for one-touch imaging.
What is the shooting area for samples?
The standard shooting area for the BK-AGX3 model is 21×21cm.
What kind of after-sales support is provided?
We provide a 1-year warranty, comprehensive installation and operation training, and access to engineers for overseas service.
Is the UV transmission wavelength adjustable?
The standard wavelength is 302nm, and there are options available for other transmitted blue light sources.
