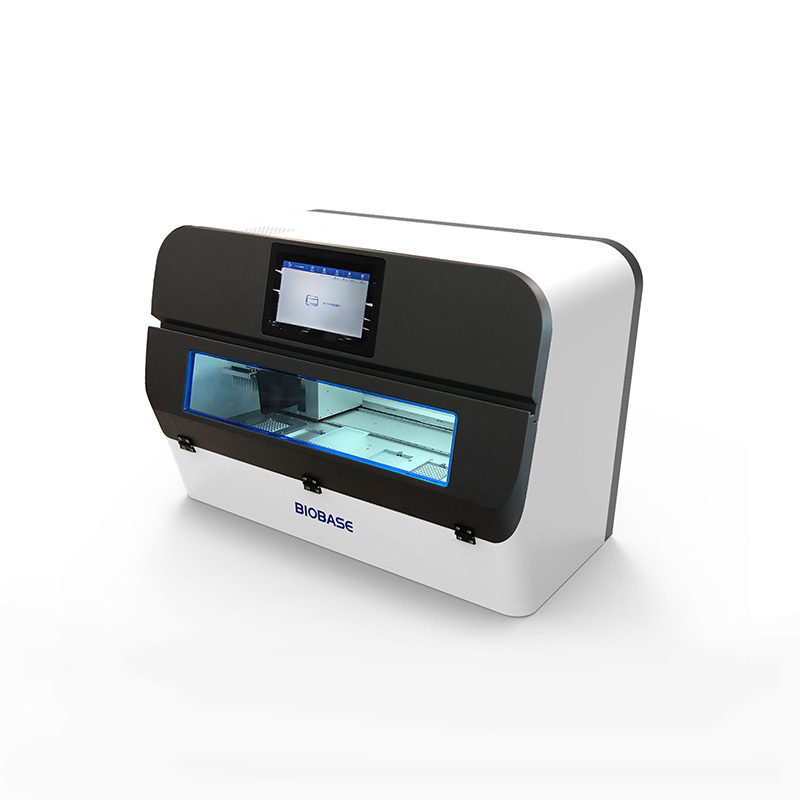

Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
1 / 5
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System
Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System

Biobase PCR Detection DNA Rna Automatic Nucleic Acid Extractor System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.BK-HS96
Nucleic Acid Extraction MethodParamagnetic Particle Method
Sample Capacity96-Well
Sample Volume20-1000UL
Extraction Time15min-60min
Magnetic Flux of Bar3000-6000GS, Can Change Others
Shock FunctionYes
Temperature Accuracy0.1 Degree
Disinfection MethodUV Light
Operating SystemWindows System
ScanningOptional
InterfaceUSB Interface
Transport PackageWooden Case
Specification1138*733*1028mm
OriginChina
Production Capacity200PCS/Month
Product Description

BK-HS96 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment. Matching nucleic acid extraction kits are used to automatically complete the extraction of sample nucleic acid. It offers flexible, stable results at a low cost.

Equipped with an efficient filtration device and safety gate design, it effectively avoids cross-infection and ensures the quality of nucleic acid extraction.

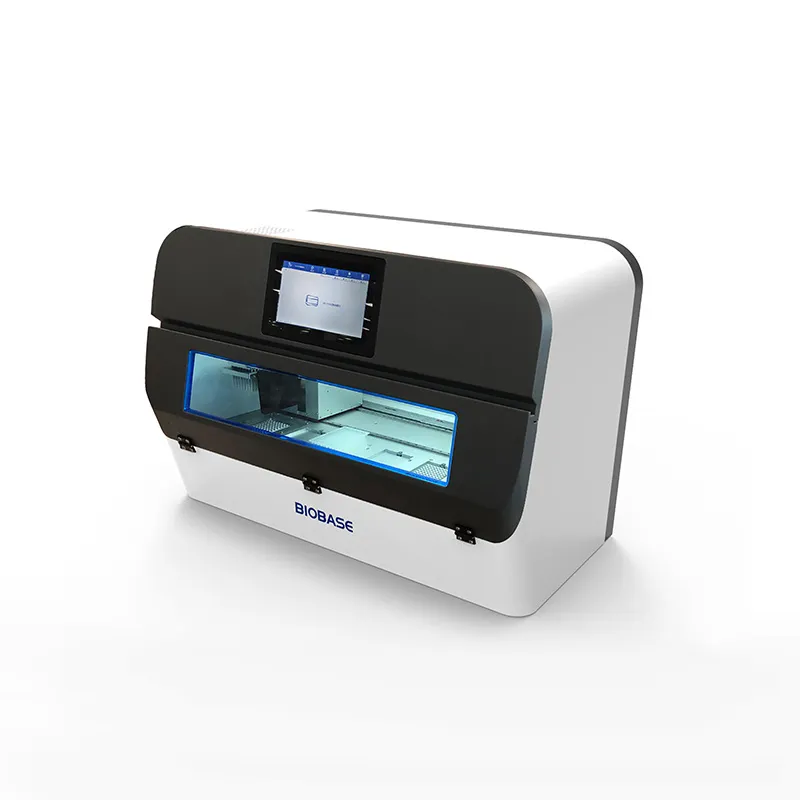

Nucleic Acid Extractor Front View

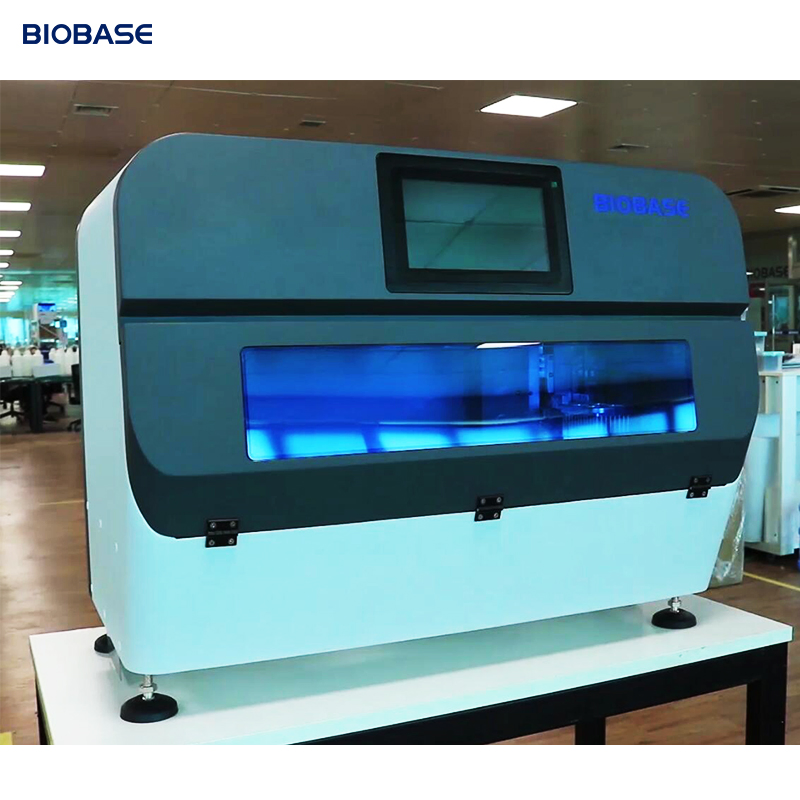

Nucleic Acid Extractor Side View

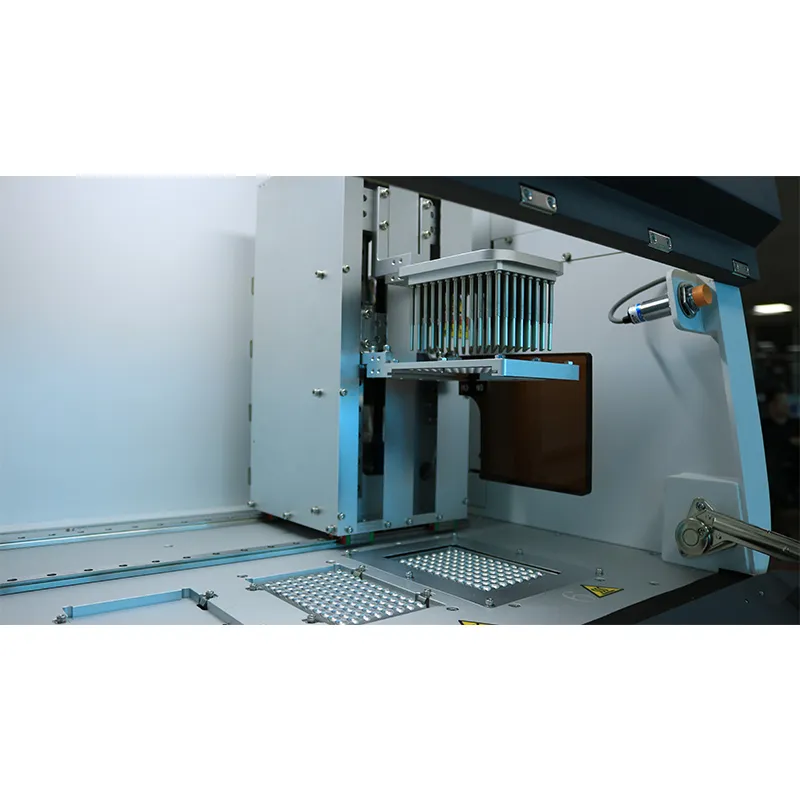

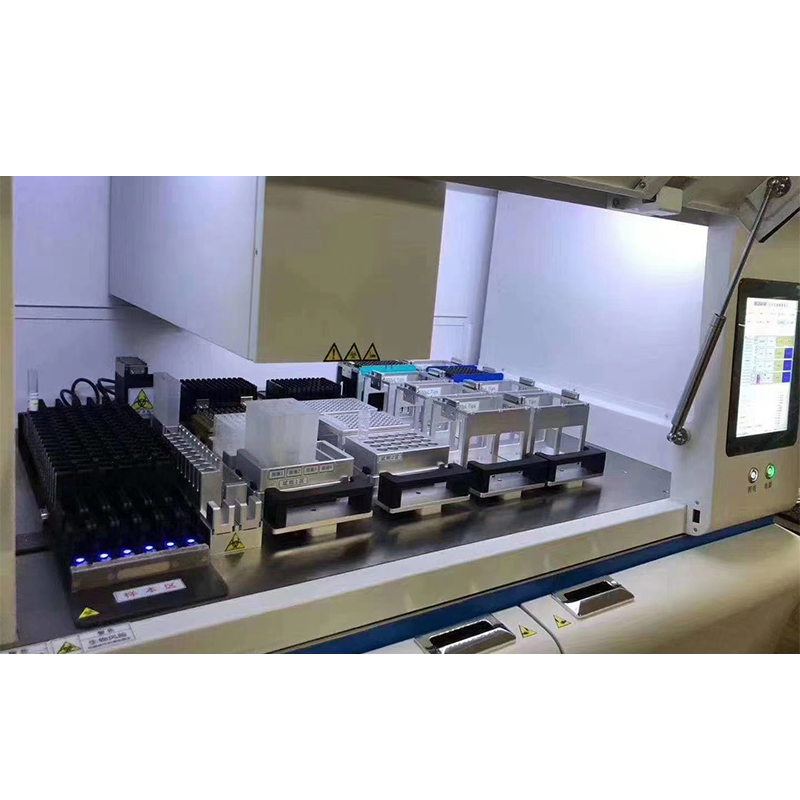

Nucleic Acid Extractor Detail
Product Parameters
  • Display: 10.1 inch touch screen, easy to operate.
  • Temperature Control: Accurate control and rapid temperature rise; can actively reduce to room temperature for short-term sample storage.
  • Integrated Module: Module is integrated with shocking and heating, saving extraction time by mixing while heating.
  • Safety: Equipped with ultraviolet disinfection lamp, HDPE high-efficiency filter, and safety door protection to prevent aerosol pollution.
Magnetic Bead Recovery≥98%
Operating TemperatureRT-105ºC
Sample ProtectionPower on self-check, power off protection, high-temperature alarm, over-temperature protection
Safety Door DesignInstrument is suspended when the safety door is opened
Storage>1000 protocols
Gross Weight(kg)130
Power SupplyAC100-240V 50Hz/60Hz
Related Products
Related Product Chart
Product Compatibility
Product Range
Packaging & Shipping

Packaging: Standard Cartons or Customized packaging solutions.

Shipping Options:

  • International Express: DHL, TNT, EMS, FedEx, etc.
  • Sea Transportation
  • Air Transportation
  • Support for customer-designated shipping agents

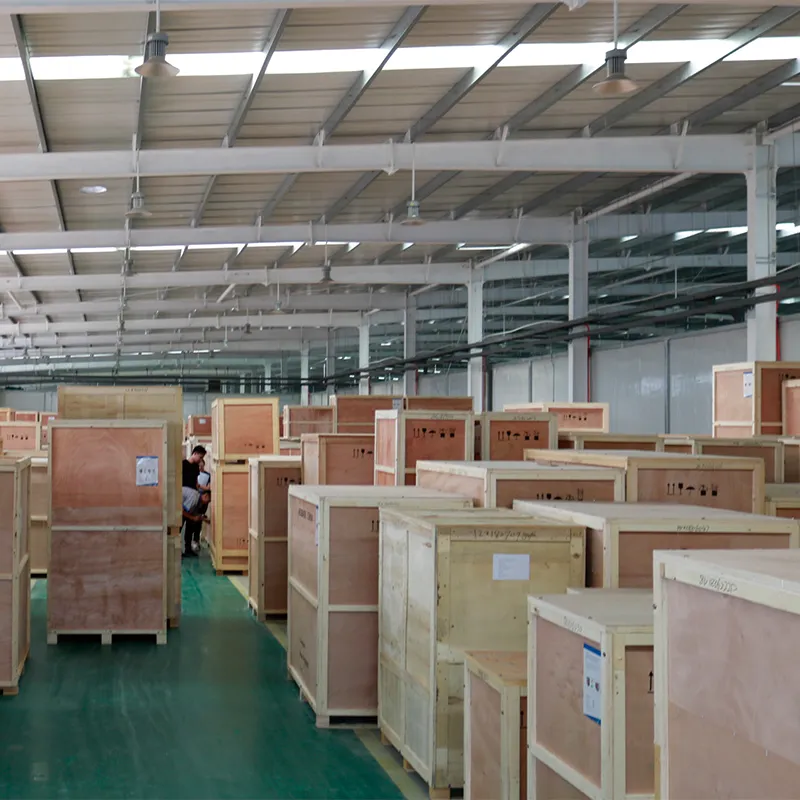

Packaging Box
Shipping Logistics
Frequently Asked Questions
Q1: What extraction method does the BK-HS96 use? A1: It utilizes the paramagnetic particle method, which ensures high sensitivity and throughput for nucleic acid purification.
Q2: How many samples can be processed at once? A2: The system has a 96-well capacity, allowing for the simultaneous extraction of up to 96 samples.
Q3: What safety measures are built into the system? A3: It includes a UV disinfection lamp, an HDPE high-efficiency filter, and a safety door design that automatically suspends operation if opened.
Q4: Is the temperature control precise enough for sensitive reagents? A4: Yes, the system features a temperature accuracy of 0.1°C, which is essential for stable and repeatable extraction results.
Q5: How long is a typical extraction cycle? A5: Depending on the protocol and sample type, the extraction time generally ranges between 15 and 60 minutes.
Q6: Can the system store custom extraction protocols? A6: Yes, the built-in Windows-based operating system can store more than 1,000 different protocols for various applications.
