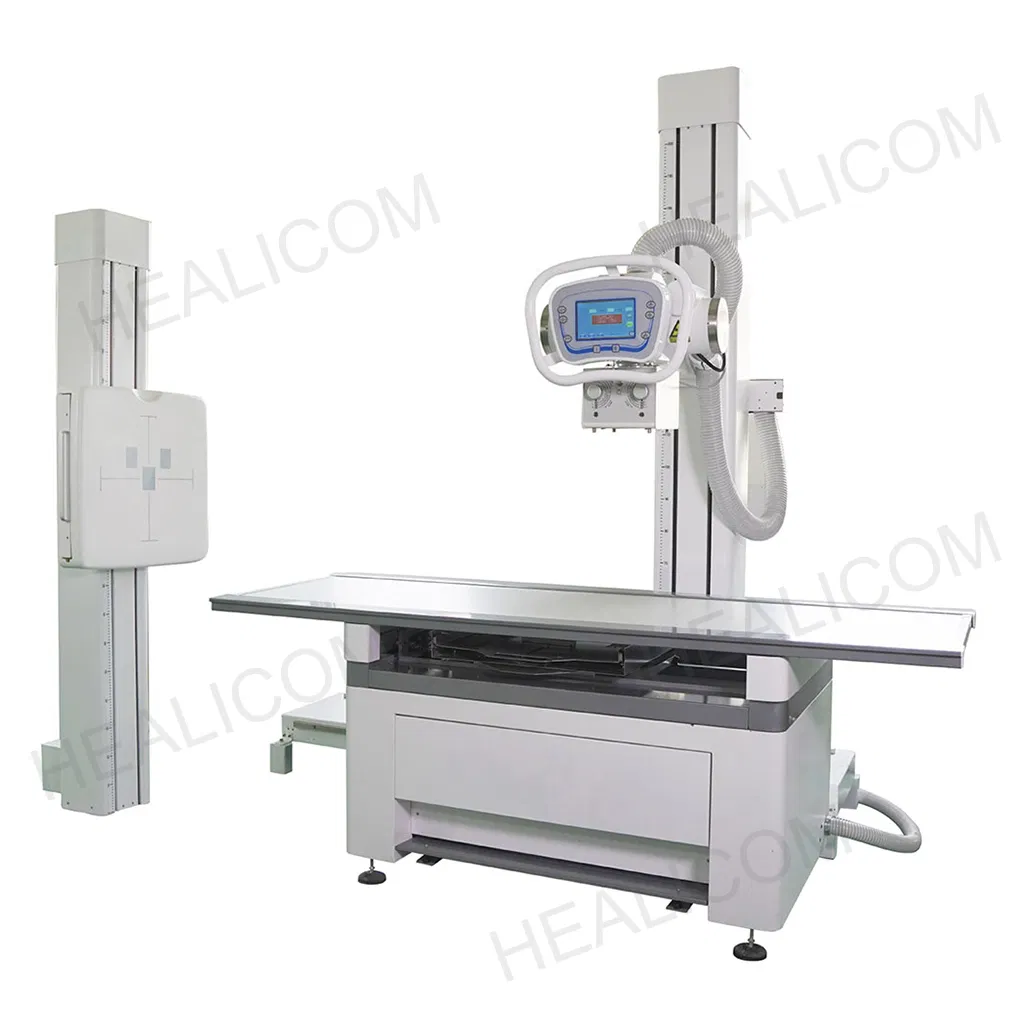

Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
1 / 5
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals
Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals

Factory-Prepared Fixed Medical Radiography Diagnostic X-ray System Is Suitable for Use in Hospitals

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Basic Information
Model NO.
HX32R-E
Certification
CE, ISO13485
Output Power
32kw 1 Phase 220V
Kv Range
40~150kv
Ma Range
10~400mA
X-ray Tube
Chinese Brand
Dual-Focus
Small 0.6 / Large 1.2
Transport Package
Wooden Case
Production Capacity
500 Piece/Month
Product Description
HX32R-E High-frequency 32-kilowatt Fixed Digital Radiographic X-ray Machine

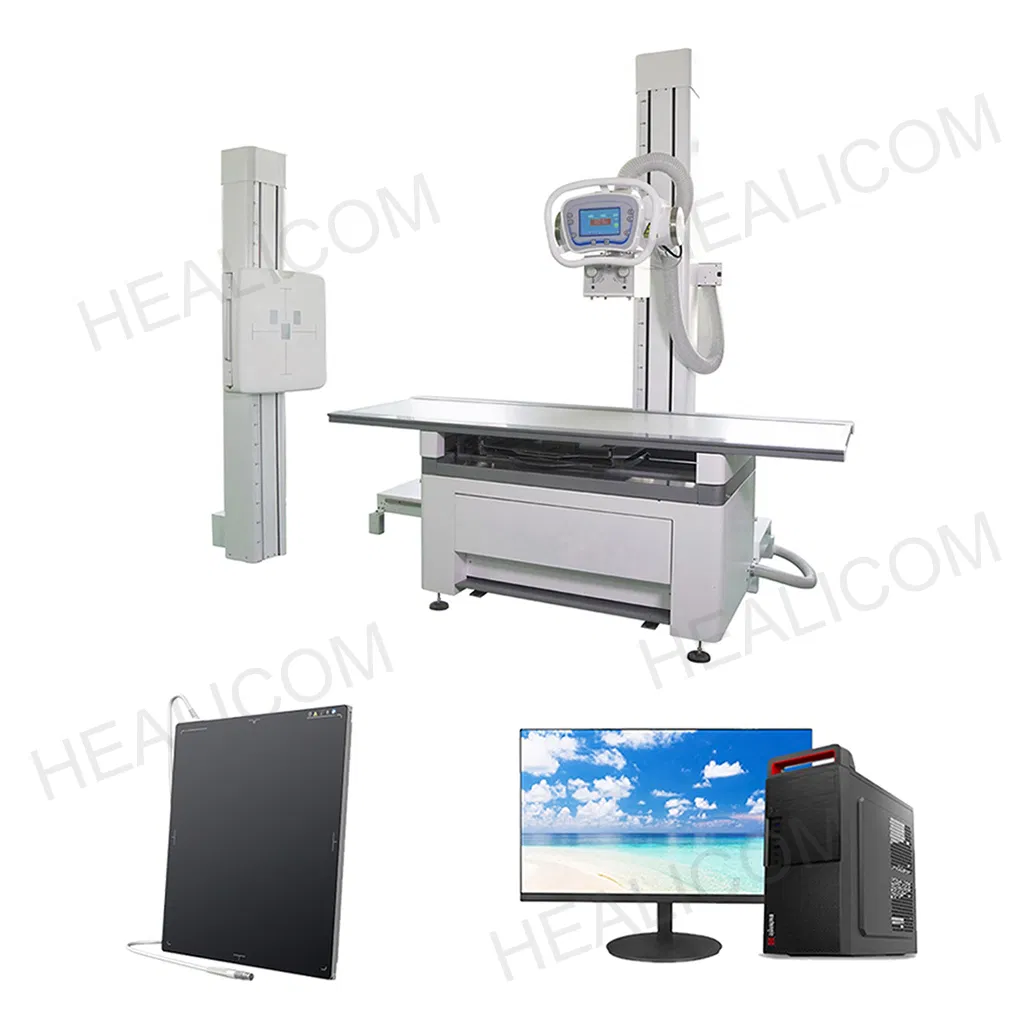

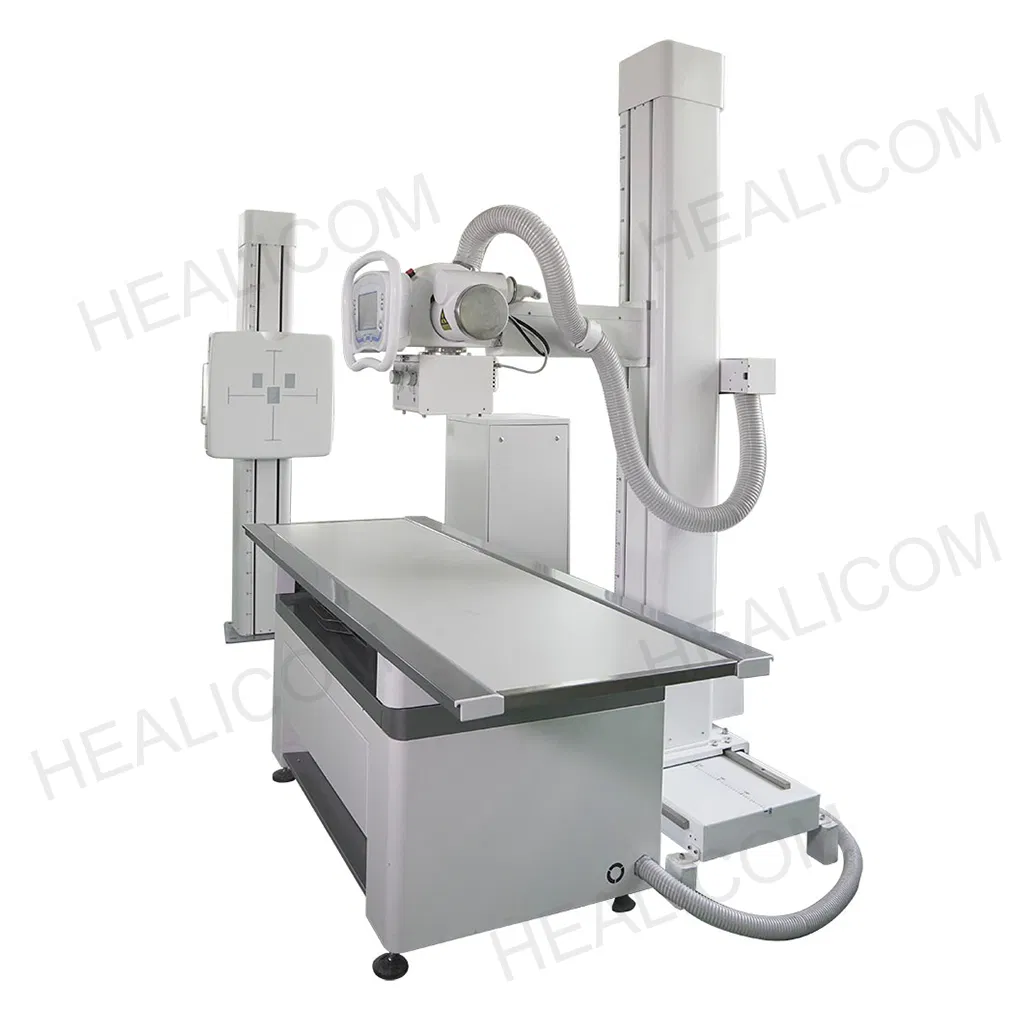

Fixed Medical Radiography Diagnostic X-ray System
Technical Specifications
X-ray tube assembly
Focus design 0.6mm / 1.2mm
Focus power 32kW
Anode heat capacity 190kHU
Beam limiter
Dimensions 250mm×224mm×250mm
Radiation field Max (SID=56cm): 43cm×43cm; Min: 0cm×0cm
Manipulation mode Manual
Frame System
Column height 2230mm
Column movement stroke Left/Right: 1500mm; Up/Down: 1400mm
Ball tube rotation range -90° ~ 0° ~ +90°
Chest frame height 2100mm (Lifting stroke: 1400mm)
High frequency high voltage generator
Power / Frequency 32kW / 40~150kHz
Photography Range kV: 40~150kV; mA: 10~400mA
Exposure settings Time: 1ms~10s; mAs: 0.1mAs~630mAs
Power condition 1 phase 220V
Mobile photography bed
Bed size: 2000mm(L) x 730mm(W) x 680mm(H). Movement: Forward/Backward 200mm.

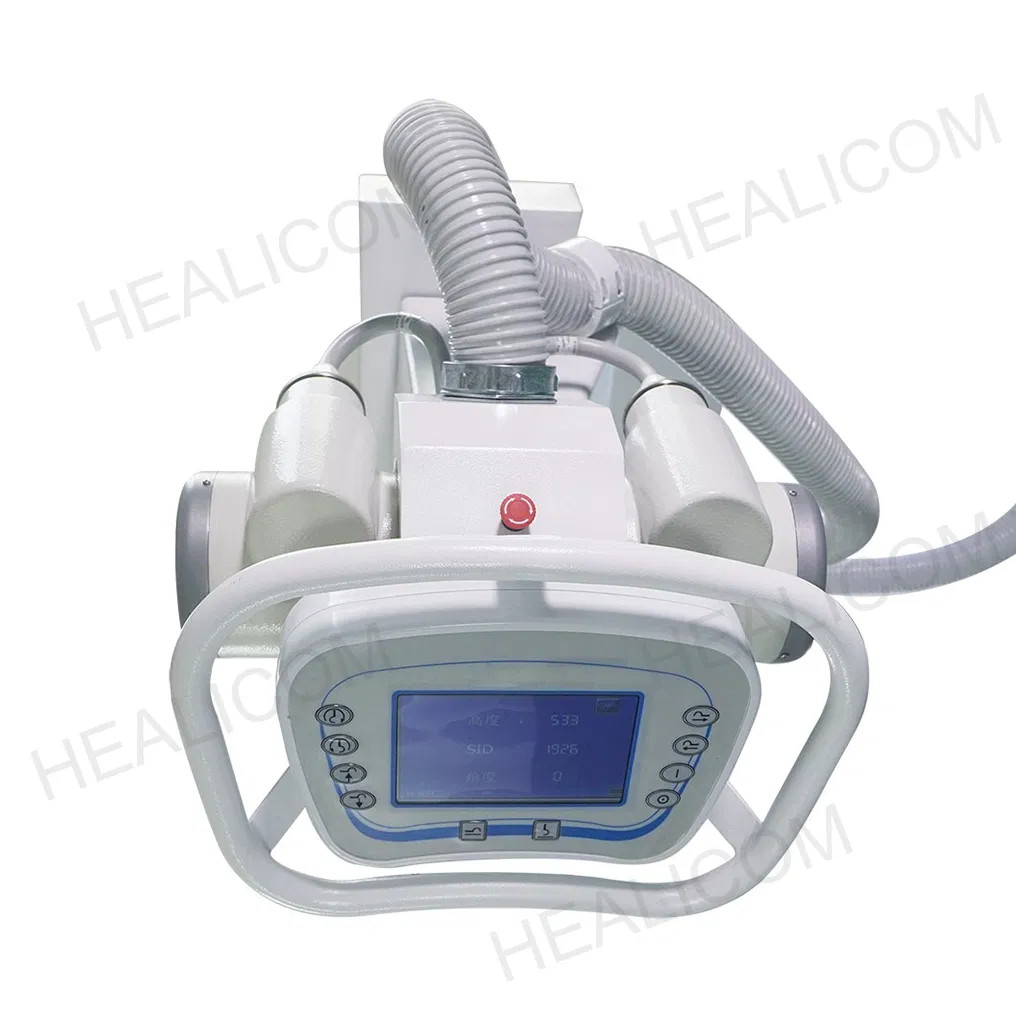

X-ray components

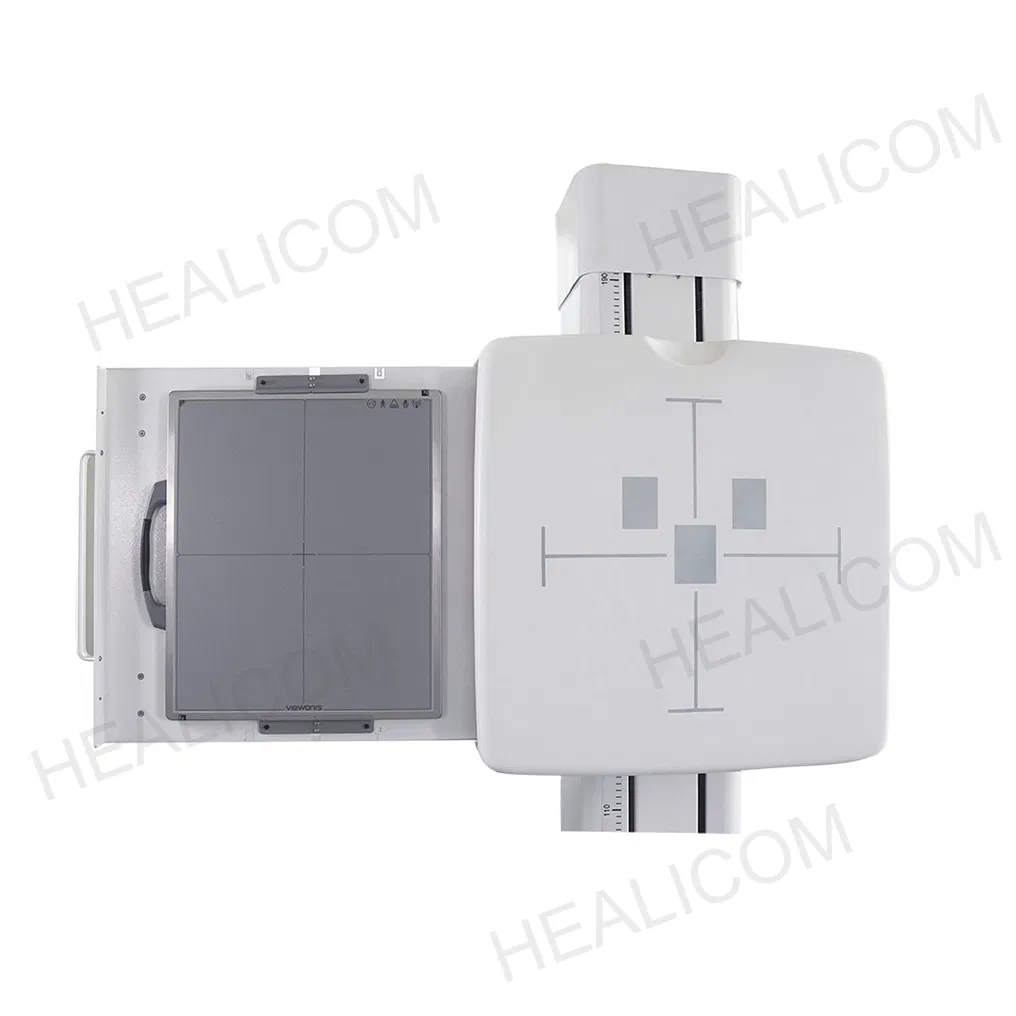

X-ray detail
X-ray interface

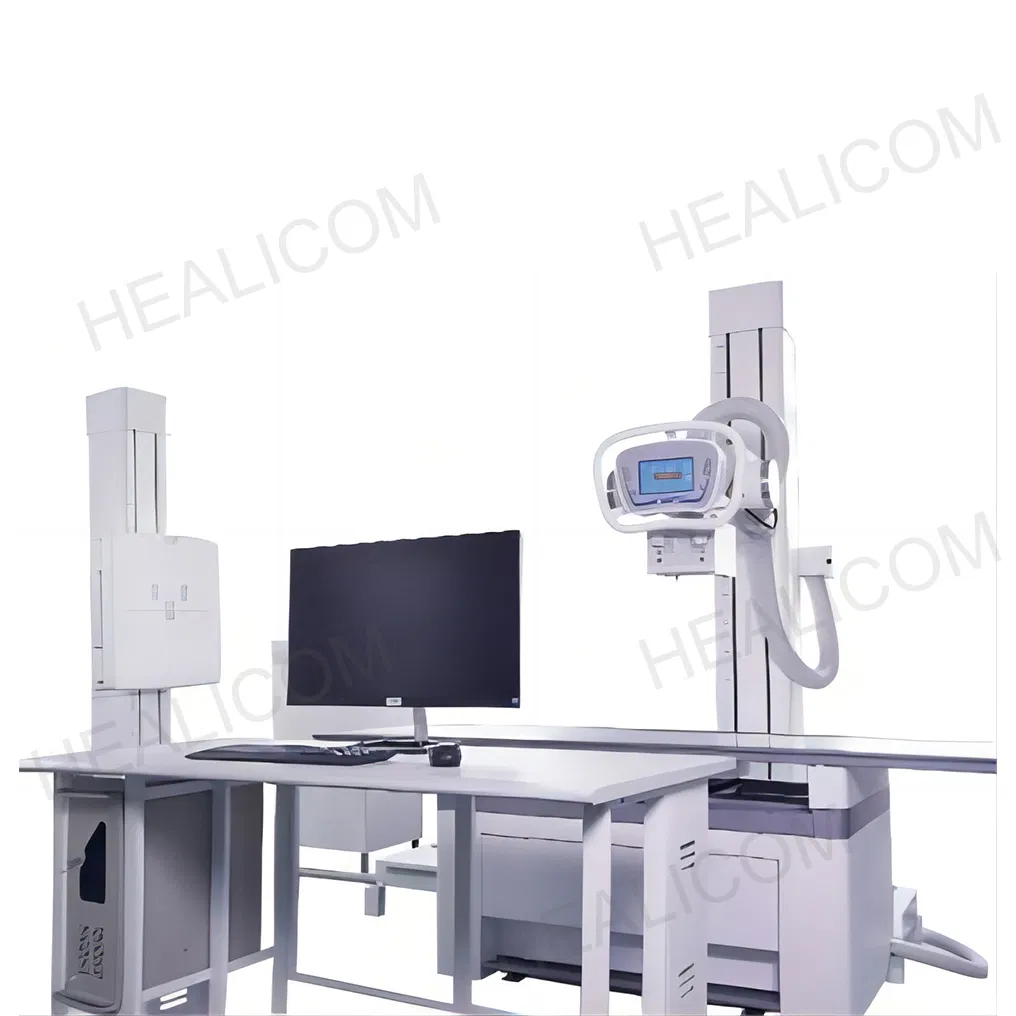

System setup

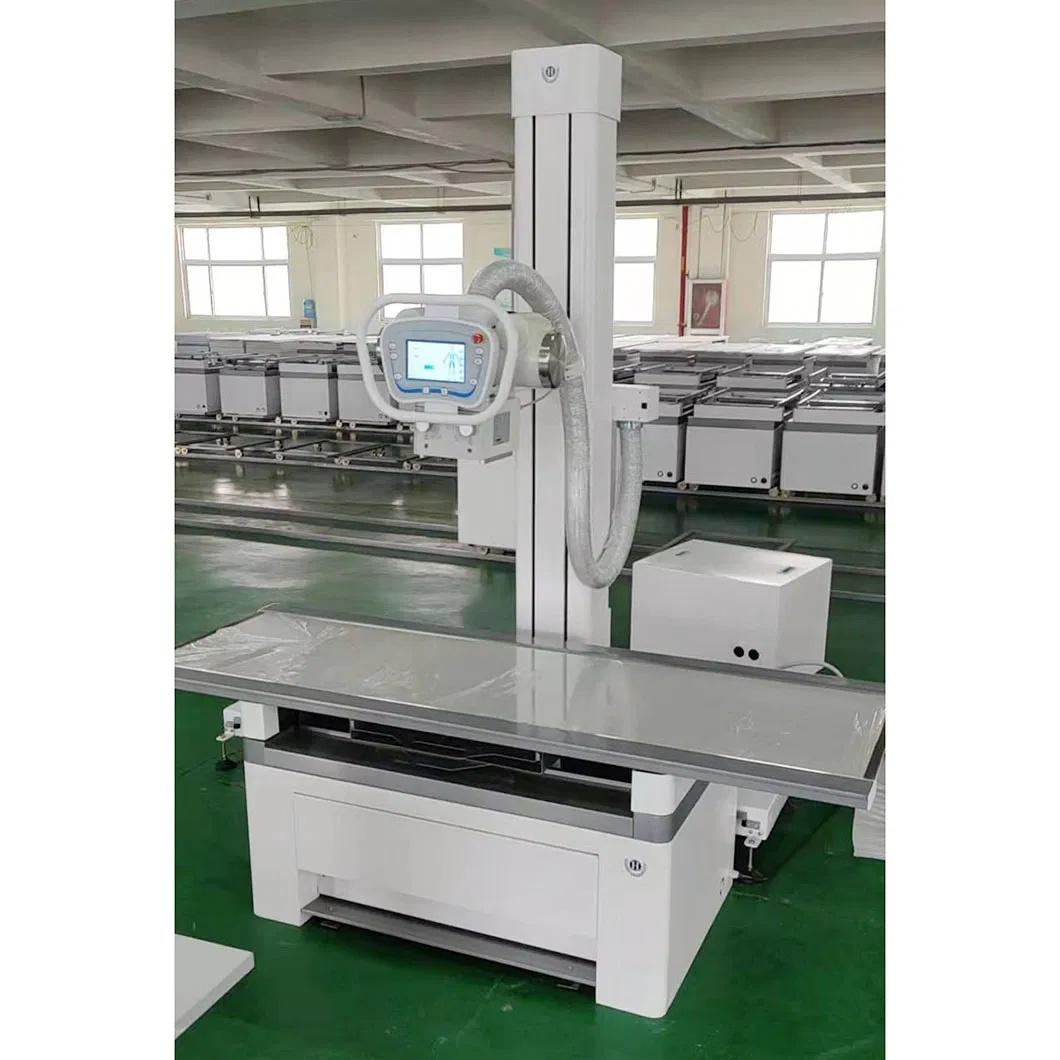

Clinical application

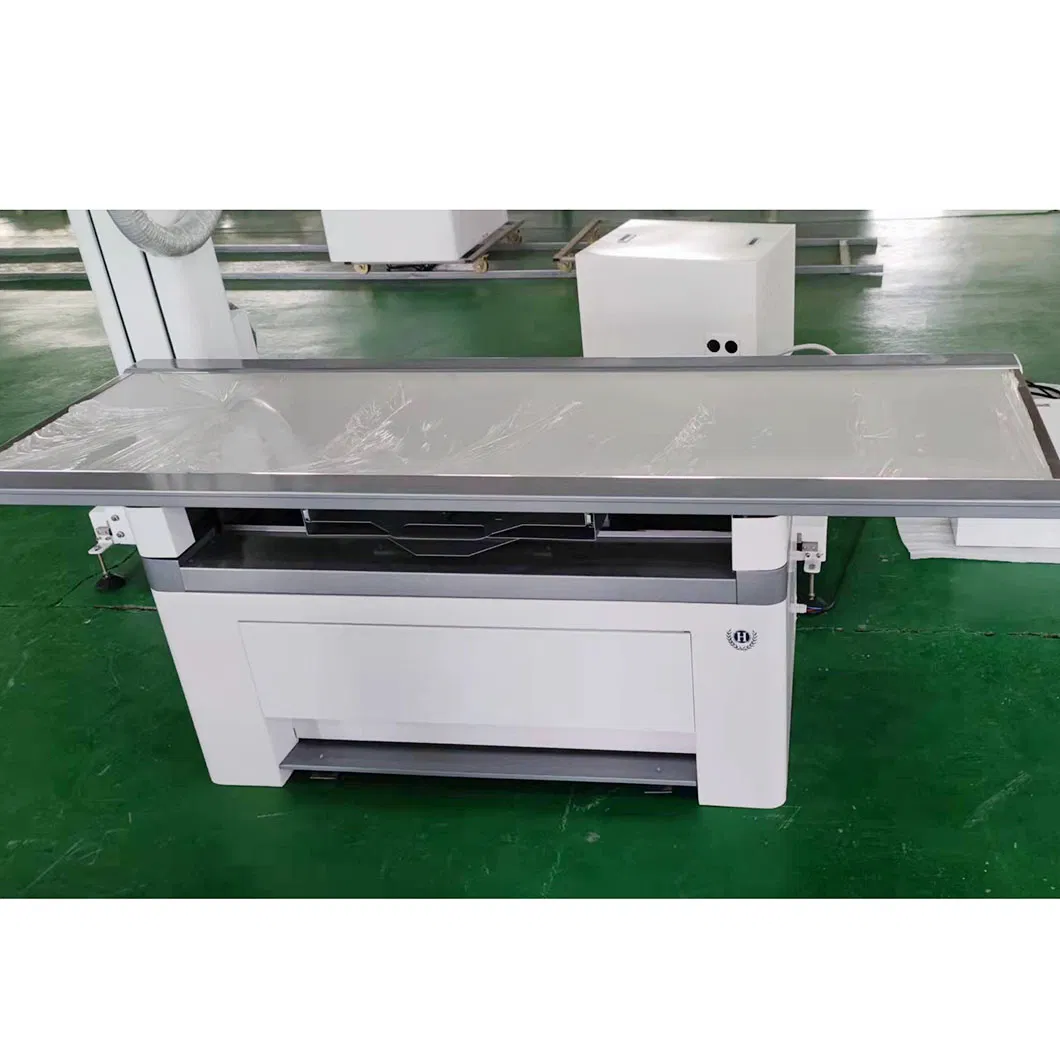

Product view
Workshop & Quality Control

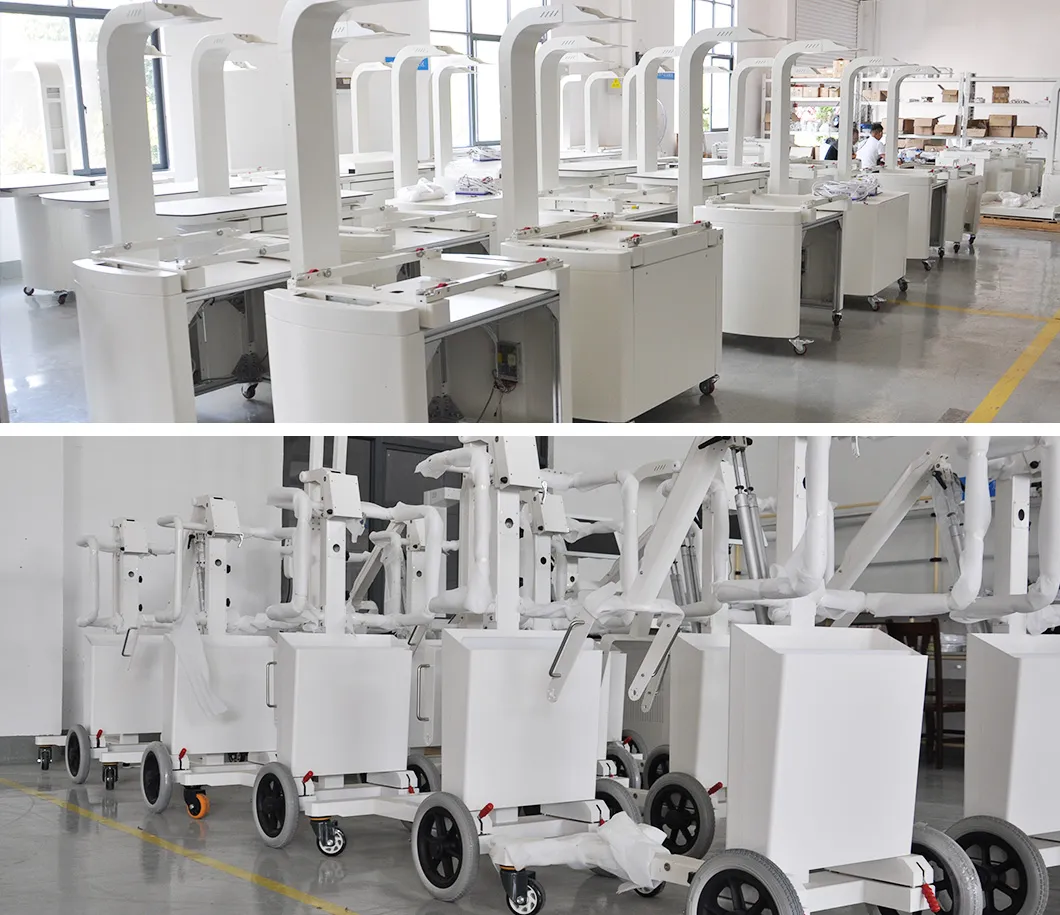

Production Workshop

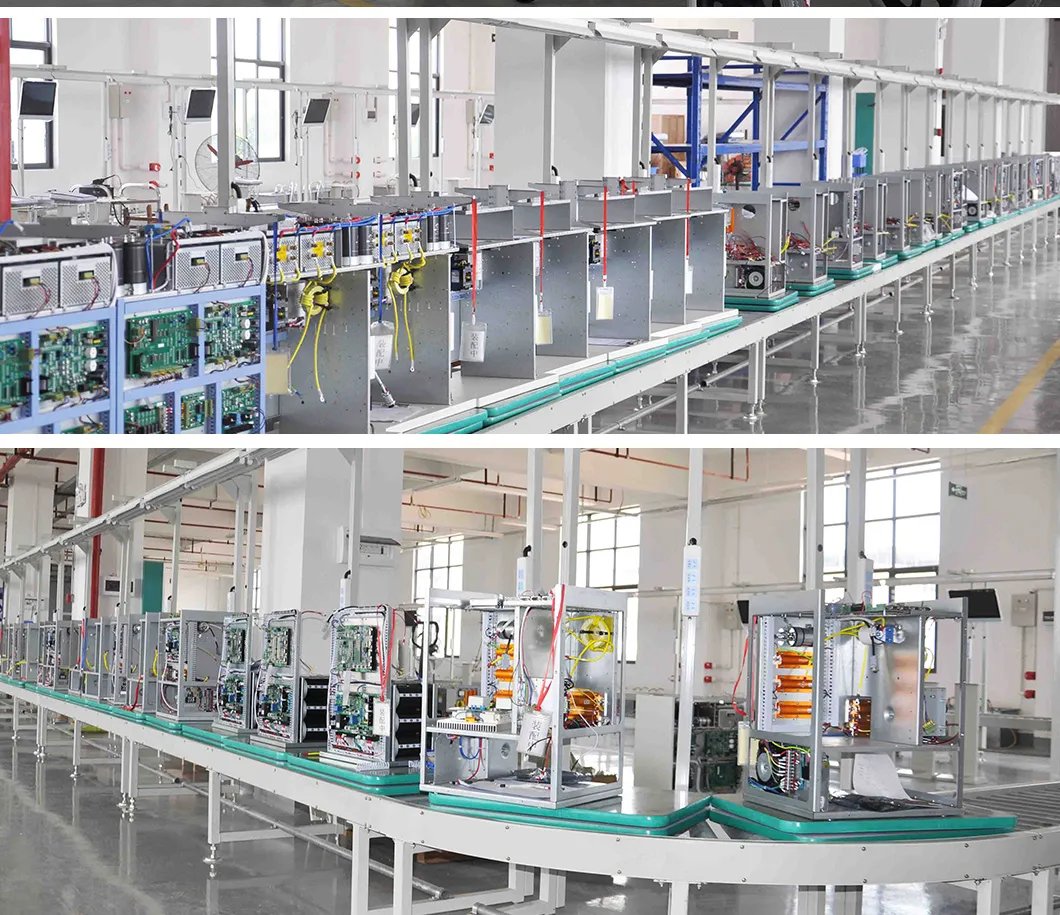

Manufacturing Center
Certifications & Global Presence
ISO Certification
CE Certificate
Global Shipping
Export Logistics
Frequently Asked Questions
What about the price level of your equipment?
We are confident that our prices are highly competitive for the quality level provided, backed by over 20 years of experience in the field. We adhere to providing top-quality products with competitive pricing globally.
Why do prices vary for products that look identical?
While some products may look the same visually, the difference lies in the materials, patent rights, and quality control processes. Lower-priced copy products often use cheaper materials and have less rigorous quality oversight.
What is the standard delivery time?
Orders are typically produced based on specific requirements, with a delivery period of approximately 15 days after confirmation. For small or sample orders, we can check existing stock for immediate delivery.
What kind of quality assurance and warranty do you offer?
We offer a one-year warranty period starting from the time of shipment. We provide free spare parts for minor repairs and replacements for serious equipment issues.
What are the available payment terms?
We accept multiple payment methods including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram for your convenience.
Do your products have international certifications?
Yes, our equipment is manufactured according to high standards and carries certifications such as CE and ISO13485 to ensure safety and performance for hospital use.
