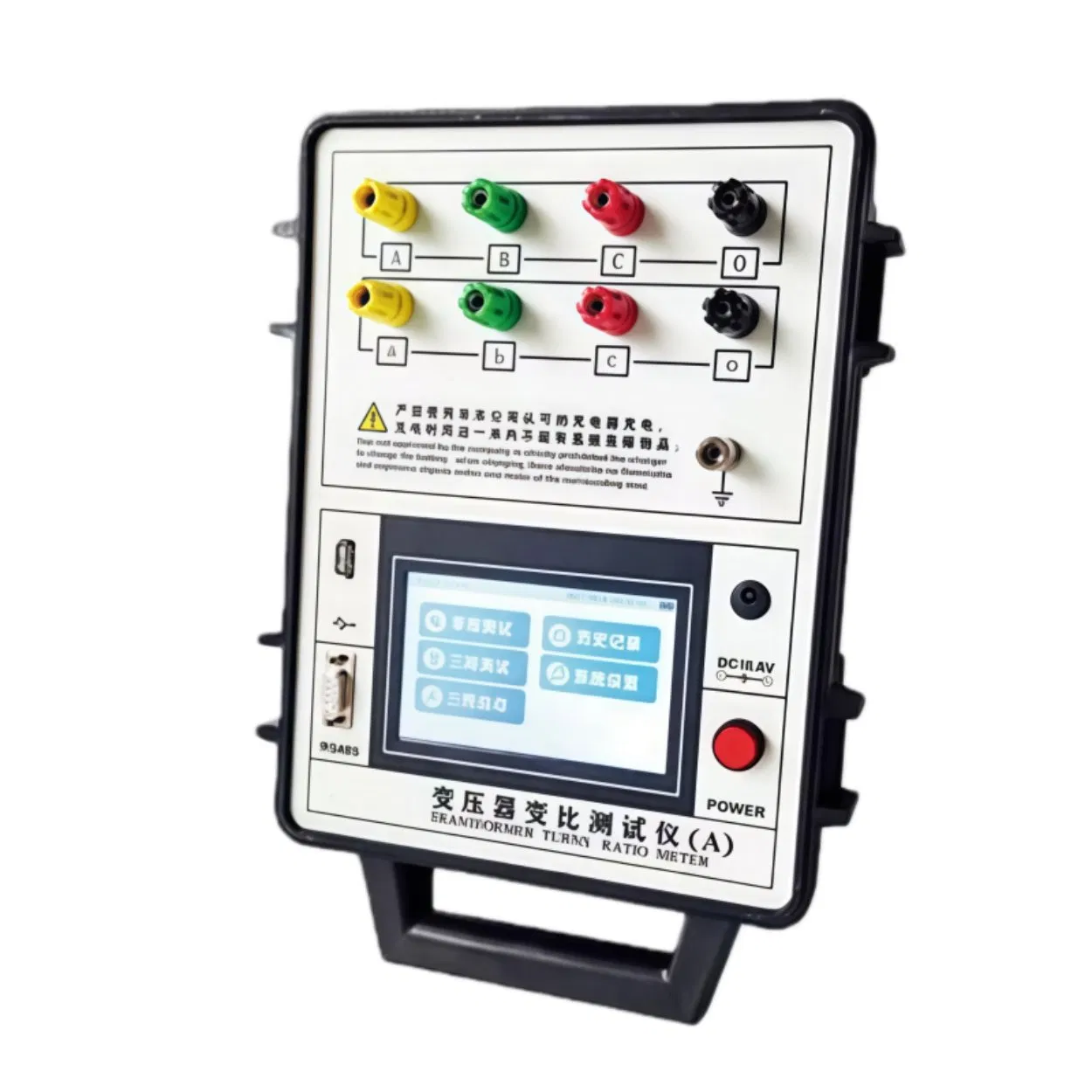

Designed for three-phase transformers, including Z-type and high no-load current types.

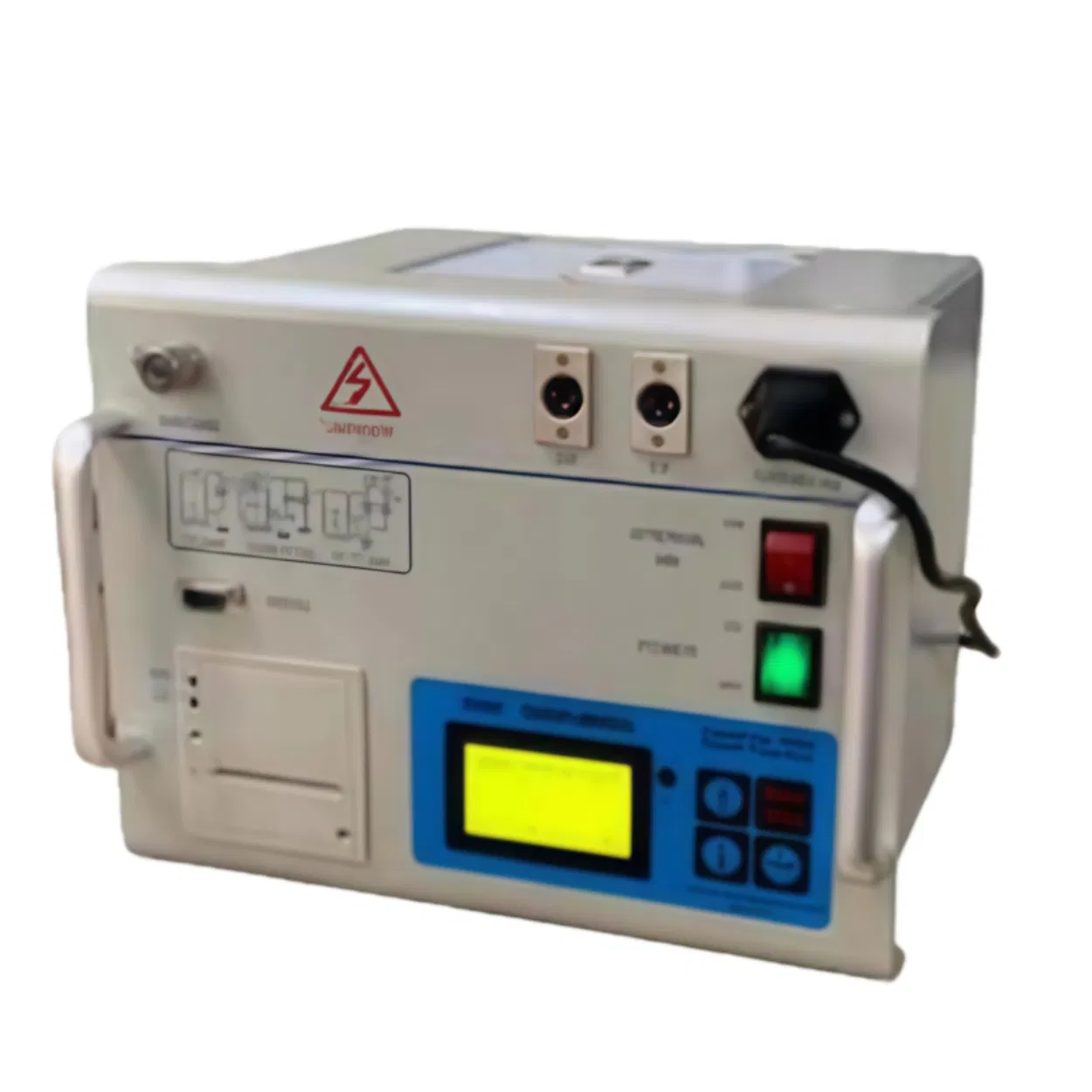

Measures capacitance and dielectric loss (tgδ) of high-voltage equipment. Integrates power supply, booster, and standard capacitor.

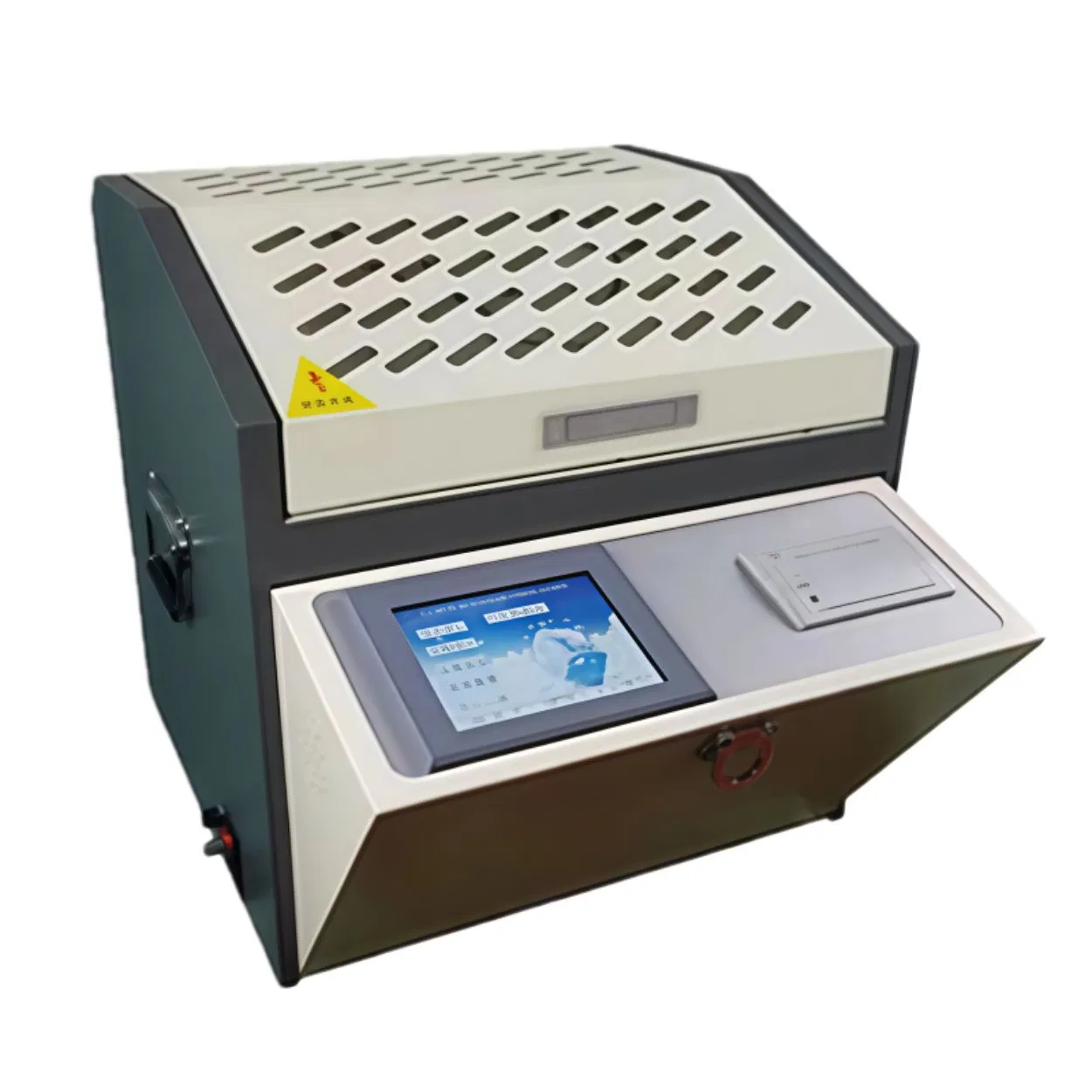

Designed according to IEC 156 for testing the dielectric loss of insulating oil.
| Ratio testing range | 1~10000 | High output | Precision:2%, Max Current:2000mA, Capacity:2000VA | Input voltage | AC 220V |
| Group Testing range | 1~12 | Self-excited power | AC 0~50V/15A, Multi-frequencies | Output voltage | AC 0~80KV/100KV |

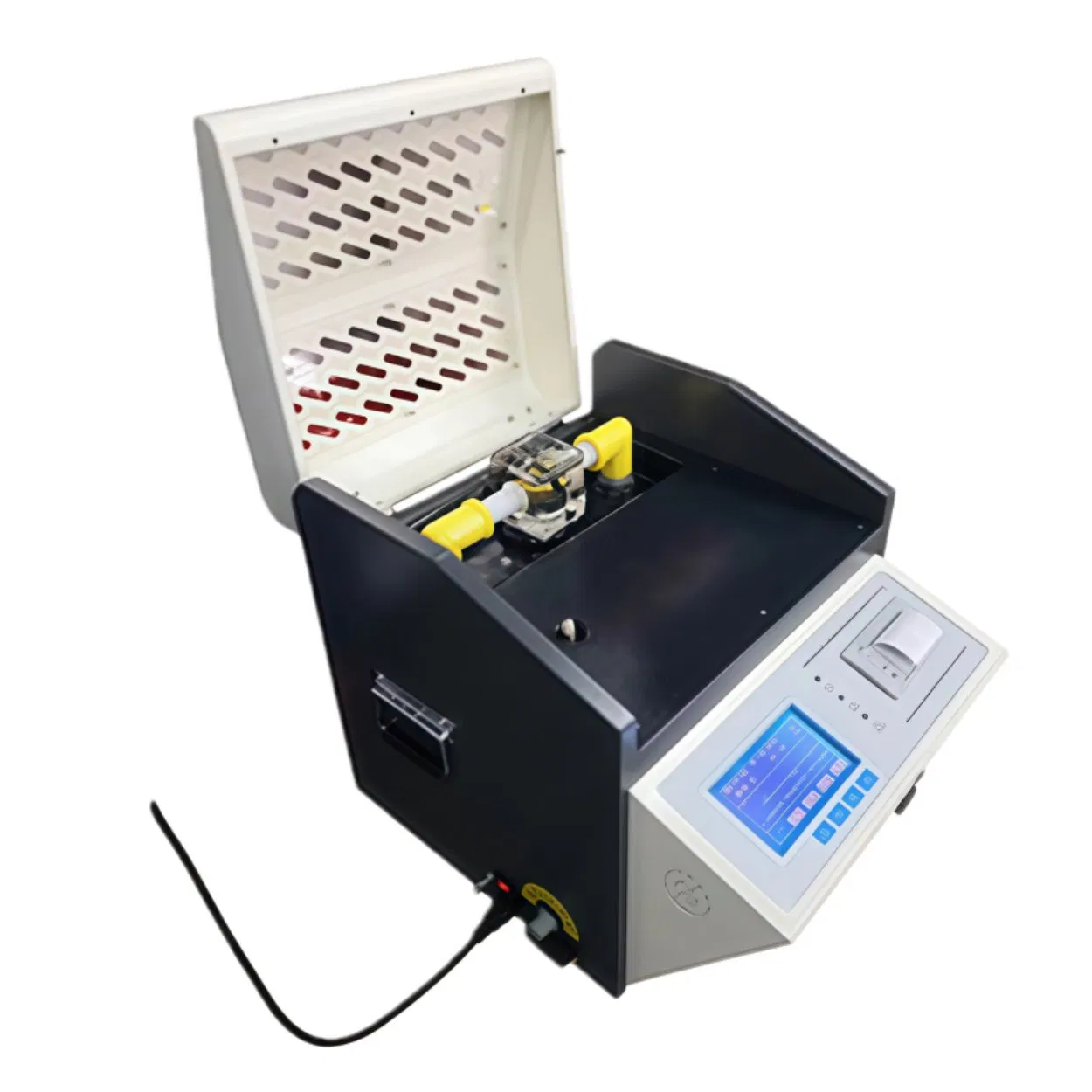

The FOT-100KV measures the breakdown voltage of insulating oil in power, railway, and industrial sectors.
Produces impulse waveforms for checking coil voltage distribution and locating insulation defects without damage.

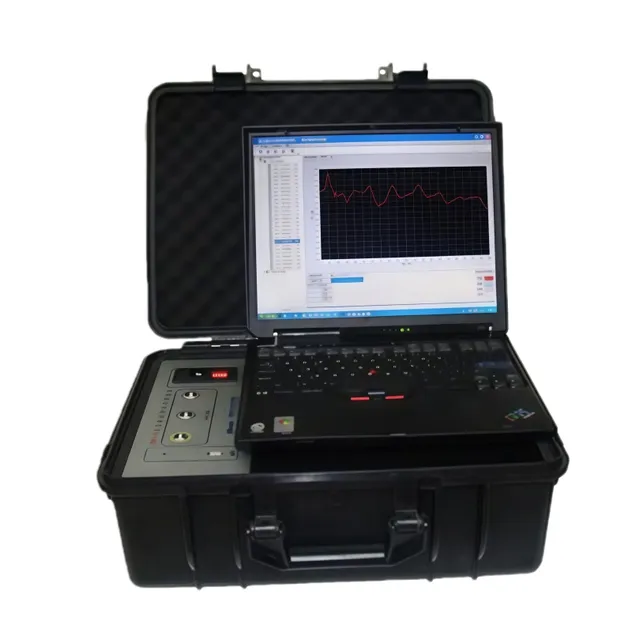

Performs Frequency Response Analysis (FRA) to detect internal winding deformation or displacement.
| Output Voltage | 0~100KV | Charging Voltage | 0–400 V | Linear Scan | 1kHZ - 2kHZ |
| Voltage Distortion | <3% | Pulse Waveform | Wavefront 0.5 μs | Sectional Scan | 0.5kHz~1MHz |

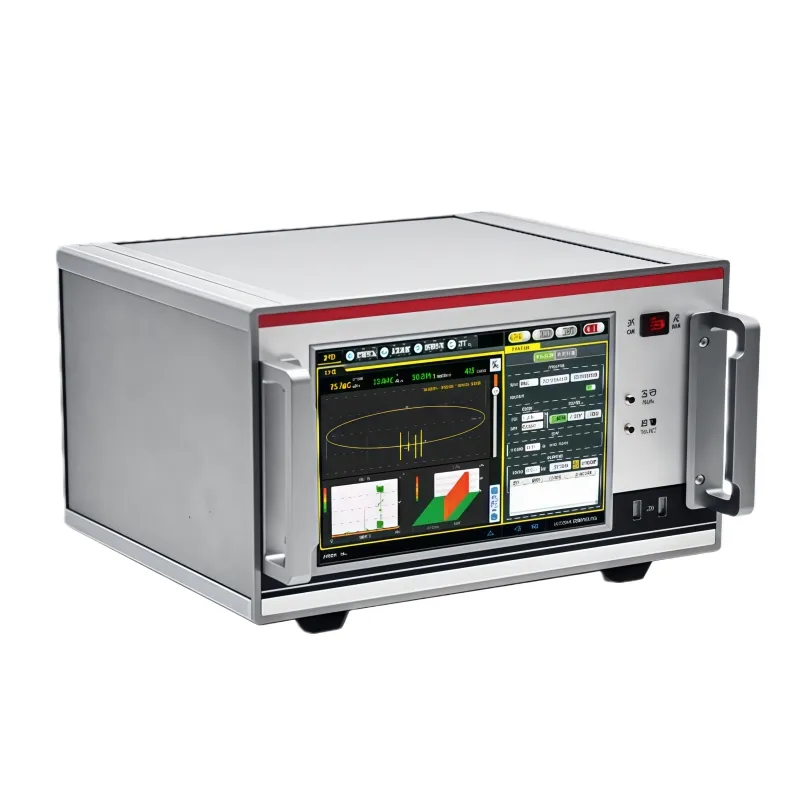

Detects partial discharge in high-voltage equipment such as transformers, breakers, GIS, surge arresters, and cables.

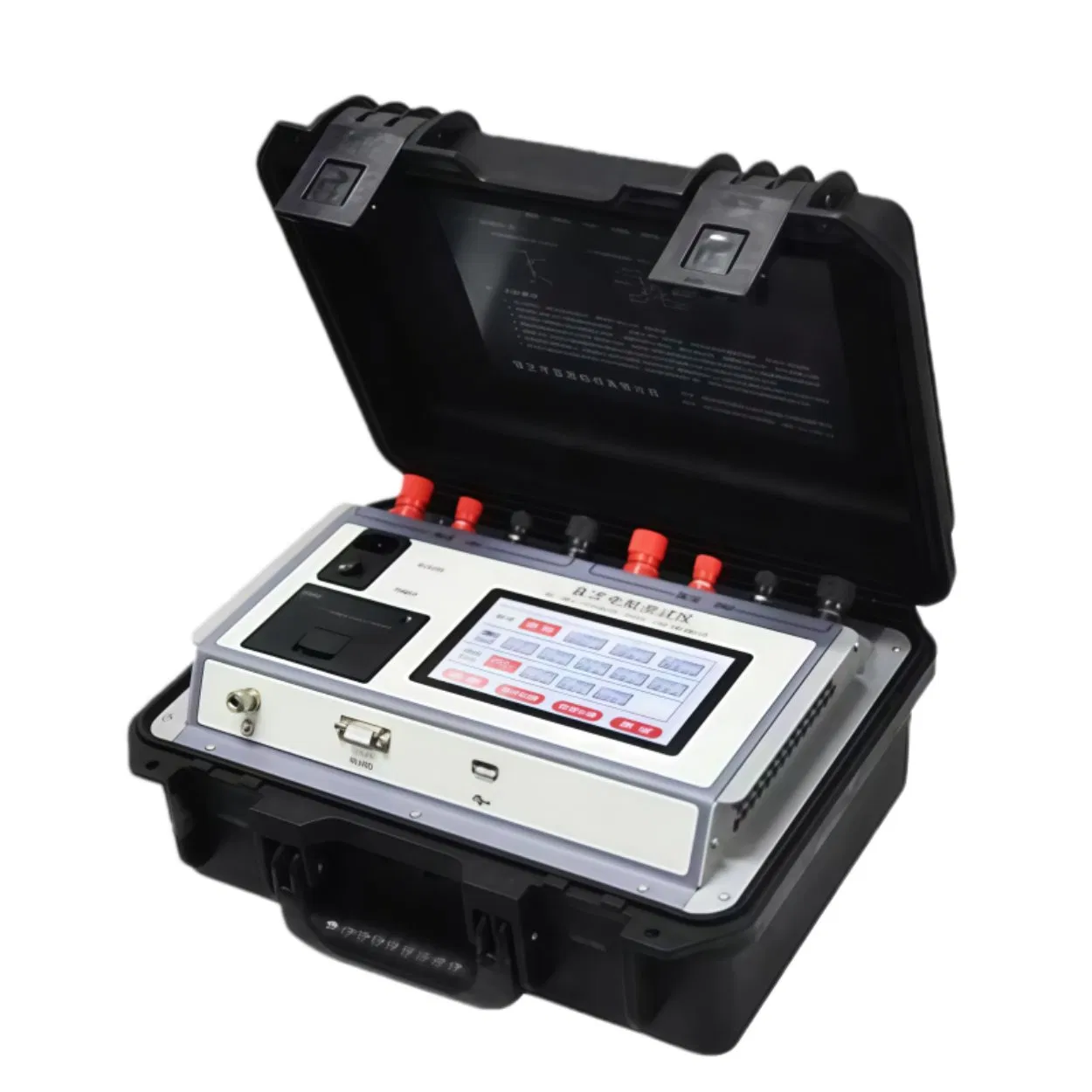

Used to detect winding defects such as poor welding, loose connections, short circuits, and fractures.
