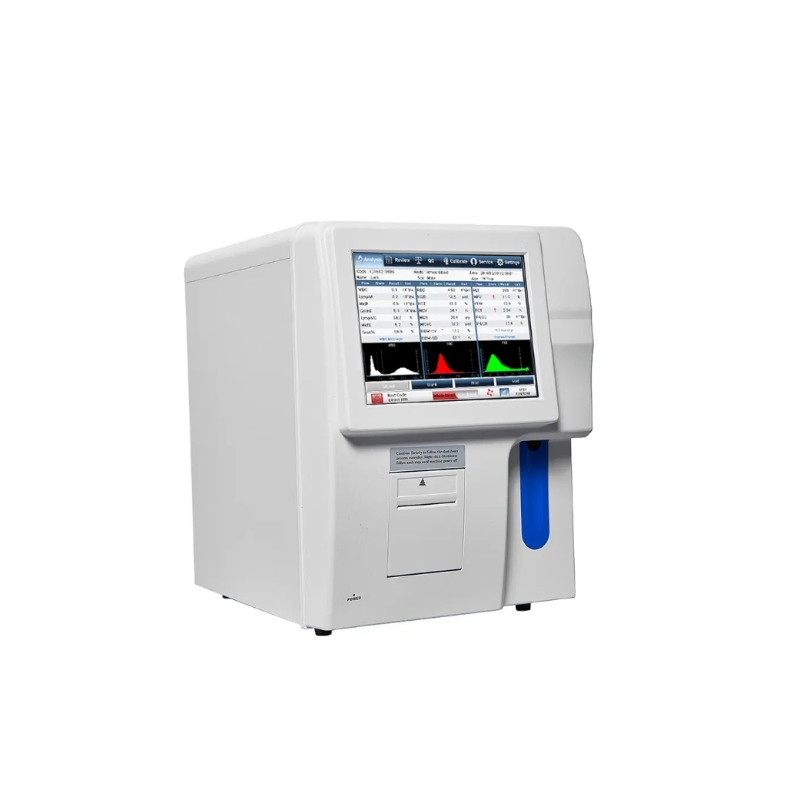

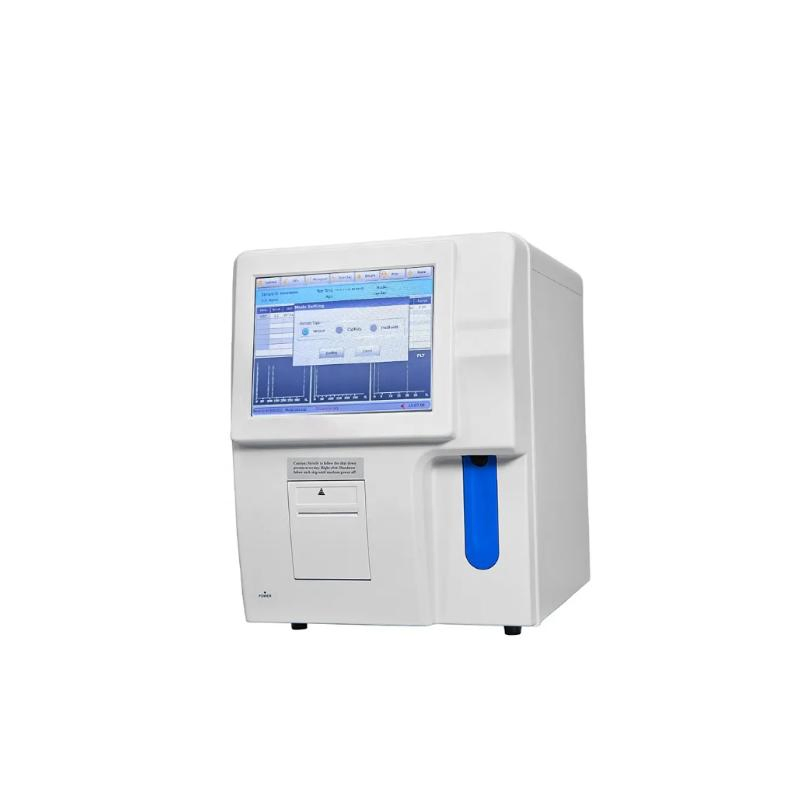

Medical Clinical Lab Hematology 3-Part Wbc 24 Parameters Blood Analysis System

Classification: Biological Diagnostics
Type: Hematology Analyzer
Certification: CE, ISO13485

Product Description

📋

Basic Information

Model NO. CCL-H900N
Warranty 1 Year
Transport Package Standard Export Package
Origin China
Production Capacity 500 units/Month
🔬

Medical Clinical Lab Hematology 3-Part WBC Blood Analysis System

Model: CCL-H900N

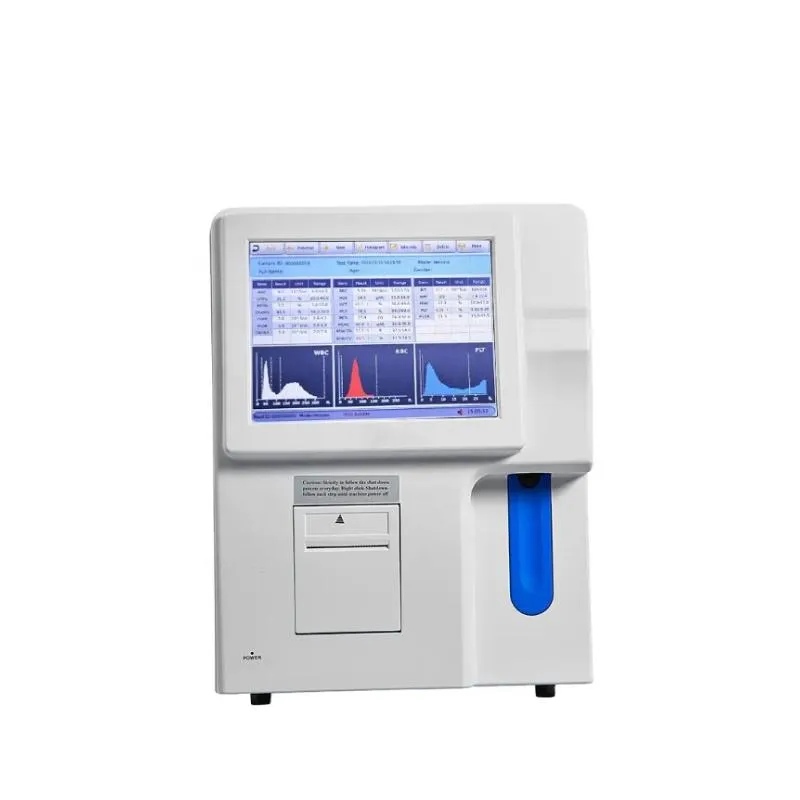

Medical Clinical Lab Hematology Analysis System
⚙️

Key Features

  • 3-part differentiation of WBC, 24 parameters include 3 histograms
  • Up to 70 samples test per hour, double channel counter
  • Electrical resistance for counting and SFT method of hemoglobin
  • 10.4 inches touch screen operation, supports mouse and keyboard
  • Automatic diluting, mixing, rinsing, and clog clearing
  • Automatic sample probe cleaning (inside and outside)
  • Internal thermal-sensitive printer; external printer optional (e.g., HP1020)
  • Support for external barcode scanner
  • Open reagent systems (closed systems optional)
  • LIS system connectivity supported
📊

Technical Specifications

Category Details
Methodology Electrical resistance for counting, hemoglobin cyanide method and SFT method
Parameter 3-part differentiation of WBC; 24 parameters and 3 color histograms
Work mode Double Channel + unique Hemoglobin test system
Sample volume 9.6μL for Venous and capillary mode, 20μL for prediluted mode
QC control X-B, L-J, X, SD, CV %
Reference Value Setting Male, Female, Children, Neonate
Alarm 25 test alert messages
Temperature 18ºC - 30ºC, Humidity ≤ 10-90%
Power supply 220 V ±22 VAC, 50±1Hz
Dimension 33 CM (L) * 38 CM (W) * 43 CM (H)
Weight 20 KG
Hematology Analyzer Detail 1

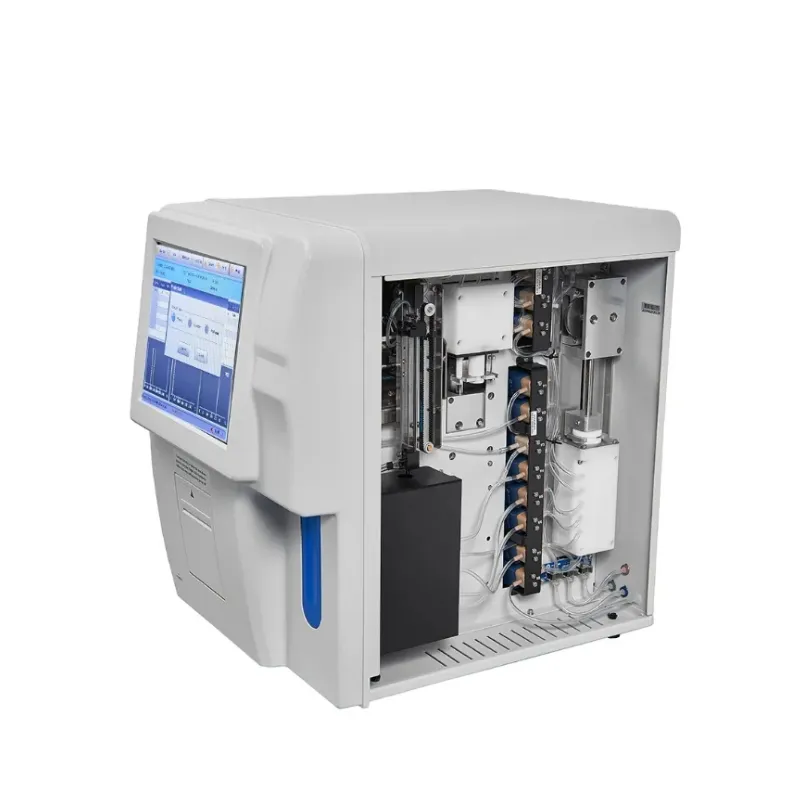

Hematology Analyzer Detail 2

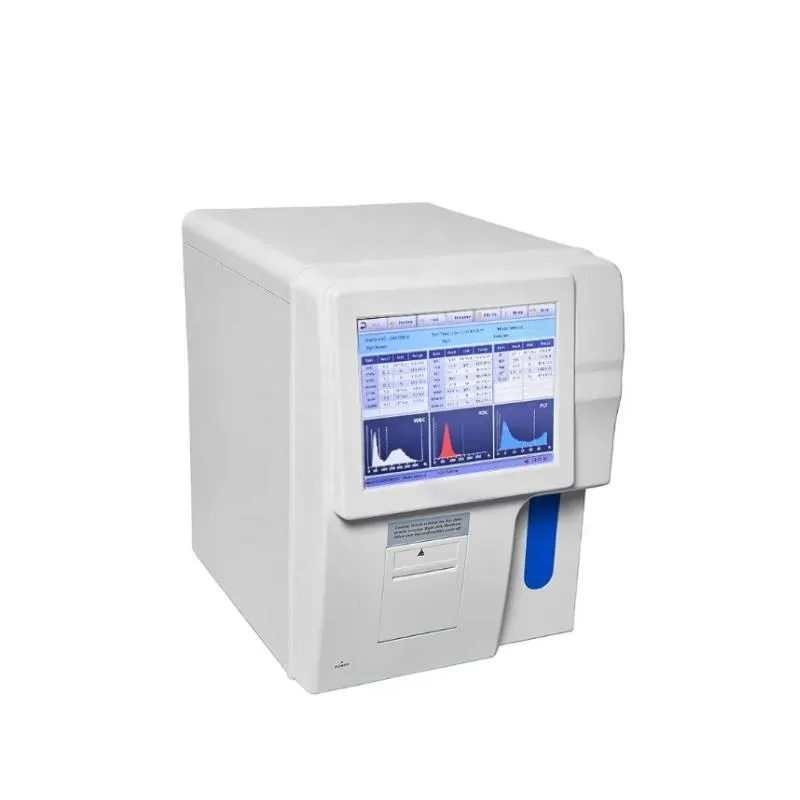

Hematology Analyzer Detail 3
🏥

Available Medical Equipment Range

Imaging & X-Ray X-Ray Machine, Processor, X-Ray Film, Cassette
Intensifying Screen
Lead Clothing (Glove, Glasses, Cap, Apron, Collar)
B/W & Color Ultrasound (2D/3D/4D)
Laboratory Room Chemistry Analyzer, Hematology Analyzer, Urine Analyzer
Microplate Elisa Reader/Washer, Centrifuge, Pipette, Water Bath
Operation Room Anesthesia Machine, Ventilator, Operating Lamp, Operation Table
ECG, Patient Monitor, Defibrillator, Infusion Pump
Medical Drill/Saw, Oxygen Generator, Suction Device, Autoclave
Product Layout Product Specifications Chart Product Comparison

Frequently Asked Questions

Q1: How many samples can the CCL-H900N test per hour? A: The system is designed for high efficiency, capable of testing up to 70 samples per hour using its double channel counter.
Q2: What parameters does this hematology analyzer measure? A: It provides a 3-part differentiation of WBC and measures 24 total parameters, including 3 distinct color histograms for comprehensive analysis.
Q3: What is the required sample volume for a test? A: It requires only 9.6μL for venous and capillary modes, and 20μL for prediluted mode, making it suitable for pediatric and geriatric patients.
Q4: Does the system support data integration with hospital networks? A: Yes, the device supports LIS (Laboratory Information System) connectivity for seamless data transfer and management.
Q5: Is the operation interface user-friendly? A: Absolutely. It features a large 10.4-inch touch screen and also allows for the connection of an external mouse and keyboard for easier data entry.
Q6: How does the machine handle maintenance and cleaning? A: The CCL-H900N features automatic diluting, mixing, rinsing, and clog clearing, along with automatic internal and external cleaning of the sample probe.
