The CA45 Technical Cleanliness Analysis System is a high-performance particle size testing system specifically designed for the auto parts, aerospace, and hydraulic lubrication industries. It offers standardized, professional testing with traceable results.

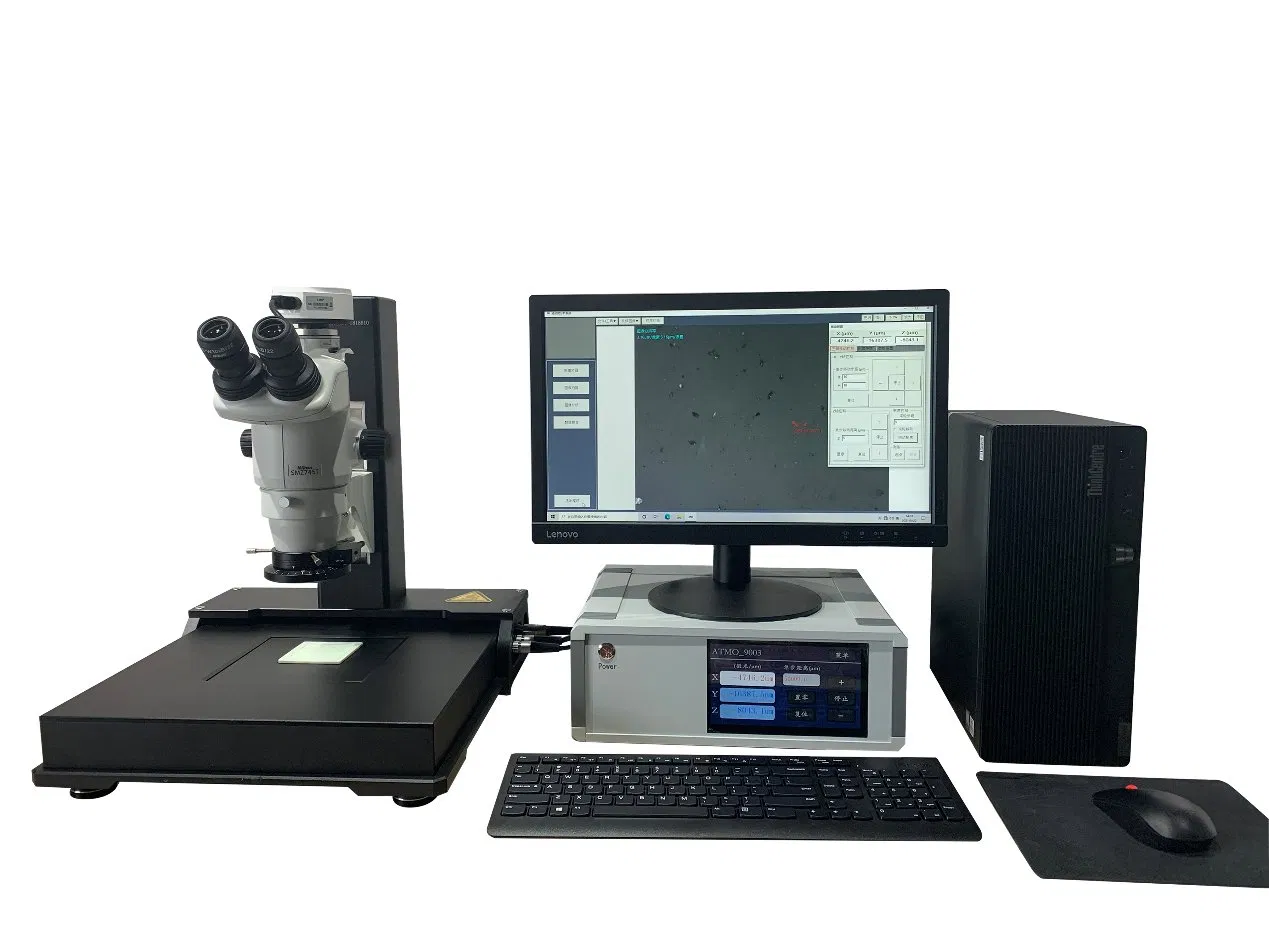

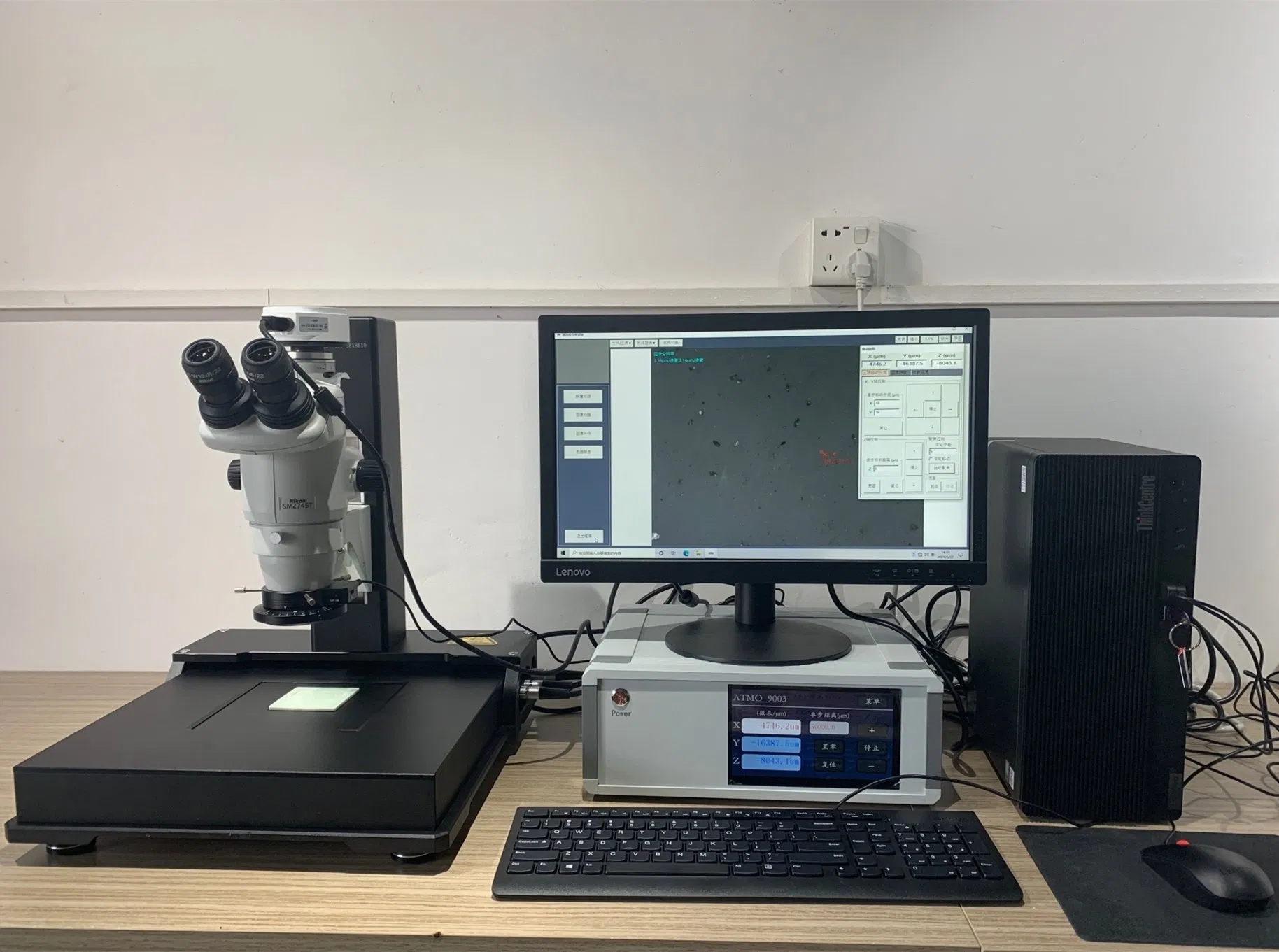

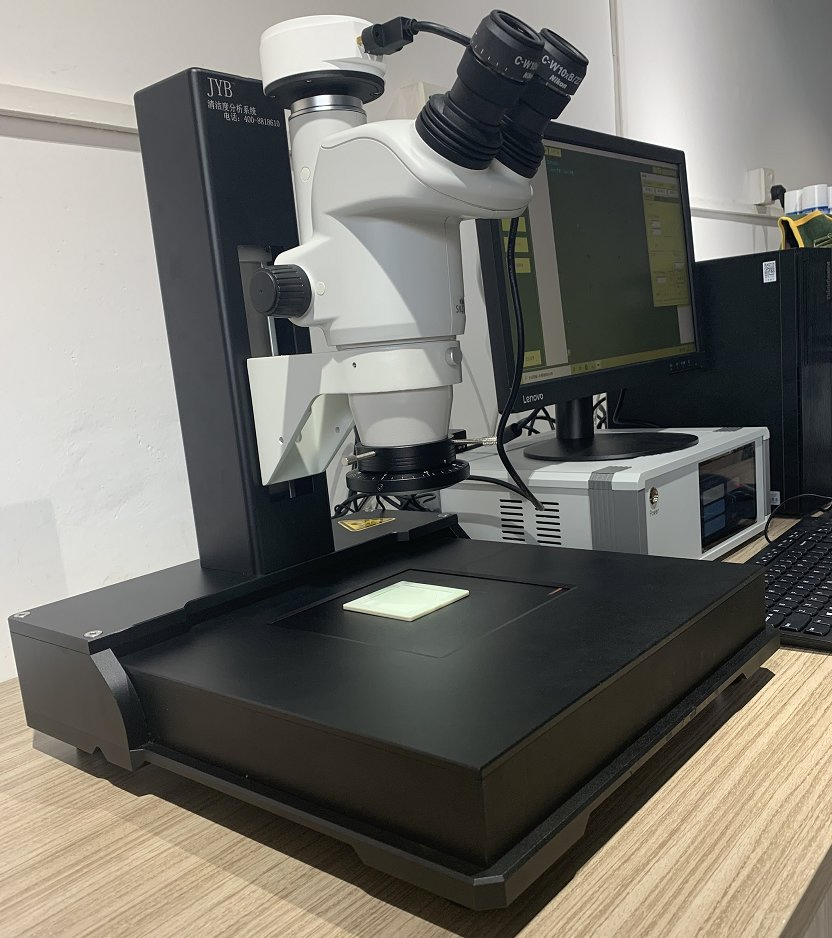

The system integrates an imported optical microscope, high-stability motorized stage, and HD image scanning CCD. It supports workflow-based operations with automatic compensation and focus, ensuring seamless browsing and intelligent recognition statistics. The entire analysis process complies with ISO16232, VDA19, and other major automotive standards (Volkswagen, BMW, GM, Ford).
Utilizing optical polarization technology, the system can determine the metallic luster reflection properties of pollutants. It automatically classifies particles into four types: reflective particles, reflective fibers, non-reflective particles, and non-reflective fibers based on VDA19.1 definitions.
| Class | X Range (μm) | Measured Count (Non-Fiber) | Metal Count | Fiber Count | Equiv. Count (Non-Fiber) | Equiv. Metal Count |
|---|---|---|---|---|---|---|
| B | 5<=X<15 | 11619 | 10 | 0 | 11619 | 10 |
| C | 15<=X<25 | 6954 | 14 | 0 | 6954 | 14 |
| D | 25<=X<50 | 5477 | 49 | 0 | 5477 | 49 |
| E | 50<=X<100 | 1775 | 97 | 0 | 1775 | 97 |
| F | 100<=X<150 | 406 | 134 | 0 | 406 | 134 |
| G | 150<=X<200 | 158 | 105 | 0 | 158 | 105 |
| H | 200<=X<400 | 139 | 118 | 19 | 139 | 118 |
| I | 400<=X<600 | 10 | 9 | 8 | 10 | 9 |
| J | 600<=X<1000 | 6 | 6 | 6 | 6 | 6 |
| K | 1000<=X<1500 | 2 | 2 | 5 | 2 | 2 |
| L | 1500<=X<2000 | 0 | 0 | 1 | 0 | 0 |
