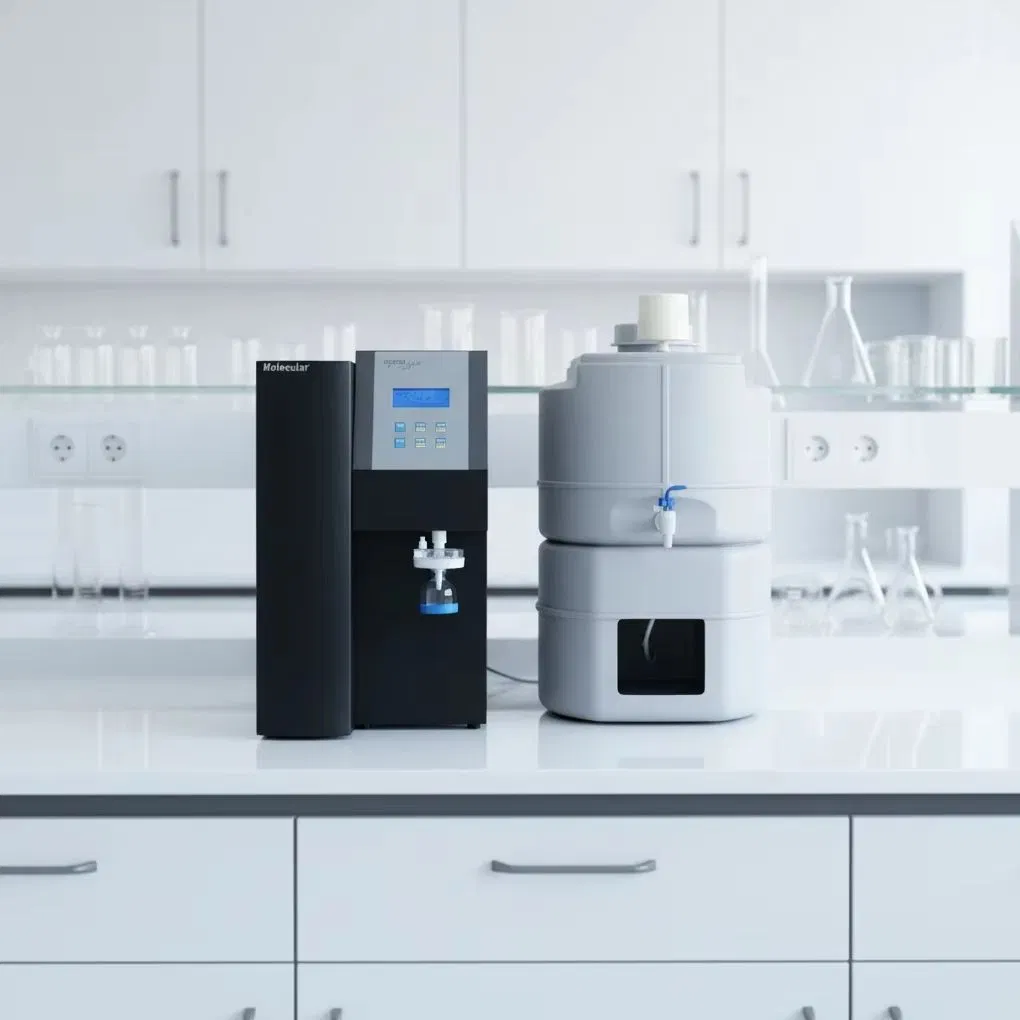

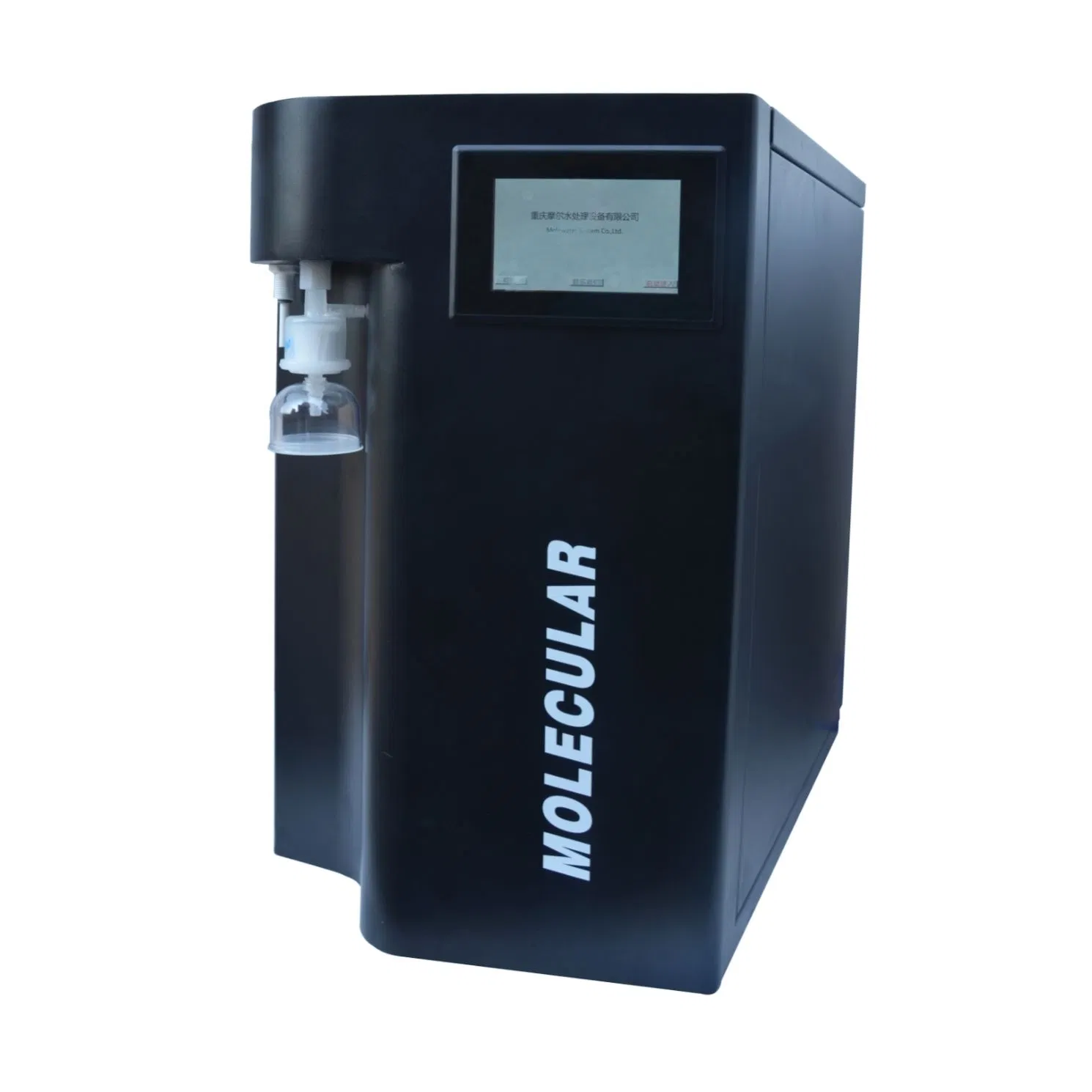

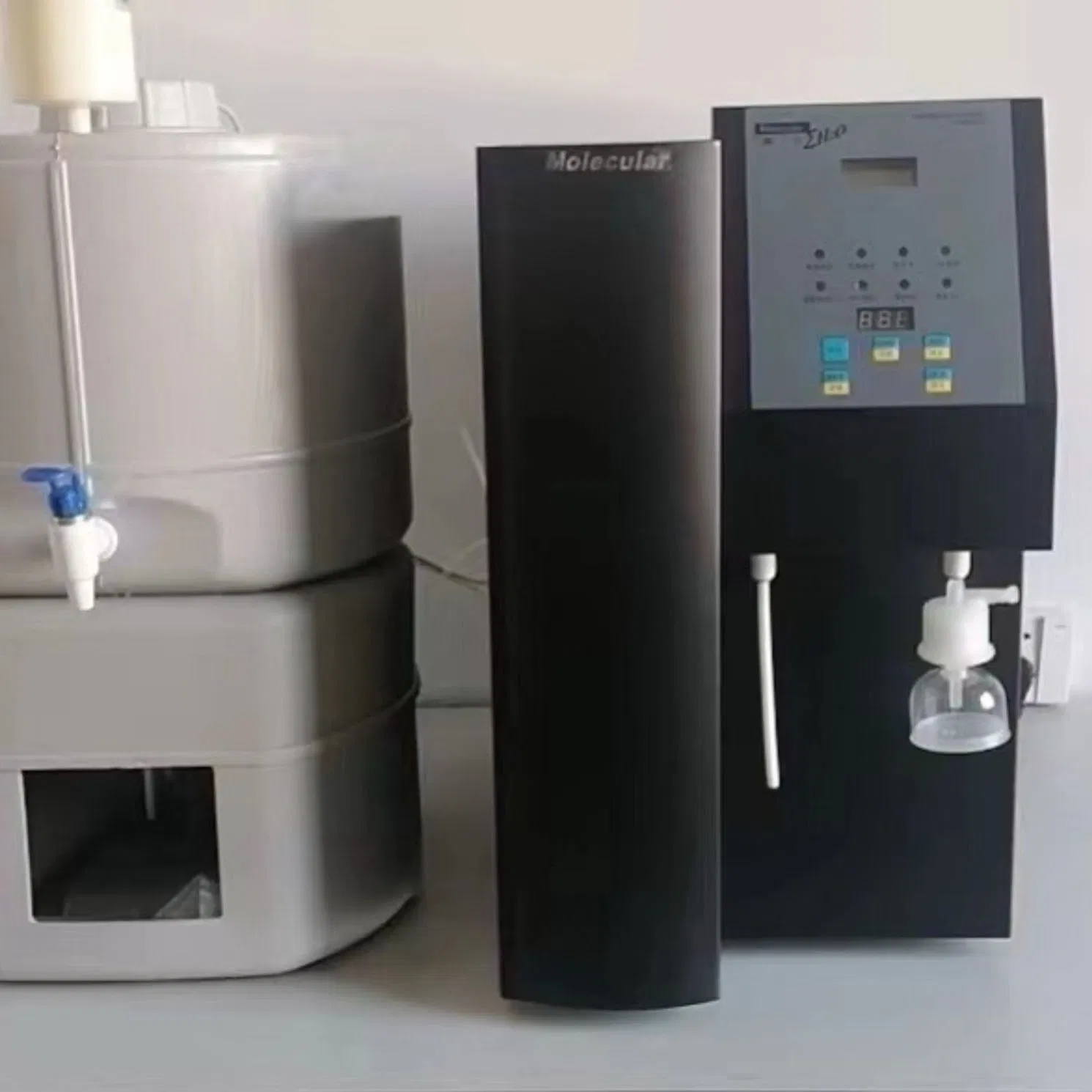

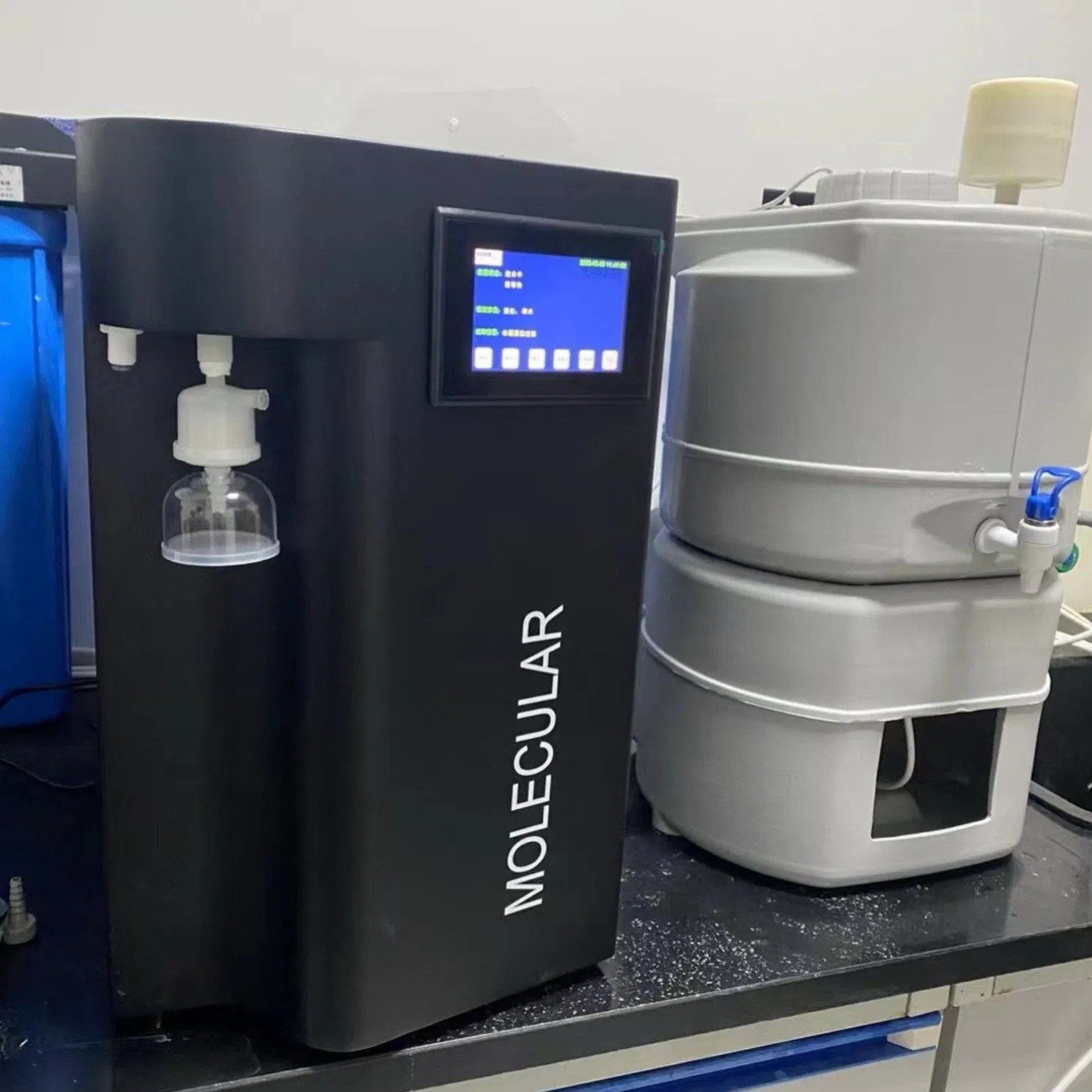

Lab Ultra-Pure Water Purification System RO+Di Technology for Chemical Analysis CE Certified

Customization: Available
Certification: ISO9001, RoHS, CE, ISO14001
Salt Rejection Rate: 99.5%

Product Description

Basic Specifications
Model:MOLGENE
Application:Laboratory Test
Capacity:10L/H
Processing Type:Reverse Osmosis, Ion Exchange, Filtration
Power:200 W
Warranty:1 Year
Voltage:220V Electrical Equipment
Outlet Quality:Resistivity 16-18MΩ.Cm
Package Size:65.00cm * 85.00cm * 90.00cm
Gross Weight:80.000kg

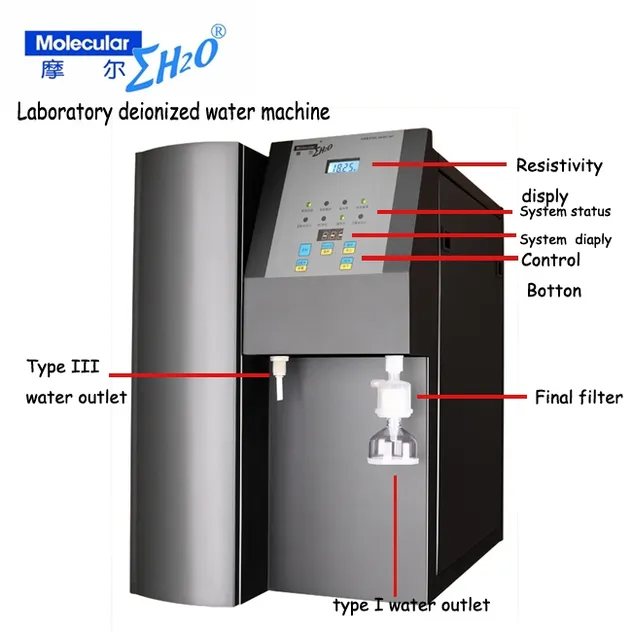

Laboratory Water Purification System Overview
Utilizing multi-stage pre-filters, RO, UF, ion exchange, UV, terminal filter and advanced purification technologies, this system is designed to meet GB6682-2008 TypeⅢ water standards and ASTM, CAP, NCCLS, and USP requirements for pure and ultra-pure water. These systems are widely utilized for chemical analysis and laboratory environments.
Key Features

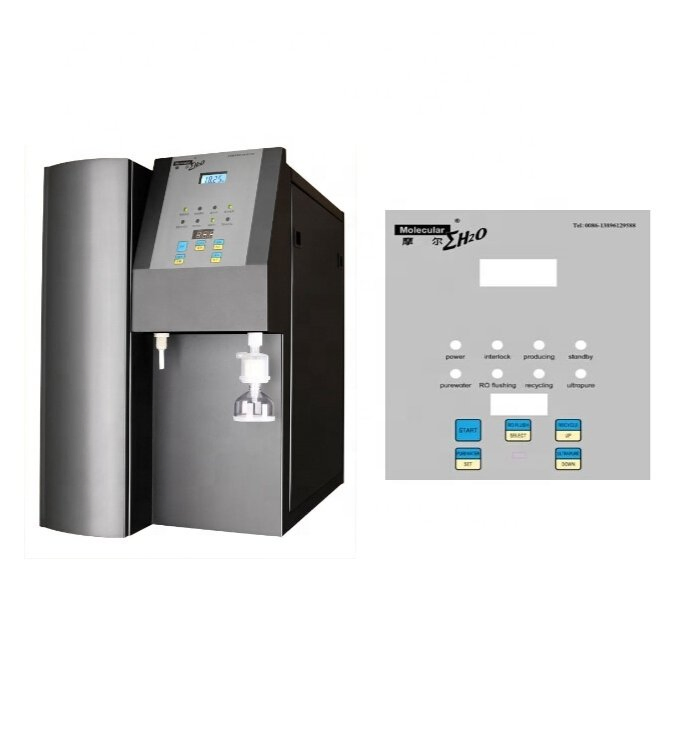

  • Water resistance/conductivity online monitoring, displaying real-time running status and parameters.
  • Built-in automatic cycle timing for ultra-pure water conservation.
  • Built-in RO membrane fouling prevention program with auto-flushing and manual cleaning options.
  • Power-on self-check, water shortage protection alarm, and power-off protection.

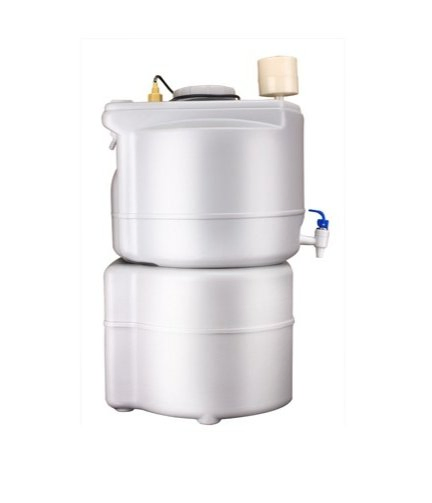

  • Pure water tank with cone type structure and discharge valve for easy cleaning and disinfection.
Technical Specifications
Model Capacity (L/H) Water Rate (L/min) Resistivity @25℃ Conductivity @25℃ TOC Pyogen
Molgene s10-150≥1-1.518.25MΩ.cm≤10μs/cm≤5 ppm≤0.005EU/ml
Molgene d10-150≥1-1.518.25MΩ.cm≤5μs/cm≤5 ppm≤0.005EU/ml
Molatom s10-150≥1-1.516-18MΩ.cm≤10μs/cm≤20 ppm≤0.02EU/ml
Molatom d10-150≥1-1.516-18MΩ.cm≤5μs/cm≤20 ppm≤0.02EU/ml
Molro s10-150≥1-1.5None≤10μs/cm≤20 ppmNone
Molro d10-150≥1-1.5None≤5μs/cm≤20 ppmNone

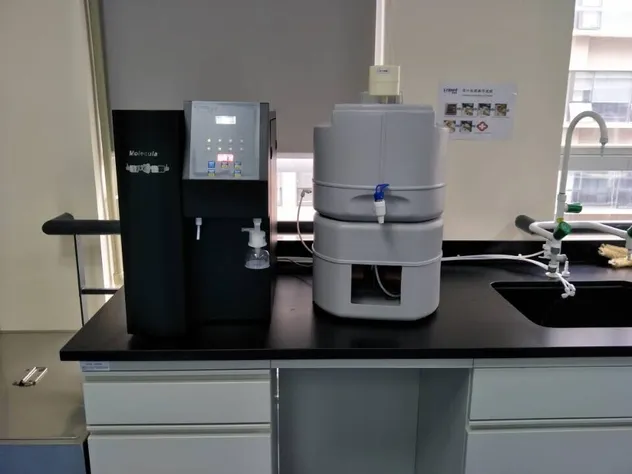

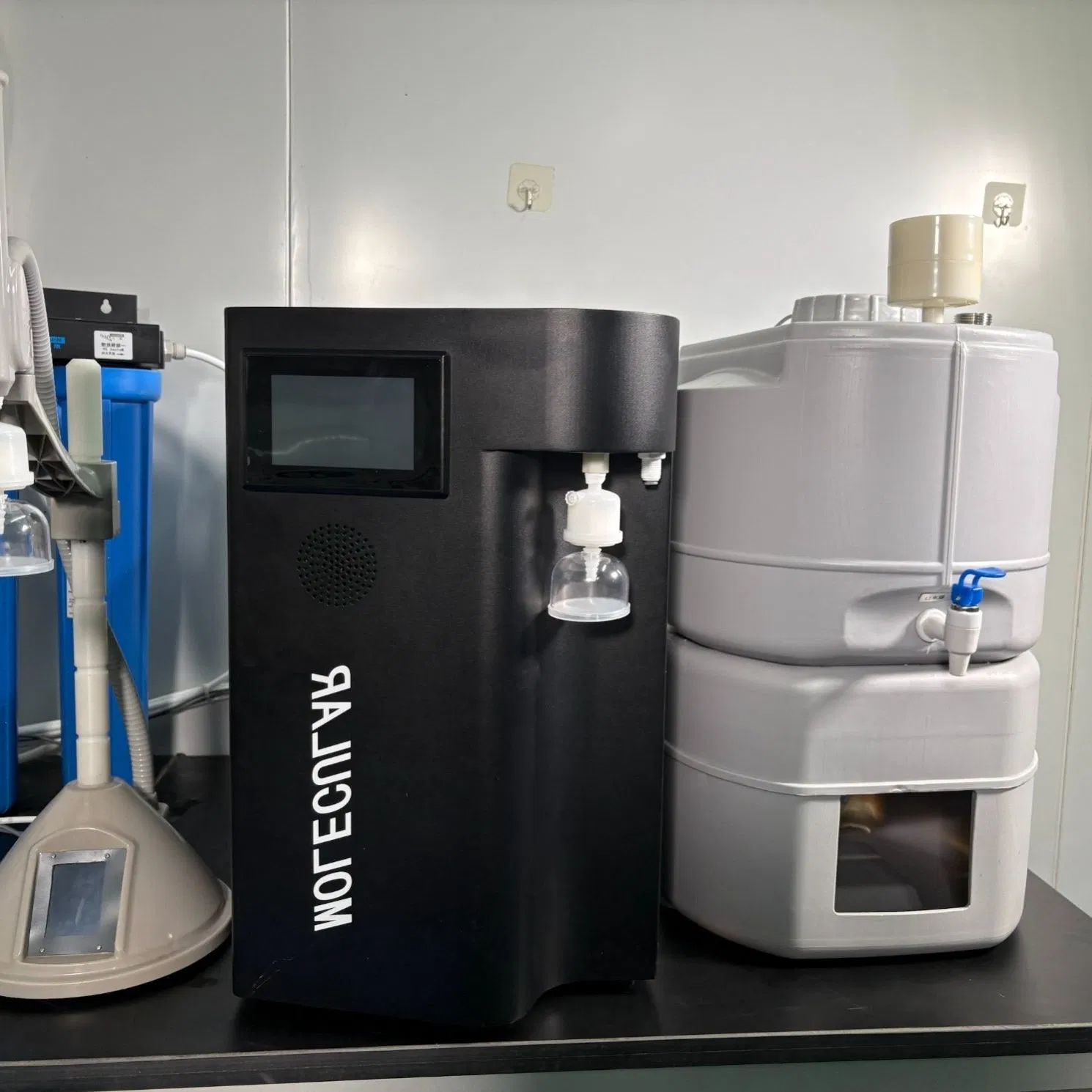

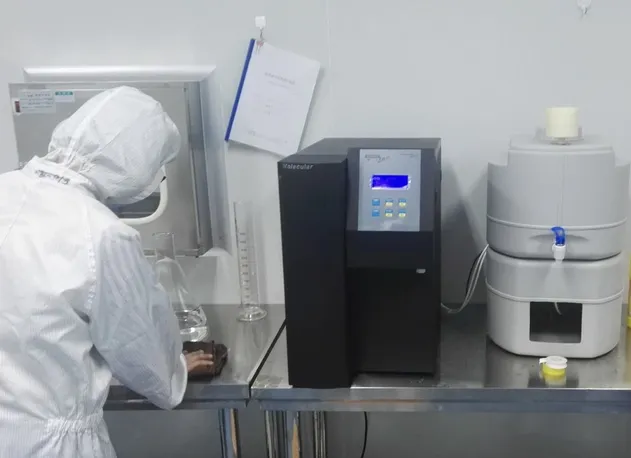

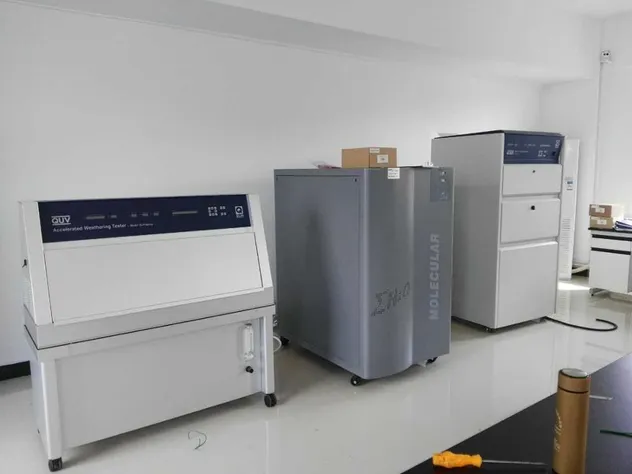

Project Samples & Showcase

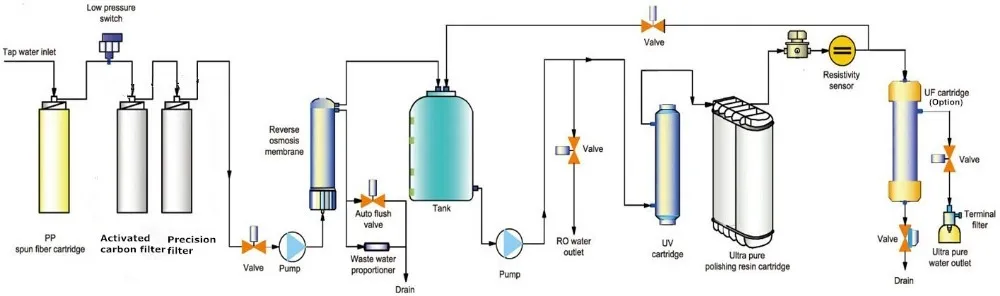

System Flowchart

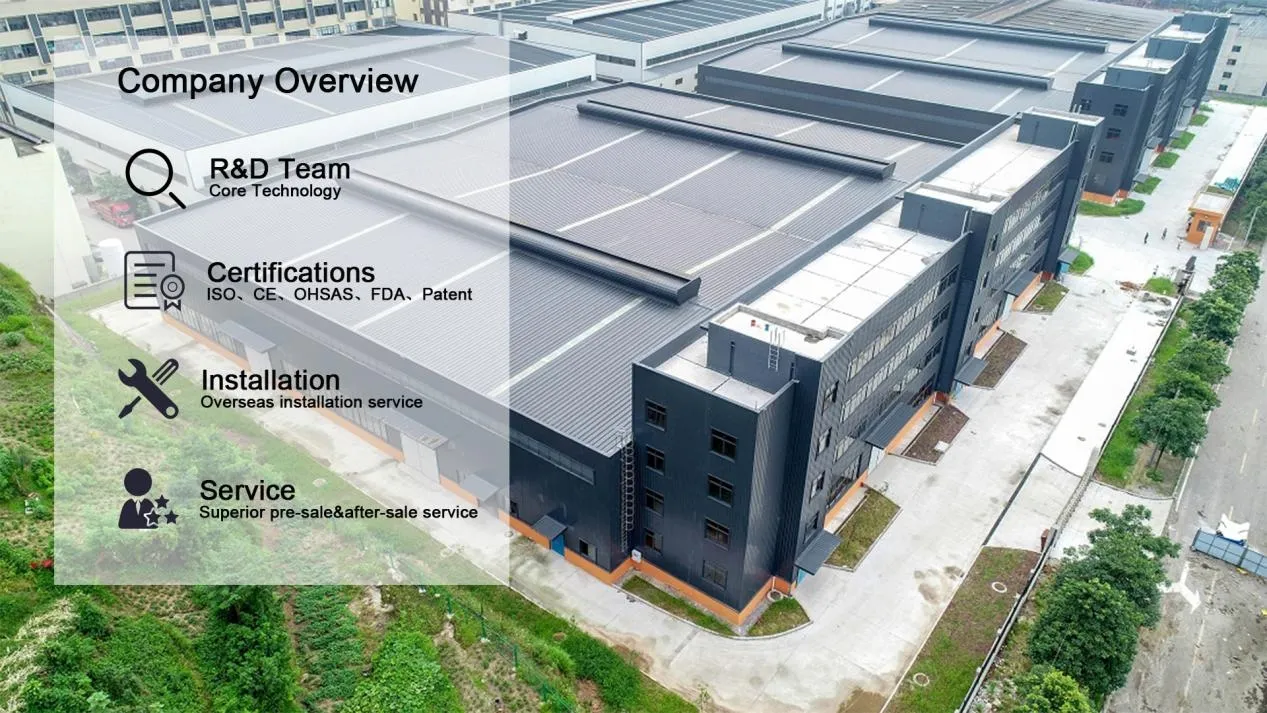

Manufacturing Excellence
With over 20 years of expertise in pure water research and more than 100 patents, the manufacturing facility is a high-tech enterprise specializing in development, production, sales, and installation of water treatment equipment. The scope covers direct drinking water, industrial, pharmaceutical, and ultra-pure water equipment.
Certifications
Product Certifications
Frequently Asked Questions
Q1: Are you a professional manufacturer of water treatment systems? Yes, we have been a professional manufacturer specializing in water treatment systems for more than 23 years.
Q2: What is the warranty period for the equipment? We provide a 1-year warranty on our systems, excluding consumable parts.
Q3: Which international standards does the water quality meet? The water produced meets GB6682-2008 Type III standards as well as ASTM, CAP, NCCLS, and USP requirements for pure and ultra-pure water.
Q4: Does the equipment include monitoring features? Yes, the system includes online monitoring for water resistance and conductivity, allowing you to track running status and parameters in real-time.
Q5: What are the primary technologies used in the purification process? The system utilizes multi-stage pre-filtration, Reverse Osmosis (RO), Ion Exchange, Ultraviolet (UV) sterilization, and terminal filtration.
Q6: Do you provide technical support for installation? Yes, we provide full support for equipment installation, debugging, and operational training for users.
