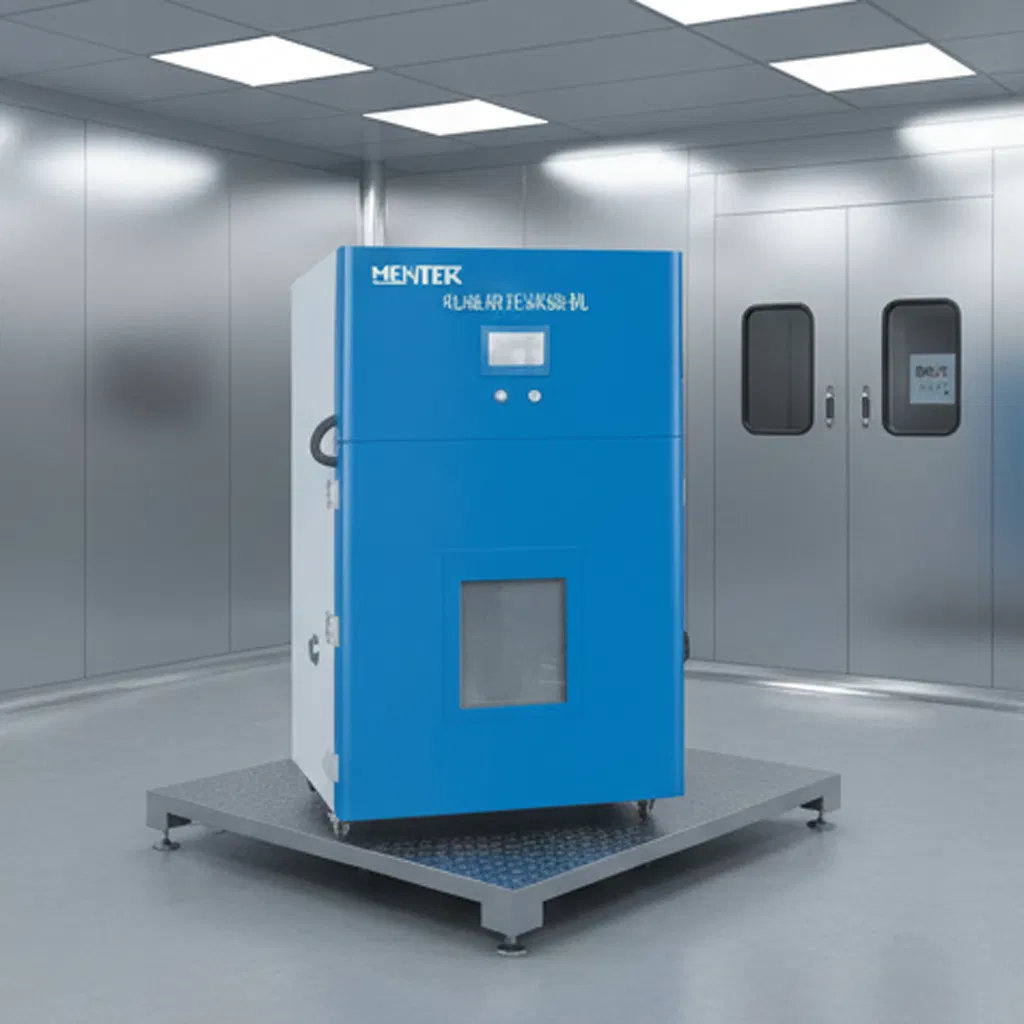

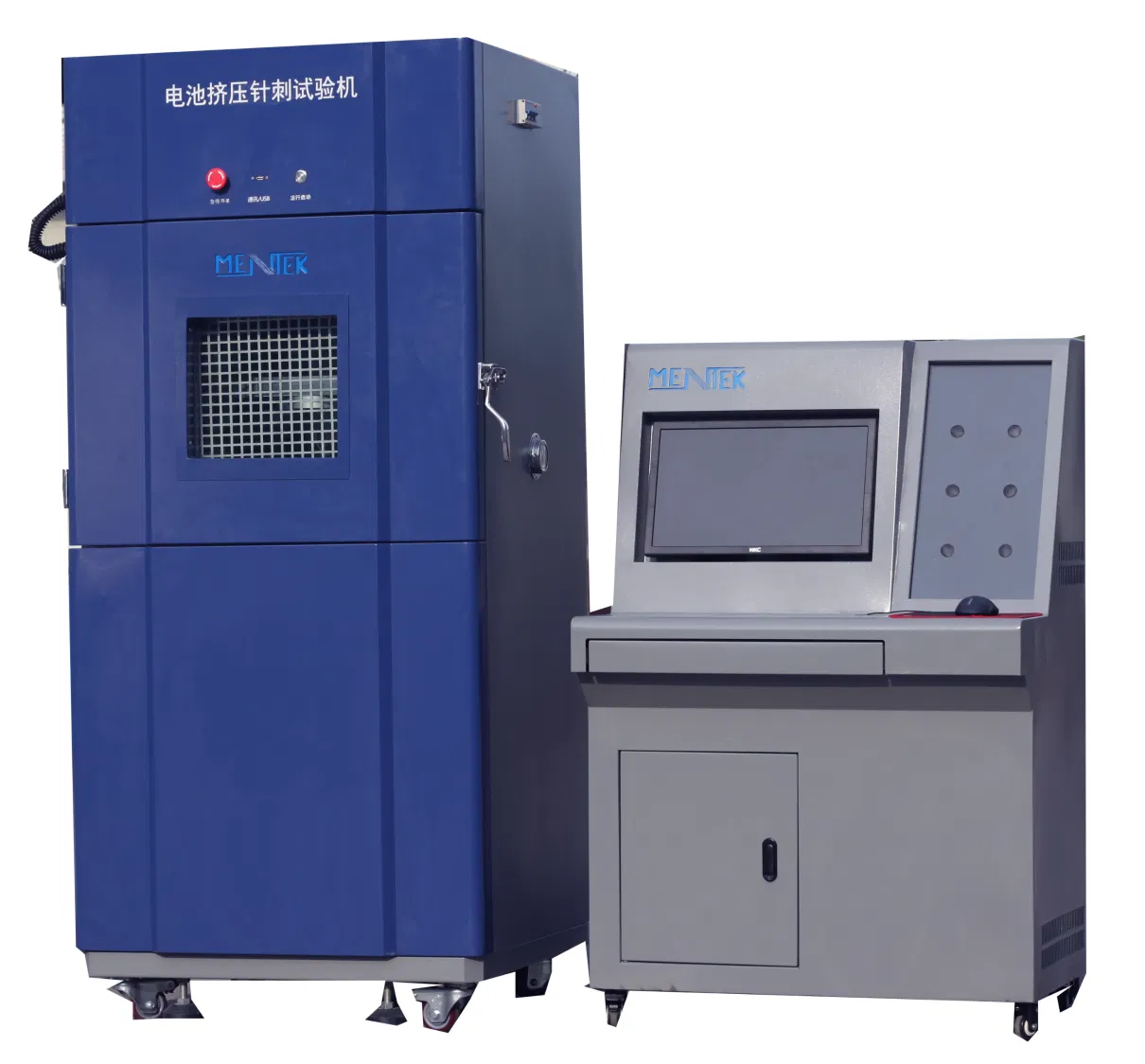

Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
1 / 5
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device
Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device

Professional Battery Compression Analysis System for Enhanced Performance Testing Equipment Machine Device

Send Inquiry

Product Description

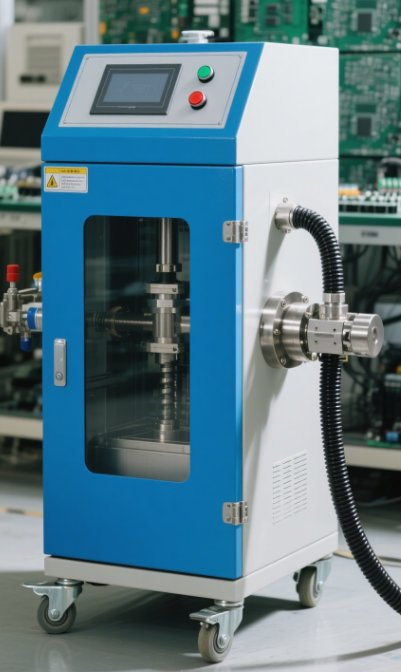

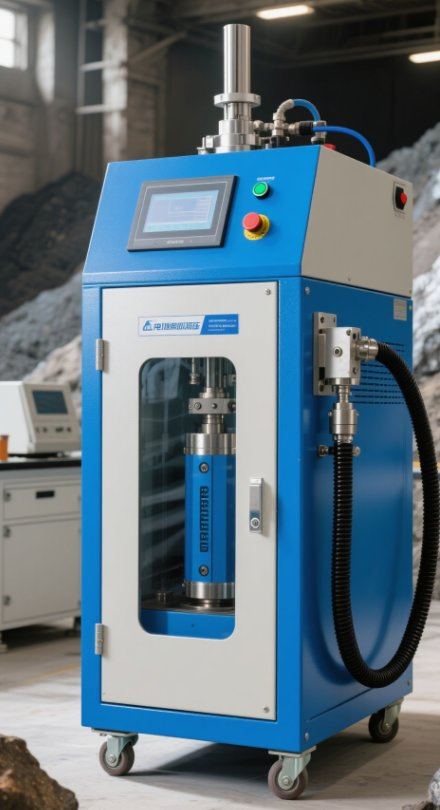

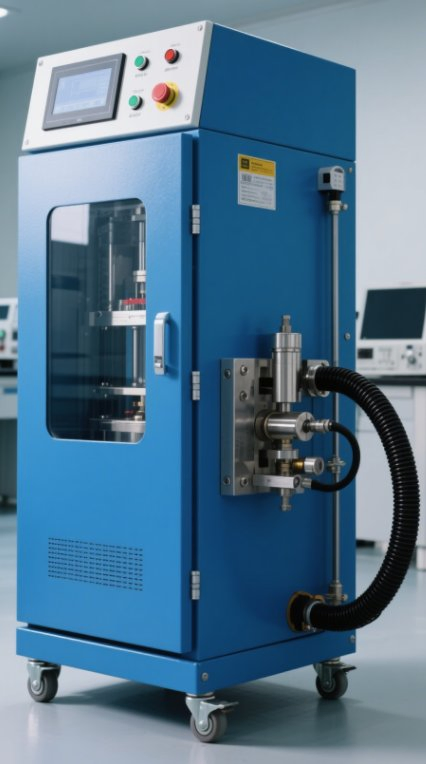

Professional Battery Compression Analysis System

Enhanced Performance Testing Equipment for Advanced Battery Safety Analysis

Relevant Standard Test Requirements

1
Compliance Standards: Meet the standards of IEC 62133-2012, UL 1642, UN 38.3, and GB/T 31241-2014. These test methods are stipulated for full charge squeeze testing.
2
Testing Execution: Squeeze perpendicular to the direction of the pole plate. Apply a squeezing force of 13 KN ± 0.2 KN between two flat plates. Once the maximum pressure is reached, the extrusion test can be stopped.
3
Battery Types: For cylindrical batteries, the longitudinal axis should be parallel to the plates. Square and soft-packed batteries conduct extrusion tests on the wide surface, while buckle batteries use an up-and-down parallel plate method.

Main Features

★
Explosion-proof and Pressure Relief: Features a magnetic adsorption pressure relief door at the back. When a strong air flow or explosion impact occurs, the door opens automatically to discharge gas and lighten impact force.
★
Advanced Exhaust System: Equipped with separate controls that automatically detect smoke during testing and discharge it through a dedicated pipeline system.
Battery Compression Analysis System

Main Technical Parameters

Parameter Item Specification Details
ModelMBS-JY20
Maximum Pressure1KN - 20KN (Adjustable/Customizable)
Unit Conversionkg / N / Lb
Driving ModeElectric servo
Squeezing Speed1 ~ 100mm/s
Squeezing Stroke1 to 300mm
Squeezing Accuracy±1%
Squeeze and Hold Time0~99 hours, 99 minutes, 99 seconds
Control MethodPLC + 7-inch Touch Screen + Remote Control
Test Space (W*H*D)70 * 300 * 300 mm
Outer Box Size (W*H*D)990 * 1900 * 940 mm
Observation Window150 * 150mm Explosion-proof glass with film
Power Supply3∮ 5W 380V 50Hz
Total Power2.0kW
Data InterfaceUSB Port for test data export
Auxiliary FunctionsExplosion-proof pressure relief device, smoke exhaust device

* Note: The dimensions can be meticulously tailored to match specific requirements.

Equipment & Performance Display

Internal Structure

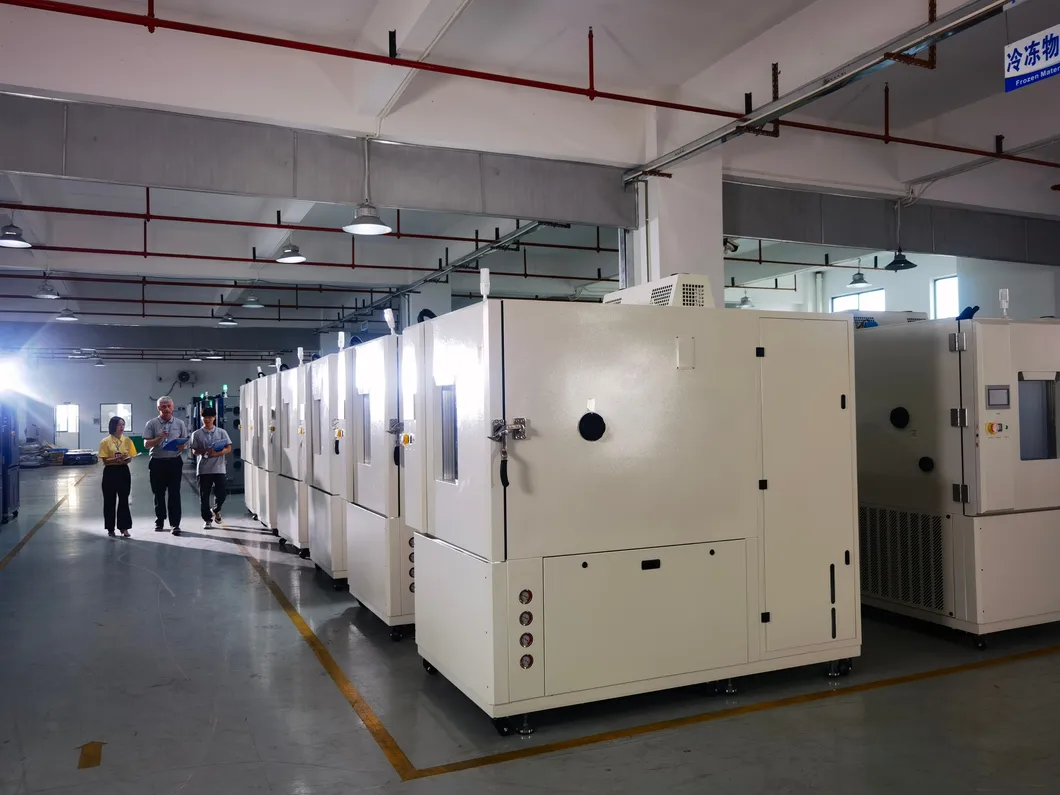

Testing Module
Control System

Certifications & Global Logistics

Certifications

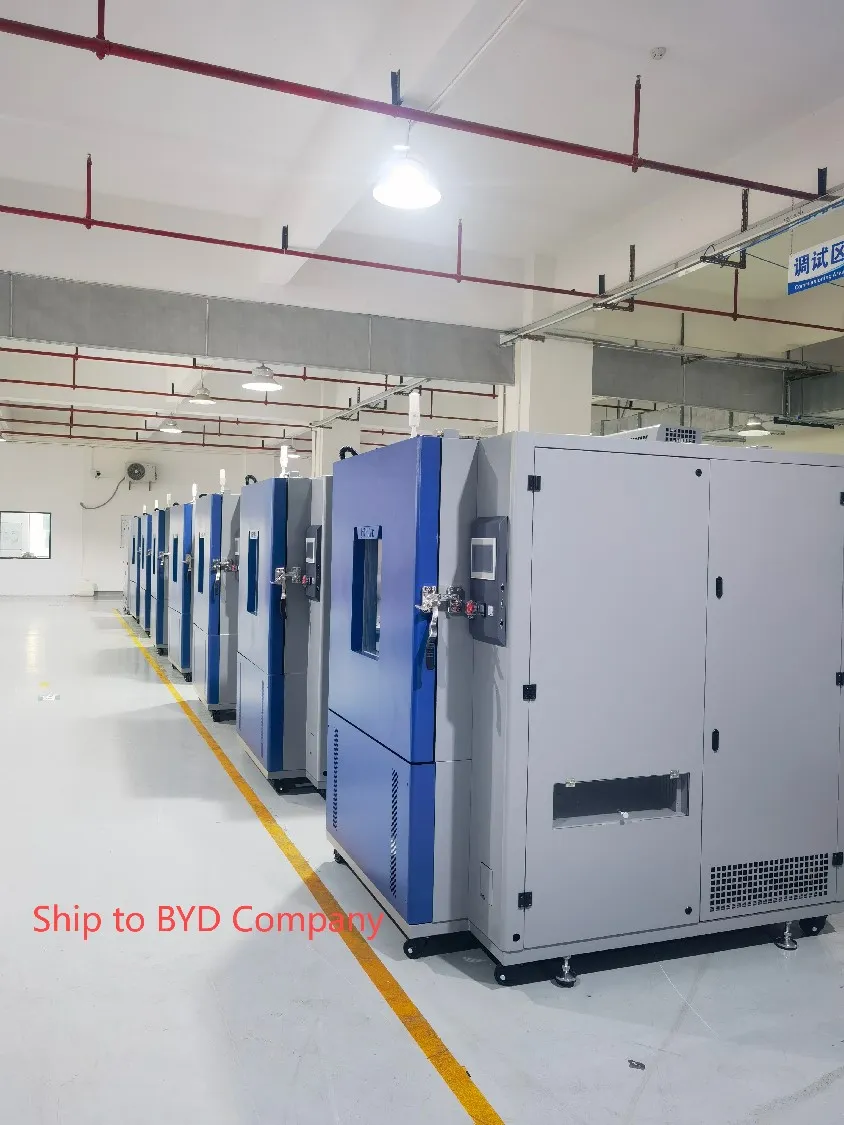

Packaging Process

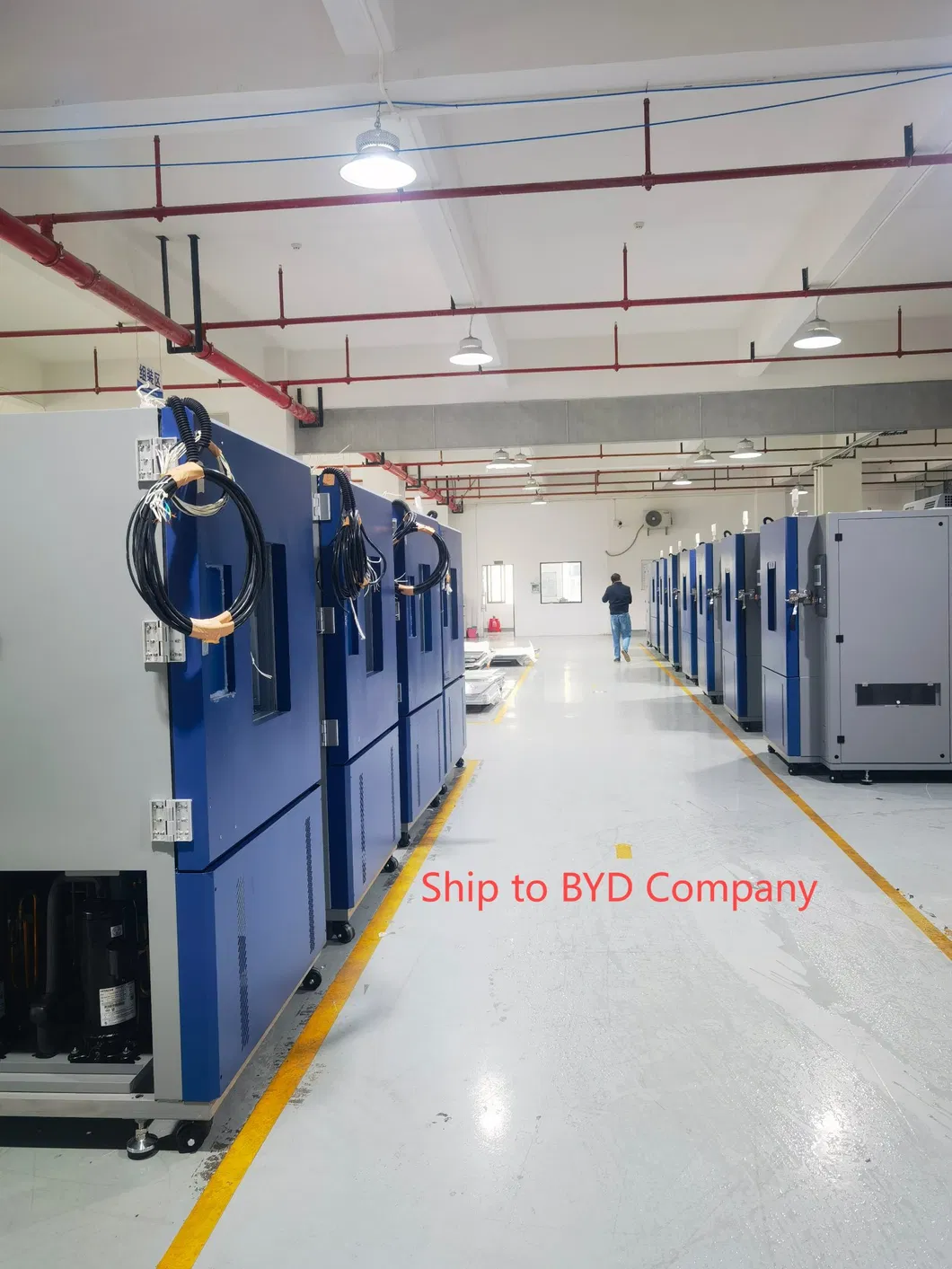

Logistics Support

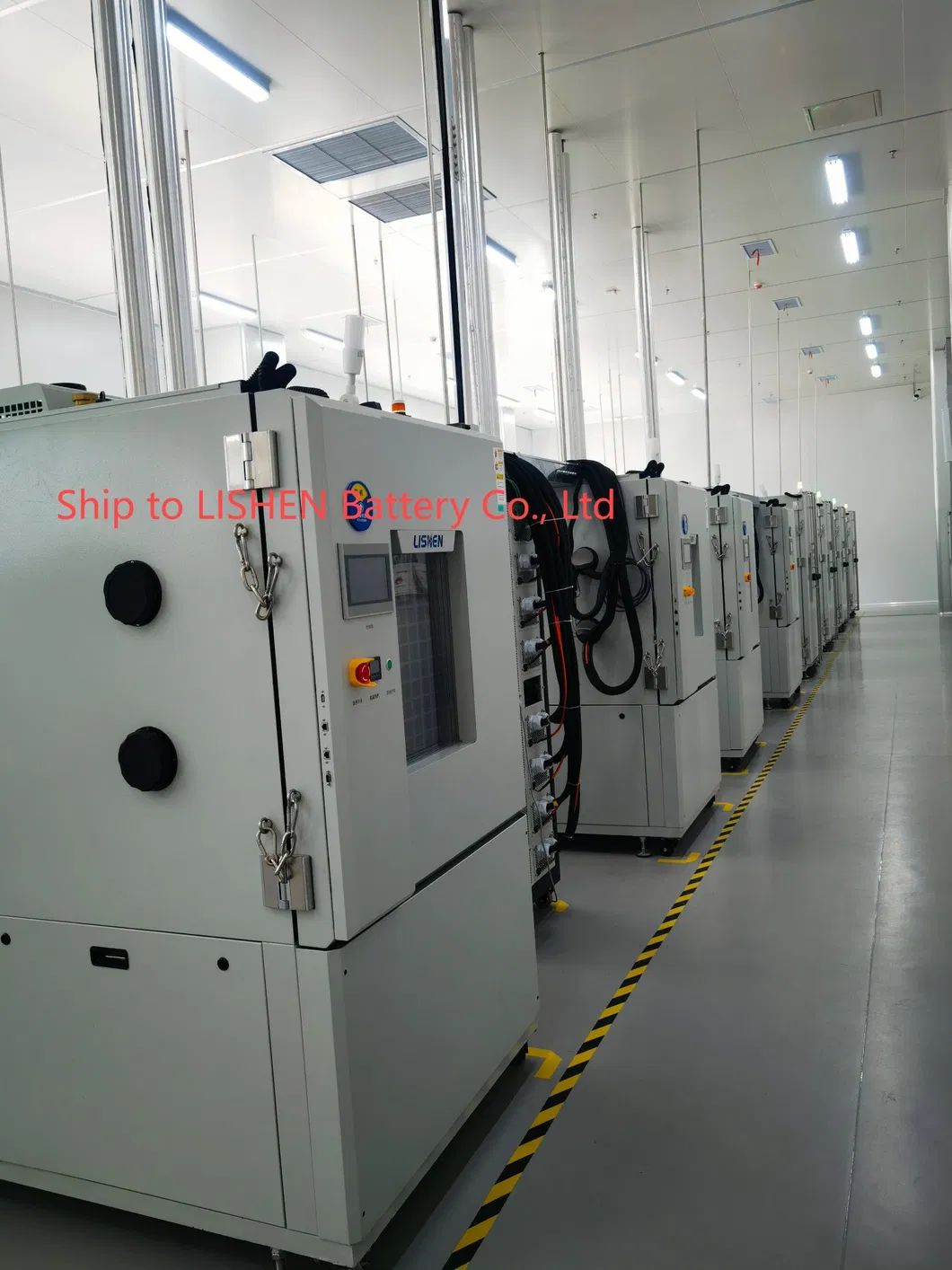

Global Shipping

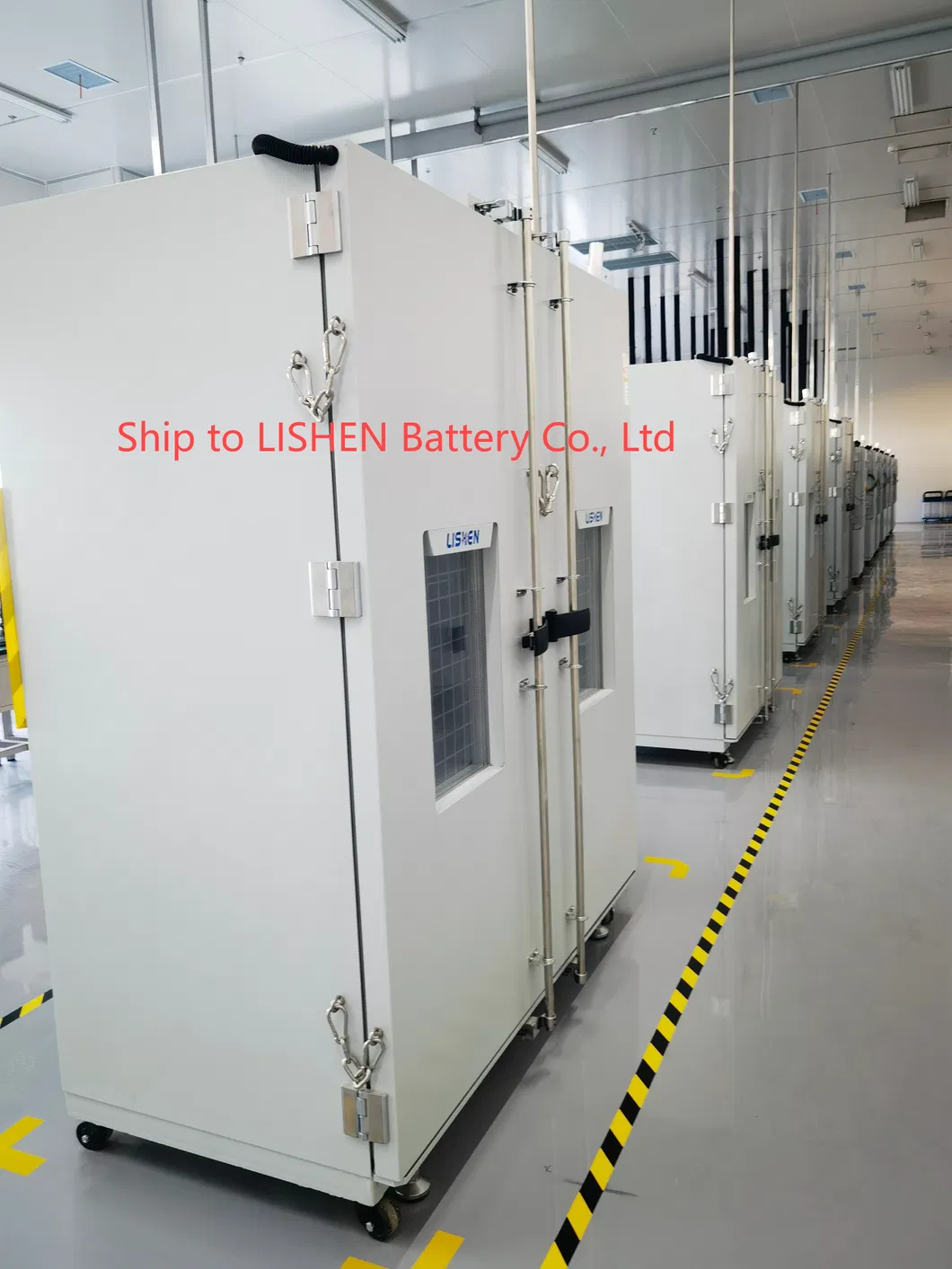

Client Delivery

Partnership Network

Cooperation Partners

Packaging & Logistics

Safety Packaging

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of the Battery Compression Analysis System?
A: The system is designed to simulate extrusion or crushing conditions that a battery might face during its lifecycle to ensure it meets international safety standards without catching fire or exploding.
Q2: Which battery types can be tested with this machine?
A: It is versatile enough to test cylindrical batteries, square batteries, soft-packed batteries, and button/buckle batteries by adjusting the orientation and plates.
Q3: How does the explosion-proof system work?
A: The machine includes a specialized protective chamber with a magnetic adsorption pressure relief door. If a battery fails and causes a pressure spike, the door opens automatically to vent the force safely.
Q4: Can test data be saved for analysis?
A: Yes, the system features a PLC touch screen control and includes a USB interface, allowing you to export test data for further professional analysis and reporting.
Q5: Is the squeezing force adjustable for different standards?
A: Yes, the maximum pressure ranges from 1KN to 20KN and is fully adjustable via the control system to comply with specific requirements like UL 1642 or IEC 62133.
Q6: What safety measures are in place for smoke generation?
A: The equipment features an automated smoke detection and exhaust system that directs smoke through a pipeline to be safely discharged outdoors.
