Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
1 / 5
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection
Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection

Qvs Automated Vision Measurement System – Zero-Contact Dimensional Analysis & Defect Detection

Customization: Available
After-sales Service: Life-Long Maintenance Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
JTD-QVS3020CNC
Type
2.5D Video Measuring System
Operate Method
CNC
Material
Marble
Load Bearing
35kg
Working Range
X300*Y200*Z200mm
CCD
Sony Color Camera
Dimensions
L1540*W866*H1750mm
Certificate
ISO9001/CE
Production Capacity
5000 pieces/Year
Product Description

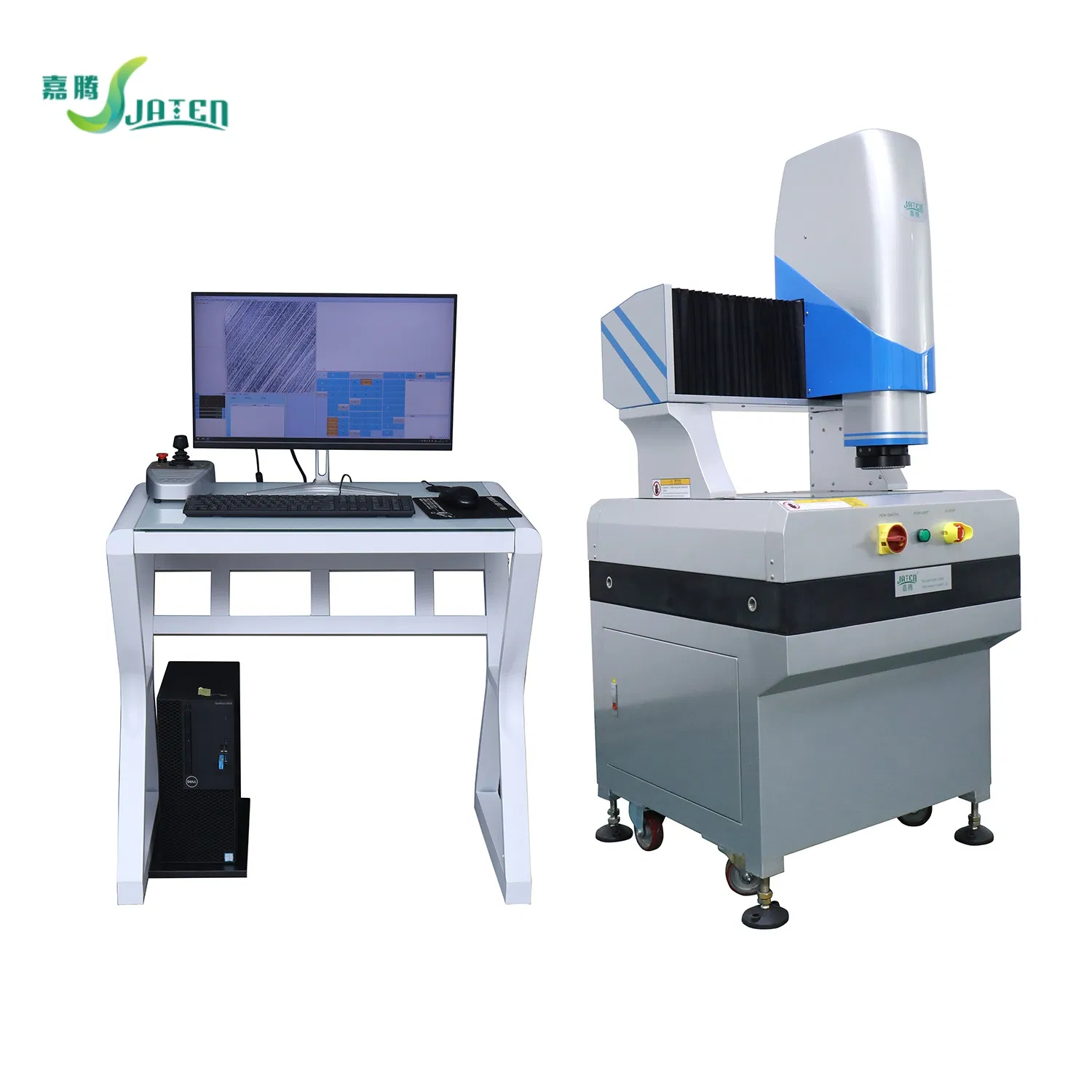

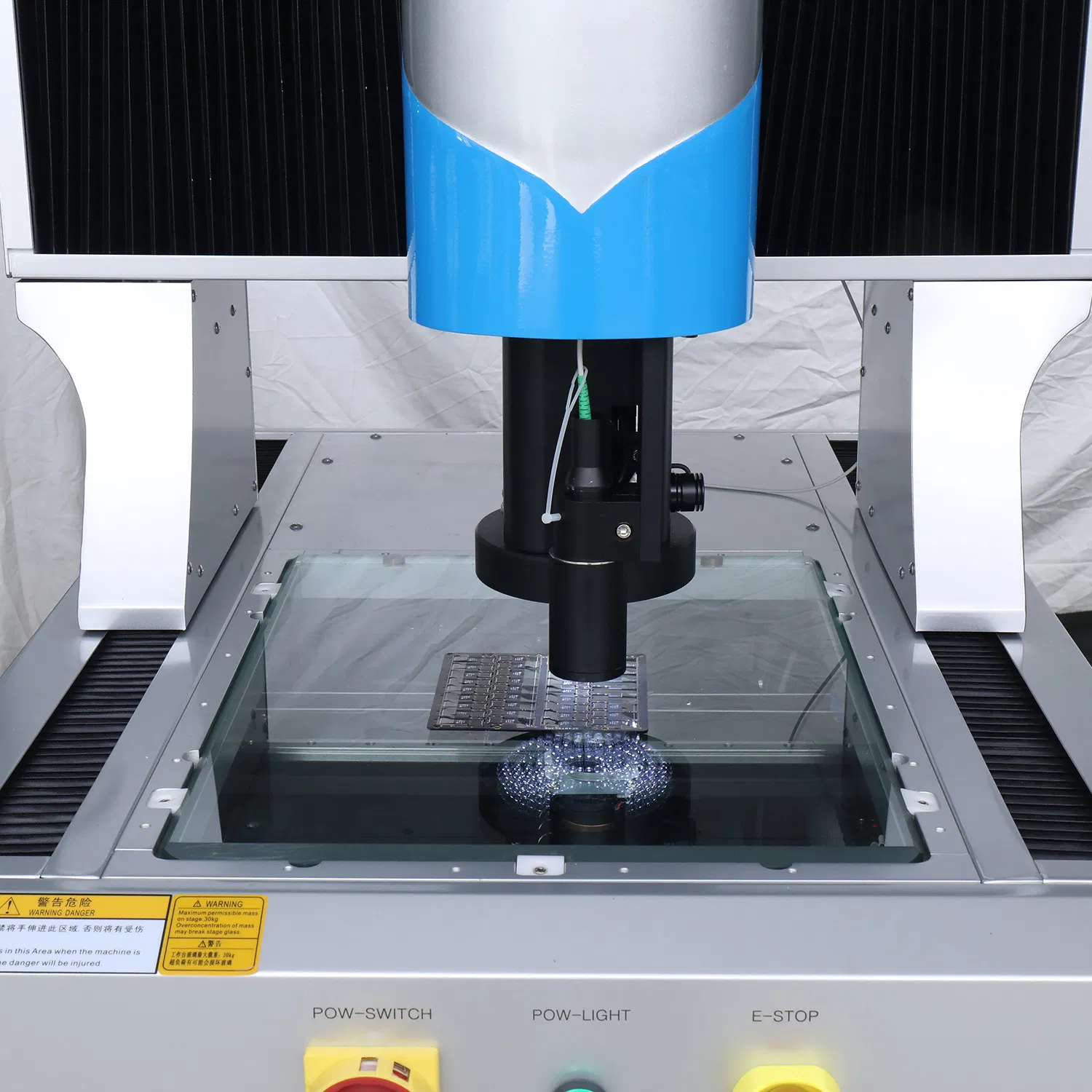

JTD-QVS3020CNC Horizontal Vision Measuring Machine with CE

Instrument Uses and Characteristics:

  • ◈ High-precision marble base and beams to ensure high stability and rigidity.

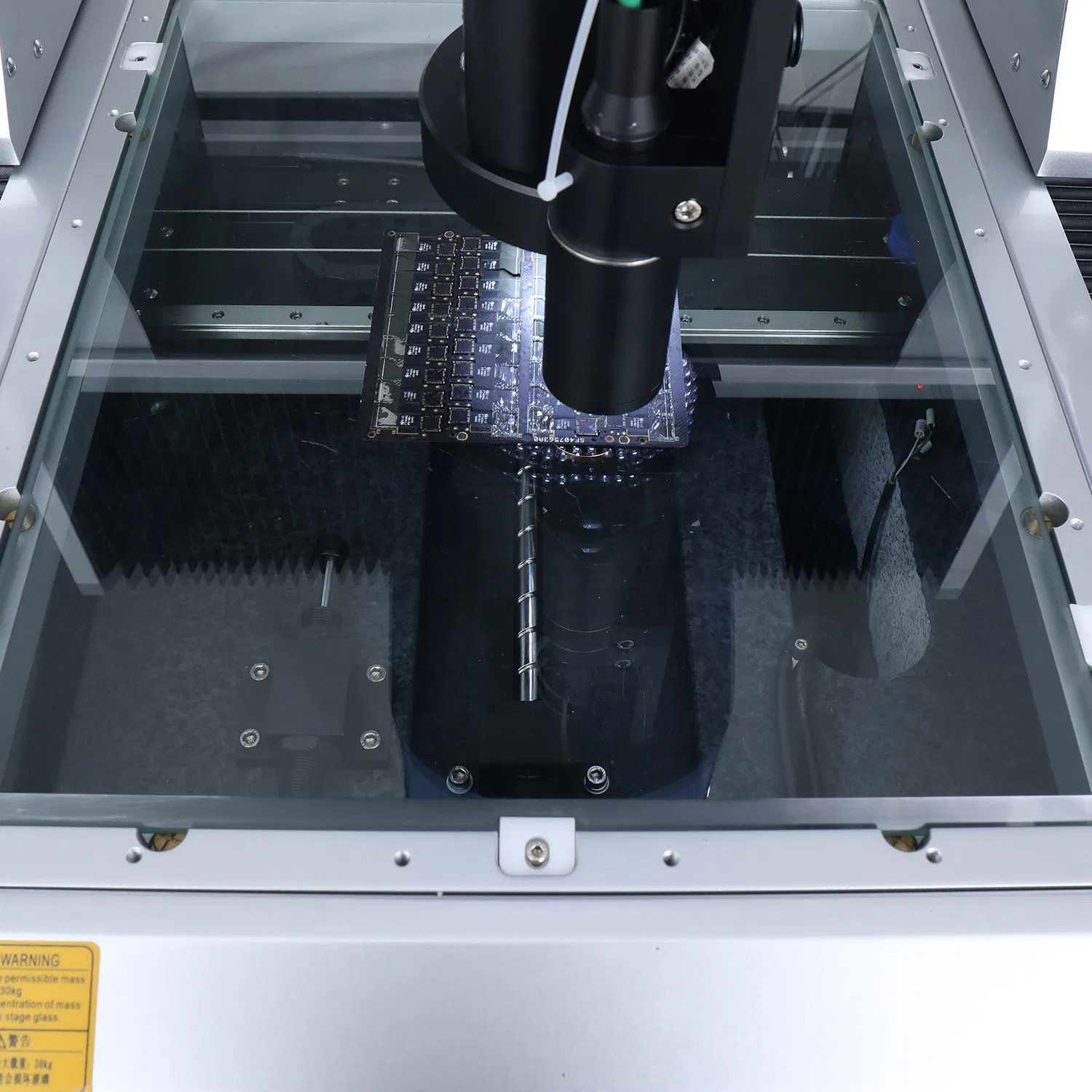

  • ◈ Small gantry mobile architecture ensuring the table load glass remains stationary, allowing higher speeds without affecting measurement precision.
  • ◈ Precision grinding ball screw and Japan THK linear guide combined with Matsushita servo motor for dual closed-loop motion control.

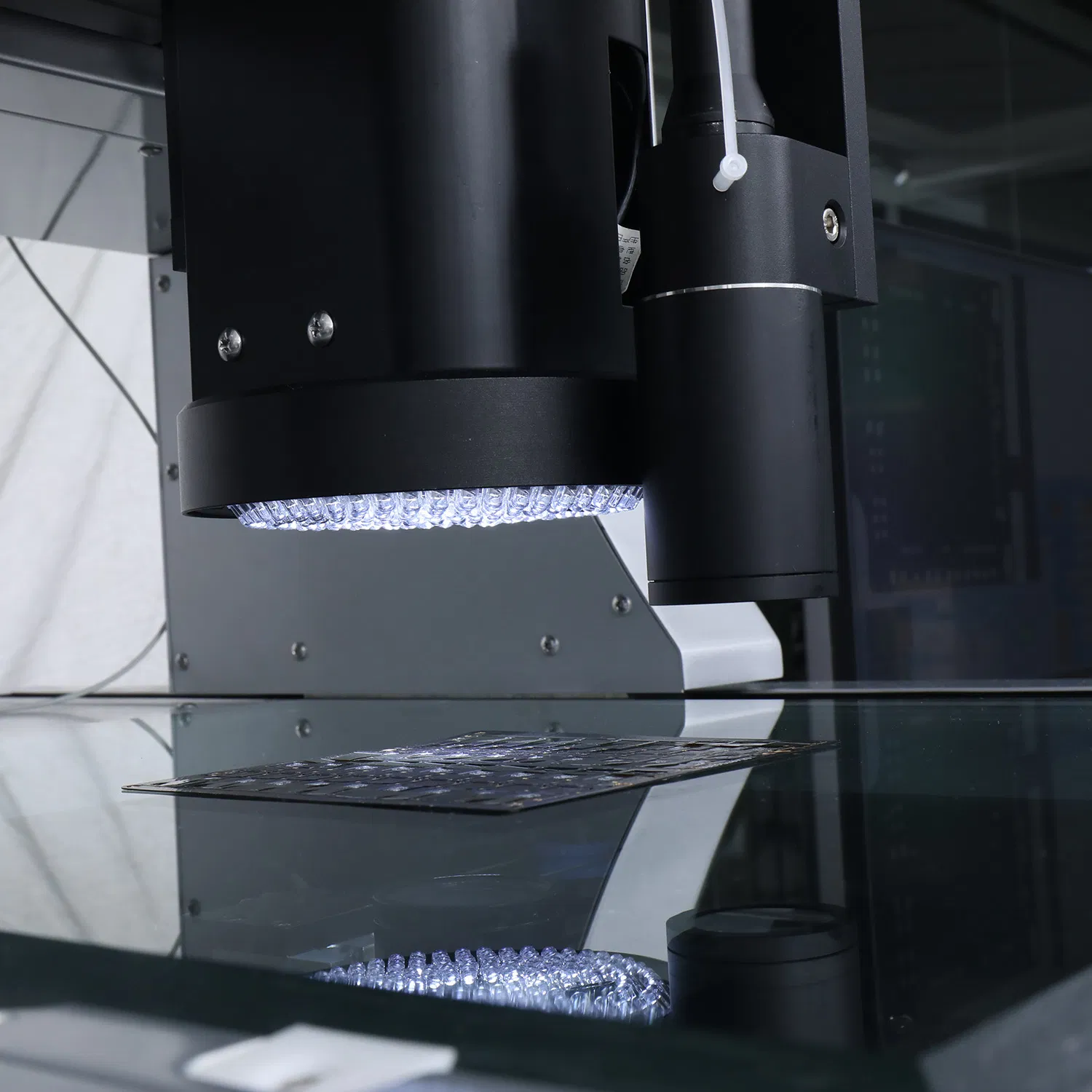

  • ◈ Equipped with a color camera and a 48-group independent constant current drive surface cold light source for high-quality imaging.
  • ◈ Measuring system utilizes American GSI precision optical scales with a resolution of 0.5μm.
  • ◈ Automatic continuous zoom lens that eliminates the need for manual re-accuracy verification after zooming.
  • ◈ Image navigation system for rapid location of workpiece measurement positions.
Main Parameters
Model JTD-QVS3020CNC
Work-bench Work Range 300*200*200mm
Dimension (L*W*H) 1540*866*1750mm
Load Bearing 35Kg
Accuracy X and Y-axis ≤(3+L/200)μm
Z-axis ≤(4+L/200)μm
Grating High-precision Linear Scale (GSI); Resolution: 0.5μm
CCD HIKVISION
Optical System Automatic zoom lens; Optional laser for thickness and flatness
Lighting Program-controlled LED ring surface and contour light
Detailed Photos

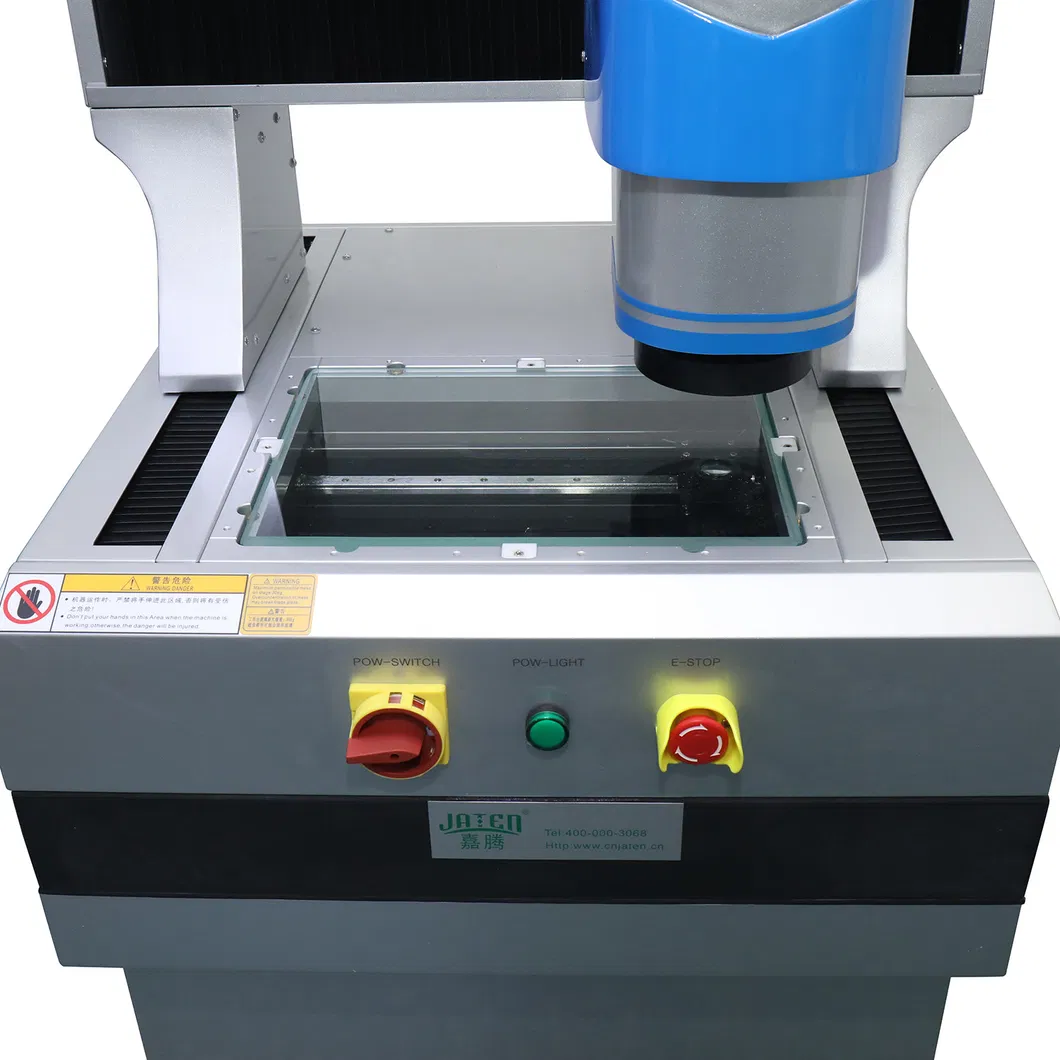

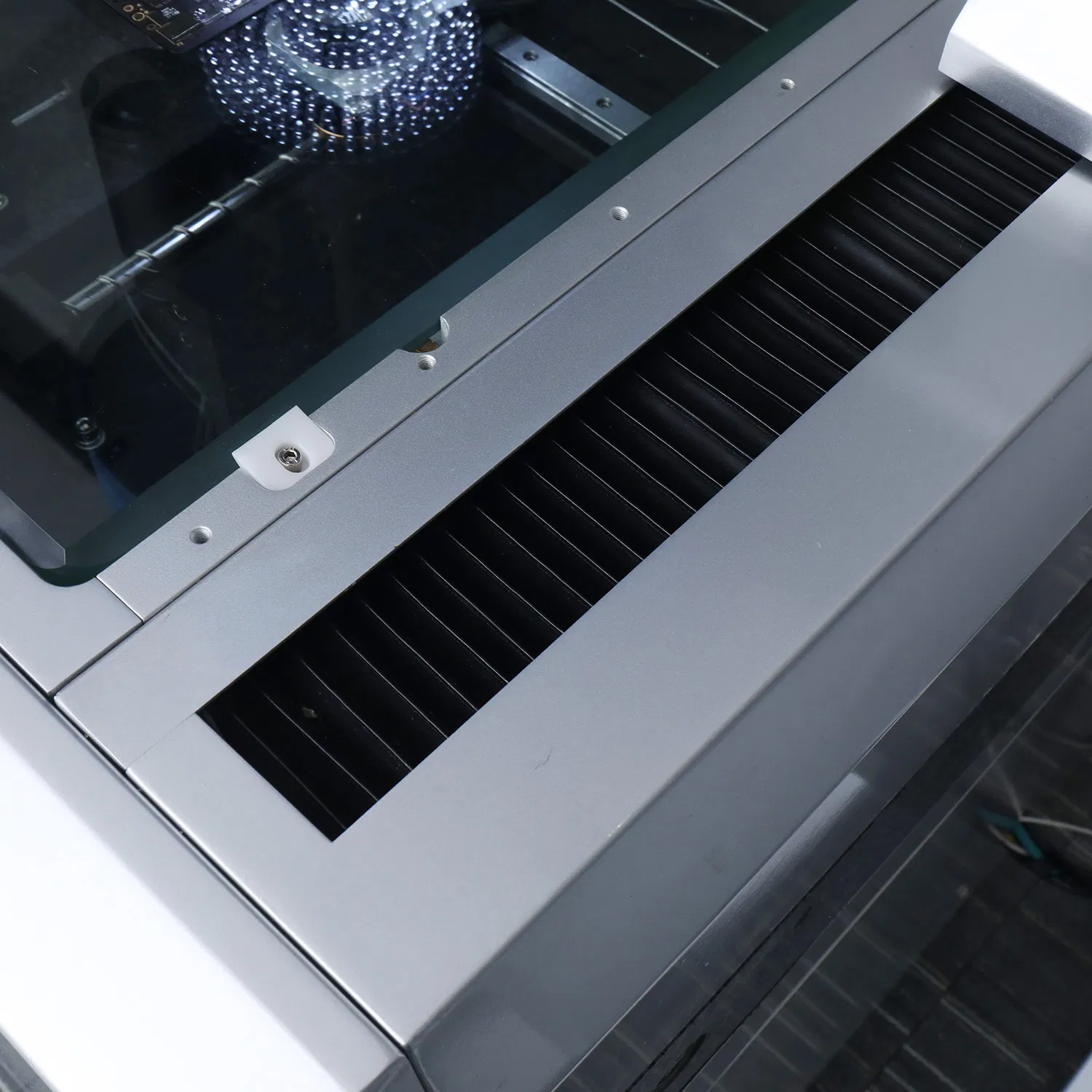

Vision Measurement System

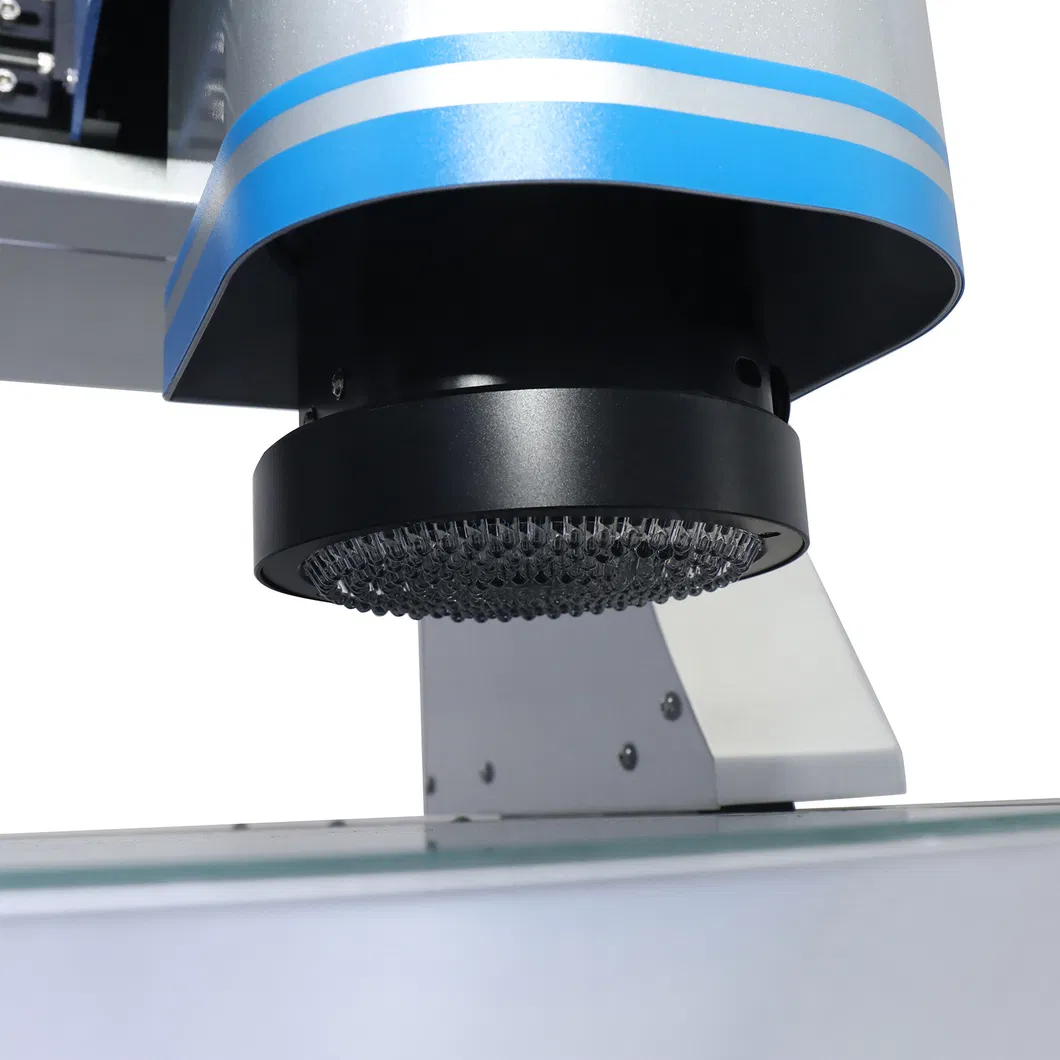

Dimensional Analysis

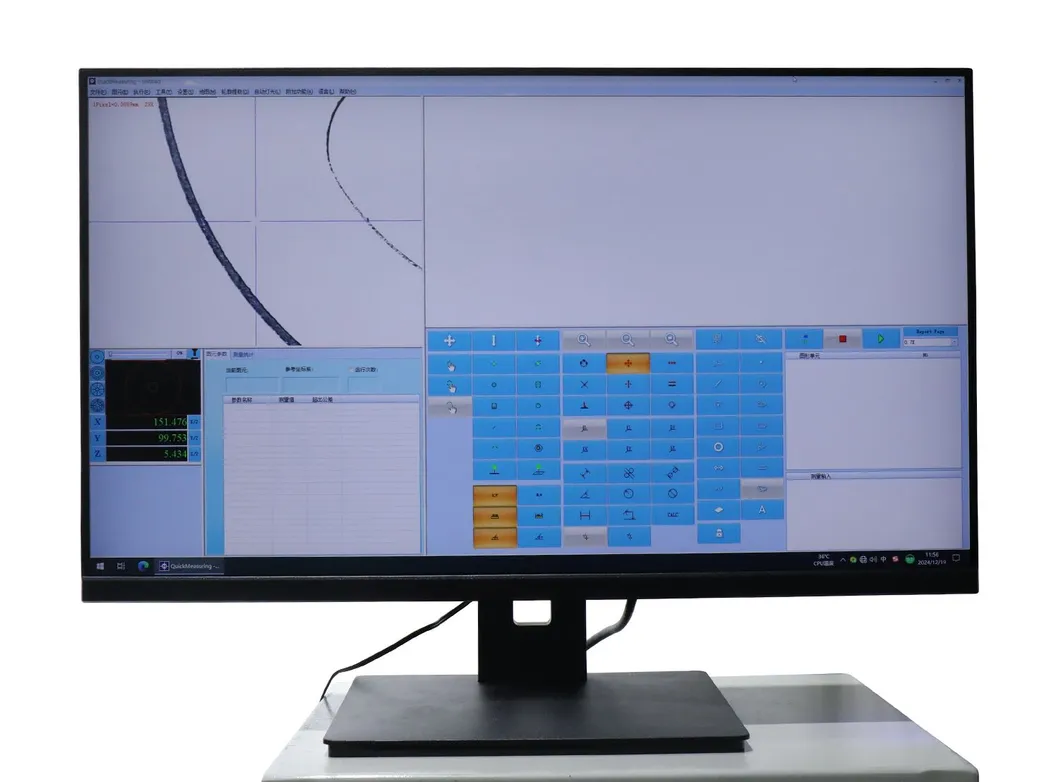

Defect Detection
Industry Overview

Founded in 2005, our manufacturing facility is a leader in precision measurement and automation solutions. We specialize in 2D dimensional testing via advanced vision measuring systems, offering models ranging from manual to fully automated configurations.

Industries Served: Our equipment is integral to mold manufacturing, injection molding, automotive parts, watch components, stamping parts, and the wire & cable industry, as well as educational and research institutions.

Industrial Application
Training and Support
Frequently Asked Questions
What types of measurement equipment are available?
We provide Vision Measuring Machines (manual and fully automatic), Measuring Projectors, and customized Automation Solutions. Our systems support 2D testing and can be upgraded with probes for 3D measurements.
Which industries benefit most from these solutions?
Our solutions are widely used in automotive parts, mold manufacturing, electronics (injection molding), medical components, and precision stamping industries.
How is the accuracy of the equipment ensured?
Accuracy is maintained through high-precision optical components (like GSI scales), stable marble structures, and advanced QuickMeasuring software calibration processes.
What kind of after-sales support is offered?
Comprehensive technical support is provided, including installation guidance, on-site or remote training, and troubleshooting to ensure operational efficiency.
Is the software easy to use for automated detection?
Yes, the dedicated automatic measurement software allows for programmable detection, which significantly improves inspection speed and repeatability for mass production.
What is the standard payment and shipping term?
Standard practice involves 100% TT (telegraphic transfer) payment before shipment to ensure secure and timely delivery of the precision instruments.
