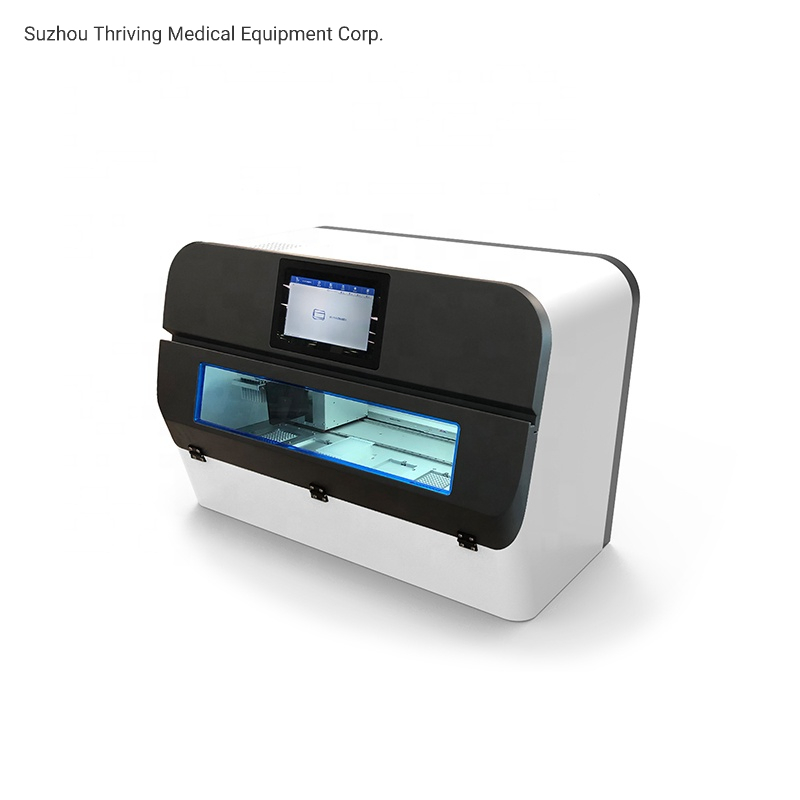

Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
1 / 5
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)
Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)

Rapid Automatic Nucleic Acid Extraction System Open System for Sale (THR-NA96)

Customization: Available
Classification: Biological Diagnostics
Type: Nucleic Acid Extraction System
Send Inquiry

Product Description

Basic Information
Model NO. THR-NA96
Certification CE
Power Supply AC100-240V 50Hz/60Hz
Operating System Windows System
Storage Capacity >1000 Programs
Specification 1138*733*1028MM
Origin China
Product Description

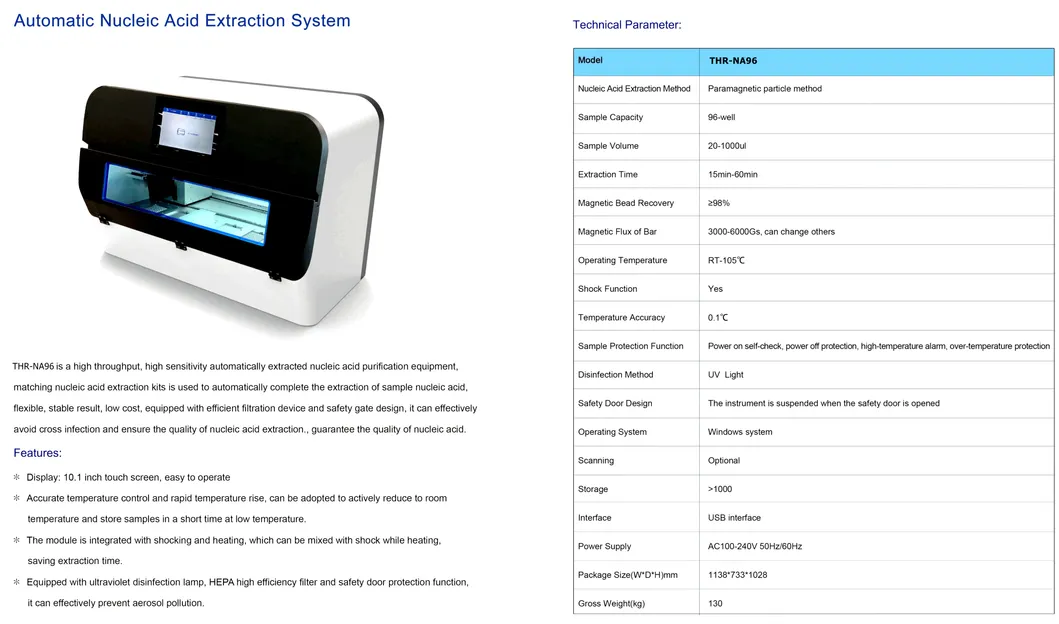

Nucleic Acid Extraction System
THR-NA96 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment. Matching nucleic acid extraction kits are used to automatically complete the extraction of sample nucleic acid. It offers a flexible, stable result with low cost, equipped with an efficient filtration device and safety gate design. It can effectively avoid cross-infection and ensure the quality of nucleic acid extraction.
System Features
Key Features:
  • Display: 10.1 inch touch screen, easy to operate.
  • Temperature Control: Accurate control and rapid rise; actively reduces to room temperature for short-term sample storage.
  • Integrated Module: Integrated shocking and heating allows mixing while heating, saving extraction time.
  • Safety Protection: Equipped with UV disinfection lamp, HEPA high-efficiency filter, and safety door protection to prevent aerosol pollution.
Technical Specifications
Parameter Value
Sample Capacity96-well
Sample Volume20-1000ul
Extraction Time15min-60min
Magnetic Bead Recovery≥98%
Magnetic Flux of Bar3000-6000Gs (Customizable)
Operating TemperatureRT-105ºC
Shock FunctionYes
Temperature Accuracy0.1ºC
Disinfection MethodUV Light
Safety DesignInstrument suspends when safety door is opened
Storage>1000 Programs
Gross Weight70kg
Detailed Photos

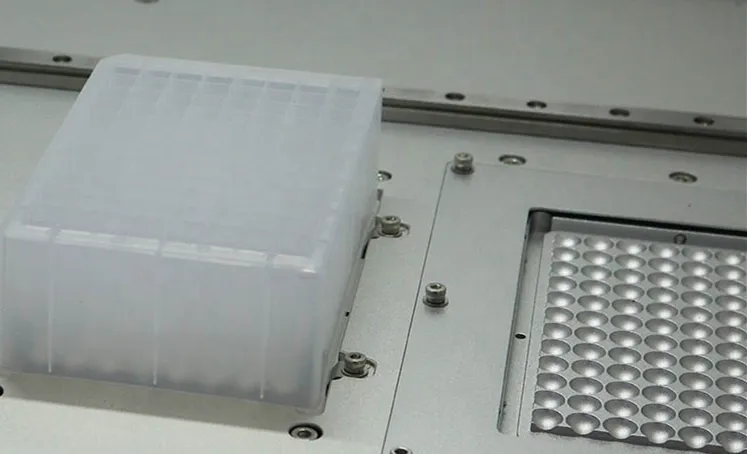

Internal Structure 1

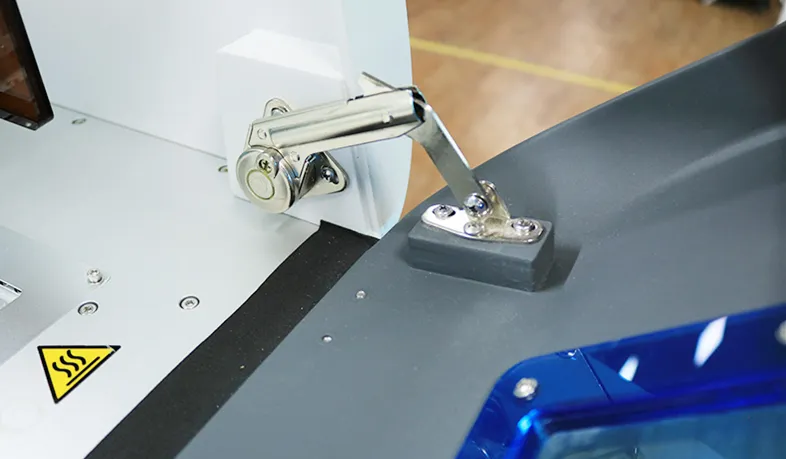

Internal Structure 2

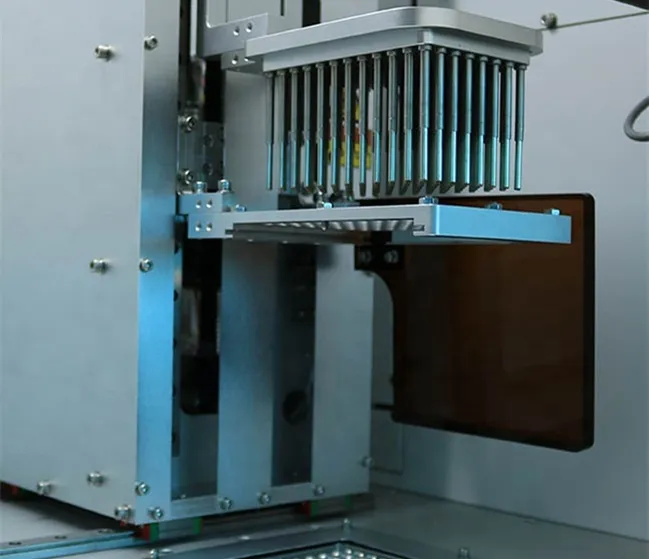

Detail 3
Detail 4
Related Medical Equipment
Related Medical Products
Packaging & Shipping

Packaging Details:

  • Standard Cartons packaging.
  • Customized packaging available upon request.

Shipping Options:

  • International Express: DHL, TNT, FedEx, EMS.
  • Sea Transportation & Air Transportation.
  • Customer-specified shipping agents are welcomed.
Packaging Box
Frequently Asked Questions (FAQ)
What is the sample capacity of the THR-NA96?
The system features a 96-well sample capacity, allowing for high-throughput processing.
How long does the nucleic acid extraction process take?
The extraction time typically ranges between 15 to 60 minutes, depending on the specific protocol used.
What safety measures are integrated into the machine?
The instrument includes a safety door design that suspends operation when opened, UV disinfection lamps, HEPA filtration, and high-temperature alarms.
What is the recovery rate for magnetic beads?
The system achieves a high magnetic bead recovery rate of ≥98%.
Which operating system does the device use?
The device is powered by a Windows-based operating system and is controlled via a 10.1-inch touch screen.
Can the system store multiple extraction protocols?
Yes, the system has internal storage capable of saving more than 1,000 different extraction programs.
