| Model NO. | PCR-RFQ164I; PCR-RFQ164II |
| Certification | CE, ISO 9001/14001/45001 |
| Sample Capacity | 16 |
| Maximum Ramping Rate | 10.0 degree/s |
| Fluorescence Channels | 4 (MAX) |
| Temperature Range | 4-100 degree |
| Excitation Light | Single LED |
| Detection Method | Time-resolved real-time scanning |
| Data Connection | USB, bluetooth |
| Origin | China |

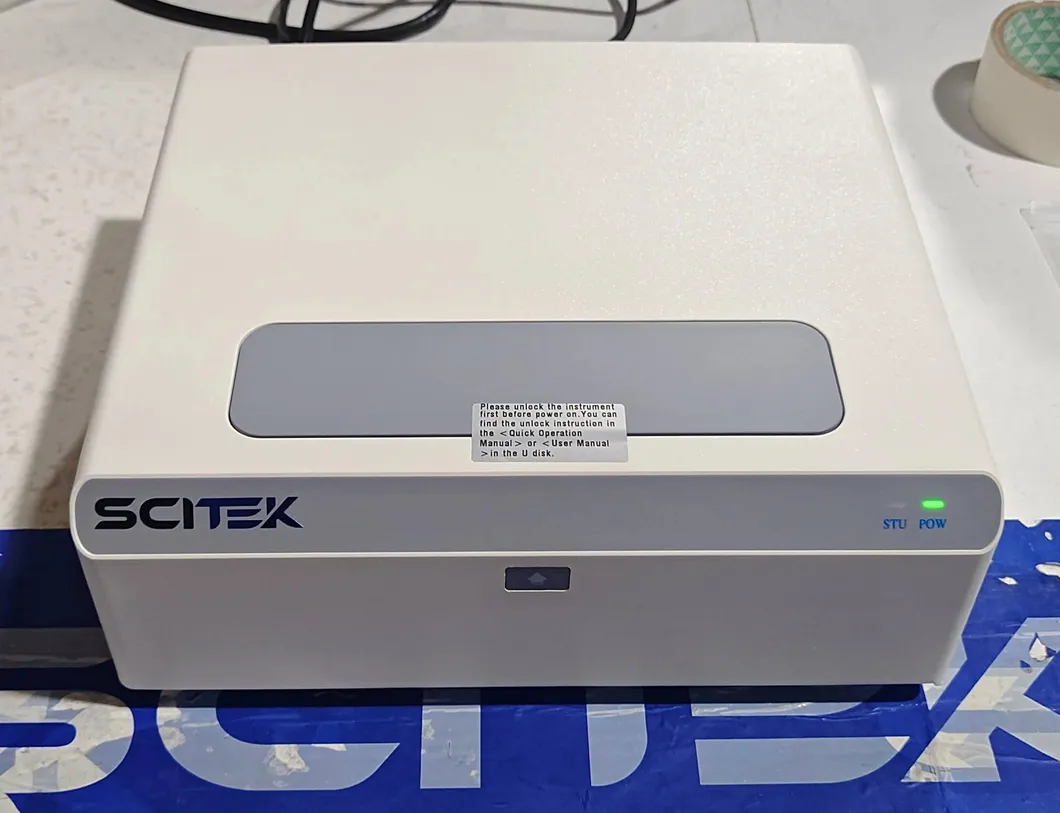

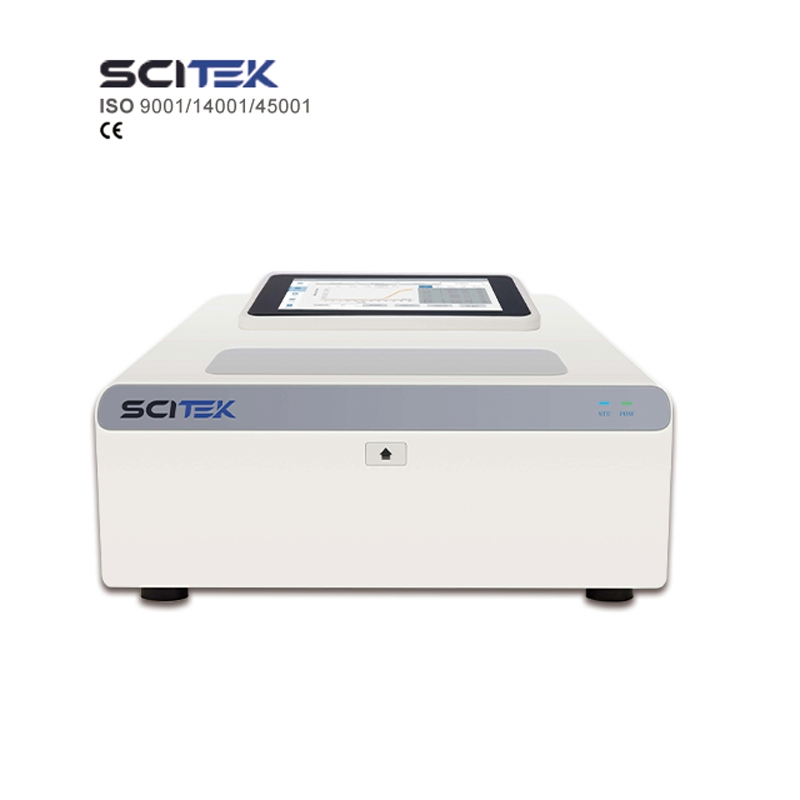

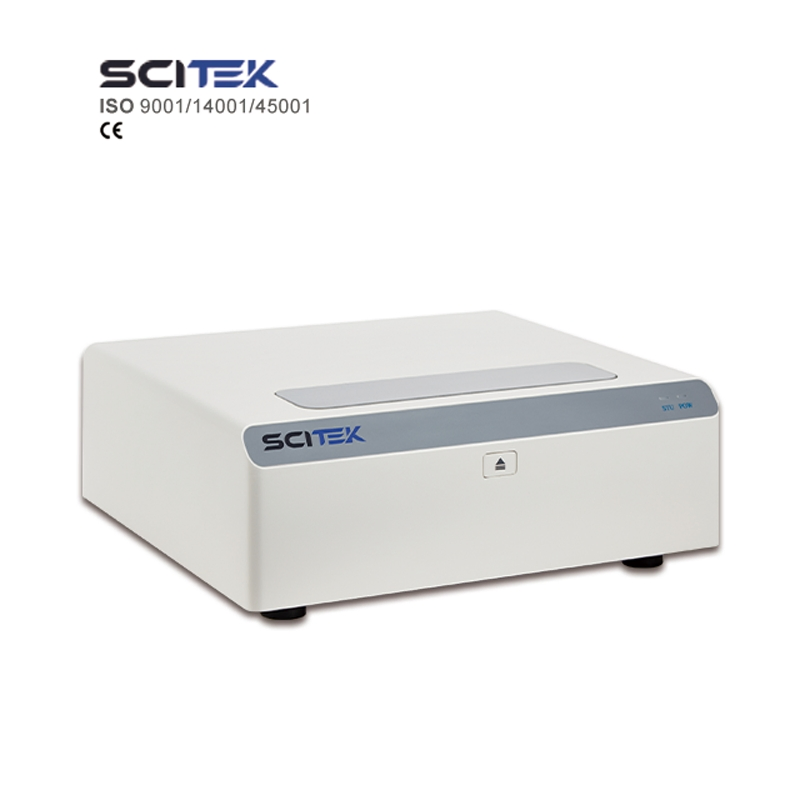

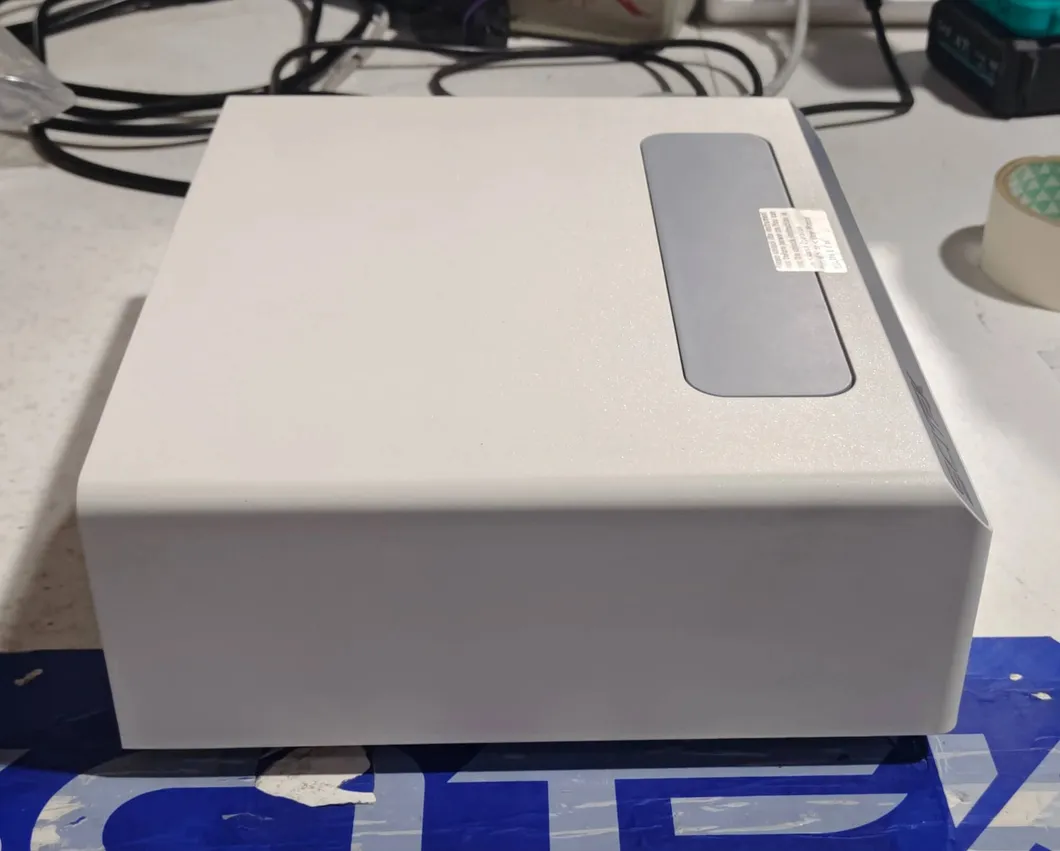

The PCR-RFQ164I/II is an easy-to-use 16-well real-time quantitative PCR detection system. Its compact design occupies a minimal footprint, making it ideal for various laboratory settings.
Equipped with 4 fluorescence channels as standard (customizable to 2 or 5 channels), this instrument is widely utilized in biological research, human pathogen diagnosis, food safety testing, and agricultural pathogen detection.
| Model | PCR-RFQ164I | PCR-RFQ164II |
|---|---|---|
| Type | Real-Time QPCR | Real-Time QPCR |

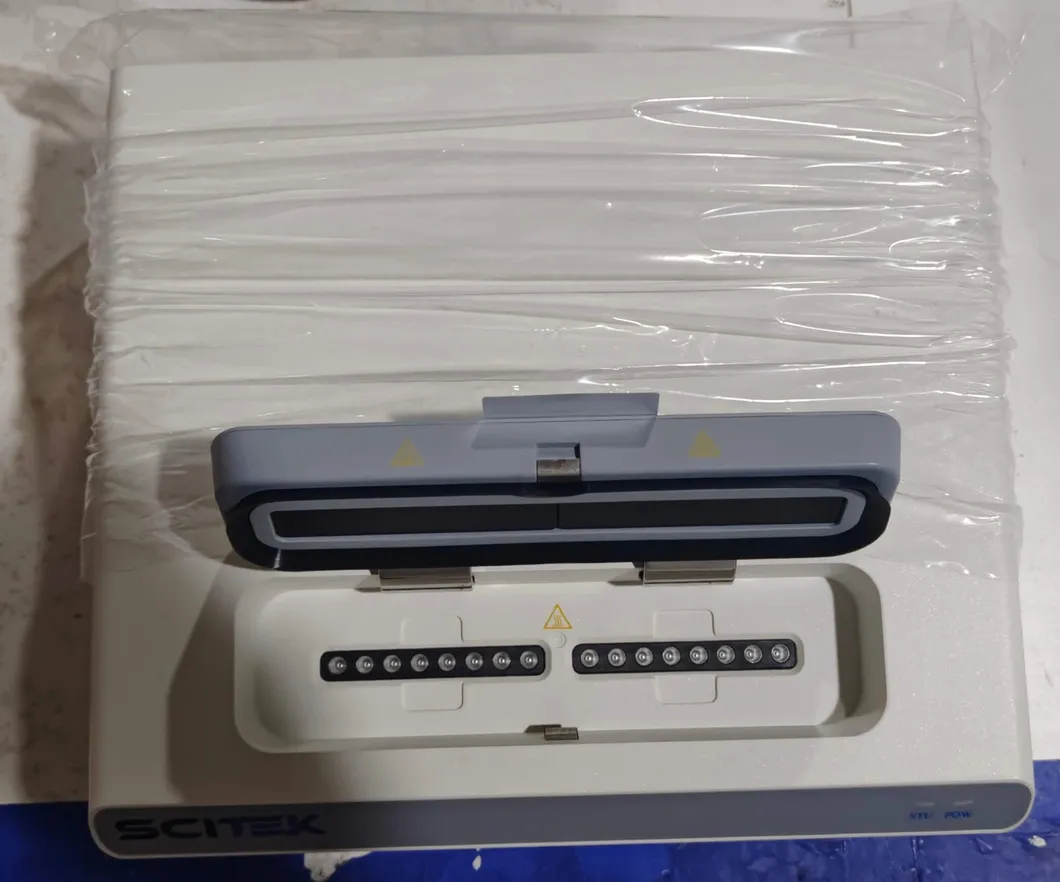

| Sample Capacity | 16 Wells | 16 Wells |
| Compatible Consumables | 0.1mL Clear tube | |
| Max Ramping Rate | 10.0° C/s | |
| Temp Range / Accuracy | 4-100 °C / ± 0.1°C | |
| Detector | PMT | |
| Supported Dyes | FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ | |
| Operation Mode | PC Controlled | 7-inch Touch Screen |
| Weight (Net) | 5.7Kg | 5.7Kg |
| Dimensions (mm) | 300 x 260 x 110 | |
| Food Safety & Surface Testing | Veterinary & Agriculture | Human Pathogen Detection |
|---|---|---|
| Mycotoxins, Allergens, Pathogen contamination, Coronavirus surface testing. | Pathogen testing for Poultry, Pigs, Cattle, Sheep, Horses, and Pets. | Respiratory infections, STD, Herpes virus, Hepatitis, HPV, Gastrointestinal infections. |
