Advanced Triaxial Testing System for Soil and Rock Analysis

Send Inquiry

Product Description

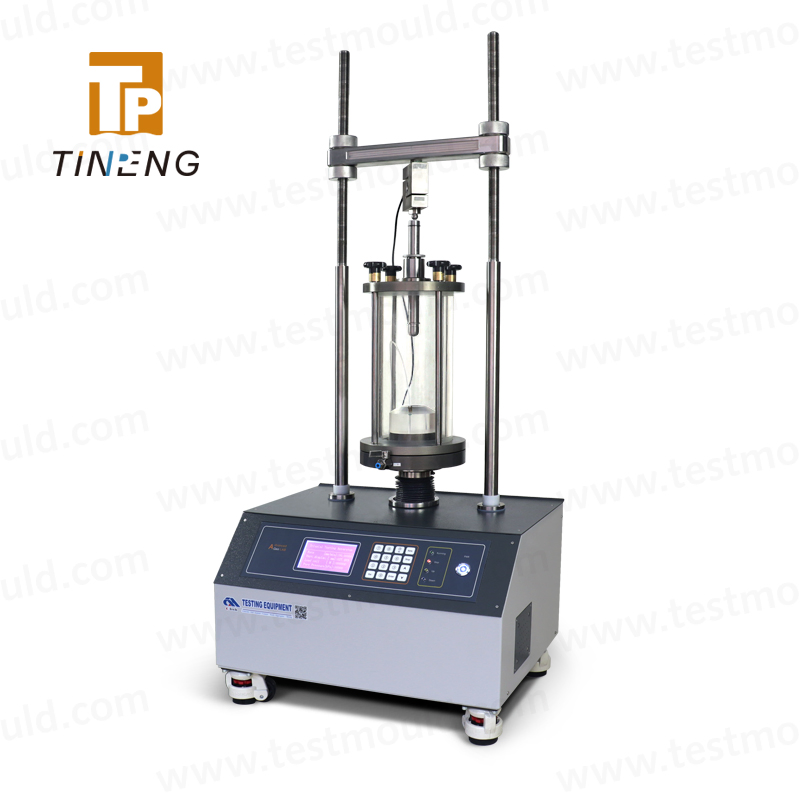

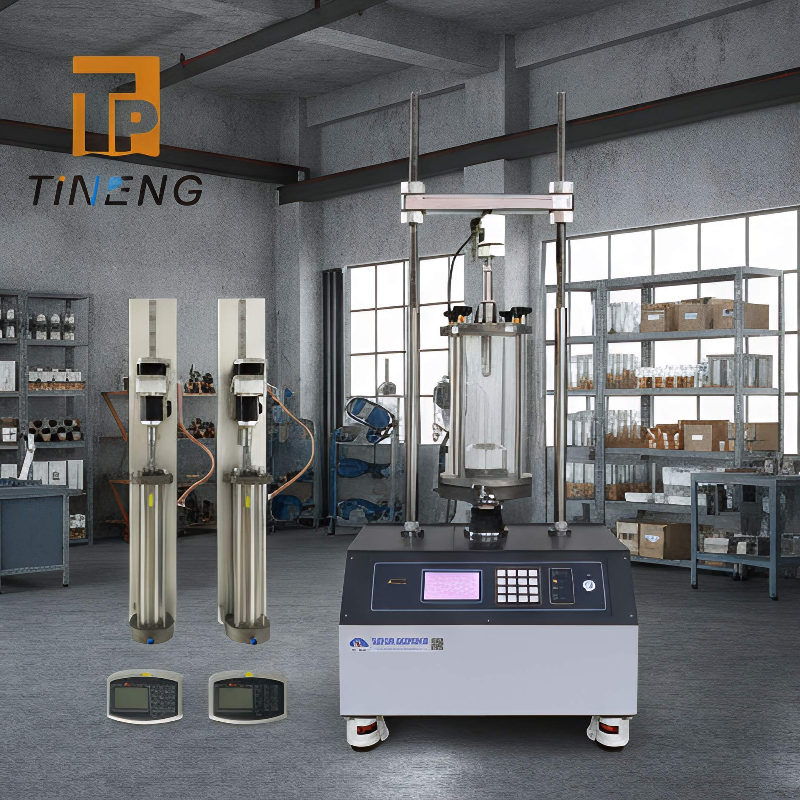

Fully Automatic Triaxial Testing Apparatus

The Fully Automatic Triaxial Testing System Apparatus model adopts the most advanced technology, integrating mechanics, electronics, fully-automated control, and automated sensor checking.

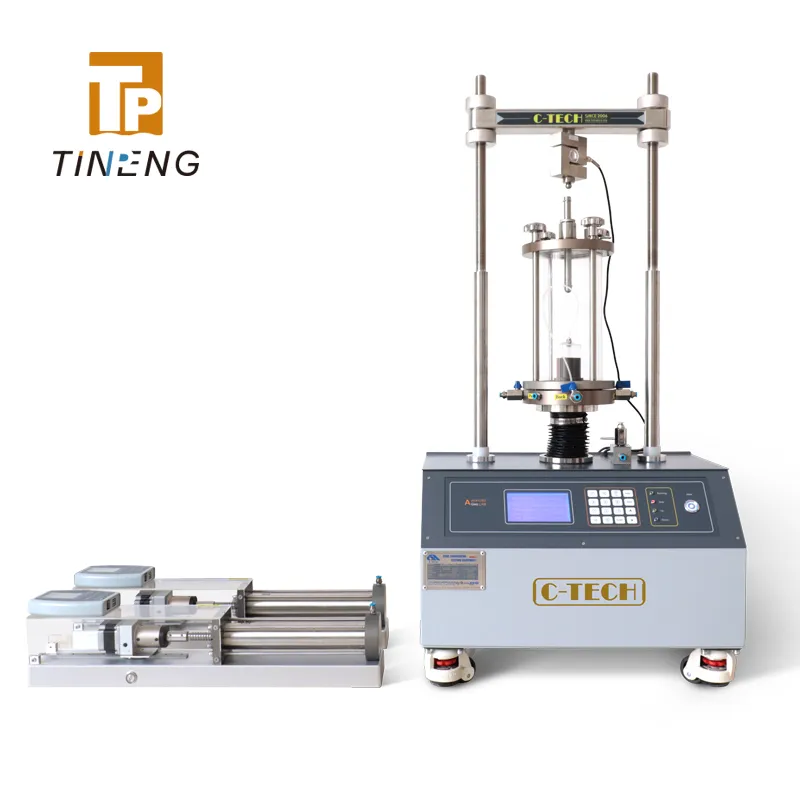

The device consists of a Triaxial Loading Frame, Advanced Pressure Volume Controller (APVC), Triaxial Cell, various sensors, temperature control devices, and professional control software. The Triaxial Loading Frame is designed to function as part of a computer-controlled system or as a stand-alone unit.

⚙️TEST-CONTROL MODULES

Data Acquisition Module
Standard Saturation and Consolidation Module (B check, Isotropic consolidation, Saturation ramps)
Standard Triaxial Testing Module (U-U, C-U, C-D tests)
Post-processing module

🏗️TRIAXIAL LOAD FRAME

The frame features high rigidity, durability, and low noise operation using a stepper motor and gear drive system. It includes upper/lower limit devices, high-precision displacement sensors, and overload protection to ensure safety and accuracy during axial load measurements.

📊Technical Specifications

TRIAXIAL LOAD FRAME TSZ-5T
Maximum Axial Force	50 kN
Chamber Size	Ø 38mm x76mm (H) & Ø 50mm x100mm (H)
Testing Speed Rate	0.00001 - 9.99999 mm/min
Precision	+/- 0.1% F.S.
Displacement Measuring Range	25mm (0.01mm accuracy)
Max Vertical/Horizontal Clearance	500mm / 300mm
Power Supply	110-240V, 50Hz

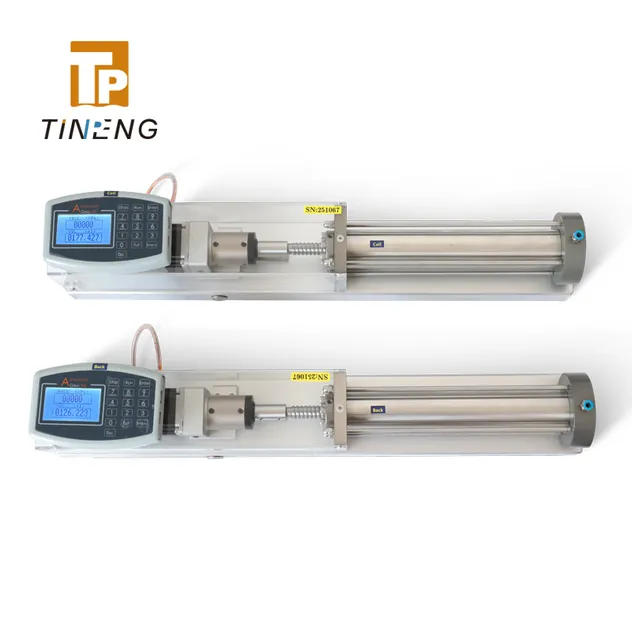

PRESSURE/VOLUME CONTROLLER (2MPa/200cc)
Connection Interface	USB port
Display	192×64 LCD display
Confining Pressure	2MPa (Regulated to 1kPa)
Volume Change	200cc (Measured to 0.001ml)

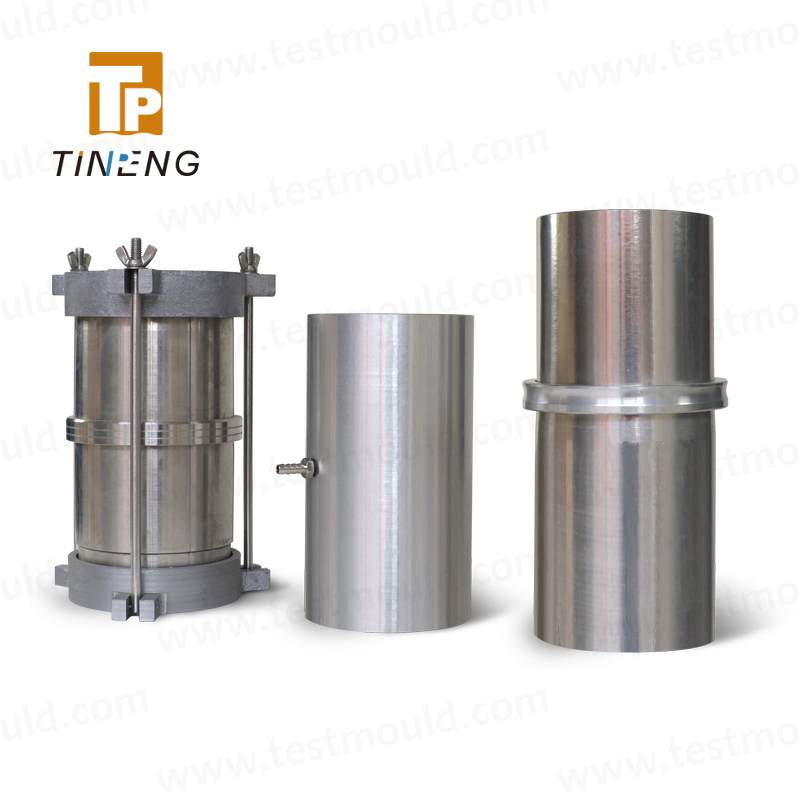

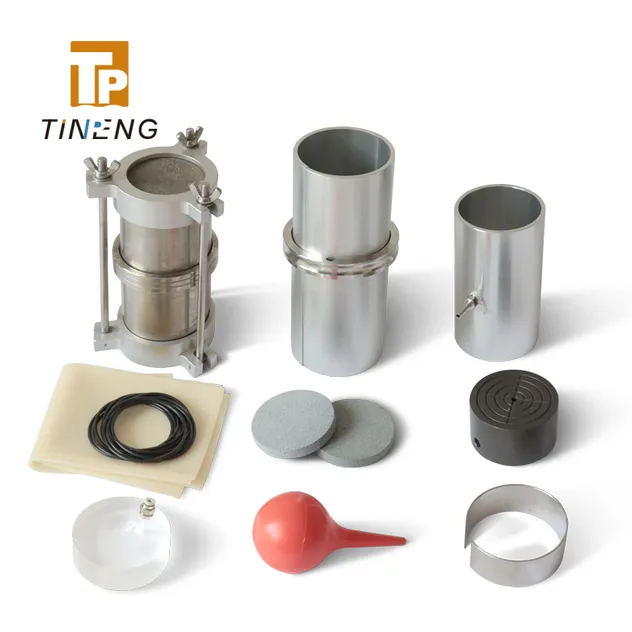

TRIAXIAL CELL (TPS-YLS50)
Sample Size	50/70mm
Maximum Cell Pressure	2000kPa
Weight	12kg

🏆Quality and Certification

❓Frequently Asked Questions

1. What is the standard purchase process? Orders can be initiated via email or phone. We provide an invoice with payment details, and once payment is confirmed, we arrange the immediate delivery of the goods.

2. What payment methods are accepted? We accept payments via professional B2B online shops, L/C at sight, and standard bank transfers. Delivery is typically processed after payment is received.

3. What is the expected delivery time? If items are in stock, delivery occurs within three working days. For international courier express, the typical transit time is 5 to 7 days.

4. How are freight costs calculated? Freight costs are determined based on the specific delivery destination and the dimensions of the order.

5. Is product quality affected during long-distance transportation? No, the equipment is designed for high stability. Quality remains unaffected during 2 to 3 weeks of transportation at room temperature.

6. Are there discounts for frequent orders? While we generally maintain standard pricing for initial purchases, we offer specific discounts for long-term cooperation and repeat orders.
