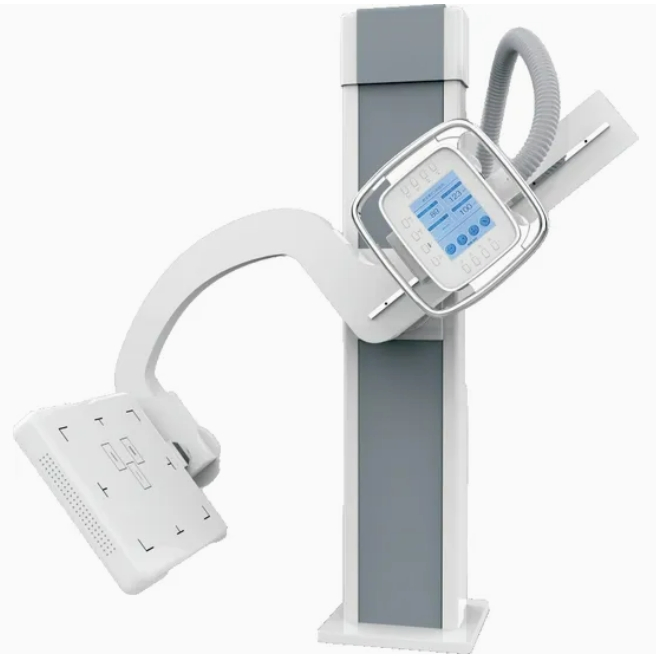

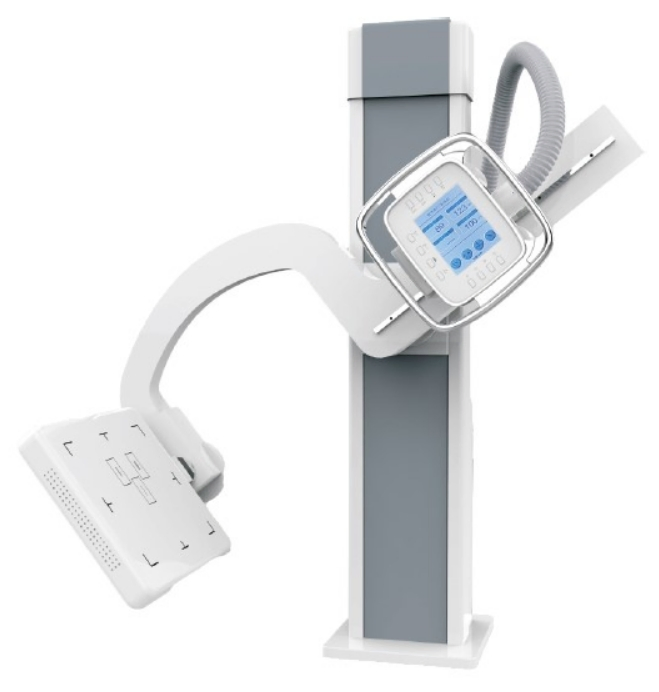

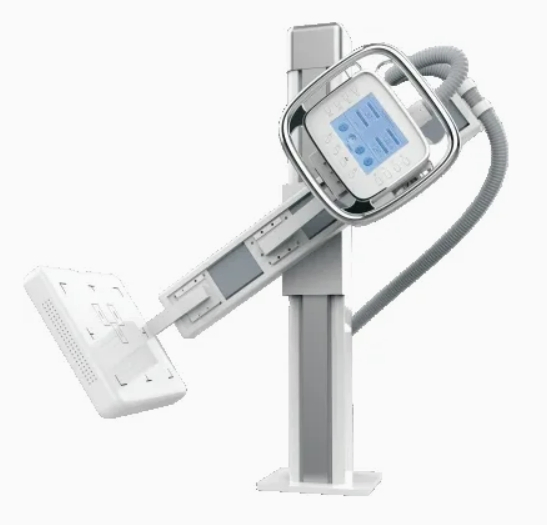

UC Arm Digital Radiography X-ray Imaging Medical Diagnostic System

Customization: Available
Customized: Non-Customized
Certification: CE

Product Description

Basic Information
Model NO.:HXDR-50U
Scale:Medium
Transport Package:Carton
Specification:HXDR-50U
Trademark:Nice
Origin:China
Product Features
  • Flexible System: Exquisite and flexible UC-arm System with large movement range and angle to meet clinical needs.
  • Sharp Detection: High sensitivity full-size detector with intelligent control for precise imaging.
  • Precision Ray: High-quality high-frequency X-ray generator providing high image quality in a small volume.
  • UC-Arm System: Full electric control and full angle rotation for shooting without dead angles.
  • Advanced SID: Large-scale SID adjustment to accommodate various clinical requirements.
  • High-performance Imaging: Automatic optimization of image acquisition and post-processing.
  • DICOM Support: Seamless connection with RIS / HIS / PACS for high-speed storage and query.
Digital Radiography System 1 Digital Radiography System 2 Digital Radiography System 3
Product Layout
Technical Specifications
I. High-frequency High-voltage Generator
Max Output:50kW
Input Power:380VAC three-phase
Output Voltage:40~150kV
Tube Current:10~800mA
mAs Range:0.1mAs~1000mAs
Control:Support AEC and APR
II. X-ray Ball Tube Assembly
Focus Design:0.6mm/1.2mm
Electric Power:22kW/54kW
Max KV:150kV
Target Angle:12°
III. Frame UC (Mechanical)
Rotation Angle:-30° ~ 120°
Vertical Move:430~1700mm
SID Range:1000~1800mm
Detector Angle:-30° ~ +30°
Capabilities & Experience

We are a leading supplier of one-stop solutions for X-ray equipment, widely serving medical, dental, veterinary, and industrial imaging applications. Our expertise spans from high-performance flat panel detectors and generators to scintillators, X-ray tubes, and comprehensive DR software solutions. We aim to provide cost-effective, high-value imaging technology compatible with global market needs, supported by dedicated research and development laboratories.

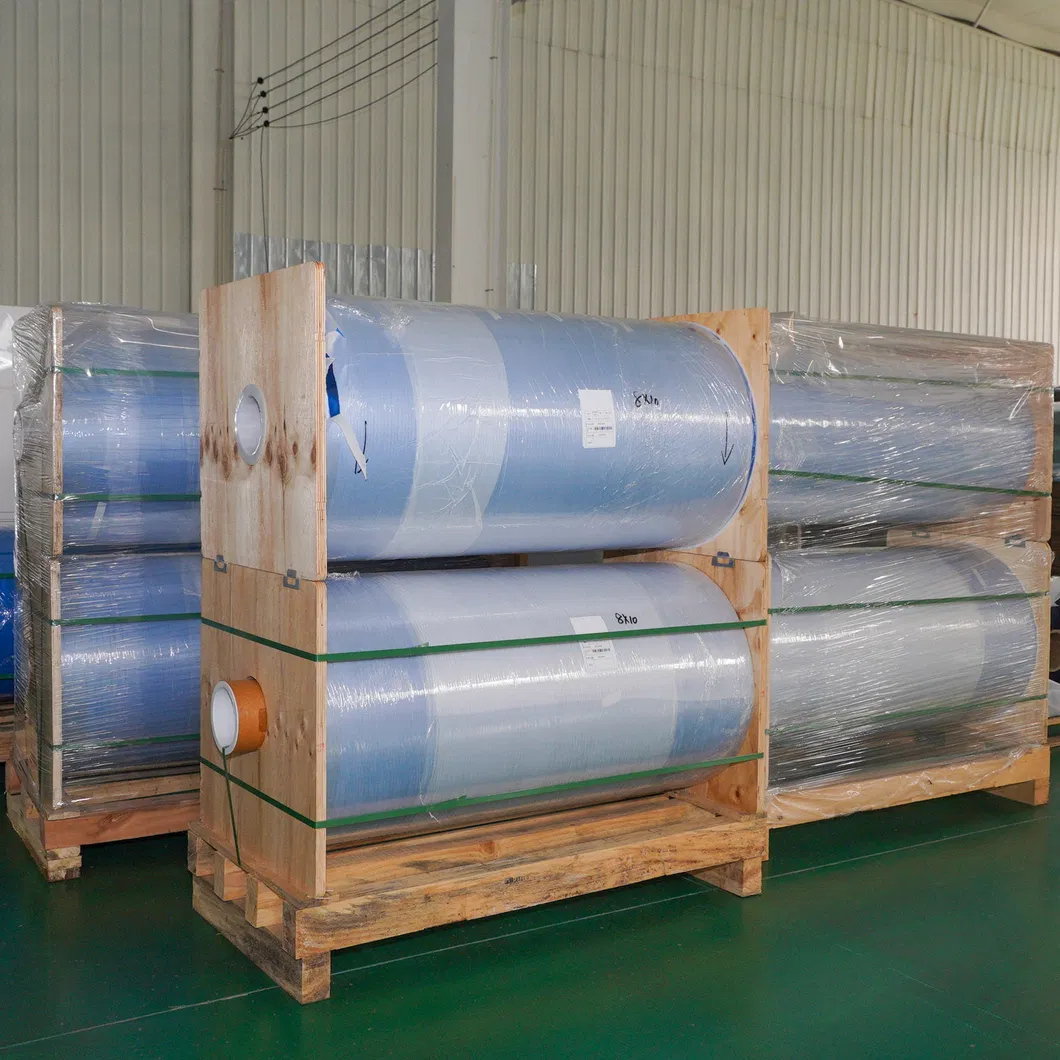

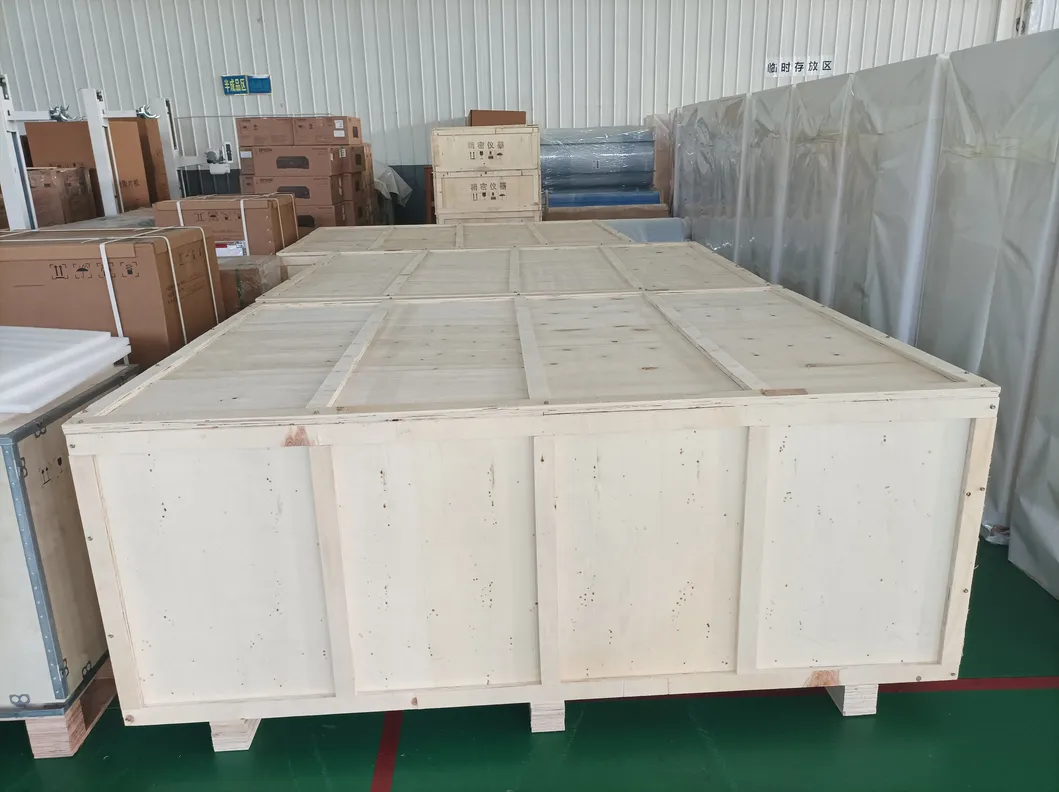

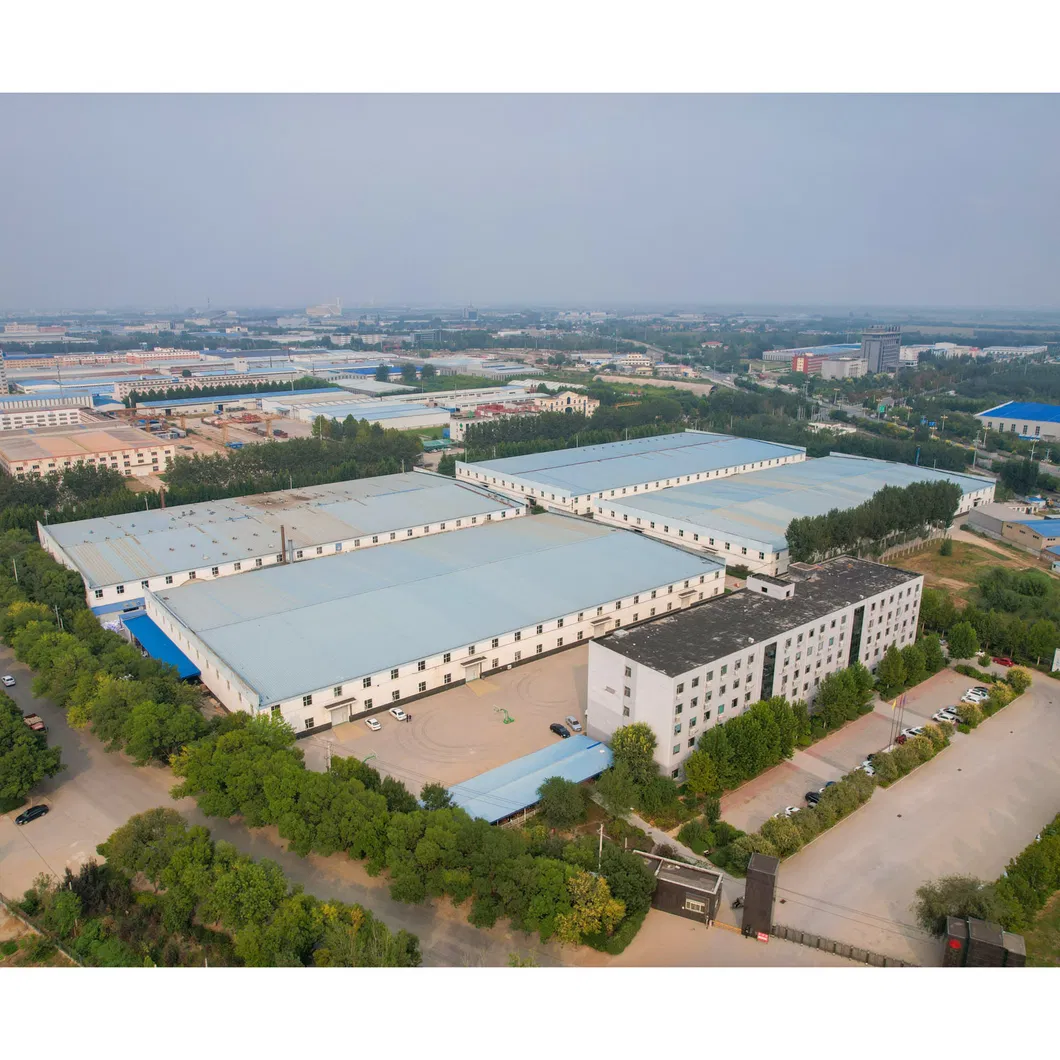

Production Facility Quality Control System Testing Equipment Display
Certifications
Cert 1 Cert 2 Cert 3
Frequently Asked Questions
Q1: What is the maximum power output of the HXDR-50U generator?
The system features a high-frequency high-voltage generator with a maximum output power of 50kW.
Q2: Does this system support hospital information network integration?
Yes, it provides full support for the DICOM protocol, ensuring seamless connection with RIS, HIS, and PACS systems.
Q3: What is the movement range for the UC Arm?
The UC Arm offers a rotation angle range from -30° to 120° and a vertical movement range from 430mm to 1700mm.
Q4: Can the SID (Source-to-Image Distance) be adjusted for different procedures?
Yes, the SID can be horizontally adjusted between 1000mm and 1800mm to meet various clinical needs.
Q5: What are the focal spot sizes for the X-ray tube?
The X-ray ball tube assembly is designed with dual focus points: 0.6mm and 1.2mm for optimized image detail.
Q6: Is the detector adjustable?
Yes, the detector includes a rotation angle range of -30° to +30° for flexible patient positioning.
